Product Details
Introduction

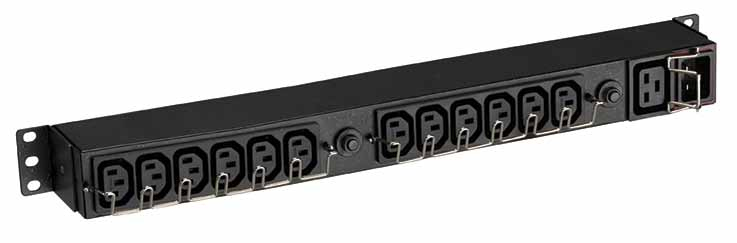

These basic rack PDUs are versatile, flexible power strips intended to provide more connection options when using rackmount UPSs. The FlexPDU series is compatible with any UPS below 3 kVA and is the perfect power distribution option for the Evolution, EX and M series while the high voltage PDUs are compatible with the EX RT UPS series. These PDUs offer multiple mounting options for rack enclosures, wall mounting or connection at the rear of the UPS.
Design
PDU types
Basic
Type
Single-phase
Form factor
Rackmount
Rack mounting
Y
Rack capacity
1U
Mounting
Horizontal/Vertical
Product colour
Black
Cable colour
Black
Ports & interfaces
AC outlets quantity
13 AC outlet(s)
Power plug
C20 coupler
AC outlet types
C13 coupler
Output connections
12 x C13 & 1 x C19
Features
Certification
CE
Power
Nominal input voltage
230 V
AC input frequency
50/60 Hz
Maximum current
13 A
Nominal output voltage
230 V
Load capacity
3000 VA
Maximum input current per phase
13 A
Maximum power
3000 W
Weight & dimensions
Width
483 mm
Depth
80 mm
Dimensions (WxDxH)
439 x 58.5 x 43.4 mm
Height
44 mm
Weight
1.7 kg
Size (imperial)
48.3 cm (19")
Packaging data
Package weight
9.5 kg
Package width
180 mm
Package depth
448 mm
Package height
58 mm
Packaging content
Rack mount kit
Y
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Technical details
Sustainability certificates
RoHS
Information
| Part Number: | EFLX12I |
