Introduction

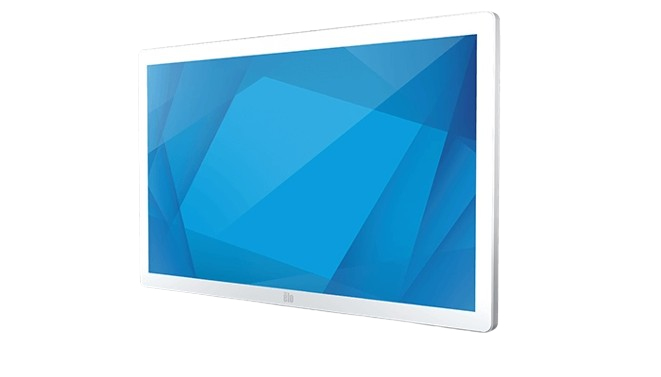

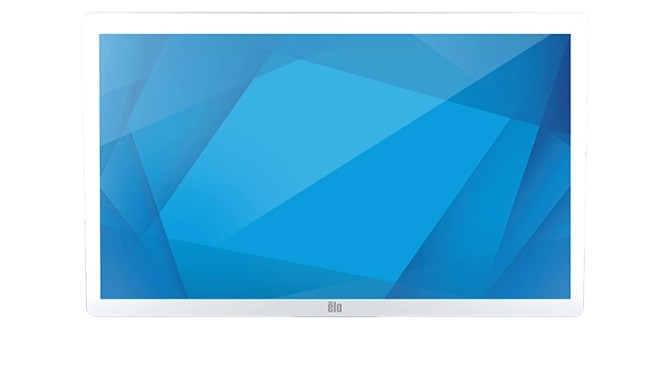

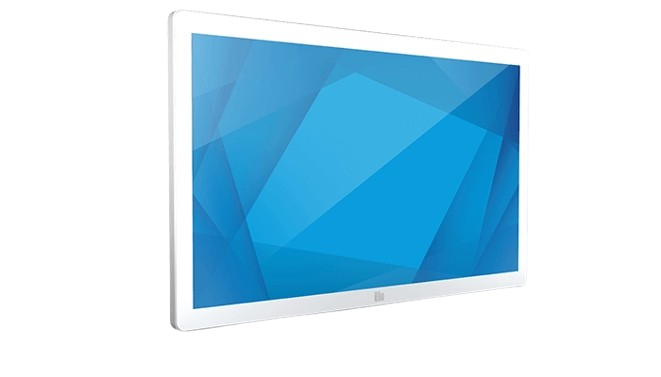

DICOM Medical Grade Touchscreen Monitors
The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.
Easy to Clean
Increase safety for healthcare providers and patients with the easy-to-clean touchscreen displays.
DICOM 14 - Designed for Consistent Image Review
Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.
Enhancing Clinical Workflow with Touch
From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.
Enhancing Clinical Workflow with Touch
From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.
Purpose-built for Healthcare
The 03-Series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.
Medical Device Ready
With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.
Configurability Made Easy
Flexible Mounting
Every monitor is designed with VESA hole patterns to simplify mounting onto a variety of stands, arms, walls or medical carts.
Privacy Matters
Optional privacy filters offer an additional safeguard when reviewing private health information or sensitive administrative data.
Ergonomic
Optional handles can be added to easily move or rotate the display to a comfortable orientation.
Processor special features
Intel VT-x with Extended Page Tables (EPT)
Touchmonitor
Quick Install Guide
3x Tie wraps
VGA cable
HDMI cable
Touch USB cable
Audio cable
Power brick (E323104)
NA Power cable
EU Power cable
EEI Label
DICOM calibration sheet
4 x VESA Screws (only for E381654 and E381844)
4 x rubbers (only for E381654 and E381844, affix to VESA holes)
2 x Cable cover screws
Display
Display diagonal
68.6 cm (27")
Display resolution
1920 x 1080 pixels
HD type
Full HD
Native aspect ratio
16:9
Display technology
LCD
Panel type
TFT
Touchscreen
Yes
Touchscreen technology
Projected capacitive system
Number of simultaneous touchpoints
10
Response time
14 ms
Anti-glare screen
Yes
Screen shape
Flat
Supported graphics resolutions
640 x 400, 640 x 480 (VGA), 720 x 400, 800 x 500, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Contrast ratio (typical)
1000:1
Maximum refresh rate
70 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.7 million colours
Horizontal scan range
30 - 82 kHz
Vertical scan range
50 - 75 Hz
Viewable size, horizontal
59.8 cm
Viewable size, vertical
33.6 cm
Display diagonal (metric)
68.6 cm
Display brightness
300 cd/m²
Multimedia
Built-in speaker(s)
Yes
Built-in camera
No
RMS rated power
2 W
Design
Market positioning
Medical
Product colour
White
International Protection (IP) code
IP54
Certification
UL: AAMI /ANSI ES60601-1:2005/(R)2012 and A1:2012, C1:2009/(R)2012 and A2:2010/(R)2012/IEC 60601-1 Ed. 3.1
cUL: (CAN/CSA-C22.2 NO. 60601-1:14 /IEC60601-1 Ed. 3.1
CB: IEC 60601-1:2005+A1:2012 (Ed. 3.1)
CE: IEC 60601-1-2:2014 (Ed. 4)
Risk Management: ISO 14971:2007 + EN ISO 14971:2012
Usability: IEC 60601-1-6:2010+A1:2013 (Ed. 3.1), IEC 62366:2007+A1:2014 (Ed. 1.1)
Ports & interfaces
USB version
2.0
VGA (D-Sub) ports quantity
1
HDMI
Yes
HDMI ports quantity
1
Headphone connectivity
3.5 mm
DC-in jack
Yes
Ergonomics
VESA mounting
Yes
Wall mountable
Yes
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages
10
LED indicators
Power
Power
Energy efficiency class (SDR)
E
Energy consumption (SDR) per 1000 hours
21 kWh
Power consumption (typical)
17.37 W
Power consumption (standby)
1 W
Power consumption (max)
22.41 W
Power consumption (off)
0.24 W
AC input voltage
100 - 240 V
AC input frequency
50 / 60 Hz
Energy efficiency scale
A to G
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
10 - 95%
Packaging content
Cables included
HDMI, USB, VGA
Weight & dimensions
Width (without stand)
394.1 mm
Depth (without stand)
44.9 mm
Height (without stand)
647.6 mm
Weight (without stand)
7.13 kg
Packaging data
Package width
520 mm
Package depth
187 mm
Package height
770 mm
Package weight
10.4 kg
Sustainability
Sustainability compliance
Yes
Sustainability certificates
BIS, BSMI, CB, CE, China Compulsory Certification (CCC), China RoHS, EAC, Federal Communications Commission (FCC), KCC, RCM, REACH, RoHS, UKCA, VCCI, WEEE, cUL
European Product Registry for Energy Labelling (EPREL) code
361244
Other features
Display viewable area (HxV)
597.88 x 336.31 mm
Placement supported
Indoor
USB connector type
Micro-USB, USB Type-A, USB Type-B
Power consumption (sleep)
1.006 W
Active display area (W x H)
597.88 x 336.31 mm
USB 2.0 ports quantity
1
USB ports quantity
6
Mean time between failures (MTBF)
50000 h
Technical details
Compliance certificates
BIS, BSMI, CB, CE, China Compulsory Certification (CCC), China RoHS, EAC, Federal Communications Commission (FCC), KCC, RCM, REACH, RoHS, UKCA, VCCI, WEEE, cUL
