Introduction
The touchmonitor just got better.

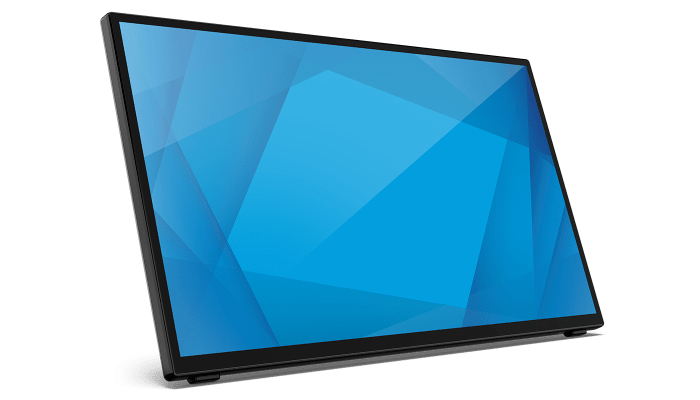

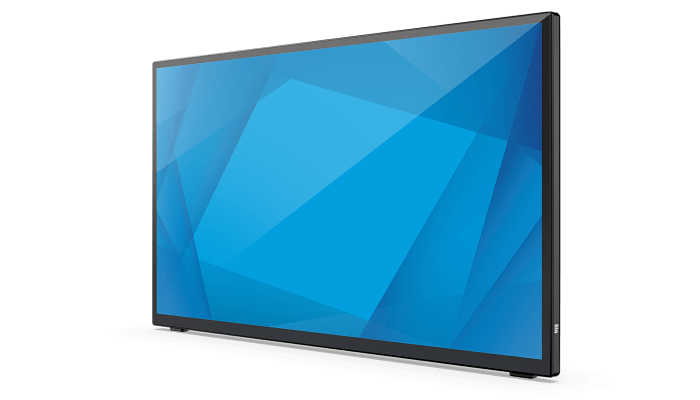

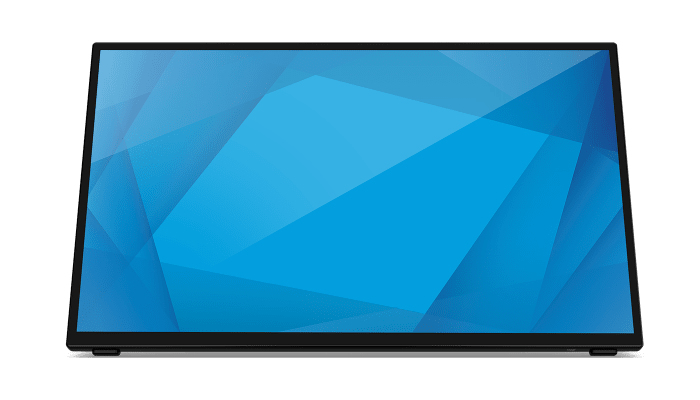

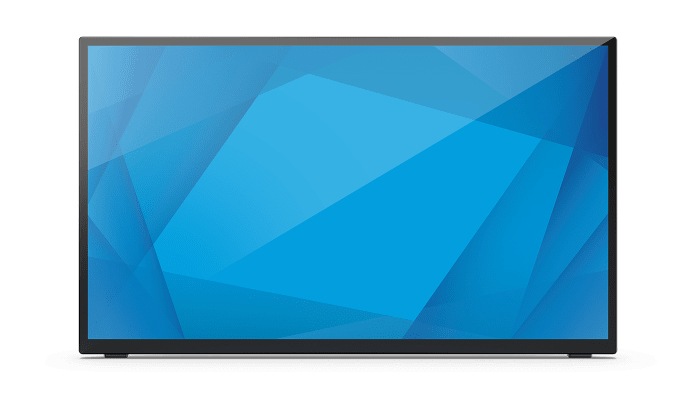

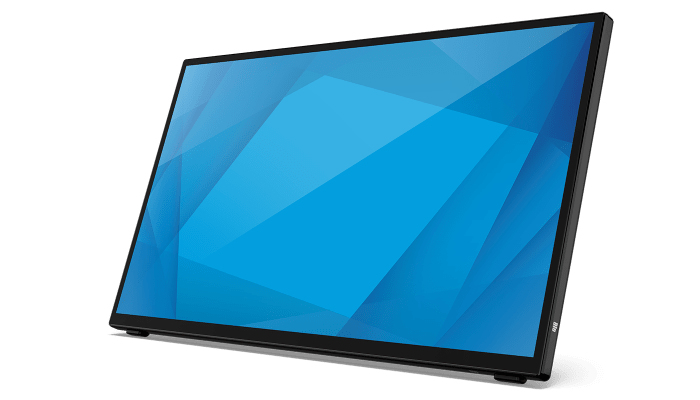

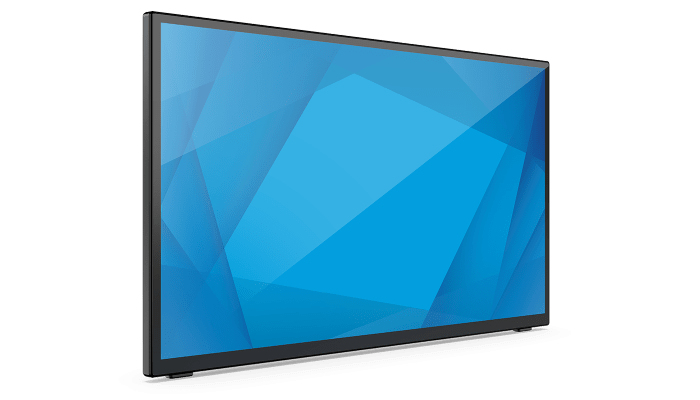

Elo 2470L 24" Full HD Touchscreen Monitor
The bezel just got smaller.
The 2470L 24” touchscreen offers up to a 70% reduction in the bezel compared to similar models.
Minimalistic design to fit any space.
From 20 degrees to 70 degrees, angle the display where you want it.

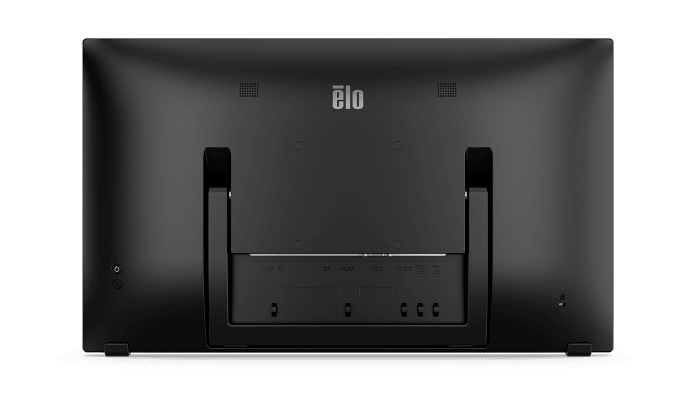

Place it on a desktop, mount it on a wall or configure the 2470L to fit your space with VESA-compatibility.
Scratch-resistant glass surface
- IK07 impact resistant
- ES8.0 certified for greater
- energy efficiency
Increase viewing comfort with low blue light and flicker free features.
Navigate the OSD directly on the touchscreen.
We have made it easier to manage your On-Screen Display (OSD) controls – Now you can use the touchscreen or the controls you are used to on the rear side of the monitor.
Display
Display diagonal
68.6 cm (27")
Display resolution
1920 x 1080 pixels
Native aspect ratio
16:9
Display technology
LCD
Touchscreen
Yes
HD type
4K Ultra HD
Panel type
TFT
Touchscreen technology
Capacitive
Touch technology
Multi-touch
Number of simultaneous touchpoints
10
Response time
16 ms
Anti-glare screen
Yes
Screen shape
Flat
Aspect ratio
16:9
Contrast ratio (typical)
1000:1
Maximum refresh rate
60 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.67 billion colours
Horizontal scan range
30 - 82 kHz
Vertical scan range
50 - 75 Hz
Performance
NVIDIA G-SYNC
No
AMD FreeSync
No
Flicker-free technology
Yes
Low Blue Light technology
Yes
Multimedia
Built-in speaker(s)
Yes
Built-in camera
No
Number of speakers
2
RMS rated power
20 W
Design
Product colour
Black
Certification
UL, FCC A, cUL, IC, CB, CE A, C-Tick A, NOM CoC, CCC
Ports & interfaces
Built-in USB hub
Yes
USB upstream port type
USB Type-A, USB Type-B
VGA (D-Sub) ports quantity
1
HDMI
Yes
HDMI ports quantity
1
DisplayPorts quantity
1
Audio input
Yes
Audio output
Yes
Ergonomics
VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Wall mountable
Yes
On Screen Display (OSD)
Yes
Power
Energy efficiency class (SDR)
D
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
12 kWh
Power consumption (typical)
13.8 W
Power consumption (standby)
0.5 W
Power consumption (off)
0.16 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Energy efficiency scale
A to G
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
10 - 95%
Packaging content
Cables included
AC, HDMI, USB
Quick start guide
Yes
Weight & dimensions
Width (without stand)
550.2 mm
Depth (without stand)
41.8 mm
Height (without stand)
329.3 mm
Weight (without stand)
4.8 kg
Packaging data
Package width
630 mm
Package depth
418 mm
Package height
136 mm
Package weight
7.1 kg
Sustainability
Sustainability certificates
ENERGY STAR
European Product Registry for Energy Labelling (EPREL) code
1365137
Other features
Mean time between failures (MTBF)
50000 h
Technical details
Compliance certificates
RoHS
