Introduction

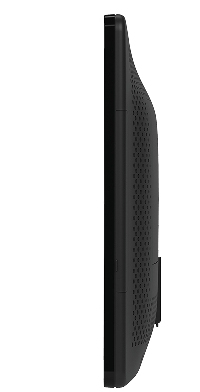

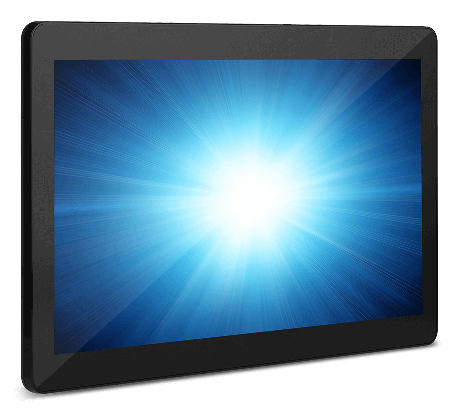

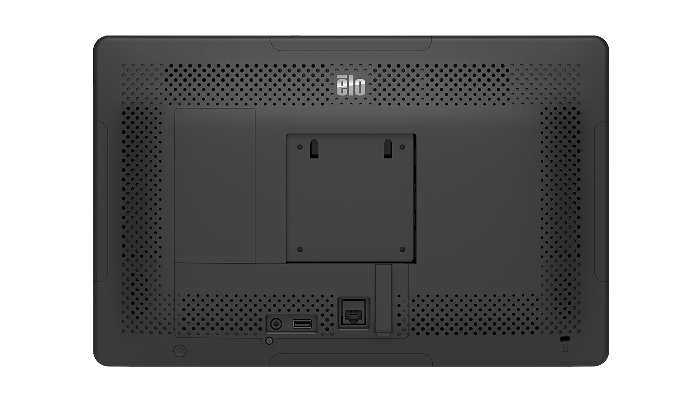

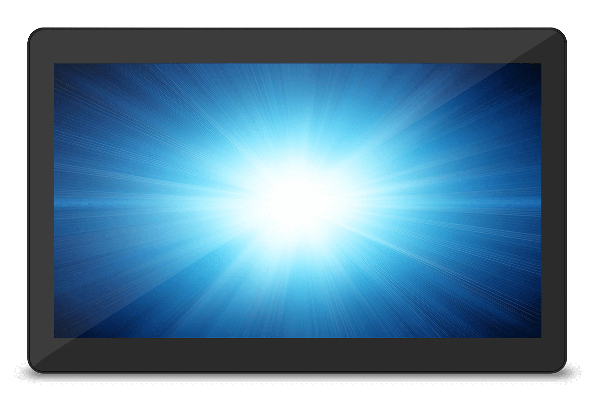

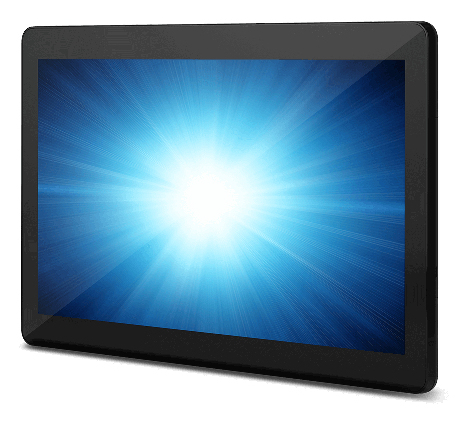

I-Series 2 with Intel
Elo's I-Series 2 with Intel delivers commercial-grade computing with the capabilities, security and enterprise infrastructure of a powerful, Intel-based platform—all in a sleek, yet durable fixed tablet form factor.
Built on a modular platform and available with either 15-inch or 22-inch displays, the I-Series with Intel can be found in installations across the globe, from in-store interaction and point-of-sale to self-service, hospitality and corporate office environments. The uses are virtually unlimited.
Endless Versatility
The Elo I-Series offers versatility across environments. From retail and entertainment to corporate offices and signage, the I-Series is an excellent choice to meet the demands of continuous public use.
Feature-rich
Intel platform.
Windows, ChromeOS
Flex or Linux.
Elo's I-Series utilizes the reliability-tested performance and security of Intel's 9th-generation processors and vPro™ platform. Available with Windows 10, ChromeOS Flex or, for added flexibility, the I-Series offers models with no OS-all pretested with Linux SuSE, Ubuntu and Red Hat operating systems-allowing businesses to get the solution best suited for them.
Configure with Elo Edge Connect
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripherals that seamlessly attach to the edge of the touchscreen. And you can add or swap them out later as your needs change.
Stands & Mounts
With a standard VESA mount, we give you the flexibility to mount our products however you want.
Get Peace of Mind With EloCare
EloCare is service and support from the people who know your Elo products best. From extended warranties and on-site exchange to advance unit replacement and field services, the highly skilled Elo technical specialists will get you up and running.
Display
Display diagonal
39.6 cm (15.6")
Display resolution
1920 x 1080 pixels
Touchscreen
Yes
HD type
Full HD
LED backlight
Yes
Touch technology
Multi-touch
Native aspect ratio
16:9
Display brightness
300 cd/m²
Panel type
TFT-LCD
Response time
25 ms
Screen shape
Flat
Processor
Processor manufacturer
Intel
Processor family
Intel® Celeron®
Processor model
G4900T
Processor cores
2
Processor threads
2
Processor frequency
2.9 GHz
Processor cache
2 MB
Processor cache type
Smart Cache
Memory
Internal memory
4 GB
Internal memory type
DDR4-SDRAM
Maximum internal memory
8 GB
Memory slots
2
Memory slots type
SO-DIMM
Memory clock speed
2666 MHz
Memory layout (slots x size)
1 x 4 GB
Memory form factor
DIMM/SO-DIMM
Storage
Total storage capacity
128 GB
Storage media
SSD
Total SSDs capacity
128 GB
Number of SSDs installed
1
SSD capacity
128 GB
SSD interface
SATA
SSD form factor
M.2
Optical drive type
No
Graphics
Discrete graphics card
No
Discrete graphics card model
Not available
On-board graphics card
Yes
On-board graphics card family
Intel® UHD Graphics
On-board graphics card model
Intel® UHD Graphics 610
Audio
Built-in speaker(s)
Yes
Number of speakers
2
RMS rated power
4 W
Camera
Network
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Bluetooth
Yes
Bluetooth version
5.0
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
Headphone outputs
1
Design
Product colour
Black
VESA mounting
Yes
Panel mounting interface
75 x 75 mm
Performance
Product type
All-in-One tablet PC
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2.0
Software
Operating system architecture
64-bit
Operating system installed
Windows 10 Enterprise
Power
AC adapter power
100 W
AC adapter frequency
50-60 Hz
AC adapter input voltage
100 - 240 V
Weight & dimensions
Width (without stand)
384.2 mm
Depth (without stand)
246.4 mm
Height (without stand)
43.8 mm
Weight (without stand)
2.2 kg
Package width
462 mm
Package depth
216 mm
Package height
346 mm
Package weight
4.3 kg
Operational conditions
Operating temperature (T-T)
0 - 35 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
5 - 95%
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), CB, UKCA, CCC, China Compulsory Certification (CCC), VCCI, Norma Oficial Mexicana (NOM)
