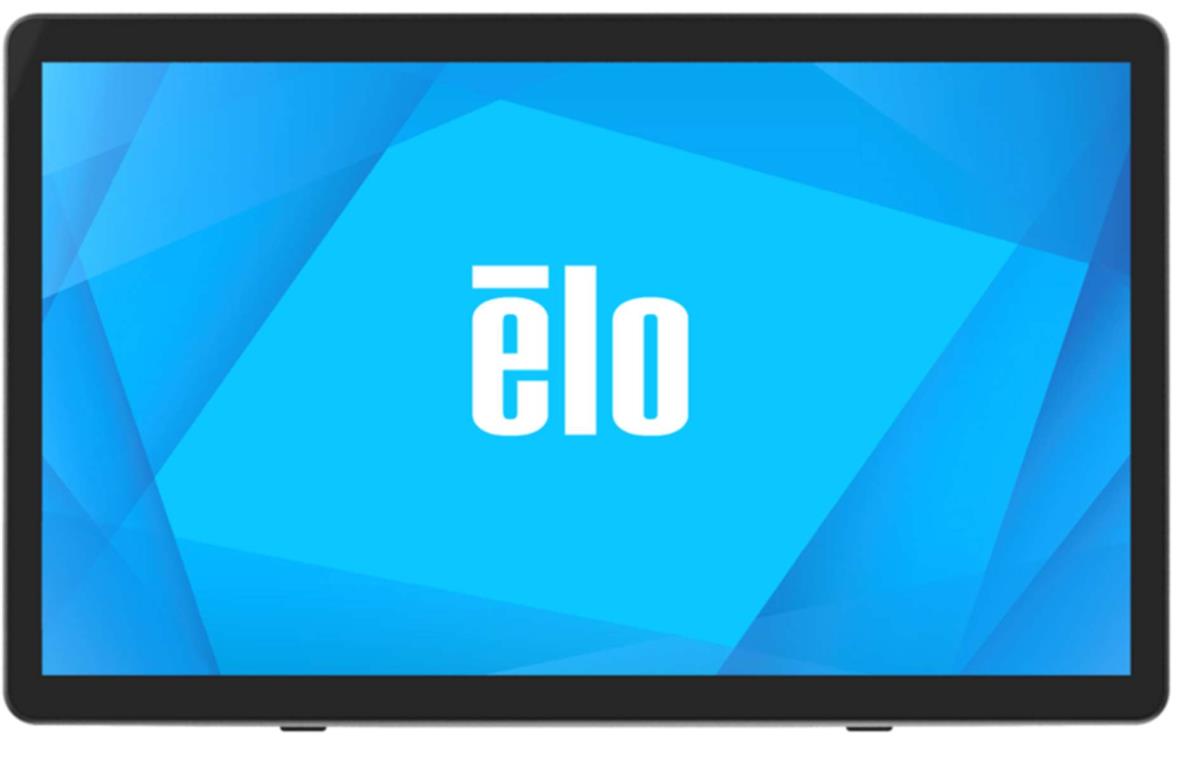

Elo Touch Solutions E-series 3 Black - 15.6in - Celeron N97 - 8GB Ram - 128GB Flash - Pcap - Win11 Iot Enterprise Without Stand

£1,095.18

Part Number: E567592
Delivery: 1 - 2 days

Product Details

Introduction

E-Series 3 with Intel
Touchscreen Computer.

The 15.6-inch E-Series 3 Touchcomputer features a 10-touch TouchPro™ PCAP
display, a powerful Intel™ N97 processor, and your choice of Windows 11 or No OS
with support for Linux. With integrated connectivity for all the peripherals you need—cash
drawers, printers, barcode scanners, and payment devices—the E-Series 3 delivers
the I/O flexibility to support a wide range of use cases.

Modular design.
Endless versatility.

Available with and without stand options, you can easily configure the E-Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.

Add a customer-
facing display.

The E-Series 3 includes USB-C connectivity, allowing you to easily connect a customer-facing display - providing touch, data and power with just one cable.

Expand with Elo
Edge Connect.

Seamlessly attach up to two peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!

Support
for Linux.

For added flexibility, the E-Series 3 offers no OS models, all pretested with Linux SuSE, Ubuntu and Red Hat operating systems.

Quality that
is built to last.

We engineer each product with a goal that goes beyond meeting expectations; we aim to exceed them. By integrating our technology into your operations, you are partnering with us - and as your partner, we are committed to delivering reliable products so you can focus on growth and innovation, confident in the knowledge that we stand behind our products, ready to support you every step of the way.

Display

Display diagonal 39.6 cm (15.6")
Display resolution 1920 x 1080 pixels
HD type Full HD
Display type LED
Display brightness 200 cd/m²
Touchscreen Yes
Touchscreen type Capacitive
LED backlight Yes
Contrast ratio (typical) 500:1
Response time 25 ms
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Number of colours 262144 colours
Native aspect ratio 16:9
Panel type TFT-LCD
Native refresh rate 60 Hz

Features

Product colour Black
VESA mounting Yes
Mean time between failures (MTBF) 50000 h
Windows operating systems supported Yes
Linux operating systems supported Yes
Operating system installed Windows 11 IoT Enterprise

Processor

Processor manufacturer Intel
Processor base frequency 3.6 GHz
Processor cache 6 MB

Storage

Total storage capacity 128 GB
Storage media SSD

Memory

Internal memory 8 GB
Internal memory type DDR5
Maximum internal memory 16 GB
Memory clock speed 4800 MHz

Ports & interfaces

Optional connectivity Bluetooth

Power

Power source type AC
Power 90 W
Power consumption (standby) 0.5 W
AC adapter frequency 50-60 Hz

Weight & dimensions

Width 370.4 mm
Depth 40.5 mm
Height 228.2 mm
Weight 2.4 kg

Packaging data

Package width 466 mm
Package depth 316 mm
Package height 185 mm
Package weight 4.2 kg

Operational conditions

Operating temperature (T-T) 0 - 35 °C
Operating relative humidity (H-H) 20 - 80%
Storage temperature (T-T) -20 - 60 °C
Storage relative humidity (H-H) 5 - 95%

Audio

Built-in speaker(s) Yes
Number of speakers 2
RMS rated power 4 W

Technical details

Compliance certificates Federal Communications Commission (FCC)

Information

Part Number: E567592
