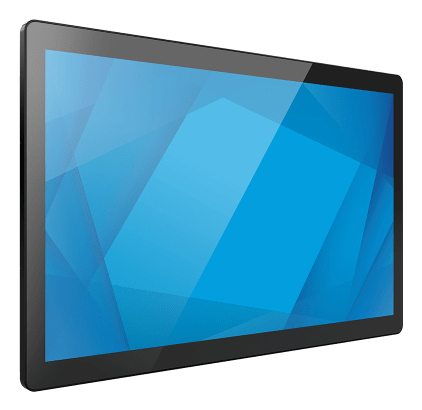

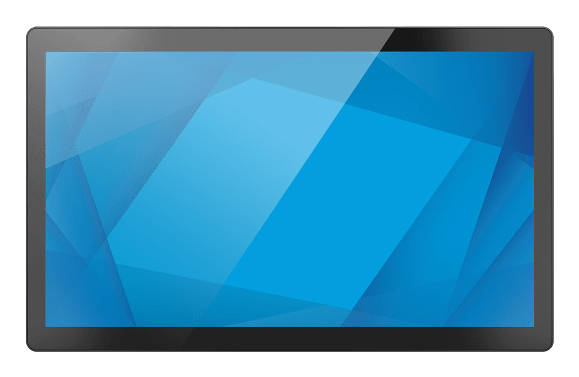

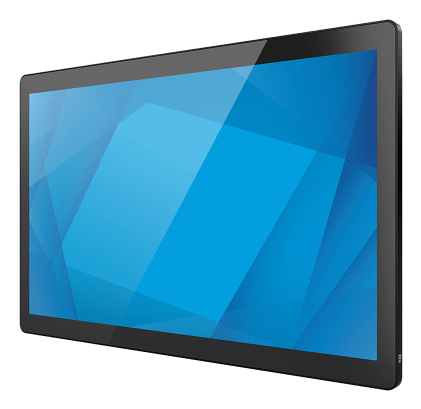

Introduction
Modular design. Endless versatility.
Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I-Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.
Universal VESA Mount
Conveniently mount the I-Series with the built-in VESA mount.
Expand with Edge Connect
Seamlessly attach a variety of peripherals to the edge of the touchscreen.
Reliable, security and performance.
Built with the reliability-tested performance and security of Intel 12th Generation processors, integrated Trusted Platform Modules, Intel vPro™ and the Windows 10 operating system, the I-Series 3 delivers the dependability businesses need.
Support for Linux.
For added flexibility, the I-Series 3 offers no OS models, all pretested with Linux SuSE, Ubuntu and Red Hat operating systems.
Bridge the gap between Windows and Android.
Transitioning to Android in the future? Elo Bridge is the perfect solution. Simply choose the Elo Windows device that fits your needs today, and when you are ready to transition to Android, you can use Elo Bridge to migrate your fleet of devices.
Memory
Memory slots type
SO-DIMM
Memory layout (slots x size)
1 x 8 GB
Internal memory
8 GB
Internal memory type
DDR5-SDRAM
Maximum internal memory
32 GB
Memory slots
2
Memory clock speed
4800 MHz
Storage
SSD interface
M.2
NVMe
Yes
Total storage capacity
128 GB
Storage media
SSD
Number of storage drives installed
1
Number of storage drives supported
1
Total SSDs capacity
128 GB
Number of SSDs installed
1
SSD capacity
128 GB
SSD form factor
M.2
Optical drive type
No
Display
Display diagonal
38.1 cm (15")
Display resolution
1024 x 768 pixels
Touchscreen
Yes
HD type
Not supported
LED backlight
Yes
Touch technology
Multi-touch
Native aspect ratio
4:3
Display brightness
400 cd/m˛
Display surface
Anti-glare
Panel type
TFT
Response time
23 ms
Viewing angle, horizontal
160°
Viewing angle, vertical
150°
Screen shape
Flat
Processor
Processor manufacturer
Intel
Processor family
Intel Core 5
Processor generation
12th gen Intel® Core™ i5
Processor model
i3-1215UL
Processor cores
6
Processor threads
8
Processor boost frequency
4.4 GHz
Processor frequency
1.2 GHz
Performance cores
2
Efficient cores
4
Performance-core Max Turbo Frequency
4.4 GHz
Efficient-core Max Turbo Frequency
2.5 GHz
Processor cache
10 MB
Processor cache type
Smart Cache
Processor base power
15 W
Graphics
Discrete graphics card
No
Discrete graphics card model
Not available
On-board graphics card
Yes
On-board graphics card model
Intel® UHD Graphics
Audio
Built-in speaker(s)
Yes
Number of speakers
2
RMS rated power
4 W
Camera
Network
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Bluetooth
Yes
Bluetooth version
5.3
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Headphone outputs
1
Design
Product colour
Black
Wall mountable
Yes
VESA mounting
Yes
Panel mounting interface
75 x 75 mm
Performance
Product type
All-in-One PC
Market positioning
Business
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2.0
Software
Operating system installed
No
Power
AC adapter power
180 W
AC adapter frequency
50 - 60 Hz
AC adapter input voltage
100 - 240 V
AC adapter output voltage
24 V
Power consumption (typical)
49 W
Power consumption (standby)
5 W
Power consumption (off)
0.5 W
Pen
Weight & dimensions
Width (with stand)
359.5 mm
Depth (with stand)
197.5 mm
Height (with stand)
356 mm
Weight (with stand)
6.7 kg
Package width
497 mm
Package depth
487 mm
Package height
345 mm
Package weight
7.9 kg
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 50 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
5 - 95%
Certificates
Compliance certificates
CB, CCC, Federal Communications Commission (FCC), Norma Oficial Mexicana (NOM), RCM, RoHS, State Radio Regulation of China (SRRC), UKCA, VCCI
Certification
UL/cUL, FCC, IC, CE, CB
Sustainability
Sustainability certificates
ENERGY STAR
Packaging content
Quick start guide
Yes
Power cord included
Yes
Other features
3D
No
Mean time between failures (MTBF)
50000 h
Autonomy mode
No
Warranty period
33 year(s)
