Product Details
Introduction

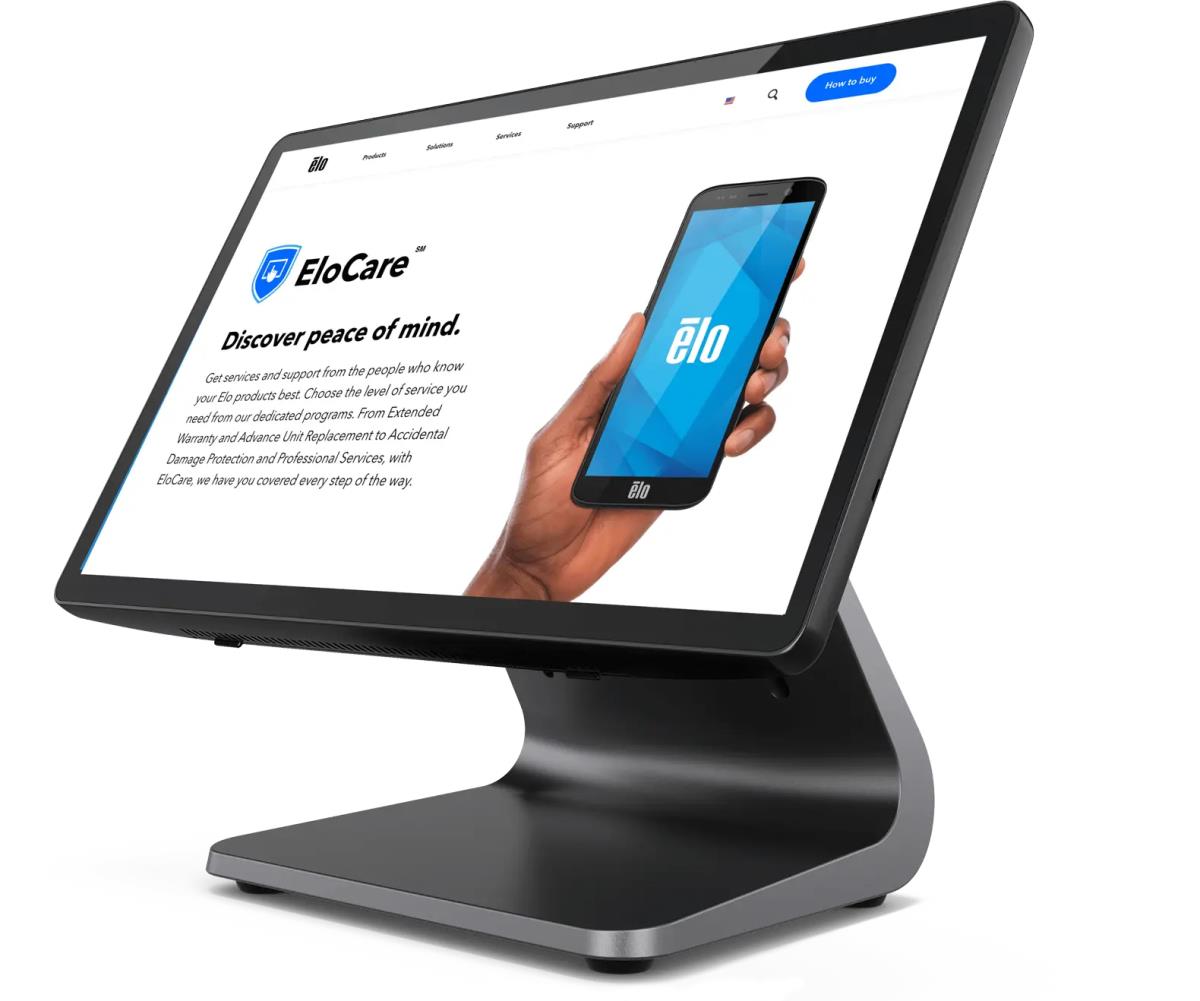

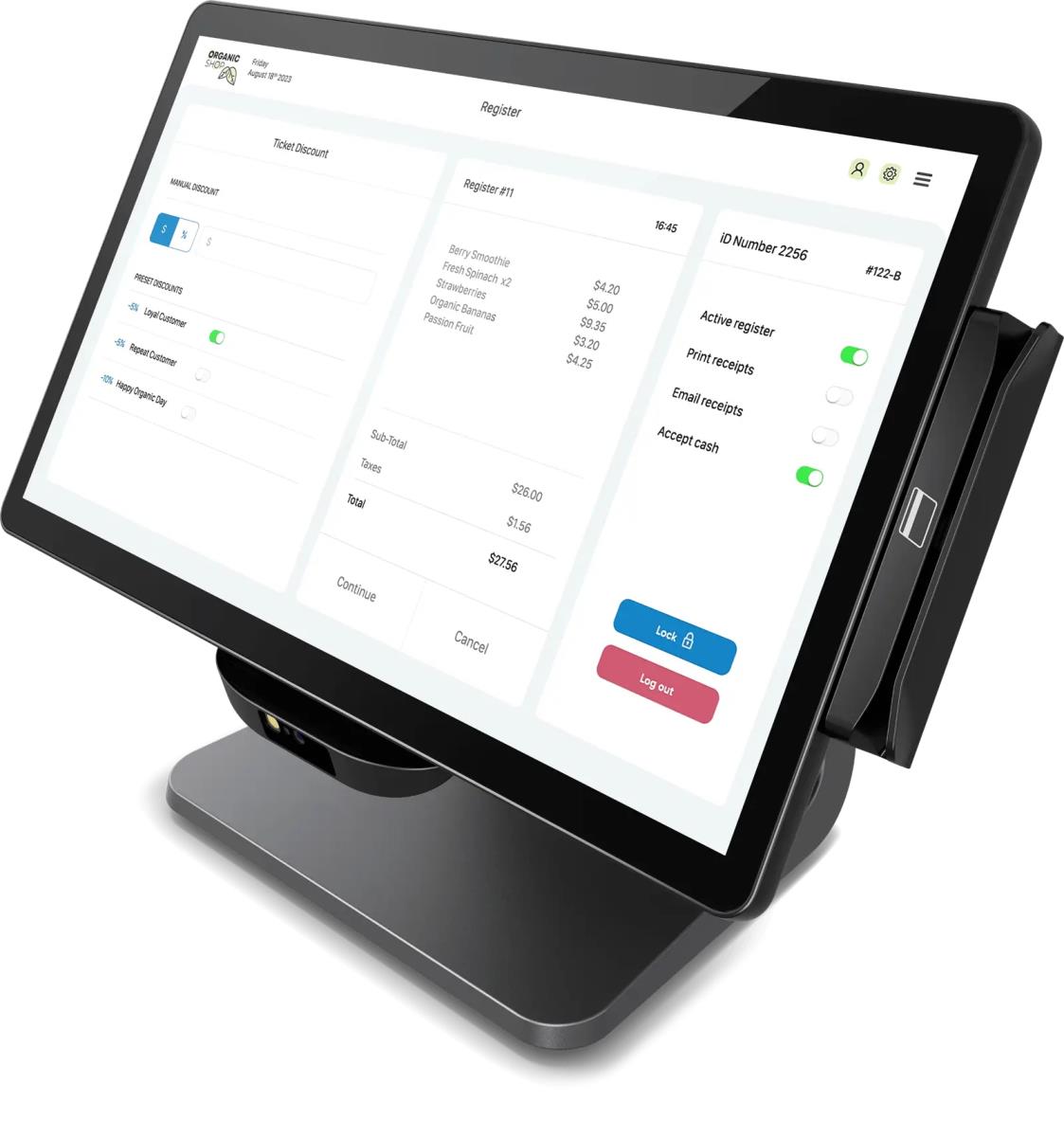

E-Series 3 with Intel Touchscreen Computer.
Purpose-built for point of sale, the E-Series 3 offers a 15.6-inch touchscreen display, powerful Intel processor and integrated connectivity for all the peripherals you need. From cash drawers and printers to barcode scanners and payment devices - there is connectivity to cover it all.
Add a customer- facing display.
The E-Series 3 includes USB-C connectivity, allowing you to easily connect a customer-facing display - providing touch, data and power with just one cable.
Expand with Elo Edge Connect.
Seamlessly attach up to two peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
Display
Display diagonal
39.6 cm (15.6")
Display resolution
1920 x 1080 pixels
Display type
LED
Display brightness
200 cd/m²
Touchscreen
Yes
Touchscreen type
Capacitive
Contrast ratio (typical)
500:1
Response time
25 ms
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Number of colours
262144 colours
Native aspect ratio
16:9
Panel type
TFT-LCD
Native refresh rate
60 Hz
Features
Product colour
Black
VESA mounting
Yes
Mean time between failures (MTBF)
50000 h
Windows operating systems supported
Windows 11
Processor
Processor manufacturer
Intel
Processor base frequency
3.6 GHz
Processor cache
6 MB
Storage
Total storage capacity
128 GB
Storage media
SSD
Memory
Internal memory
8 GB
Ports & interfaces
Optional connectivity
Bluetooth, Wireless LAN
Power
Power source type
AC
Weight & dimensions
Width
370.4 mm
Depth
182.6 mm
Height
298.4 mm
Weight
3.2 kg
Packaging data
Package width
465 mm
Package depth
262 mm
Package height
376 mm
Package weight
5 kg
Operational conditions
Operating temperature (T-T)
0 - 35 °C
Operating relative humidity (H-H)
20 - 80%
Storage temperature (T-T)
-20 - 60 °C
Storage relative humidity (H-H)
5 - 95%
Audio
Built-in speaker(s)
Yes
Number of speakers
2
RMS rated power
4 W
Information
| Part Number: | E849902 |
