Elo Touch Solutions LCD Touchmonitor 1502l - 16in - Pcap USB No Bezel - Antiglare Black With Stand

£512.28

Part Number: E155645
Delivery: 1 - 2 days

Product Details

Introduction

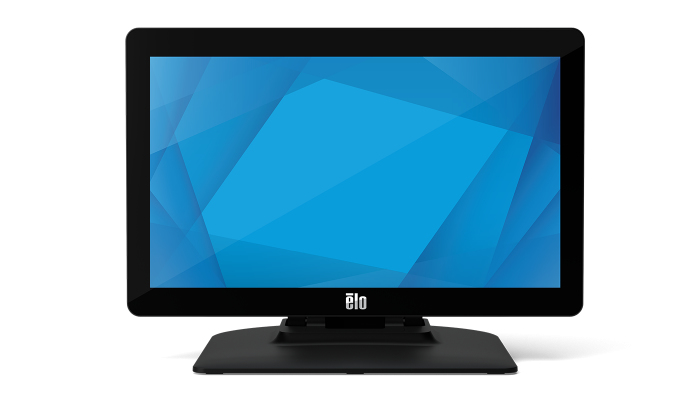

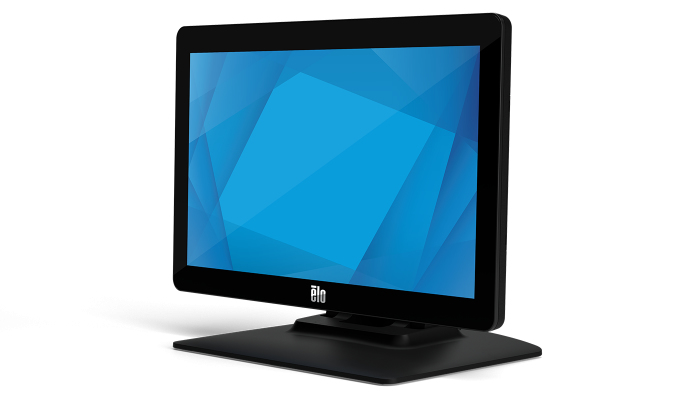

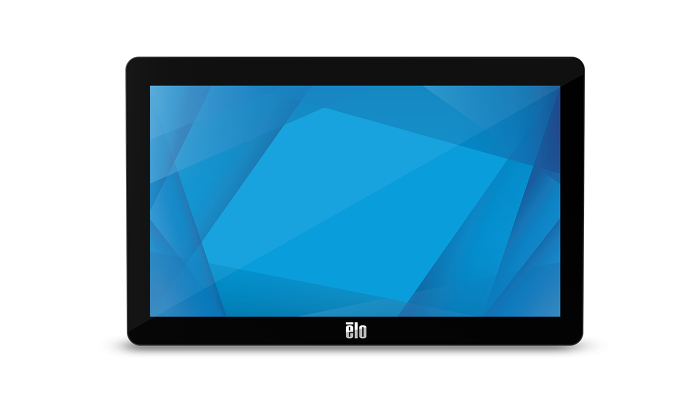

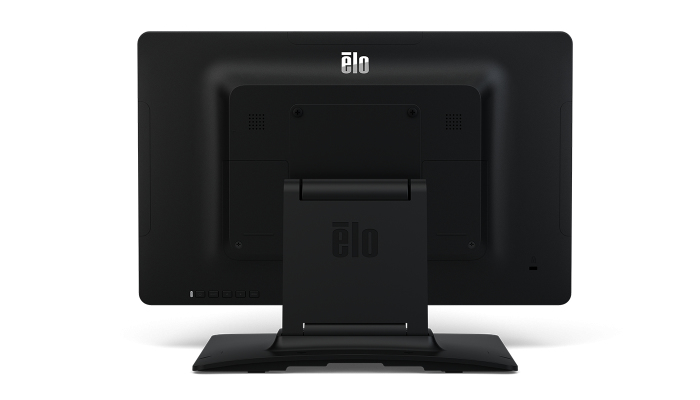

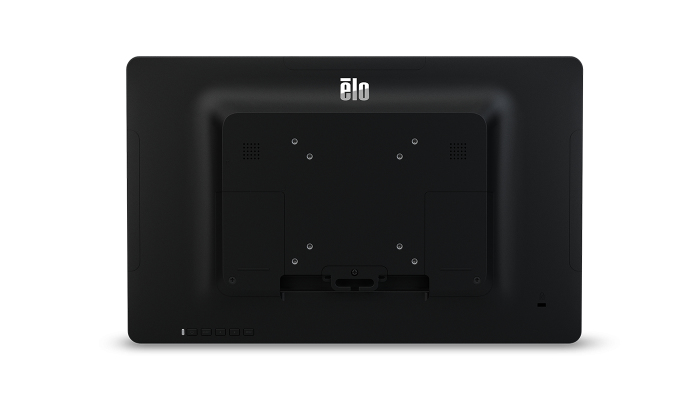

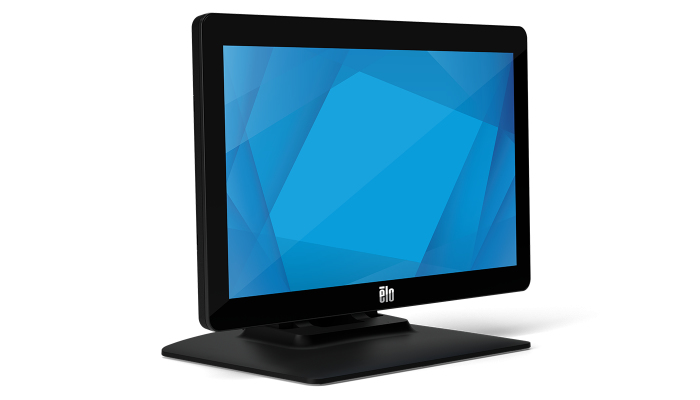

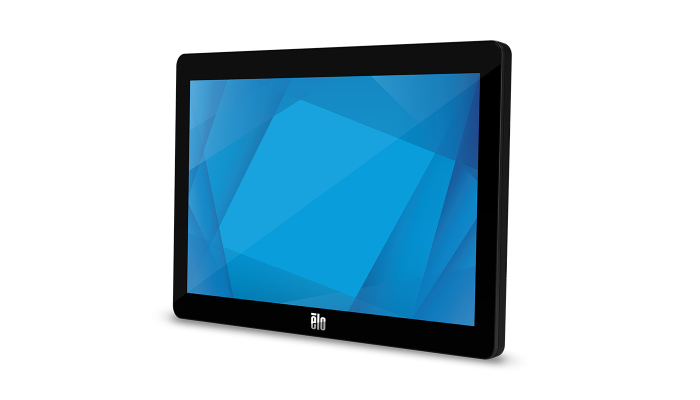

Elo's 1502L
Touchscreen Monitor

The Elo 1502L Touchscreen Monitor is designed with the same seamless style that spans across the entire line up of 02-Series Monitors. With a compact form factor and clean design for easy integration, the 1502L offers the flexibility to install as a traditional POS terminal or a customer facing point of interaction - making it well-suited for point-of-sale, self-service, signage and hospitality applications. And with a variety of peripherals, the monitor can be transformed to meet the demands of almost any blueprint.

Single Cable Connection
The 1502L provides a USB Type-C interface that provides touch, video and power. By reducing the number of cables required for any set up from 3 to 1, installation and servicing is a breeze. In case your PC isn't equipped with USB Type-C yet, you can still use traditional HDMI or VGA to connect to your PC.

One for You.
One for Your Customers.

The 02-Series offers dual functionality. Use it as a traditional POS terminal or customer facing display - or BOTH! Start increasing brand loyalty and customer satisfaction by offering your customers a point of interaction to review transactions, participate in loyalty programs or see the latest promotion.

Well-Suited for.
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.

Elo Edge ConnectT Lets You do More!
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!

Mount with Flexibility
Customers demand a seamless shopping experience from their first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party kiosk enclosures, the touchscreens can be integrated with ease.

Display

Display diagonal 39.6 cm (15.6")
Display brightness (typical) 180 cd/m²
Display resolution 1920 x 1080 pixels
Native aspect ratio 16:9
Response time 30 ms
HD type Full HD
Display technology LED
Anti-glare screen Y
Screen shape Flat
Supported graphics resolutions 640 x 400,640 x 480 (VGA),720 x 400,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 800 (WXGA),1280 x 960,1360 x 768 (WXGA),1366 x 768,1440 x 900 (WXGA+),1680 x 1050 (WSXGA+)
Contrast ratio (typical) 700:1
Viewing angle, horizontal 160°
Viewing angle, vertical 160°
Display number of colours 262144 colours
Panel type TFT
Horizontal scan range 31.5 - 82 kHz
Vertical scan range 50 - 75 Hz
Viewable size, horizontal 34.4 cm
Viewable size, vertical 19.4 cm

Multimedia

Built-in speaker(s) Y
Number of speakers 2
RMS rated power 2 W

Design

Market positioning Business
Product colour Black
International Protection (IP) code IPX1

Ports & interfaces

Number of USB Type-C upstream ports quantity 1
VGA (D-Sub) ports quantity 1
HDMI Y
HDMI ports quantity 1
DC-in jack Y

Ergonomics

Panel mounting interface 75 x 100 mm
VESA mounting Y
On Screen Display (OSD) Y

Power

Power consumption (typical) 9.5 W
Power consumption (standby) 1.87 W
Power consumption (off) 0.2 W
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz

Operational conditions

Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 20 - 80%
Storage relative humidity (H-H) 10 - 95%

Weight & dimensions

Width (with stand) 284.6 mm
Depth (with stand) 387 mm
Height (with stand) 199.1 mm
Weight (with stand) 3.05 kg

Packaging data

Cables included AC, HDMI, USB Type-A to USB Type-C
Quick start guide Y
Package width 204 mm
Package depth 451 mm
Package height 344 mm
Package weight 5.01 kg
Package type Box

Information

Part Number: E155645
