Introduction

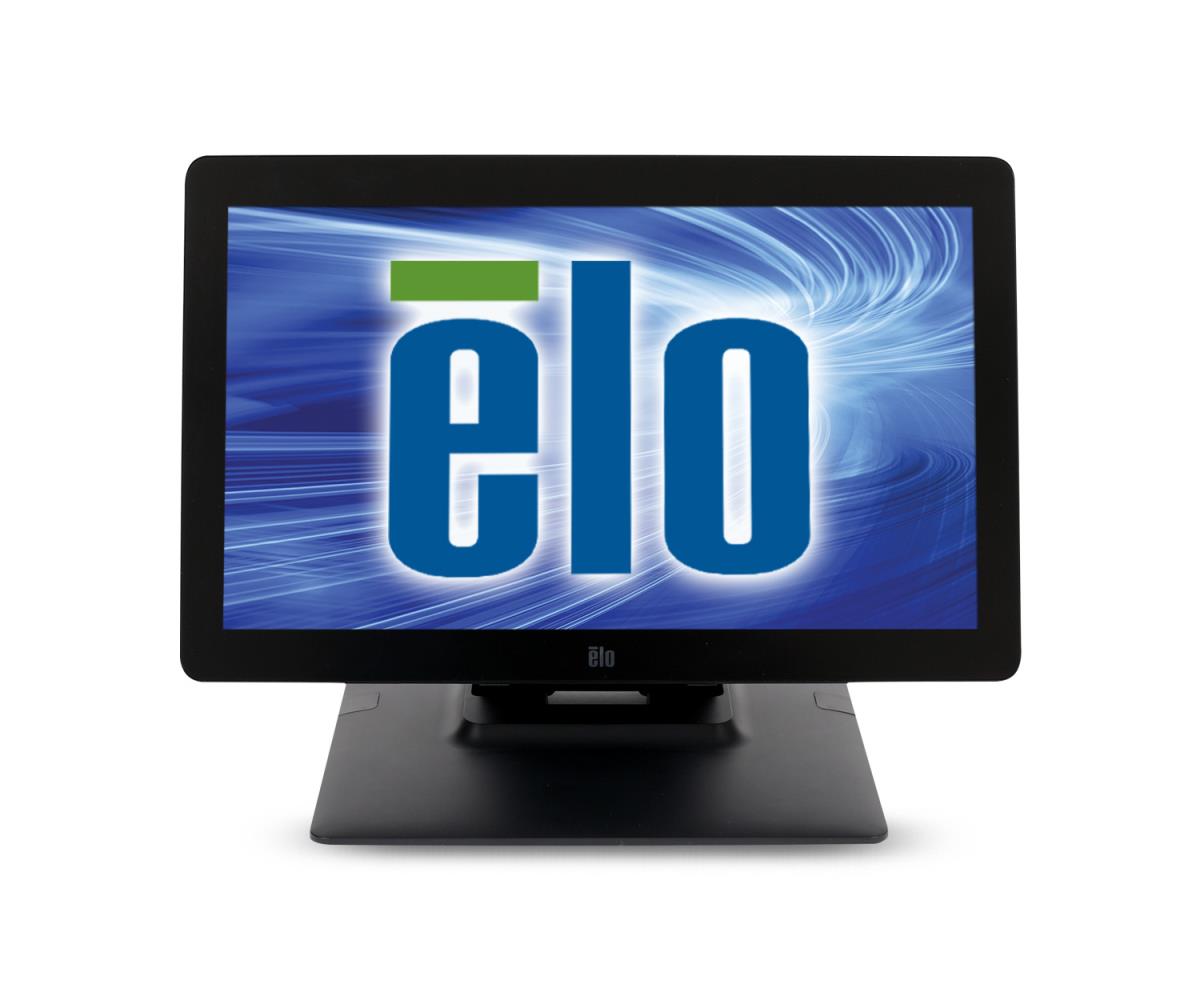

The Elo M-Series 1502L widescreen LED touch monitor is a modern and stylish interactive solution for customer engagement and employee effectiveness at the point of sale. The sleek wide aspect ratio touchscreen features full HD edge-to-edge glass with display area real estate to showcase engaging, memorable and rewarding content. An HD display model is available for transactional and other applications not requiring 1920x1080 resolution. For environments where space is scarce, the 1502L is an ideal POS terminal screen or stylish interactive information display. Built to withstand the rigors of continuous public use, the 1502L is well suited for high use retail venues. The sleek, thin look pairs well with any modern store environment.
The multiple mount and stand options ensure installation flexibility and accommodate desktop use as well as wall- and pole-mount with standard VESA mount patterns.
Optional color coordinated retail accessories include a Magnetic Stripe Reader (MSR), customer display, barcode scanner and Near Field Communication (NFC) adapter for mobile payments and increased compatibility with the latest point of sale applications. The accessories are easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
The 1502L is offered with IntelliTouch Pro projected capacitive (PCAP) touch technology in a zero-bezel design with 10-touch interaction and an anti-glare surface.
Display
Display diagonal
39.6 cm (15.6")
Display resolution
1366 x 768 pixels
Display brightness
187 cd/m²
Touchscreen
Yes
Contrast ratio (typical)
600:1
Response time
10 ms
Viewing angle, horizontal
90°
Viewing angle, vertical
65°
Display diagonal
39.6 cm (15.6")
Display resolution
1366 x 768 pixels
Display type
LED
Display technology
TFT
Aspect ratio
16:9
Response time
10 ms
Display brightness
187 cd/m²
Contrast ratio (typical)
600:1
Horizontal scan range
31.5 - 60 kHz
Viewing angle, horizontal
90°
Viewing angle, vertical
65°
Display viewable area (HxV)
345.2 x 194.6 mm
Supported graphics resolutions
640 x 480 (VGA),720 x 576,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 800 (WXGA),1280 x 960,1360 x 768 (WXGA),1366 x 768
Display number of colours
262144 colours
Features
Product colour
Black
Mean time between failures (MTBF)
50000 h
Power
AC adapter output voltage
12 V
Energy efficiency class (old)
A
Power consumption (typical)
12 W
Power consumption (off)
0.2 W
AC input voltage
100-240 V
AC input frequency
50 - 60 Hz
AC adapter output voltage
12 V
Packaging data
Package width
457 mm
Package depth
181 mm
Package height
347 mm
Package weight
5.08 kg
Package width
457 mm
Package depth
181 mm
Package height
347 mm
Package weight
5.08 kg
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 80%
Storage temperature (T-T)
-20 - 60 °C
Storage relative humidity (H-H)
10 - 95%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
10 - 95%
Certificates
Certification
cUL, IC, Europe CE, Japan VCCI, United States UL, FCC
Certification
cUL, IC, Europe CE, Japan VCCI, United States UL, FCC
Design
Performance
Touch technology
Multi-touch
Touchscreen technology
Projected capacitive system
Built-in speaker(s)
Y
RMS rated power
4 W
Number of speakers
2
Built-in camera
N
Built-in microphone
N
Number of OSD languages
8
On Screen Display (OSD) languages
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Mean time between failures (MTBF)
50000 h
Ports & interfaces
HDMI
Y
HDMI ports quantity
1
VGA (D-Sub) ports quantity
1
Ergonomics
Panel mounting interface
75 x 75,100 x 100 mm
Cable lock slot
Y
Weight & dimensions
Width (without stand)
38.7 cm
Depth (without stand)
3.29 cm
Height (without stand)
24.4 cm
Weight (without stand)
3 kg
Weight (with stand)
3.05 kg
Packaging content
Other features
