Introduction

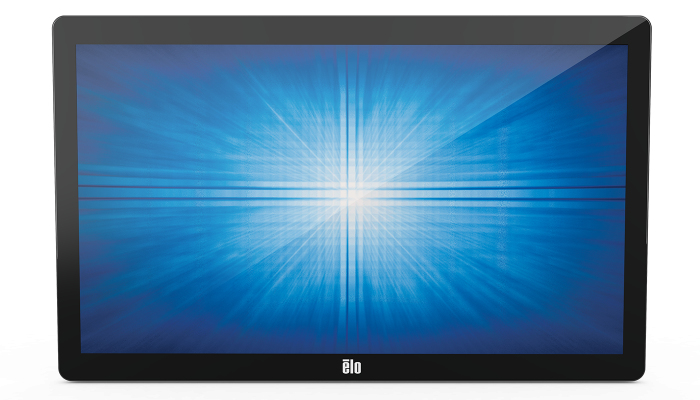

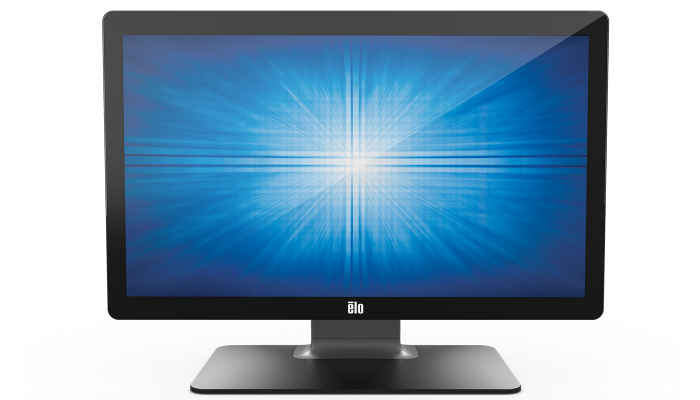

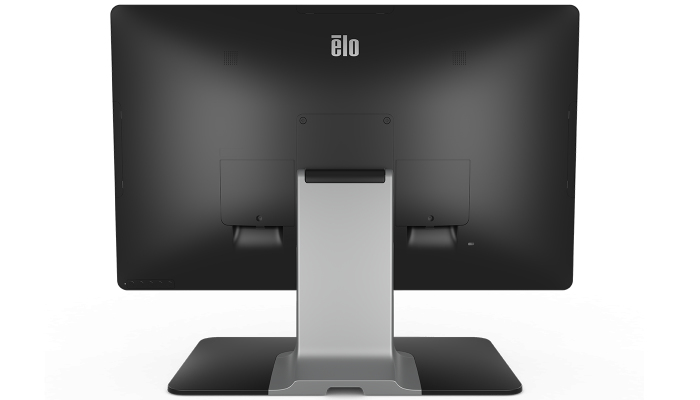

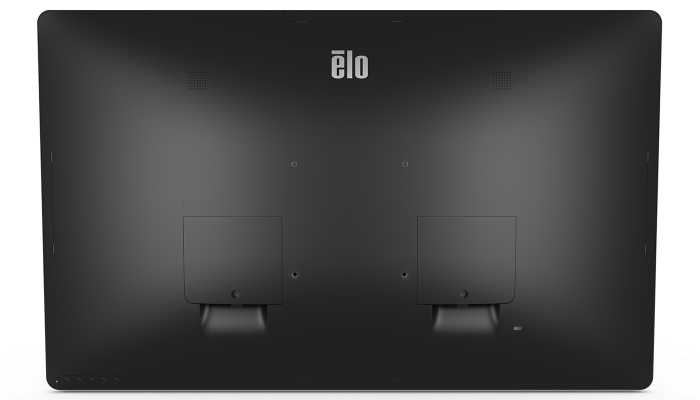

The Elo 2702L 27-inch touchscreen monitor delivers a professional-grade interactive solution with Elo's industry-leading TouchPro PCAP technology featuring edge-to-edge glass and enabling up to 10 simultaneous touches. The clear glass touchscreen provides exceptional image clarity, resolution, and light transmission for vivid images and details. Backed by a three-year warranty, the feature rich touchscreen monitor is equipped with dual built-in speakers and VGA and HDMI video connectors. With a compact form factor, clean design aesthetic and flexible mounting options, these touchscreens are well-suited for POS, interactive digital signage and self-service.
Designed for commercial use, the new Elo touchscreen monitor makes business operations easy delivering energy efficiency and versatile accessories. The 2702L accessories include MSR, barcode scanner, fingerprint reader, NFC, customer facing display, handles and privacy screens. Third party peripherals can be easily added as well with the integrated USB 2.0 hub.
Display
Display diagonal
68.6 cm (27")
Display resolution
1920 x 1080 pixels
Display type
TFT-LCD
HD type
Full HD
Display technology
LCD/TFT
High frequency rate
60 Hz
Aspect ratio
16:9
Response time
14 ms
Display brightness
300 cd/m²
Contrast ratio (typical)
1000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display viewable area (HxV)
597.88 x 336.31 mm
Digital horizontal frequency
30 - 82 kHz
Digital vertical frequency
50 - 75 Hz
Supported graphics resolutions
640 x 400,640 x 480 (VGA),720 x 400,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 800 (WXGA),1366 x 768,1440 x 900 (WXGA+),1680 x 1050 (WSXGA+)
Display number of colours
16.78 million colours
Design
Product colour
Black, Silver
International Protection (IP) code
IPX1
Performance
Touch technology
Multi-touch
Touchscreen technology
Capacitive
Touchscreen type
Tabletop
Number of simultaneous touchpoints
10
Built-in speaker(s)
Y
RMS rated power
4 W
Built-in camera
N
Built-in microphone
N
Number of OSD languages
10
On Screen Display (OSD) languages
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Russian
Mean time between failures (MTBF)
50000 h
OmniTapps Multitouch compatibility
N
Ports & interfaces
USB 2.0 ports quantity
1
Micro-USB ports quantity
4
HDMI
Y
HDMI ports quantity
1
VGA (D-Sub) ports quantity
1
Headphone outputs
1
Ergonomics
Panel mounting interface
100 x 100 mm
Wall mountable
Y
VESA mounting
Y
Power
Power consumption (typical)
28 W
Power consumption (standby)
0.45 W
Power consumption (off)
0.38 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
10 - 95%
Weight & dimensions
Weight (without stand)
7.24 kg
Width (with stand)
647.6 mm
Depth (with stand)
233 mm
Height (with stand)
450.9 mm
Weight (with stand)
10.5 kg
Dimensions (W x D x H) with stand
647.6 x 233 x 450.9 mm
Packaging data
Package width
764 mm
Package depth
322 mm
Package height
560 mm
Package weight
14.3 kg
Packaging content
Cables included
AC, Audio (3.5mm), HDMI, USB, VGA
Quick start guide
Y
AC adapter included
Y
