Introduction

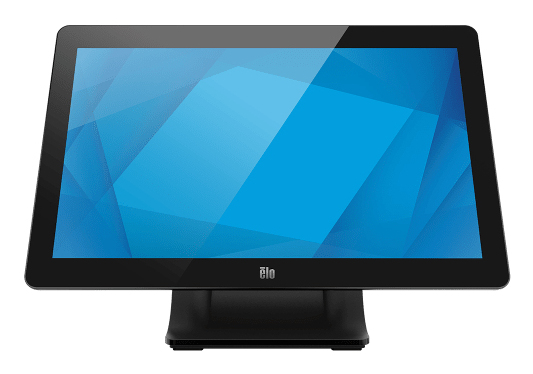

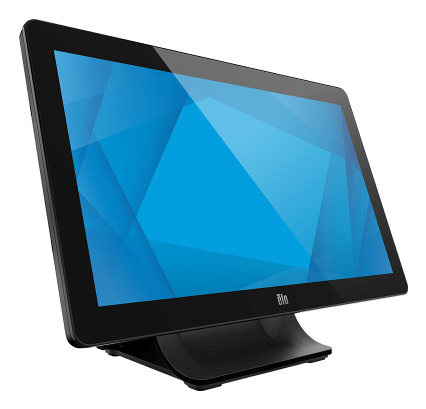

The Elo 1509L 15.6-inch widescreen LED touchscreen monitor delivers a low-profile, retail-hardened solution with a pure glass construction to allow high light transmission without compromising durability or functionality. Available with TouchProŽ PCAP offering multi touch capacity, the 1509 has been "built for touch" offering an ideal solution for general applications including hospitality and retail environments.
Integrated touch.
With no moving parts to wear out, the 1509 offers a touch response that is fast, accurate, and drift-free using a finger, gloved hand, or soft stylus.
Flexible mounting.
The touchscreen monitor can be affixed to a counter, or when the stand is removed, mounted on a wall or to a pole, and with the LED backlight power consumption is significantly reduced.
Commercial grade.
The 15.6-inch touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our two-year standard warranty. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Display
Display diagonal
39.6 cm (15.6")
Display resolution
1920 x 1080 pixels
Touchscreen
Yes
Display type
LED
Display brightness
350 cd/m˛
Touchscreen technology
Projected capacitive system
Contrast ratio (typical)
1000:1
Viewing angle, horizontal
170°
Viewing angle, vertical
170°
Response time
20 ms
Effective viewing area
344 x 194 mm
Aspect ratio
16:9
Display number of colours
16.78 million colours
Second display
Yes
Second display diagonal
25.6 cm (10.1")
Processor
Processor manufacturer
Qualcomm
Processor family
Qualcomm Snapdragon
Processor cores
8
Memory
Internal memory
8 GB
Maximum internal memory
8 GB
Storage
Total storage capacity
64 GB
Storage media
Flash
Features
Certification
UL/cUL (US)
FCC (US) Class B
IC (Canada)
CE (Europe)
CB (International)
VCCI, MIC (Japan)
RCM (Australia)
Multimedia
Built-in speaker(s)
Yes
Number of speakers
2
Network
Ethernet LAN
Yes
Ethernet LAN data rates
1000 Mbit/s
Bluetooth
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
USB 2.0 ports quantity
4
Design
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
12 W
Operational conditions
Operating relative humidity (H-H)
20 - 80%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 50 °C
Storage relative humidity (H-H)
10 - 90%
Ergonomics
Mean time between failures (MTBF)
50000 h
Weight & dimensions
Width
294 mm
Depth
188 mm
Height
371 mm
Weight
4.4 kg
Packaging data
Quantity per pack
1 pc(s)
Package width
463 mm
Package depth
285 mm
Package height
448 mm
Package weight
7.75 kg
Packaging content
Manual
Yes
Cables included
Power
Customer display included
Yes
