Introduction

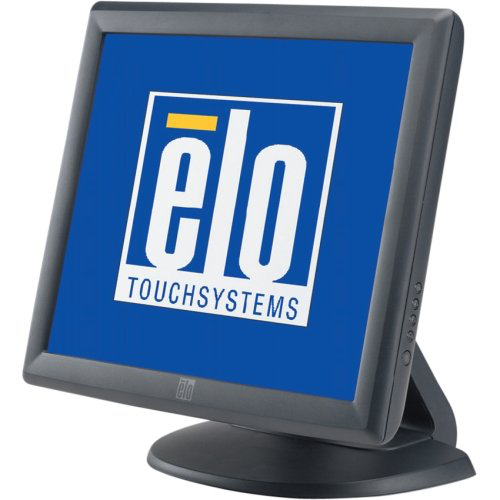

The 1715L touchmonitor is designed, developed and built to provide the most cost-effective touch solutions for system integrators and VARs. It packs Elo quality and reliability into an integrated, affordable touchmonitor. The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
AccuTouch Five-Wire Resistive Touch Technology
Elo developed AccuTouch technology with the harshest environments in mind, so it's no wonder that it excels in reliability, durability, and expected product life. Impervious to environmental conditions such as liquid spills and splashes and washdown, these screens are the most contamination-resistant available. They deliver drift-free operation for a lifetime of 35 million finger touches.
Display
Display diagonal
43.2 cm (17")
Display resolution
1280 x 1024 pixels
Display brightness
200 cd/m²
Touchscreen
Yes
Touchscreen type
Kiosk
Contrast ratio (typical)
1000:1
Response time
5 ms
Viewing angle, horizontal
170°
Viewing angle, vertical
160°
Display diagonal
43.2 cm (17")
Display resolution
1280 x 1024 pixels
Display type
LCD
Display technology
LCD/TFT
Aspect ratio
5:4
Glossy display
N
Response time
5 ms
Display brightness
200 cd/m²
Contrast ratio (typical)
1000:1
Viewing angle, horizontal
170°
Viewing angle, vertical
160°
Display number of colours
16.78 million colours
Features
Product colour
Grey
Mean time between failures (MTBF)
50000 h
Power
AC adapter output voltage
12 V
Power consumption (typical)
36 W
AC input frequency
50 - 60 Hz
AC adapter output voltage
12 V
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 80%
Storage temperature (T-T)
-20 - 60 °C
Storage relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
10 - 90%
Design
Performance
Touch technology
Single-touch
Touchscreen technology
Resistive
Touchscreen type
Kiosk
Built-in speaker(s)
N
On Screen Display (OSD)
Y
Mean time between failures (MTBF)
50000 h
Ports & interfaces
VGA (D-Sub) ports quantity
1
I/O ports
Serial/USB
USB required
Y
Ergonomics
Panel mounting interface
100 x 100 mm
Wall mountable
Y
Weight & dimensions
Weight (without stand)
6.9 kg
Width (with stand)
391 mm
Depth (with stand)
203 mm
Height (with stand)
366 mm
Dimensions (W x D x H) with stand
391 x 203 x 366 mm
Other features
Compatible operating systems
POSReady 2009;
Windows Vista, XP, 7, 2000, CE;
Linux;
Mac OSX
