Product Details
Introduction

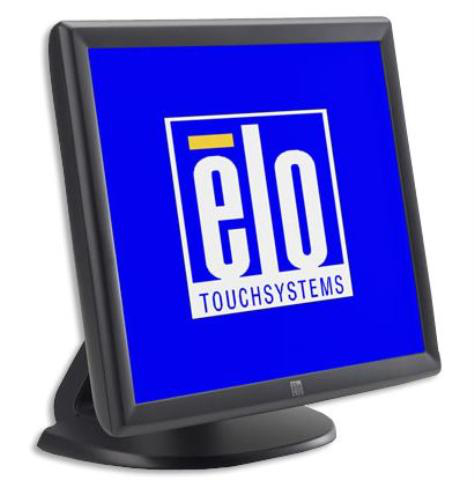

The 1915L touchmonitor is designed, developed and built to provide the most cost-effective touch solutions for system integrators and VARs. It packs Elo quality and reliability into an integrated, affordable touchmonitor.
Display
Display diagonal
48.3 cm (19")
Display resolution
1280 x 1024 pixels
Display brightness
187 cd/m²
Touchscreen
Yes
Contrast ratio (typical)
1000:1
Response time
5 ms
Viewing angle, horizontal
160°
Viewing angle, vertical
155°
Native aspect ratio
5:4
Display diagonal
48.3 cm (19")
Display resolution
1280 x 1024 pixels
Display type
LCD
Native aspect ratio
5:4
Aspect ratio
5:4
Response time
5 ms
Display brightness
187 cd/m²
Contrast ratio (typical)
1000:1
Horizontal scan range
31.5 - 80 kHz
Vertical scan range
56.3 - 75 Hz
Viewing angle, horizontal
160°
Viewing angle, vertical
155°
Display viewable area (HxV)
376.3 x 301.1 mm
Display number of colours
16.78 million colours
Features
Product colour
Grey
Mean time between failures (MTBF)
50000 h
Packaging data
Package weight
11.7 kg
Package weight
11.7 kg
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 80%
Storage temperature (T-T)
-20 - 60 °C
Storage relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
10 - 90%
Certificates
Certification
UL/cUL, TÜV-GS, CE, FCC/IC/VCCI, C-Tick Class B
Certification
UL/cUL, TÜV-GS, CE, FCC/IC/VCCI, C-Tick Class B
Design
Product colour
Grey
Performance
On Screen Display (OSD)
Y
Mean time between failures (MTBF)
50000 h
Ports & interfaces
USB 2.0 ports quantity
1
VGA (D-Sub) ports quantity
1
DVI port
N
RS-232 ports
1
Ergonomics
Panel mounting interface
100 x 100 mm
Wall mountable
Y
Power
Power supply type
AC
Power consumption (typical)
50 W
Weight & dimensions
Weight (without stand)
7.9 kg
Width (with stand)
429 mm
Depth (with stand)
207 mm
Height (with stand)
379 mm
Dimensions (W x D x H) with stand
429 x 207 x 379 mm
Packaging content
Camera included
N
Other features
Native resolution
1280 x 1024 pixels
Package dimensions (WxDxH)
540 x 495 x 285 mm
Power requirements
85 - 265 VAC, 47 – 63 Hz
Full HD
N
HD-Ready
N
Information
| Part Number: | E607608 |
