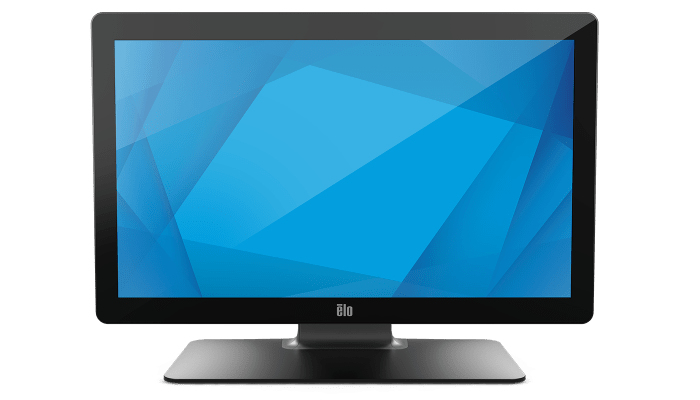

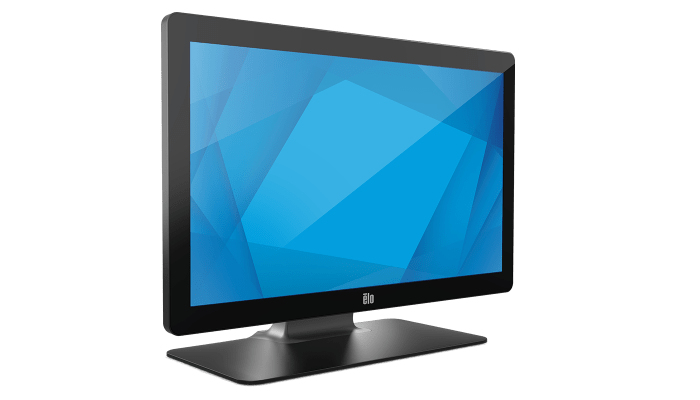

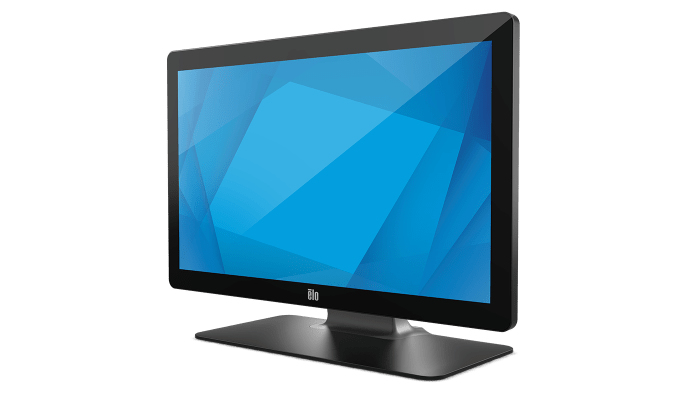

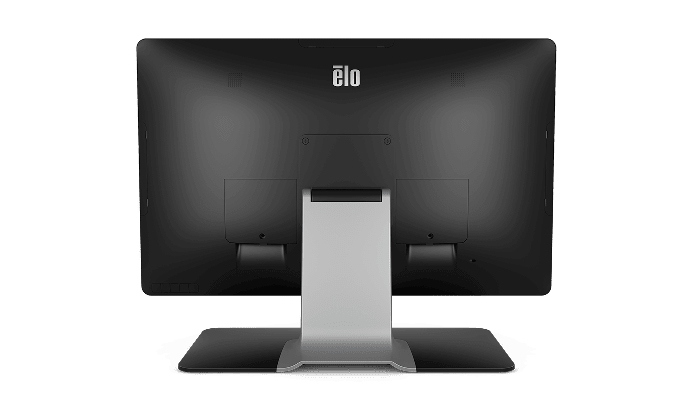

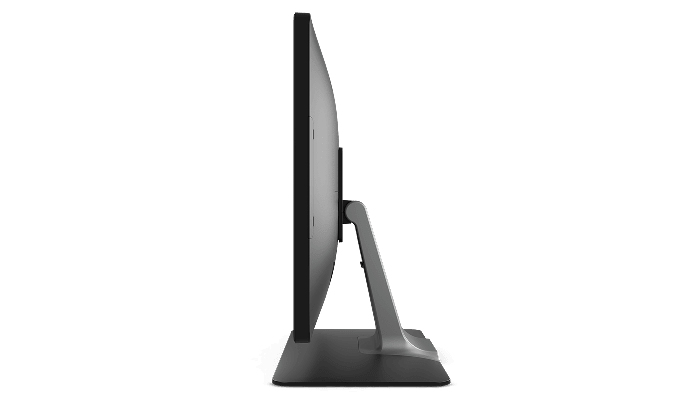

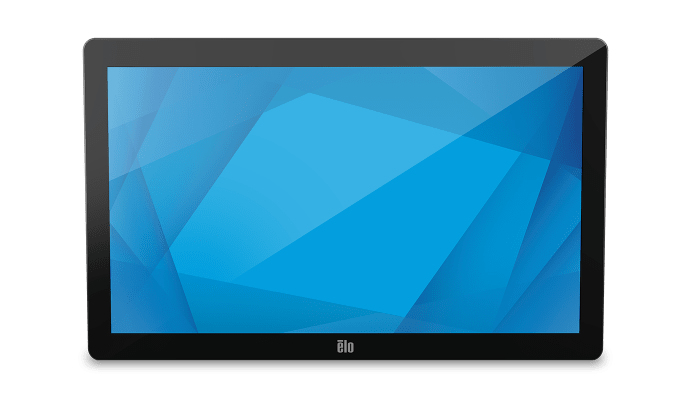

Elo Touch Solutions LCD Touchmonitor 2202l - 22in - Pcap USB Antiglare - Clear Black Without Stand

£422.96

Part Number: E992622
Delivery: 1 - 2 days

Product Details

Introduction

2202L
Touchscreen Monitor

The Elo 02-Series of Touchscreen Monitors designed with seamless style across all sizes includes four options — a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration, the 02-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. And with a variety of peripherals, the monitors can be transformed to meet the demands of your blueprint.

Brilliant Displays from 19 to 27-inches
The brilliant touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.

Elo Edge Connect™ Lets You do More!
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!

One for You.
One for Your Customers.Offer your customers a point of interaction by adding a touchscreen for them to review their transactions, participate in loyalty programs or see the latest promotion.

One for You.
One for Your Customers.Offer your customers a point of interaction by adding a touchscreen for them to review their transactions, participate in loyalty programs or see the latest promotion.Elo touchscreen monitor in dual monitor configurationMount with FlexibilityCustomers demand a seamless shopping experience from first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party VESA mounts, the touchscreens can be integrated with ease.

- Customization
Elo offers customized solutions with everything from slight modifications to ground up designs. If you need something customized.
- Global Reach
Elo products are distributed and available across the globe. Every 21 seconds, an Elo touchscreen is installed somewhere in the world.
- Long Life Cycle
We do everything in our power to minimize design changes and we've kept some monitors available to order for over seven years

Built-to-Last
The 02-Series Touchscreen Monitors deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 5-years. We design, build and are responsible for the complete solution,with touch integrated from the start.

Display

Display diagonal 54.6 cm (21.5")
Display resolution 1920 x 1080 pixels
HD type Full HD
Native aspect ratio 16:9
Display technology LCD
Panel type TFT
Touchscreen Yes
Touchscreen technology Projected capacitive system
Touch technology Multi-touch
Number of simultaneous touchpoints 10
Display brightness (peak) 250 cd/m²
Display brightness (typical) 225 cd/m²
Response time 14 ms
Screen shape Flat
Supported graphics resolutions 640 x 400, 640 x 480 (VGA), 720 x 400, 800 x 500, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+)
Contrast ratio (typical) 1000:1
Maximum refresh rate 60 Hz
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Display number of colours 16.7 million colours
Digital horizontal frequency 30 - 82 kHz
Digital vertical frequency 50 - 75 Hz

Performance

NVIDIA G-SYNC No
AMD FreeSync No

Multimedia

Built-in speaker(s) Yes
Built-in camera No
Number of speakers 2
RMS rated power 4 W

Design

Market positioning Business
Product colour Black
International Protection (IP) code IPX1
IK code IK06

Ports & interfaces

Built-in USB hub Yes
USB hub version 2.0
USB upstream port type USB Type-A, USB Type-B
USB Touch port Yes
USB Touch ports quantity 1
VGA (D-Sub) ports quantity 1
HDMI Yes
HDMI ports quantity 1
Headphone out No
DC-in jack Yes

Ergonomics

VESA mounting Yes
Panel mounting interface 100 x 100 mm
Cable lock slot No
Height adjustment No
On Screen Display (OSD) Yes
On Screen Display (OSD) languages Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Russian

Power

Energy efficiency class (SDR) E
Energy efficiency class (HDR) Not available
Energy consumption (SDR) per 1000 hours 16 kWh
Power consumption (typical) 16.78 W
Power consumption (standby) 0.69 W
Power consumption (off) 0.28 W
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz

Operational conditions

Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 20 - 80%
Storage relative humidity (H-H) 10 - 95%

Packaging content

Cables included HDMI, VGA

Weight & dimensions

Width (with stand) 383.8 mm
Depth (with stand) 526.9 mm
Height (with stand) 193.4 mm
Weight (with stand) 6.75 kg
Width (without stand) 326.9 mm
Depth (without stand) 526.9 mm
Height (without stand) 42.7 mm
Weight (without stand) 4.75 kg

Packaging data

Package width 477 mm
Package depth 617 mm
Package height 260 mm
Package weight 10.8 kg
Package type Box

Information

Part Number: E992622
