Introduction

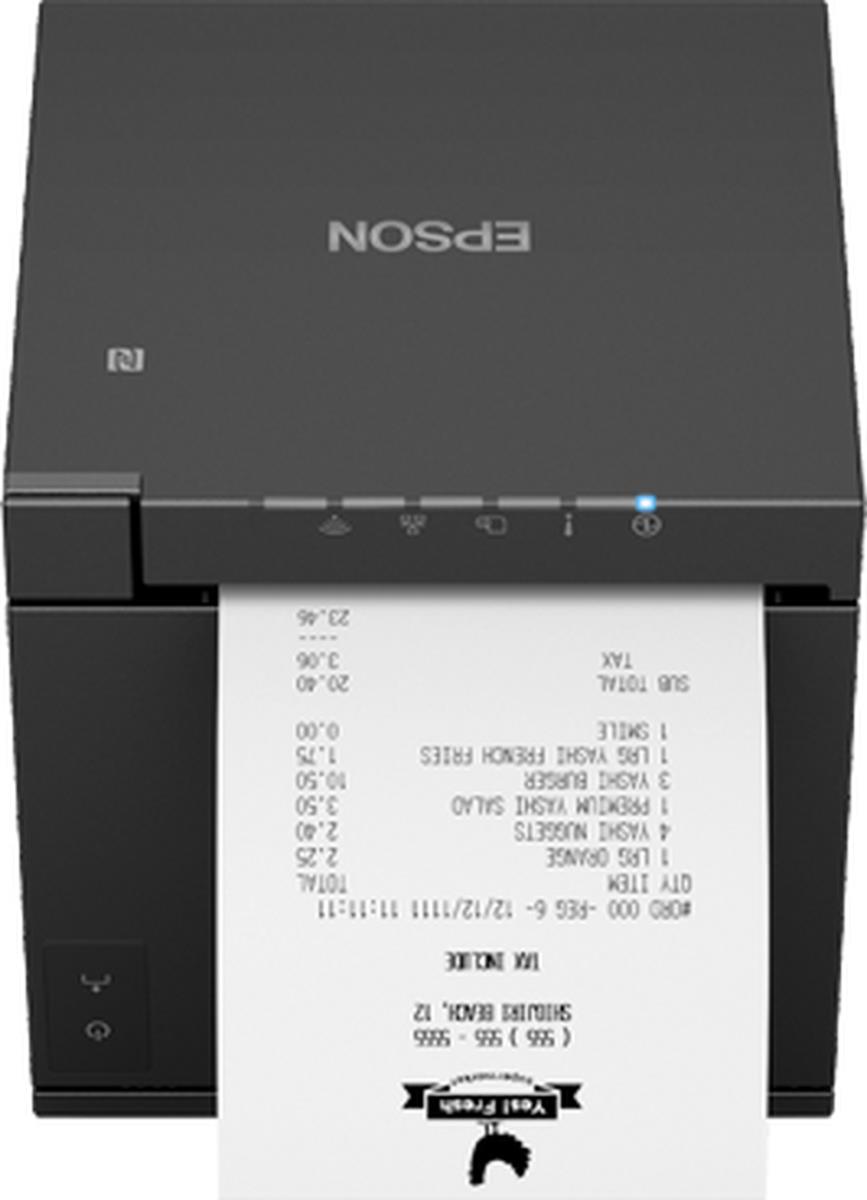

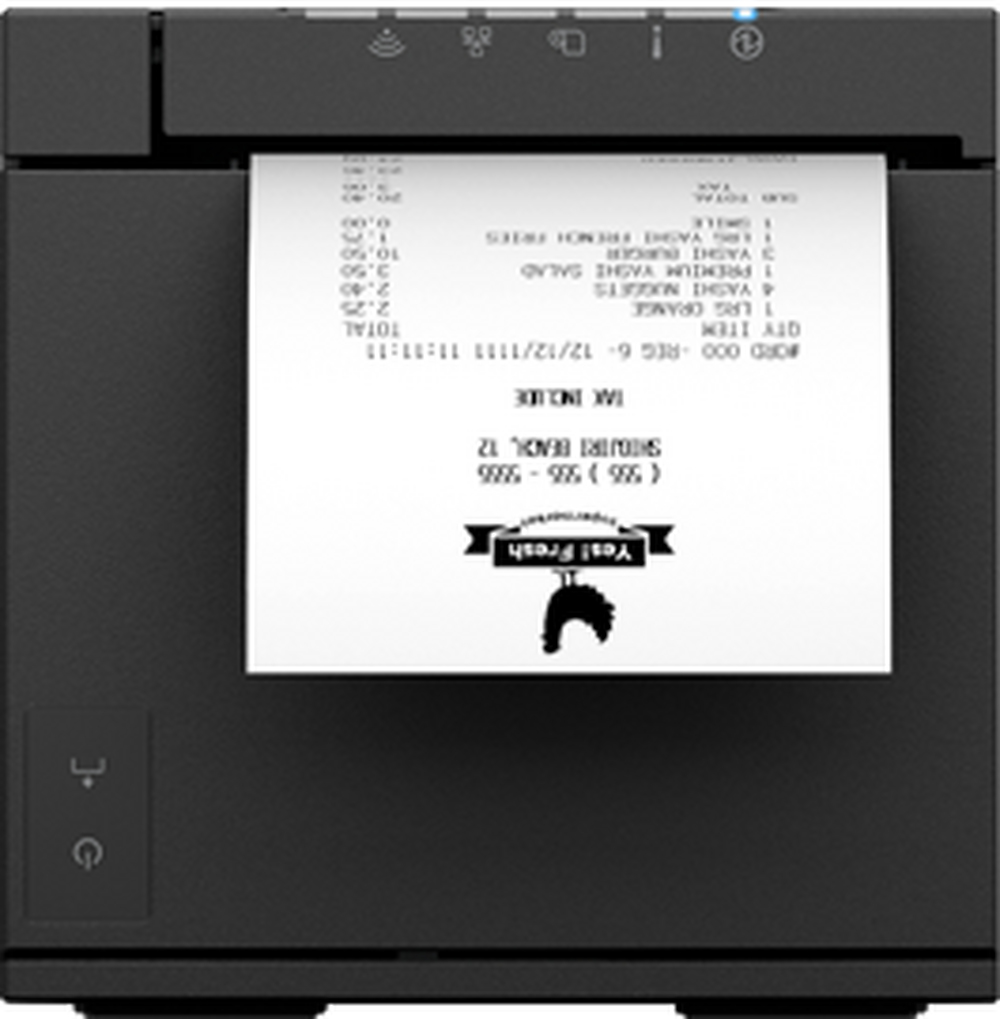

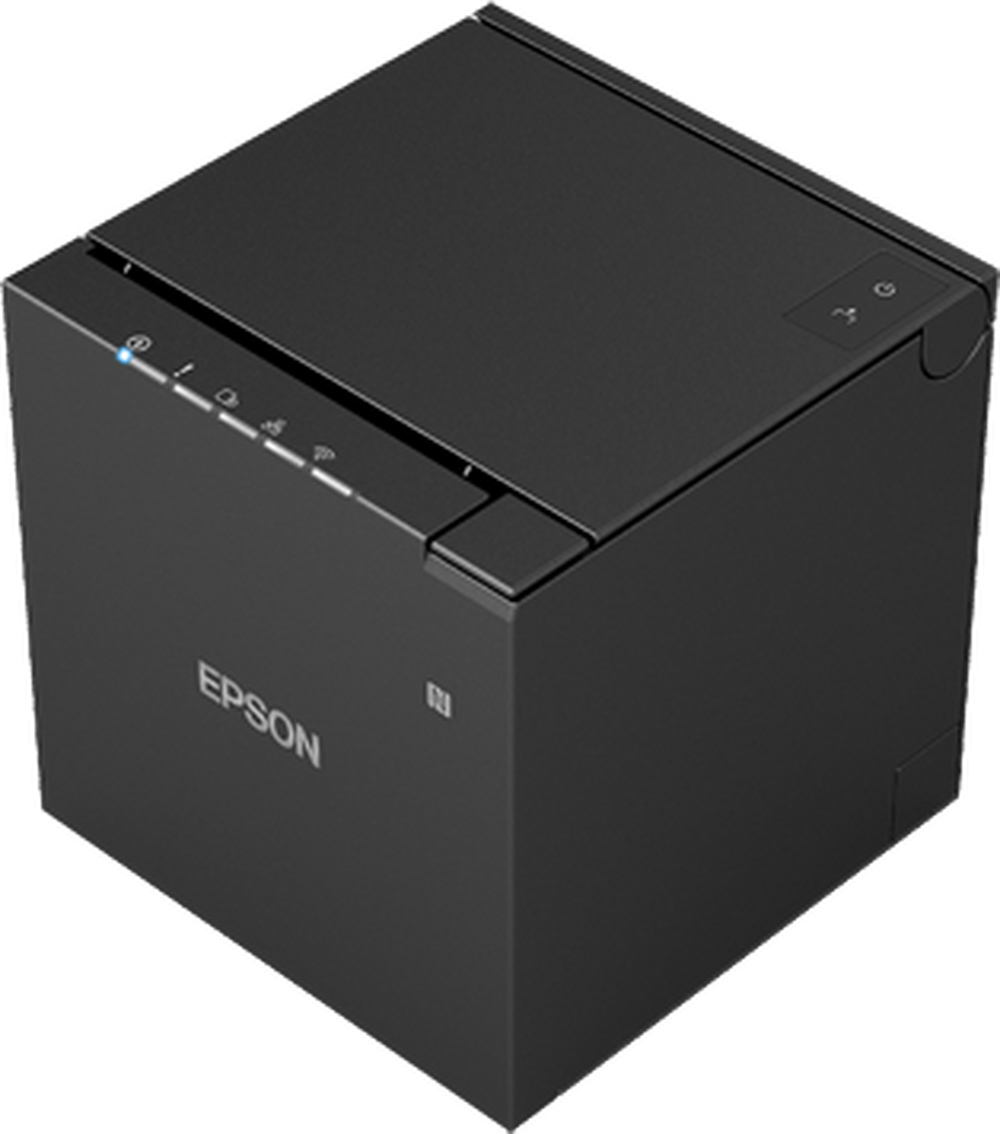

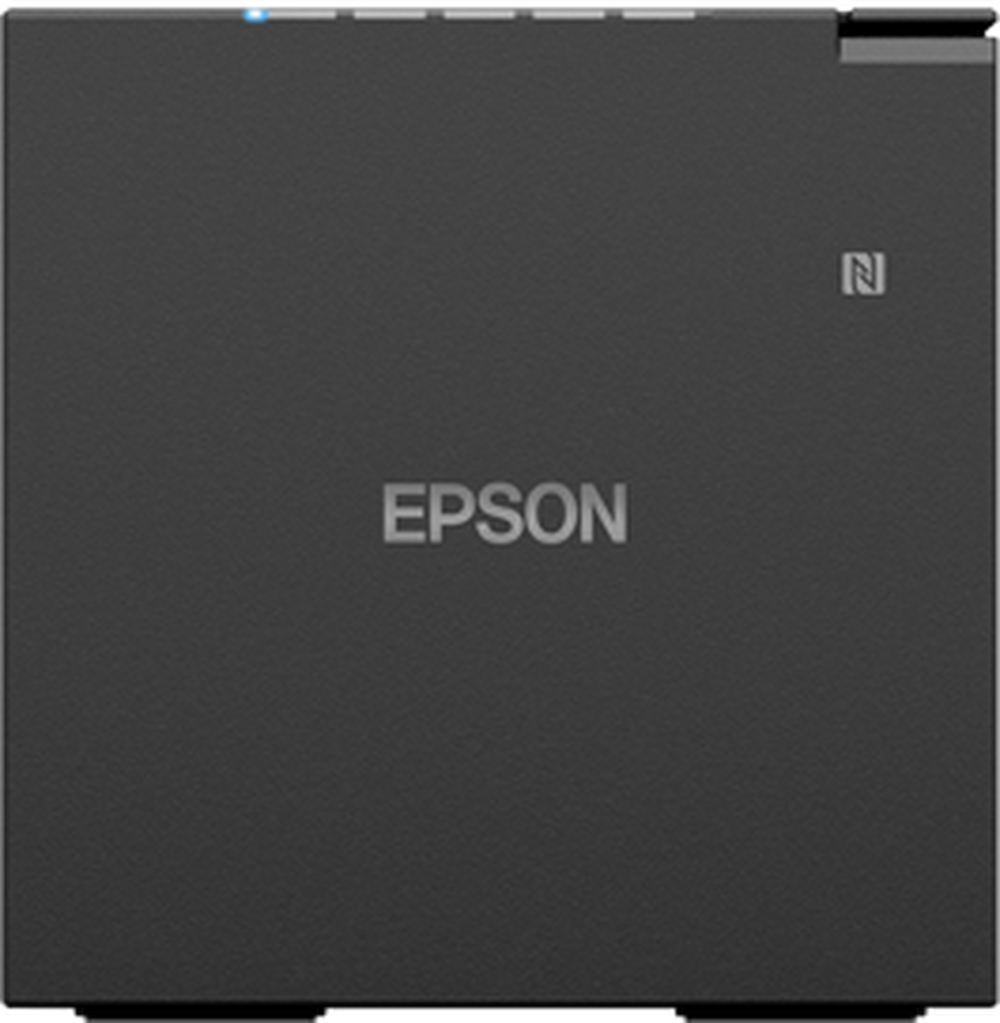

Even more feature-rich than its predecessors, this addition to Epson’s highly popular TM-m30 series features an ultra-small footprint and super-sleek design, and delivers easy, cost-effective and reliable receipt printing in any environment where space is an issue. Now including a USB Type-C PD (Power Delivery) connector, able to supply up to 18W, the TM-m30III (Standard model) is also more robust than ever before, with an antibacterial coating that provides protection against liquids to IPX2 standards, making it ideal for kitchen use. Also featuring paper near-end detection, which is great for kiosks and self-checkouts, its superior de-curling mechanism means that it’s also perfect for receipts that need a signature. Now supporting Android and Windows as well as iOS, the TM-m30III is supplied with links to video guides that make set-up and configuration fast and easy.
Printing
Print speed
300 mm/sec
Print speed (receipt)
300 mm/sec
Printing characters
Graphic, Barcode, 2D barcode, Text
Colour
No
Print technology
Thermal
Type
POS printer
Maximum resolution
203 x 203 DPI
Paper handling
Roll dimensions
Roll 57mm, Roll 80mm
Paper loading type
Top & front
Supported paper width
58 - 80 mm
Ports & interfaces
Near Field Communication (NFC)
Yes
USB port
Yes
Connectivity technology
Wired
Interface
USB 2.0-A, USB Type-C, Ethernet interface (100 Base-TX / 10 Base-T), Micro SD Card Slot, USB 2.0 Type B (Service Only), Wireless LAN IEEE 802.11a/b/g/n/ac (optional), Drawer kick-out, Wi-Fi Direct (optional), Near Field Communication (NFC)
Features
Built-in barcodes
Code 128 (A/B/C), CODABAR (NW-7), UPC-E, UPC-A, GS1 DataBar, EAN8, GS1-128, EAN13, Code 39, Data Matrix, Code 93, ITF, MaxiCode, PDF417
Mean time between failures (MTBF)
360000 h
Cutter
Yes
Autocutter durability
2.2 million cuts
Paper save function
Yes
Tablet charge & sync
Yes
Print head life
150 km
Mounting position
Horizontal/Vertical
Wall mountable
Yes
Built-in sensors details
Roll paper cover open sensor, Paper End Sensor, Paper Near End Sensor, Paper Jam Sensor, Receipt near-end sensor, Receipt paper sensor
Sound pressure level (printing)
53 dB
Country of origin
Philippines
Network
Ethernet LAN
Yes
Wi-Fi
No
Weight & dimensions
Depth
127 mm
Width
127 mm
Height
130 mm
Weight
1.3 kg
Design
Product colour
Black
Built-in display
No
System requirements
Windows operating systems supported
Yes
Mac compatibility
Yes
Mobile operating systems supported
Android, iOS
Technical details
Font styles
ANK, Traditional Chinese, Simplified Chinese
Paper size roll paper
79.50 ± 0.50 (W) mm x dia 83.00 mm,
57.50 ± 0.50 (W) mm x dia 83.00 mm
Voltage
24 V
Compliance certificates
CE
Power consumption
Mean:0.1 A, Mean Receipt unit: approx.1.8 A
Box contents
AC adapter, AC cable, Main unit, Paper roll spacer, Quick Start Guide, Roll paper, Setup guide
Print speed
Max. 300 mm/sec at 203 x 203 DPI ( printing width80 mm)
Technology
Thermal Line
Other features
Buffer size
4 KB
Mean cycles between failures (MCBF)
65000000
Print head life (receipt unit)
150 km
International Protection (IP) code
IPX2
Power
AC input voltage
100 - 230 V
AC input frequency
50 - 60 Hz
Operational conditions
Operating temperature (T-T)
5 - 45 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
10 - 90%
Packaging data
Quantity per pack
1 pc(s)
Package width
127 mm
Package depth
127 mm
Package height
130 mm
Package weight
2.2 kg
