Introduction
Smartphone and tablet label maker
With its flexible connectivity options, you can either print from your computer, or download the free Epson iLabel app3 to create and print labels directly from your iOS or Android device. Thanks to its Bluetooth connectivity2, you can connect remotely anywhere without the need for a network and share the label maker with multiple users.
Easy-to-use

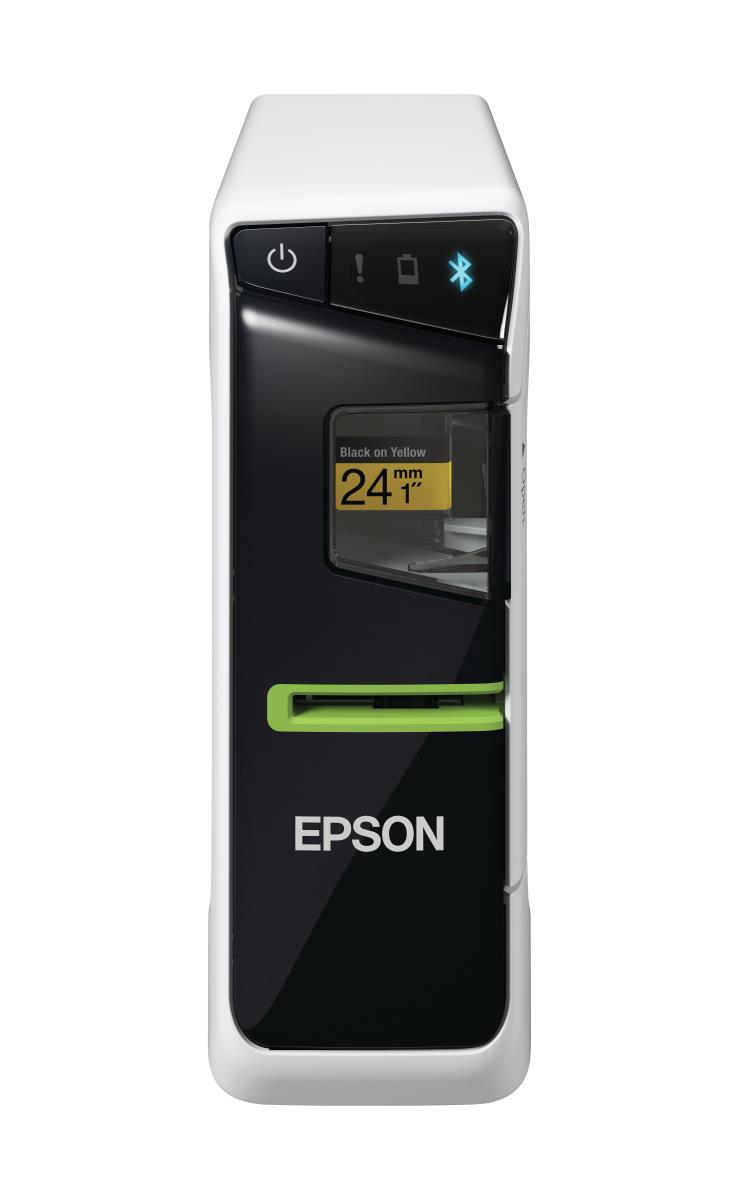

This compact and portable label maker features a front-facing control panel to make operating the LW-600P so easy. Three operating buttons light up to tell you when it is switched on, if the battery level is low and whether or not your Bluetooth connection is active. And the Epson iLabel app3 is intuitive, so it's easy to create professional labels.
Fast, quality printing
Featuring 180dpi print quality, labels are crisp and clear. The LW-600P also offers print speeds of up to 15mm/sec.
Save money on labels
To get you started, the LW-600P comes with one nine-metre tape for black text on a white background. The large variety of tapes available (including Epson’s new glow-in-the-dark, reflective and iron on tapes) mean you can always find the ideal tape for the job. The LW-600P prints on a range of widths up to 24mm.
Battery and mains powered
It comes with a handy AC adapter or can be used with six AA batteries, so you'll always have power when you need it.
Printing
Margin depth settings
1mm, Manual
Enlargement printing
No
Print technology
Thermal transfer
Maximum resolution
180 x 180 DPI
Printable dot numbers
128 dot
Print speed
15 mm/sec
Maximum printing width
2.4 cm
Maximum print height
1.8 cm
Vertical printing
Y
Mirror printing
Y
Flag style printing
Y
Wire wrap printing
Y
Text alignment
Center, Justify, Left, Manual, Right
Text style
Bold, Italic, Shadow
Performance
Cutter
Yes
Accent learning
Yes
Built-in barcodes
Code 128 (A/B/C), Code 39, Data Matrix, EAN128, EAN13, EAN8, GS1-128, GS1 DataBar, ITF, MaxiCode, PDF417, QR Code, UPC-A, UPC-E
Number of symbols
466
Fixed length
Y
Tape width
2.4 cm
Units supported
mm, inch
Number of printing lines (max)
Variable
Alphanumeric memory
Depends on the user's PC
Tape size detection
Y
Open cover detection
Y
System requirements
Minimum system requirements
Approx.100 MB HDD space
Compatible operating systems
Android 2.3+, Mac OS 10.6+, Windows 10 (32/64 bit), Windows 7, Windows 7 x64, Windows 8, Windows 8 (32/64 bit), Windows Vista, Windows Vista x64, Windows XP, iOS 5.0+, iOS 6.0+
Minimum storage drive space
100 MB
Minimum display resolution requirement
1024 x 768 pixels
Technical details
Layout alignment
Left, Right, Center, Manual, Justified
Box contents
1 x 4m Tape, AC adapter, Installation/safety manual, Main unit, Power cable, USB cable, Warranty Documents
Interface
USB 1.0, Bluetooth
Harmonized System (HS) code
84433210
Autoincrement
0-9, a-z, A-Z, Alphabetic, Numerical, Date, Time
Battery level indicator
Y
Feed button
1
Font size
Selectable
Multi-block
Wählbar
Master (outer) case GTIN (EAN/UPC)
8715946666921
Other features
LED indicators
Power
Fonts included
Depending on user's PC
Printing history
Y
Printing history features
Browsing
Lanyard hole
Y
Country of origin
Philippines
Number of frames
86
Number of tables
8
Clock function
Y
Logistics data
Pallet weight (UK)
0 g
Pallet gross weight
0 g
Master (outer) case gross weight
0 g
Products per pallet layer
30 pc(s)
Products per pallet layer (UK)
40 pc(s)
Products per pallet (UK)
280 pc(s)
Pallet length (UK)
120 cm
Pallet width (UK)
100 cm
Pallet height (UK)
3.8 m
Pallet gross width
80 cm
Pallet gross length
120 cm
Pallet gross height
3.8 m
Products per pallet
210 pc(s)
Master (outer) case width
2890 mm
Master (outer) case length
4530 mm
Master (outer) case height
2570 mm
Products per master (outer) case
5 pc(s)
Paper handling
Ports & interfaces
Connectivity technology
Wired & Wireless
Bluetooth
Y
Design
Product colour
Black, Grey
Power
Power consumption (printing)
12 W
Power consumption (off)
0.21 W
Battery type
AA
Number of batteries supported
6
Battery technology
Alkaline
Auto power off
Y
Weight & dimensions
Width
54 mm
Depth
132 mm
Height
146 mm
Weight
440 kg
Packaging data
Quantity per pack
1 pc(s)
Package width
84 mm
Package depth
265 mm
Package height
213 mm
Package weight
1.39 kg
Packaging content
Cables included
AC
Batteries included
N
Bundled software
Epson Label Editor
Warranty card
Y
