Product Details
Introduction

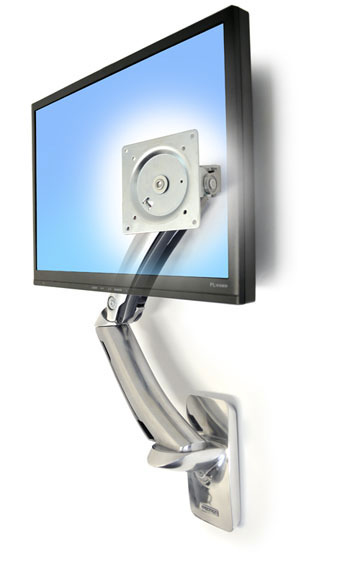

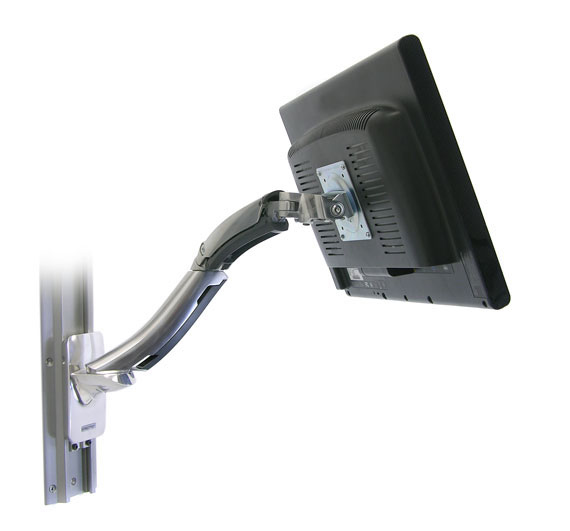

The sleek MX LCD Arm accommodates mid-sized displays and all-in-one computers weighing up to 30 lbs (13.6 kgs).
Five inches (13 cm) of height adjustment, 17 inches (42 cm) of extension/retraction motion, integrated tilt and portrait-to-landscape rotation promote user comfort and enhance productivity.

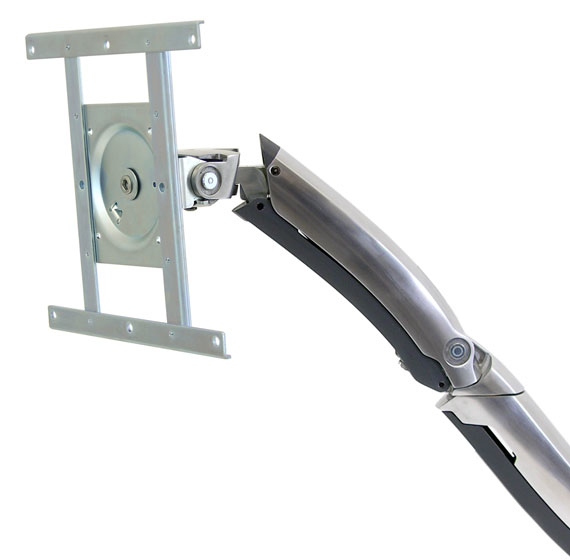

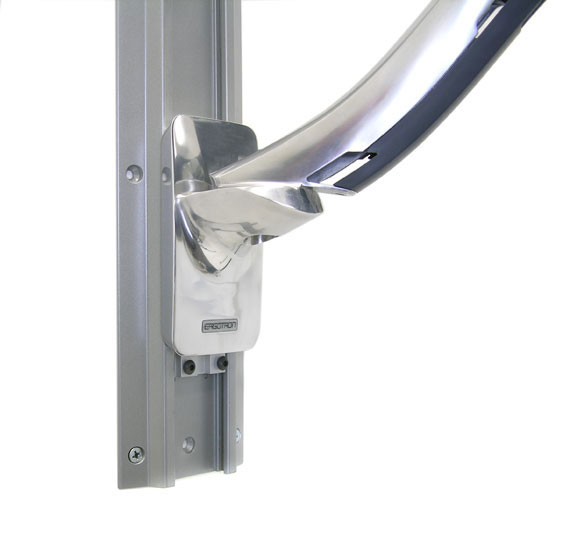

Includes MX arm, vertical mount base, VESA adaptor brackets.
Weight & dimensions
Weight
3.45 kg
Package weight
4.65 kg
Logistics data
Harmonized System (HS) code
85299097
Mounting
Maximum weight capacity
13.6 kg
Maximum screen size
106.7 cm (42")
Minimum VESA mount
75 x 75 mm
Maximum VESA mount
200 x 200 mm
Panel mounting interface
75 x 75,100 x 100,200 x 100,200 x 200
Number of displays supported
1
Mounting type
Wall
Ergonomics
Tilt angle range
0 - 80°
Angle of rotation
90°
Pan range
0 - 360°
Design
Product colour
Aluminium
Other features
Screen size compatibility
42"
Mounting interface
VESA MIS-D/E/F+
Lift
13 cm
Package dimensions (WxDxH)
745 x 265 x 160 mm
Information
| Part Number: | 45-228-026 |
