Product Details
Introduction

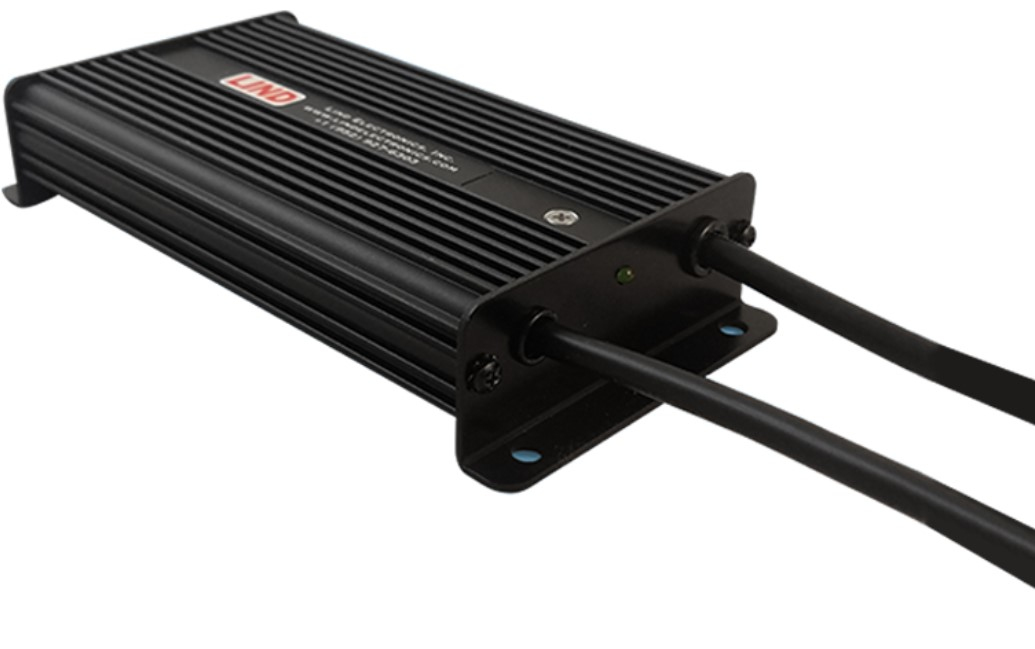

The Lind Isolated DC/DC Power Adapter is designed to provide a regulated DC output from a 12-32 VDC source. Voltage spikes or surges occurring on the input voltage line are filtered by the adapter, thus eliminating potential damage to your powered device. Electrical isolation between input and output prevents ground loops and allows the negative voltage output from the power source to be used positively, when required. The rugged design of the adapter makes it ideally suited for use in harsh conditions.
Features
Purpose
Tablet
Power supply type
Universal
Power current type
DC1-to-DC2
Input voltage
12-32 V
Output power
60 W
Output voltage
12.4 V
Power protection features
Over current, Short circuit, Under temperature
Brand compatibility
Zebra
Compatibility
ET60/65
Design
Product colour
Black
Housing material
Aluminium
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance
Yes
Compliance certificates
CE, RoHS
Weight & dimensions
Width
76.2 mm
Depth
29.2 mm
Height
150.9 mm
Weight
400 g
Packaging content
Quantity per pack
1 pc(s)
Information
| Part Number: | 7300-0692 |
