Product Details
Introduction
Versatile to meet your ever-changing business needs

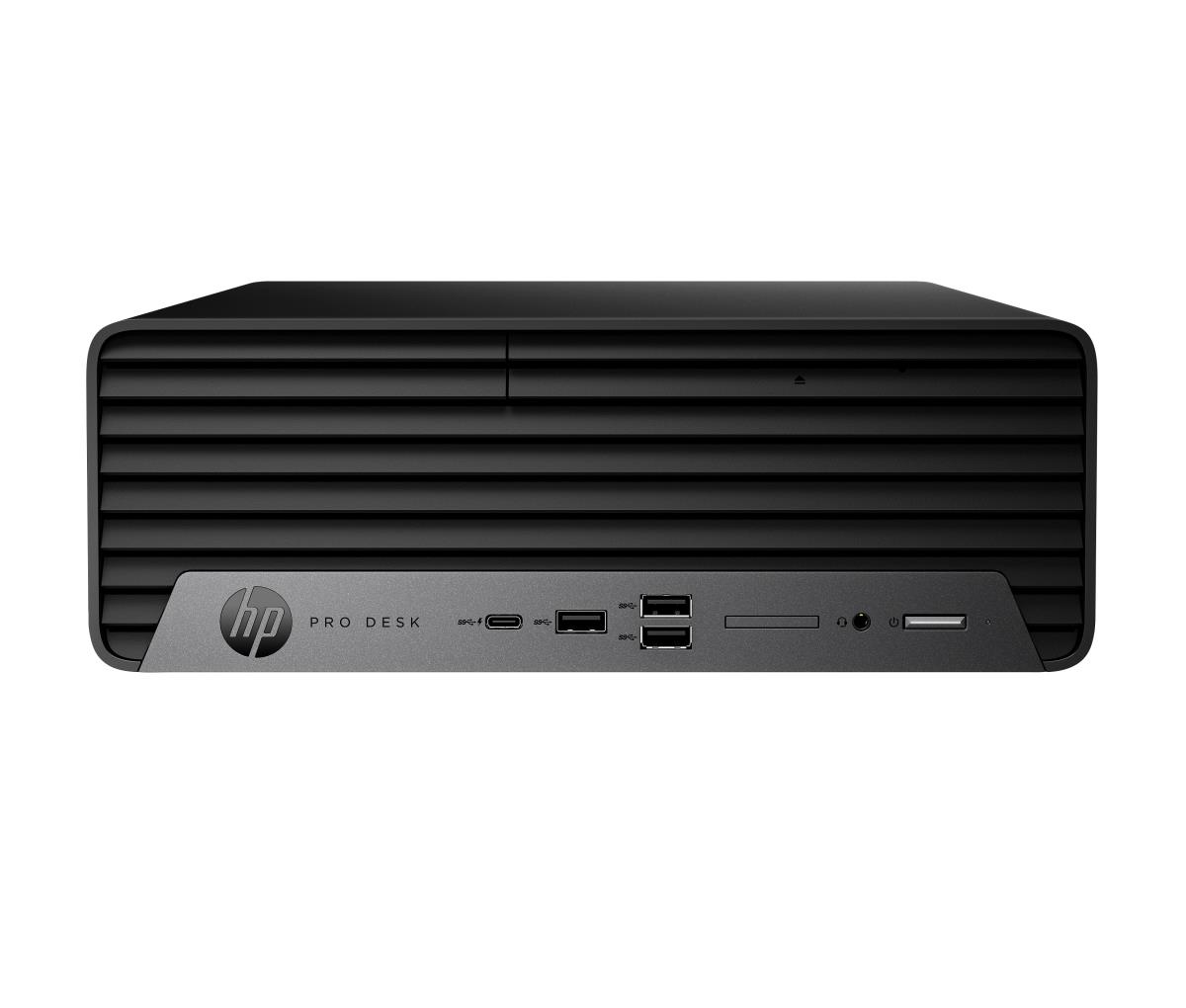

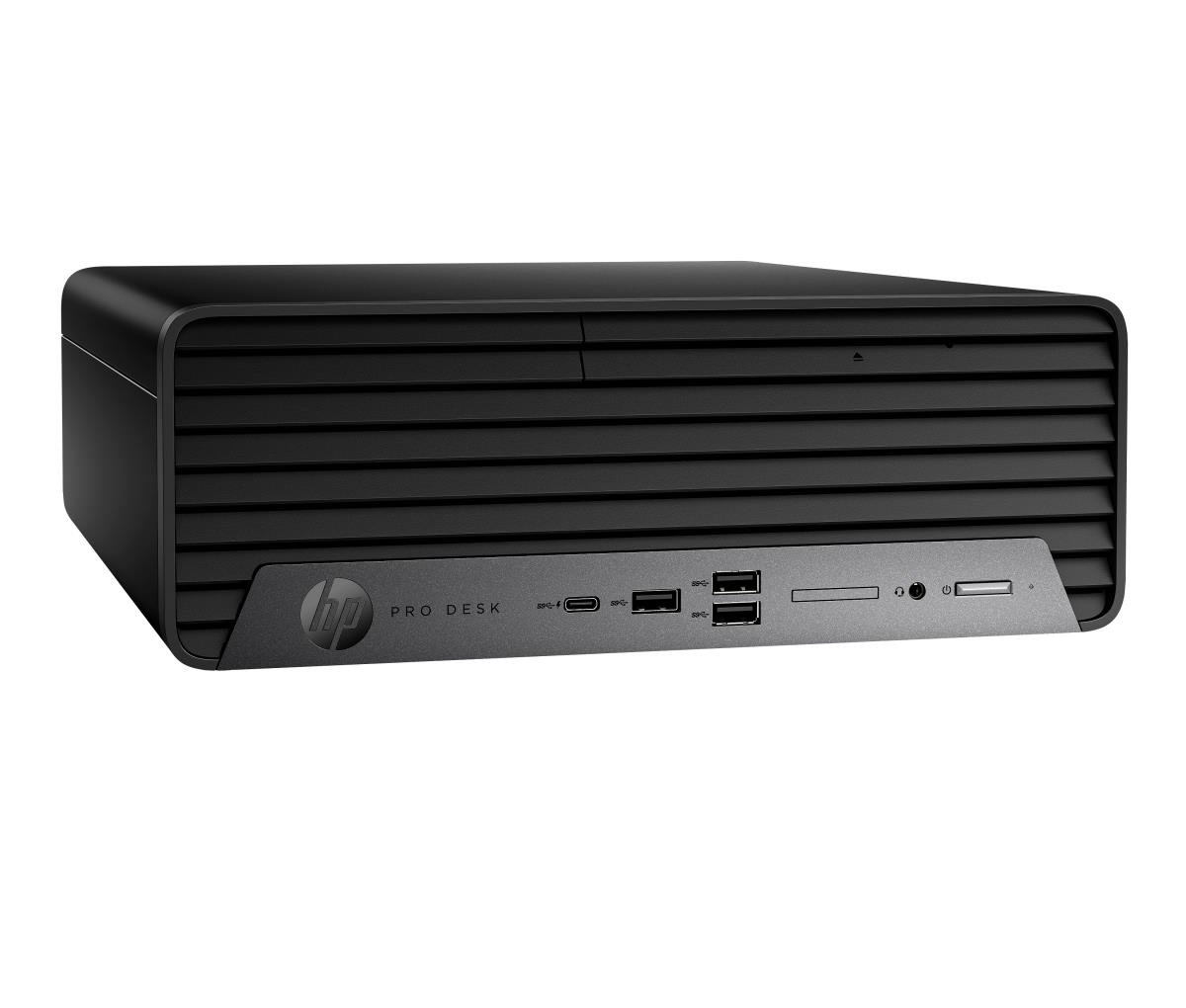

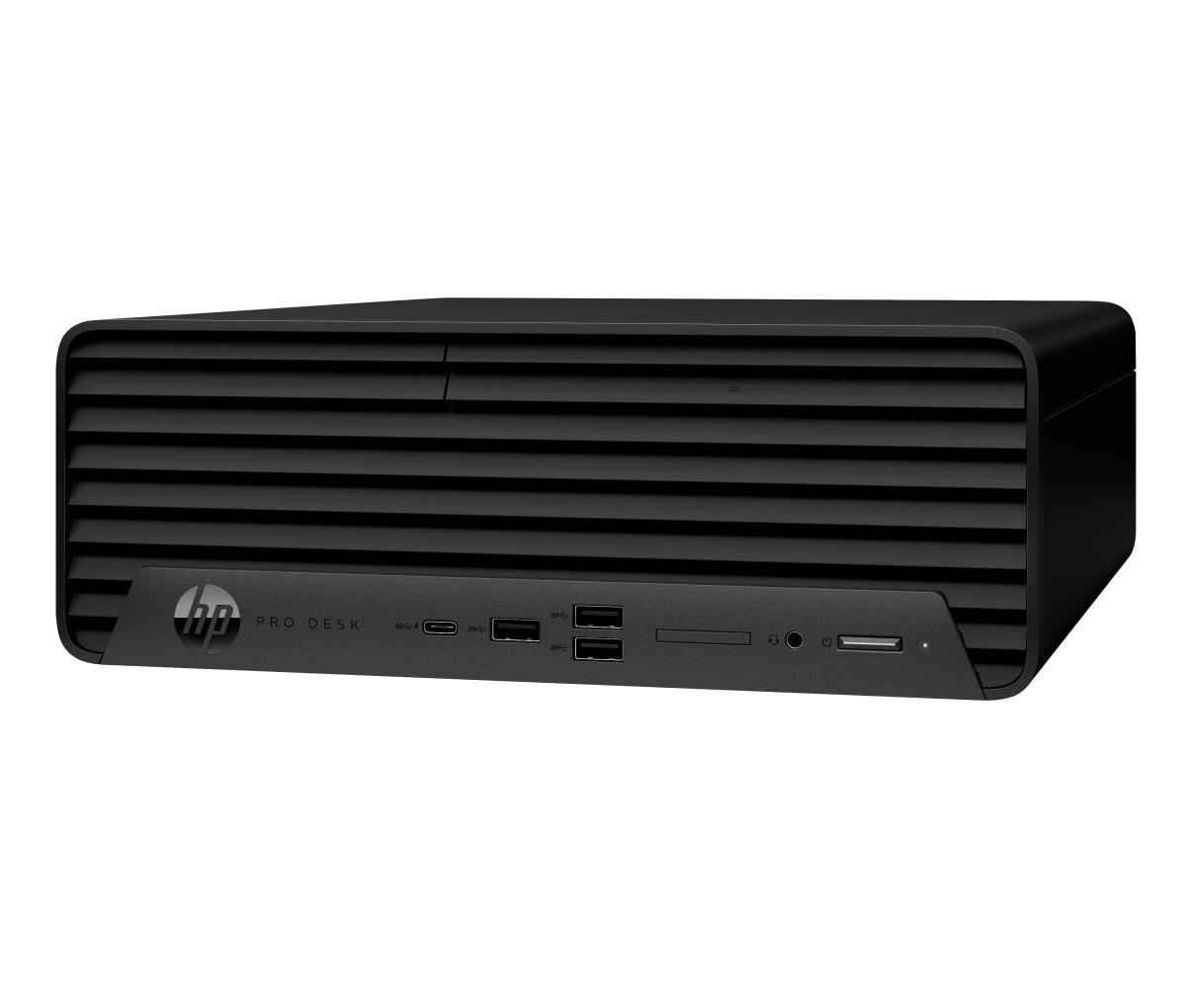

The HP Pro SFF 400 Desktop provides users in hybrid work environments with the commercial-grade configuration options and connectivity in a space-saving design. This PC is powered by the latest Intel® processor[2] and protected with always-on security you can trust.
Memory
Non-ECC
Yes
ECC
No
Maximum internal memory
64 GB
Memory slots
2x DIMM
Internal memory
8 GB
Internal memory type
DDR4-SDRAM
Memory layout (slots x size)
1 x 8 GB
Memory clock speed
3200 MHz
Maximum internal memory
8 GB
Memory module type
UDIMM
ECC
No
Storage
Total storage capacity
256 GB
SSD capacity
HP 3 Years Wolf Pro Security Edition Service. For terms and conditions, please visit https://h20195.www2.hp.com/v2/GetPDF.aspx/4AA8-1150EEE & https://www8.hp.com/h20195/v2/getpdf.aspx/4AA5-7123EEGB.pdf
Number of storage drives installed
1
Optical drive type
No
SSD interface
PCI Express
NVMe
Yes
Total storage capacity
256 GB
Storage media
SSD
Total SSDs capacity
256 GB
Number of SSDs installed
1
SSD capacity
256 GB
SSD form factor
M.2
Storage media
SSD
Optical drive type
No
Total SSDs capacity
256 GB
Number of SSDs installed
1
SSD capacity
256 GB
SSD interface
PCI Express
NVMe
Yes
SSD form factor
M.2
Network
Wi-Fi
No
Ethernet LAN
Yes
Ethernet LAN
Yes
Wi-Fi
No
Design
Colour name
Jack black
Chassis type
SFF
Number of 3.5" bays
1
Product colour
Black
Introduction year
2023
Product colour
Black
Introduction year
2023
Country of origin
Czech Republic
Performance
Password protection
Yes
Market positioning
Proven productivity
Motherboard chipset
Intel Q670
Audio chip
Realtek ALC3252
Trusted Platform Module (TPM)
Yes
Product type
PC
Product type
PC
Password protection type
BIOS, Power on, User
Trusted Platform Module (TPM) version
2.0
Processor
Processor generation
13th gen Intel® Core™ i5
Processor model
i5-13500
Performance cores
6
Efficient cores
8
Performance-core base frequency
2.5 GHz
Efficient-core base frequency
1.8 GHz
Efficient-core Max Turbo Frequency
3.5 GHz
Performance-core Max Turbo Frequency
4.8 GHz
Processor base power
65 W
Maximum turbo power
154 W
Processor manufacturer
Intel
Processor family
Intel® Core™ i5
Processor cores
14
Processor boost frequency
4.8 GHz
Processor cache
24 MB
Processor cache type
L3
Processor threads
20
Performance cores
6
Efficient cores
8
Performance-core Max Turbo Frequency
4.8 GHz
Efficient-core Max Turbo Frequency
3.5 GHz
Performance-core base frequency
2.5 GHz
Efficient-core base frequency
1.8 GHz
Processor base power
65 W
Maximum turbo power
154 W
Operational conditions
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
10 - 90%
Graphics
Discrete graphics card
No
On-board graphics card
Yes
Discrete graphics card model
Not available
On-board graphics card family
Intel® UHD Graphics
On-board graphics card model
Intel UHD Graphics 770
On-board GPU manufacturer
Intel
Discrete graphics card
No
Discrete graphics card model
Not available
Sustainability
Sustainability certificates
ENERGY STAR
Sustainability compliance
Yes
Sustainability compliance
Yes

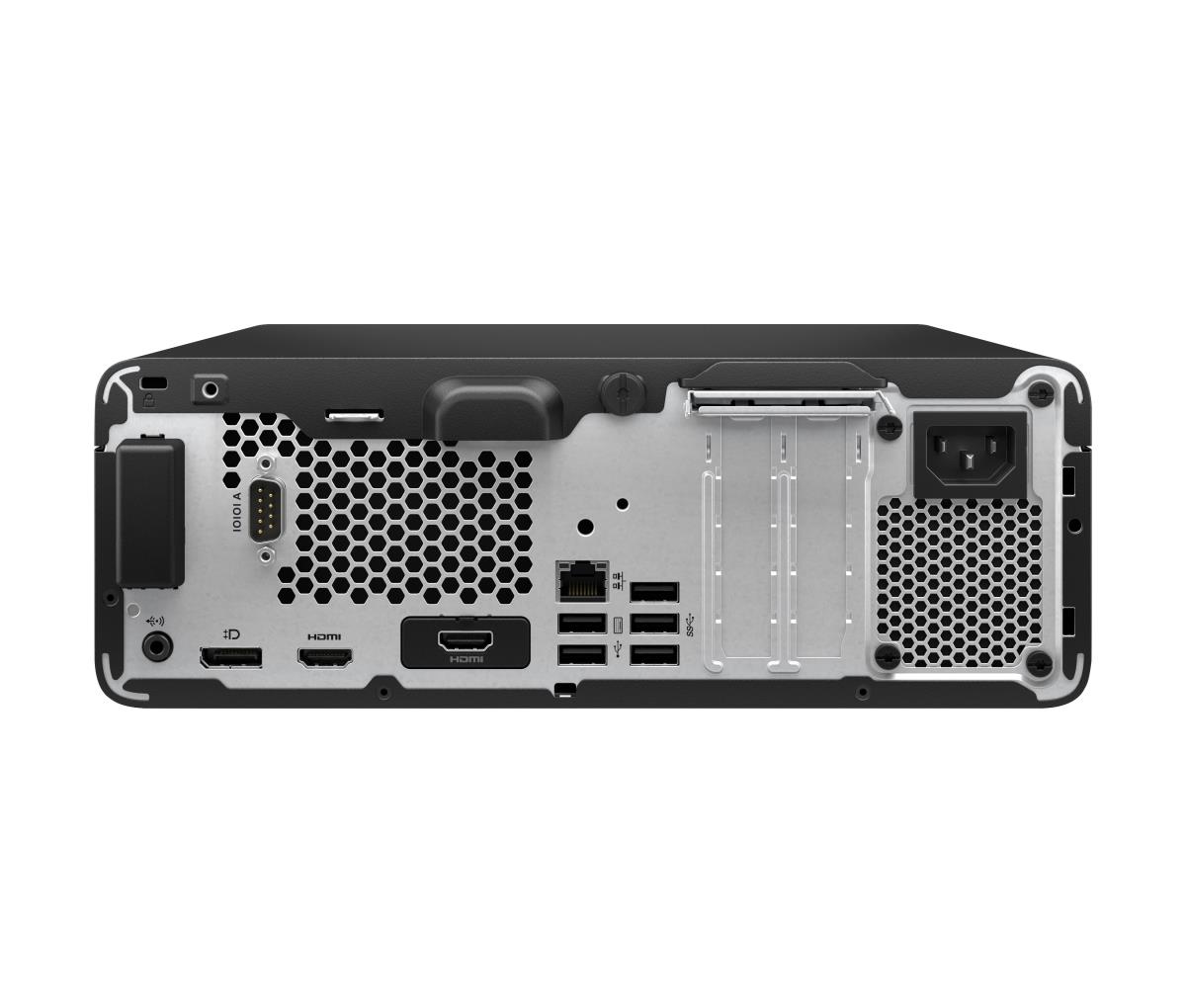

Ports & interfaces
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
HDMI ports quantity
1
HDMI version
1.4
DisplayPorts quantity
1
DisplayPort version
1.4
Ethernet LAN (RJ-45) ports
1
Line-out
Yes
Combo headphone/mic port
Yes
Microphone in
Yes
USB 2.0 ports quantity
2
DisplayPorts quantity
1
DisplayPort version
1.4
Ethernet LAN (RJ-45) ports
1
Combo headphone/mic port
Yes
Software
Pre-installed software
HP Notifications; HP PC Hardware Diagnostics UEFI; HP Support Assistant; HP Connection Optimizer; HP Privacy Settings; HP PC Hardware Diagnostics Windows; HP Desktop Support Utilities; HP Easy Clean; Touchpoint Customizer for Commercial; HP Easy Clean Keyboard Driver; HSA Fusion for Commercial; HSA Telemetry for Commercial; HPX for CMIT
Operating system installed
Windows 11 Pro
Pre-installed software
HP Notifications; HP PC Hardware Diagnostics UEFI; HP Support Assistant; HP Connection Optimizer; HP Privacy Settings; HP PC Hardware Diagnostics Windows; HP Desktop Support Utilities; HP Easy Clean; Touchpoint Customizer for Commercial; HP Easy Clean Keyboard Driver; HSA Fusion for Commercial; HSA Telemetry for Commercial; HPX for CMIT
Bundled software
HP Wolf Pro Security Edition (3 years)
Brand-specific features
HP Management tools
HP Client Catalog (download); HP Driver Packs (download); HP Image Assistant (download); HP Client Management Script Library (download); HP Manageability Integration Kit Gen 4 (download)
HP Support Assistant
Yes
HP Software provided
HP NotiFIcations; HP PC Hardware Diagnostics UEFI; HP Connection Optimizer; HP Privacy Settings; HP PC Hardware Diagnostics Windows; HP Desktop Support Utilities; HP Easy Clean; Touchpoint Customizer for Commercial; HP Easy Clean Keyboard Driver; HSA Fusion for Commercial; HSA Telemetry for Commercial; HPX for CMIT
HP segment
Business
HP Software provided
HP NotiFIcations; HP PC Hardware Diagnostics UEFI; HP Connection Optimizer; HP Privacy Settings; HP PC Hardware Diagnostics Windows; HP Desktop Support Utilities; HP Easy Clean; Touchpoint Customizer for Commercial; HP Easy Clean Keyboard Driver; HSA Fusion for Commercial; HSA Telemetry for Commercial; HPX for CMIT
HP Security tools
Trusted Platform Module TPM 2.0 Embedded Security Chip shipped with Windows 10 (Common Criteria EAL4+ Certified)(FIPS 140-2 Level 2 Certified); HP Secure Erase; HP Sure Click; Absolute Persistence module; HP Sure Admin; HP Tamper Lock; HP Sure Start Gen7; HP Sure Sense2
Power
Power supply
240 W
Power supply input voltage
100 - 240 V
Power supply input frequency
50 - 60 Hz
Power supply input voltage
100 - 240 V
Power supply input frequency
50 - 60 Hz
Power supply
240 W
Expansion slots
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
Audio
Audio chip
Realtek ALC3252
Technical details
EAN/UPC/GTIN identifier(s)
197961463149
General Product Safety Regulation (GPSR) URL
https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true
Weight & dimensions
Width
270 mm
Depth
95 mm
Height
308 mm
Weight
4.2 kg
Package width
394 mm
Package depth
205 mm
Package height
499 mm
Package weight
7.25 kg
Other features
Manufacturer warranty
1 year (1/1/1) limited warranty includes 1 year of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.
UNSPSC-code
43211507
Packaging content
Mouse included
Yes
Mouse connectivity
Wired
Keyboard included
Yes
Keyboard connectivity
Wired
Mouse included
Yes
Mouse connectivity
Wired
Numeric keypad
No
Input device model
HP 125 Wired Mouse
Logistics data
Harmonized System (HS) code
8471500000
Harmonized System (HS) code
8471500000
Processor special features
Intel® Turbo Boost Technology
Yes
Supplier features
Support service included
HP 3 Years Wolf Pro Security Edition Service. For terms and conditions, please visit https://h20195.www2.hp.com/v2/GetPDF.aspx/4AA8-1150EEE & https://www8.hp.com/h20195/v2/getpdf.aspx/4AA5-7123EEGB.pdf
Information
| Part Number: | 628X6ET#ABU |
