Product Details
Introduction

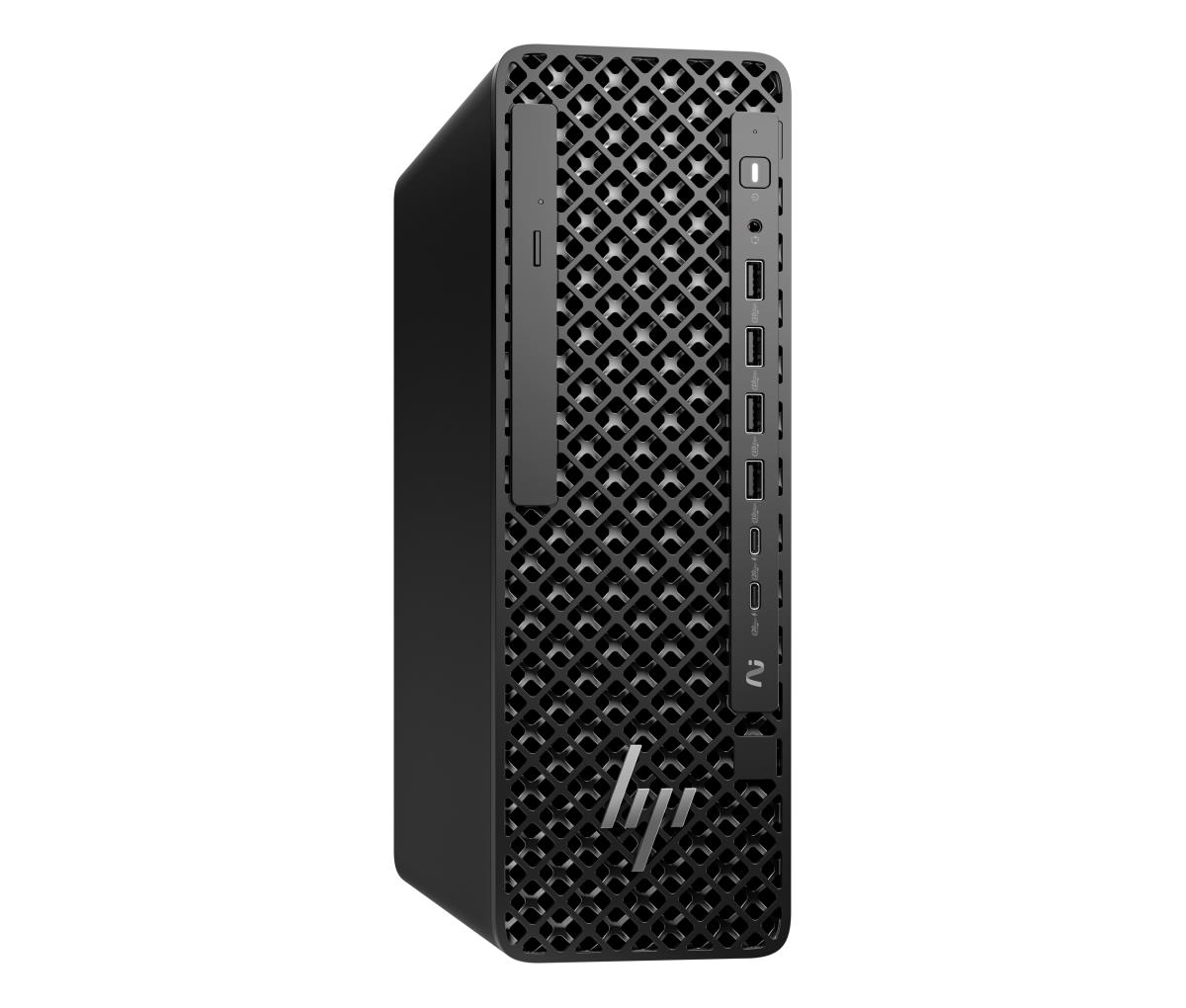

Tower power at a third of the size.
Re-engineered to get all the power of a full-size tower at a fraction of the size. The Z2 SFF AI workstation delivers high performance for intensive workflows—from 3D design to real time ray tracing—now and in the future. When demands change, you have the impressive ability to upgrade and expand.

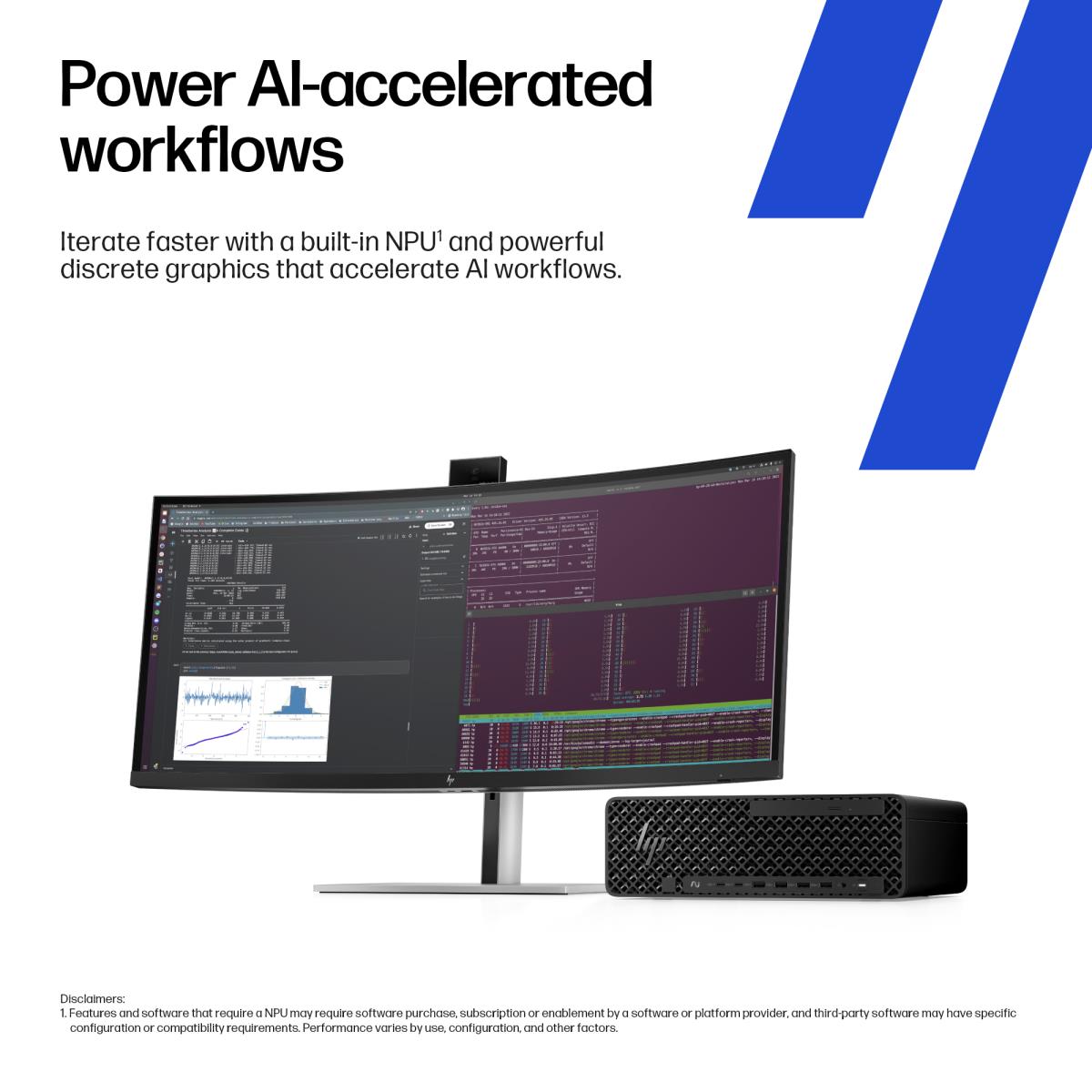

Neural processor unit (NPU)
Neural processor unit (NPU)
Intel AI Boost
NPU performance up to
13 TOPs
Sparsity support
Yes
Windows Studio effects support
Yes
AI software frameworks supported by NPU
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to
33 TOPs
GPU performance up to
8 TOPs
Sparsity support
Yes
Windows Studio effects support
Yes
AI software frameworks supported by NPU
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to
33 TOPs
GPU performance up to
8 TOPs
Memory
Memory slots
4x DIMM
Non-ECC
Yes
Maximum internal memory
32 GB
Internal memory
32 GB
Internal memory type
DDR5-SDRAM
Memory layout (slots x size)
1 x 32 GB
Memory clock speed
5600 MHz
Storage
Number of storage drives installed
1
Total storage capacity
1 TB
Storage media
SSD
Optical drive type
No
Total SSDs capacity
1 TB
Number of SSDs installed
1
SSD capacity
1 TB
SSD interface
PCI Express 4.0
NVMe
Yes
SSD form factor
M.2
Total storage capacity
1 TB
Storage media
SSD
Optical drive type
No
Total SSDs capacity
1 TB
Number of SSDs installed
1
SSD capacity
1 TB
SSD interface
PCI Express 4.0
NVMe
Yes
SSD form factor
M.2
Graphics
Discrete graphics card
Yes
On-board graphics card
Yes
Number of discrete graphics cards
1
On-board GPU manufacturer
Intel
Discrete GPU manufacturer
NVIDIA
Discrete graphics card model
NVIDIA RTX A400
Discrete graphics card memory
4 GB
Discrete graphics memory type
GDDR6
On-board graphics card model
Intel Graphics
On-board graphics card family
Intel Graphics
Network
Wi-Fi
Yes
Bluetooth
Yes
Bluetooth
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Ethernet LAN
Yes
Wi-Fi standards
Wi-Fi 7 (802.11be)
Ethernet LAN data rates
10,100,1000 Mbit/s
Cabling technology
10/100/1000Base-T(X)
Ethernet LAN data rates
10,100,1000 Mbit/s
Cabling technology
10/100/1000Base-T(X)
WLAN controller manufacturer
Intel
WLAN controller model
Intel Wi-Fi 7 BE200
Antenna type
2x2
Bluetooth version
5.4
Design

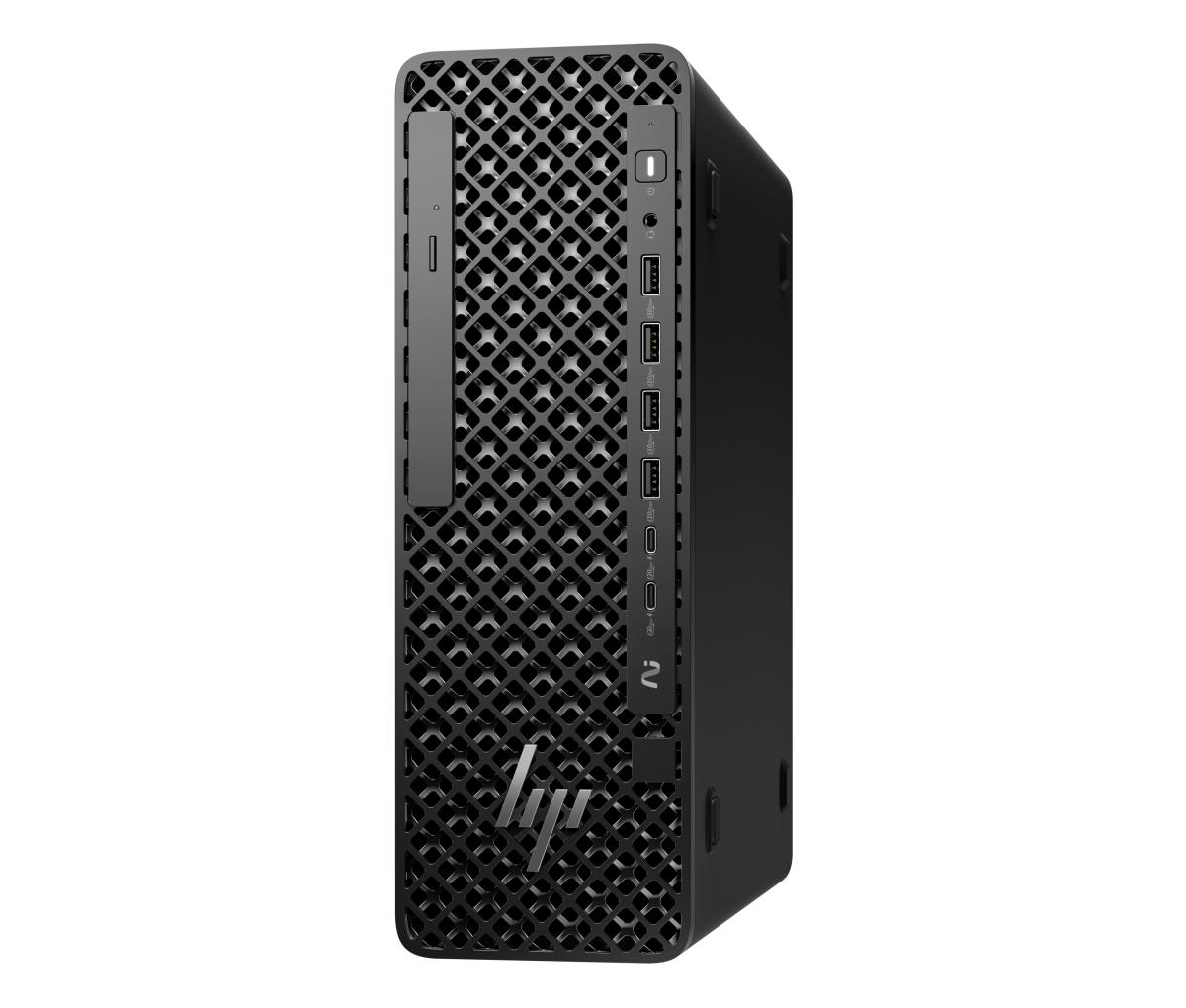

Chassis type
SFF
Colour name
Black
Product colour
Black
Product colour
Black
Country of origin
Czech Republic
Intel® vPro™ Platform Eligibility
No
Performance
Market positioning
Performance
Password protection
Yes
Product type
Workstation
Audio chip
Realtek ALC3252
Password protection type
BIOS, Power on, User
Product type
Workstation
Motherboard chipset
Intel W880
Software
Operating system installed
Windows 11 Pro
Brand-specific features
HP Artificial Intelligence
AI PC, AI Workstation
HP segment
Business
HP GTIN (EAN/UPC)
199485051987
HP GTIN (EAN/UPC)
199485051987

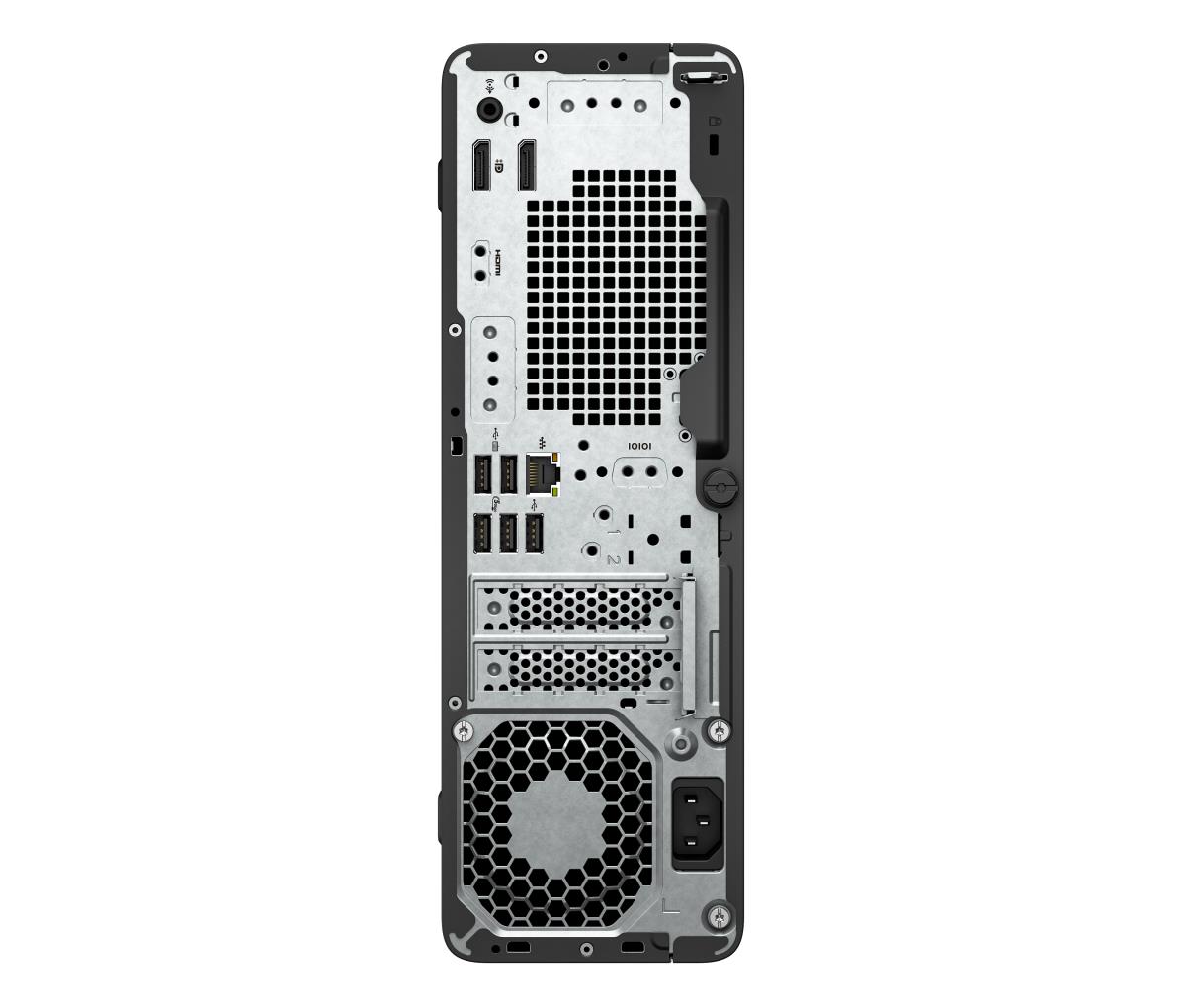

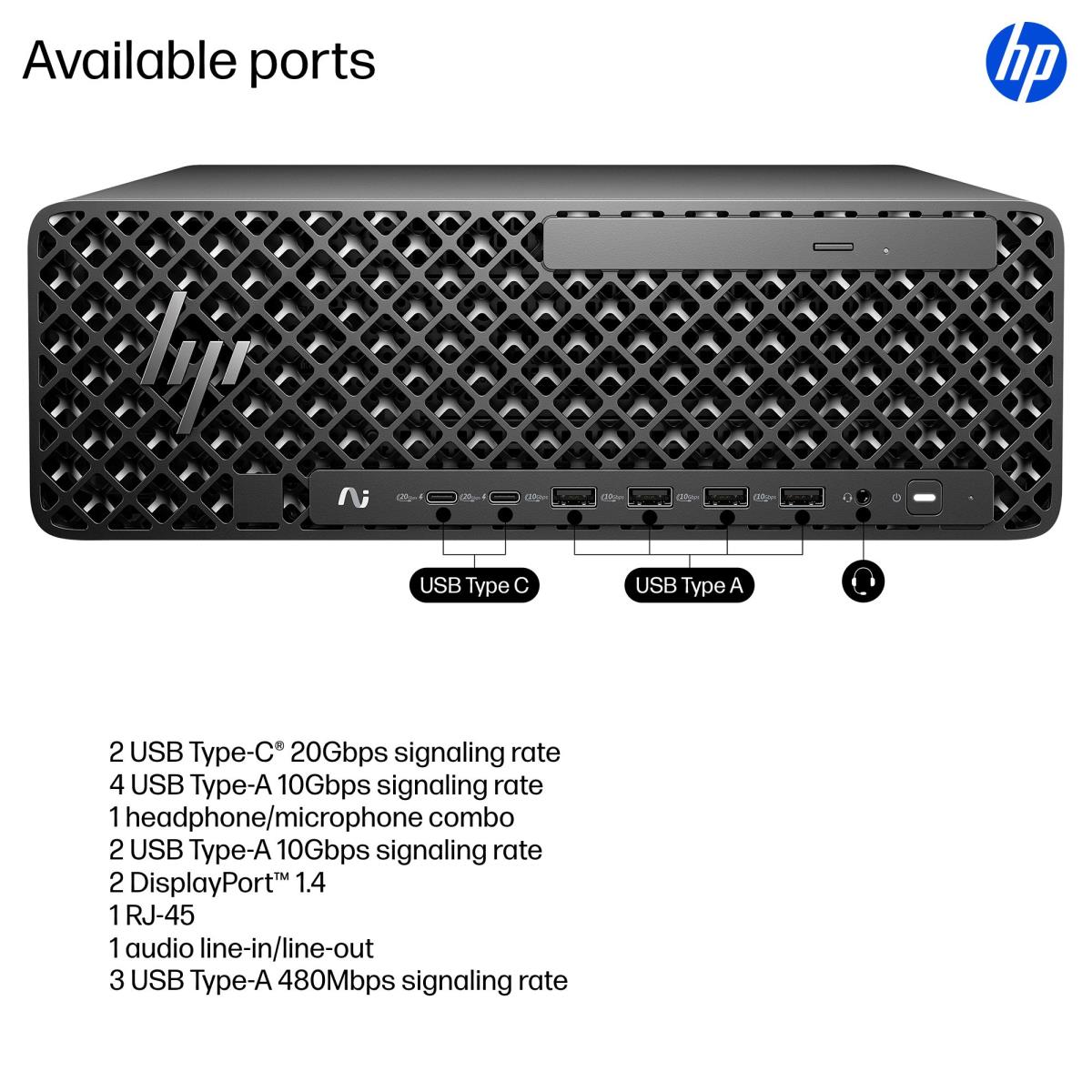

Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
6
USB 3.2 Gen 2x2 Type-C ports quantity
2
Microphone in
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
6
USB 3.2 Gen 2x2 Type-C ports quantity
2
DisplayPorts quantity
2
DisplayPort version
1.4
Ethernet LAN (RJ-45) ports
1
Combo headphone/mic port
Yes
Line-out
Yes
Line-in
Yes
Microphone in
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
DisplayPorts quantity
2
DisplayPort version
1.4
Ethernet LAN (RJ-45) ports
1
Line-out
Yes
Line-in
Yes
Combo headphone/mic port
Yes
Power
Power supply
400 W
Power supply input voltage
100 - 240 V
Power supply input frequency
50 - 60 Hz
Power supply
400 W
Power supply input voltage
100 - 240 V
Power supply input frequency
50 - 60 Hz
Sustainability
Sustainability compliance
Yes
Sustainability compliance
Yes
Sustainable technologies and materials
Low halogen; 10% ITE-derived closed loop plastic; 80 Plus® Platinum power supplies available; Product Carbon Footprint; Contains at least 20% post-industrial recycled steel; At least 25% ocean-bound plastic in system fans; System has a QR code enabled experience where the user has access to a product portal – beginning December 2025, this is complete with product feature highlights, sustainability information, getting started guides, and direct setup and support options; New Energy Consumption dashboard available to customers providing timely carbon usage including recommended actions users can take to decrease carbon footprint
Sustainable technologies and materials
Low halogen; 10% ITE-derived closed loop plastic; 80 Plus Platinum power supplies available; Product Carbon Footprint; Contains at least 20% post-industrial recycled steel; At least 25% ocean-bound plastic in system fans; System has a QR code enabled experience where the user has access to a product portal – beginning December 2025, this is complete with product feature highlights, sustainability information, getting started guides, and direct setup and support options; New Energy Consumption dashboard available to customers providing timely carbon usage including recommended actions users can take to decrease carbon footprint
Sustainability certificates
ENERGY STAR, EPEAT

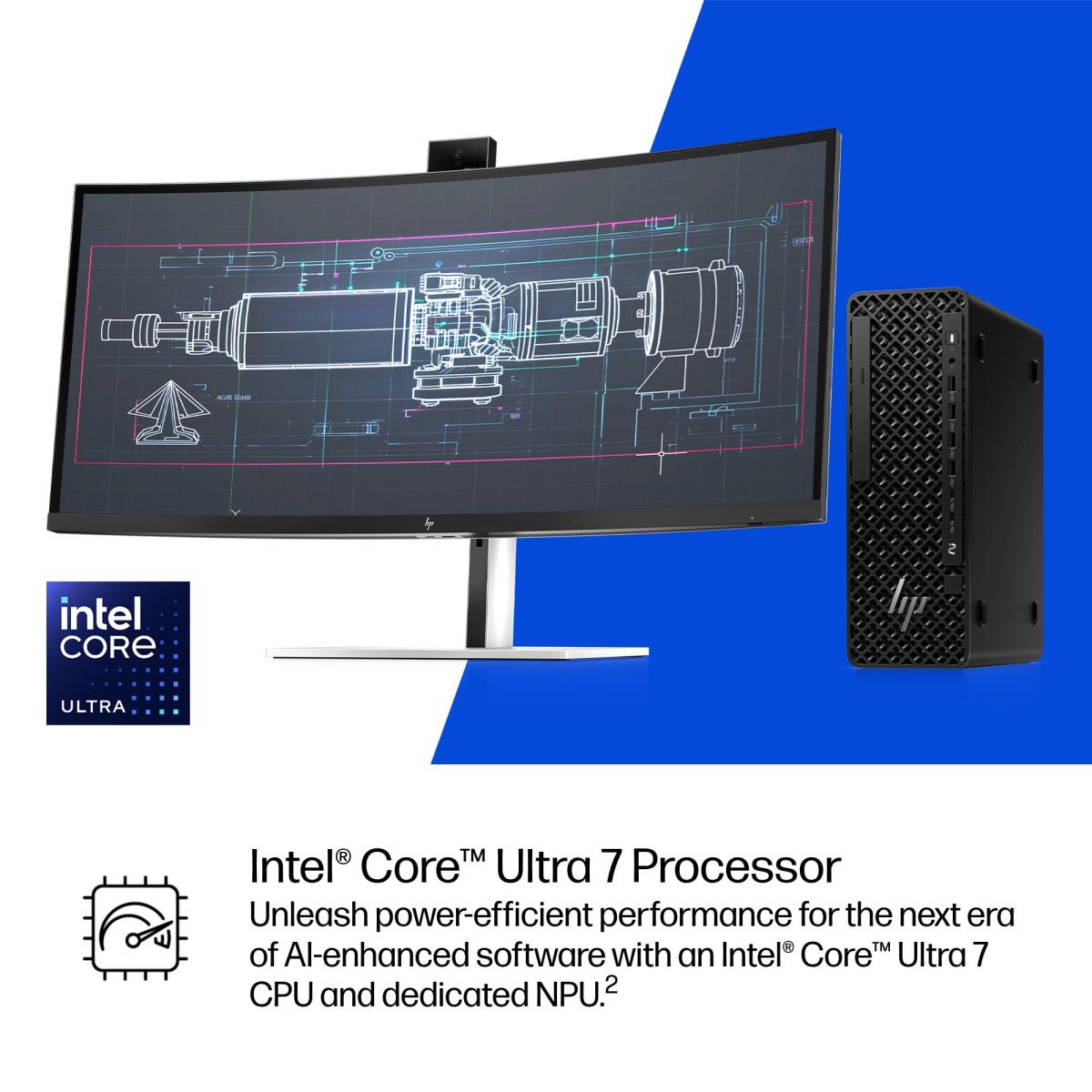

Processor
Processor generation
Intel Core Ultra (Series 2)
Performance cores
8
Efficient cores
12
Performance-core Max Turbo Frequency
5.2 GHz
Efficient-core Max Turbo Frequency
4.6 GHz
Performance-core base frequency
2.4 GHz
Efficient-core base frequency
1.8 GHz
Processor base power
65 W
Maximum turbo power
182 W
Processor manufacturer
Intel
Processor family
Intel Core Ultra 7
Processor model
265
Processor cores
20
Processor threads
20
Processor boost frequency
5.3 GHz
Processor cache
30 MB
Processor cache type
Smart Cache
Processor generation
Intel Core Ultra (Series 2)
Performance cores
8
Efficient cores
12
Performance-core Max Turbo Frequency
5.2 GHz
Efficient-core Max Turbo Frequency
4.6 GHz
Performance-core base frequency
2.4 GHz
Efficient-core base frequency
1.8 GHz
Processor base power
65 W
Maximum turbo power
182 W

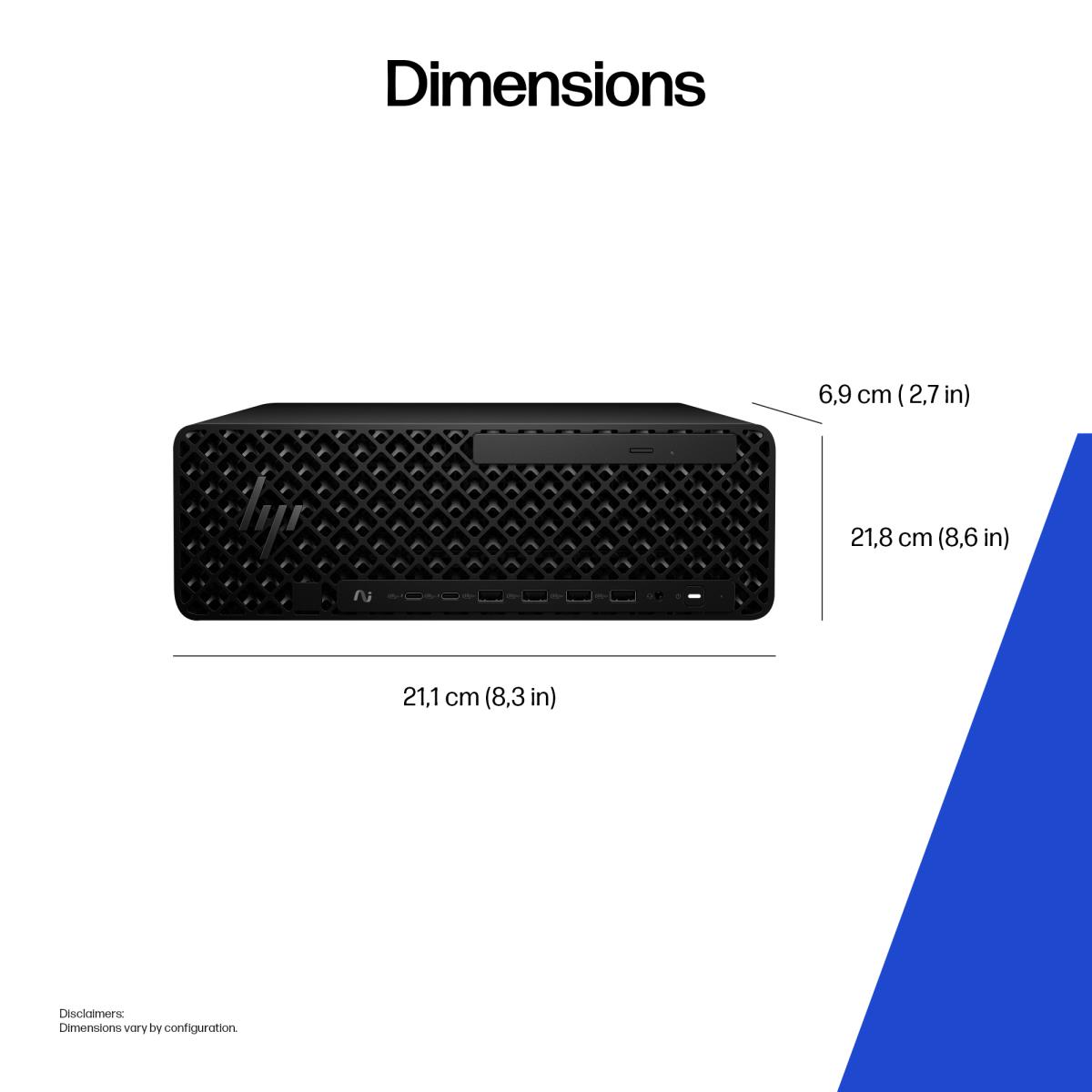

Weight & dimensions
Weight
4 kg
Width
100 mm
Depth
308 mm
Height
303 mm
Package width
499 mm
Package depth
200 mm
Package height
394 mm
Weight
4 kg
Package weight
6.5 kg
Packaging data
Package weight
6.5 kg
Package depth
8471500000
Package weight
HP 3y Onsite Low End Workstation HW Supp. For terms and conditions, please visit https://h20195.www2.hp.com/v2/GetPDF.aspx/4AA5-6385EEE & https://www8.hp.com/h20195/v2/getpdf.aspx/4AA5-7123EEGB.pdf
Other features
Manufacturer warranty
1 year (1/1/1) limited warranty includes 1 year of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.
Memory module type
UDIMM
Support service included
HP 3y Onsite Low End Workstation HW Supp. For terms and conditions, please visit https://h20195.www2.hp.com/v2/GetPDF.aspx/4AA5-6385EEE & https://www8.hp.com/h20195/v2/getpdf.aspx/4AA5-7123EEGB.pdf
UNSPSC-code
43211515
Expansion slots
PCI Express x16 (Gen 5.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
Audio
Audio chip
Realtek ALC3252
Packaging content
Keyboard included
Yes
Mouse included
Yes
Mouse connectivity
Wired
Numeric keypad
No
Keyboard connectivity
Wired
Input device model
HP Wired 320M Mouse
Mouse included
Yes
Mouse connectivity
Wired
Display
Display included
No
Display included
No
Logistics data
Harmonized System (HS) code
8471500000
Processor special features
Intel® Turbo Boost Technology
Yes
Information
| Part Number: | B76QYET#ABU |
