Product Details
Introduction

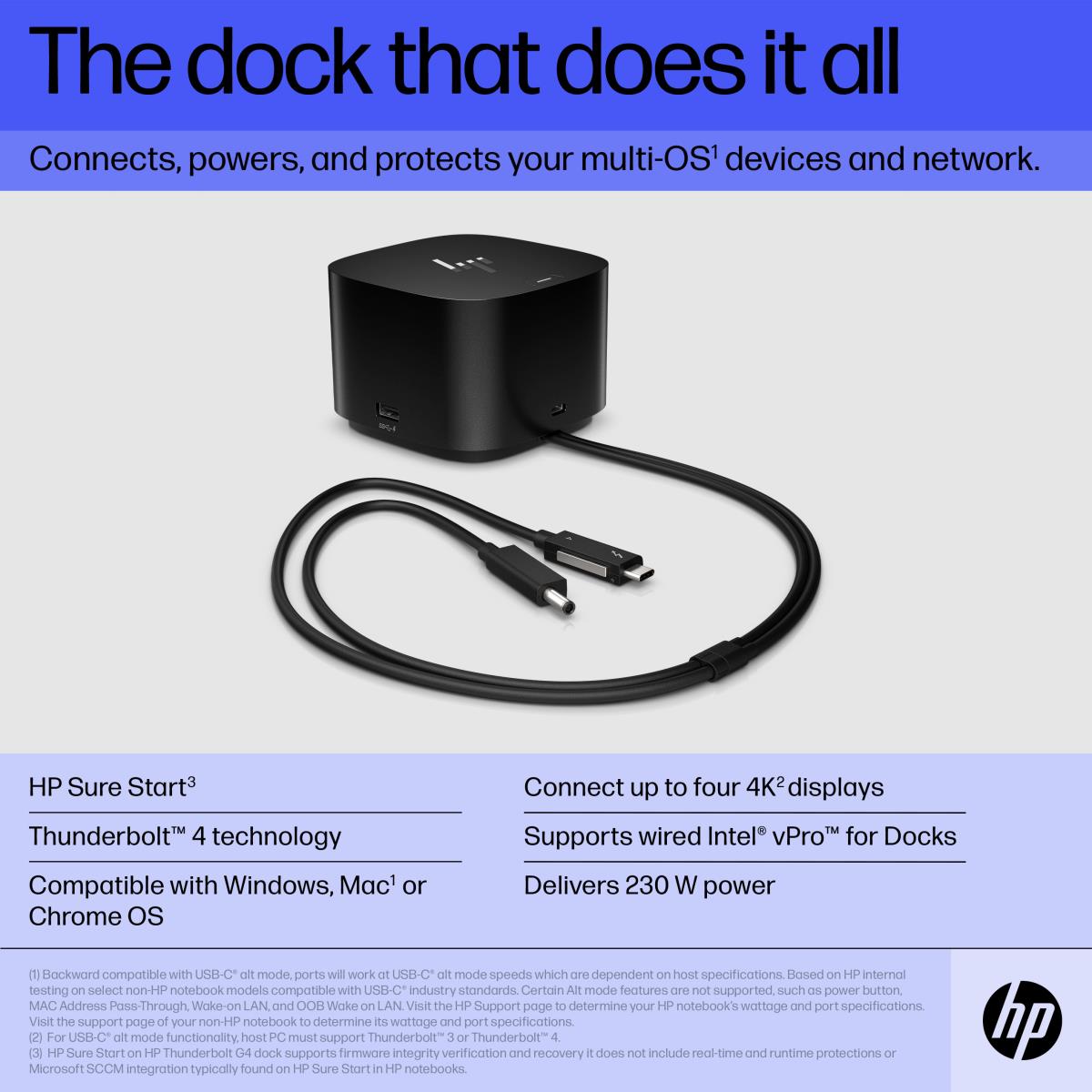

The Dock That Does It All

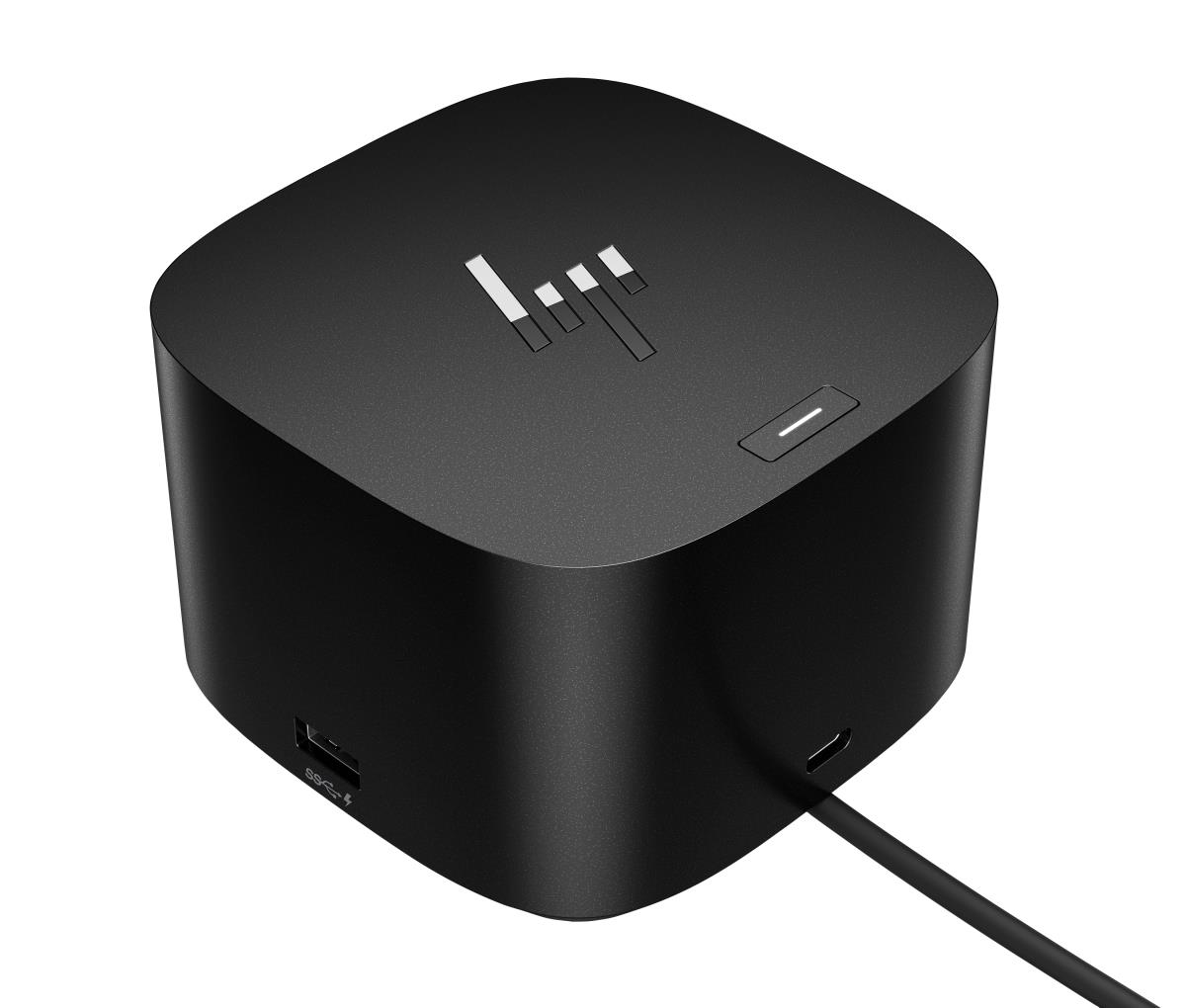

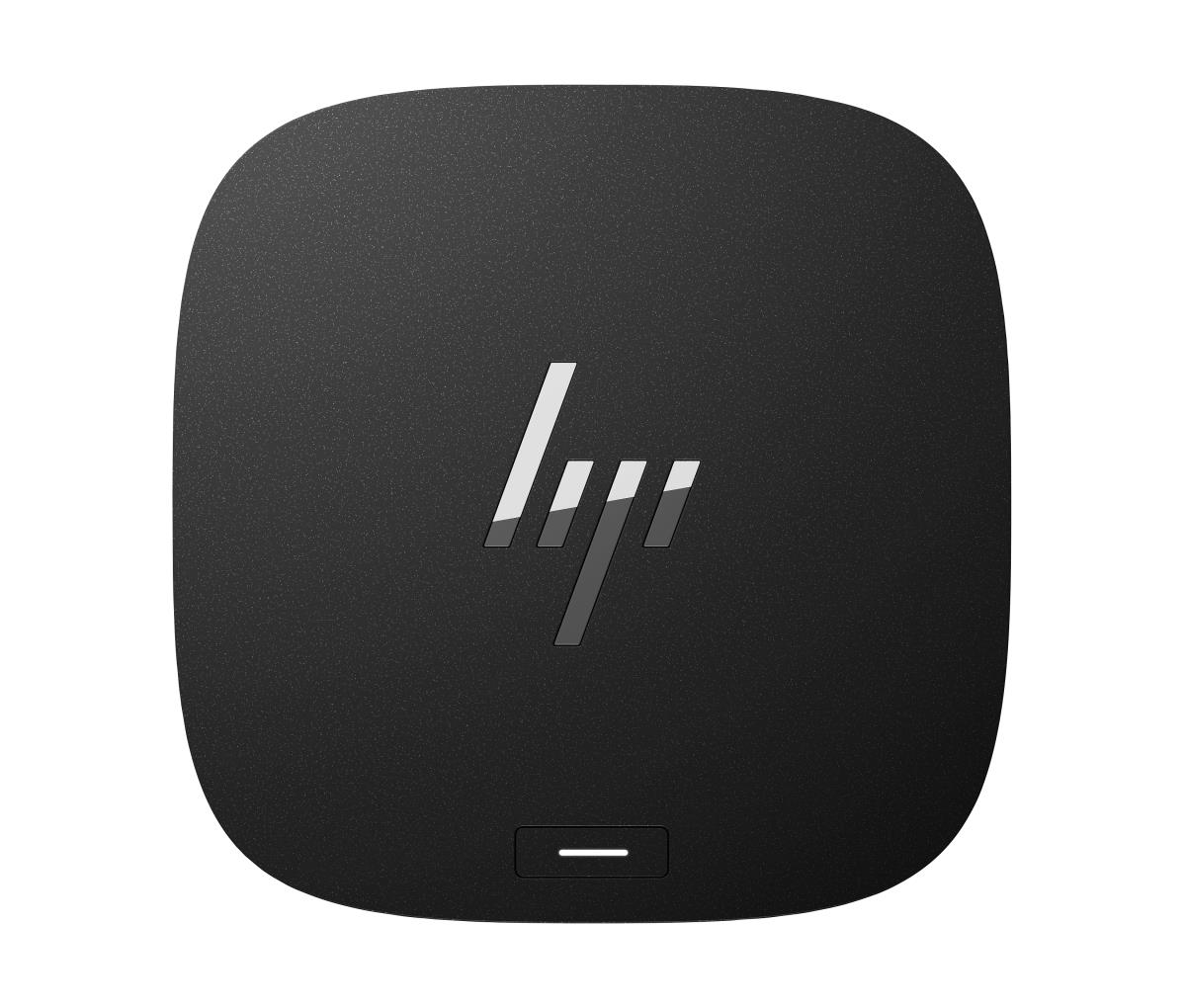

Boost your security, productivity, and connectivity with this Thunderbolt™ 4 dock. It protects your network and devices from the moment you log in, supports multi-OS compatibility[1], and can support up to four 4K displays[2]. Ideal for ITDMs and hybrid workers, this dock also makes home or office device management easy.

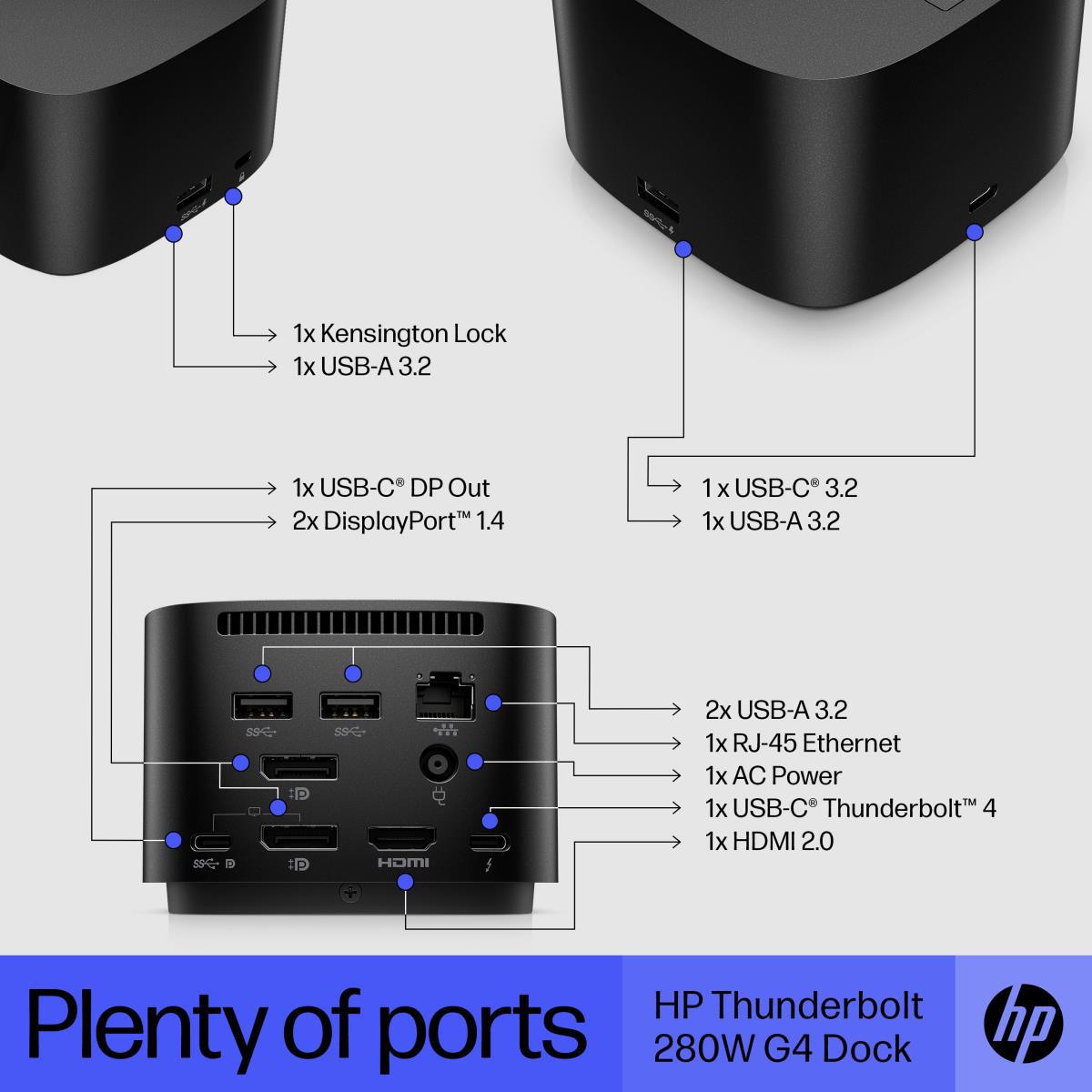

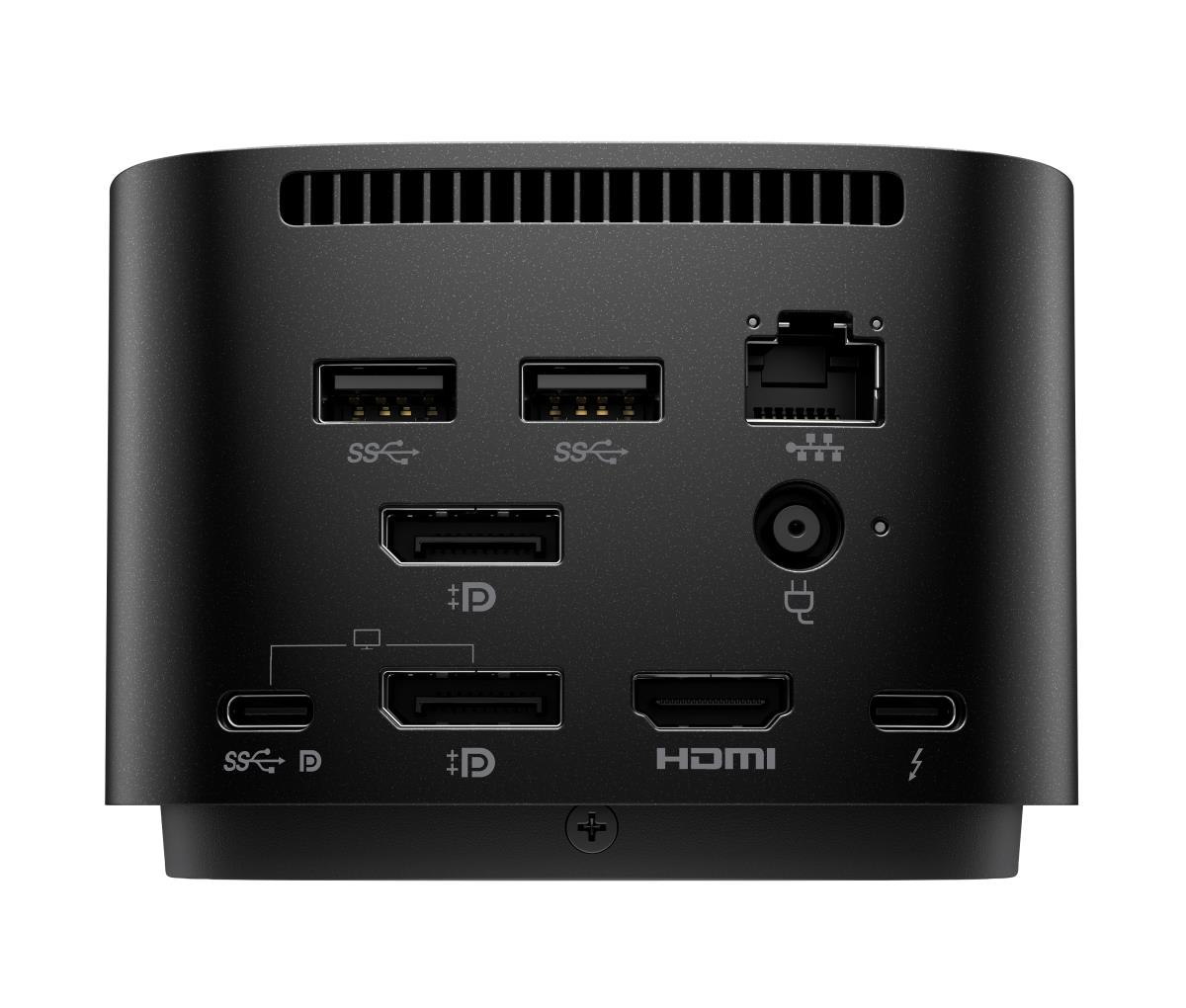

Ports & interfaces
Connectivity technology
Wired
Host interface
Thunderbolt 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
HDMI ports quantity
1
HDMI version
2.0
DisplayPorts quantity
2
DisplayPort version
1.4
Thunderbolt 3 Power Delivery
Yes
Microphone in
No
Connectivity technology
Wired
Host interface
Thunderbolt 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
HDMI ports quantity
1
HDMI version
2.0
DisplayPorts quantity
2
DisplayPort version
1.4
Thunderbolt 3 Power Delivery
Y
Microphone in
N
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN
Y
Ethernet LAN (RJ-45) ports
1
Performance
Card reader integrated
No
Product colour
Black
HP segment
Business
Country of origin
China, Taiwan
Card reader integrated
N
Cable lock slot
Y
Cable lock slot type
Kensington
Product colour
Black
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
1.7 A
Output voltage
19.5 V
Output current
6.15 A
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Input current
1.7 A
Output voltage
19.5 V
Output current
6.15 A
Brand-specific features
HP GTIN (EAN/UPC) with options
(ABB) 196068757953; (ABU) 196068757984
HP GTIN (EAN/UPC)
196068757953, 196068757984
Software
Windows operating systems supported
Windows 10, Windows 11
Mac operating systems supported
MacOS
Packaging data
Package weight
760 g
Package weight
760 g
Package width
275 mm
Package depth
143 mm
Package height
148.5 mm
Carbon footprint
Total carbon footprint (kg of CO2e)
10
Carbon emissions, manufacturing (kg of CO2e)
7
Carbon emissions, logistics (kg of CO2e)
0.3
Carbon emissions, end-of-life (kg of CO2e)
0.1
Total carbon emissions, w/o use phase (kg of CO2e)
2
Other features
Special features
4K capability
Compatible operating systems
Windows 11; Windows 10; MacOS; Chrome
UNSPSC-code
43211602
Technical details
General Product Safety Regulation (GPSR) URL
https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true

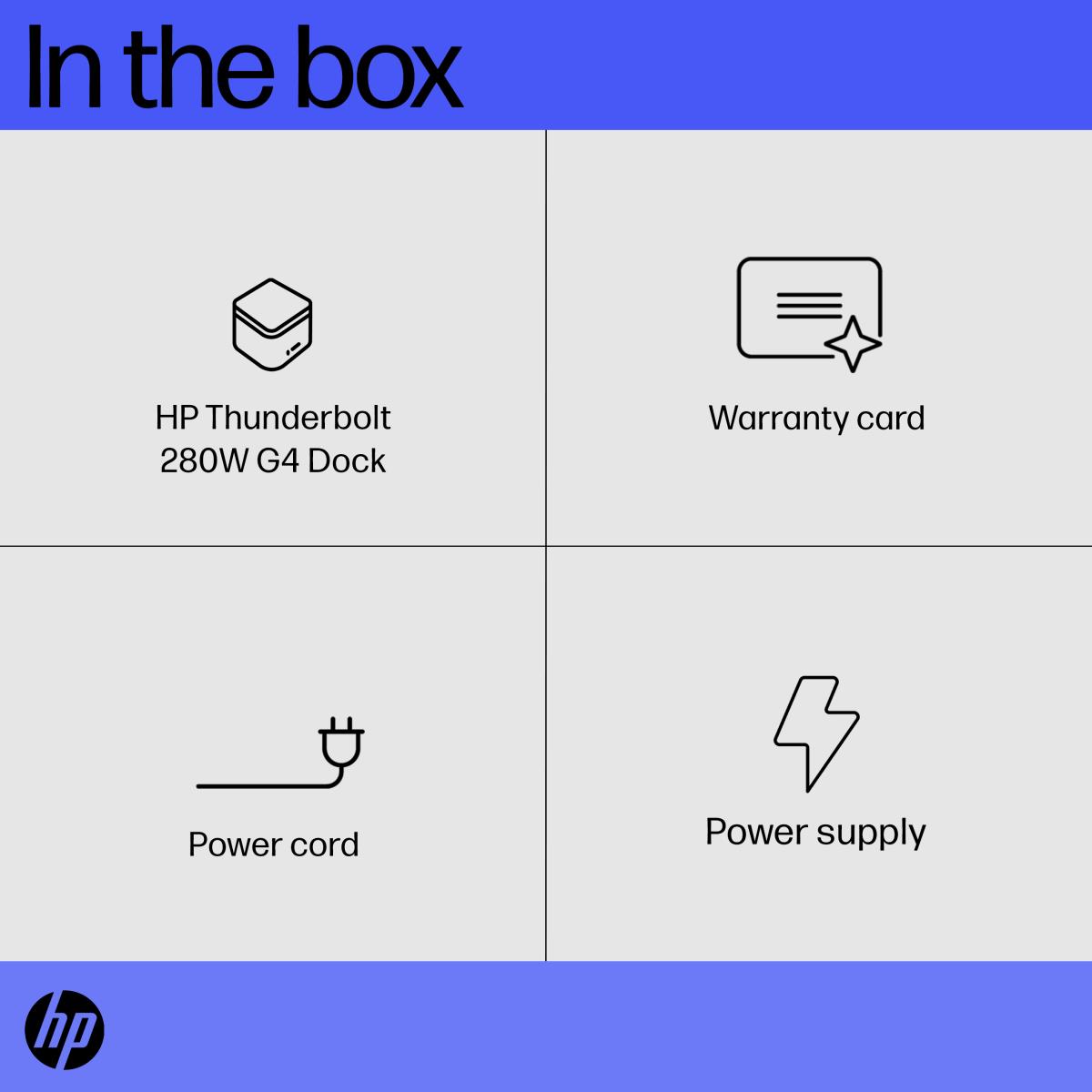

Box contents
Dock, power supply, power cord, warranty
Logistics data
Harmonized System (HS) code
84733020
Harmonized System (HS) code
84733020
Packaging content
Cables included
AC

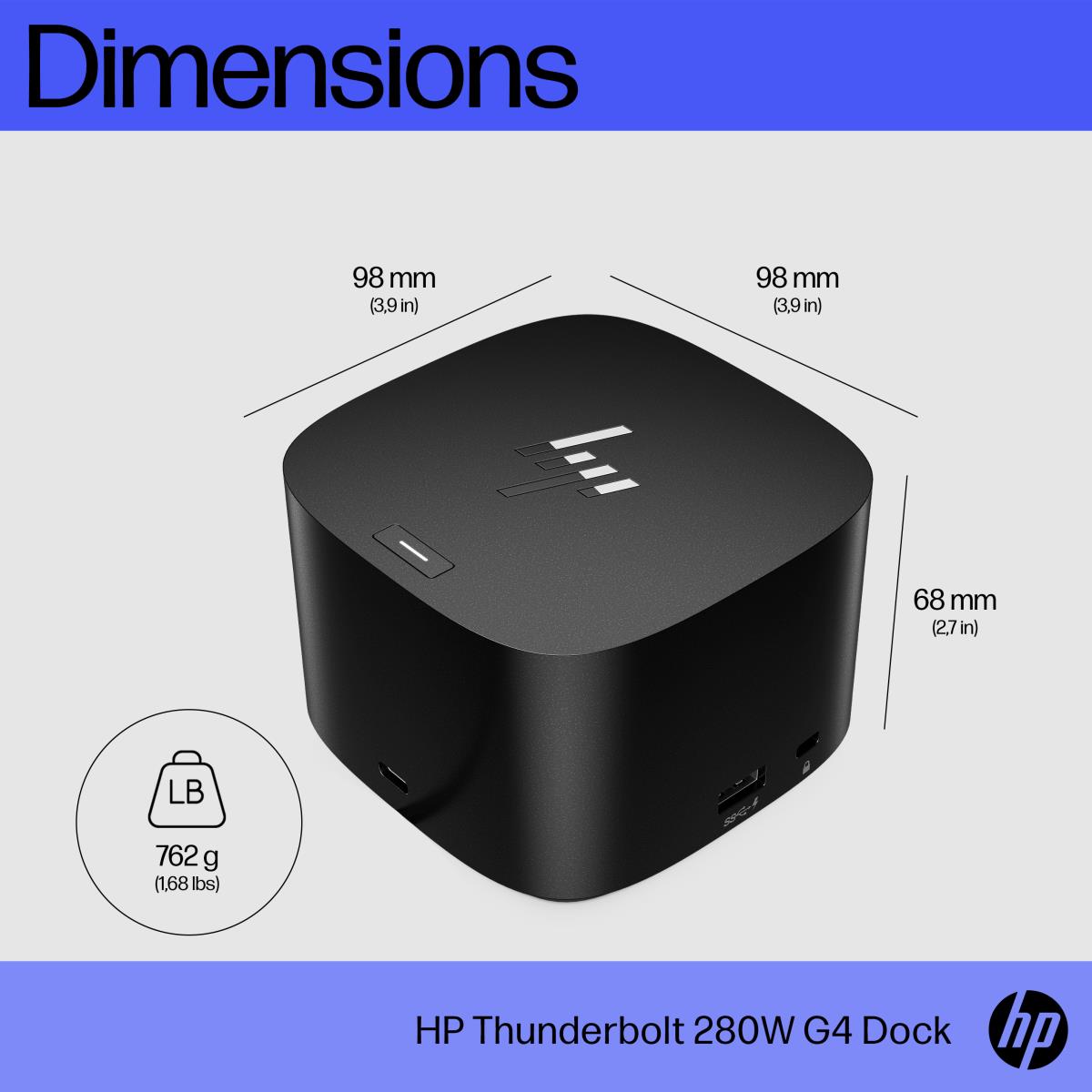

Weight & dimensions
Width
98 mm
Depth
98 mm
Height
68 mm
Weight
760 g
Information
| Part Number: | 4J0G4AA#ABU |
