Product Details
Introduction
Powerfully immersive. Perfectly sized
Be ready when inspiration strikes. Packed with professional performance in an incredibly sleek PC that comfortably fits in your bag, the ZBook Studio is engineered to get you in the zone and help you stay focused. Now you can build complex assemblies, render in real-time or visualize data—from anywhere.
Design
Product type
Mobile workstation
Product colour
Grey
Form factor
Clamshell
Market positioning
Performance
Original brand name
HP
Product type
Mobile workstation
Product colour
Grey
Form factor
Clamshell
Country of origin
China
Intel® vPro™ Platform Eligibility
Yes
Display
Display diagonal
40.6 cm (16")
Display resolution
3840 x 2400 pixels
Touchscreen
No
HD type
WQUXGA
Panel type
IPS
Anti-glare screen
Yes
Display bezel technology
Micro-Edge
Display brightness
500 cd/m˛
Display diagonal (metric)
40.6 cm
RGB colour space
DCI-P3
Colour gamut
100%
Maximum refresh rate
120 Hz
Anti-glare screen
Yes
DCI-P3 coverage
100%
Memory
Memory channels
Dual-channel
Internal memory
64 GB
Internal memory type
DDR5-SDRAM
Memory clock speed
5600 MHz
Memory form factor
SO-DIMM
Memory layout (slots x size)
2 x 32 GB
Memory slots
2x SO-DIMM
Maximum internal memory
64 GB
Processor
Processor manufacturer
Intel
Processor family
Intel Core Ultra 9
Processor generation
Intel® Core™ Ultra (Series 1)
Processor model
185H
Processor threads
22
Processor boost frequency
5.1 GHz
Performance cores
6
Efficient cores
8
Low Power Efficient-cores
2
Performance-core Max Turbo Frequency
5.1 GHz
Efficient-core Max Turbo Frequency
3.8 GHz
Low Power Efficient-core Max Turbo Frequency
2.5 GHz
Performance-core base frequency
2.3 GHz
Efficient-core base frequency
1.8 GHz
Low Power Efficient-core Base Frequency
1000 MHz
Processor cache
24 MB
Processor cache type
Smart Cache
Processor base power
45 W
Maximum turbo power
115 W
Processor generation
Intel® Core™ Ultra (Series 1)
Performance cores
6
Efficient cores
8
Low Power Efficient-cores
2
Performance-core Max Turbo Frequency
5.1 GHz
Efficient-core Max Turbo Frequency
3.8 GHz
Low Power Efficient-core Max Turbo Frequency
2.5 GHz
Performance-core base frequency
2.3 GHz
Efficient-core base frequency
1.8 GHz
Low Power Efficient-core Base Frequency
1000 MHz
Processor base power
45 W
Maximum turbo power
115 W
Processor cores
16
Neural processor unit (NPU)
Neural processor unit (NPU)
Intel AI Boost
Maximum frequency NPU
1.4 GHz
Sparsity support
Yes
Windows Studio effects support
Yes
AI software frameworks supported by NPU
DirectML, ONNX RT, OpenVINO, Windows ML
Maximum frequency NPU
1.4 GHz
Sparsity support
Yes
Windows Studio effects support
Yes
AI software frameworks supported by NPU
DirectML, ONNX RT, OpenVINO, Windows ML
NPU performance up to
11 TOPs
Storage
Total storage capacity
1 TB
Storage media
SSD
Total SSDs capacity
1 TB
Number of SSDs installed
1
SSD capacity
1 TB
SSD interface
PCI Express
NVMe
Yes
SSD form factor
M.2
Optical drive type
No
Total storage capacity
1 TB
Storage media
SSD
Total SSDs capacity
1 TB
Number of SSDs installed
1
SSD capacity
1 TB
SSD memory type
TLC
SSD interface
PCI Express 4.0
NVMe
Yes
SSD form factor
M.2
Optical drive type
No
Graphics
Discrete GPU manufacturer
NVIDIA
Discrete graphics card model
NVIDIA RTX 3000 Ada
Discrete graphics card memory
8 GB
Discrete graphics memory type
GDDR6
On-board graphics card
Yes
On-board GPU manufacturer
Intel
Discrete graphics card
Yes
On-board graphics card family
Intel Arc Graphics
On-board graphics card model
Intel Arc Graphics
Audio
Built-in speaker(s)
Yes
Number of built-in speakers
2
Built-in microphone
Yes
Number of microphones
2
Built-in speaker(s)
Yes
Built-in microphone
Yes
Camera
Front camera
Yes
Front camera HD type
HD
Infrared (IR) camera
Yes
Front camera resolution
1280 x 720 pixels
Network
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
Wi-Fi 7 (802.11be)
Mobile network connection
No
Antenna type
2x2
WLAN controller model
Intel Wi-Fi 7 BE200
WLAN controller manufacturer
Intel
Bluetooth
Yes
Bluetooth version
5.4
Mobile network connection
No
Wi-Fi
Yes

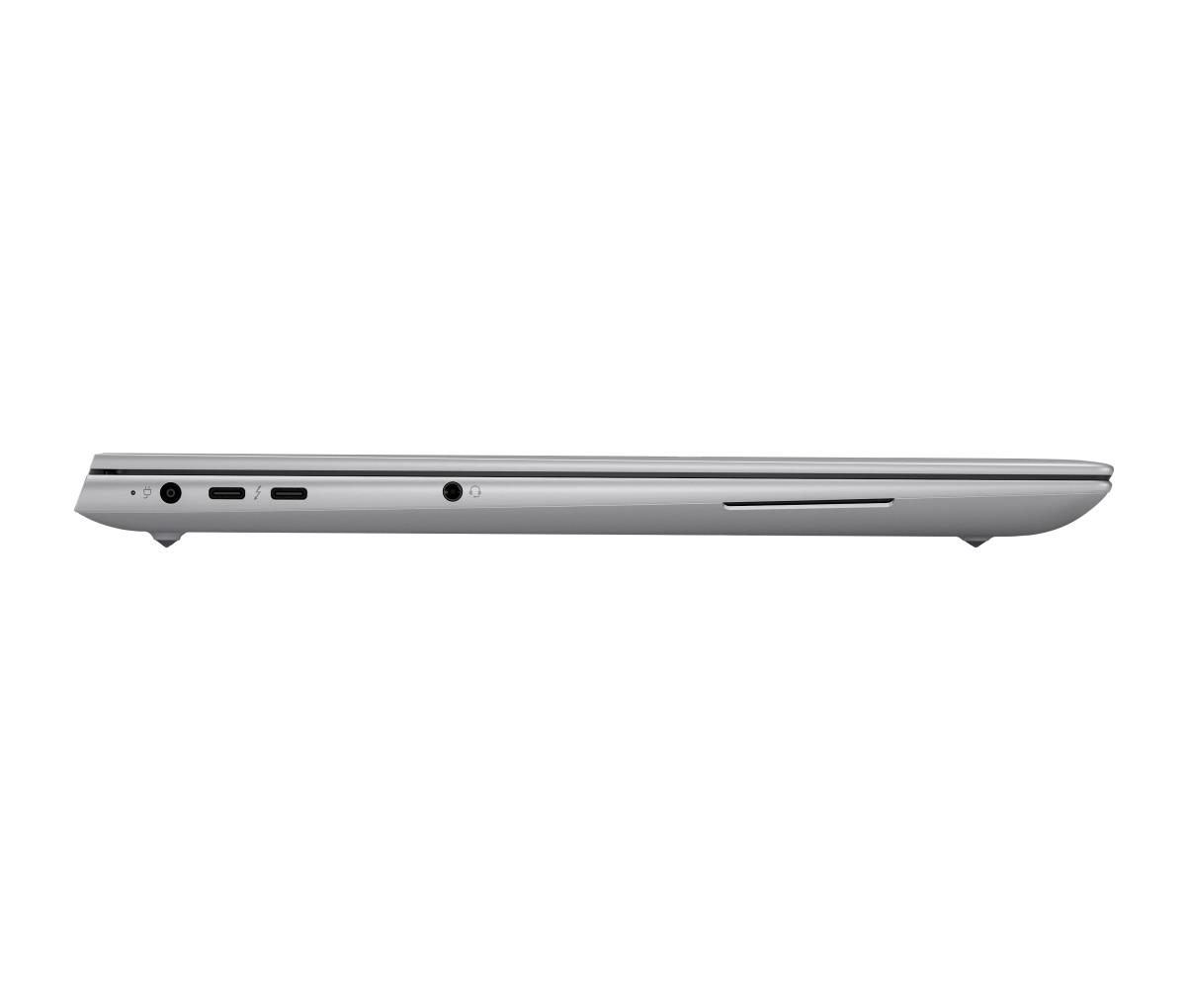

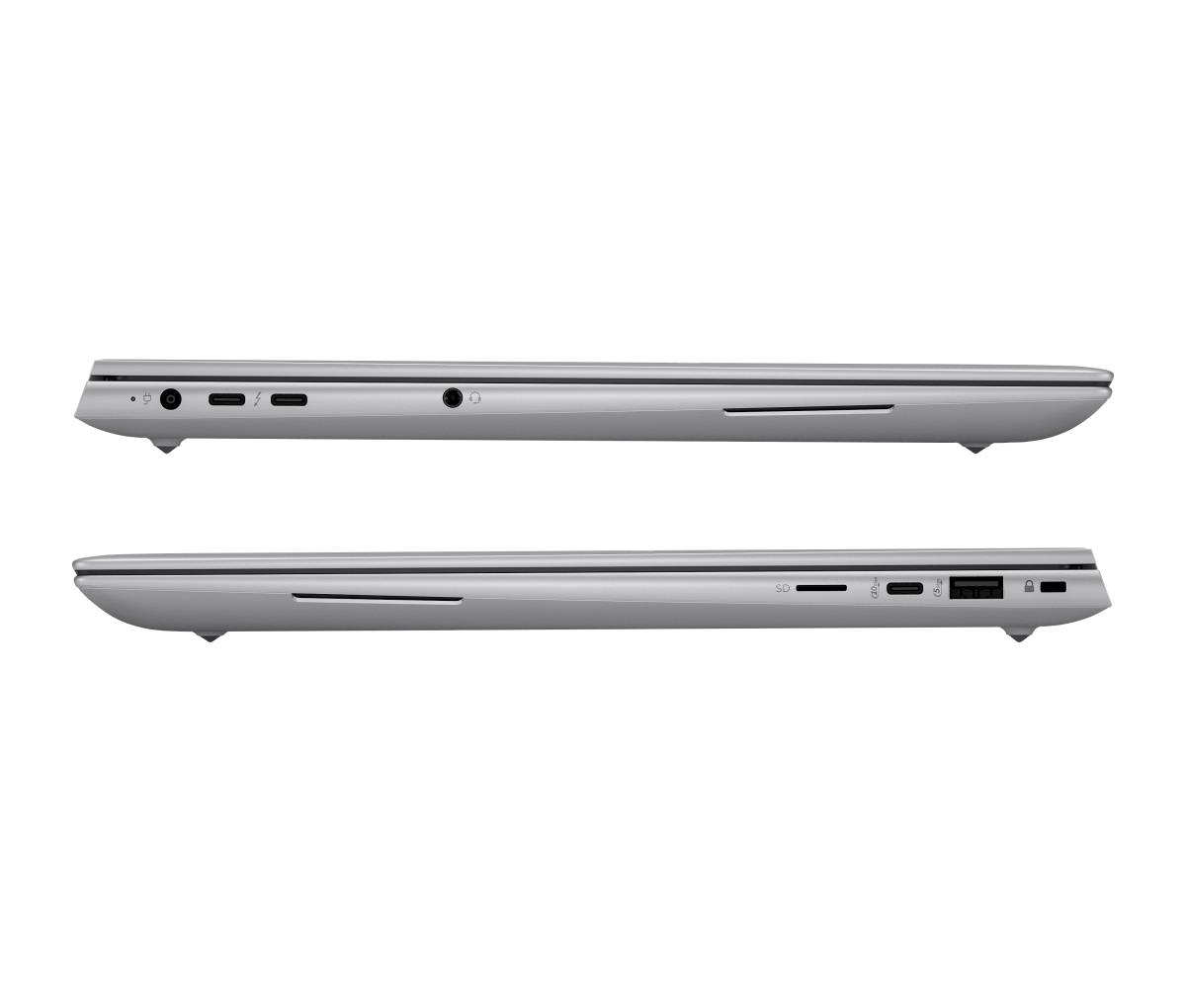

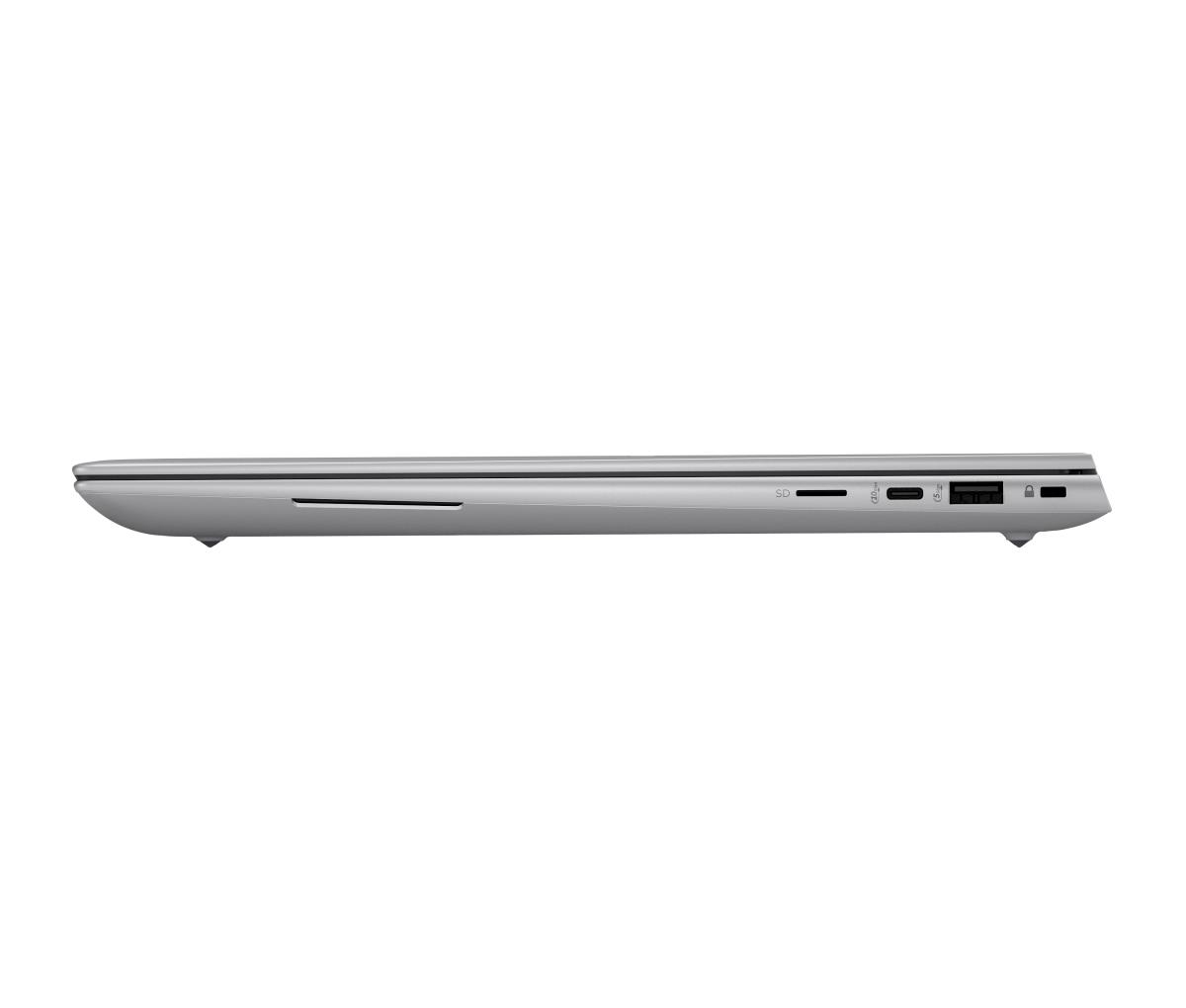

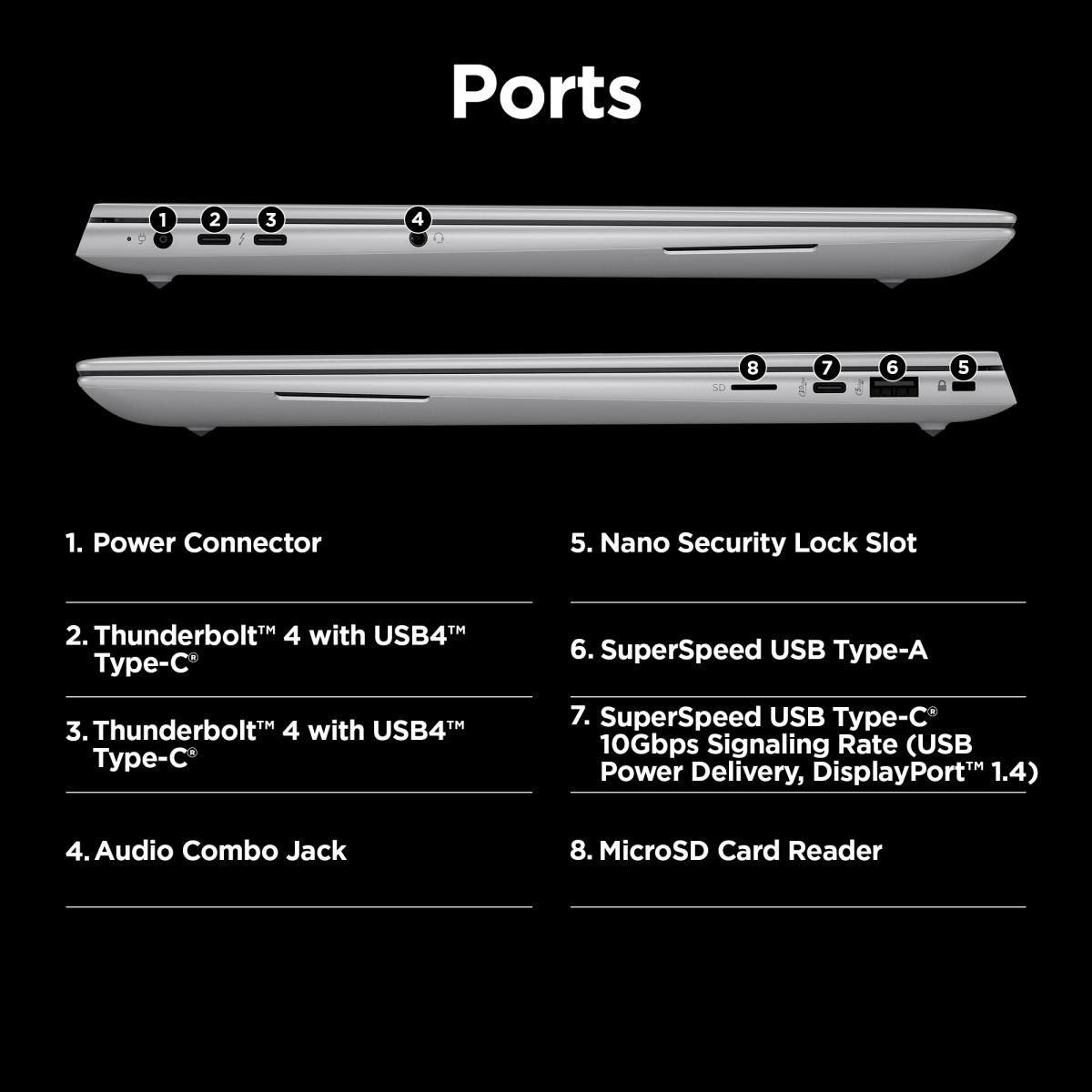

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Thunderbolt 4 ports quantity
2
Intel® Thunderbolt 4
Yes
Combo headphone/mic port
Yes
USB4 Gen 3x2 ports quantity
2
Combo headphone/mic port
Yes
USB Type-C DisplayPort Alternate Mode
Yes
USB4 Gen 3x2 ports quantity
2
Microphone in
Yes
USB Type-C DisplayPort Alternate Mode
Yes
USB Power Delivery
Yes
USB Sleep-and-Charge
Yes
USB Sleep-and-Charge ports
2
Security
Password protection type
BIOS, Power on, User
Fingerprint reader
Yes
Password protection
Yes
Sustainability
Sustainability compliance
Yes
Sustainability certificates
TCO
Sustainable technologies and materials
Low Halogen
Sustainability compliance
Yes
Sustainable technologies and materials
Low Halogen
Keyboard
Keyboard special features
Spill-resistant
Pointing device
Clickpad
Numeric keypad
No
Keyboard backlit
Yes
Spill-resistant keyboard
Yes
Full-size keyboard
Yes
Input device model
HP Premium Quiet Keyboard
Keyboard special features
Spill-resistant
Numeric keypad
No
Full-size keyboard
Yes
Software
Operating system installed
Windows 11 Pro
Brand-specific features
HP segment
Business
HP GTIN (EAN/UPC)
198828255167
HP Artificial Intelligence
AI PC, AI Workstation
HP speaker type
HP Dual Speakers
Battery
Battery technology
Lithium Polymer (LiPo)
Number of battery cells
6
Battery capacity
86 Wh
Fast charging
Yes
Fast charging time (50%)
30 min
Power
AC adapter power
150 W
AC adapter frequency
50 - 60 Hz
AC adapter input voltage
100 - 240 V
USB Type-C charging port
Yes

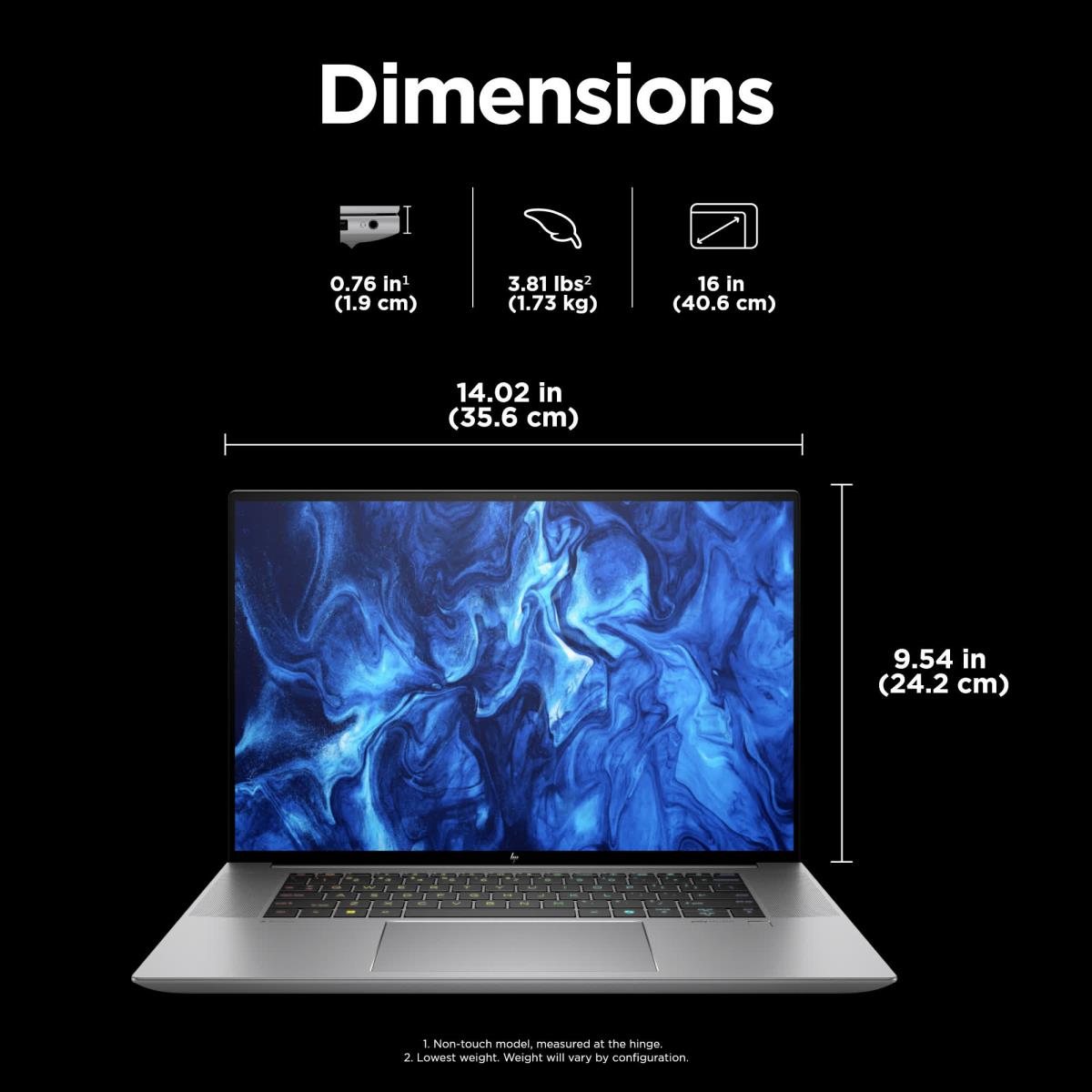

Weight & dimensions
Width
356 mm
Depth
242 mm
Height
19 mm
Weight
1.73 kg
Height
19 mm
Weight
1.73 kg
Packaging data
Package width
552 mm
Package depth
69 mm
Package height
345 mm
Other features
Manufacturer warranty
1 year (1/1/0) limited warranty includes 1 year of parts and labor. No on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.
Memory module type
SODIMM
UNSPSC-code
43211503
Processor special features
Intel® Turbo Boost Technology
Yes
Carbon footprint
Total carbon footprint (kg of CO2e)
300
Carbon emissions, manufacturing (kg of CO2e)
284
Carbon emissions, logistics (kg of CO2e)
1
Carbon emissions, end-of-life (kg of CO2e)
1
Total carbon emissions, w/o use phase (kg of CO2e)
17
Certificates
Low halogen
Yes
Technical details
General Product Safety Regulation (GPSR) URL
https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true
Packaging content
Keyboard included
Yes
Information
| Part Number: | 98L13ET#ABU |
