Product Details
Introduction
Visually impactful

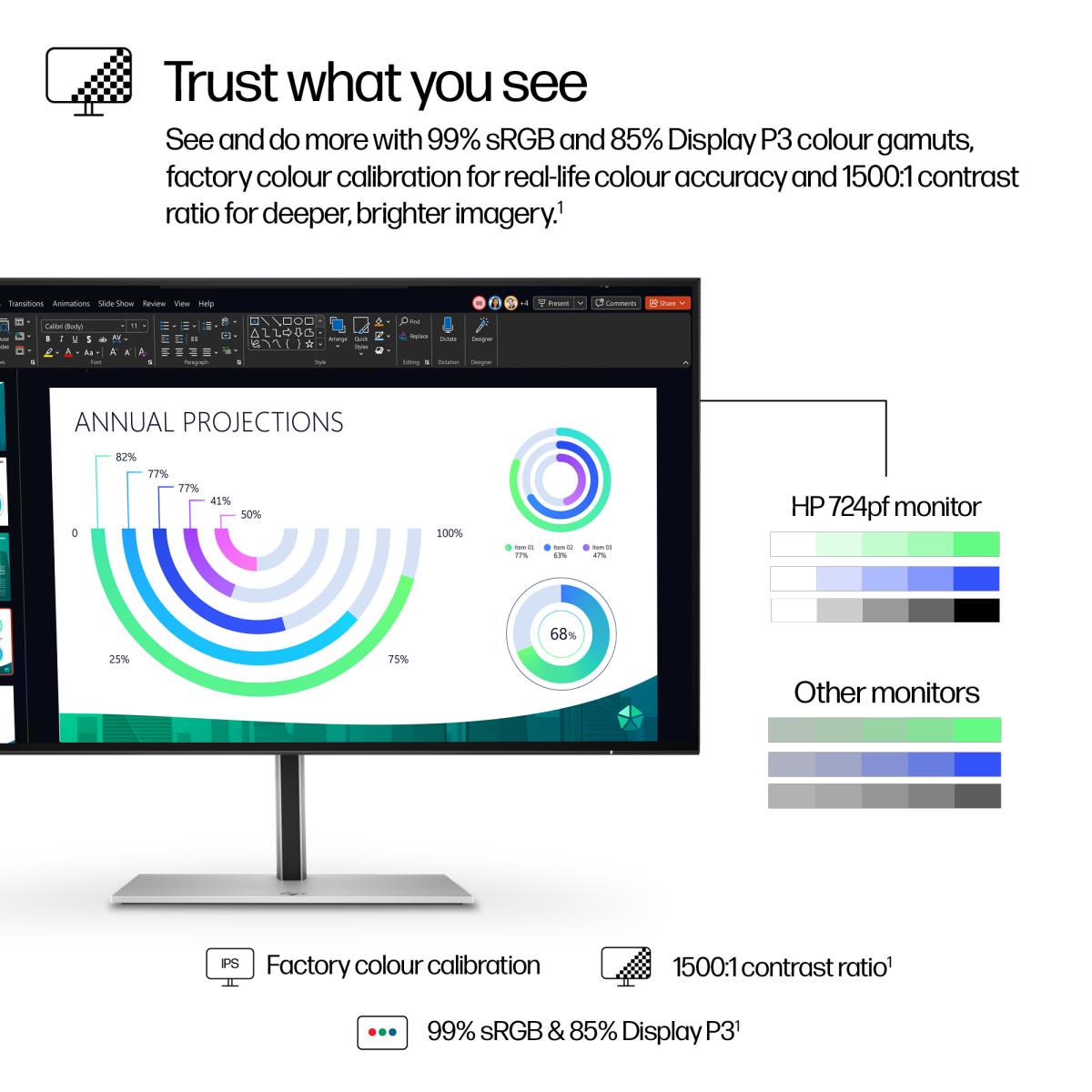

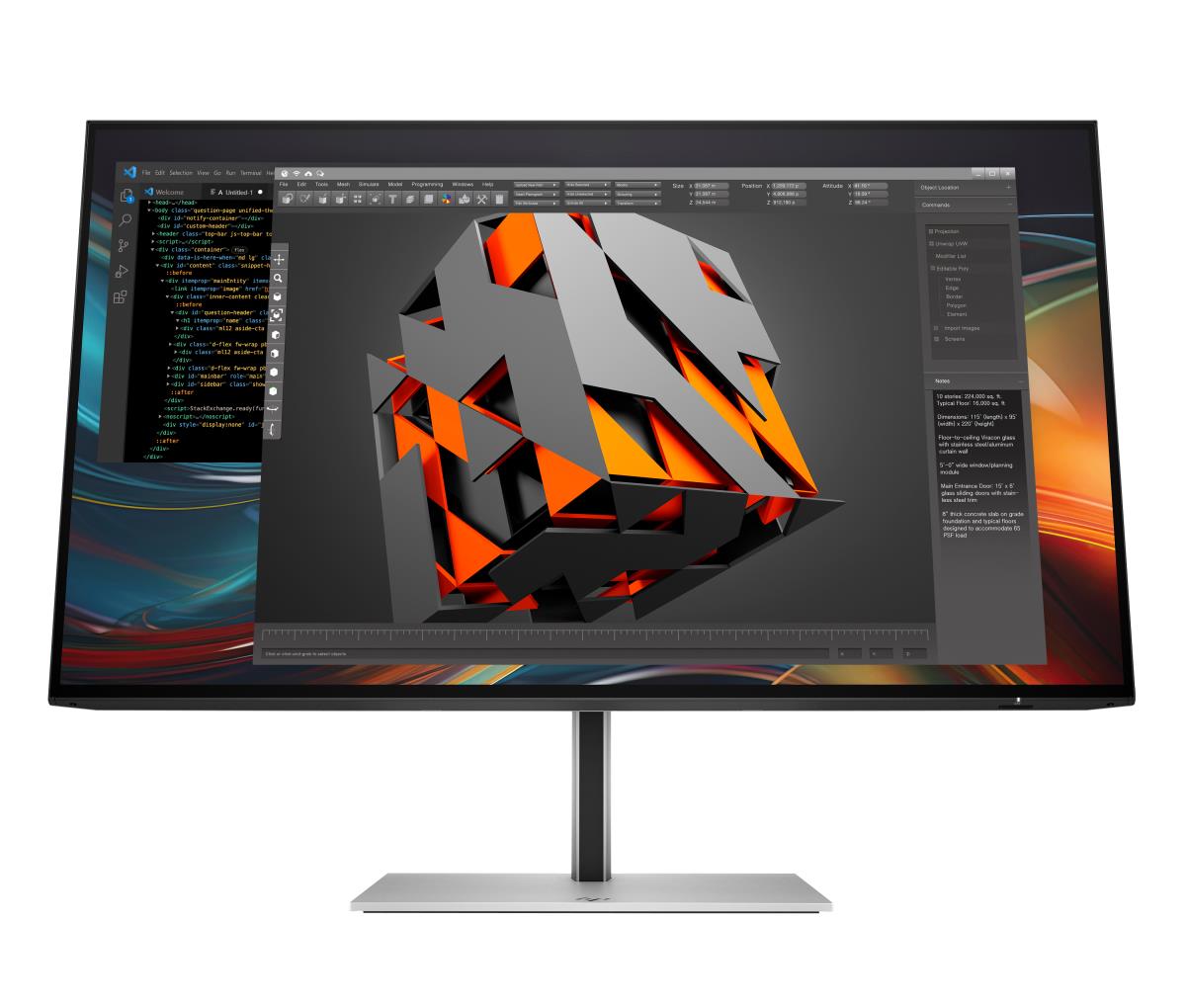

Capture your vision better than you ever imagined with the HP Series 7 Pro 23.8" FHD Monitor. Trust what you see on screen with superb color accuracy right out of the box, a smooth 100 Hz refresh rate, and enhanced 1500:1 color contrast.[1] Do it all with the ultra-thin 4-sided micro-edge frame and built-in ergonomics.
Display
Display surface
Matt
Aspect ratio
16:9
Colour gamut standard
sRGB, DCI-P3, Rec. 709
Colour gamut
100%
Display bezel technology
Micro-Edge
Display brightness
300 cd/m²
Display resolution
1920 x 1080 pixels
Touchscreen
No
Aspect ratio
16:9
Colour gamut standard
sRGB, DCI-P3, Rec. 709
sRGB coverage (typical)
99%
Response time measurement type
GTG (Gray to Gray)
Display diagonal
60.5 cm (23.8")
Display resolution
1920 x 1080 pixels
HD type
Full HD
Native aspect ratio
16:9
Display technology
LCD
Panel type
IPS
LED backlight
Yes
Backlight type
Edge LED
Touchscreen
No
Display brightness (typical)
300 cd/m²
Response time
5 ms
Anti-glare screen
Yes
Screen shape
Flat
Supported graphics resolutions
640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Contrast ratio (typical)
1500:1
Contrast ratio (dynamic)
10000000:1
Maximum refresh rate
100 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.7 million colours
Pixel pitch
0.27 x 0.27 mm
Pixel density
93 ppi
Horizontal scan range
30 - 111 kHz
Vertical scan range
50 - 100 Hz
Viewable size, horizontal
52.7 cm
Viewable size, vertical
29.5 cm
Display diagonal (metric)
60.5 cm
Haze rate
25%
Surface hardness
3H
Colour depth
8 bit
sRGB coverage (typical)
99%
Operational conditions
Non-operating relative humidity (non-condensing)
20 - 80%
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
20 - 80%
Operating temperature (T-T)
5 - 35 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
5 - 95%
Sustainability
Sustainability compliance
Yes
Sustainable technologies and materials
Low halogen; Outside box and corrugated cushions are 100% sustainably sourced and recyclable; 85% ITE-derived closed loop plastic; Designed with recycled metals; 5% ocean-bound plastic
Sustainability certificates
ENERGY STAR
Ergonomics
Cable lock slot
Yes
On Screen Display (OSD)
Yes
Cable lock slot
Yes
Pivot angle
-90 - 90°
VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Height adjustment
Yes
Height adjustment
15 cm
Pivot
Yes
Pivot angle
-90 - 90°
Swivelling
Yes
Swivel angle range
-45 - 45°
Tilt adjustment
Yes
Tilt angle range
-5 - 20°
Packaging content
Stand included
Yes
Cables included
AC, DisplayPort, HDMI, USB Type-A to USB Type-B
Quick start guide
Yes
Bundled software
HP Display Center; HP Client Management Script Library
Performance
NVIDIA G-SYNC
No
AMD FreeSync
No
Low Blue Light technology
Yes
NVIDIA G-SYNC
No
AMD FreeSync
No
Flicker-free technology
Yes
Low Blue Light technology
Yes
HP segment
Business
Other features
UNSPSC-code
43211902
Compliance certificates
BIS, BSMI, CB, CCC, CE, CECP, CEL, EAC, Federal Communications Commission (FCC), GS mark, KC, KCC, Norma Oficial Mexicana (NOM), VCCI, WEEE, cTUVus
Low halogen
Yes
Certification
Australian-New Zealand MEPS; BIS; BSMI; CB; CCC; CE; CECP; CEL; cTUVus; EAC; FCC; GS Mark; ISO 9241-307; KC; KCC; NOM; PSB; SEPA; TUV-S; VCCI; Vietnam MEPS; WEEE; ISC; Low blue light; WW application; UAE; Ukraine EE; Ukraine CoC; Ukraine DOC; Microsoft WHQL Certification (Windows 11)
Manufacturer warranty
HP five-year limited warranty
Certification
Australian-New Zealand MEPS; BIS; BSMI; CB; CCC; CE; CECP; CEL; cTUVus; EAC; FCC; GS Mark; ISO 9241-307; KC; KCC; NOM; PSB; SEPA; TUV-S; VCCI; Vietnam MEPS; WEEE; ISC; Low blue light; WW application; UAE; Ukraine EE; Ukraine CoC; Ukraine DOC; Microsoft WHQL Certification (Windows 11)
Weight
4.7 kg
Height
313.7 mm
Width
538.4 mm
Depth
38.5 mm
Power
Energy efficiency class (HDR)
E
Power supply type
Internal
Energy efficiency class (HDR)
E
Power consumption (typical)
36 W
Power consumption (standby)
0.5 W
Power consumption (max)
69 W
Energy efficiency scale
A to G
Energy efficiency class (SDR)
E
Energy consumption (SDR) per 1000 hours
18 kWh
Power consumption (typical)
36 W
Power consumption (standby)
0.5 W
Power consumption (max)
69 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Energy efficiency scale
A to G
Multimedia
Built-in speaker(s)
No
Built-in speaker(s)
No
Built-in camera
No
Technical details
Box contents
Monitor; DisplayPort™ cable; HDMI cable; VESA Mount adapter; Warranty card; USB Type-A to B cable; Quick Setup Poster; AC power cord; Color calibration report
General Product Safety Regulation (GPSR) URL
https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true
Packaging data
Package type
Box
Warranty card
Yes
Package width
625 mm
Package depth
373 mm
Package height
142 mm
Package weight
7 kg
Ports & interfaces
USB upstream port type
USB Type-B
Number of upstream ports
1
HDMI
Yes
DisplayPort out quantity
1
Headphone out
No
AC (power) in
Yes
Built-in USB hub
Yes
USB hub version
3.2 Gen 1 (3.1 Gen 1)
USB upstream port type
USB Type-B
Number of upstream ports
1
USB Type-A downstream ports quantity
4
HDMI
Yes
HDMI ports quantity
1
HDMI version
1.4
DisplayPorts quantity
1
DisplayPort out quantity
1
DisplayPort version
1.2
Headphone out
No
HDCP
Yes
AC (power) in
Yes
Weight & dimensions
Weight (with stand)
4.7 kg
Width (with stand)
538.4 mm
Depth (with stand)
195 mm
Height (with stand)
489.3 mm
Weight (with stand)
4.7 kg
Width (without stand)
538.4 mm
Depth (without stand)
38.5 mm
Height (without stand)
313.7 mm
Design
Market positioning
Business
Detachable stand
Yes
Feet colour
Black, Silver
Country of origin
China
Brand-specific features
HP GTIN (EAN/UPC)
197498445243
Information
| Part Number: | 8X530E9#ABU |
