Introduction
Designed for big things. Powered to do them.

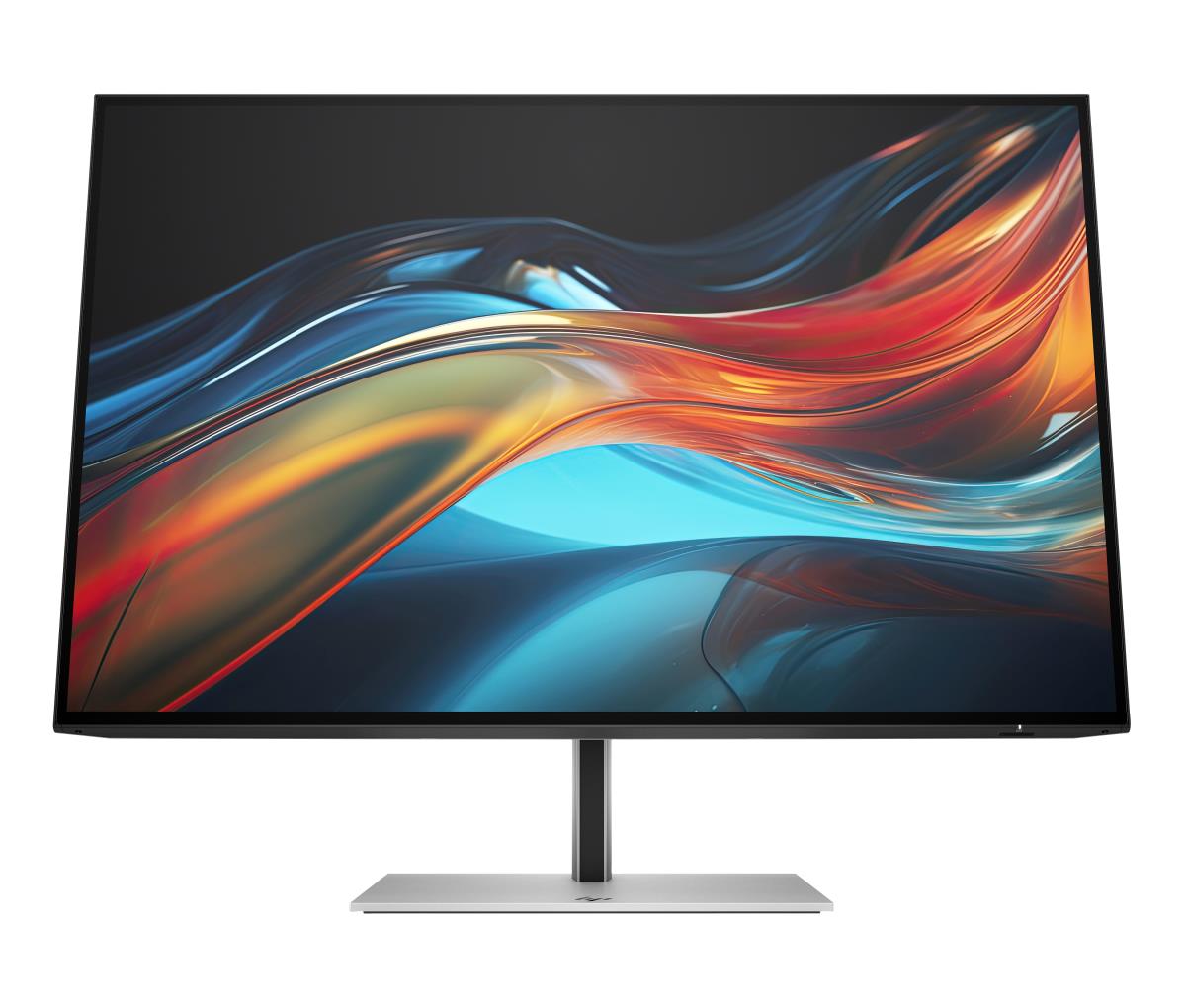

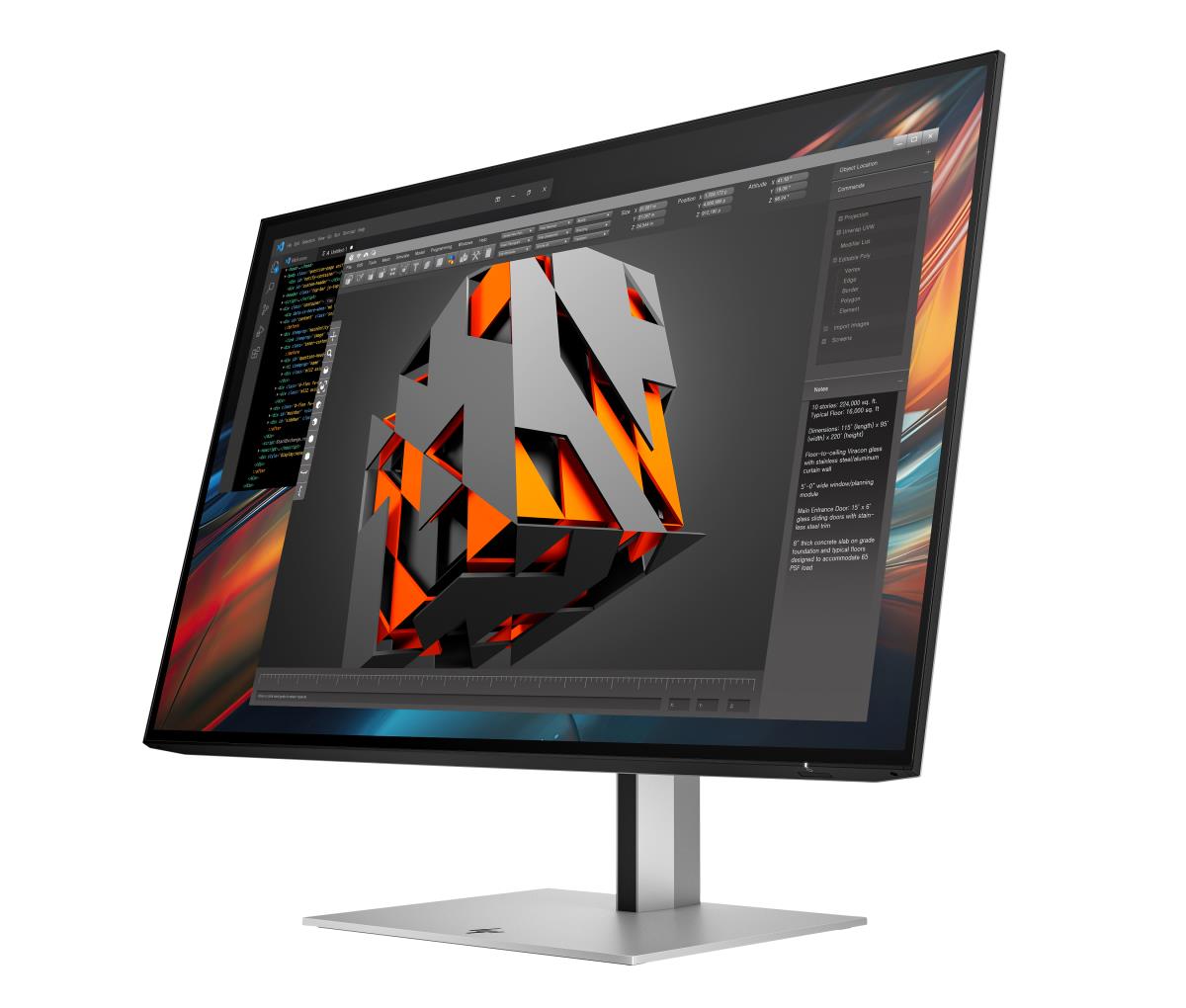

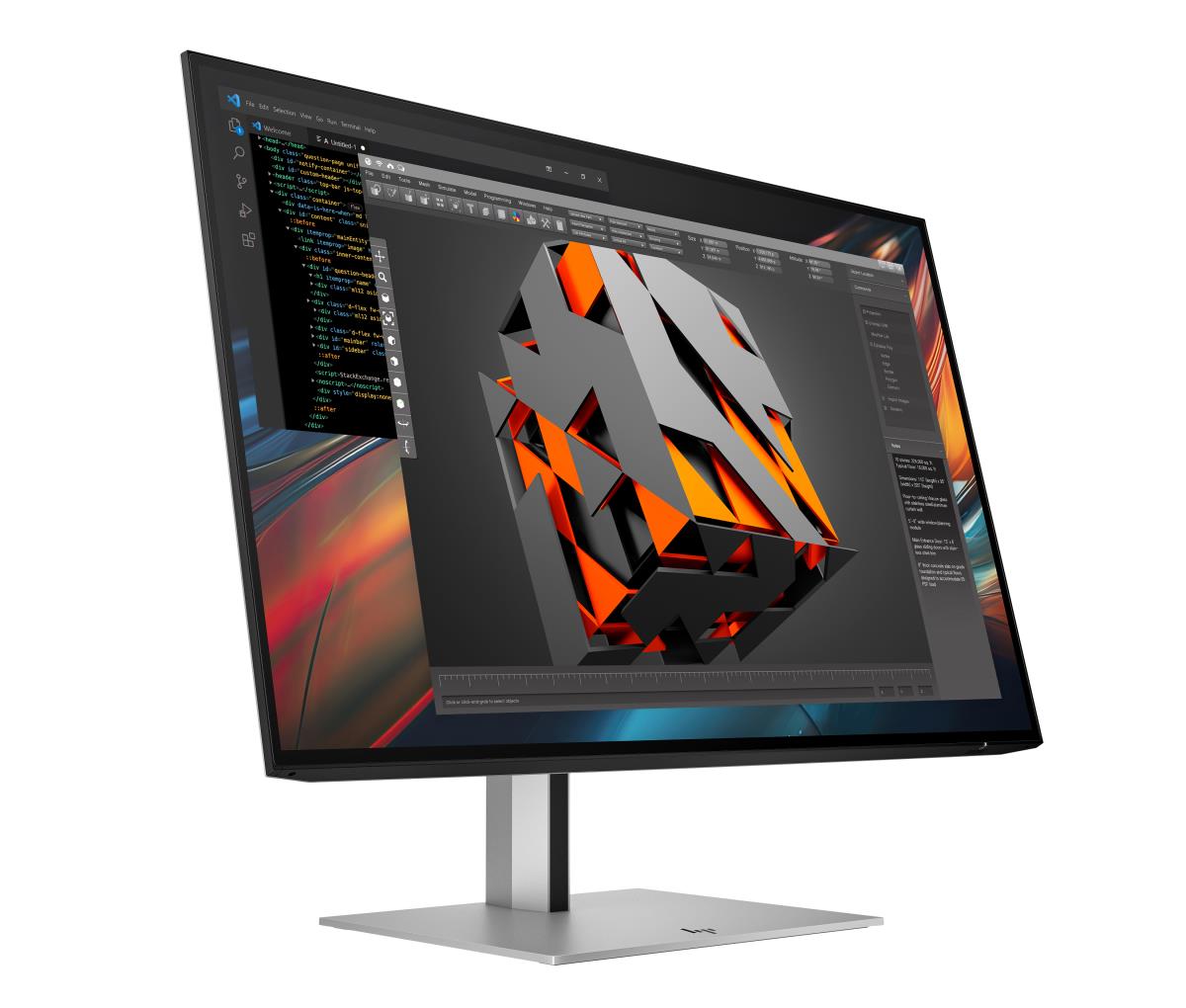

Capture your vision better than you ever imagined with the HP Series 7 Pro 24" WUXGA USB-C Monitor. Do more with the 16:10 aspect ratio and WUXGA resolution that displays more of your work at once.[2] And, trust what you see on screen with superb color accuracy right out of the box, a smooth refresh rate, and enhanced color contrast.[1] Do it all with seamless USB-CŪ connectivity that turns your monitor into a powerful productivity hub.
Display
Display diagonal
61 cm (24")
Display resolution
1920 x 1200 pixels
HD type
WUXGA

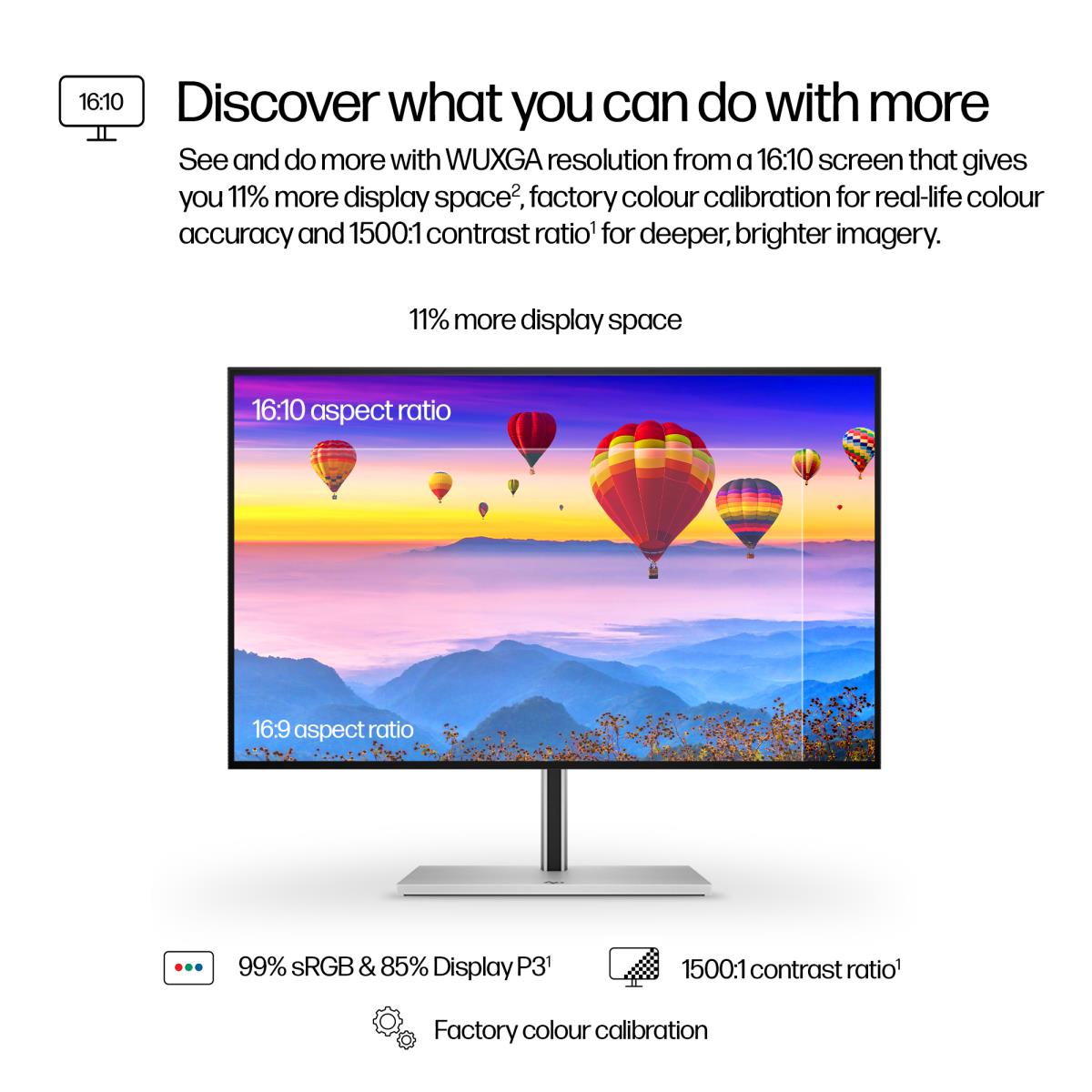

Native aspect ratio
16:10
Panel type
IPS
Touchscreen
No
Display brightness (peak)
350 cd/mē
Anti-glare screen
Yes
Screen shape
Flat
Supported graphics resolutions
640 x 480 (VGA), 720 x 400, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Aspect ratio
16:10
Contrast ratio (typical)
1500:1
Contrast ratio (dynamic)
10000000:1
Maximum refresh rate
100 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.7 million colours
Pixel pitch
0.27 x 0.27 mm
Horizontal scan range
30 - 75 kHz
Vertical scan range
50 - 100 Hz
Display diagonal (metric)
61 cm
Colour depth
8 bit
RGB colour space
DCI-P3
Colour gamut
85%
sRGB coverage (typical)
99%
Display brightness
350 cd/mē
Display technology
LCD
Display surface
Matt
Display bezel technology
Micro-Edge
Display resolution
1920 x 1200 pixels
Touchscreen
No
Display brightness (peak)
350 cd/mē
Aspect ratio
16:10
Colour gamut standard
sRGB, DCI-P3, Rec. 709
Display brightness (typical)
350 cd/mē
Response time
5 ms
Pixel density
94 ppi
Haze rate
25%
Surface hardness
3H
LED backlight
Yes
Backlight type
Edge LED
Response time measurement type
GTG (Gray to Gray)
Viewable size, horizontal
51.8 cm
Viewable size, vertical
32.4 cm
Performance
NVIDIA G-SYNC
No
AMD FreeSync
No
VESA Adaptive Sync support
Yes
Low Blue Light technology
Yes
HP segment
Business
Fast charging
Yes
Flicker-free technology
Yes
NVIDIA G-SYNC
No
AMD FreeSync
No
Fast charging
Yes
VESA Adaptive Sync support
Yes
Low Blue Light technology
Yes
Multimedia
Built-in speaker(s)
No
Built-in camera
No
Built-in speaker(s)
No
Design
Market positioning
Business
Product colour
Black, Silver
Country of origin
China
Certification
MEPS; BIS; BSMI; CB; CCC; CE; CECP; CEL; cTUVus; EAC; FCC; GS Mark; ISO 9241-307; KC; KCC; NOM; PSB; SEPA; TUV-S; VCCI; Vietnam MEPS; WEEE; ISC; Low blue light; WW application; UAE; Ukraine EE; Microsoft WHQL Certification (Windows 11 and Windows 10); Ukraine CoC; Ukraine DOC
Detachable stand
Yes
Product colour
Black, Silver
Feet colour
Silver, Black

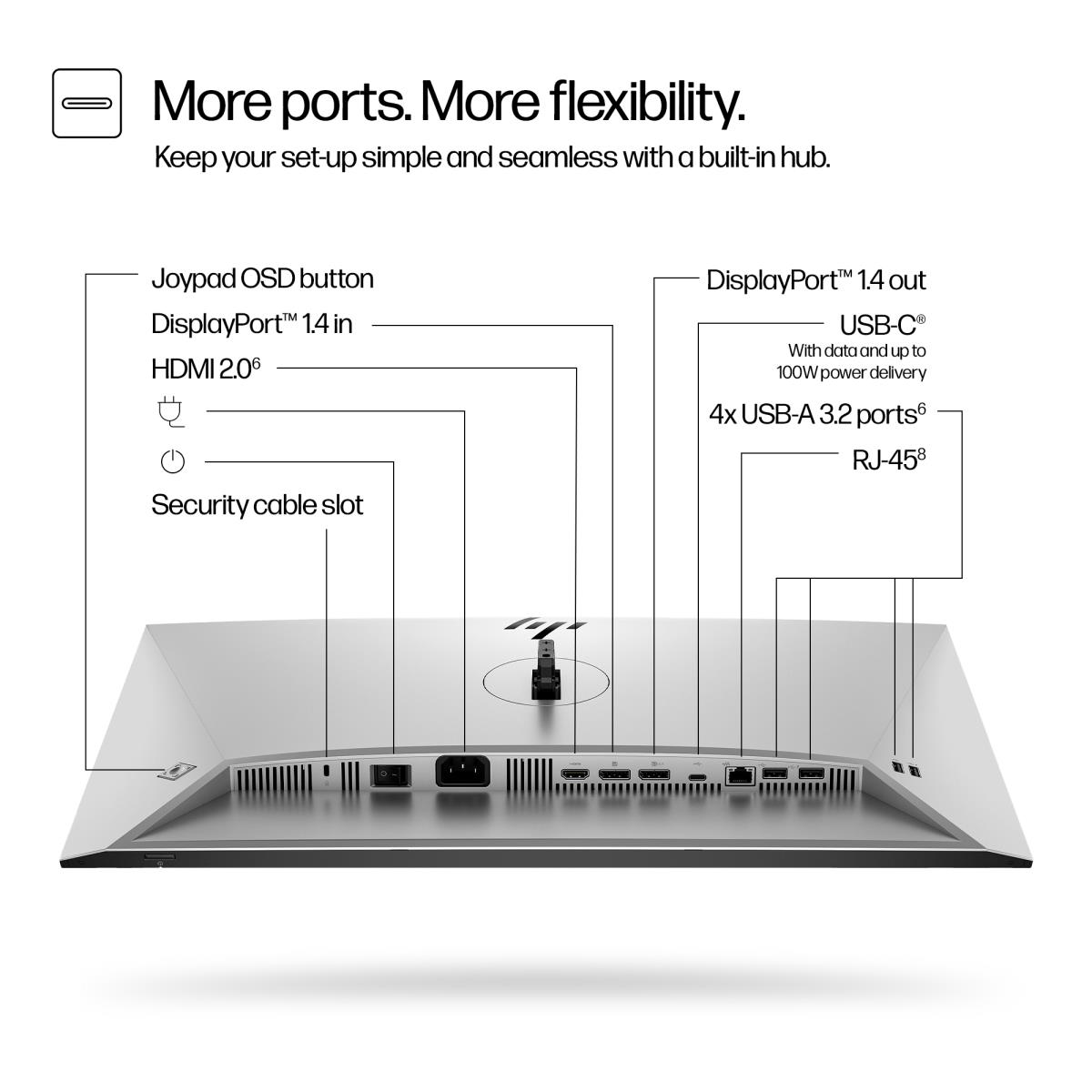

Ports & interfaces
Built-in USB hub
Yes
USB upstream port type
USB Type-A, USB Type-B
Number of USB Type-B upstream ports quantity
1
USB Type-A downstream ports quantity
4
HDMI
Yes
HDMI ports quantity
1
HDMI version
2.0
DisplayPorts quantity
2
DisplayPort version
1.4
HDCP
Yes
USB hub version
3.2 Gen 1 (3.1 Gen 1)
USB Type-C downstream ports quantity
1

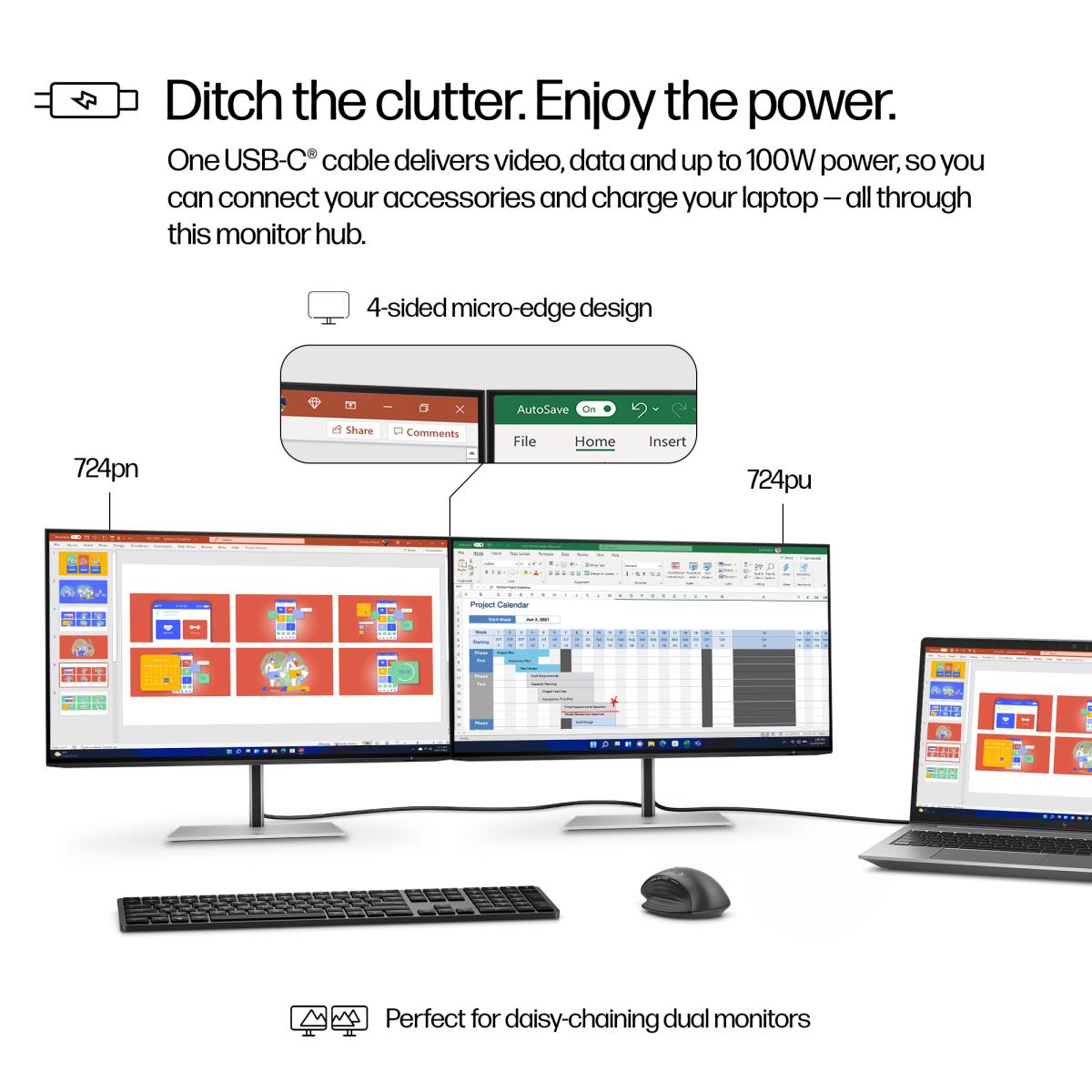

USB Type-C DisplayPort Alternate Mode
Yes
USB Power Delivery (USB PD)
Yes
USB Power Delivery up to
100 W
USB upstream port type
USB Type-A, USB Type-B
Number of USB Type-B upstream ports quantity
1
HDMI
Yes
Operational conditions
Non-operating relative humidity (non-condensing)
20 - 80%
Operating temperature (T-T)
5 - 35 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 35%
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
20 - 80%

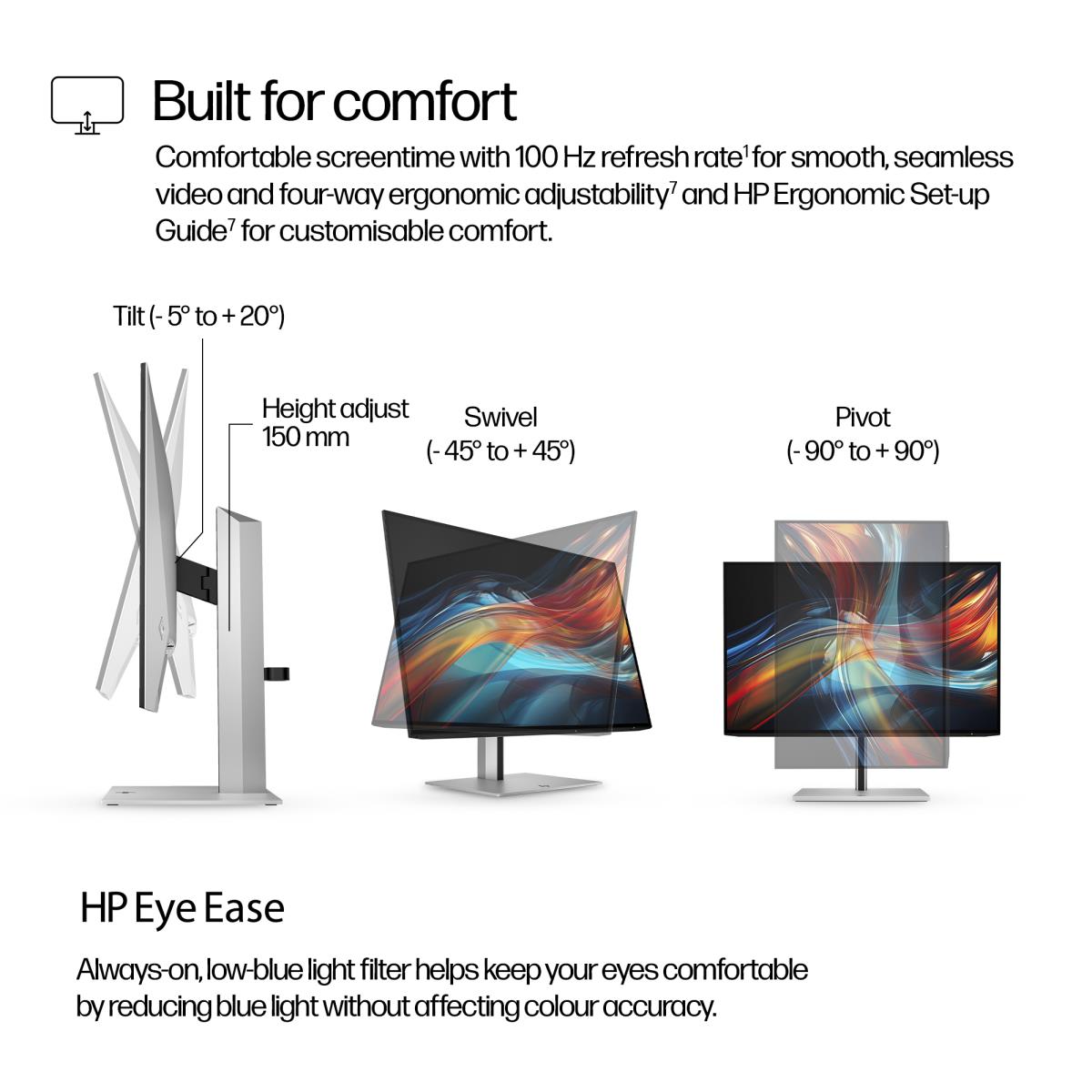

Ergonomics
VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Height adjustment
Yes
Height adjustment
15 cm
Pivot
Yes
Pivot angle
0 - 90°
Swivelling
Yes
Swivel angle range
0 - 45°
Tilt adjustment
Yes
Tilt angle range
-5 - 20°
Cable lock slot
Yes
Picture-in-Picture
Yes
On Screen Display (OSD)
Yes
Cable lock slot
Yes
Pivot angle
0 - 90°
Picture-in-Picture
Yes
Network
Ethernet LAN
Yes
Remotely operated
Yes
Remotely operated
Yes
Power
Power consumption (typical)
26.4 W
Power consumption (standby)
0.5 W
Power consumption (max)
160 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power supply type
Internal
Energy efficiency class (HDR)
E
Energy efficiency class (HDR)
E
Power consumption (typical)
26.4 W
Power consumption (standby)
0.5 W
Power consumption (max)
160 W
Power consumption (off)
0.3 W
Energy efficiency scale
A to G
Energy consumption (SDR) per 1000 hours
19.2 kWh
Energy efficiency class (SDR)
E
Power consumption (off)
0.3 W
Energy efficiency scale
A to G

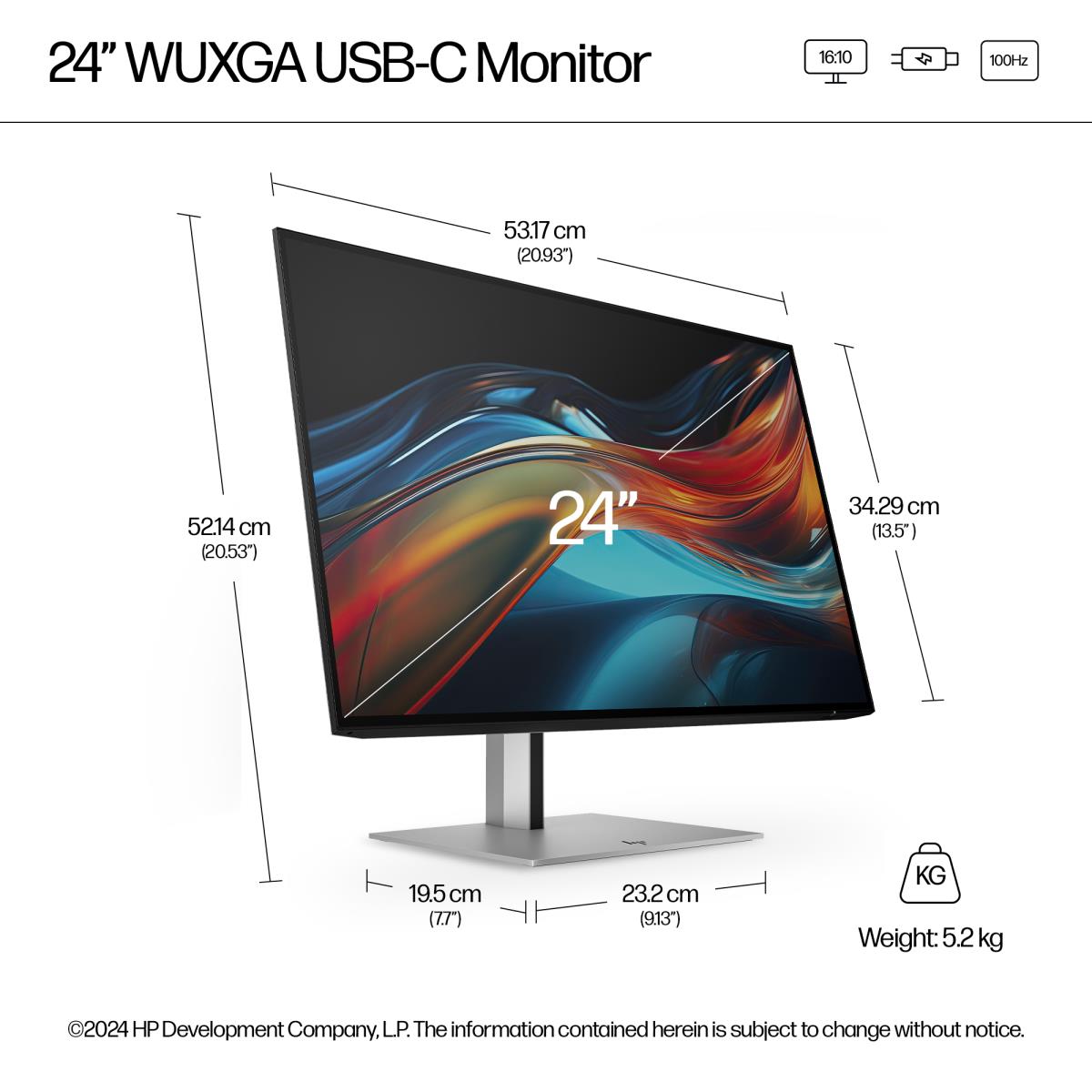

Weight & dimensions
Width (with stand)
531.7 mm
Depth (with stand)
195 mm
Height (with stand)
521.4 mm
Weight (with stand)
5.2 kg
Width (without stand)
531.7 mm
Depth (without stand)
38.5 mm
Height (without stand)
342.9 mm
Weight (with stand)
5.2 kg
Packaging data
Package width
625 mm
Package depth
142 mm
Package height
415 mm
Package weight
7.8 kg
Package type
Box
Warranty card
Yes
Packaging content
Stand included
Yes
Cables included
AC, DisplayPort, HDMI
Quick start guide
Yes
Bundled software
HP Display Center; HP Client Management Script Library
Other features
UNSPSC-code
43211902
Compliance certificates
BIS, BSMI, CB, CCC, CE, CECP, CEL, EAC, Federal Communications Commission (FCC), GS mark, KC, KCC, Norma Oficial Mexicana (NOM), VCCI, WEEE, cTUVus
Ethernet LAN (RJ-45) ports
1
Certification
Australian-New Zealand MEPS; BIS; BSMI; CB; CCC; CE; CECP; CEL; cTUVus; EAC; FCC; GS Mark; ISO 9241-307; KC; KCC; NOM; PSB; SEPA; TUV-S; VCCI; Vietnam MEPS; WEEE; ISC; Low blue light; WW application; UAE; Ukraine EE; Microsoft WHQL Certification (Windows 11 and Windows 10); Ukraine CoC; Ukraine DOC
Manufacturer warranty
HP three-year limited warranty
Low halogen
Yes
Weight
5.2 kg
Height
342.9 mm
Width
531.7 mm
Depth
38.5 mm
Sustainability
Sustainability certificates
ENERGY STAR
Sustainability compliance
Yes
Sustainable technologies and materials
Low halogen; Outside box and corrugated cushions are 100% sustainably sourced and recyclable; 85% ITE-derived closed loop plastic; Designed with recycled metals; 5% ocean-bound plastic
Technical details
General Product Safety Regulation (GPSR) URL
https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true
Box contents
Monitor; DisplayPort cable; HDMI cable; VESA Mount adapter; Warranty card; Quick Setup Poster; 1 USB Type-C to Type-C cable; AC power cord; Color calibration report
Carbon footprint
Total carbon footprint (kg of CO2e)
240
Carbon emissions, manufacturing (kg of CO2e)
196
Carbon emissions, logistics (kg of CO2e)
3
Carbon emissions, end-of-life (kg of CO2e)
2
Total carbon emissions, w/o use phase (kg of CO2e)
35
Brand-specific features
HP GTIN (EAN/UPC) with options
(ABB) 197498467719; (ABU) 197498467740
HP GTIN (EAN/UPC)
197498467719, 197498467740
Information
| Part Number: | 8Y2F7AA#ABU |
