Product Details
Introduction
Reimagine what work looks like

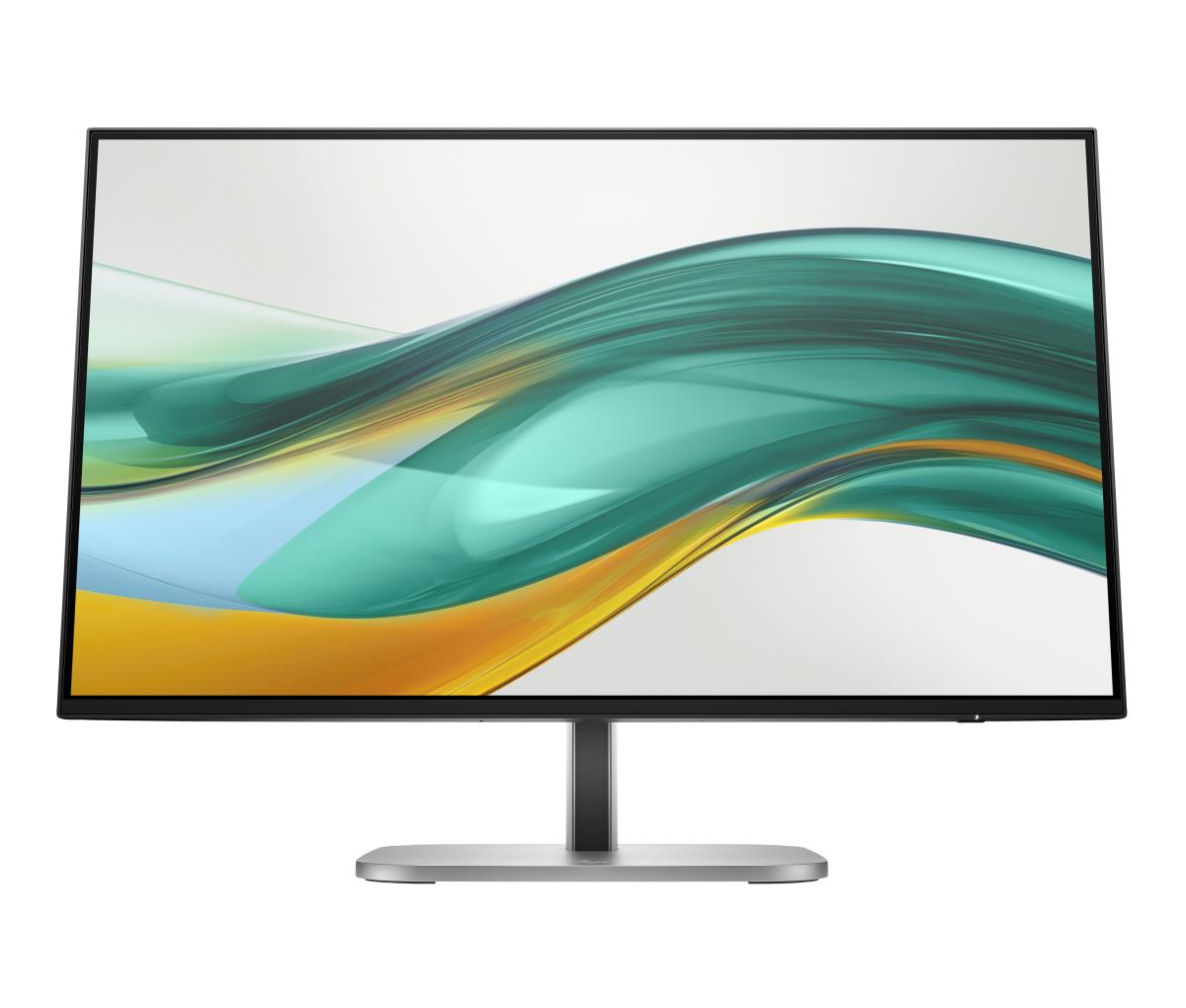

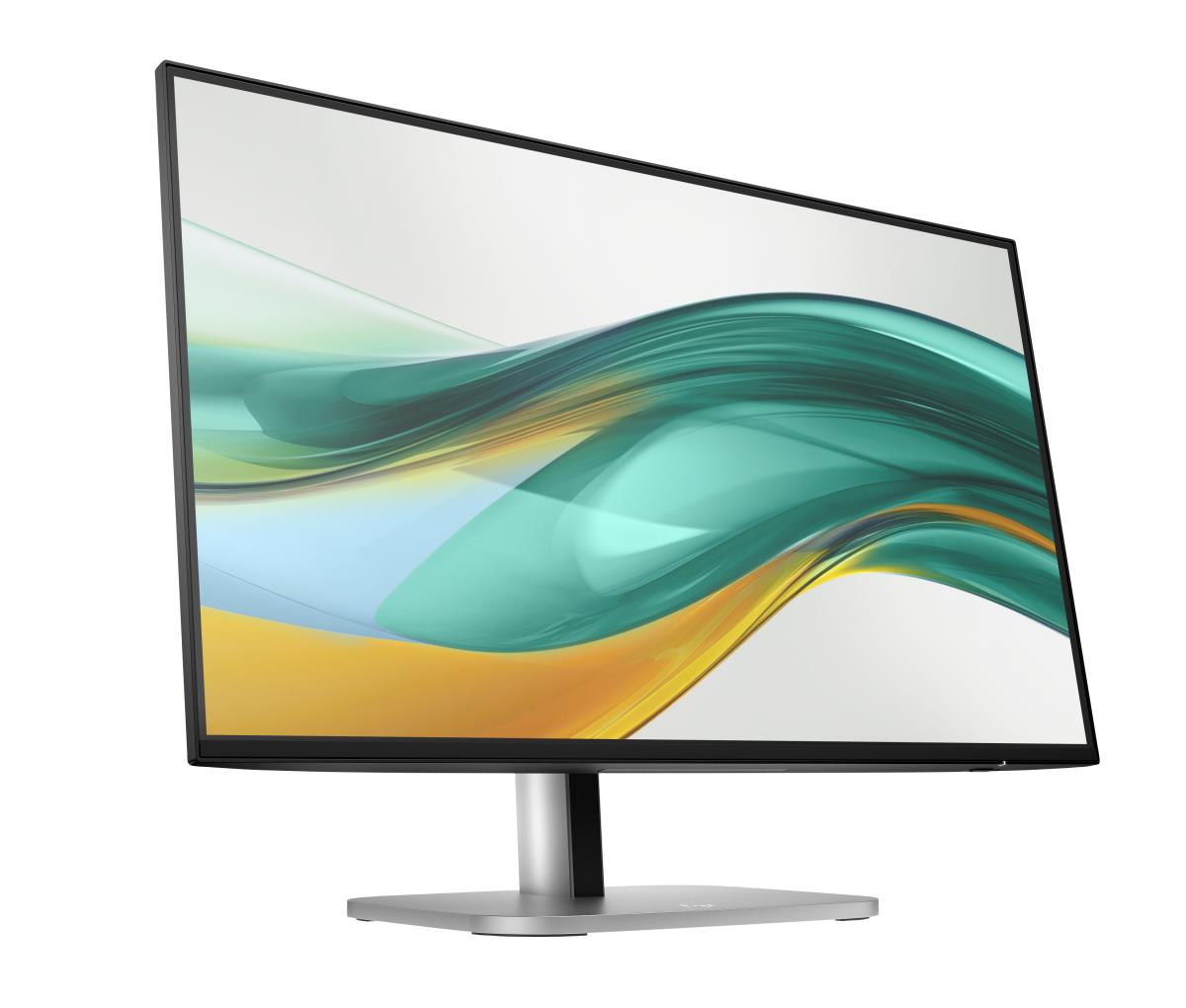

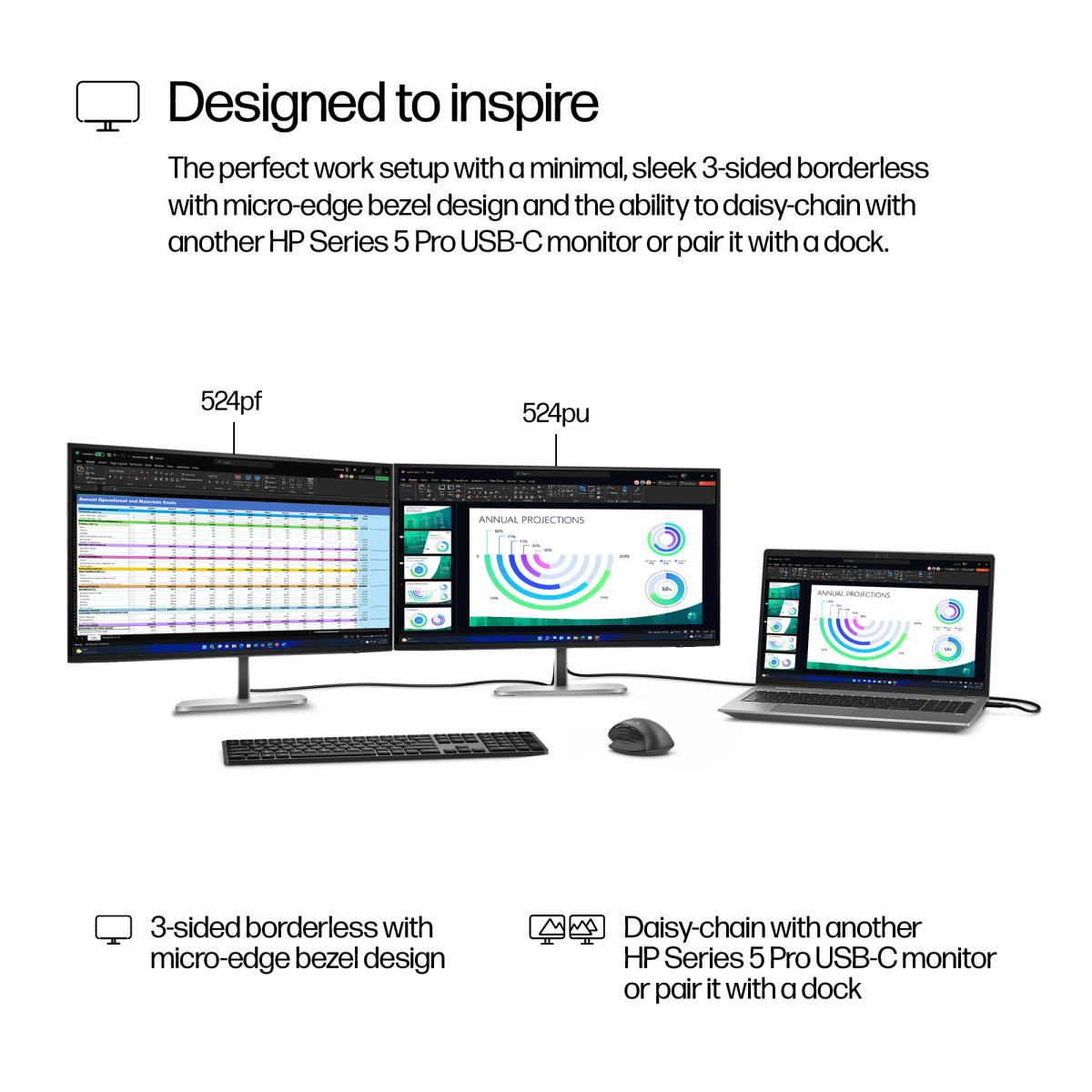

Get more out of your workday with the HP Series 5 Pro 23.8” FHD Monitor. Create the setup that works for the way you work, wherever you work, with refined visual clarity and adjustable comfort built into a sleek, modern design.
Display
Display brightness
350 cd/m²
Display diagonal
60.5 cm (23.8")
Display resolution
1920 x 1080 pixels
HD type
Full HD
Native aspect ratio
16:9
Panel type
IPS
Touchscreen
No
Display brightness (typical)
350 cd/m²
Response time
5 ms
Anti-glare screen
Yes
Screen shape
Flat
Supported graphics resolutions
640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Supported video modes
1080p
Aspect ratio
16:9
Contrast ratio (typical)
1500:1
Contrast ratio (dynamic)
10000000:1
Maximum refresh rate
100 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.7 million colours
Pixel pitch
0.28 x 0.28 mm
Pixel density
93 ppi
Horizontal scan range
30 - 120 kHz
Vertical scan range
50 - 100 Hz
Viewable size, horizontal
52.7 cm
Viewable size, vertical
29.6 cm
Display diagonal (metric)
60.5 cm
Haze rate
25%
Surface hardness
3H
Colour depth
8 bit
Colour gamut standard
DCI-P3
Colour gamut
85%
sRGB coverage (typical)
100%
Display resolution
1920 x 1080 pixels
Touchscreen
No
Supported video modes
1080p
Aspect ratio
16:9
Colour gamut standard
sRGB
sRGB coverage (typical)
100%
Display technology
LCD
Display surface
Matt
Response time measurement type
GTG (Gray to Gray)
LED backlight
Yes
Backlight type
Edge LED
Display bezel technology
Micro-Edge

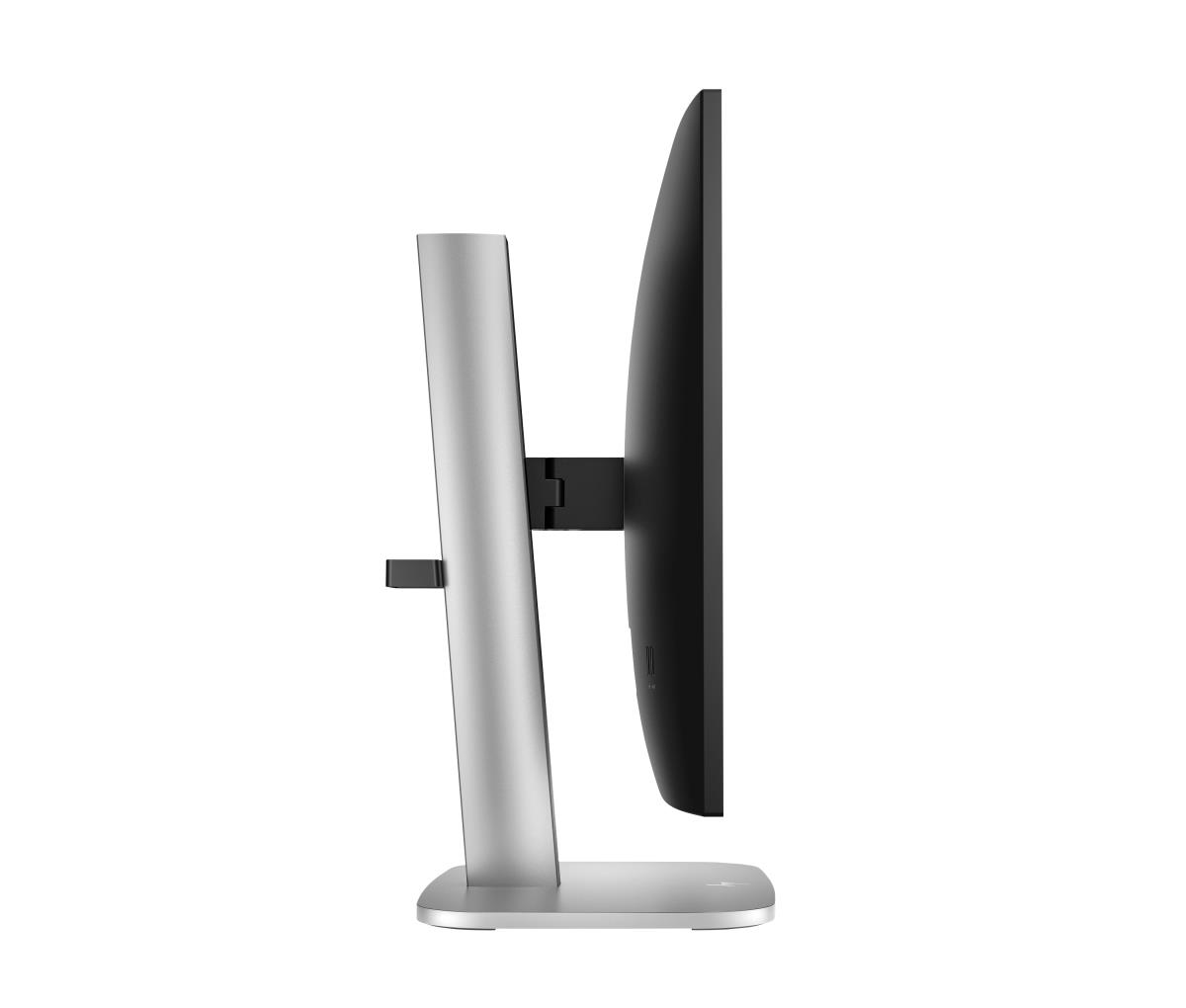

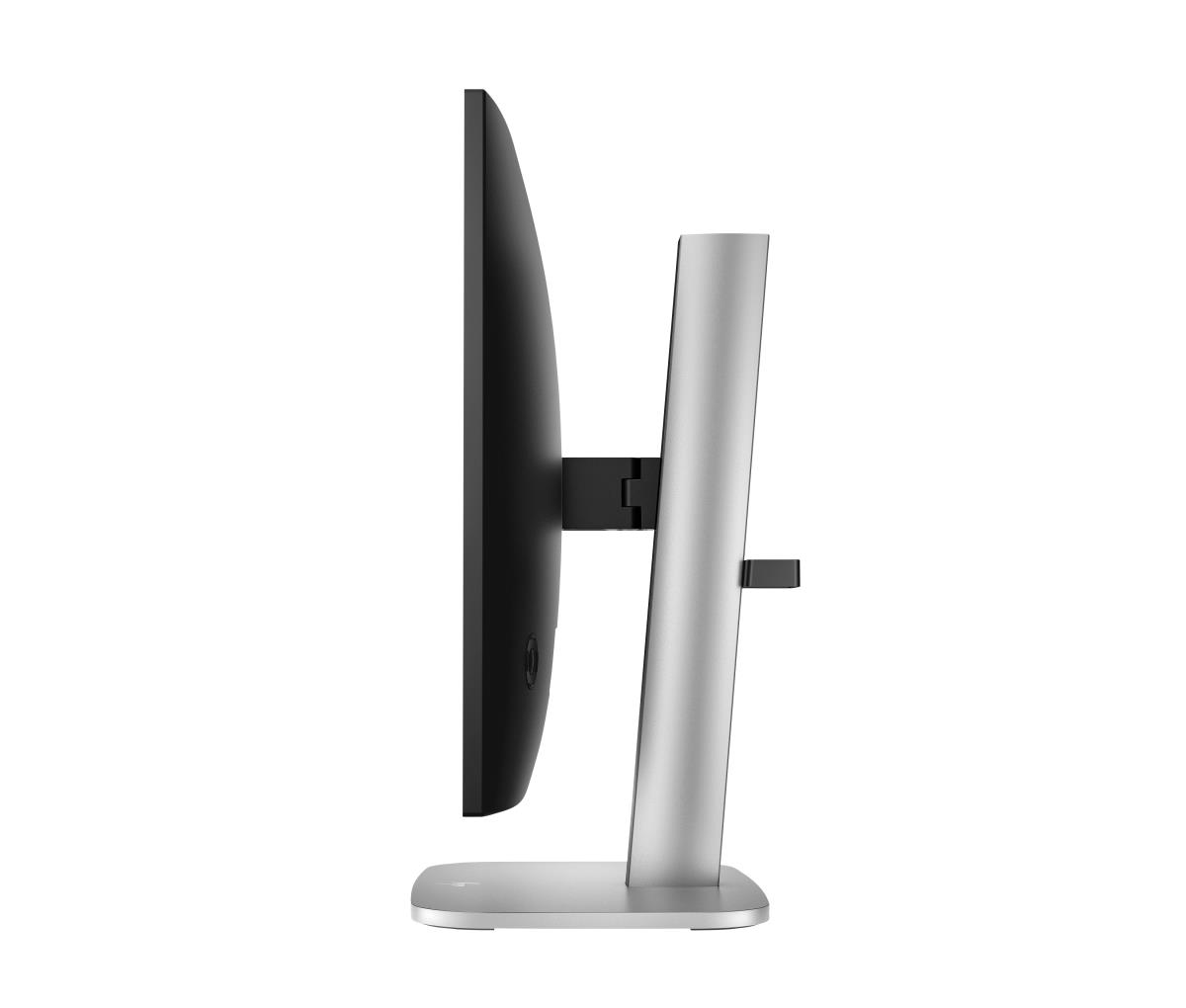

Ergonomics
Panel mounting interface
100 x 100 mm
VESA mounting
Yes
Cable lock slot
Yes
Height adjustment
Yes
Height adjustment
15 cm
Pivot
Yes
Pivot angle
0 - 90°
Swivelling
Yes
Swivel angle range
0 - 45°
Tilt adjustment
Yes
Tilt angle range
-5 - 23°
On Screen Display (OSD)
Yes
VESA mounting
Yes
Cable lock slot
Yes
Pivot angle
0 - 90°
Operational conditions
Non-operating relative humidity (non-condensing)
20 - 80%
Operating temperature (T-T)
5 - 35 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
20 - 80%
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
20 - 80%
Sustainability
Sustainability compliance
Yes
Sustainable technologies and materials
Low halogen; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; Outside box and corrugated cushions are 100% sustainably sourced and recyclable; 85% ITE-derived closed loop plastic; Contains ocean-bound plastic; Contains 20% recycled glass in the monitor panel; At least 30% recycled metal including 90% recycled aluminum in the stand
Sustainability certificates
ENERGY STAR
Carbon footprint
Total carbon footprint (kg of CO2e)
186.948
Carbon emissions, manufacturing (kg of CO2e)
153.254
Carbon emissions, logistics (kg of CO2e)
2.743
Carbon emissions, end-of-life (kg of CO2e)
1.631
Total carbon emissions, w/o use phase (kg of CO2e)
29.32
Performance
NVIDIA G-SYNC
No
AMD FreeSync
No
VESA Adaptive Sync support
Yes
Flicker-free technology
Yes
Low Blue Light technology
Yes
HP segment
Business
NVIDIA G-SYNC
No
AMD FreeSync
No
VESA Adaptive Sync support
Yes
Low Blue Light technology
Yes
Multimedia
Built-in speaker(s)
No
Built-in camera
No
Built-in speaker(s)
No
Design
Market positioning
Business
Product colour
Black, Silver
Feet colour
Silver, Black
Colour name
Jet black

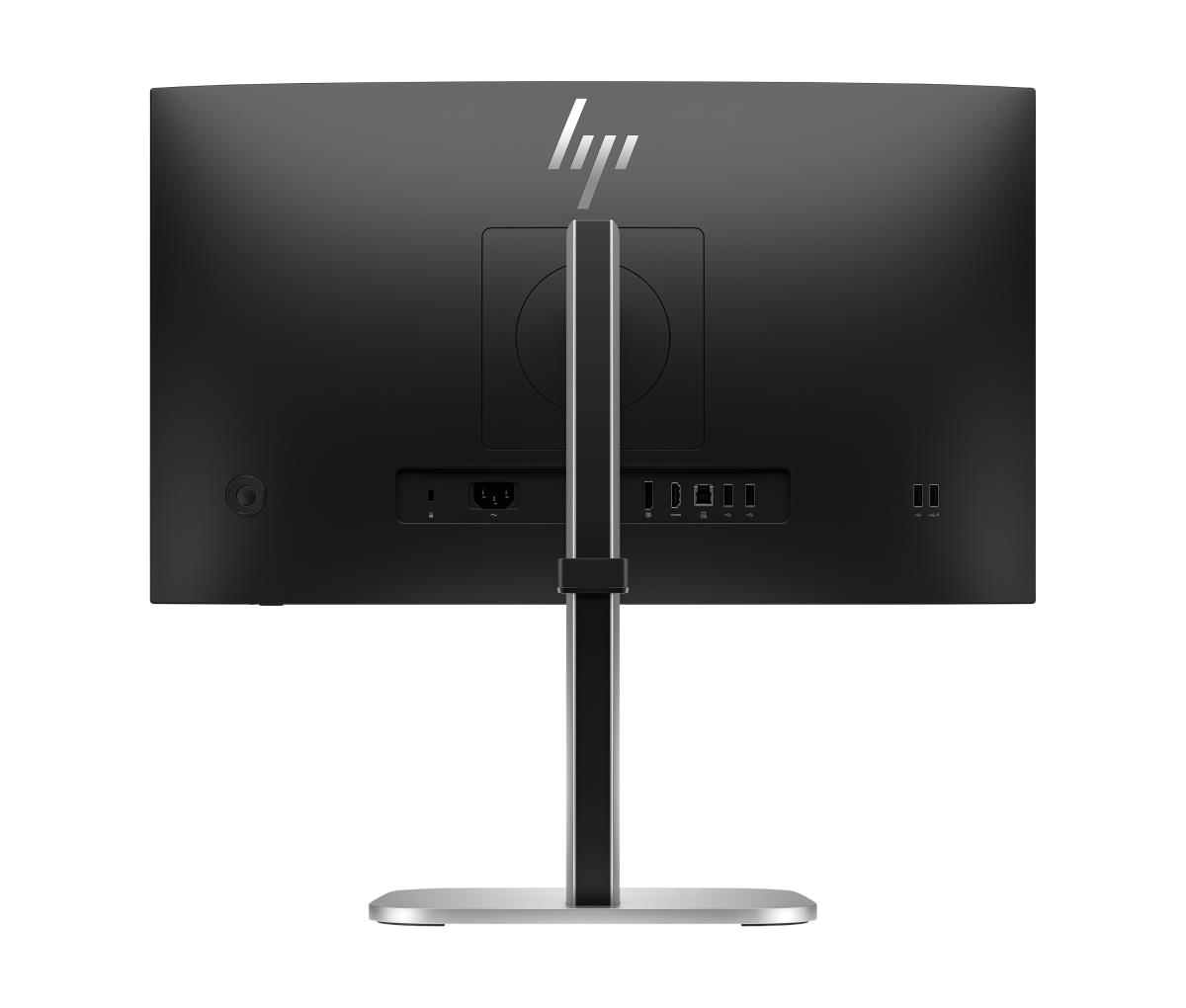

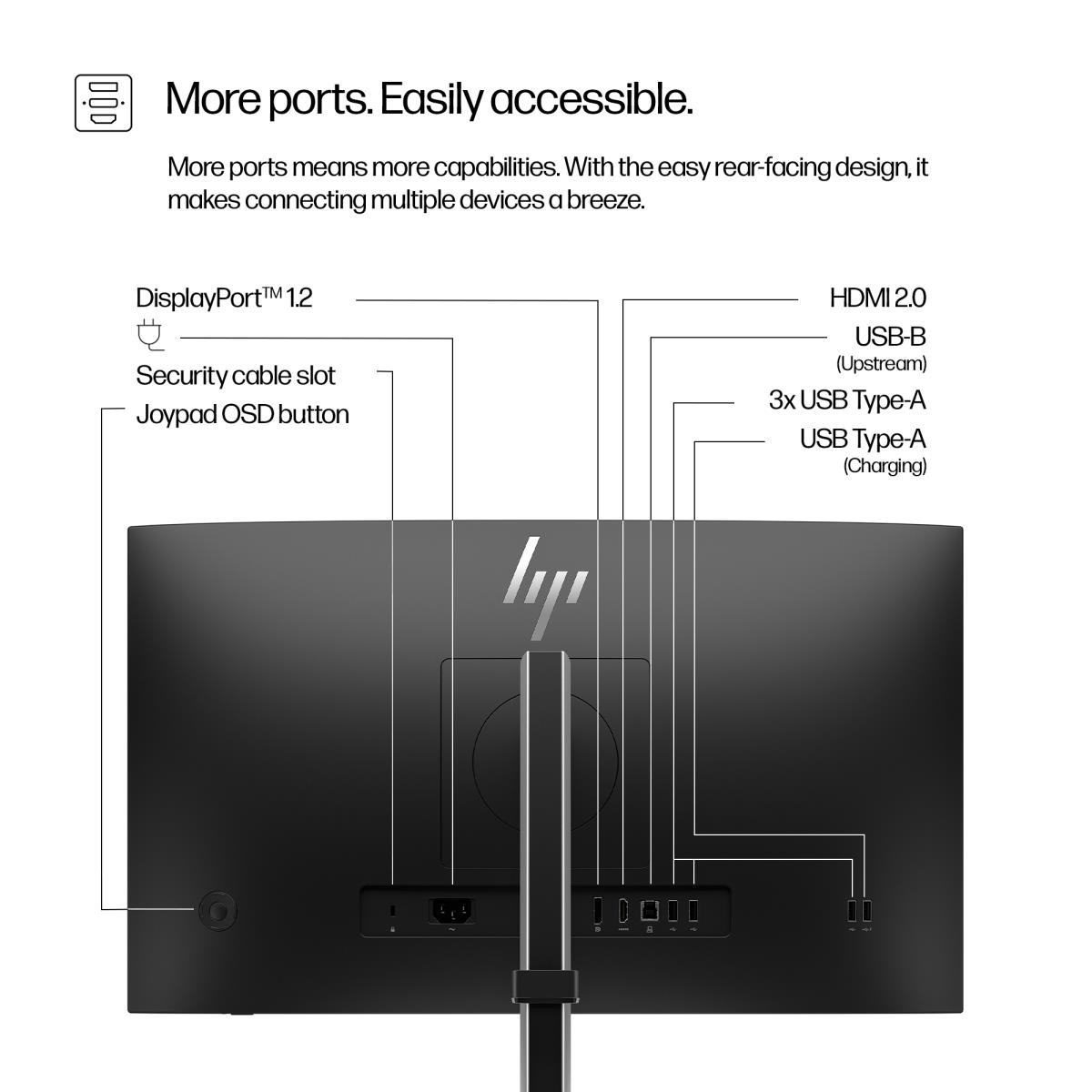

Ports & interfaces
Built-in USB hub
Yes
USB upstream port type
USB Type-A, USB Type-B
Number of USB Type-B upstream ports quantity
1
USB Type-A downstream ports quantity
4
HDMI
Yes
HDMI ports quantity
1
HDMI version
1.4
DisplayPorts quantity
1
DisplayPort version
1.2
HDCP
Yes
USB hub version
3.2 Gen 1 (3.1 Gen 1)
USB upstream port type
USB Type-A, USB Type-B
Number of USB Type-B upstream ports quantity
1
HDMI
Yes
Power
Energy efficiency class (HDR)
C
Power consumption (typical)
22 W
Power consumption (standby)
0.5 W
Power consumption (max)
58 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power supply type
Internal
Energy efficiency class (HDR)
C
Power consumption (typical)
22 W
Power consumption (standby)
0.5 W
Power consumption (max)
58 W
Power consumption (off)
0.3 W
Energy efficiency scale
A to G
Energy efficiency class (SDR)
C
Power consumption (off)
0.3 W
Energy efficiency scale
A to G

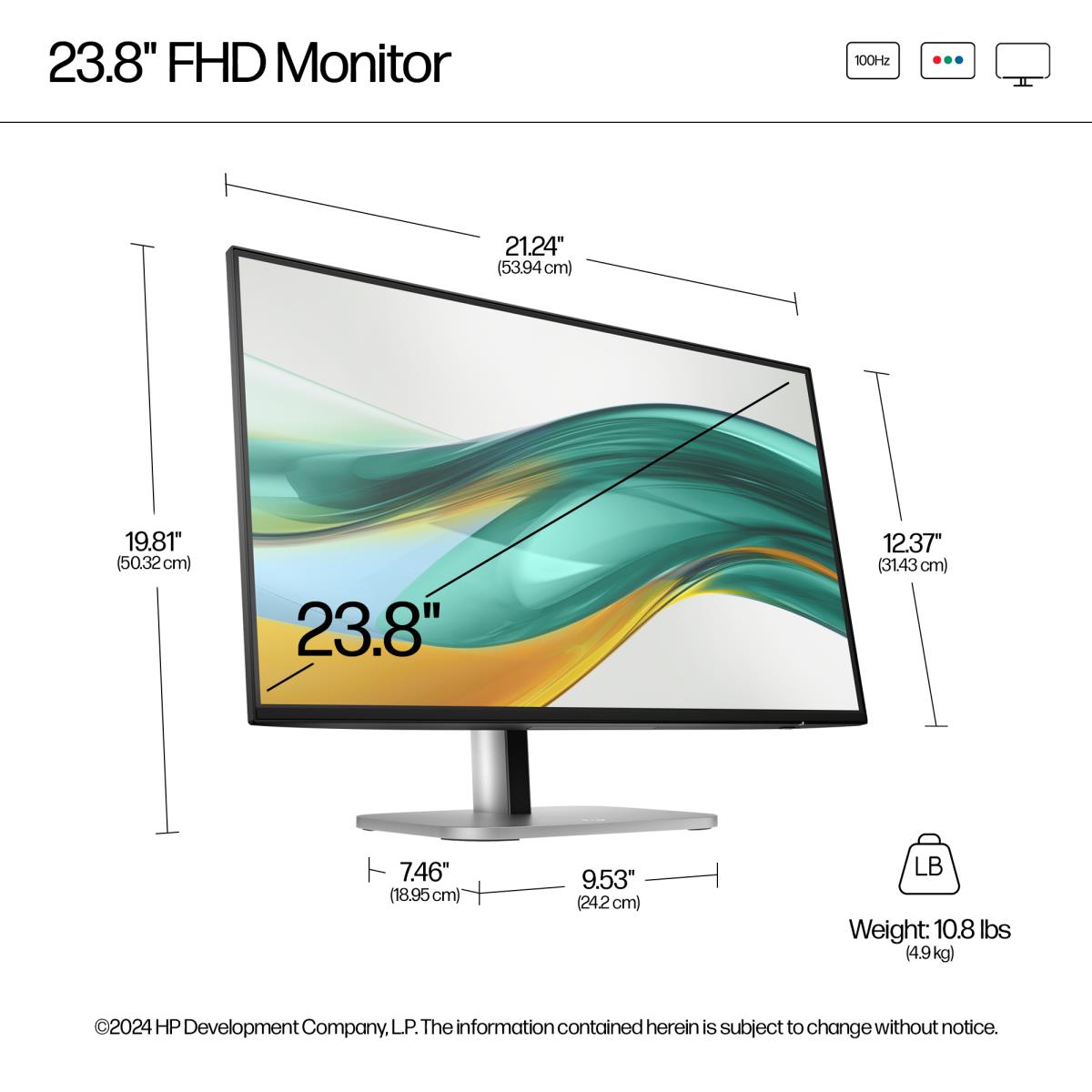

Weight & dimensions
Width (with stand)
621 mm
Depth (with stand)
140 mm
Height (with stand)
393 mm
Weight (with stand)
4.9 kg
Width (without stand)
539.4 mm
Depth (without stand)
47.2 mm
Height (without stand)
314.3 mm
Weight (without stand)
3.4 kg
Packaging data
Package width
625 mm
Package depth
373 mm
Package height
142 mm
Package weight
7 kg
Package type
Box
Package weight
7.2 kg
Warranty card
Yes
Packaging content
Quick start guide
Yes
Bundled software
HP Display Center; HP Display Manager
Cables included
AC, DisplayPort, HDMI, USB Type-A to USB Type-B
Other features
Country of origin
China, Vietnam
UNSPSC-code
43211902
Weight
4.7 kg
Height
313.7 mm
Width
538.4 mm
Depth
38.5 mm
Certification
BIS; BSMI; CB; CCC; CE; CECP; CEL; cTUVus; EAC; FCC; GS Mark; ICES; ISO 9241-307; KC; KCC; NOM; PSB; RCM; SEPA; TUV-S; VCCI; WEEE; ISC; California Energy Commission (CEC); WW application; UAE; Ukraine certificates; NRCS; PSE; Ukraine EE; TÜV Low Blue Light Hardware Solution certified; Works with Chromebook certified; Korea MEPS; CEL Grade 2; Australian-New Zealand DoC; EMF
Compliance certificates
BIS, BSMI, CB, CCC, CE, CECP, CEL, EAC, Federal Communications Commission (FCC), GS mark, ICES, KC, KCC, Norma Oficial Mexicana (NOM), PSE, RCM, VCCI, WEEE, cTUVus
Weight
4.9 kg
Height
313.7 mm
Width
538.4 mm
Depth
38.5 mm
Certification
BIS; BSMI; CB; CCC; CE; CECP; CEL; cTUVus; EAC; FCC; GS Mark; ICES; ISO 9241-307; KC; KCC; NOM; PSB; RCM; SEPA; TUV-S; VCCI; WEEE; ISC; California Energy Commission (CEC); WW application; UAE; TGM; Ukraine certificates; NRCS; PSE; Ukraine EE; TÜV Low Blue Light Hardware Solution certified; Works with Chromebook certified; Korea MEPS; CEL Grade 2; Australian-New Zealand DoC; EMF
Manufacturer warranty
HP three-year limited warranty
Low halogen
Yes
Brand-specific features
HP GTIN (EAN/UPC) with options
(ABB) 198122902330; (ABU) 198122902422
HP GTIN (EAN/UPC)
198122902330, 198122902422
Technical details
General Product Safety Regulation (GPSR) URL
https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true
Box contents
Monitor; DisplayPort™ cable; HDMI cable; Warranty card; USB Type-B to A cable; Quick Setup Poster; AC power cord
Information
| Part Number: | 9D9L6UT#ABU |
