Product Details
Introduction
Powerfully designed to connect
Plug into more possibilities with the HP Series 5 Pro 23.8” FHD USB-C? Monitor. Its sleek, modern design gives you crisp, stunning visuals and enhanced 100W power delivery with a single cable connection that seamlessly connects to PCs and peripherals at home or in the office.
Display
Display brightness
350 cd/m²
Display resolution
1920 x 1080 pixels
Touchscreen
No
Aspect ratio
16:9
Colour gamut standard
sRGB
sRGB coverage (typical)
100%
Response time measurement type
GTG (Gray to Gray)
LED backlight
Yes
Backlight type
Edge LED
Display diagonal
60.5 cm (23.8")
Display resolution
1920 x 1080 pixels
HD type
Full HD
Native aspect ratio
16:9
Display technology
LCD
Panel type
IPS
Touchscreen
No
Display brightness (typical)
350 cd/m²
Response time
5 ms
Display surface
Matt
Anti-glare screen
Yes
Screen shape
Flat
Supported graphics resolutions
1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800, 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA)
Aspect ratio
16:9
Contrast ratio (typical)
1500:1
Contrast ratio (dynamic)
10000000:1
Maximum refresh rate
100 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.7 million colours
Pixel pitch
0.28 x 0.28 mm
Pixel density
93 ppi
Horizontal scan range
30 - 115 kHz
Vertical scan range
50 - 100 Hz
Viewable size, horizontal
52.7 cm
Viewable size, vertical
29.6 cm
Display diagonal (metric)
60.5 cm
Haze rate
25%
Surface hardness
3H
Colour depth
8 bit
Colour gamut standard
sRGB
Colour gamut
100%
sRGB coverage (typical)
100%
Display bezel technology
Micro-Edge
Performance
Fast charging
Yes
NVIDIA G-SYNC
No
AMD FreeSync
No
Fast charging
Yes
Low Blue Light technology
Yes
NVIDIA G-SYNC
No
AMD FreeSync
No
Flicker-free technology
Yes
Low Blue Light technology
Yes
HP segment
Business
Operational conditions
Non-operating relative humidity (non-condensing)
20 - 80%
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
20 - 80%
Operating temperature (T-T)
5 - 35 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
20 - 80%
Design
Feet colour
Silver, Black
Colour name
Jet black
Market positioning
Office
Product colour
Black, Silver
Detachable stand
Yes
Sustainability
Sustainability compliance
Yes
Sustainable technologies and materials
Low halogen; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; Outside box and corrugated cushions are 100% sustainably sourced and recyclable; 85% ITE-derived closed loop plastic; Contains ocean-bound plastic; Contains 20% recycled glass in the monitor panel; At least 40% recycled metal including 90% recycled aluminum in the stand
Sustainability certificates
ENERGY STAR
Network
Ethernet LAN
Yes
Remotely operated
Yes
Remotely operated
Yes
Multimedia
Built-in speaker(s)
No
Built-in speaker(s)
No
Built-in camera
No

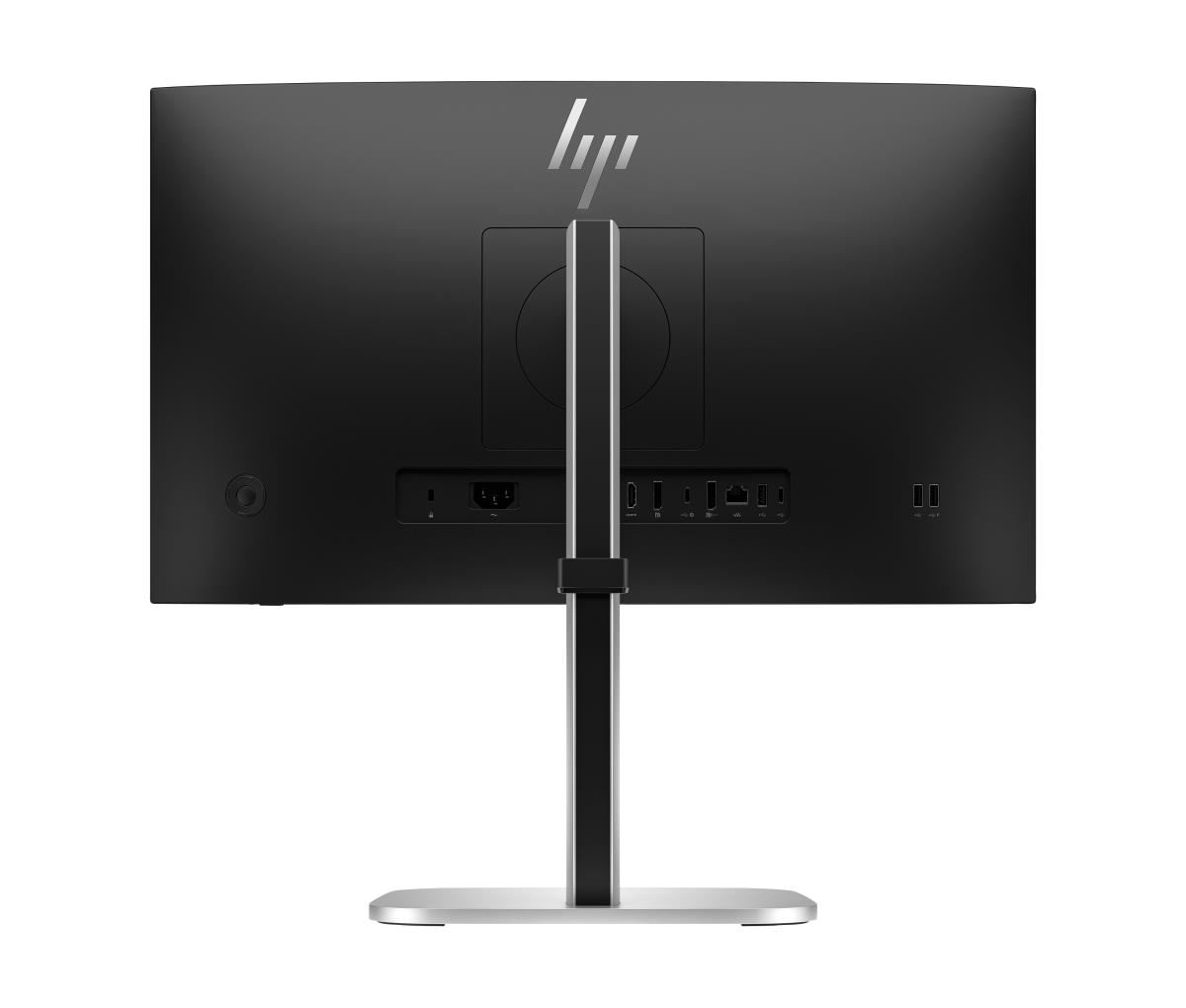

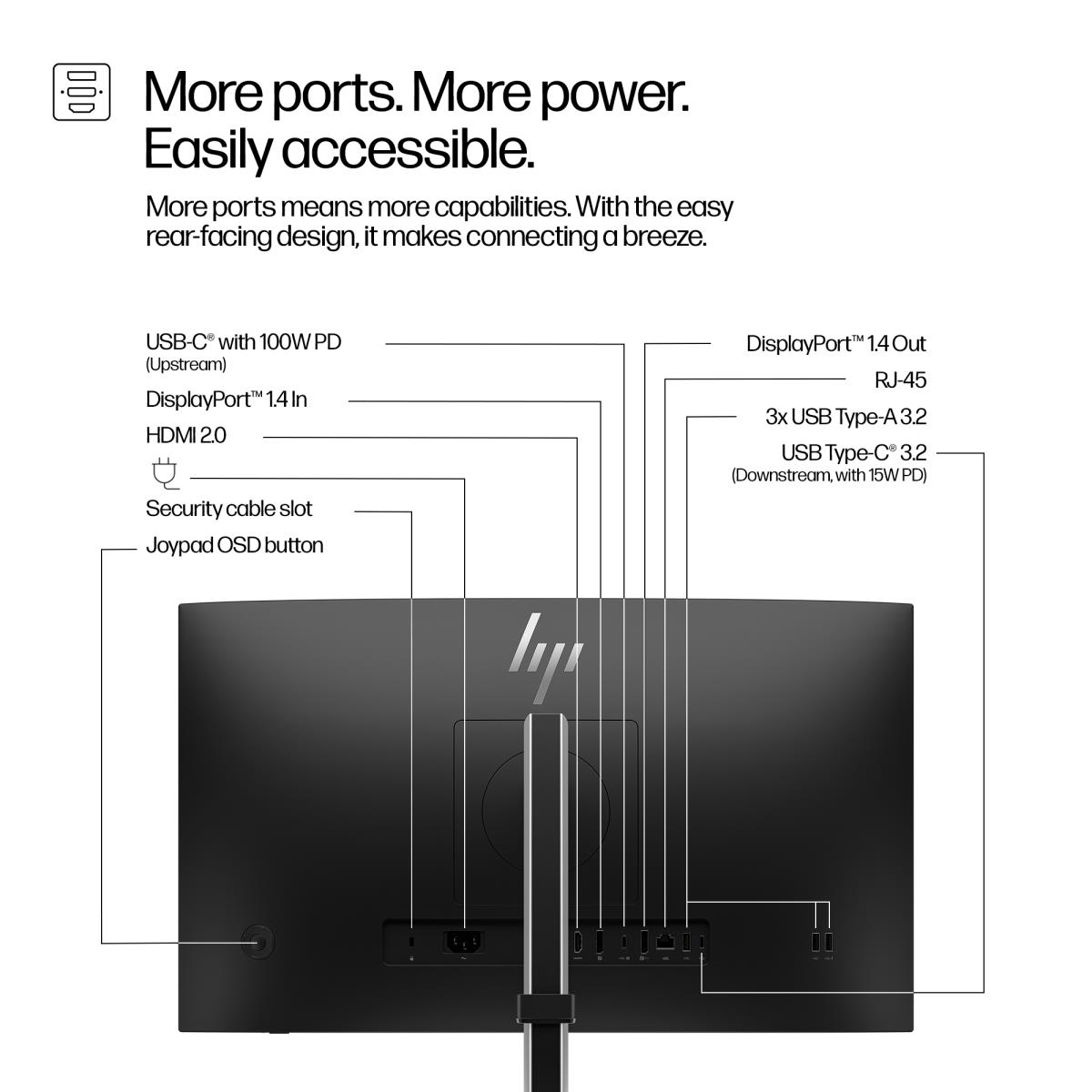

Ports & interfaces
HDMI
Yes
Headphone out
No
USB Type-A downstream ports quantity
3
USB Type-C downstream ports quantity
1
USB Power Delivery up to
100 W
Built-in USB hub
Yes
USB hub version
3.2 Gen 1 (3.1 Gen 1)
USB Type-C DisplayPort Alternate Mode
Yes
USB Power Delivery (USB PD)
Yes
HDMI
Yes
HDMI ports quantity
1
HDMI version
2.0
DisplayPorts quantity
1
DisplayPort version
1.4
Headphone out
No
HDCP
Yes

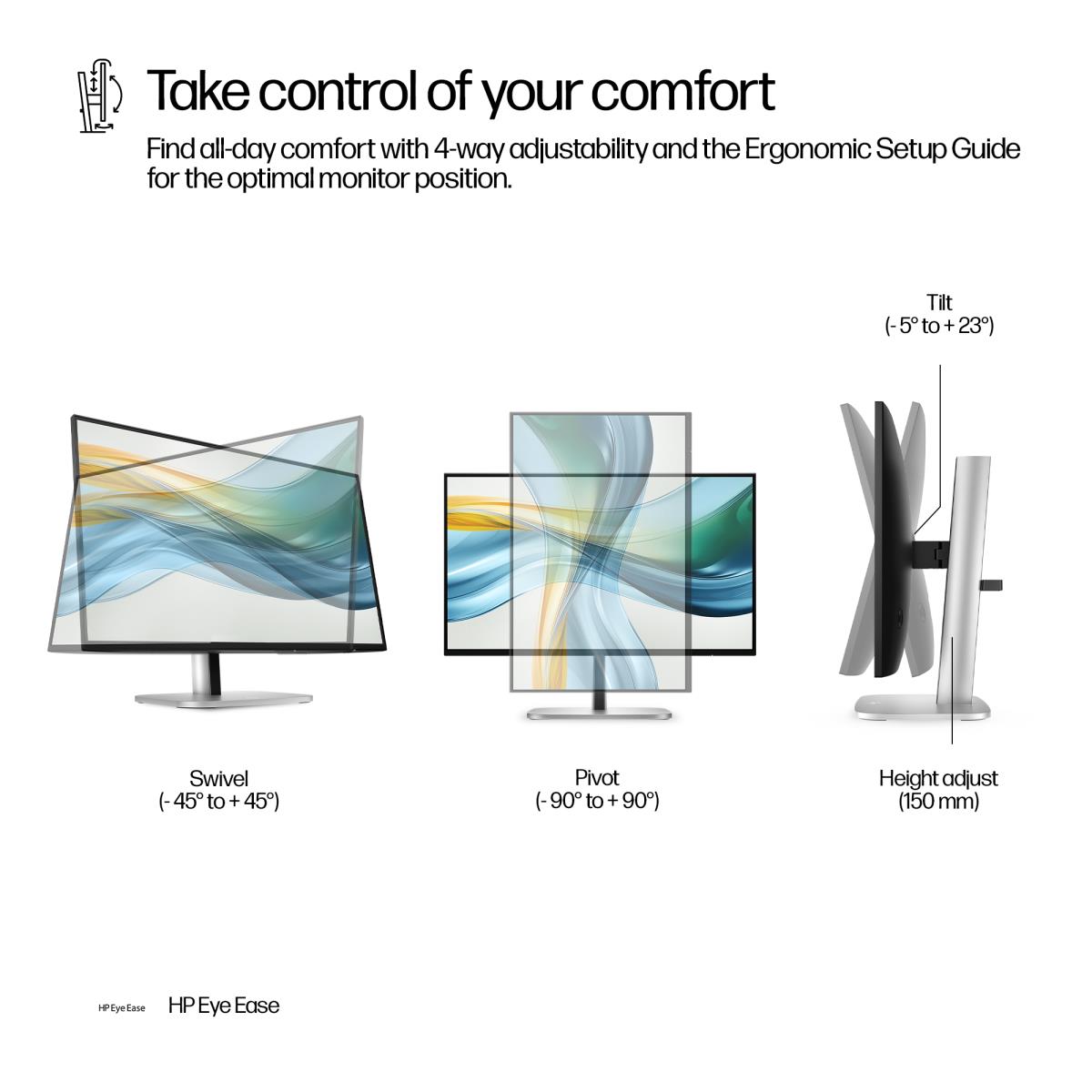

Ergonomics
Cable lock slot
Yes
Swivel angle range
-45 - 45°
VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Cable lock slot
Yes
Height adjustment
Yes
Adjustable height (max)
15 cm
Pivot
Yes
Swivelling
Yes
Tilt adjustment
Yes
Tilt angle range
-5 - 23°
On Screen Display (OSD)
Yes
Power
Energy efficiency class (HDR)
D
Power consumption (typical)
22 W
Power consumption (standby)
0.5 W
Power consumption (max)
198 W
Power consumption (off)
0.3 W
Energy efficiency scale
A to G
Power consumption (off)
0.3 W
Energy efficiency scale
A to G
Energy efficiency class (SDR)
Not available
Energy efficiency class (HDR)
D
Energy consumption (SDR) per 1000 hours
14 kWh
Power consumption (typical)
22 W
Power consumption (standby)
0.5 W
Power consumption (max)
198 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power supply type
Internal
Carbon footprint
Total carbon footprint (kg of CO2e)
190
Carbon emissions, manufacturing (kg of CO2e)
153
Carbon emissions, logistics (kg of CO2e)
3
Carbon emissions, end-of-life (kg of CO2e)
2
Total carbon emissions, w/o use phase (kg of CO2e)
34
Other features
Weight
5.93 kg
Certification
Australian-New Zealand MEPS; BIS; BSMI; CB; CCC; CE; CECP; CEL Grade 1; cTUVus; EAC; FCC; ICES; ISO 9241-307; KC; KCC; NOM; PSB; RCM; SEPA; TUV-S; VCCI; Vietnam MEPS; WEEE; ISC; California Energy Commission (CEC); UAE; TGM; Ukraine certificates; TÜV Flicker free certified; NRCS; PSE; GS; Ukraine EE; TÜV Low Blue Light Hardware Solution certified; Korea MEPS; Australian-New Zealand DoC; EMF
Manufacturer warranty
HP three-year limited warranty
Low halogen
Yes
Country of origin
China
UNSPSC-code
43211902
Weight
5.93 kg
Compliance certificates
BIS, BSMI, CB, CCC, CE, CECP, EAC, Federal Communications Commission (FCC), ICES, KC, KCC, Norma Oficial Mexicana (NOM), PSE, RCM, VCCI, WEEE, cTUVus
Ethernet LAN (RJ-45) ports
1
Certification
Australian-New Zealand MEPS; BIS; BSMI; CB; CCC; CE; CECP; CEL Grade 1; cTUVus; EAC; FCC; ICES; ISO 9241-307; KC; KCC; NOM; PSB; RCM; SEPA; TUV-S; VCCI; Vietnam MEPS; WEEE; ISC; California Energy Commission (CEC); UAE; Ukraine certificates; TÜV Flicker free certified; NRCS; PSE; GS; Ukraine EE; TÜV Low Blue Light Hardware Solution certified; Korea MEPS; Australian-New Zealand DoC; EMF
Packaging data
Warranty card
Yes
Package width
621 mm
Package depth
140 mm
Package height
393 mm
Package weight
8.42 kg
Package type
Box
Technical details
Box contents
Monitor; Warranty card; AC power cable; Quick Setup Poster; 1 USB Type-C to Type-C cable
General Product Safety Regulation (GPSR) URL
https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true

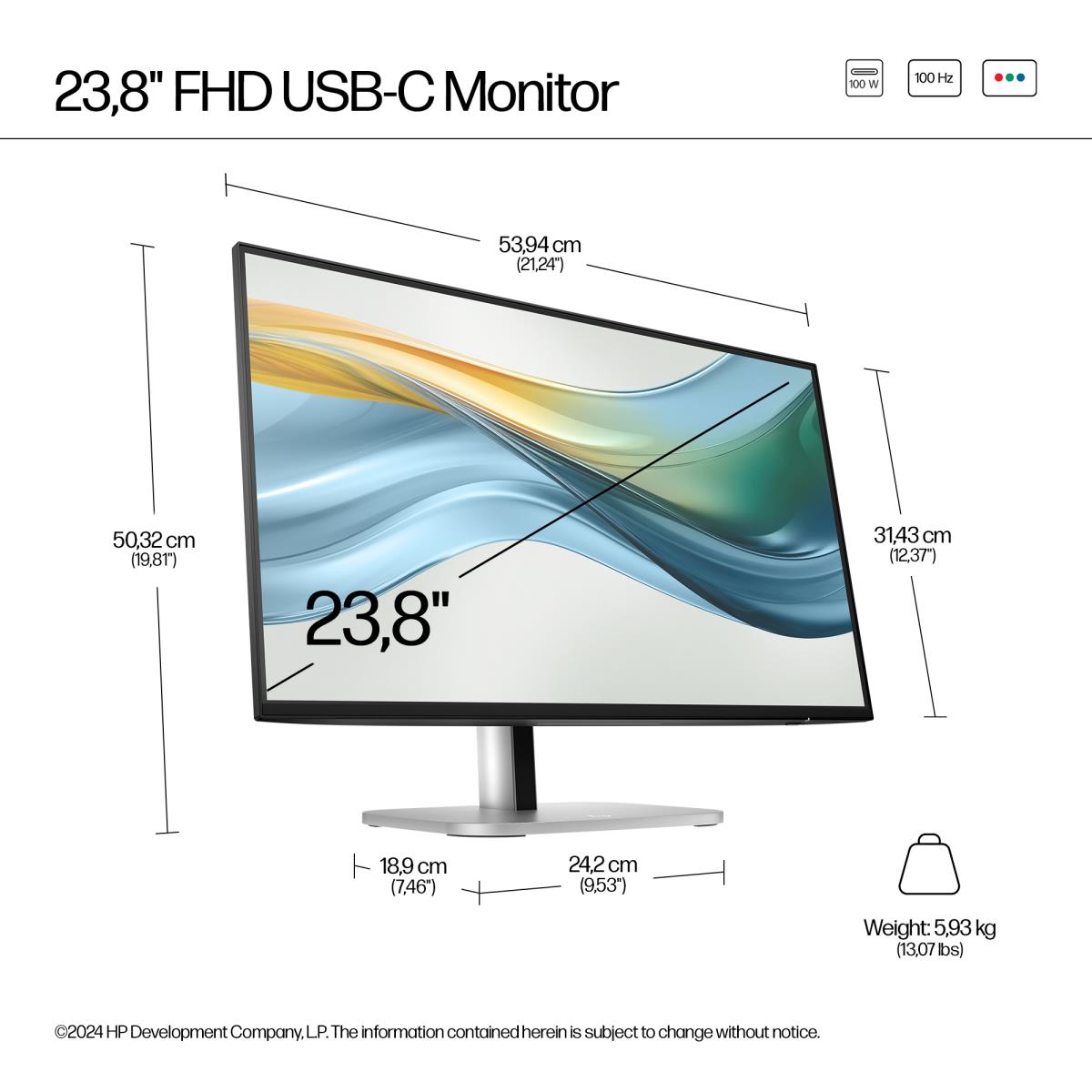

Weight & dimensions
Width (with stand)
539.4 mm
Depth (with stand)
189.5 mm
Height (with stand)
503.2 mm
Weight (with stand)
5.93 kg
Width (without stand)
539.4 mm
Depth (without stand)
47.2 mm
Height (without stand)
314.3 mm
Packaging content
Cables included
AC
Quick start guide
Yes
Bundled software
HP Display Center; HP Client Management Script Library
Brand-specific features
HP GTIN (EAN/UPC)
197961408201
Information
| Part Number: | 9D9V7AA#ABU |
