Introduction

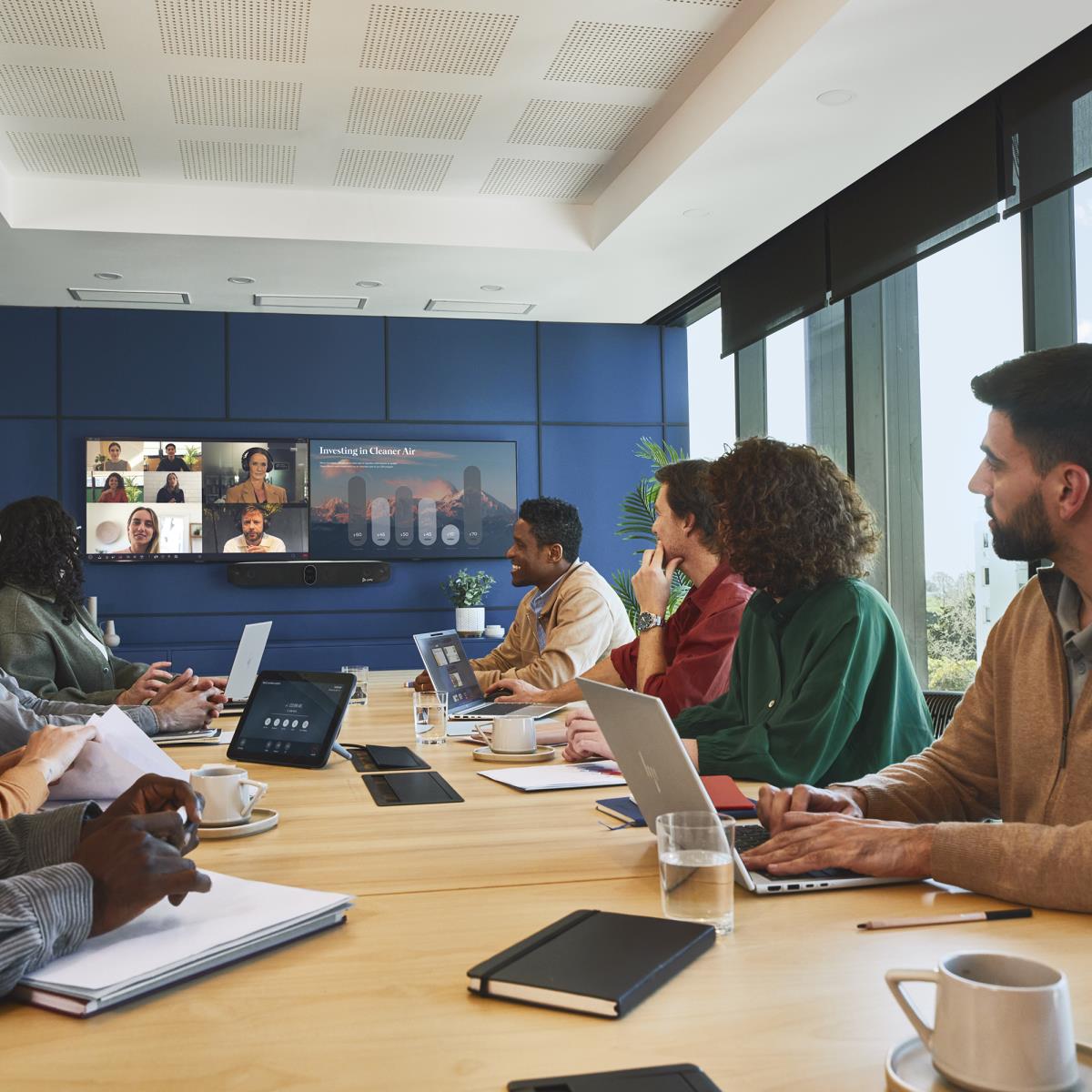

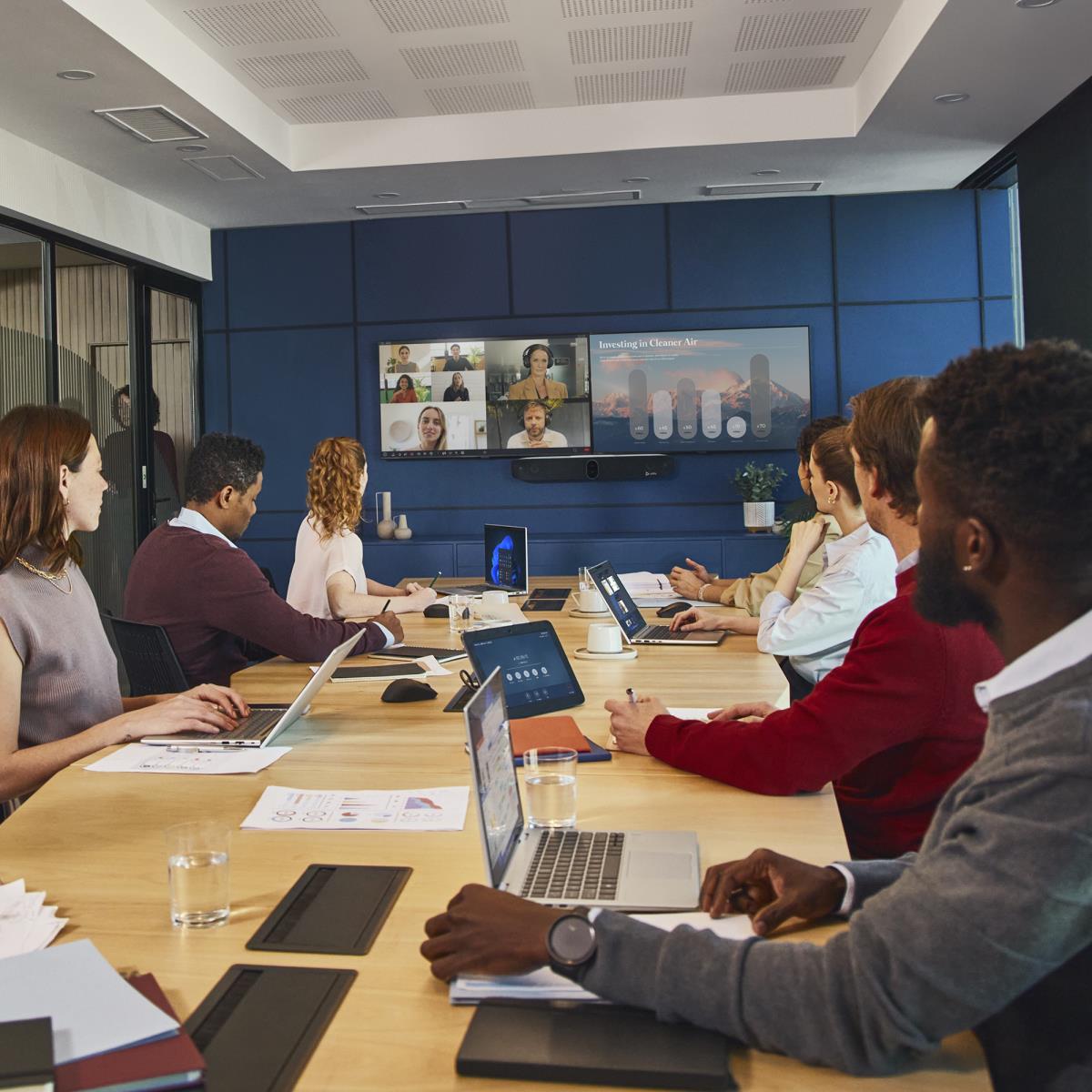

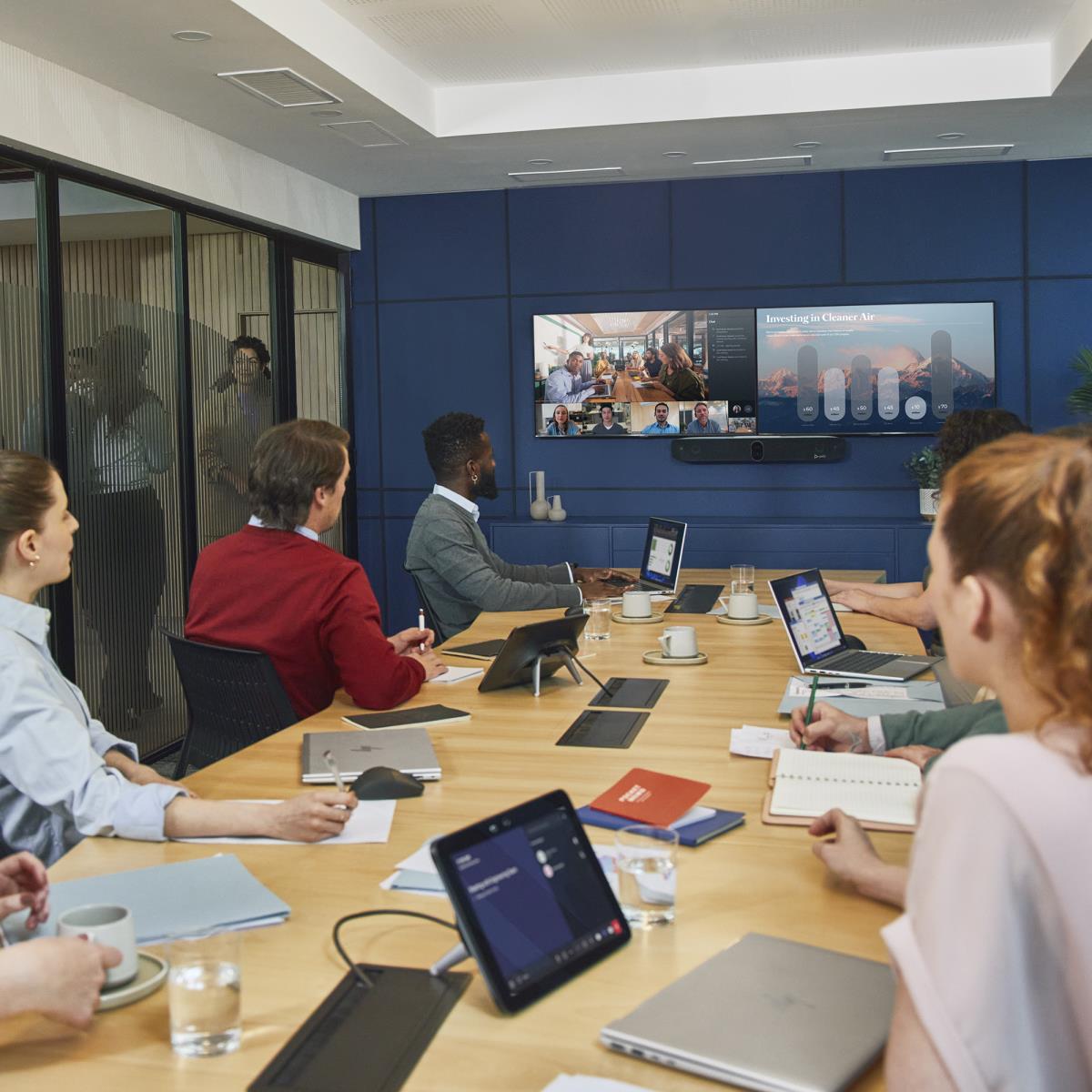

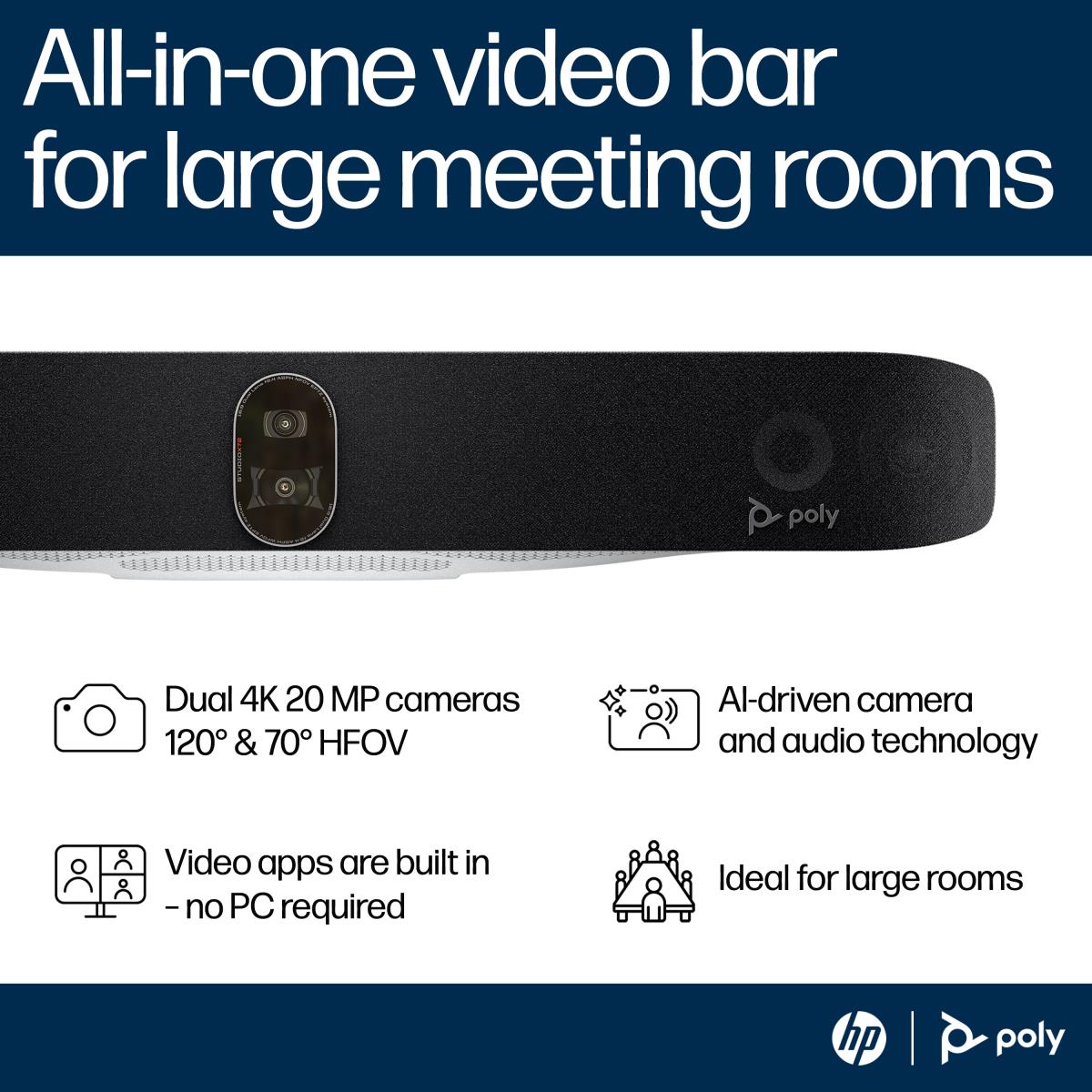

Made for big rooms and even bigger ideas

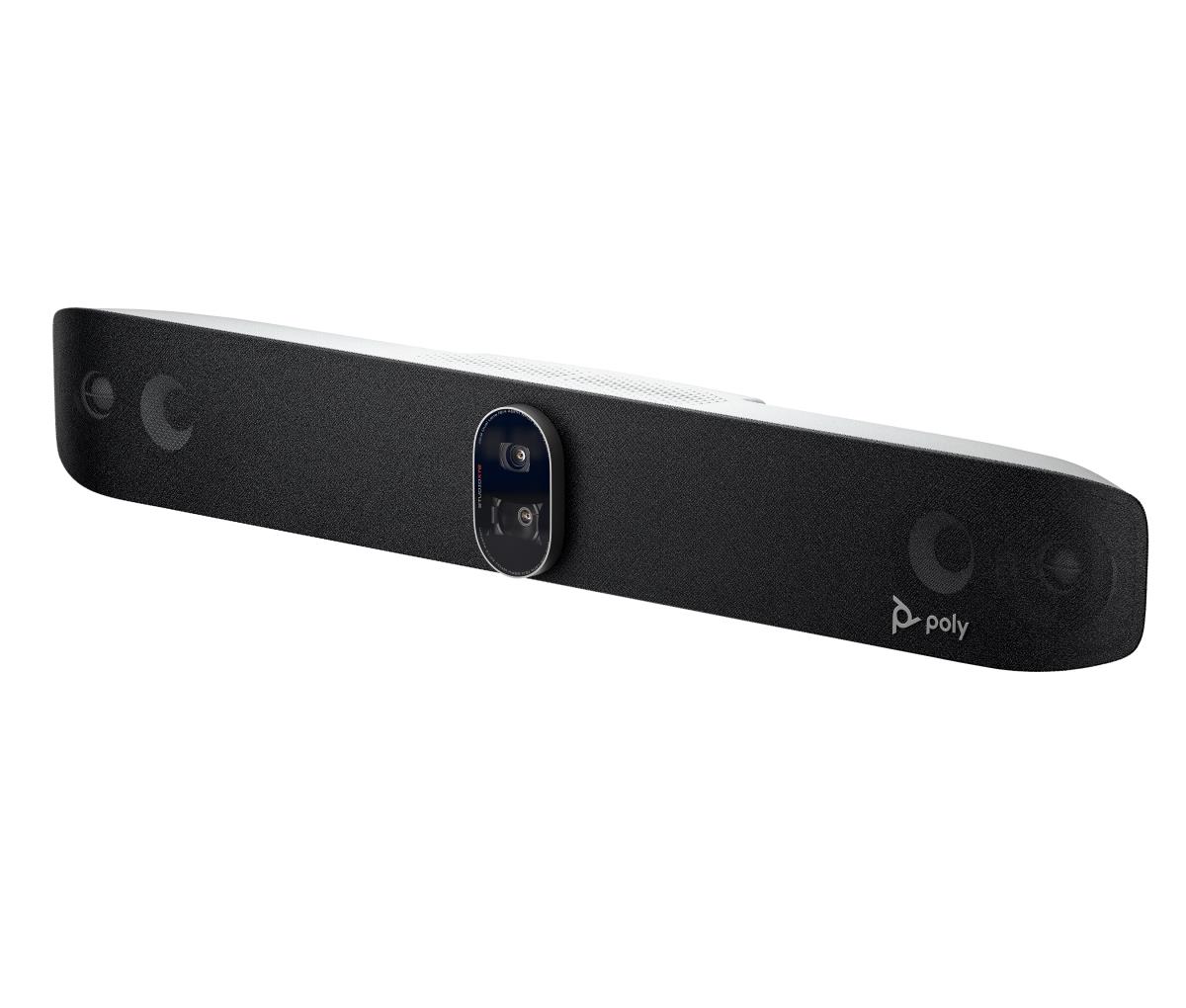

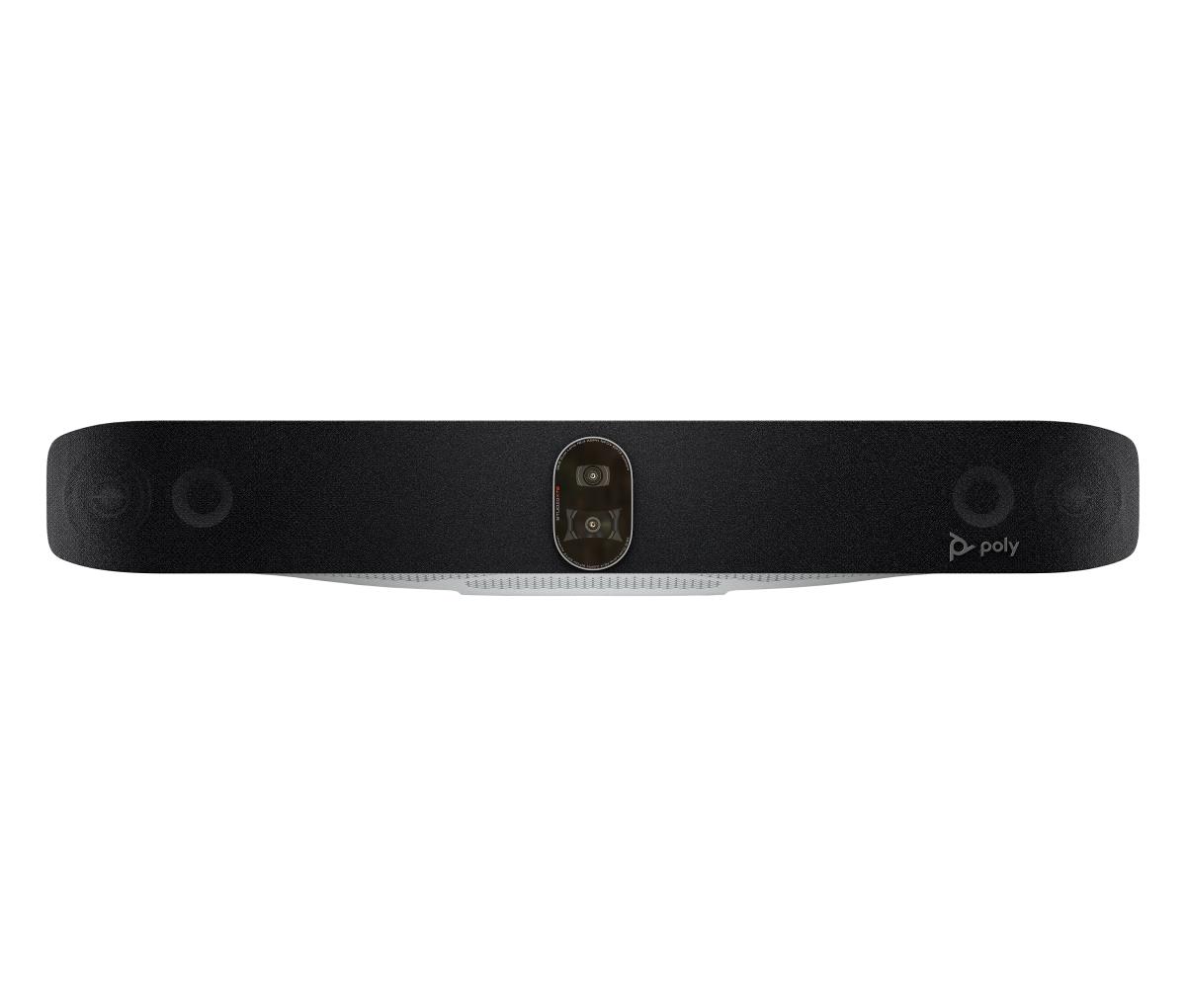

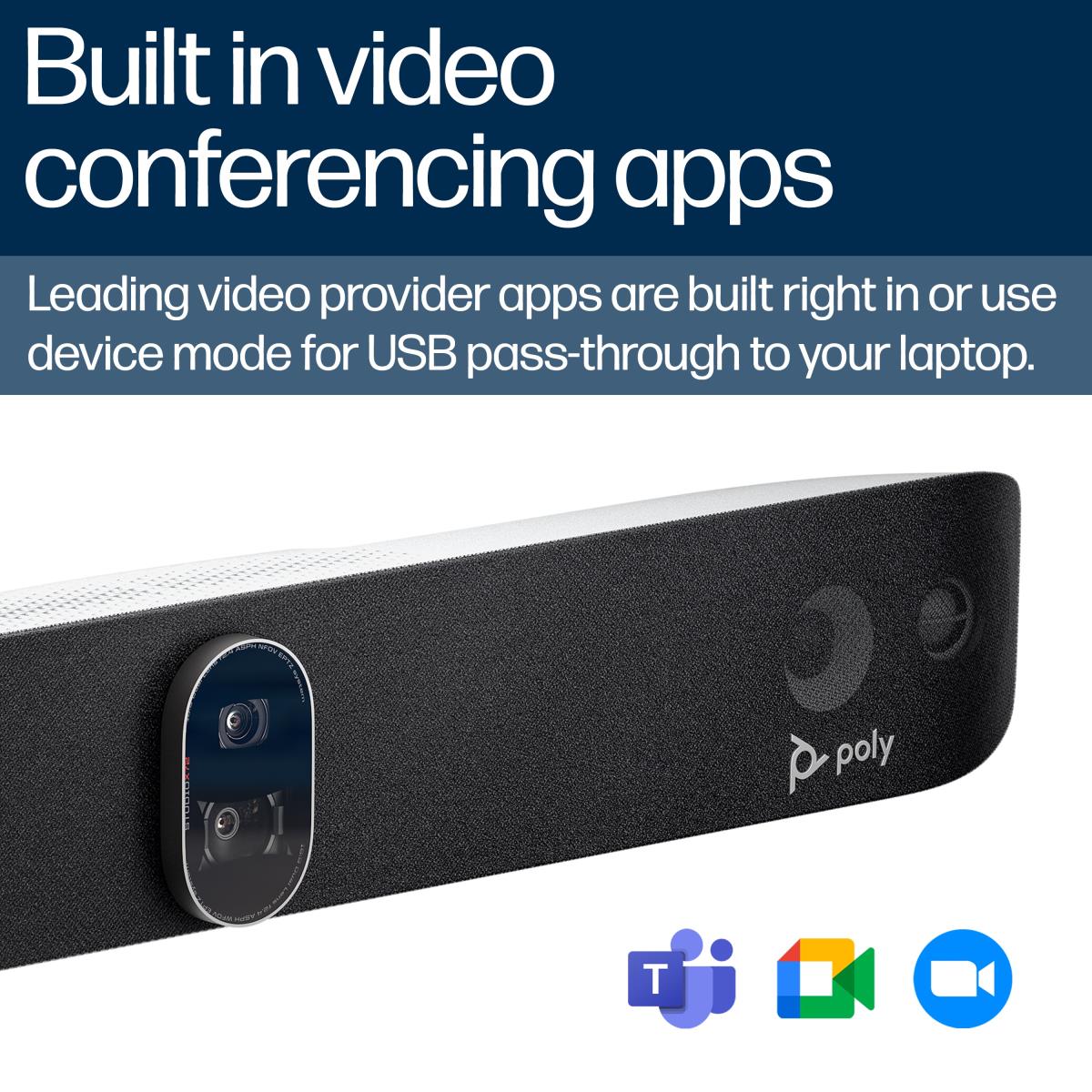

Don’t let the size of the room slow your team down during hybrid meetings. Easily set up the Poly Studio X72 all-in-one video bar with AI-enhanced video and audio technology, seamless scalability and flexibility to join nearly any cloud video call.
Technical details
General Product Safety Regulation (GPSR) URL
https://kaas.hpcloud.hp.com/pdf-public/pdf_11006260_en-US-1.pdf
Total carbon footprint (kg of CO2e)
100
Performance
Bluetooth
Yes
Bluetooth version
5.0
Product type
Video collaboration bar
Bluetooth
Yes
Bluetooth version
5.0
Product colour
Black
Product type
Video collaboration bar
Audio
Automatic gain control
Yes
Built-in speaker(s)
Yes
Voice codecs
G.165, G.719, G.722, G.722.1, G.728, G.729A
RMS rated power
20 W
Built-in speaker(s)
Yes
Number of speakers
2
Voice codecs
G.165, G.719, G.722, G.722.1, G.728, G.729A
RMS rated power
20 W
Video
HD type
4K Ultra HD
Maximum video resolution
3840 x 2160 pixels
Supported video modes
1080p, 720p, 2160p
Supported graphics resolutions
1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1400 x 1050 (SXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160
Video formats supported
H.264, H.265, AVC
HD type
4K Ultra HD
Maximum video resolution
3840 x 2160 pixels
Supported video modes
1080p, 720p, 2160p
Supported graphics resolutions
1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1400 x 1050 (SXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160
Video formats supported
H.264, H.265, AVC

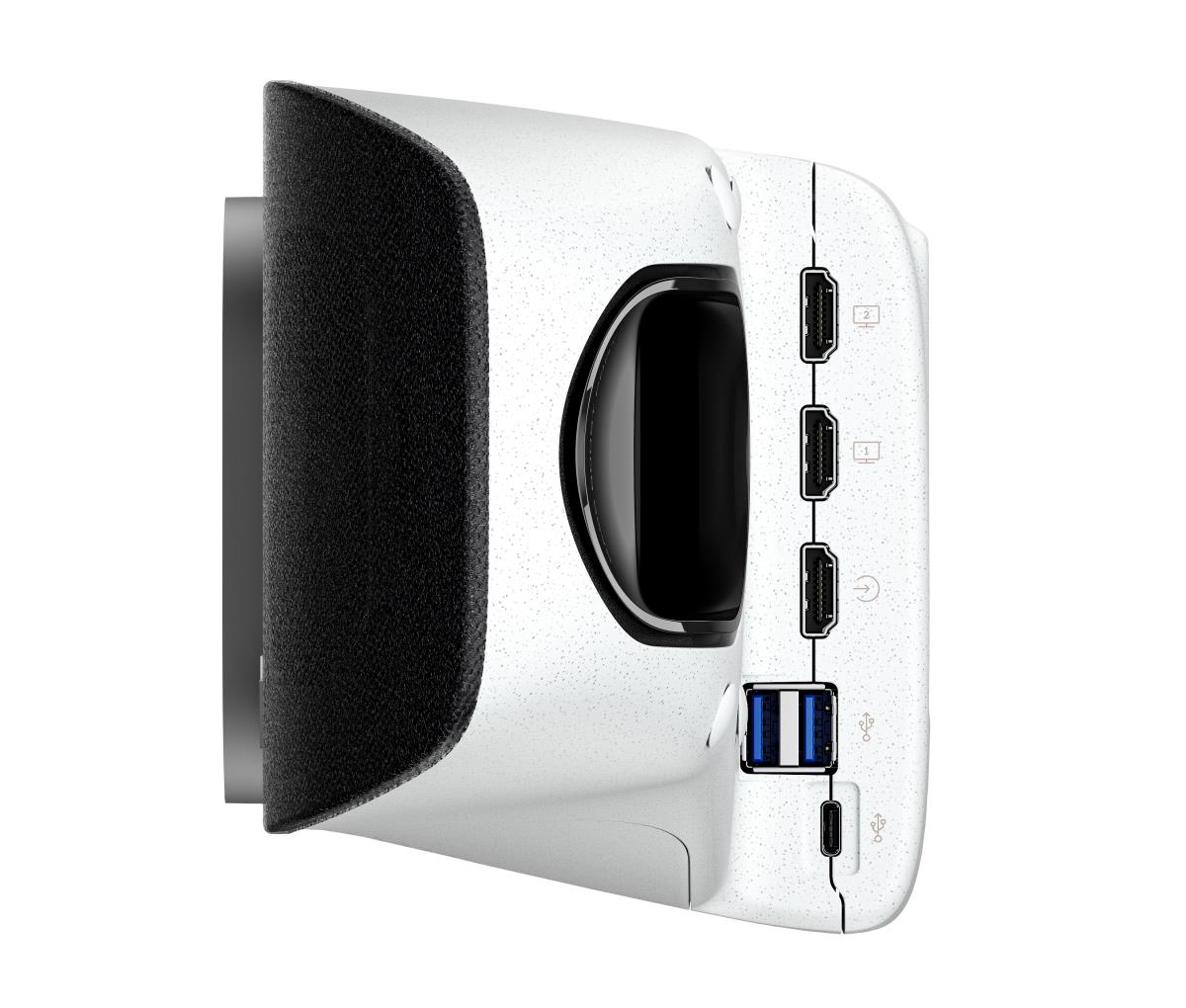

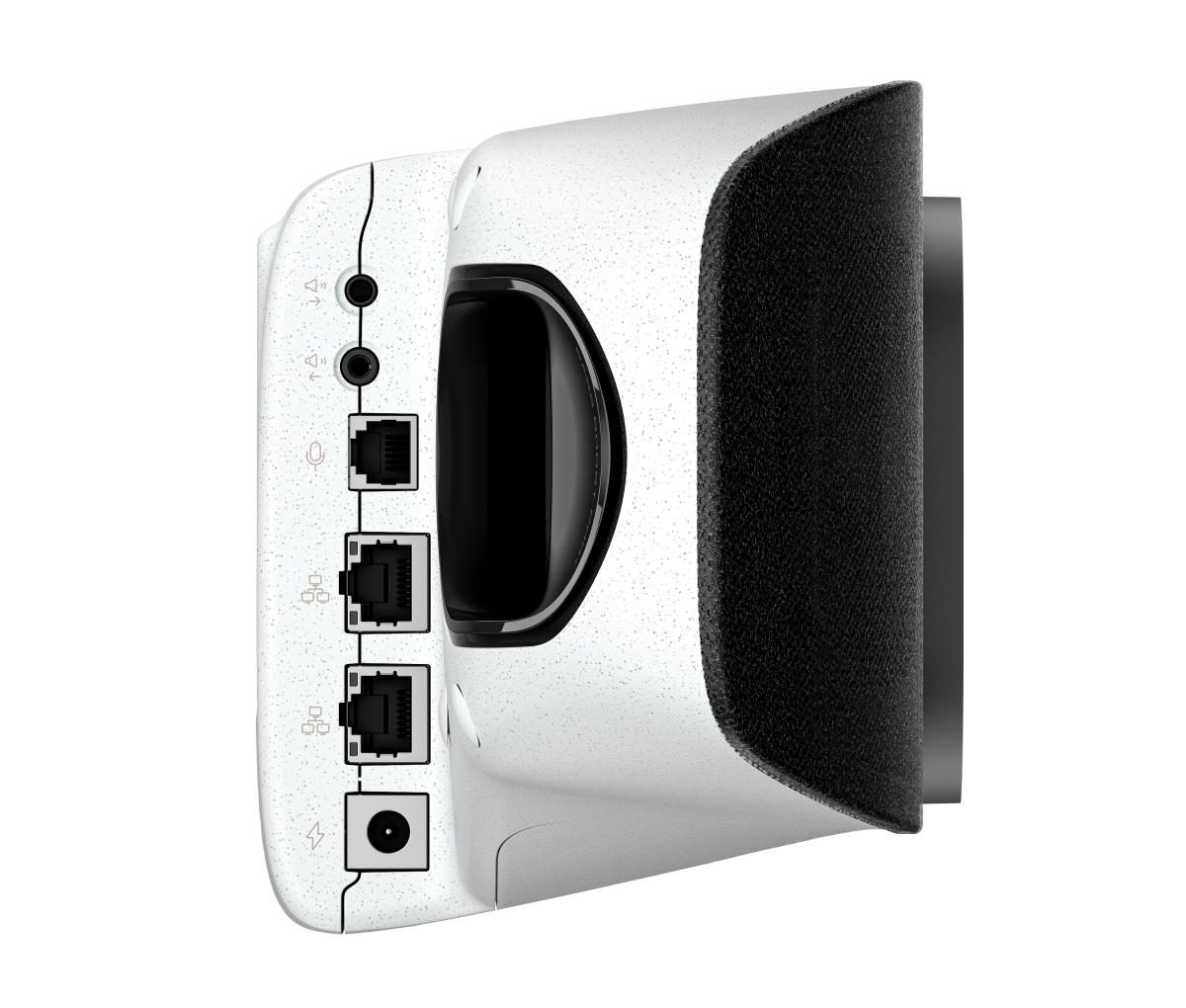

Ports & interfaces
HDMI output ports quantity
2
HDMI input ports quantity
1
HDMI version
2.0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Line-in
Yes
Line-out
Yes
HDMI ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Microphone in
Yes
HDMI output ports quantity
2
HDMI input ports quantity
1
HDMI version
2.0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Line-in
Yes
Line-out
Yes
Network
Ethernet LAN
Yes
Ethernet LAN data rates
10,1000,100 Mbit/s
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet LAN
Yes
Ethernet LAN data rates
10,1000,100 Mbit/s
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Camera
Megapixel (approx.)
20 MP
Camera type
Dual camera
Second camera resolution
20 MP
Zoom capability
Yes
Digital zoom
7.3x
Horizontal field of view
120°
Megapixel (approx.)
20 MP
Camera type
Dual camera
Second camera resolution
20 MP
Zoom capability
Yes
Digital zoom
7.3x
Horizontal field of view
120°
Logistics data
UNSPSC-code
45111902
Pallet gross weight
420 kg
Sustainability
Sustainable technologies and materials
Contains recycled plastics; Paper-based packaging derived from at least 60% recycled materials
Sustainability compliance
Yes
Weight & dimensions
Package width
920 mm
Package depth
163 mm
Package height
228 mm
Package weight
6.48 kg
Width
840.2 mm
Depth
135.4 mm
Height
117.9 mm
Weight
3.3 kg
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Heat dissipation
65 BTU/h
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
15 - 80%
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Heat dissipation
65 BTU/h
Information
| Part Number: | A4LZ8AA#ABU |
