Product Details
Introduction
New! Wi-Fi 6 for Small Business.

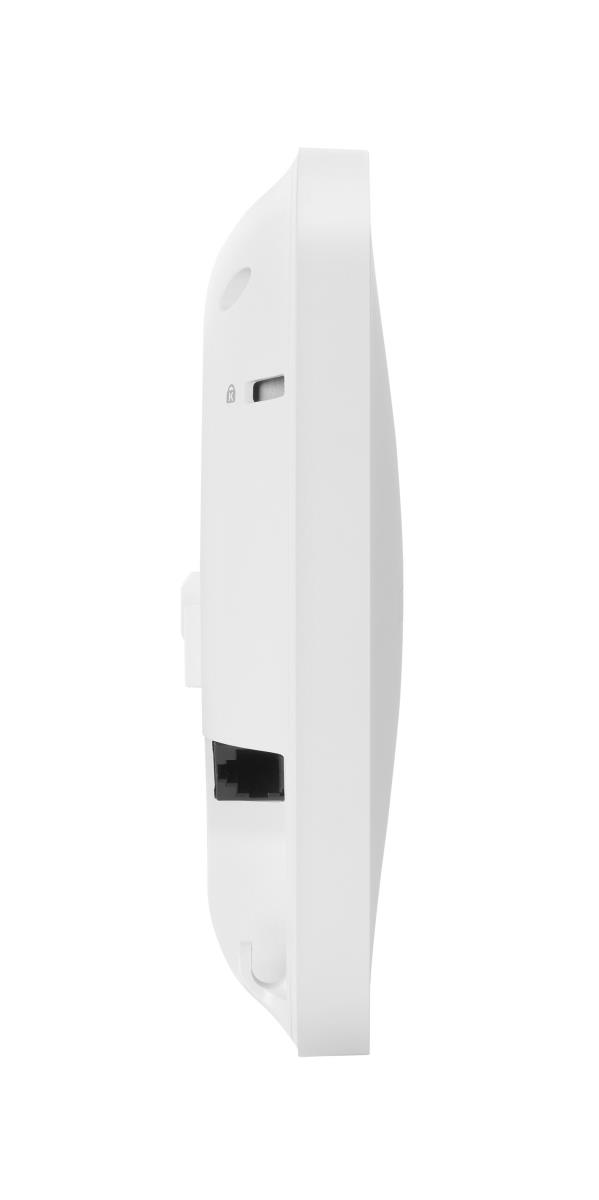

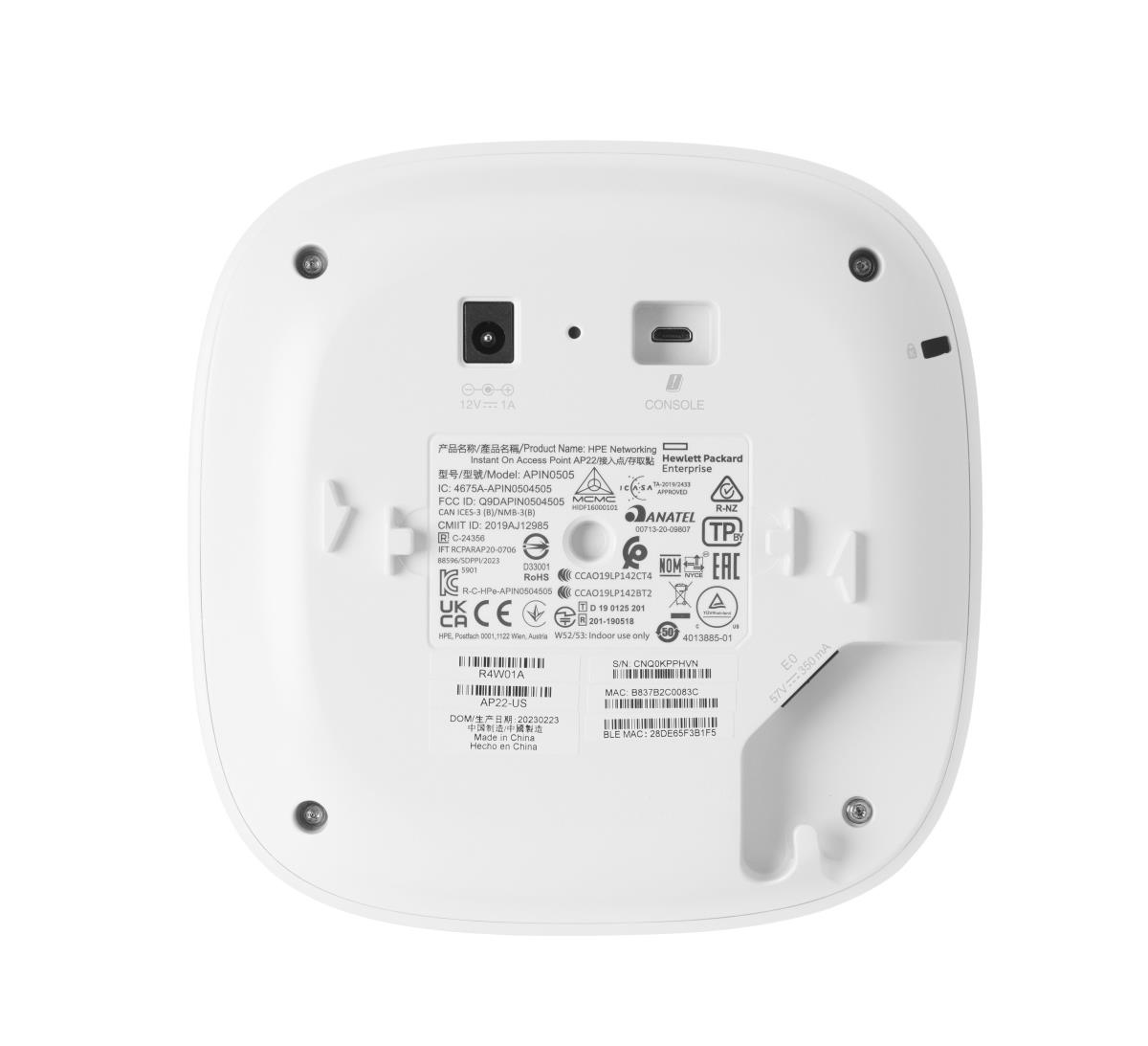

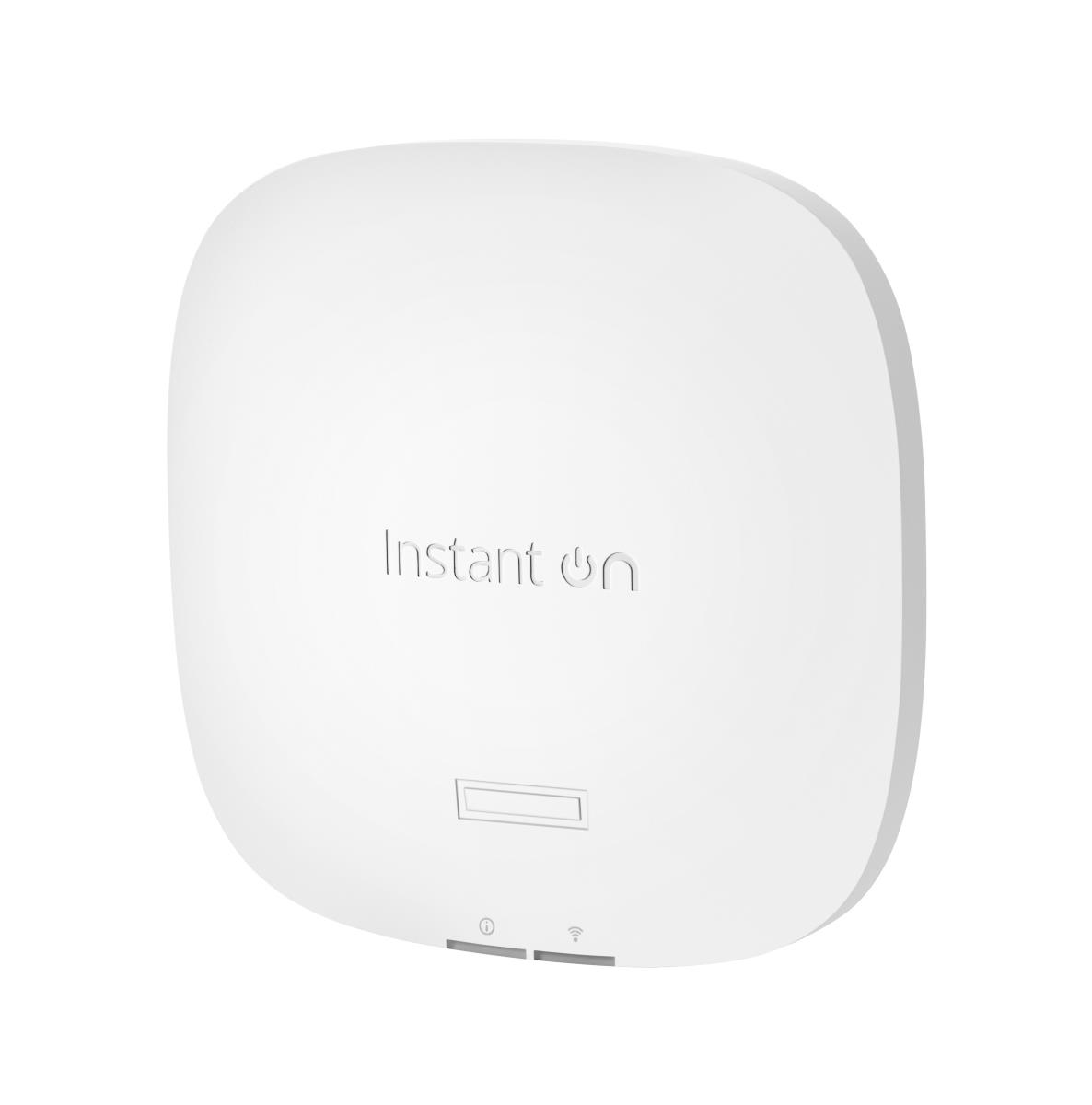

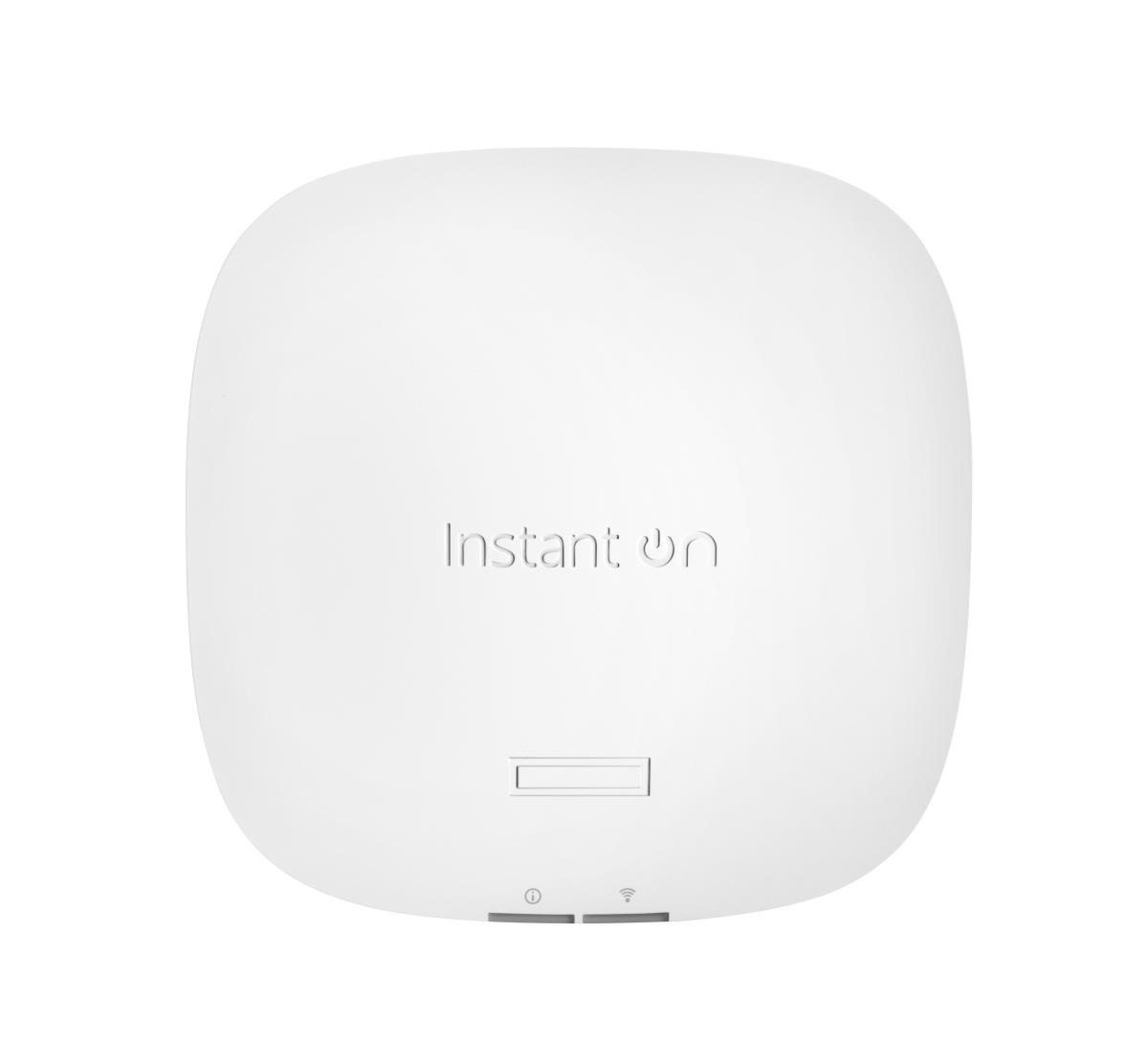

Introducing the AP22. Get faster speeds. Enable more connected devices. Reduce latency and power consumption.
Features
Number of users
75 user(s)
Bluetooth Low Energy (BLE)
Yes
6 GHz
No
2.4 GHz
Y
5 GHz
Y
Maximum data transfer rate
1774 Mbit/s
Maximum data transfer rate (2.4 GHz)
574 Mbit/s
Maximum data transfer rate (5 GHz)
1200 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.11ac,IEEE 802.11ax,IEEE 802.3af
Bluetooth
Y
MIMO
Y
MIMO type
Multi User MIMO
Modulation
256-QAM,1024-QAM
Management features
Web-based management
Yes
Ports & interfaces
DC-in jack
Yes
Ethernet LAN (RJ-45) ports
1
Power
DC voltage range
12 V
Power consumption (typical)
8.8 W
Power over Ethernet (PoE)
Y
Power consumption (max)
10.1 W
Design
Reset button
Yes
Placement
Ceiling, Wall
Product colour
White
Cable lock slot
Y
Cable lock slot type
Kensington
Certificates
Certification
None
Other features
I/O ports
1 GbE BaseT Uplink DC Power Connector Bluetooth Low Energy (BLE) LED status Indicators Reset/LED control button Kensington security slot.
Mounting
Ceiling/Wall-mount clip
Weight (imperial)
0.499 kg (1.1 lbs)
Security
Security algorithms
WPA2,WPA3
Antenna
Antenna type
Internal
Antenna direction type
Omni-directional
Antenna gain level (max)
5.6 dBi
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Weight & dimensions
Width
160 mm
Depth
160 mm
Height
37 mm
Weight
500 g
Information
| Part Number: | R6M51A |
