Introduction
The Aruba 510 series access points with 802.11ax (Wi-Fi 6), combined with Aruba intelligent software innovations, are designed to deliver high performance connectivity for mobile and IoT devices in any environment.
The 510 series is designed to simultaneously serve multiple clients and traffic types in dense environments, and boosts overall network performance by up to 4X versus 802.11ac APs.
In addition to 802.11ax benefits, the 530 Series also provide Aruba differentiated capabilities that include AI-powered RF optimization, always-on connectivity, WPA3 certified security, and unified wired and wireless policy with Dynamic Segmentation.
Additionally, Green AP mode for 802.11ax APs also leverages AI/ML capabilities for energy savings of up to 70%.
Features
MACsec support
No
Frequency band
20/40 (2.4 GHz), 20/40/80/160 (5 GHz), and maximum peak data rate 2.69 Gbps
2.4 GHz
Y
5 GHz
Y
Maximum data transfer rate
5375 Mbit/s
Maximum data transfer rate (2.4 GHz)
575 Mbit/s
Maximum data transfer rate (5 GHz)
4800 Mbit/s
Ethernet LAN data rates
100,1000,2500 Mbit/s
Networking standards
IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bz
Auto MDI/MDI-X
Y
MIMO
Y
Spread spectrum method
DSSS,OFDM
Modulation
16-QAM,64-QAM,256-QAM,1024-QAM,BPSK,CCK,QPSK
Management features
Access point management
On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service
Certificates
Compliance certificates
Low Voltage Directive (LVD)
Certification
None
Design
Recommended usage
Indoor
Placement
Ceiling
Product colour
White
Cable lock slot
Y
Cable lock slot type
Kensington
Performance
Compatible operating systems
HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.4.0.0 (with some restrictions). For unrestricted operation, use 8.6.0.0 or later.
Other features
I/O ports

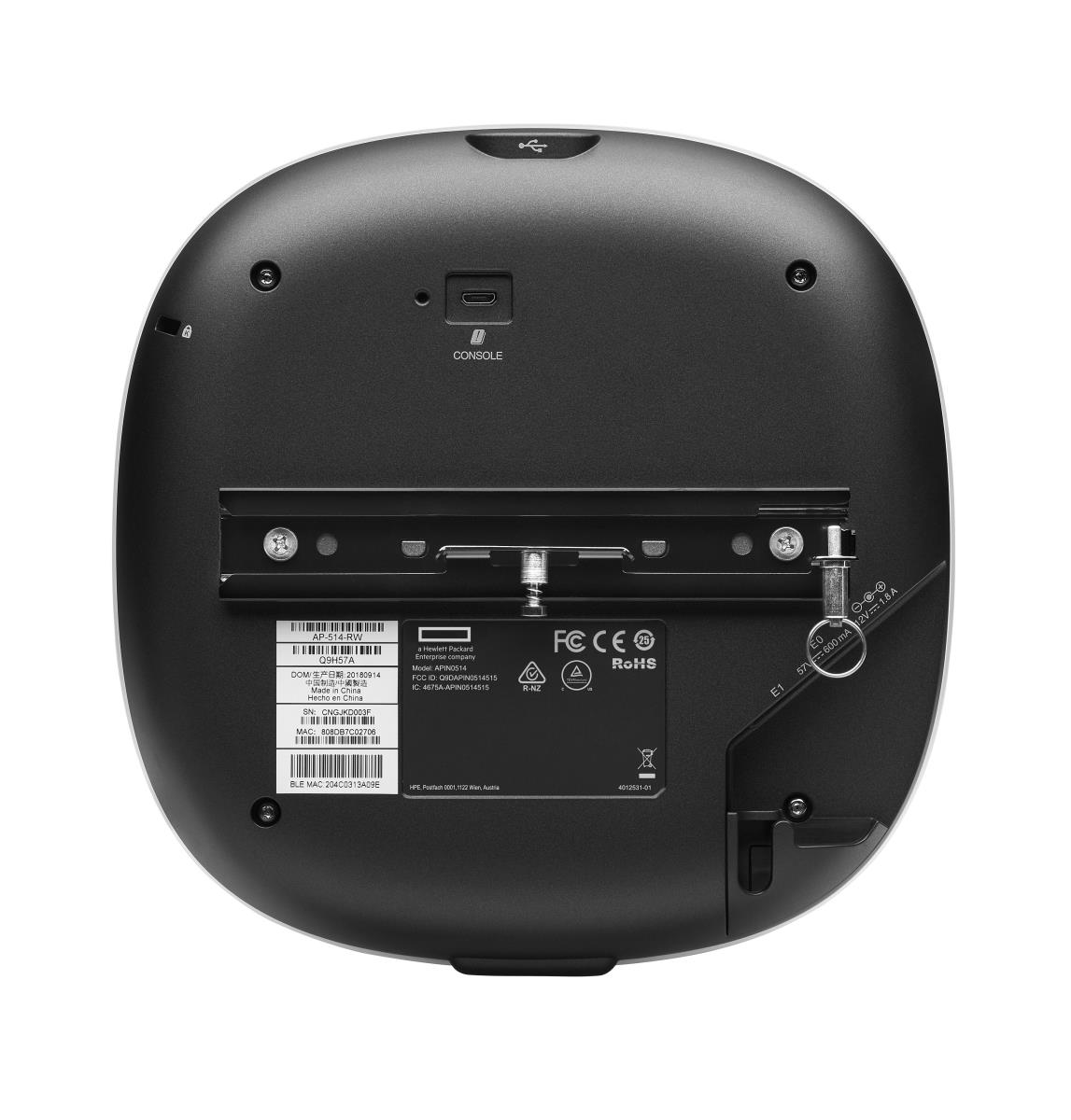

E0: HPE Smart Rate port (RJ-45, maximum negotiated speed 2.5 Gbps) E1: 10/100/1000BASE-T Ethernet network interface (RJ-45) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot
Technical details
Harmonized System (HS) code
85176990
Security
Security algorithms
WMM,WPA,WPA2
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
USB 2.0 ports quantity
1
USB connector type
USB Type-A
DC-in jack
Y
Power
Power over Ethernet (PoE)
Y
Power consumption (typical)
16 W
Antenna
Antenna type
External
Antenna connector type
RP-SMA
Number of connectors
4
Operational conditions
Operating relative humidity (H-H)
5 - 93%
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 93%
Weight & dimensions
Width
200 mm
Depth
200 mm
Height
46 mm
Weight
810 g
Packaging data
Package width
230 mm
Package depth
220 mm
Package height
72 mm
Package weight
1.01 kg
