Product Details
Introduction

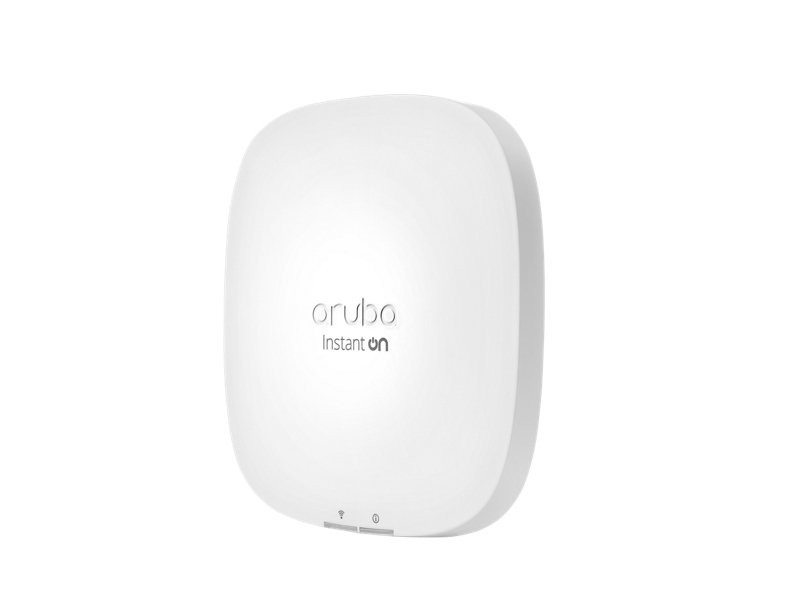

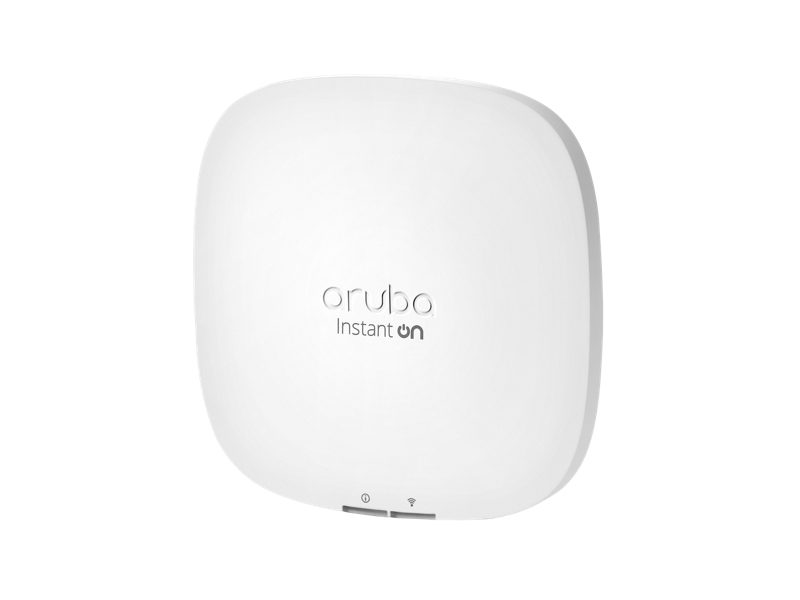

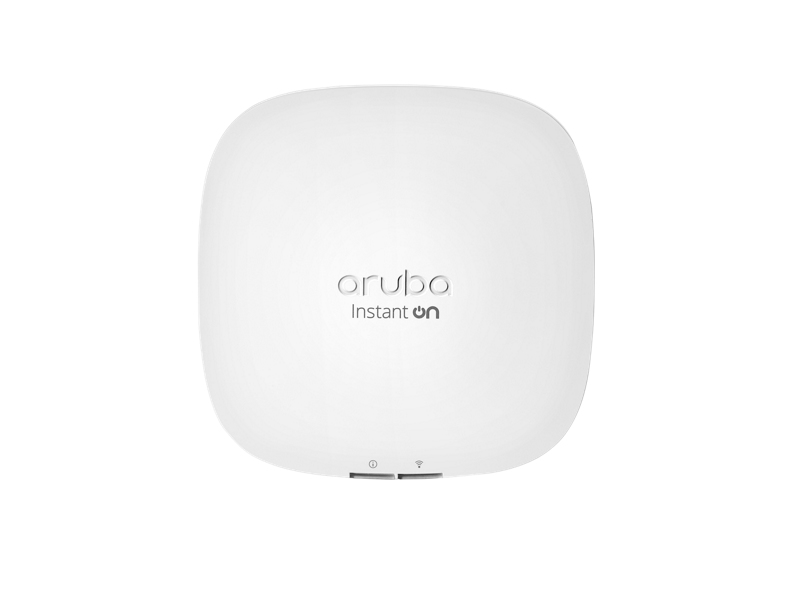

Aruba Instant On AP22 Indoor Access Points deliver affordable, business-grade 802.11ax Wi-Fi for high performance, high density small business environments. Business-grade capabilities are designed to meet the growing number of mobile, IoT, and security needs.
The compact form factor of the Aruba Instant On AP22 Indoor Access Points (AP) delivers multi-user capabilities and a maximum aggregate peak data rate of 1.2 Gbps for high-definition video streaming and cloud application requirements. Everything from mounting hardware to easy-to-use web and mobile app management tools, and business-grade software features are included - no extra charge or need for external controllers.
Features
2.4 GHz
Yes
5 GHz
Yes
6 GHz
No
Maximum data transfer rate
1200 Mbit/s
Maximum data transfer rate (2.4 GHz)
574 Mbit/s
Maximum data transfer rate (5 GHz)
1200 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.11ax
Number of users
75 user(s)
Bluetooth
Yes
Bluetooth Low Energy (BLE)
Yes
MIMO
Yes
MIMO type
Multi User MIMO
Modulation
256-QAM, 1024-QAM
2.4 GHz
Y
5 GHz
Y
Maximum data transfer rate
1200 Mbit/s
Maximum data transfer rate (2.4 GHz)
574 Mbit/s
Maximum data transfer rate (5 GHz)
1200 Mbit/s
Networking standards
IEEE 802.11ax,IEEE 802.3af
Cabling technology
10/100/1000Base-T(X)
MIMO
Y
Security
Security algorithms
OWE, WPA2, WPA3
Security algorithms
WPA2,WPA3
Management features
Web-based management
Yes
Web-based management
Y
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Ethernet LAN (RJ-45) ports
1
Power
Power over Ethernet (PoE)
Yes
DC voltage range
12 V
Power consumption (typical)
8.8 W
Power consumption (max)
10.1 W
Power over Ethernet (PoE)
Y
AC input voltage
12 V
Power consumption (max)
10.1 W
Design
Placement
Ceiling, Wall
Product colour
White
Cable lock slot
Yes
Cable lock slot type
Kensington
Placement
Ceiling, Wall
Product colour
White
Certification
EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments) Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3
Antenna
Antenna type
Internal
Antenna direction type
Omni-directional
Antenna gain level (max)
5.6 dBi
Antenna type
Internal
Antenna direction type
Omni-directional
Antenna gain level (max)
5.6 dBi
Certificates
Certification
Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3
Weight & dimensions
Width
160 mm
Depth
160 mm
Height
37 mm
Weight
500 g
Width
160 mm
Depth
160 mm
Height
37 mm
Weight
500 g
Other features
I/O ports
1 GbE BaseT Uplink DC Power Connector Bluetooth Low Energy (BLE) LED status Indicators Reset/LED control button Kensington security slot.
Mounting
Ceiling/Wall-mount clip
Weight (imperial)
0.499 kg (1.1 lbs)
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Logistics data
Harmonized System (HS) code
85176990
Information
| Part Number: | R4W02A |
