Product Details
Introduction

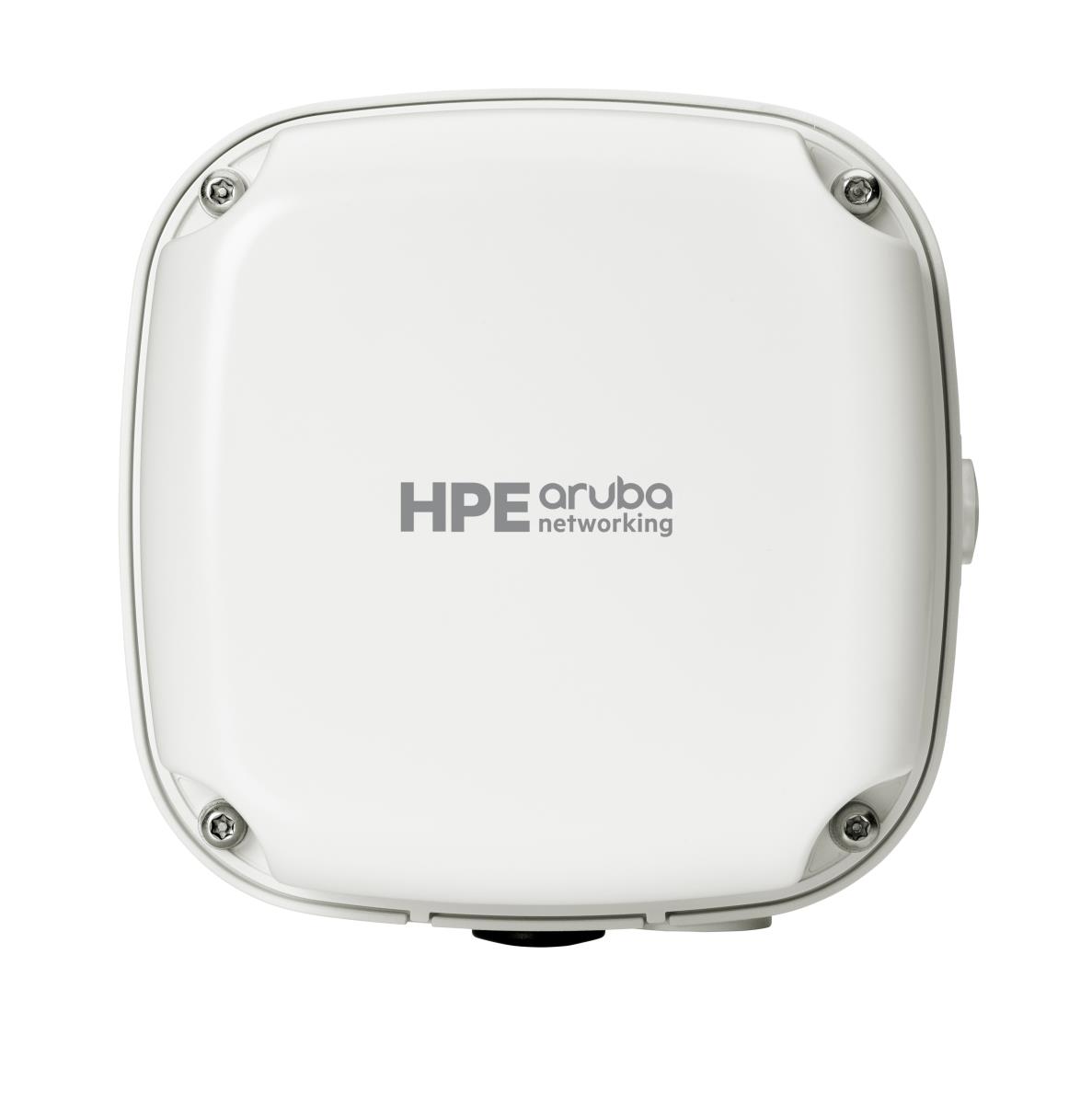

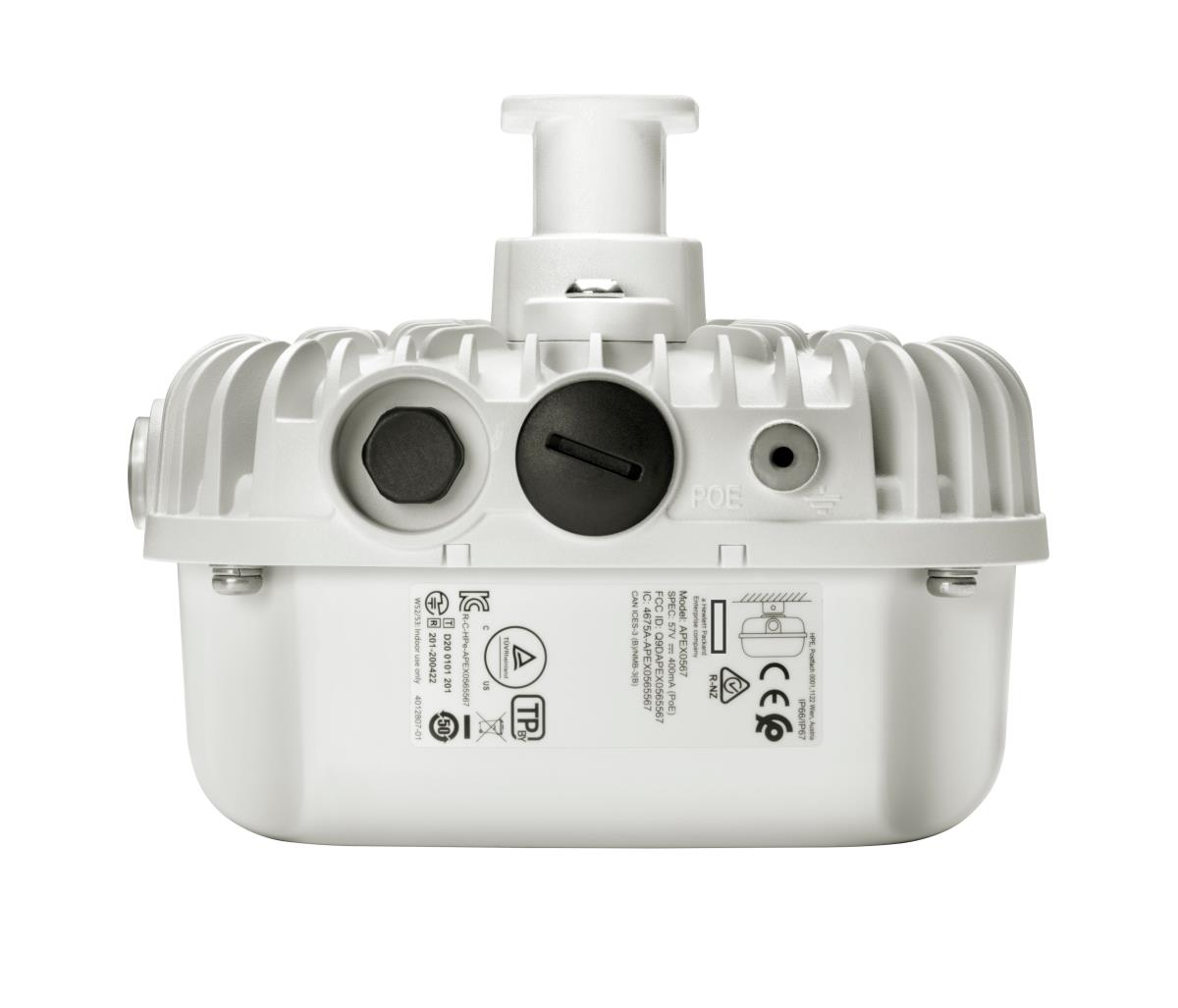

Weatherproof and temperature hardened, Aruba 560 Series Outdoor Access Points deliver cost-effective Wi-Fi 6 wireless connectivity in outdoor and environmentally challenging locations.
Purpose-built to withstand extreme temperatures, persistent moisture and precipitation, electrical surges, and airborne contaminants.
Includes or interoperates with Aruba ESP capabilities such as AI-powered RF optimization, Live upgrades, WPA3 and Enhanced Open security, and Dynamic Segmentation.
Features
MACsec support
No
Frequency band
20/40 (2.4GHz), 20/40/80 (5GHz), peak data rate 1.49 Gbps, maximum data rate 1.78 Gbps
2.4 GHz
Y
5 GHz
Y
Maximum data transfer rate
1774 Mbit/s
Maximum data transfer rate (2.4 GHz)
574 Mbit/s
Maximum data transfer rate (5 GHz)
1200 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3at,IEEE 802.3az,IEEE 802.3bt
Bluetooth
Y
Bluetooth version
5.0
MDI / DMI-X automatic switchover
Y
MIMO
Y
MIMO type
Multi User MIMO
Spread spectrum method
DSSS,OFDM,OFDMA
Modulation
16-QAM,64-QAM,256-QAM,1024-QAM,BPSK,CCK,QPSK
Management features
Access point management
On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service
Certificates
Compliance certificates
Low Voltage Directive (LVD)
Certification
None
Design
Recommended usage
Outdoor
Placement
Pole, Wall
Product colour
White
Performance
Compatible operating systems
HPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS 8.7.1.0 HPE Aruba Networking Wireless Operating System 10.3.0.0
Other features
I/O ports
E0: 10/100/1000BASE-T (RJ-45) USB-C console interface
Weight (imperial)
1.03 kg (2.27 lbs)
Technical details
Harmonized System (HS) code
85176990
Security
Security algorithms
WPA2,WPA3
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
USB connector type
USB Type-C
Power
Power over Ethernet (PoE)
Y
Power consumption (max)
15.6 W
Antenna
Antenna type
Internal
Antenna direction type
Omni-directional
Antenna features
Integrated antenna
Antenna gain level (max)
5.4 dBi
Operational conditions
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-40 - 55 °C
Storage temperature (T-T)
-40 - 70 °C
Operating altitude
0 - 3000 m
Weight & dimensions
Width
165 mm
Depth
165 mm
Height
110 mm
Weight
1.03 kg
Information
| Part Number: | R4W43A |
