Introduction

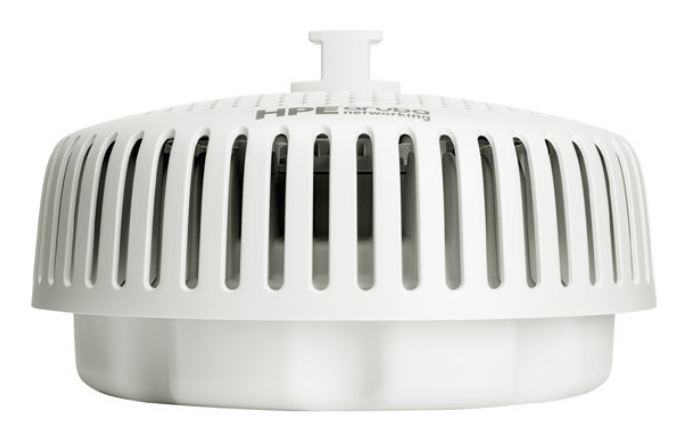

HPE Aruba Networking 670 Series Outdoor Access Points
HPE Aruba Networking 670 Series Outdoor Access Points are high-performance Wi-Fi 6E APs ideal for outdoor and environmentally challenging locations.
Wi-Fi 6E for extreme outdoor conditions
Provide secure and reliable connectivity in large outdoor open areas, such as stadiums and public venues with weatherproof high-performance Wi-Fi 6E APs.
Wi-Fi 6E performance
Improve Wi-Fi performance using the 6 GHz band for faster speeds and wider channels. Tri-band coverage across 2.4 GHz, 5 GHz, and 6 GHz delivers 3.9 Gbps maximum aggregate data rate supports high-bandwidth, low-latency applications such as high-definition video.
Ruggedized for outdoors
Withstand extreme high and low temperatures, persistent moisture, and precipitation. Fully sealed to keep out airborne contaminants and electrical interfaces including industrial-strength surge protection. Available with choice of internal antenna (omni, directional, or point-to-point) to optimize wireless coverage.
IoT ready
Deploy and manage enterprise and industrial IoT, including asset tracking services, security solutions, and sensors, with integrated high-power Bluetooth and 802.15.4 radios for Zigbee support. Advanced IoT Coexistence (AIC) helps Wi-Fi, Bluetooth and Zigbee radios operate at maximum capacity without interference.
Location aware
Protect incumbent outdoor services via self-locating embedded GPS receivers that operate as Standard Power (SP) devices, requiring an Automated Frequency Coordination service (AFC).
Efficient and secure
Extend the 802.11ax standard to the 6GHz band, including efficiency and security enhancements such as orthogonal frequency-division multiple access (OFDMA), multi-user MIMO, enhanced open, and WPA3 with Wi-Fi 6E. The 670 Series APs also offers client optimization, automated radio frequency management, and intelligent power monitoring.
Features
MACsec support
No
Maximum data transfer rate
3900 Mbit/s
Maximum data transfer rate (2.4 GHz)
287 Mbit/s
Maximum data transfer rate (5 GHz)
1200 Mbit/s
Maximum data transfer rate (6 GHz)
2400 Mbit/s
Bluetooth
Yes
Bluetooth version
5.0
MIMO
Yes
MIMO type
Multi User MIMO
BeamForming
Yes
Ethernet LAN data rates
2500,5000 Mbit/s
Frequency band
20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), peak and maximum peak data rate 3.9 Gbps
2.4 GHz
Yes
5 GHz
Yes
6 GHz
Yes
Maximum data transfer rate
3900 Mbit/s
Maximum data transfer rate (2.4 GHz)
287 Mbit/s
Maximum data transfer rate (5 GHz)
1200 Mbit/s
Maximum data transfer rate (6 GHz)
2400 Mbit/s
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3bt
Bluetooth
Yes
Bluetooth version
5.0
MIMO
Yes
MIMO type
Multi User MIMO
BeamForming
Yes
Management features
Access point management
On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service
Certificates
Compliance certificates
Low Voltage Directive (LVD)
Certification
None
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
USB 2.0 ports quantity
1
USB connector type
USB Type-A, USB Type-C
Ethernet LAN (RJ-45) ports
2
USB 2.0 ports quantity
1
USB connector type
USB Type-A, USB Type-C
Power
Power over Ethernet (PoE)
Yes
Power consumption (max)
45.5 W
Power over Ethernet (PoE)
Yes
Power consumption (max)
45.5 W
Design
Placement
Pole, Wall
Product colour
White
International Protection (IP) code
IP66, IP67
Reset button
Yes
Recommended usage
Outdoor
Placement
Pole, Wall
Product colour
White
International Protection (IP) code
IP66, IP67
Reset button
Yes
Antenna
Antenna type
Internal
Antenna type
Internal
Antenna direction type
Omni-directional
Weight & dimensions
Width
290 mm
Depth
288 mm
Height
171 mm
Weight
3.6 kg
Width
290 mm
Depth
288 mm
Height
171 mm
Weight
3.6 kg
Operational conditions
Operating relative humidity (H-H)
5 - 100%
Operating temperature (T-T)
-40 - 70 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 100%
Operating altitude
0 - 3000 m
Operating relative humidity (H-H)
5 - 100%
Operating temperature (T-T)
-40 - 70 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 100%
Operating altitude
0 - 3000 m
Performance
Compatible operating systems
HPE Aruba Networking Wireless Operating System 10.7.0.0 (AP-675, AP-677) HPE Aruba Networking Wireless Operating System 10.7.1.0 (AP-674, AP-679) HPE Aruba Networking Wireless Operating System 8.12.0.0 (Only AP-675, AP-677, and AP-679) HPE Aruba Networking Instant OS 8.12.0.0 (Only AP-675, AP-677, and AP-679, no 6 GHz support with Instant OS)
Other features
I/O ports
Ethernet wired network port (RJ-45) SFP Fiber port USB 2.0 host interface (Type C connector) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, USB-C physical jack)
Packaging content
Number of products included
1 pc(s)
