Product Details
Introduction

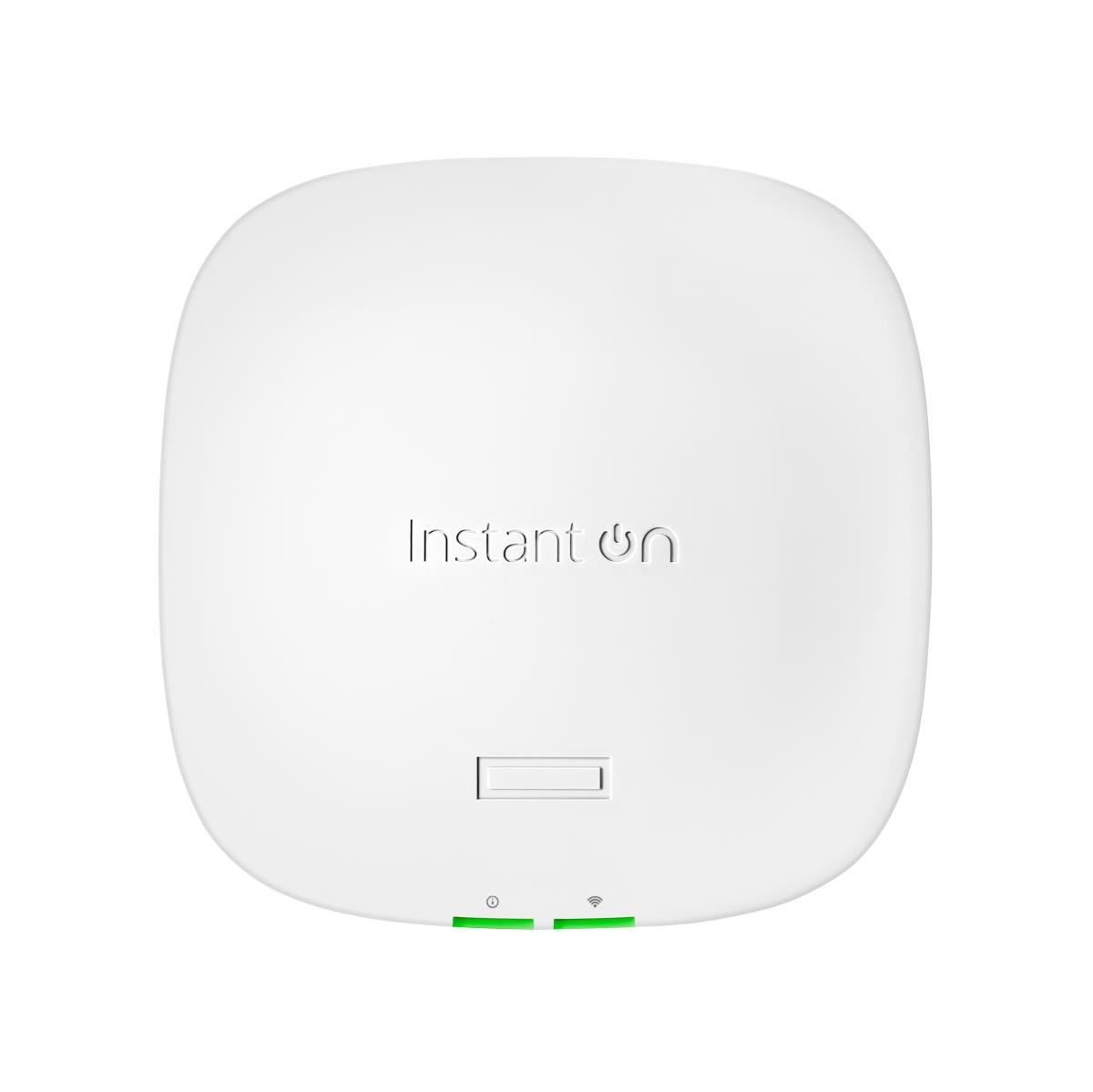

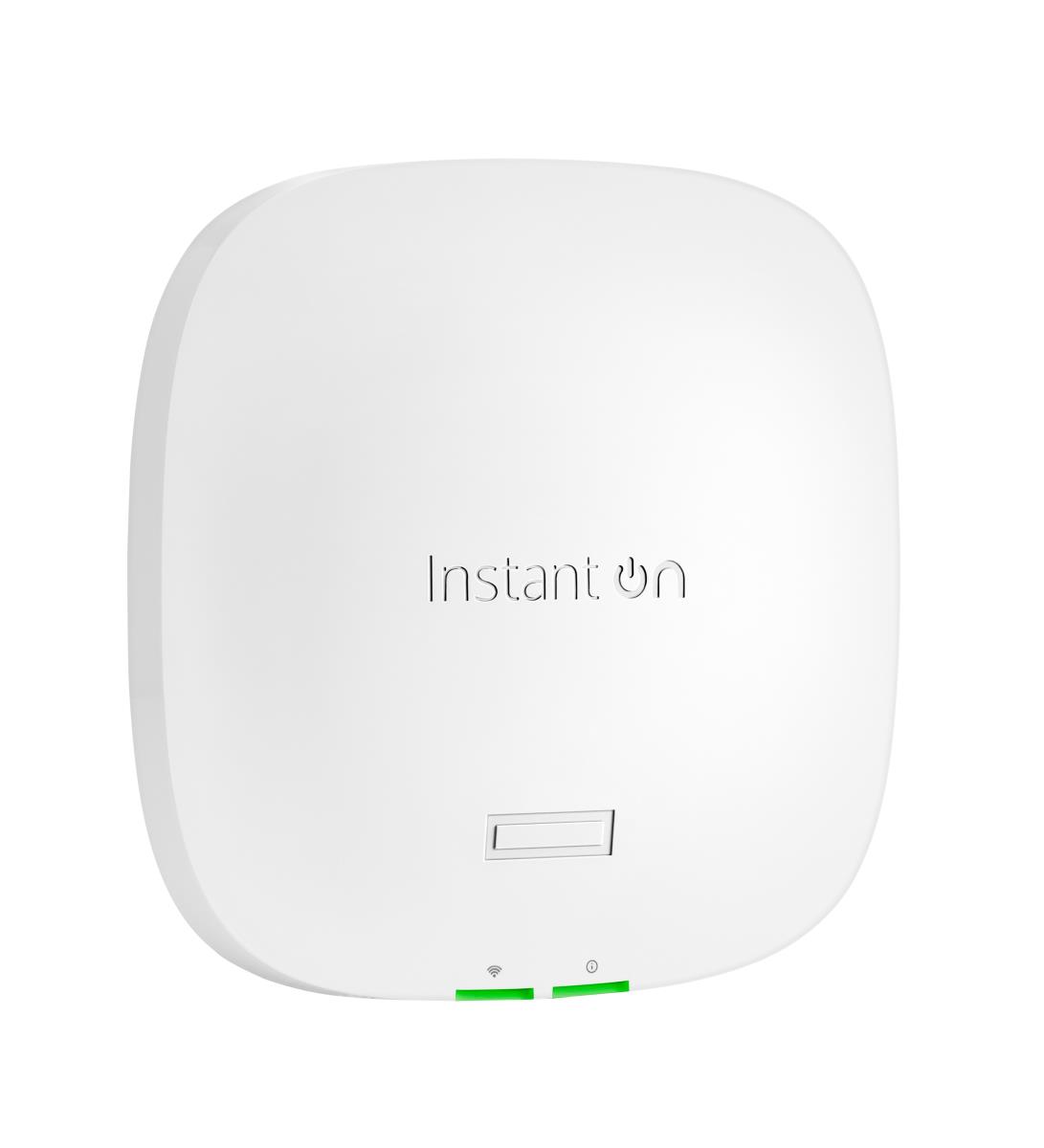

The HPE Networking Instant On Access Point AP21 is a dual radio indoor access point designed to bring connectivity to small spaces. This Wi-Fi CERTIFIED™ 6 access point offers modern WI-Fi standards in a small footprint to enhance the connectivity of your network for up to 50 devices. The dual-band radios offer suitable range for a 1500 sq ft space at an affordable price with the same features as other more costly access points. The HPE Networking Instant On AP21 can also be used with Smart Mesh with any other Instant On access point to extend your network coverage without needing to run new cables—HPE Networking Instant On AP21, small yet mighty coverage for your growing wireless needs.
Features
MIMO type
Multi User MIMO
2.4 GHz
Yes
5 GHz
Yes
6 GHz
No
Maximum data transfer rate
1200 Mbit/s
Maximum data transfer rate (2.4 GHz)
300 Mbit/s
Maximum data transfer rate (5 GHz)
1200 Mbit/s
Ethernet LAN data rates
1000 Mbit/s
Networking standards
IEEE 802.11ax, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Cabling technology
10/100/1000Base-T(X)
Number of users
50 user(s)
MIMO
Yes
Management features
Web-based management
Yes
Certificates
Certification
None
Security
Security algorithms
OWE, WPA2, WPA3
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
USB 2.0 ports quantity
1
DC-in jack
Yes
Power
Power over Ethernet (PoE)
Yes
DC voltage range
12 V
Power consumption (typical)
10.9 W
Design
Placement
Ceiling, Wall
Product colour
White
Cable lock slot
Yes
Cable lock slot type
Kensington
LED indicators
Reset, Status
Antenna
Antenna type
Internal
Antenna direction type
Omni-directional
Antennas quantity
2
Antenna gain level (max)
4.8 dBi
Weight & dimensions
Width
145 mm
Depth
51 mm
Height
145 mm
Weight
255 g
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Other features
I/O ports
1 GbE Base-T uplink port DC power connector LED status indicators Reset/LED control button Kensington security slot
Mounting
Ceiling/Wall mount clip
Information
| Part Number: | S1T09A |
