Introduction
Are you looking for a two-socket scalable server that powers data analytics and supports hybrid cloud workloads? The HPE ProLiant Compute DL380 Gen12 is a scalable 2U 2P server that delivers exceptional compute performance, memory density with scalability and high-speed data transfer rate to run your most demanding applications. Powered by Intel Xeon 6 processors with up to 144 cores and up to 8 TB of memory as well as 36 EDSFF E3.S drives, the HPE ProLiant Compute DL380 Gen12 is an ideal hybrid cloud platform for enterprise applications and workloads. The HPE ProLiant Compute DL380 Gen12 is engineered for your future, with next-level security, optimized performance and efficiencies, and automated, AI-driven productivity.
What is new supporting point:
Up to three double-wide (DW) or eight single-wide (SW) GPUs.
HPE Integrated Lights-Out 7 (iLO 7) server management software with streamlined manageability through a redesigned GUI, Redfish API, and increased security via the patented secure enclave technology.
Intel Xeon 6 processors that support up to 144 cores, up to 8 TB of DDR5 memory at speeds up to 6400 MT/s, and up to 2x average higher performance for general compute versus previous generations.
Optional front accessible boot device for quicker access.

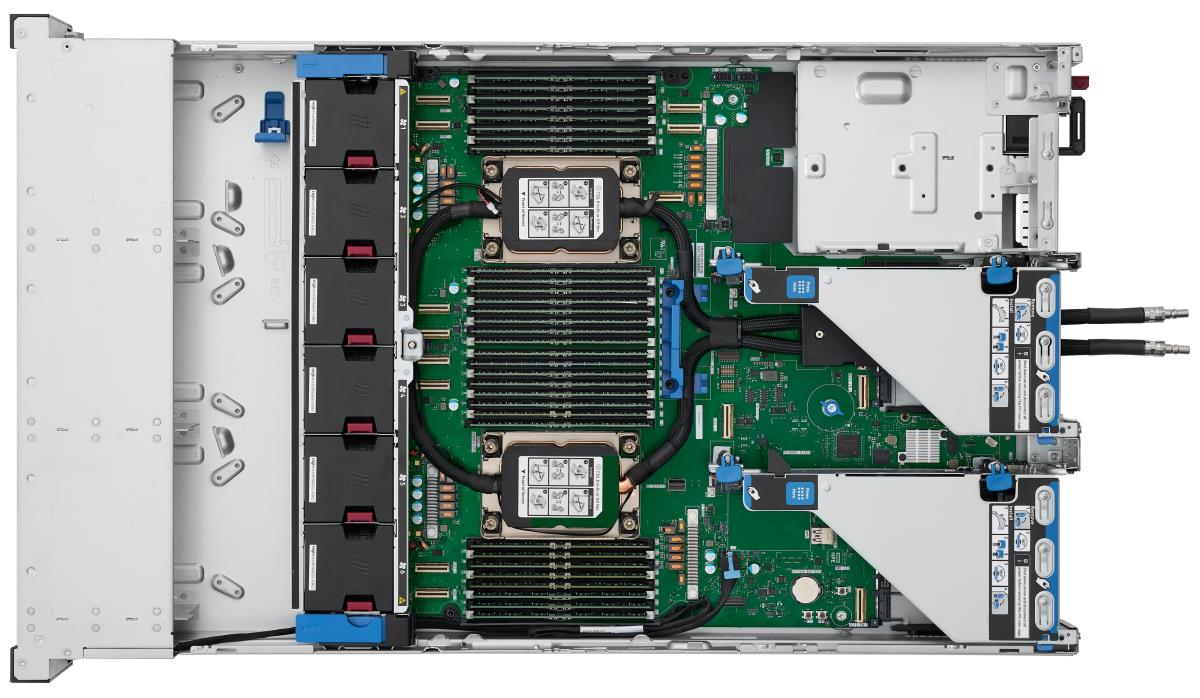

Choice of two cooling options — air cooling or direct liquid cooling (DLC) for performance and energy efficiency to support sustainability initiatives.
Up to 36 EDSFF E3.S NVMe drives.
Processor
Processor model
6505P
Processor boost frequency
4.1 GHz
Processor cores
12
Processor manufacturer
Intel
Processor family
Intel® Xeon®
Processor frequency
2.2 GHz
Processor cores
12
Processor cache
48 MB
Number of processors installed
1
Processor cache type
L3
Memory
Internal memory type
DDR5-SDRAM
Memory slots
32x DIMM
Maximum internal memory
8 TB
Internal memory
64 GB
Memory layout (slots x size)
2 x 32 GB
Memory clock speed
6400 MHz
Storage
Supported RAID controllers
HPE MR216i-o and/or MR216 i-p, HPE MR416i-o and/or HPE MR416i-p, HPE MR408e-p, HPE 408i-0 and/or HPE MR408i-p, depending on model. For detailed descriptions reference the QuickSpecs.
Optical drive type
No
Number of SSDs installed
2
Supported SSD sizes
2.5"
Number of SSDs supported
8
RAID support
Yes
Total storage capacity
960 GB
SSD capacity
480 GB
SSD interface
SATA III
Network
Ethernet LAN
Yes
Ethernet interface type
10 Gigabit Ethernet
LAN controller
Broadcom BCM57416
Graphics
On-board graphics card
No
On-board graphics card model
Not available
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
VGA (D-Sub) ports quantity
1
Number of management ports
1 pc(s)
Ethernet LAN (RJ-45) ports
2
Expansion slots
Up to 8 PCIe Gen5, and 2 OCP 3.0 (front or rear), for detailed descriptions reference the QuickSpecs
Design
Product colour
Black
Cooling type
Active
Rack mounting
Yes
Chassis type
Rack (2U)
Performance
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2.0
Management platform
HPE iLO Standard with intelligent provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, HPE OneView Advanced (optional, requires licenses), and HPE Compute Ops Management (optional subscription available)
Software
Operating system installed
No
Power
Power supply
800 W
Redundant power supply (RPS) support
Yes
Power supply type
2x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit
Number of main power supplies
2
Weight & dimensions
Width
727 mm
Depth
448 mm
Height
87.5 mm
Other features
Standard fans
4x Standard Fans
Storage drive type
2x HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD
Security features
HPE TPM 2.0 standard on motherboard. Optional locking Bezel Kit, Intrusion Detection Kit. For full security features refer to the QuickSpecs.
Number of processors supported
1
