Introduction
A next-generation docking station built on Thunderbolt” 5 technology, delivering a new level of performance, connectivity, and visual experience.
With data transfer speeds of up to 120 Gbps and support for up to three 8K displays, it provides exceptional workspace for demanding multitasking, creative work, and professional environments. It easily handles multiple monitors, high-speed data transfers, and charging of powerful laptops with up to 140W Power Delivery – all through a single connection.

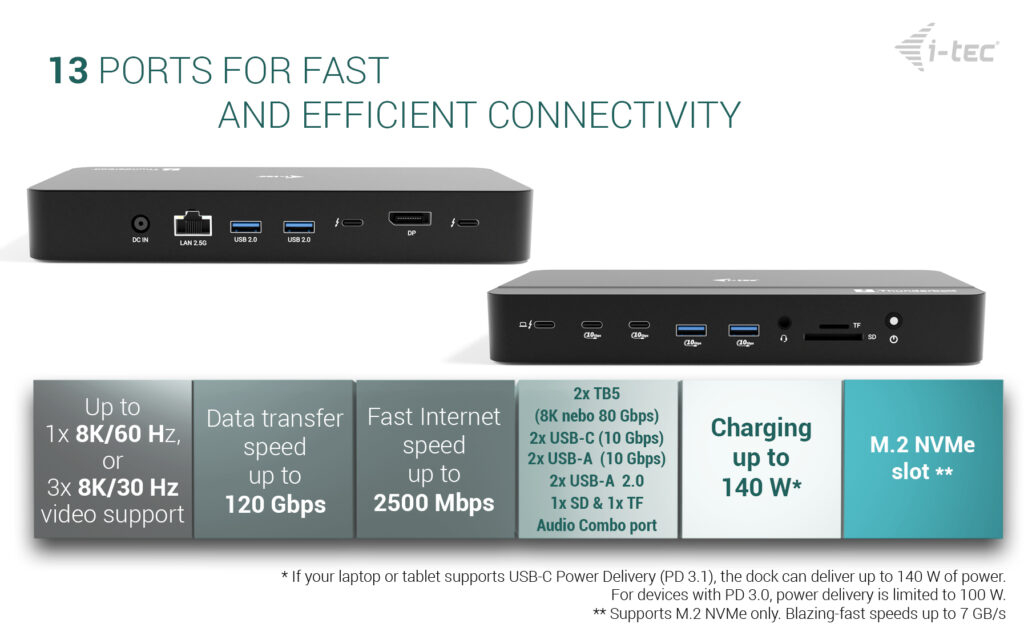

A wide range of ports, including USB, 2.5Gb Ethernet, card readers, and an integrated M.2 NVMe slot for ultra-fast storage expansion, transforms the dock into a complete workstation solution.
Fully compatible with devices featuring Thunderbolt” 5, Thunderbolt” 3/4, USB4, and USB-C, it ensures maximum flexibility across platforms.
Designed for professionals who expect uncompromising performance, reliability, and connectivity in one compact device.

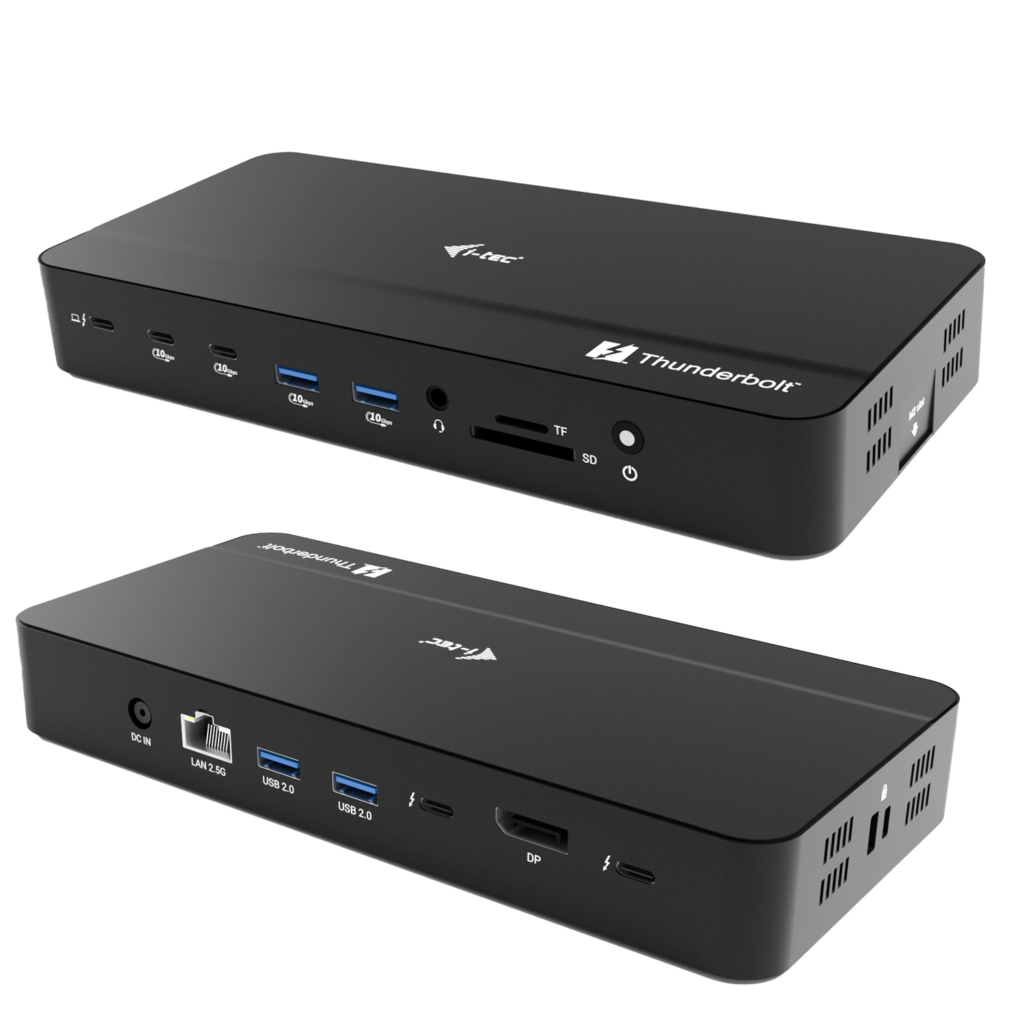

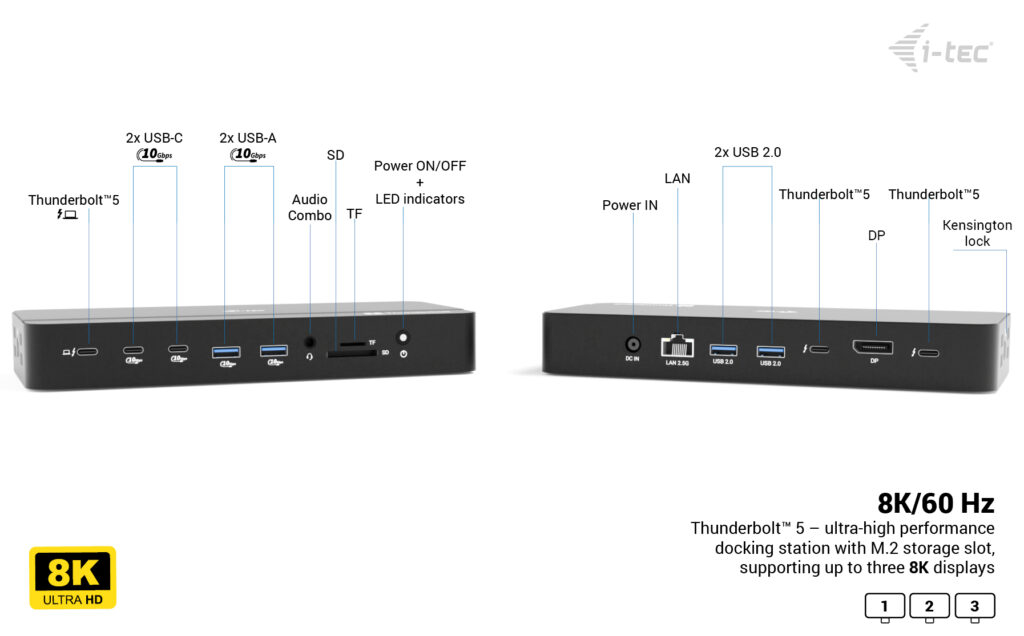

Ports & interfaces
Connectivity technology
Wired
Host interface
Thunderbolt 5
USB 2.0 ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2

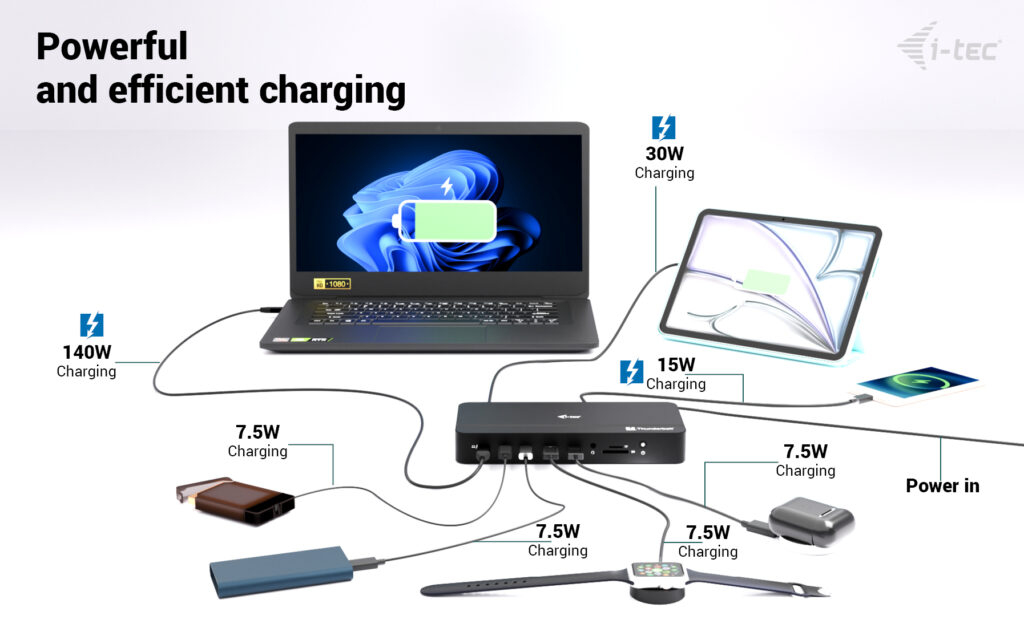

USB Power Delivery (USB PD)
Yes
USB Power Delivery up to
140 W
DisplayPorts quantity
1
DisplayPort version
1.2
Thunderbolt 5 ports quantity
2
Combo headphone/mic port
Yes
Headphone connectivity
3.5 mm
DC-in jack
Yes
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Performance
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash), SD

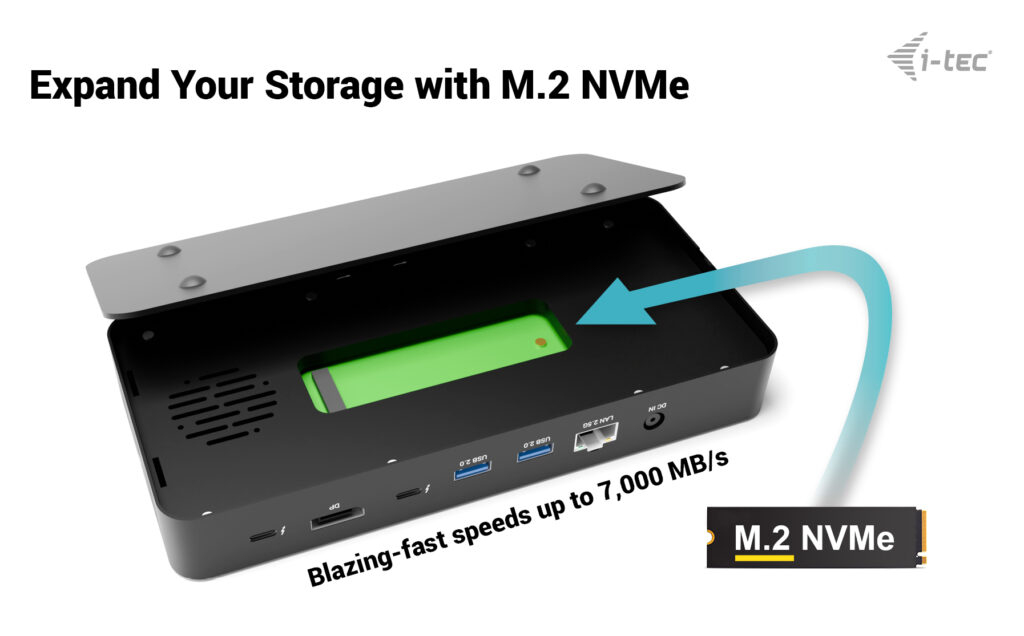

Number of storage drives supported
1
Supported storage drive types
SSD
Storage drive sizes supported
M.2
Data transfer rate
120 Gbit/s
HD type
8K Ultra HD

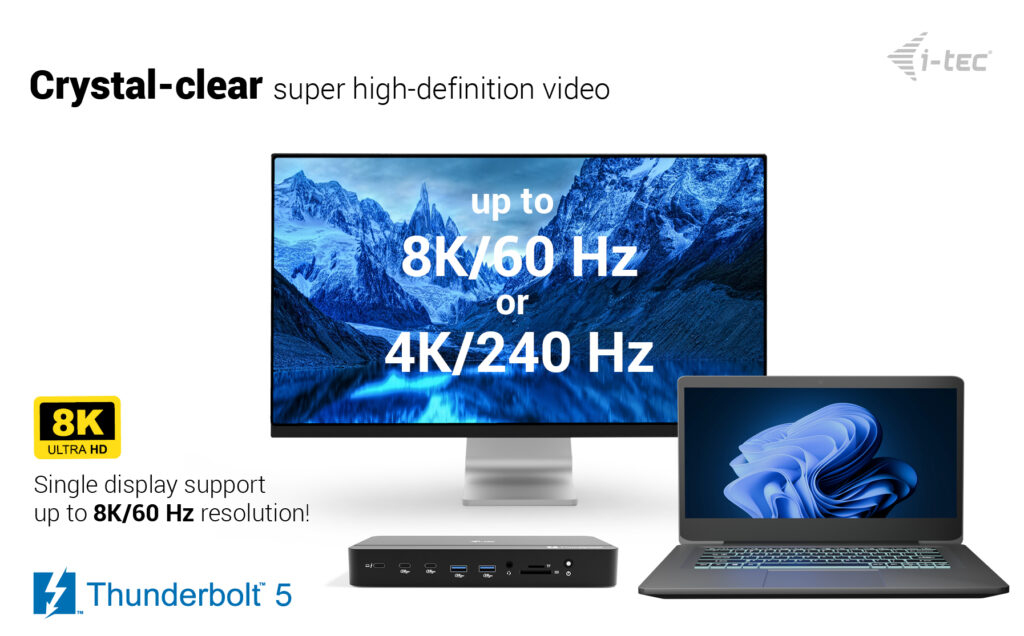

Maximum digital resolution
7680 x 4320 pixels

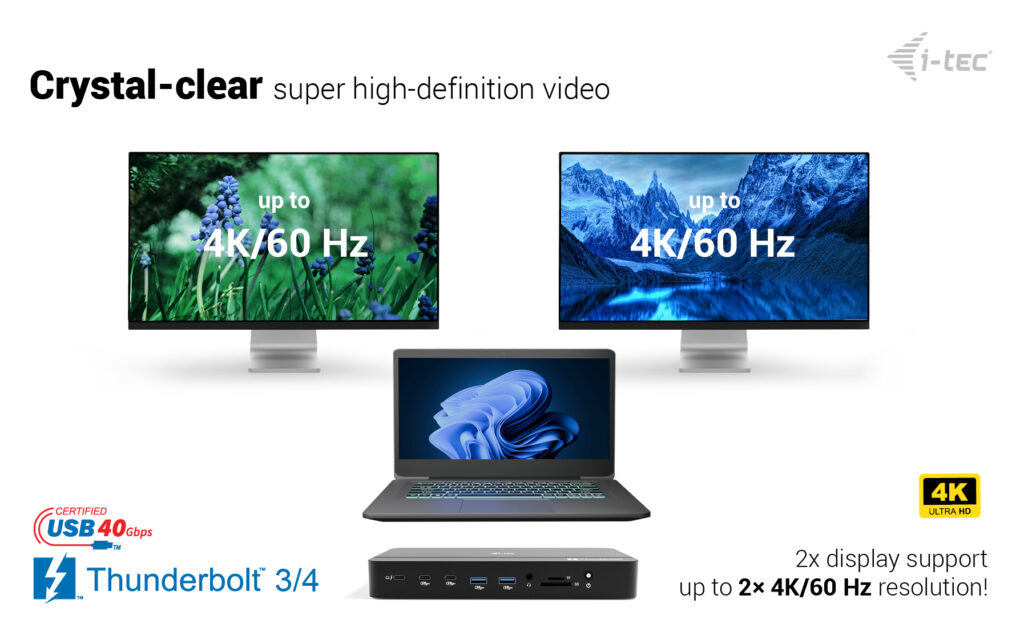

Number of displays supported
2
Maximum refresh rate
120 Hz
Cable lock slot
Yes
Cable lock slot type
Kensington
Product colour
Black
On/off switch
Yes
LED indicators
Yes
Power
Power supply
180 W
Output voltage
20 V
Output current
9 A
Software
Windows operating systems supported
Yes
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Mobile operating systems supported
Android, iOS, iPadOS
Other operating systems supported
ChromeOS
Weight & dimensions
Width
215 mm
Depth
100 mm
Height
30 mm
Weight
360 g

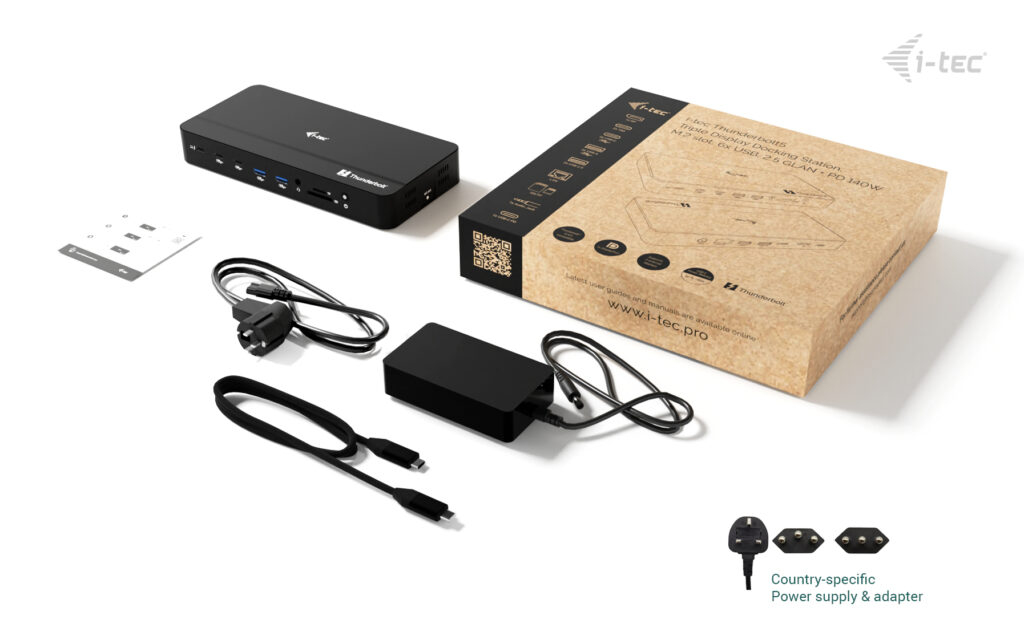

Packaging content
Cables included
Thunderbolt
AC adapter included
Yes
Manual
Yes
