I-TEC ELECTRONICS Docking Station - USB-c Hdmi Dp - With Power Delivery 100w

£81.20

Part Number: C31HDMIDPDOCKPD
Delivery: 1 - 2 days

Product Details

Introduction

USB-C office docking station with support for up to 2 external monitors with 4K resolution. The station is compatible with any laptop equipped with a USB-C or Thunderbolt 3 port. 6x USB ports, reliable and quick connection to your business network thanks to an integrated LAN port and support for installation behind a monitor make the docking station an ideal partner for professionals. And of course, the station is capable of charging your laptop or tablet with up to 100 W.

Integrated latest DP 1.4 protocol supports 5K/60 Hz resolution, making the device suitable for even professional graphics designers, data analysts, film editors and, of course, fans of HD video.

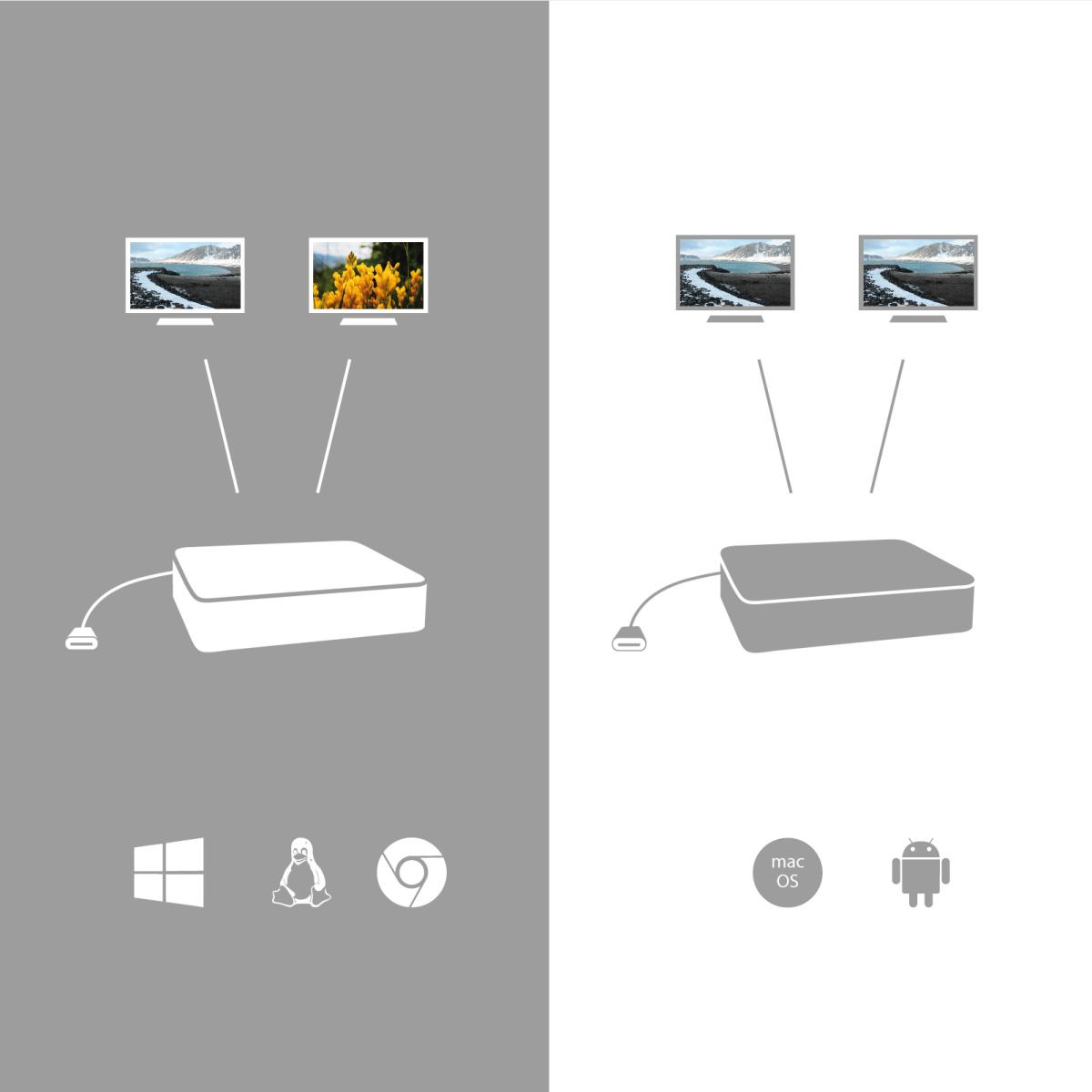

This docking station is designed to be used with any laptop, tablet or smartphone regardless of type, brand or operating system. All that is needed is for your laptop/tablet/phone to have a free Thunderbolt 3 or USB-C port capable of transmitting video signal.

Printer? Keyboard? Mouse? External hard drive or flash drive? Charging cable for your phone? You can connect all your devices to the docking station quickly and easily. In addition, you can connect to the Internet thanks a LAN port, eliminating any worries with variable speed and quality of Wi-Fi networks.

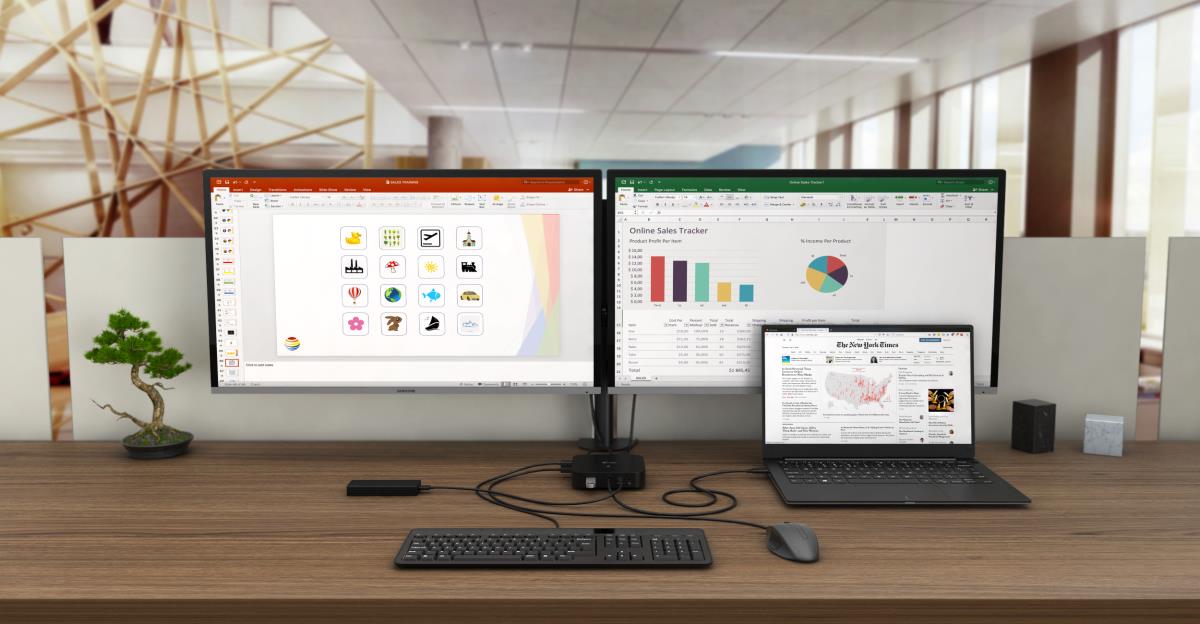

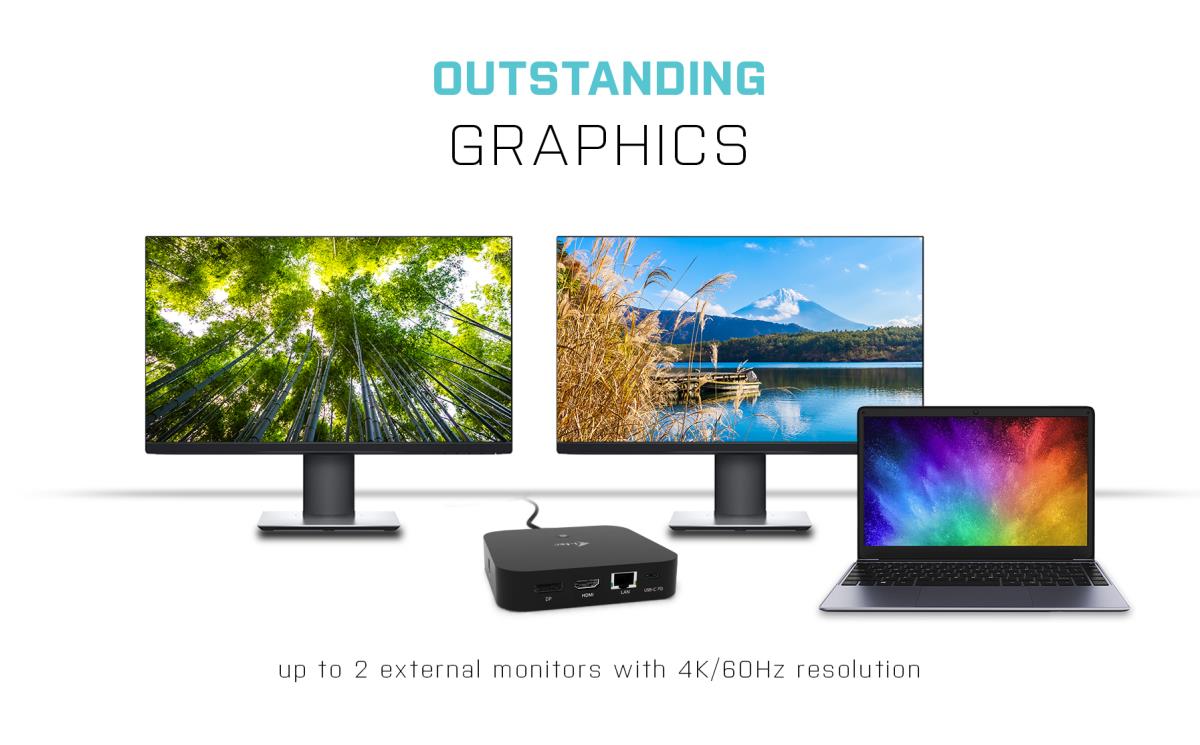

Do you enjoy detailed graphics with high resolution? If so, then this station can allow you to connect to up to two external monitors or TVs with up to 4K resolution! And of course, you can enjoy truly smooth video thanks to high refresh rate of 60 Hz.

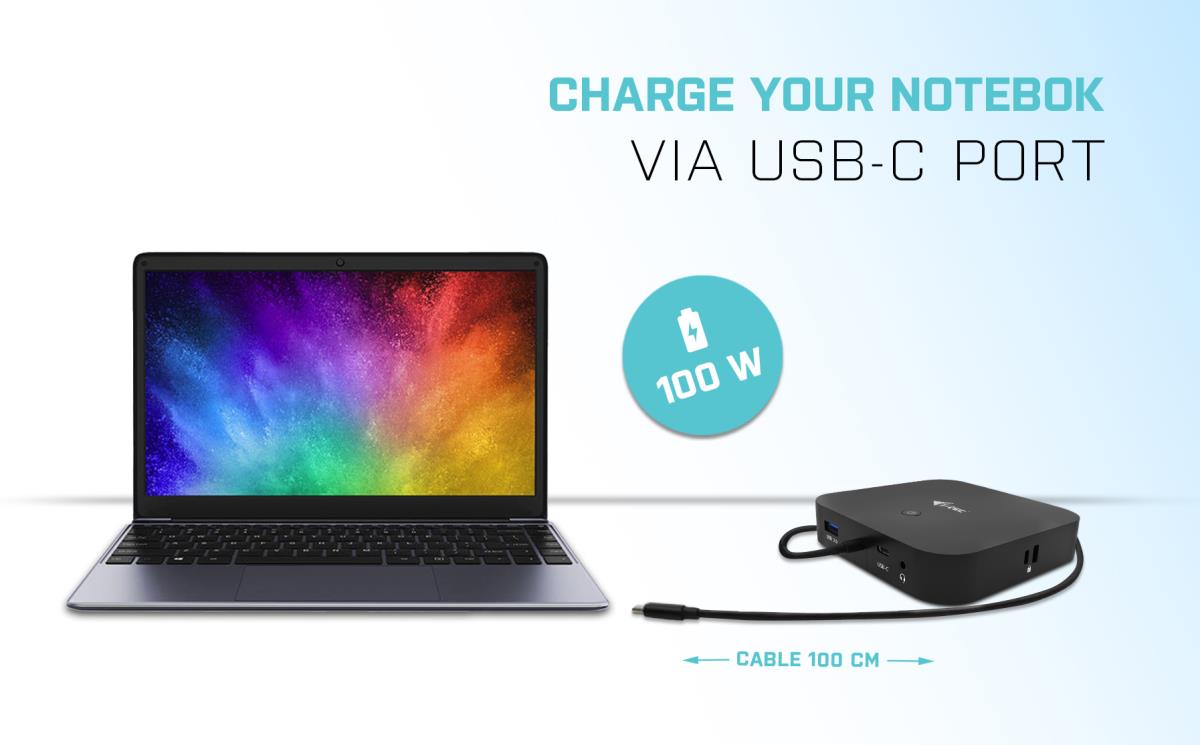

The new USB-C port has a number of tricks up its sleeve! Provided your laptop or tablet supports power delivery through this port, you gain the ability to connect all you need (data transfer, Internet, video and power supply) using a single cable.

Every electrical device utilizes a minimum of continuous consumption, which climbs from tens to hundreds of unnecessarily spent and paid for kilowatts over its lifetime. However, you can turn off our docking station as needed, saving both the environment and your wallet.

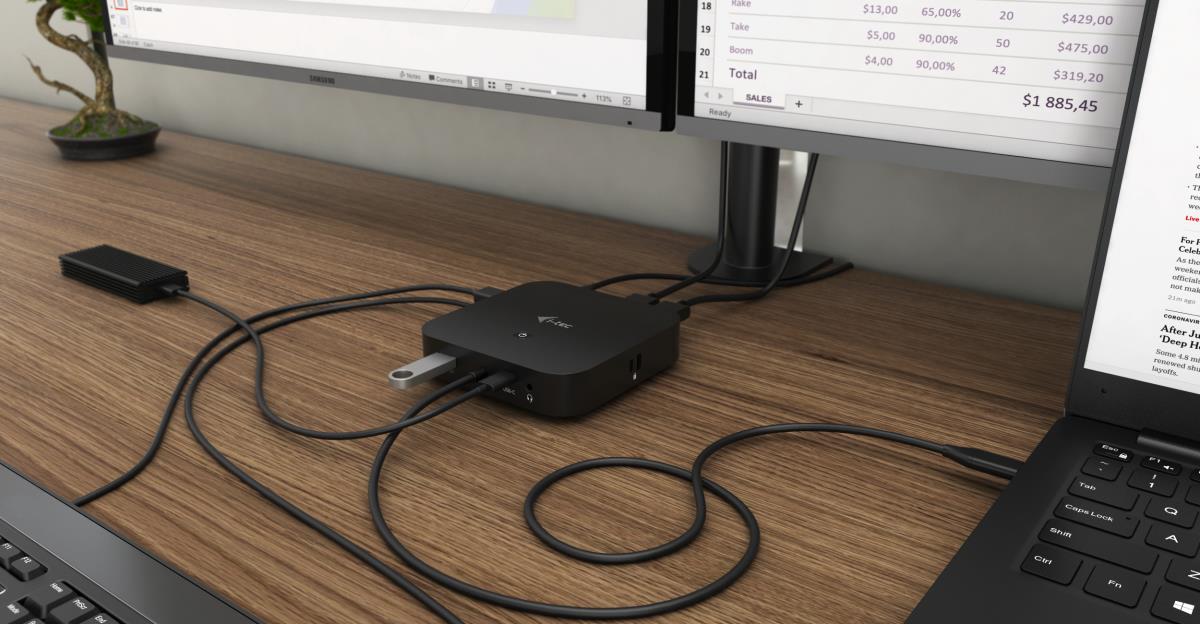

The high-quality USB-C cable with a length of one meter will provide you with enough space on the table and, most importantly, the opportunity to organize your work environment according to your requirements. Shorter cables often limit the variability of use, and in some cases even prevent the connection of all necessary accessories.

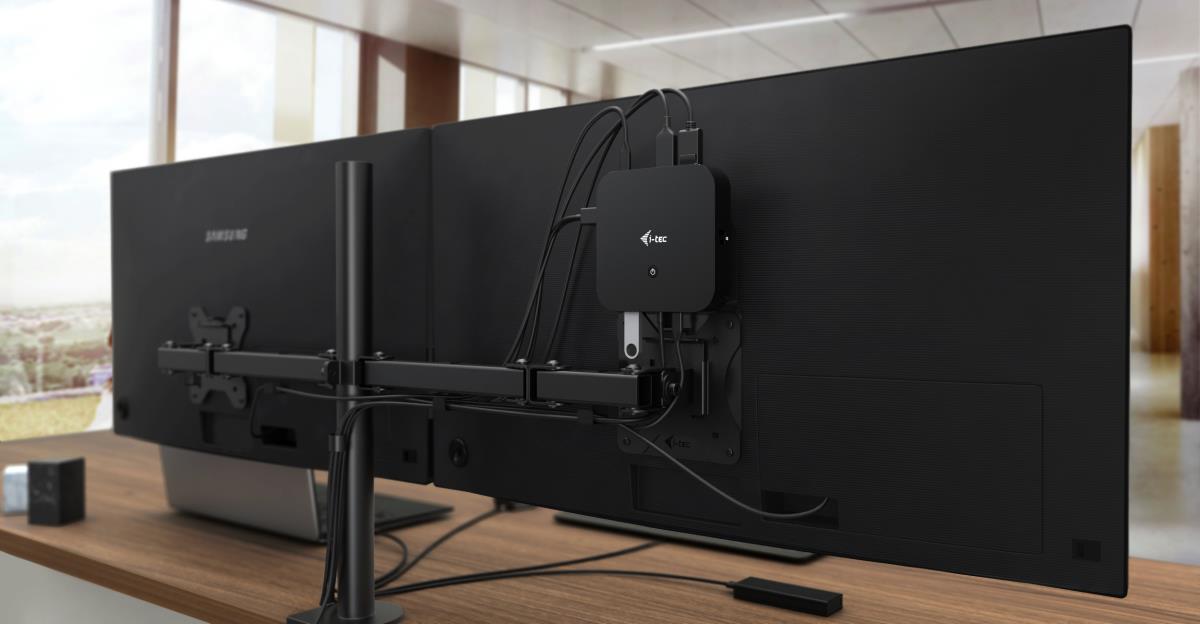

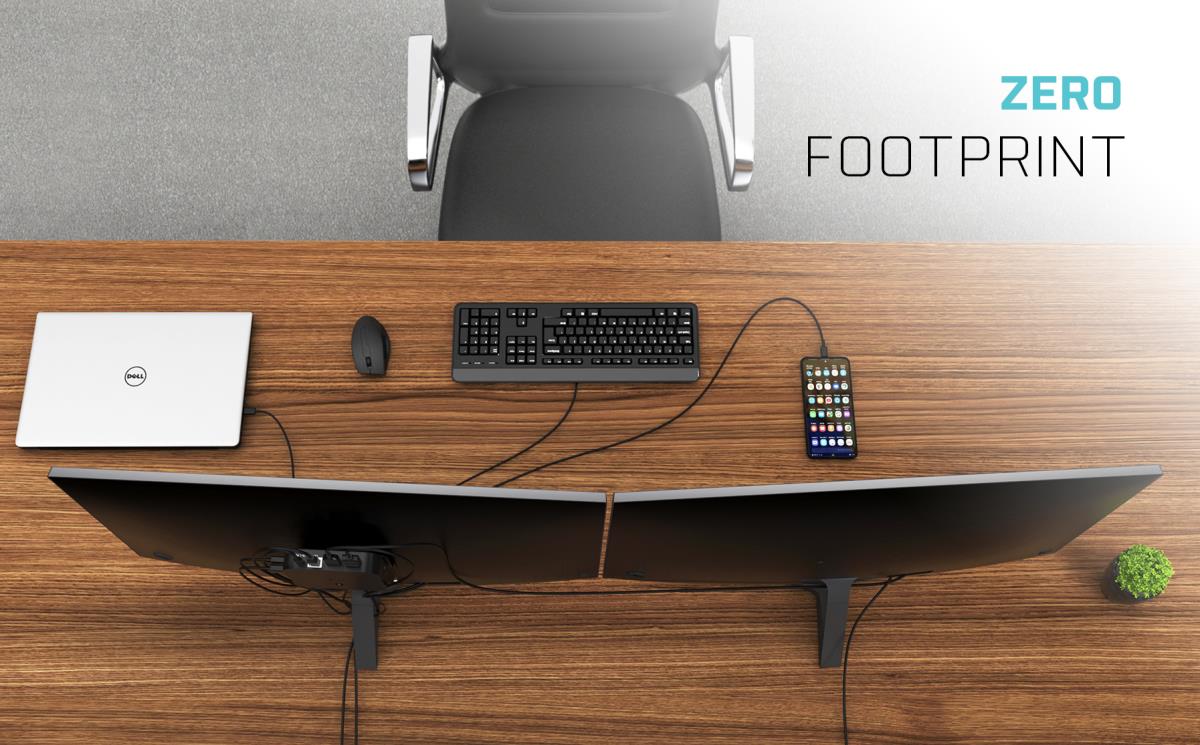

A clear table is the backbone of any modern workspace. If your monitor supports the VESA mounting standard, you can easily install the docking station behind your monitor using an optional frame accessory (order code: VESADOCK1). Cables and other devices occupying space on the table will be a thing of the past.

Bus Type

USB-C Yes

Connector Type(s)

Audio 1x 3.5mm combo audio port
DisplayPort 1x DisplayPort
HDMI 1x HDMI
RJ-45 1x Ethernet GLAN RJ-45 port (Realtek RTL8153)
Security Lock Kensington lock
USB 3.0 A 3x USB 3.1
USB Type-A 2x USB 2.0
USB Type-C 1x USB-C port Gen. 2 (only for data)
1x USB-C port Gen. 2 + PD (data + power delivery)

General

Compatibility Windows 10, macOS, Android, Chrome OS, and Linux with the latest updates

Power

Power Delivery up to 100 W
Wireless charging No

Ports & interfaces

DC-in jack No
Connectivity technology Wired
Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 2
USB Power Delivery Yes
USB Power Delivery up to 100 W
HDMI ports quantity 1
DisplayPorts quantity 1
Combo headphone/mic port Yes
Headphone connectivity 3.5 mm

Network

Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 10,100,1000 Mbit/s

Performance

Card reader integrated No
HD type 4K Ultra HD
Maximum digital resolution 3840 x 2160 pixels
Number of displays supported 2
Maximum refresh rate 60 Hz
Cable lock slot Yes
Cable lock slot type Kensington
VESA mounting Yes
Product colour Black
On/off switch Yes
LED indicators Yes

Technical details

Harmonized System (HS) code 84733020

Software

Windows operating systems supported Yes
Mac operating systems supported Yes
Linux operating systems supported Yes
Other operating systems supported Android

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Weight & dimensions

Width 113 mm
Depth 113 mm
Height 40 mm
Weight 245 g

Packaging data

Package width 338 mm
Package depth 150 mm
Package height 55 mm
Package weight 458 g

Packaging content

Quick start guide Yes

Information

Part Number: C31HDMIDPDOCKPD
