Product Details
Introduction

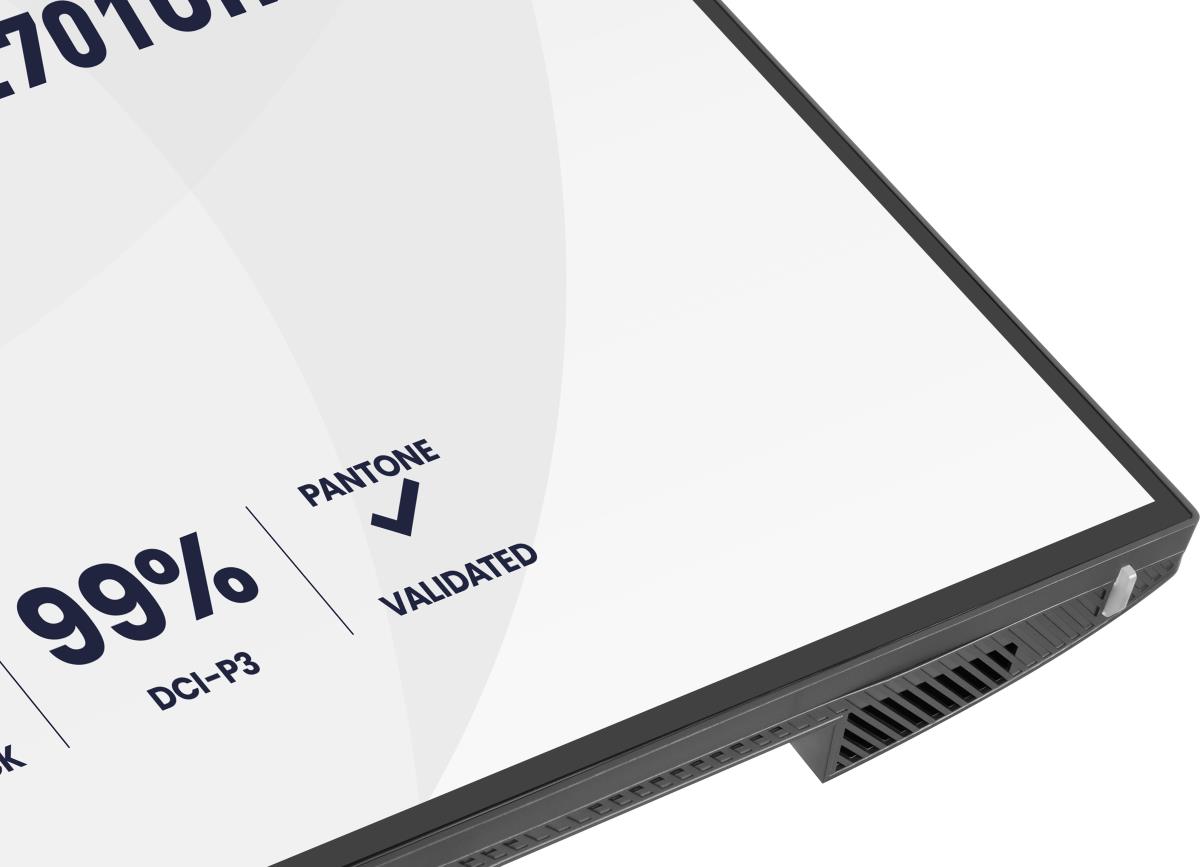

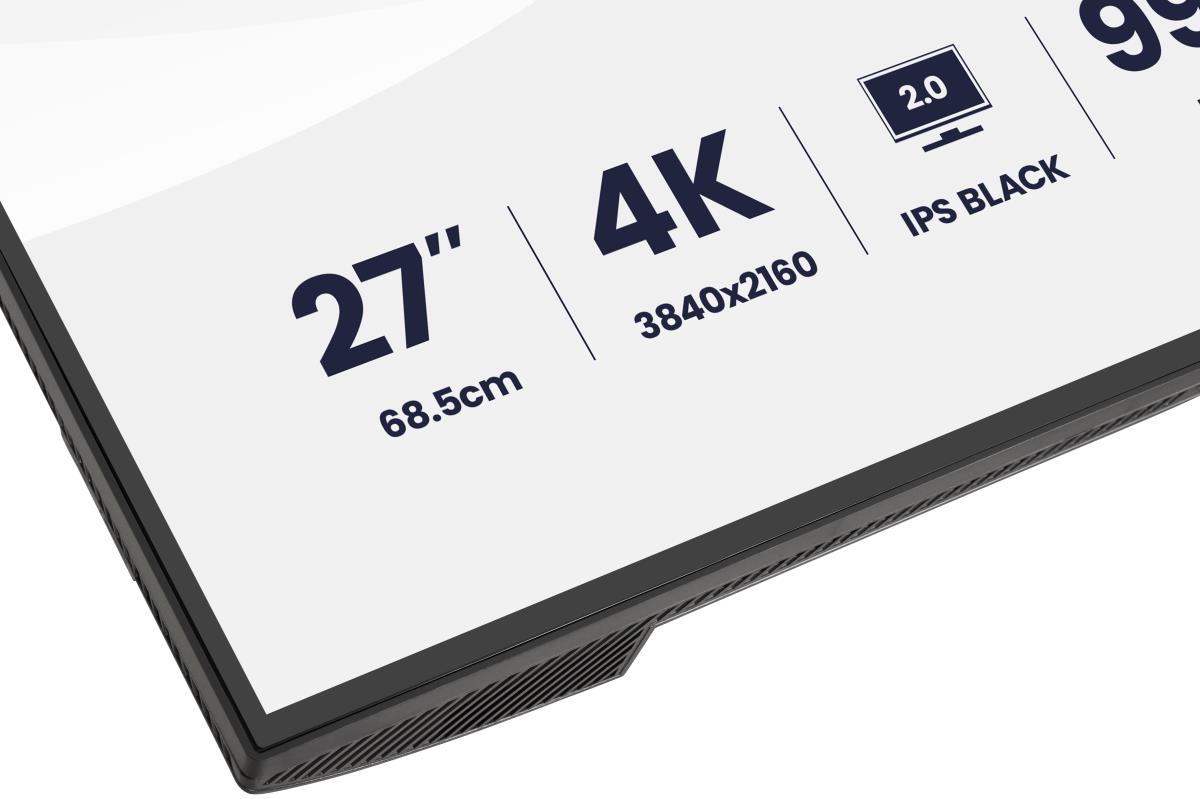

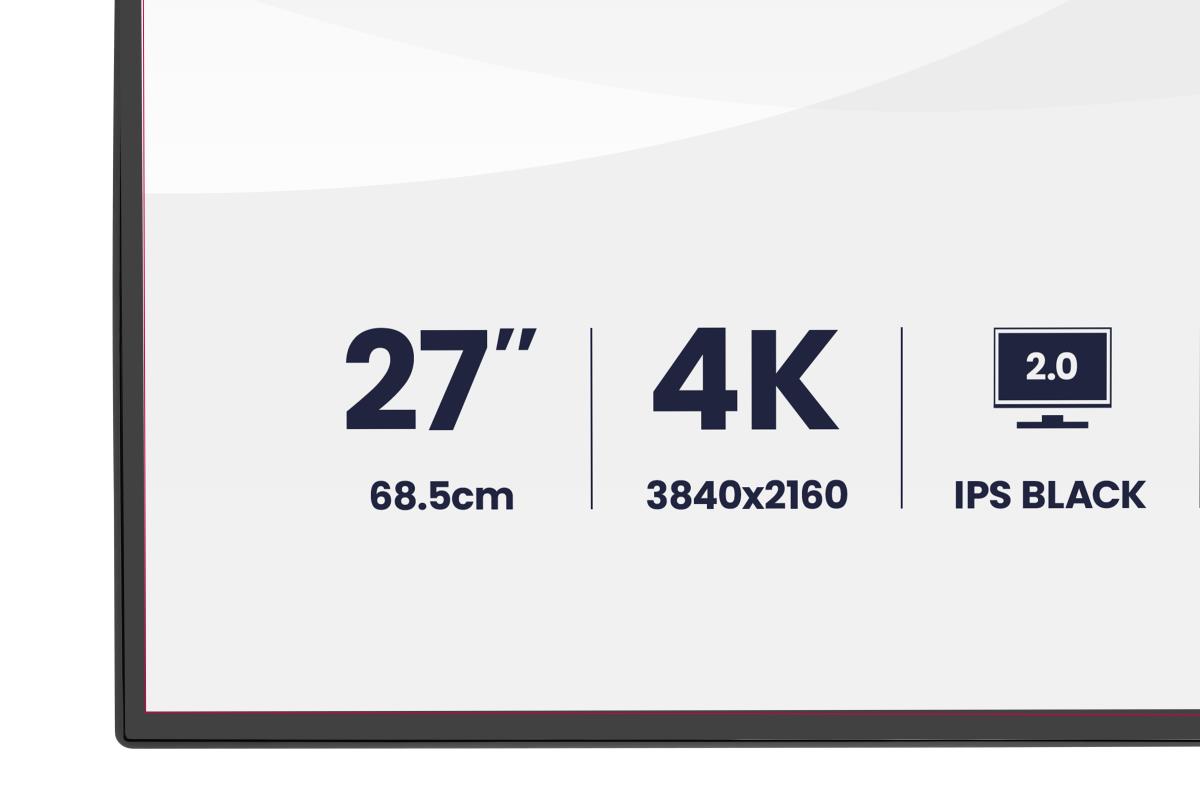

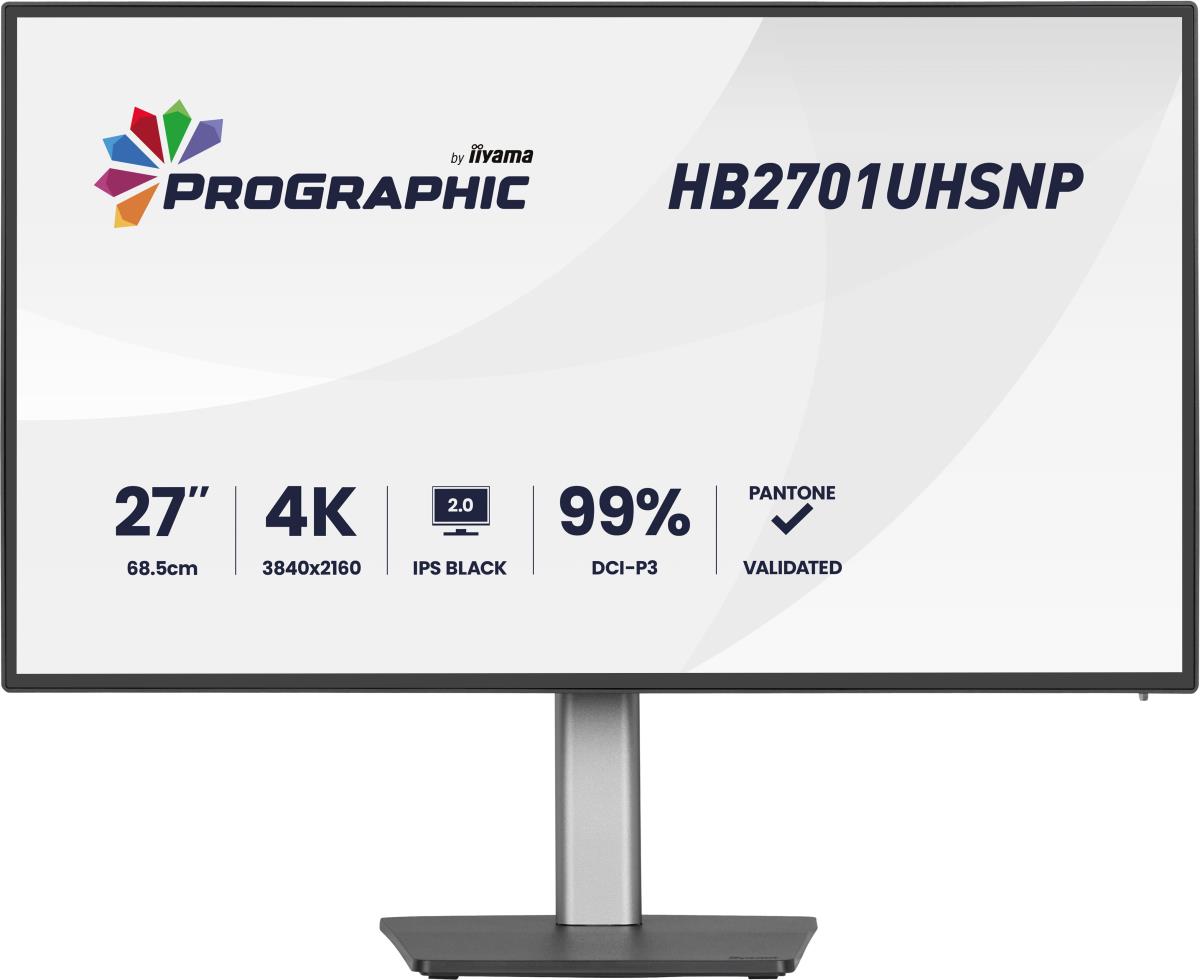

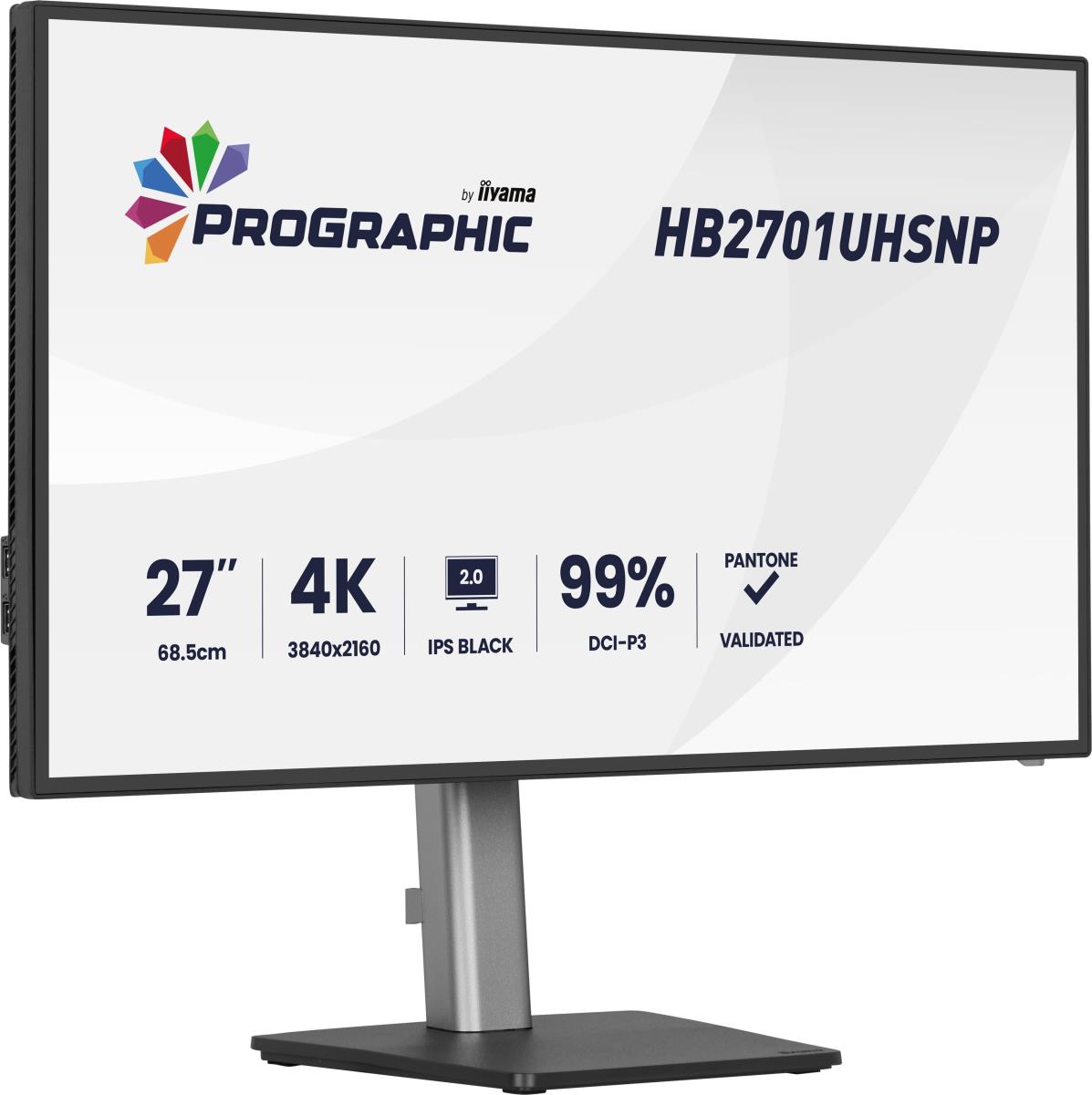

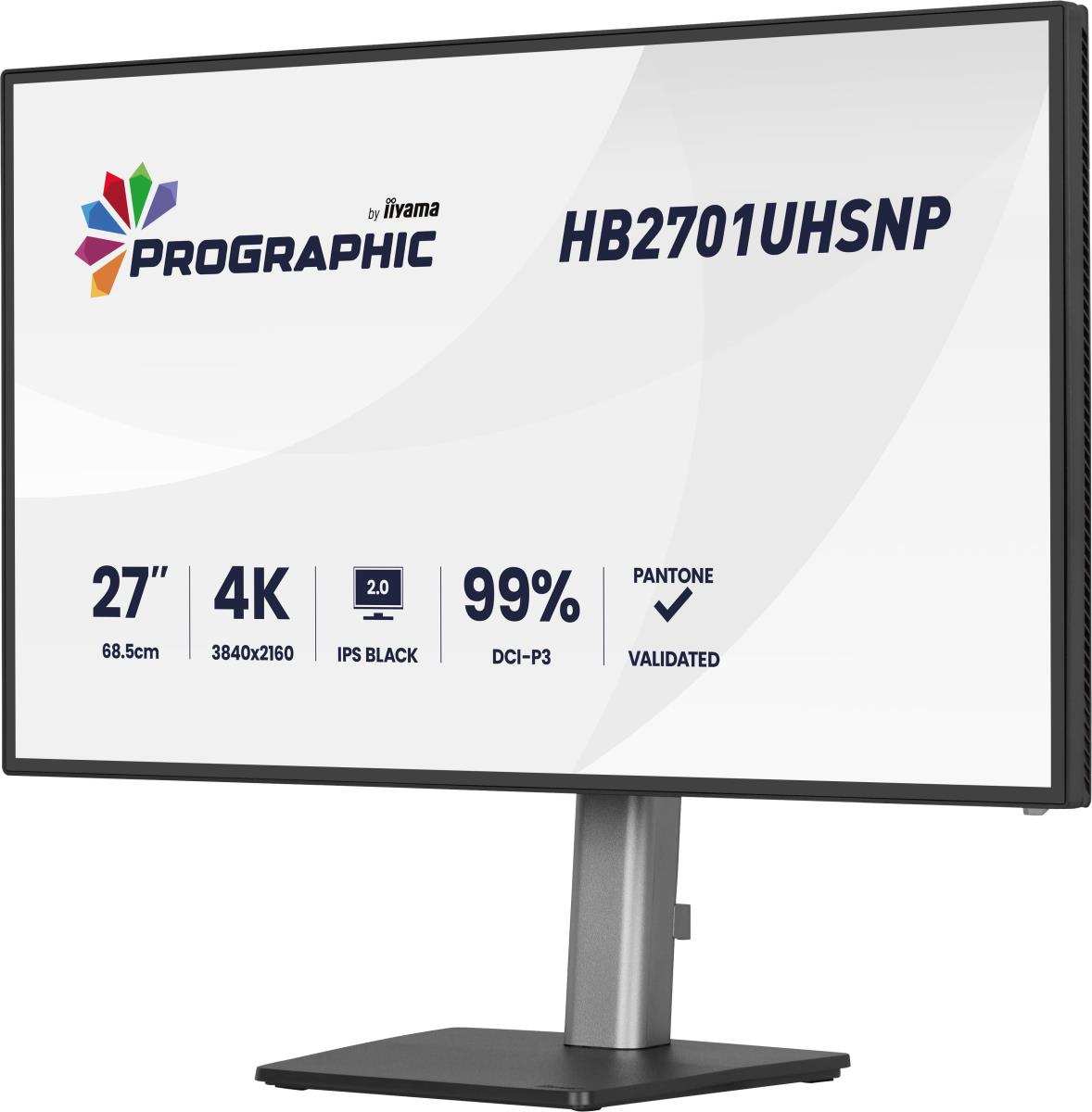

Work with confidence on the 27? ProGraphic HB2701, a 4K UHD monitor engineered for designers, photographers, and content creators who demand uncompromising visual clarity. Powered by IPS Black 2.0 technology, it delivers deeper contrast and richer blacks, ensuring every shadow and detail is revealed with stunning precision. With 99% DCI-P3 coverage and Pantone Validated colour accuracy, your work translates seamlessly across print, video, and digital platforms. The AGLR anti-glare coating minimises reflections, keeping you focused whether you're in a bright studio or a dim workspace. These advanced features allow you to fully showcase your creativity and skills. Designed for productivity, the HB2701 features a 150mm height-adjustable stand, USB-C docking, and a built-in KVM switch, giving you a clean, connected setup ready for effortless multitasking.
Display
Display diagonal
68.6 cm (27")
Display resolution
3840 x 2160 pixels
HD type
4K Ultra HD
Native aspect ratio
16:9
Display technology
LCD
Panel type
IPS Black
Touchscreen
No
Display brightness (typical)
450 cd/m²
Response time
4 ms
Response time measurement type
GTG (Gray to Gray)
Display surface
Matt
Screen shape
Flat
Contrast ratio (typical)
3000:1
Maximum refresh rate
60 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.07 billion colours
Pixel pitch
0.155 x 0.155 mm
Horizontal scan range
30 - 140 kHz
Vertical scan range
40 - 60 Hz
Viewable size, horizontal
59.7 cm
Viewable size, vertical
33.6 cm
Display diagonal (metric)
68.5 cm
High Dynamic Range (HDR) supported
Yes
High Dynamic Range (HDR) technology
High Dynamic Range (HDR) 400
DDC/CI
Yes
Colour depth
8 bit
Colour gamut standard
DCI-P3, NTSC, sRGB
sRGB coverage (typical)
100%
NTSC coverage (typical)
72%
DCI-P3 coverage
99%
Contrast ratio (dynamic)
80000000:1
Performance
Flicker-free technology
Yes
Low Blue Light technology
Yes
Multimedia
Number of speakers
2
RMS rated power
4 W
Built-in speaker(s)
Yes
Design
Market positioning
Graphics design
Product colour
Black

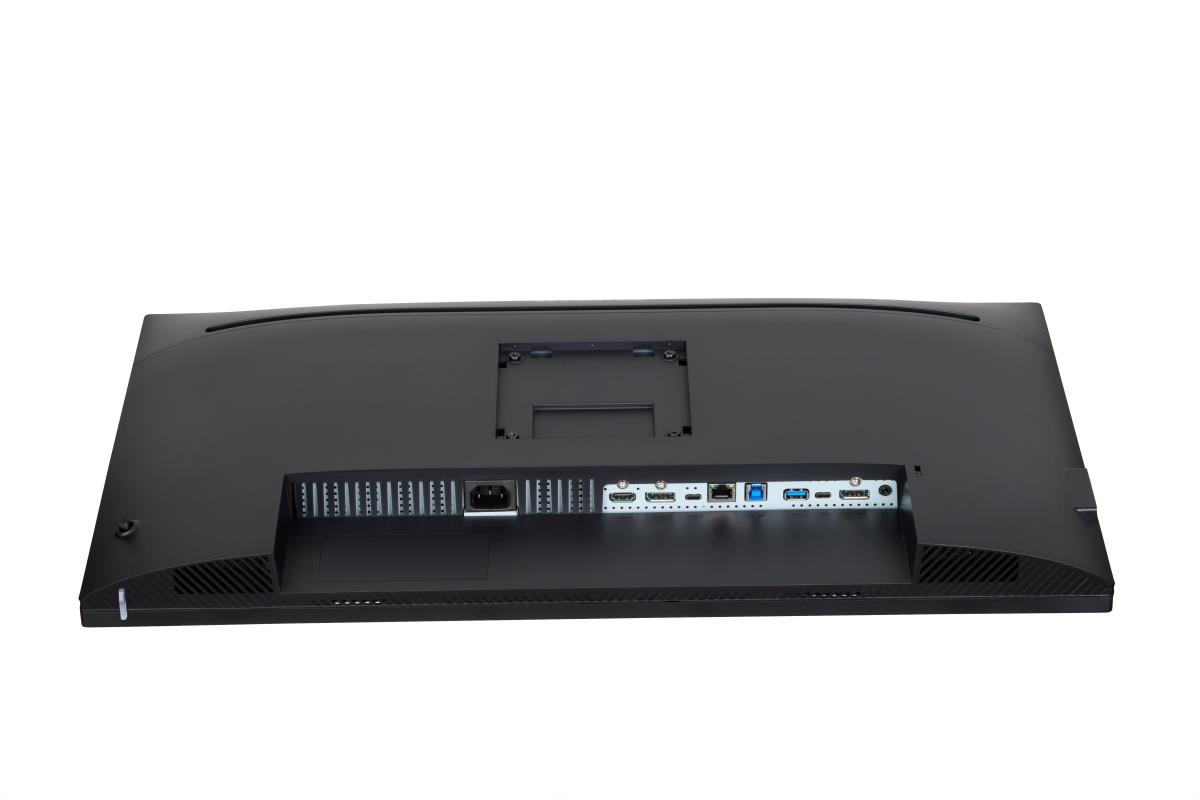

Ports & interfaces

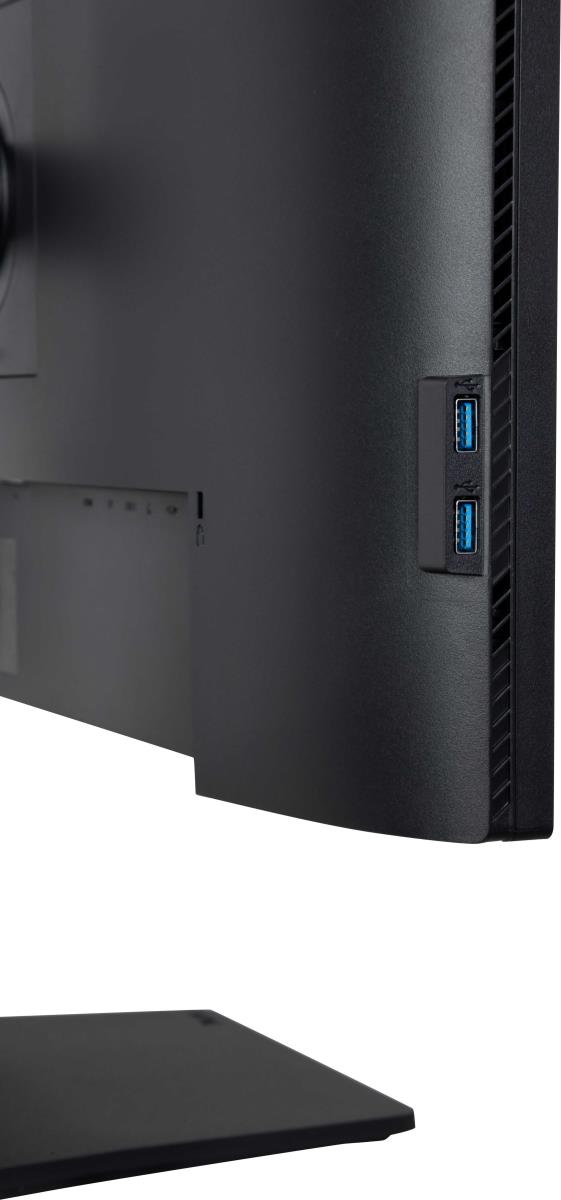

Built-in USB hub
Yes
USB hub version
3.2 Gen 1 (3.1 Gen 1)
USB upstream port type
USB Type-B, USB Type-C
Number of upstream ports
2
Number of downstream ports
4
Number of USB Type-B upstream ports quantity
1
Number of USB Type-C upstream ports quantity
1
USB Type-A downstream ports quantity
3
USB Type-C downstream ports quantity
1
USB Type-C DisplayPort Alternate Mode
Yes
USB Power Delivery (USB PD)
Yes
USB Power Delivery up to
96 W
HDMI
Yes
HDMI ports quantity
1
DisplayPorts quantity
1
DisplayPort out quantity
1
Headphone out
Yes
Headphone outputs
1
Headphone connectivity
3.5 mm
Built-in KVM switch
Yes
HDCP
Yes
Network
Ethernet LAN
Yes
Ergonomics

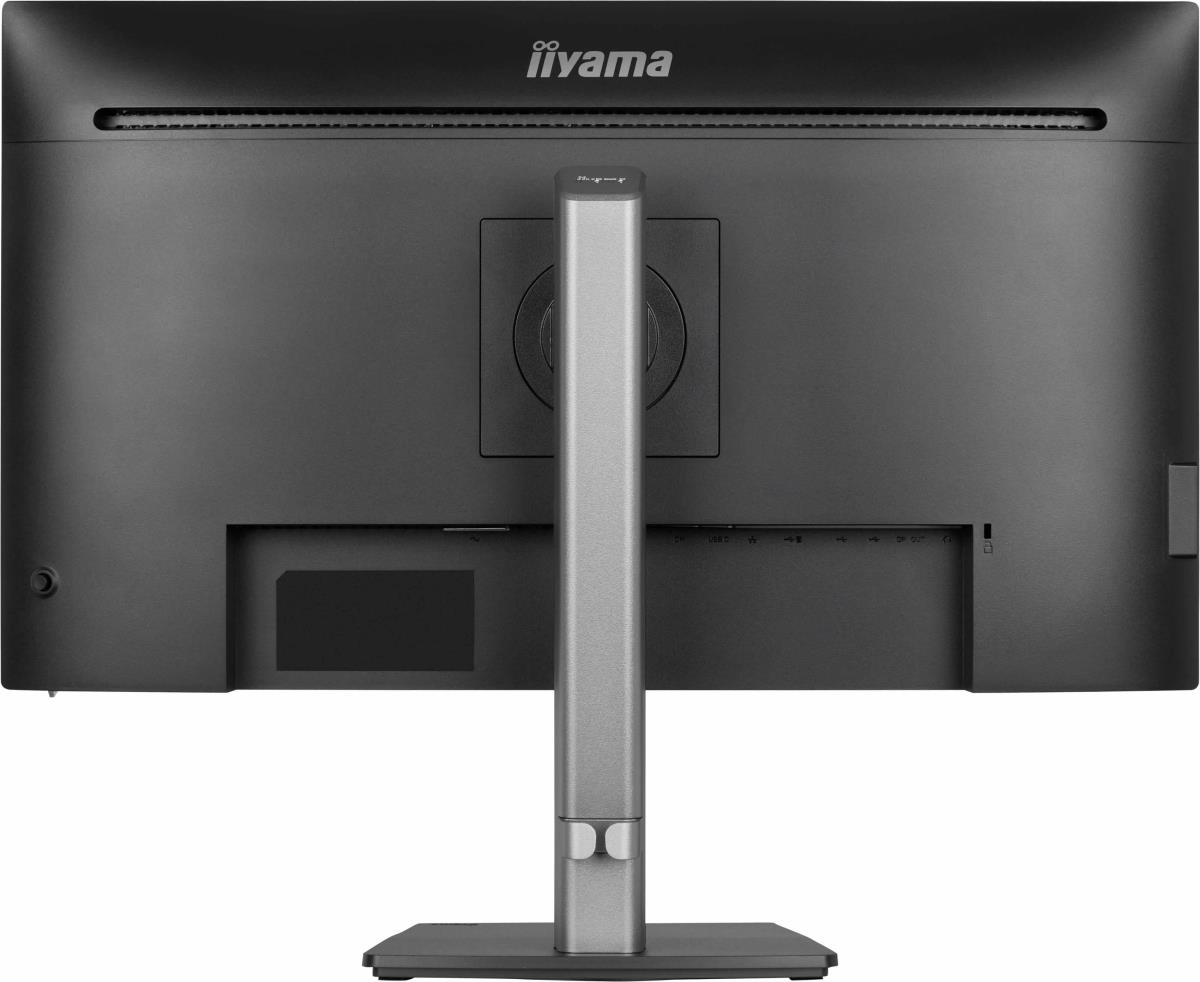

VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Cable management
Yes
Cable lock slot
Yes
Cable lock slot type
Kensington

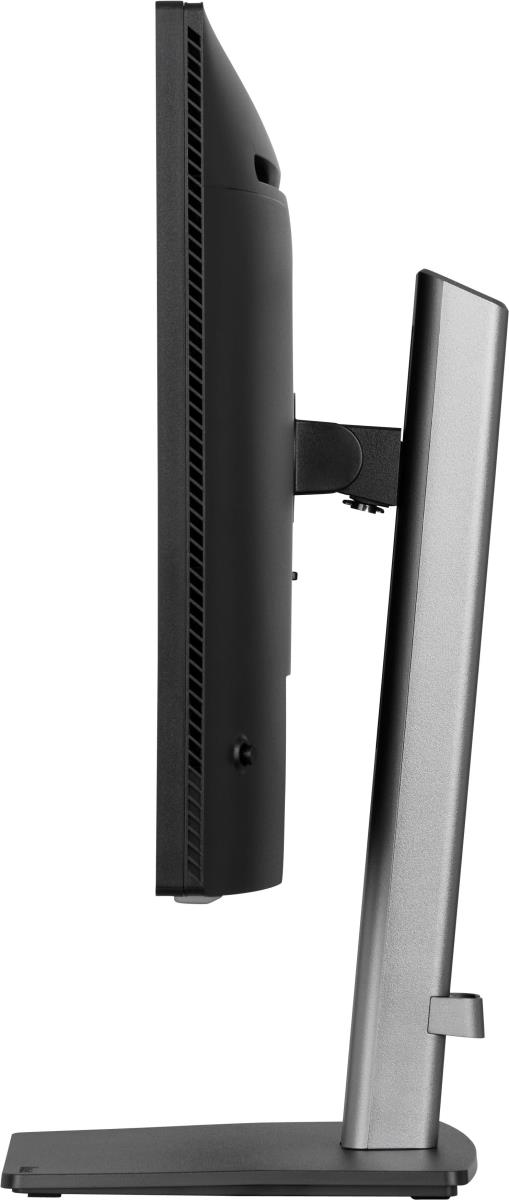

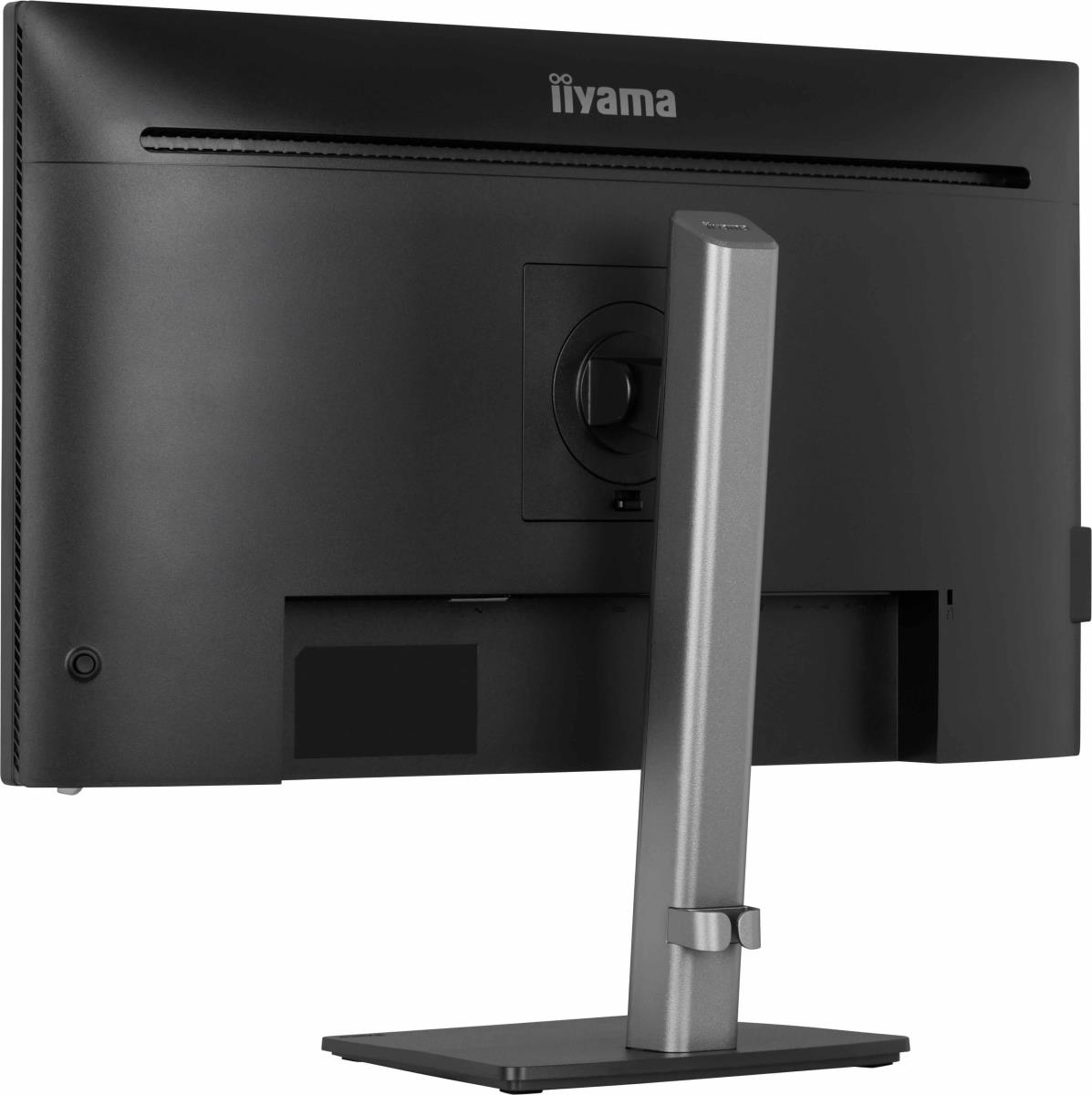

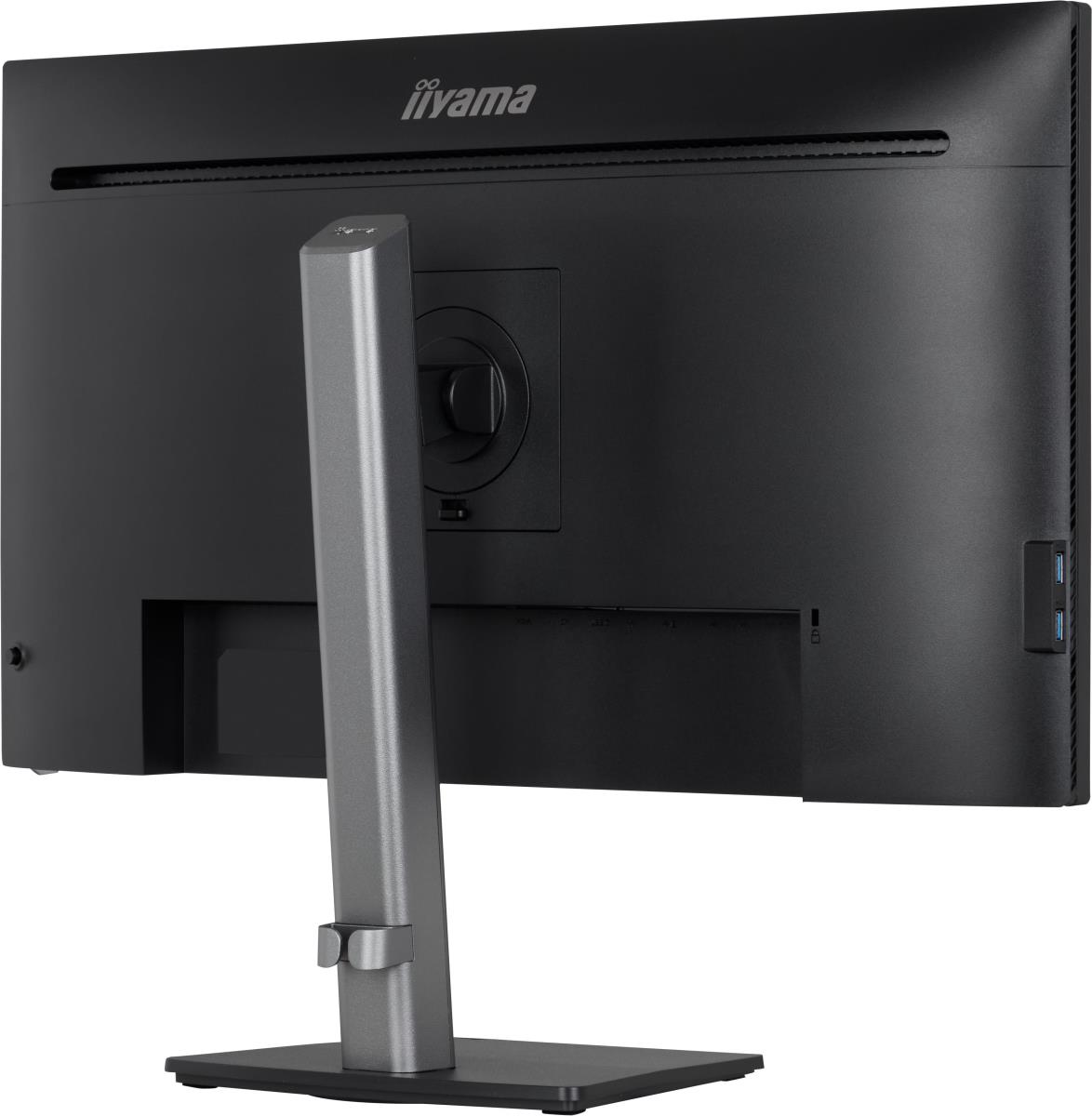

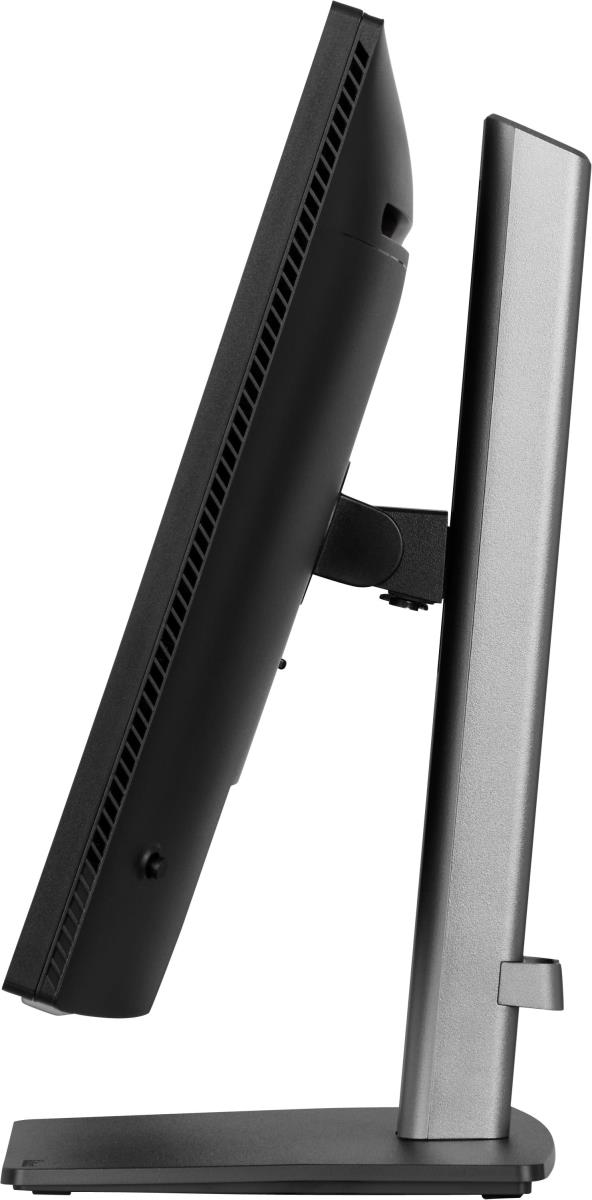

Height adjustment
Yes
Adjustable height (max)
15 cm

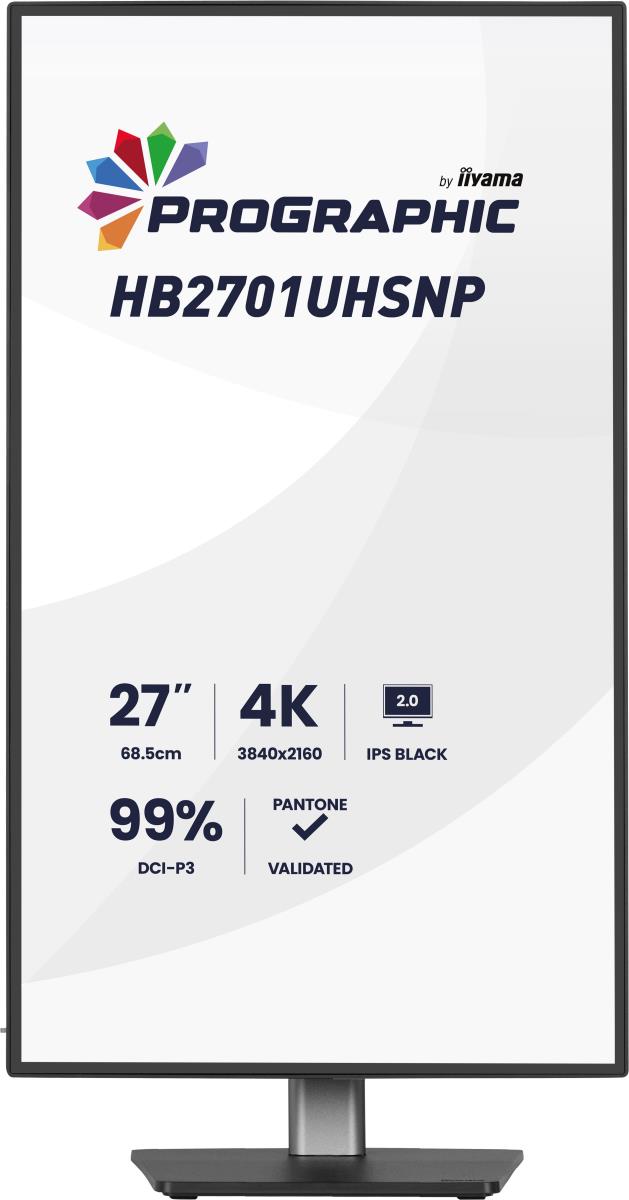

Pivot
Yes
Swivelling
Yes
Swivel angle range
0 - 360°

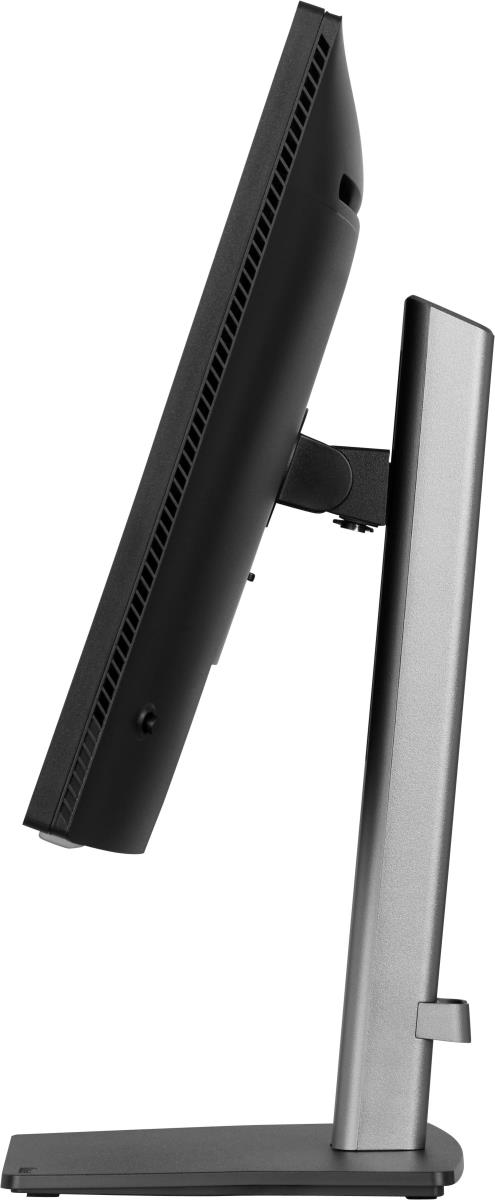

Tilt adjustment
Yes
Tilt angle range
-5 - 23°
On Screen Display (OSD) languages
Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Russian, Ukrainian
Power
Energy efficiency class (SDR)
G
Energy efficiency class (HDR)
G
Energy consumption (SDR) per 1000 hours
27 kWh
Energy consumption (HDR) per 1000 hours
37 kWh
Power consumption (typical)
27 W
Power consumption (standby)
0.5 W
Power consumption (off)
0.3 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Input current
2.3 A
Power supply type
Internal
Energy efficiency scale
A to G
Operational conditions
Operating temperature (T-T)
5 - 35 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
10 - 80%
Storage relative humidity (H-H)
10 - 90%
Weight & dimensions
Width (with stand)
614 mm
Depth (with stand)
224.5 mm
Height (with stand)
544 mm
Weight (with stand)
6.7 kg
Height (without stand)
404 mm

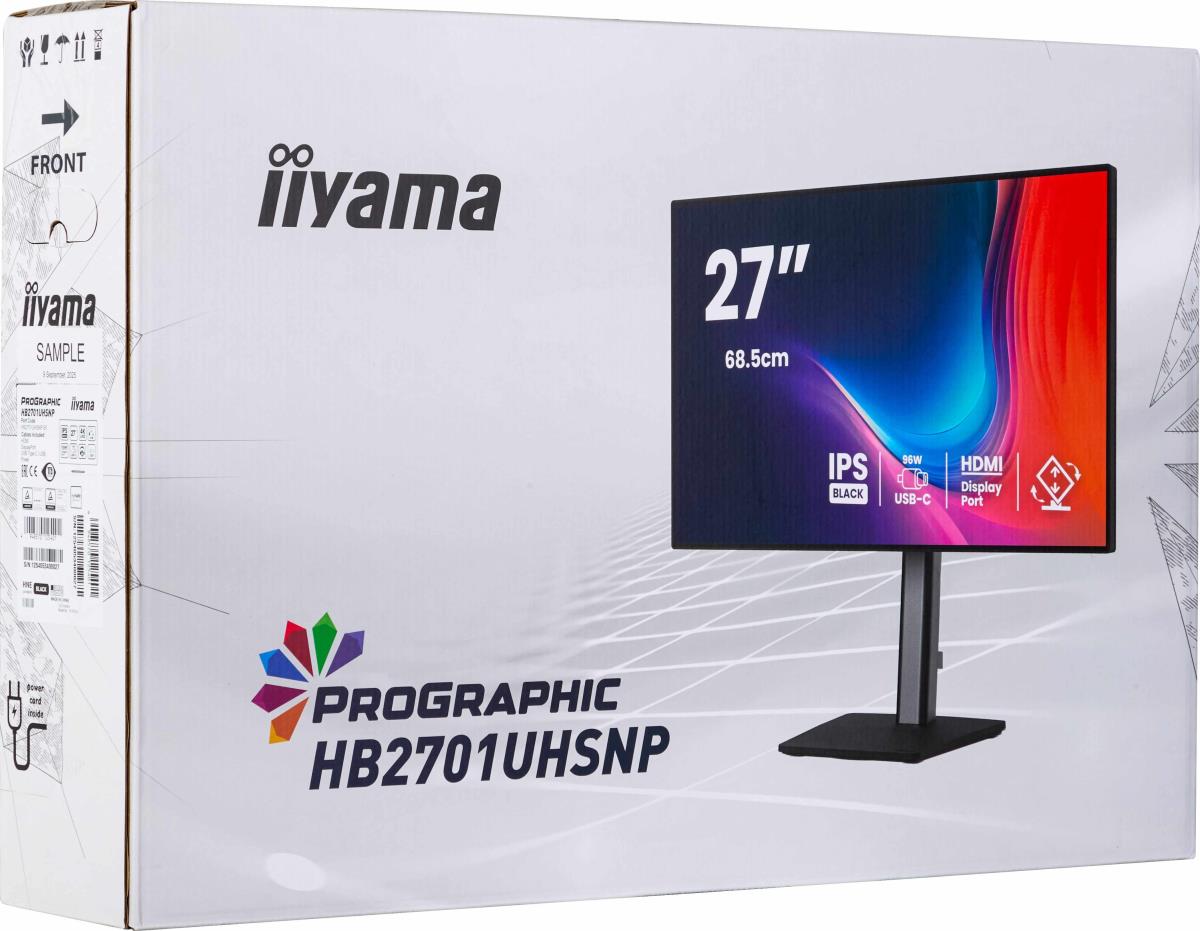

Packaging data
Package width
688 mm
Package depth
138 mm
Package height
463 mm
Package weight
9.7 kg
Package type
Box
USB cable length
1.8 m

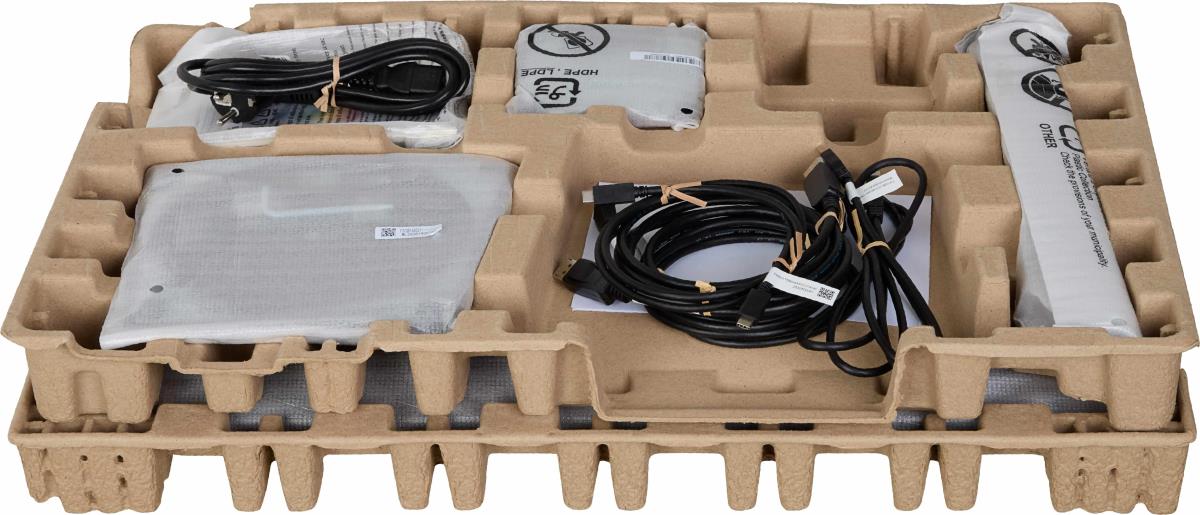

Packaging content

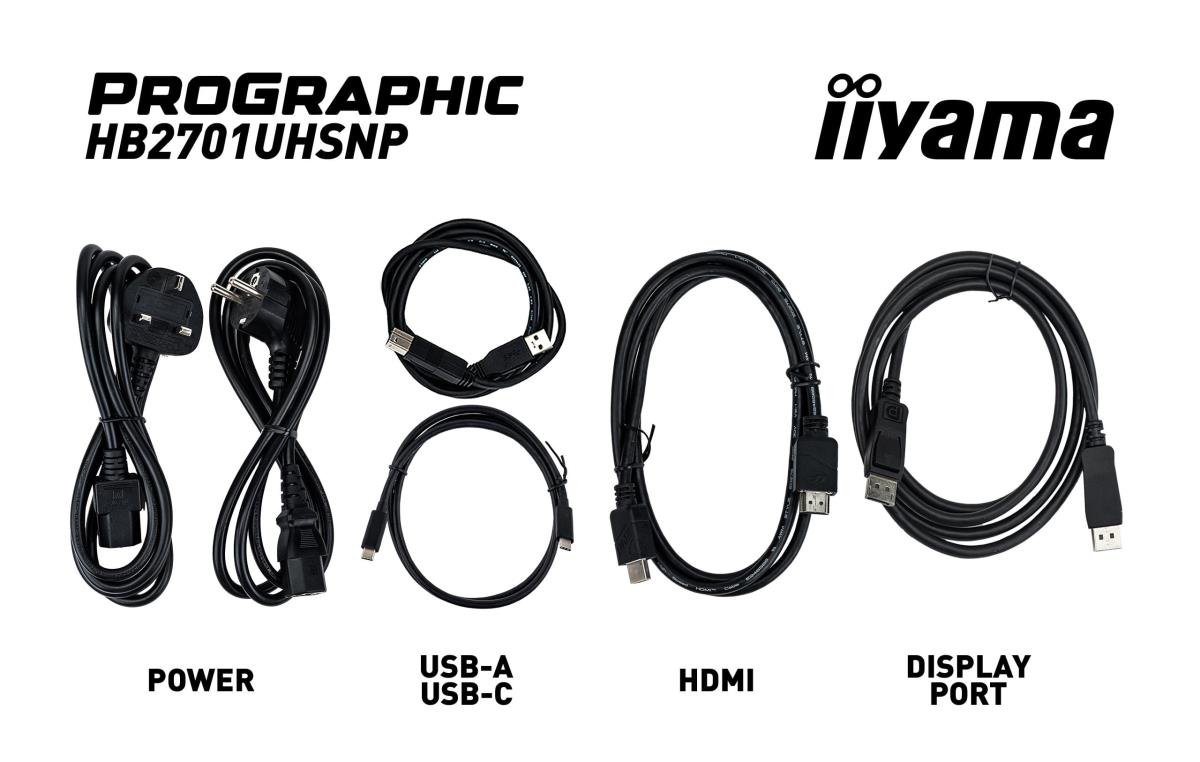

Cables included
AC, USB, HDMI, DisplayPort, USB Type-C
DisplayPort cable length
1.8 m
HDMI cable length
1.8 m
Power cable length
1.8 m
Technical details
Native refresh rate
60 Hz
Sustainability
Sustainability certificates
ErP, TCO
Other features
Packaging content
quick start guide, safety guide
User controls
picture adjust (contrast, brightness, uniformity, ACR, Eco, OD, gamma), colour settings (HDR, 6-axis, i-Style colour, colour space, RGB range, colour temp., user preset), PiP/PbP (PiP/PbP, sub source, PiP position, PiP size, swap), OSD (H/ position, V. position, OSD time, OSD background, DDC/CI control, display information), language, recall (recall all), miscellaneous (sharpness, video mode adjust, smart power, USB charge, MST DP-out, USB-C speed, shortcut key, opening logo, power LED, Mac address, FW version), KVM (HDMI, DP, USB-C), input select (input select, DisplayPort mode), audio settings (volume, mute, audio input)
Weight
6.7 kg
Width
614 mm
Depth
224.5 mm
Control panel
Joystick/Power: Up/Input Select, Down/Shortcut, Right/Shortcut, Left/Shortcut
Compliance certificates
CE, EAC, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE
Ethernet LAN (RJ-45) ports
1
Information
| Part Number: | HB2701UHSNP-B1 |
