Product Details
Introduction

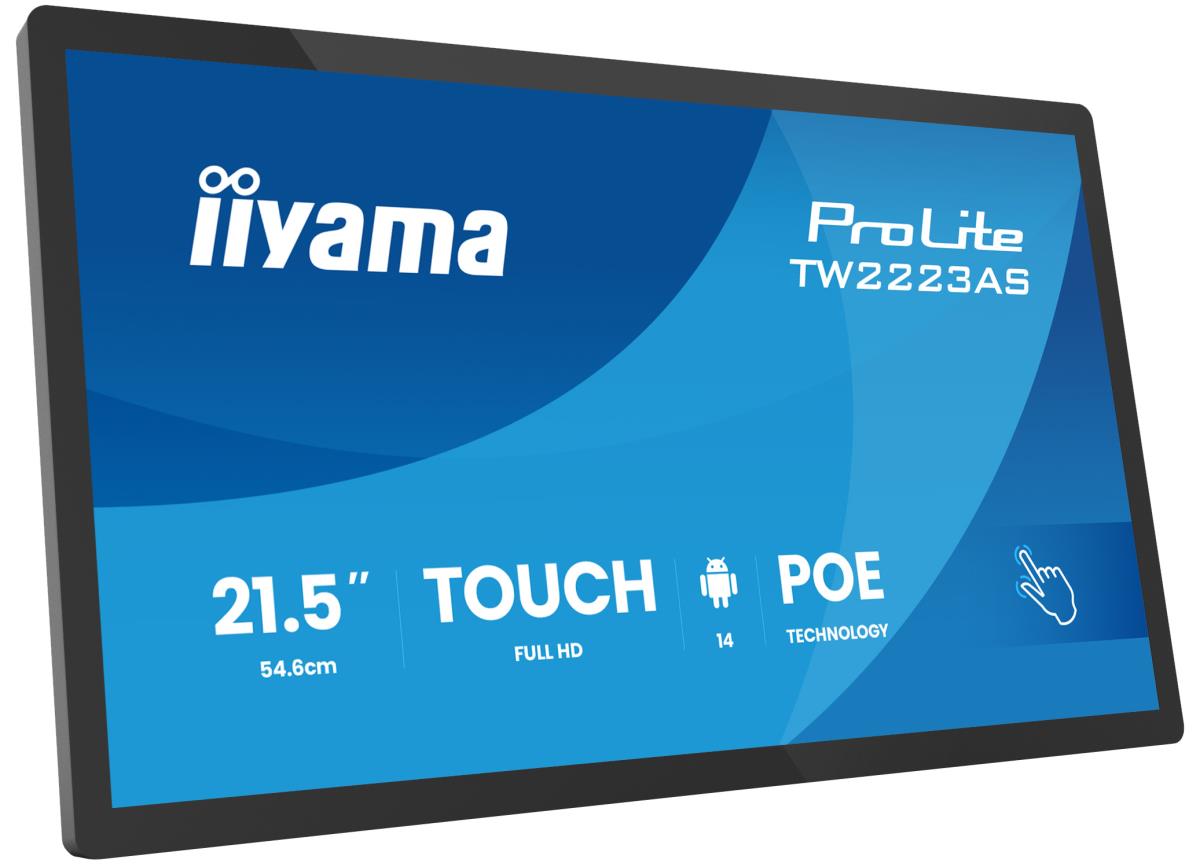

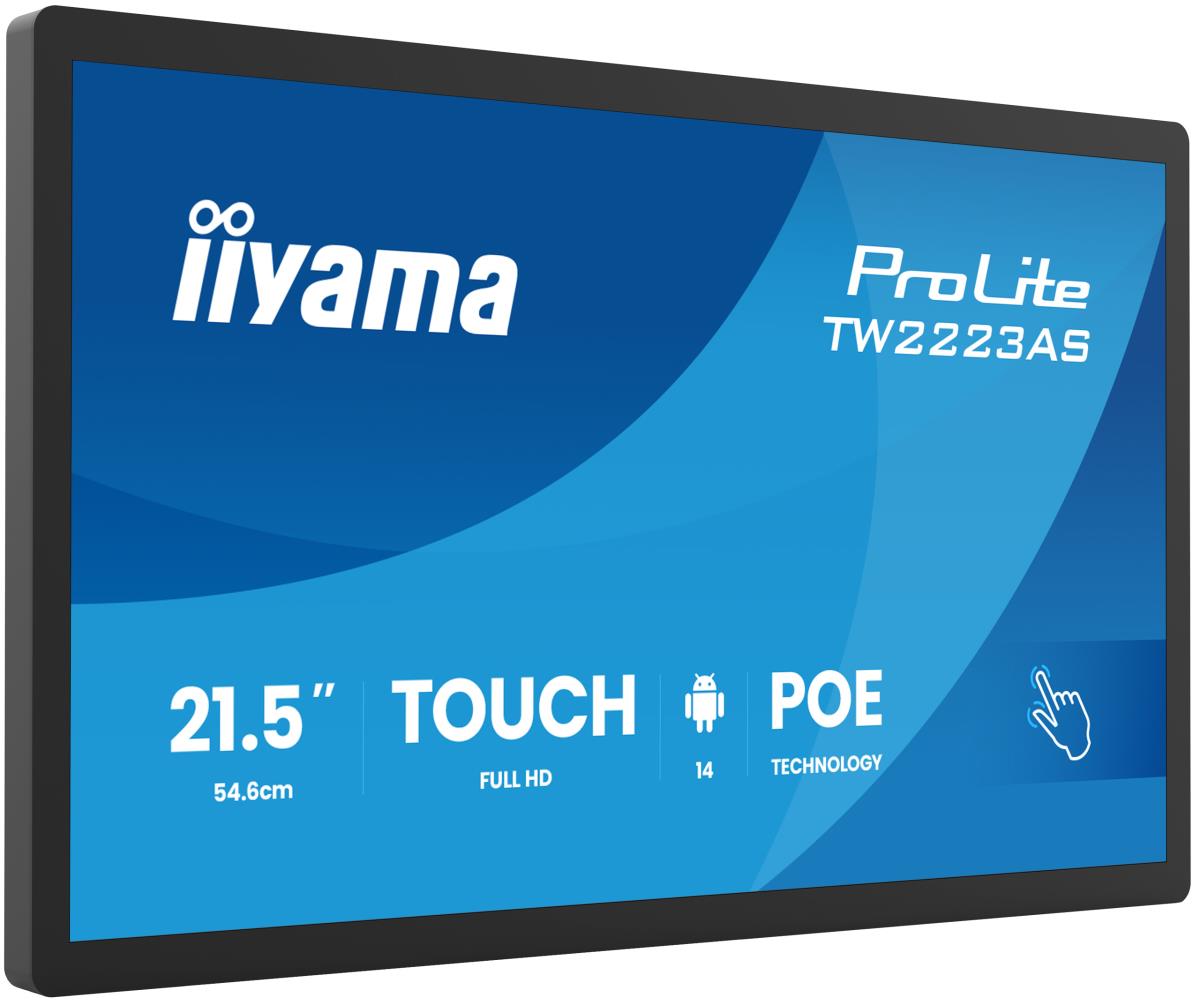

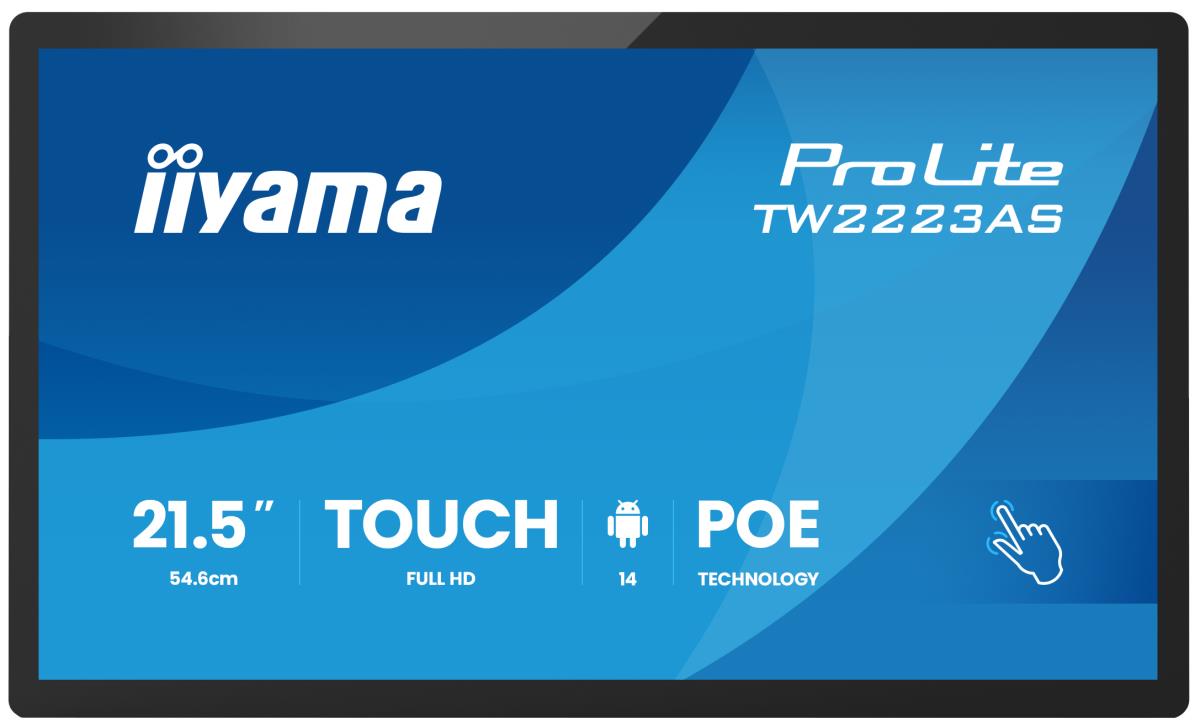

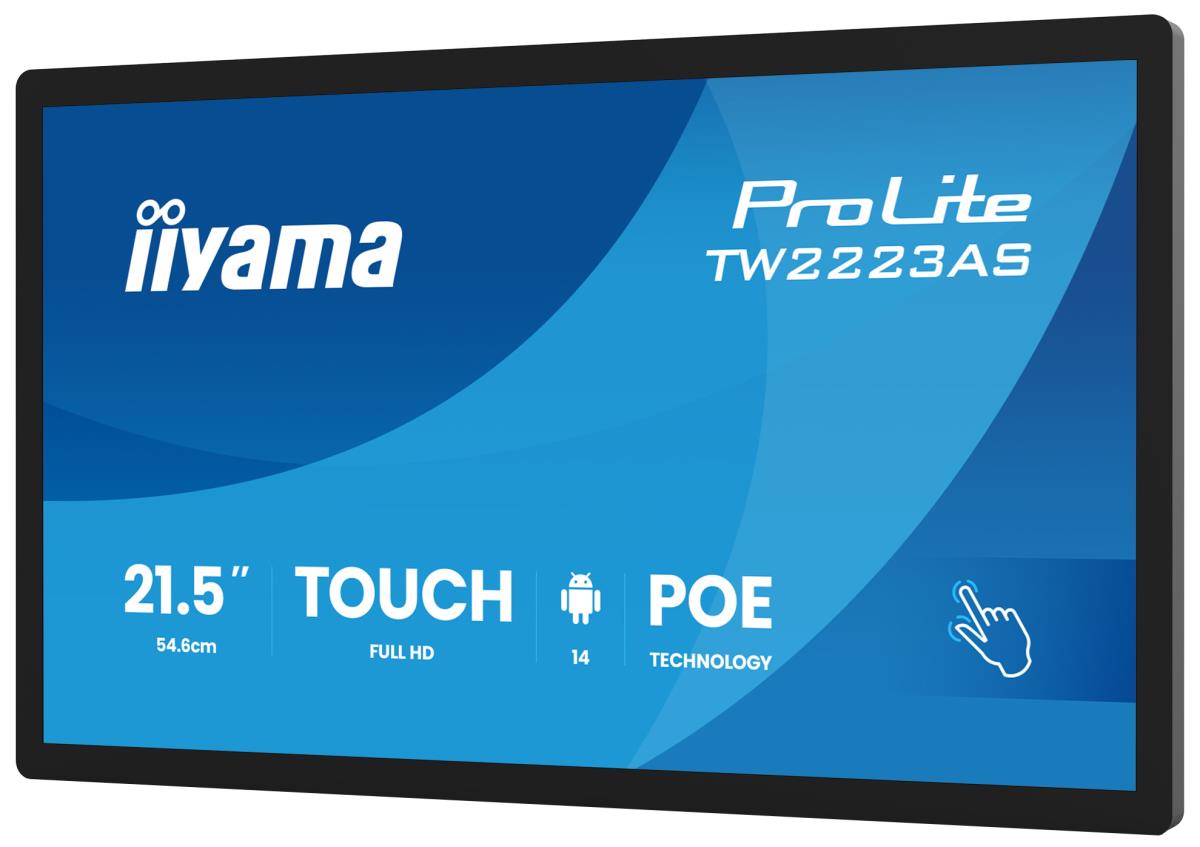

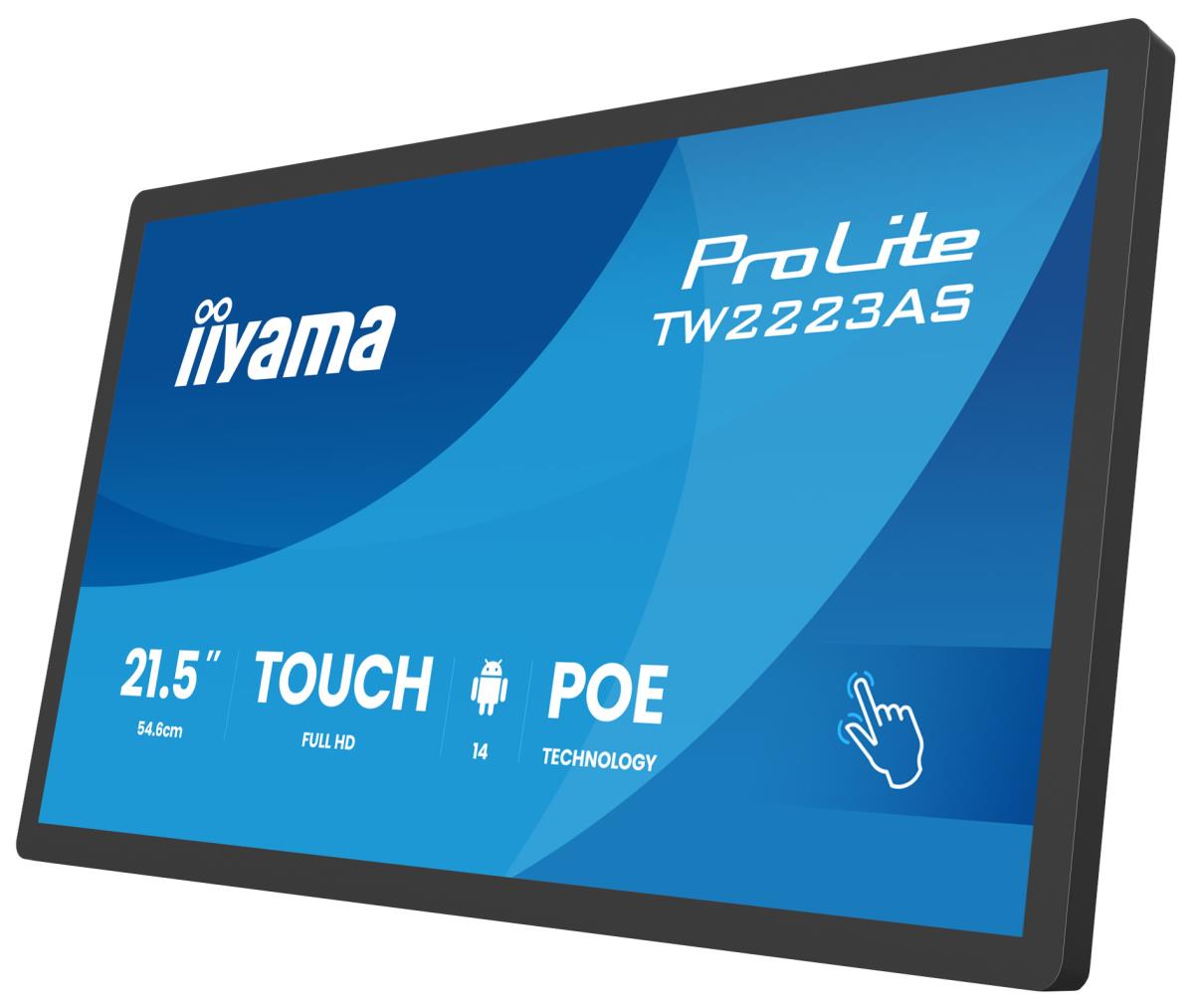

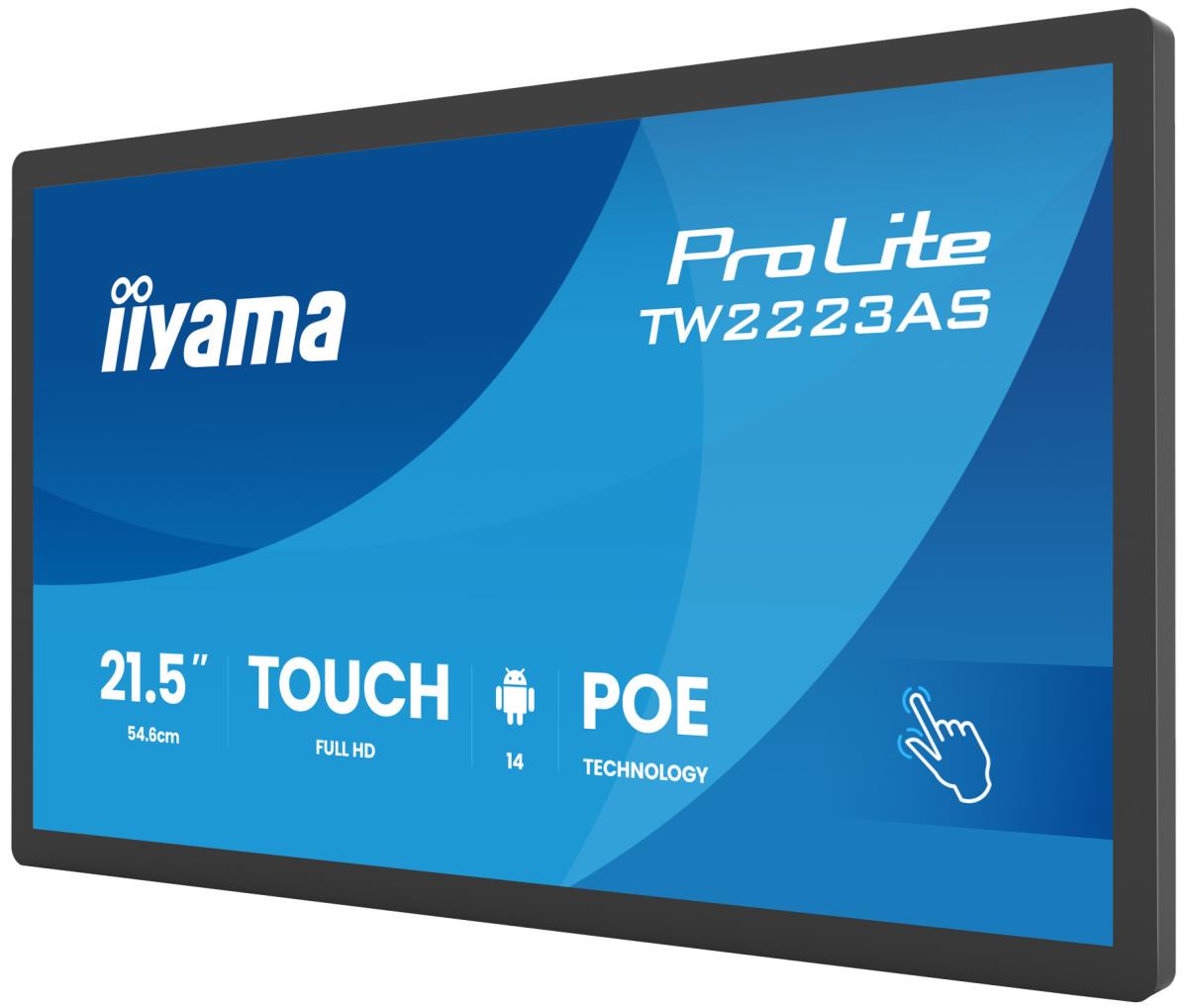

The ProLite TW2223AS-B3P interactive Touchpanel-PC is a perfect choice for high-use environments. The IPS panel, integrated in a slim and elegant bezel, delivers both excellent colour performance with wide viewing angles and noticeably sharper images. The In-cell 10tp PCAP touch technology ensures a fluid and natural touch experience. This monitor can operate in landscape, portrait and face-up orientation in 24/7 operating time. Thanks to the pre-installed Android 14 operating system, it is possible to easily customize the monitor by installing applications directly to it. In combination with the 32GB storage, Wi-Fi connection, LAN (RJ45) and Bluetooth connectors, it makes the monitor especially suited for POS systems or information points in retail shops to educate customers about your products, as well as virtually limitless smart home applications. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. Additionally, it integrates effortlessly with iiSignage² , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising.
Display
Panel type
IPS
Display diagonal
54.6 cm (21.5")
Display resolution
1920 x 1080 pixels
Display brightness
450 cd/m²
HD type
Full HD
Touchscreen
Yes
Touchscreen technology
Projected capacitive system
Number of simultaneous touchpoints
10
Native aspect ratio
16:9
Response time
14 ms
Contrast ratio (typical)
1500:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.7 million colours
Pixel pitch
0.248 x 0.248 mm
Active display area (W x H)
476.1 x 267.8 mm
Display diagonal (metric)
54.6 cm
Horizontal scan range
31 - 83 kHz
Colour depth
8 bit
Surface hardness
6H
Glass thickness
2.9 mm
Display diagonal
54.6 cm (21.5")
Native aspect ratio
16:9
Panel type
IPS
Touchscreen
Yes
Touchscreen technology
Projected capacitive system
Number of simultaneous touchpoints
10
Display brightness
450 cd/m²
Response time
14 ms
Response time measurement type
GTG (Gray to Gray)
Contrast ratio (typical)
1500:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.7 million colours
Pixel pitch
0.248 x 0.248 mm
Horizontal scan range
31 - 83 kHz
Viewable size, horizontal
47.6 cm
Viewable size, vertical
26.8 cm
Display diagonal (metric)
54.6 cm
Surface hardness
6H
Colour depth
8 bit

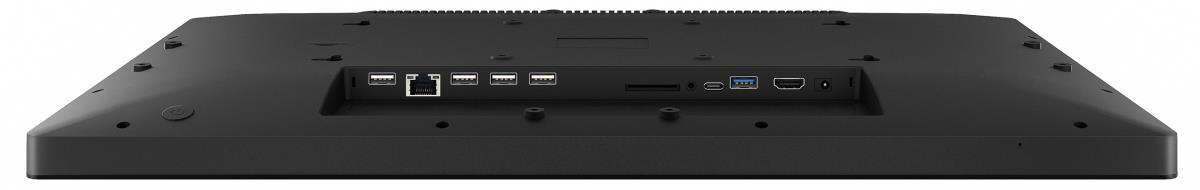

Ports & interfaces
DVI port
No
USB port
Yes
USB ports quantity
3
USB connector type
USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Ethernet LAN (RJ-45) ports
1
Audio (L/R) in
2
Microphone in
Yes
Card reader integrated
Yes
Compatible memory cards
SD
USB Touch port
Yes
HDCP
Yes
Card reader integrated
Yes
Compatible memory cards
SD
Audio
Built-in speaker(s)
Yes
RMS rated power
4 W
Number of built-in speakers
2
Design
Product design
Interactive flat panel
Placement supported
Indoor
Orientation
Horizontal/Vertical
Product colour
Black
Screen shape
Flat

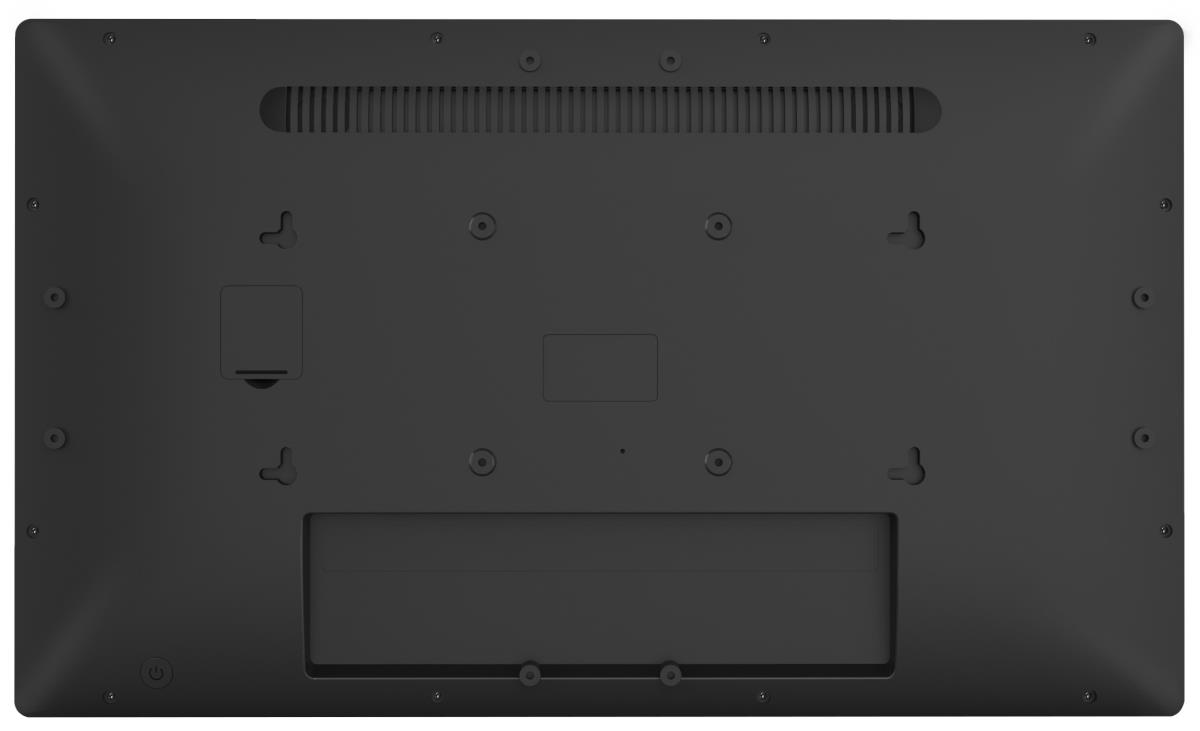

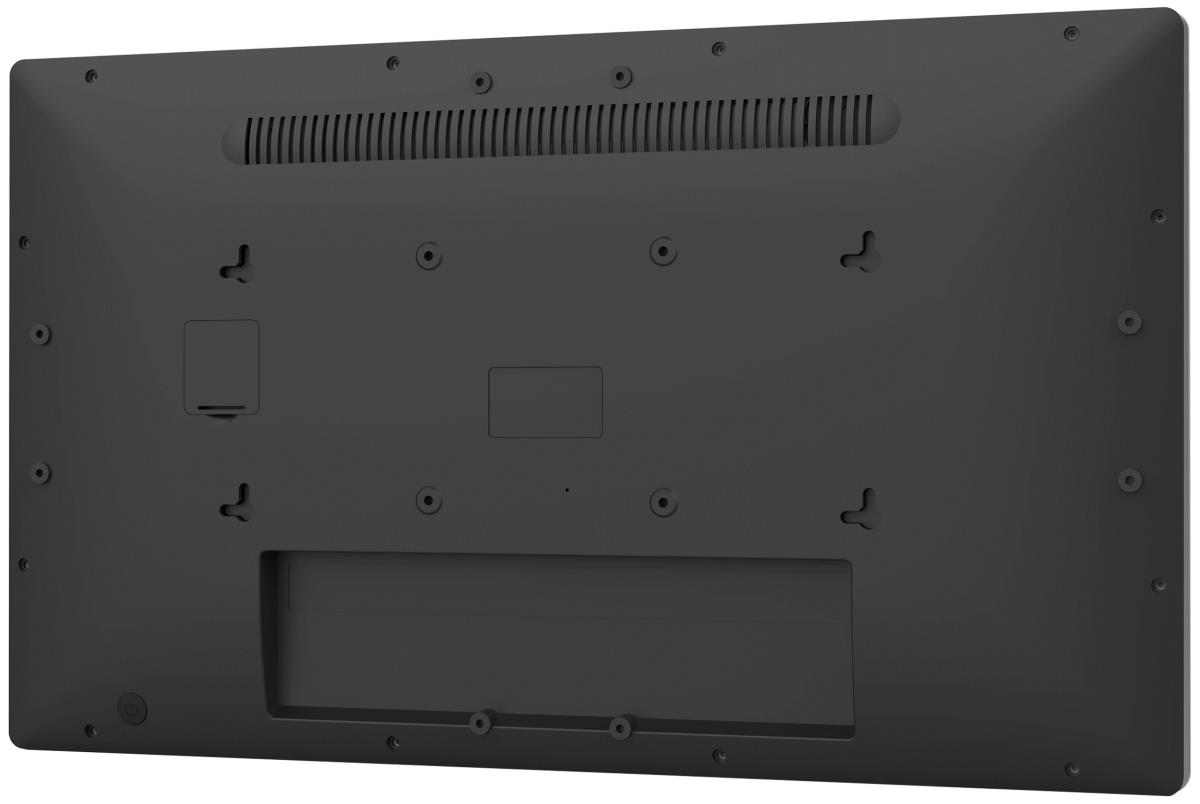

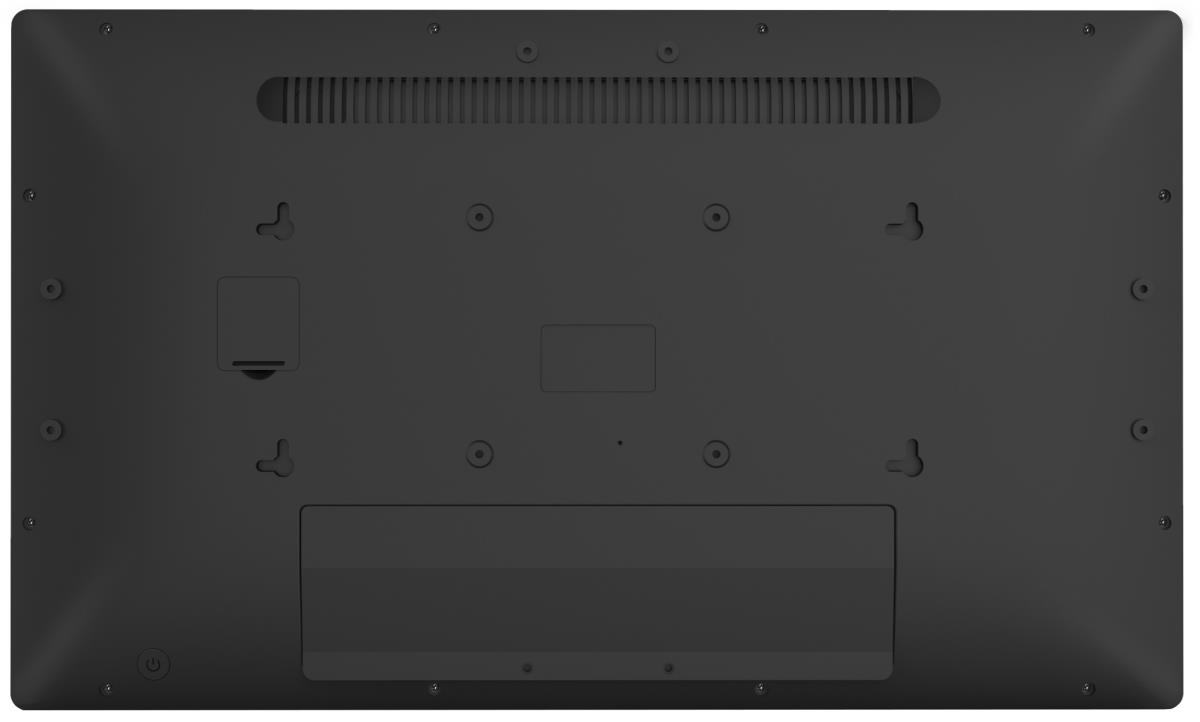

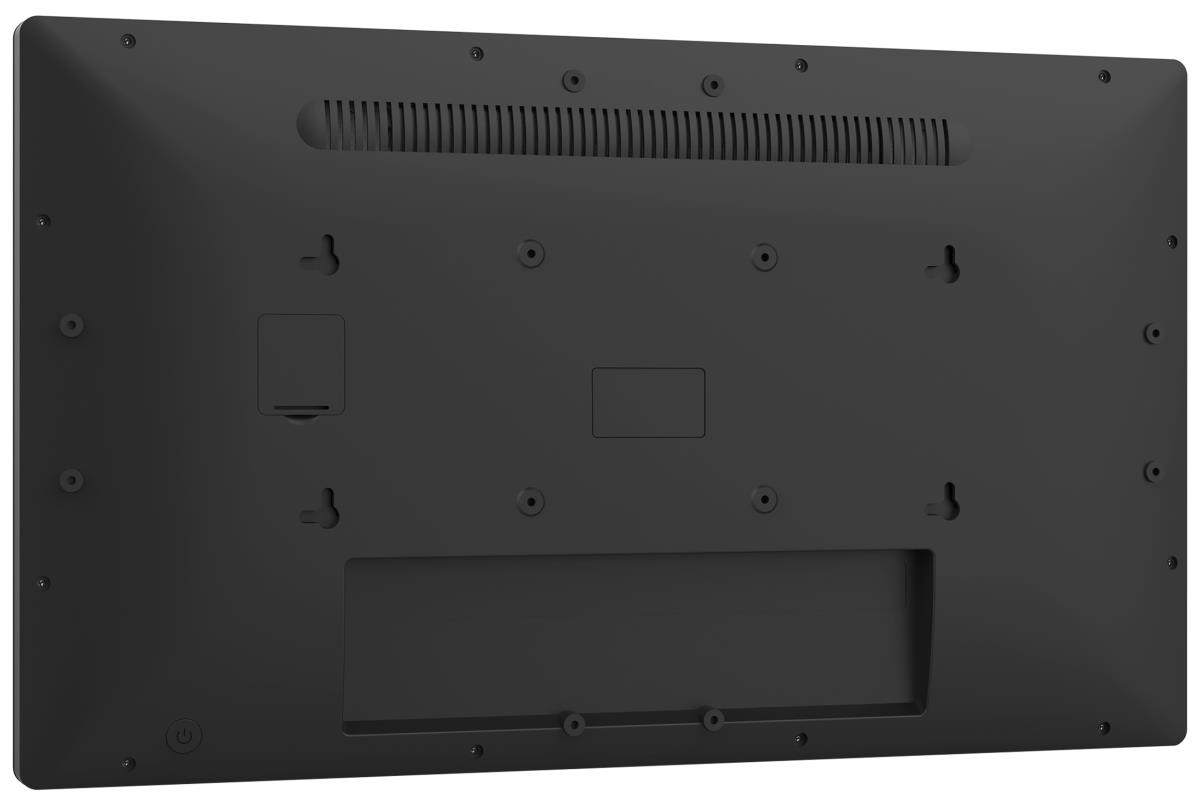

VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Bezel colour
Black
Front bezel colour
Black
Glass thickness
2.9 mm
Performance
Purpose
Universal
Operating hours (hours/days)
24/7
HDCP
Yes
Mean time between failures (MTBF)
50000 h
Flicker-free technology
Yes
Operating hours (hours/days)
24/7
Operating system version
14
Power
Power consumption (typical)
15.4 W
Power consumption (standby)
0.5 W
Power consumption (off)
0.3 W
Power over Ethernet (PoE)
Yes
Power consumption (typical)
15.4 W
Power consumption (standby)
0.5 W
Power consumption (off)
0.3 W
AC adapter output voltage
12 V
Power supply type
External
Computer system
Computer system
Yes
Built-in processor
Yes
Processor family
ARM Rockchip
Processor model
Rockchip RK3576
Operating system installed
Android
Operating system version
14
Google applications
Google Chrome, Gmail, Google Calendar
Internal memory
4 GB
Internal storage capacity
32 GB
Weight & dimensions
Width
504.5 mm
Depth
32 mm
Height
302 mm
Weight
3.64 kg
Width (with stand)
504.5 mm
Depth (with stand)
32 mm
Height (with stand)
302 mm
Weight (with stand)
3.64 kg
Width (with stand)
504.5 mm
Depth (with stand)
32 mm
Height (with stand)
302 mm
Weight (with stand)
3.64 kg
Display width
504.5 mm
Display depth
32 mm
Display height
302 mm
Display weight
3.64 kg
Packaging data
Package width
580 mm
Package depth
375 mm
Package height
126 mm
Package weight
6 kg
Package width
580 mm
Package depth
375 mm
Package height
126 mm
Package weight
6 kg
Packaging content
Cables included
AC
Cables included
AC
Quick start guide
Yes
Power cable length
1.8 m
Network
Ethernet LAN
Yes
Ethernet LAN data rates
1000 Mbit/s
Wi-Fi
Yes
Wi-Fi standards
Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Wi-Fi
Yes
Wi-Fi standards
Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Bluetooth
Yes
Bluetooth version
5.3
Ethernet LAN
Yes
Technical details
User controls
Power switch, volume/ button +, volume/ button -
Sustainability certificates
ErP
Compliance certificates
CE, EAC, REACH, RoHS, UKCA, WEEE
Other features
Quick start guide
Yes
AC adapter included
Yes
Bluetooth
Yes
Bluetooth version
5.3
Viewable size, horizontal
47.6 cm
Viewable size, vertical
26.8 cm
Brightness
450 cd/m²
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Power supply type
External
Cable management
Yes
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Positional accuracy
2 mm
AC adapter included
Yes
Google applications
Google Chrome, Gmail, Google Calendar
Brightness
450 cd/m²
Packaging content
AC adapter, interchangeable plugs (EU/UK)
Active display area (W x H)
476.1 x 267.8 mm
USB ports quantity
3
Weight
3.64 kg
Height
302 mm
Touch method
finger, glove (latex), capacitive stylus
Width
504.5 mm
User controls
Power switch, volume/ button +, volume/ button -
Depth
32 mm
Control panel
Power switch, volume/ button +, volume/ button -
Compliance certificates
CE, EAC, REACH, RoHS, UKCA, WEEE
Mean time between failures (MTBF)
50000 h
Ethernet LAN data rates
1000 Mbit/s
Ethernet LAN (RJ-45) ports
1
Multimedia
Number of speakers
2
RMS rated power
4 W
Built-in speaker(s)
Yes
Ergonomics
VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Cable management
Yes
Sustainability
Sustainability certificates
ErP
Information
| Part Number: | TW2223AS-B3P |
