Introduction

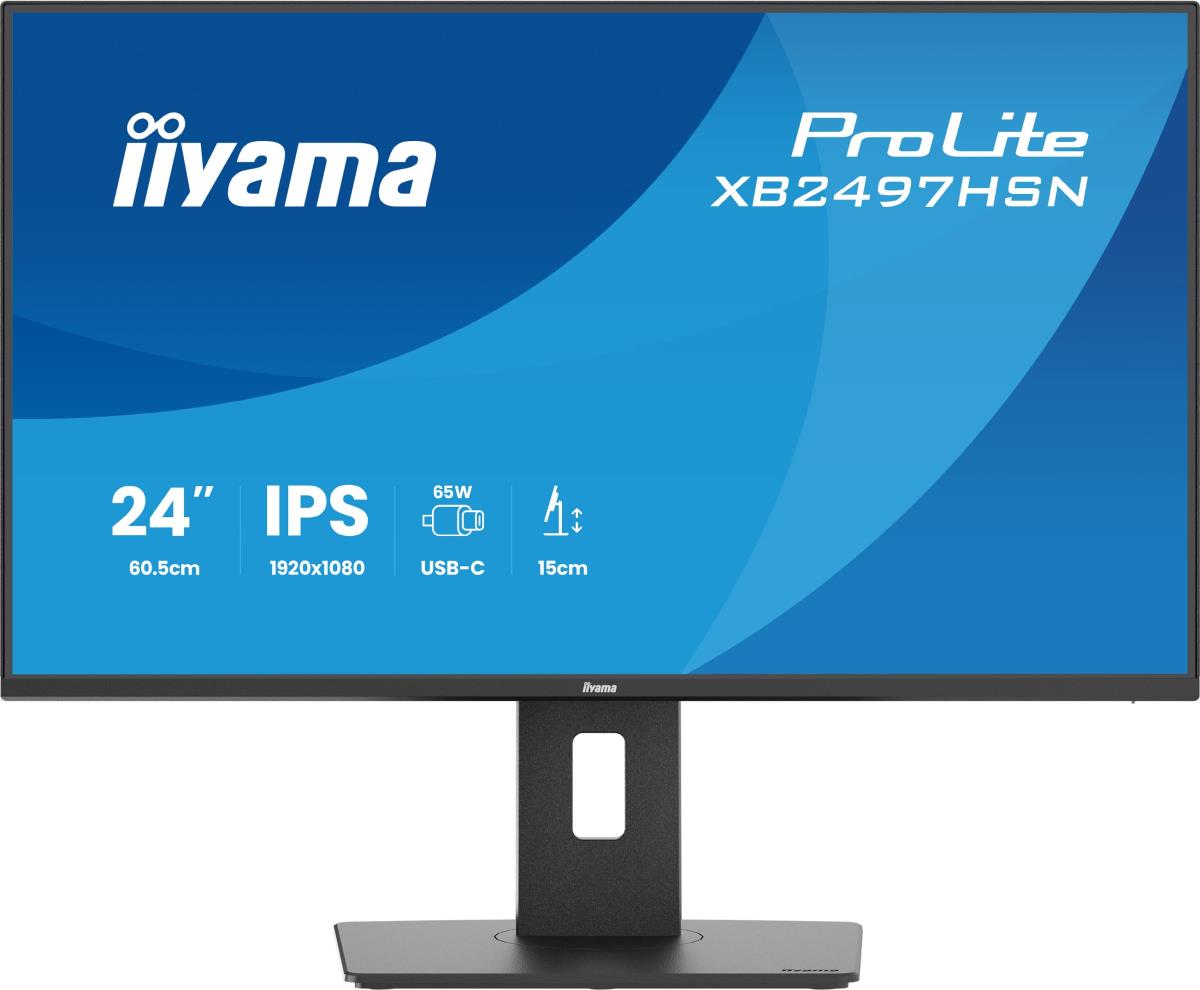

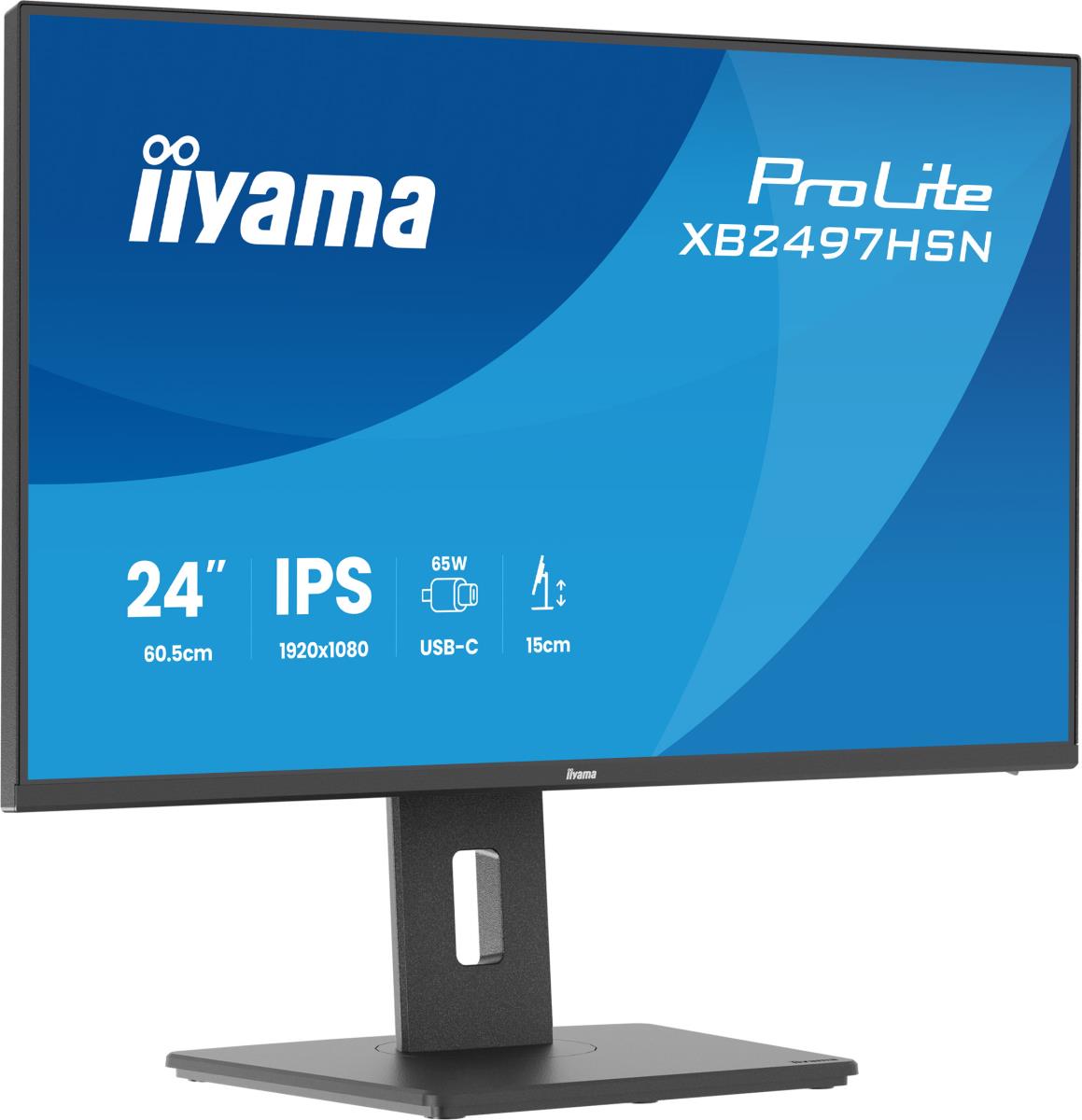

With an integrated USB-C dock, it allows you to connect your laptop, transfer video, and power or charge your device using a single cable. The DisplayPort output lets you easily connect a second monitor, making it ideal for multitasking and extended desktop setups. When the monitor is connected to the internet via LAN, your laptop also gains instant access to a wired network. Alongside USB-C, the monitor features HDMI and DisplayPort inputs to support a wide range of devices, as well as a USB hub for connecting peripherals directly. Flicker free technology helps reduce eye strain. The monitor is also certified for Eye Comfort, ensuring viewing comfort throughout the day. The ergonomic stand offers height adjustment, tilt, swivel and pivot functions, allowing you to position the screen to your needs. With a four side slim bezel design, the XB2497HSN-B1 is an excellent choice for clean, modern, and multi-monitor workspaces.
Display
Display diagonal
60.5 cm (23.8")
Display resolution
1920 x 1080 pixels
HD type
Full HD
Native aspect ratio
16:9
Display technology
LED
Panel type
IPS
Touchscreen
No
Display brightness (typical)
350 cd/m²
Response time
1 ms
Response time (MPRT)
1 ms
Display surface
Matt
Screen shape
Flat
Contrast ratio (typical)
1500:1
Maximum refresh rate
100 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.7 million colours
Pixel pitch
0.275 x 0.275 mm
Horizontal scan range
30 - 115 kHz
Viewable size, horizontal
52.7 cm
Viewable size, vertical
29.6 cm
Display diagonal (metric)
60.5 cm
Contrast ratio (dynamic)
80000000:1
sRGB coverage (typical)
99%
NTSC coverage (typical)
72%
Performance
AMD FreeSync
Yes
Flicker-free technology
Yes
Low Blue Light technology
Yes
Multimedia
Number of speakers
2
RMS rated power
4 W
Built-in speaker(s)
Yes
Built-in camera
No
Design
Market positioning
Business
Product colour
Black

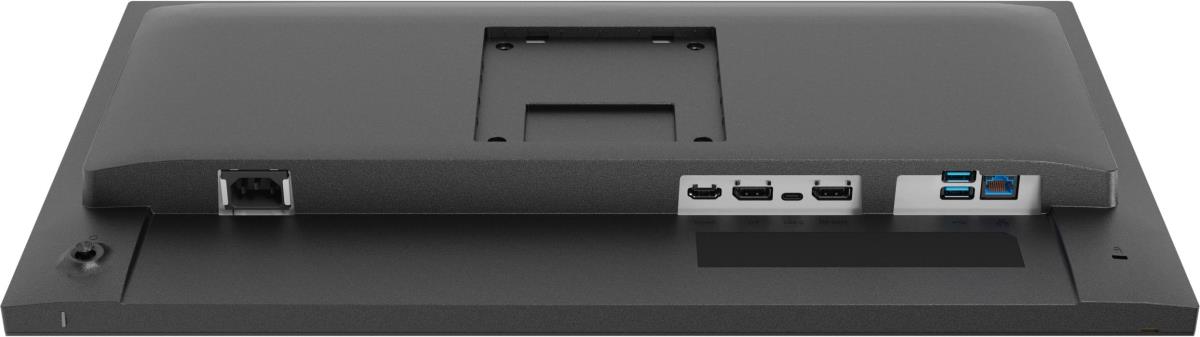

Ports & interfaces
Built-in USB hub
Yes
USB upstream port type
USB Type-C
Number of downstream ports
4
Number of USB Type-C upstream ports quantity
1
USB Power Delivery (USB PD)
Yes
USB Power Delivery up to
65 W
HDMI
Yes
HDMI ports quantity
1
HDMI version
1.4
DisplayPorts quantity
1
DisplayPort out quantity
1
DisplayPort version
1.2
Headphone out
Yes
HDCP
Yes
USB hub version
3.2 Gen 1 (3.1 Gen 1)
Network

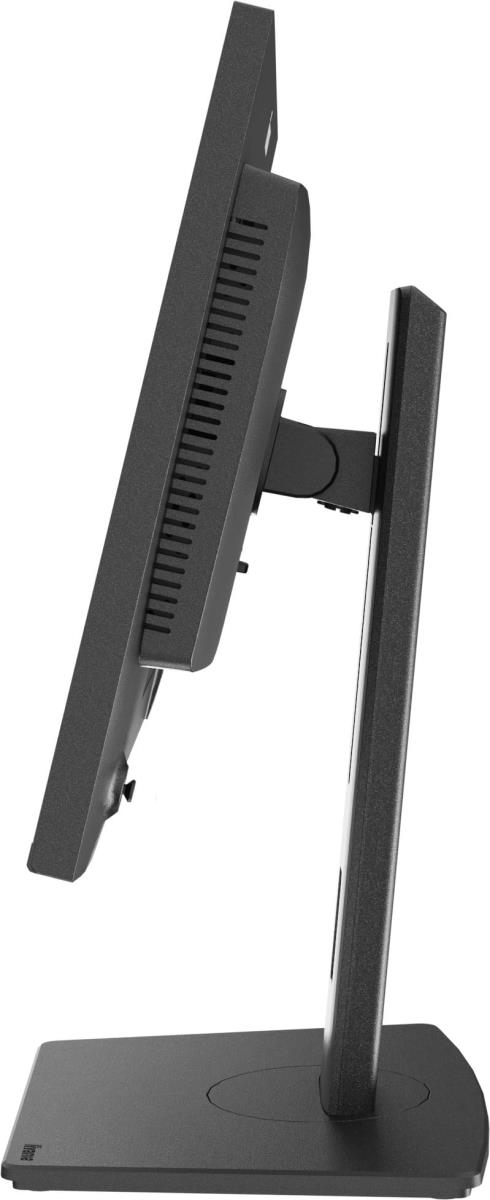

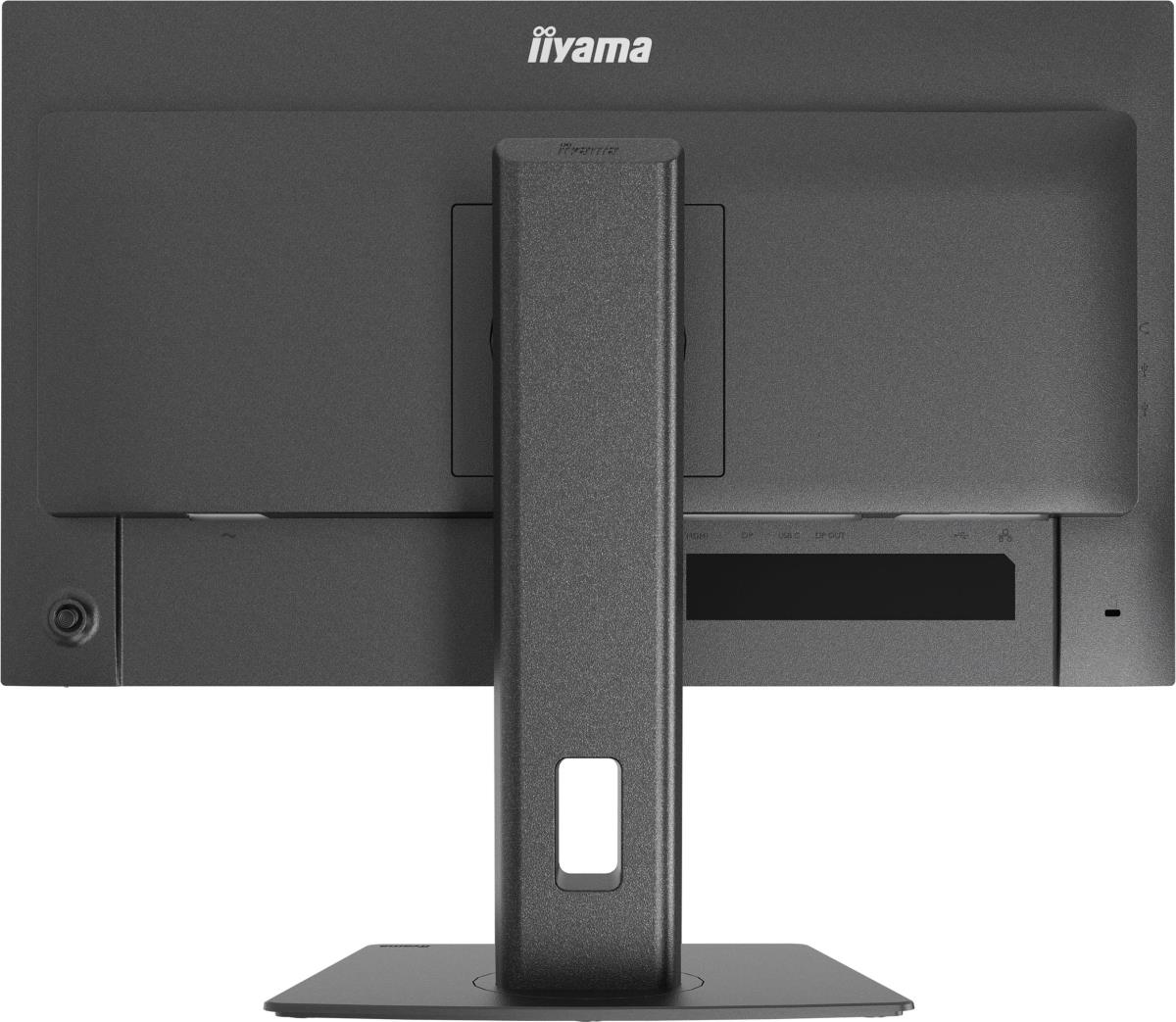

Ergonomics
VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Cable management
Yes
Cable lock slot
Yes
Cable lock slot type
Kensington

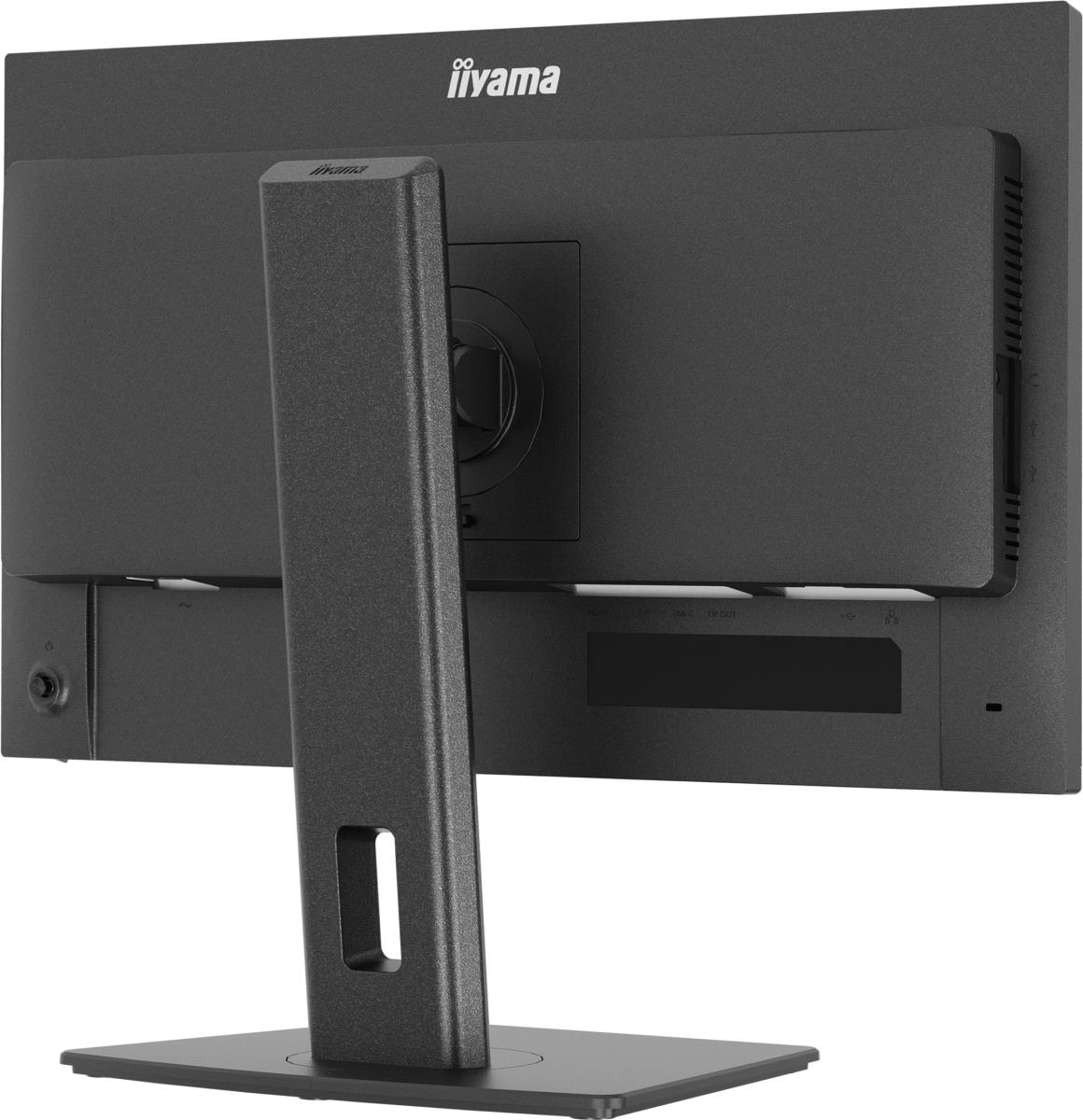

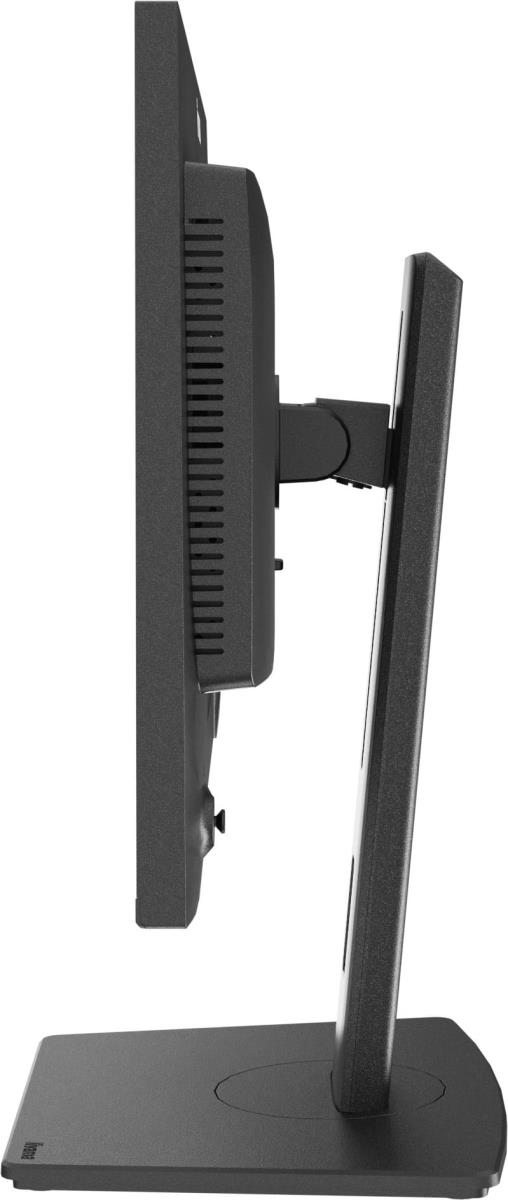

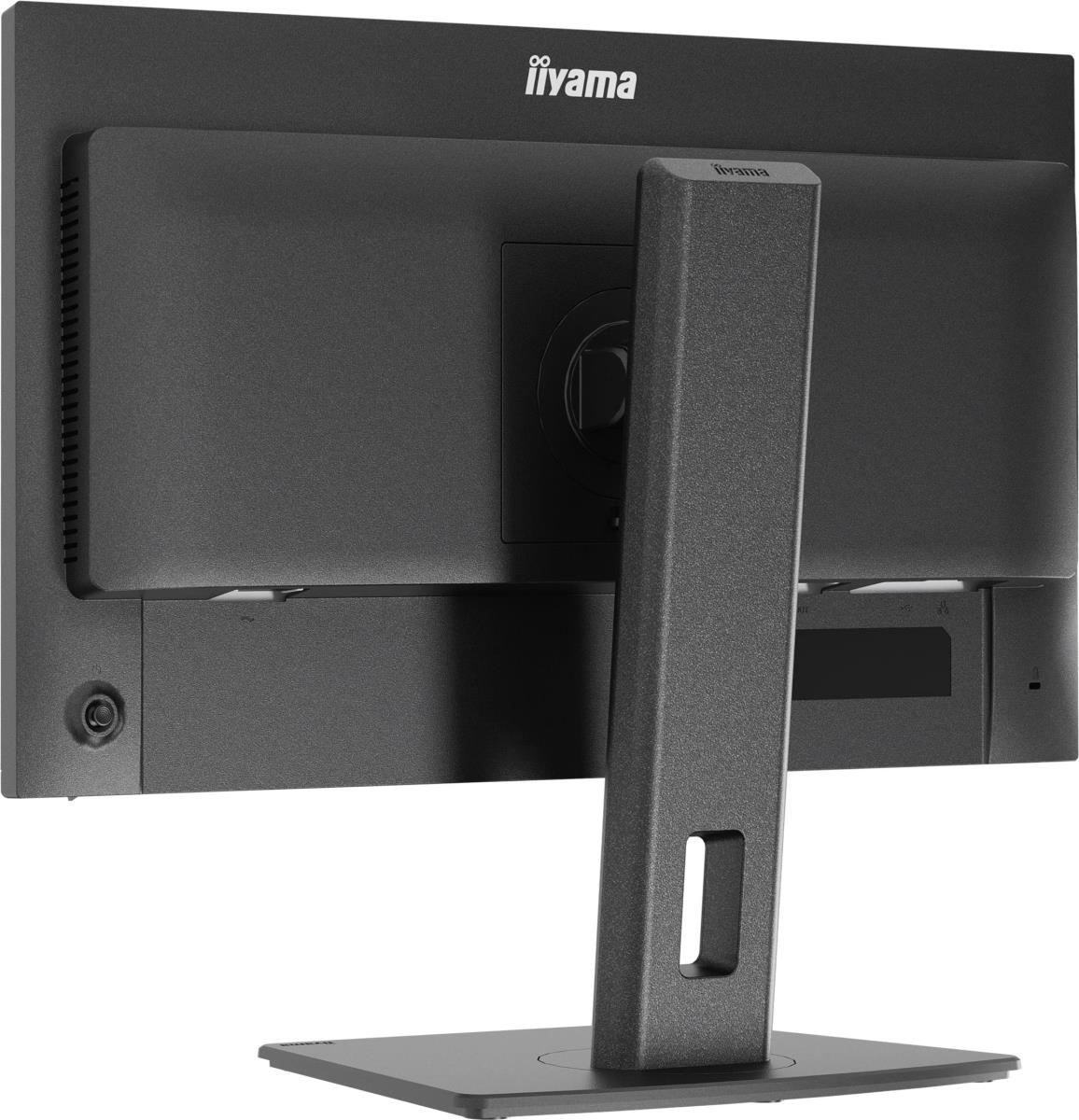

Height adjustment
Yes
Adjustable height (max)
15 cm

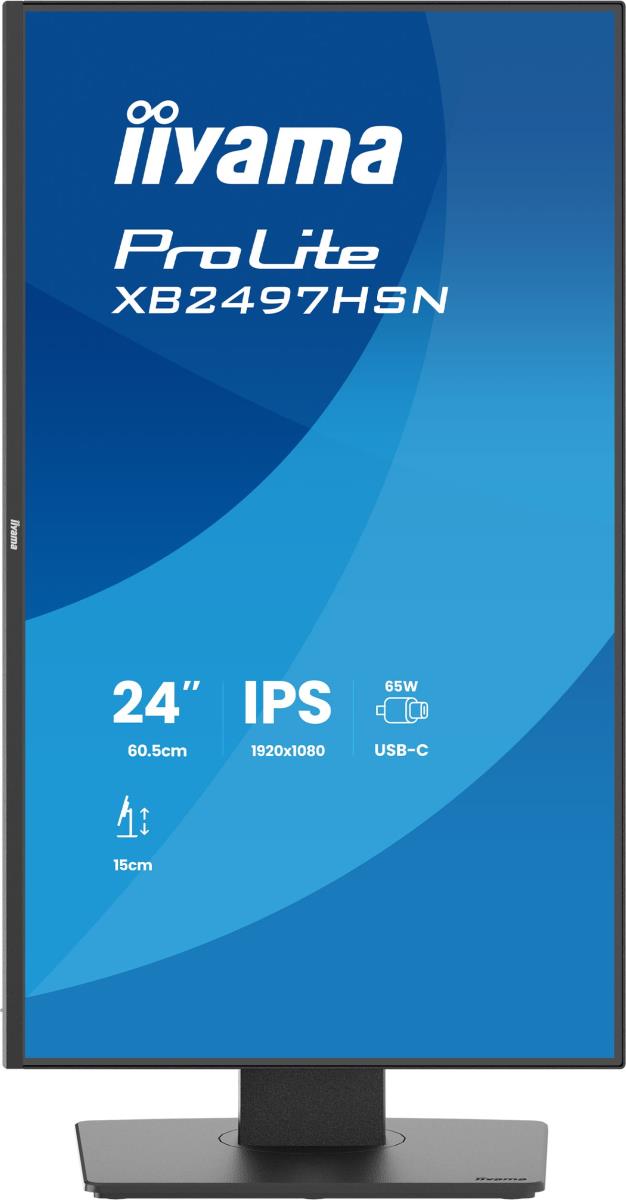

Pivot
Yes
Swivelling
Yes
Swivel angle range
-60 - 60°
Tilt adjustment
Yes
On Screen Display (OSD) languages
Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Russian, Ukrainian
Power
Energy efficiency class (SDR)
D
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
14 kWh
Power consumption (typical)
15 W
Power consumption (standby)
0.5 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power supply type
Internal
Energy efficiency scale
A to G
Power consumption (off)
0.3 W
Weight & dimensions
Width (with stand)
538.5 mm
Depth (with stand)
209.5 mm
Height (with stand)
496.5 mm
Weight (with stand)
5.1 kg
Height (without stand)
373.5 mm
Packaging data
Package width
685 mm
Package depth
126 mm
Package height
405 mm
Package weight
6.9 kg
USB cable length
1 m
Packaging content

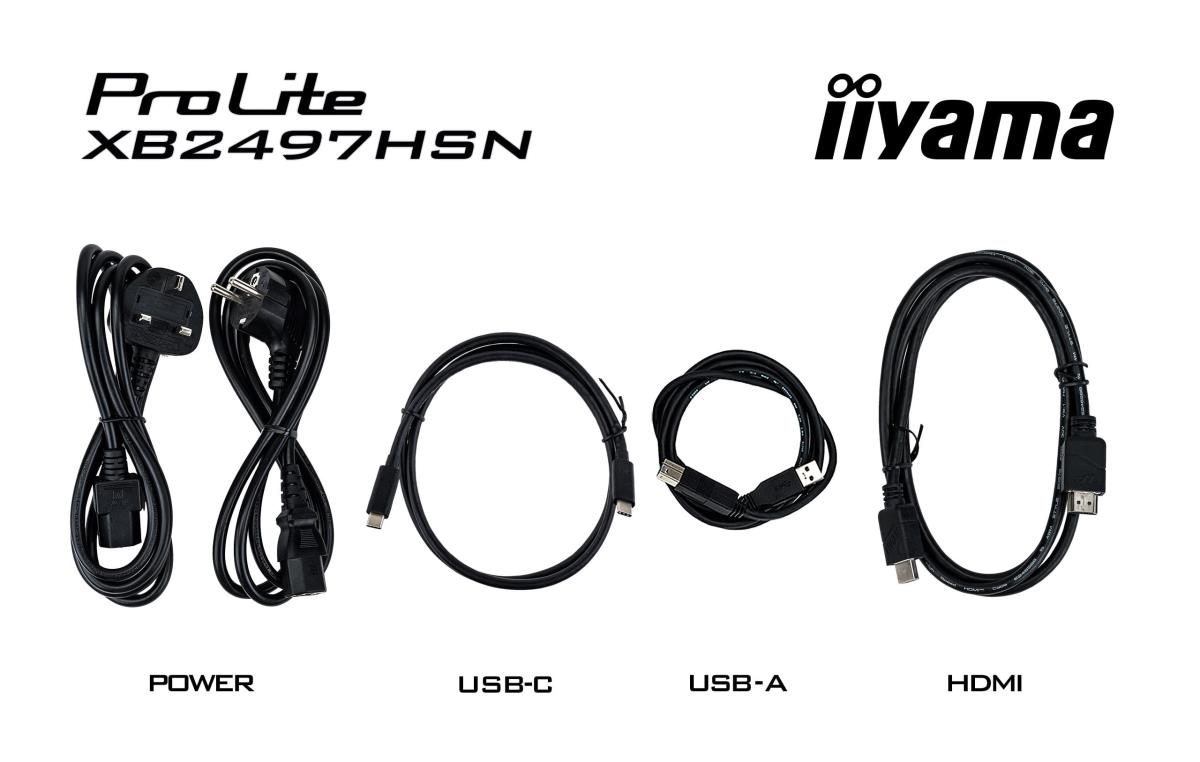

Cables included
AC, HDMI, USB Type-C
HDMI cable length
1.5 m
Power cable length
1.5 m
Sustainability
Sustainability certificates
ErP, TCO
Other features
User controls
picture adjust (brightness, contrast, ECO, ACR, OD, MBR, Adaptive Sync), colour settings (i-Style colour, RGB range, colour temp., user preset), OSD (OSD H. position, OSD V. position, OSD rotate, OSD time, OSD background, DDC/CI control, display information), language, extra 1 (sharpness, video mode adjust, opening logo, power LED, USB charge, USB-C speed, MST DP-out), extra 2 (shortcut key, Mac address, FW version), input select, audio settings (volume, mute), reset (reset all?)
Packaging content
quick start guide, safety guide
Weight
5.1 kg
Width
538.5 mm
Depth
209.5 mm
Control panel
Joystick: (Centre) Power/Menu, Up/Signal Select, Down, Left/Shortcut, Right/Volume
Compliance certificates
CE, EAC, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE
Manufacturer warranty
5 years (for details and eligible countries please check the Warranty section of our website)
Ethernet LAN (RJ-45) ports
1
Technical details
Native refresh rate
60 Hz
