Introduction

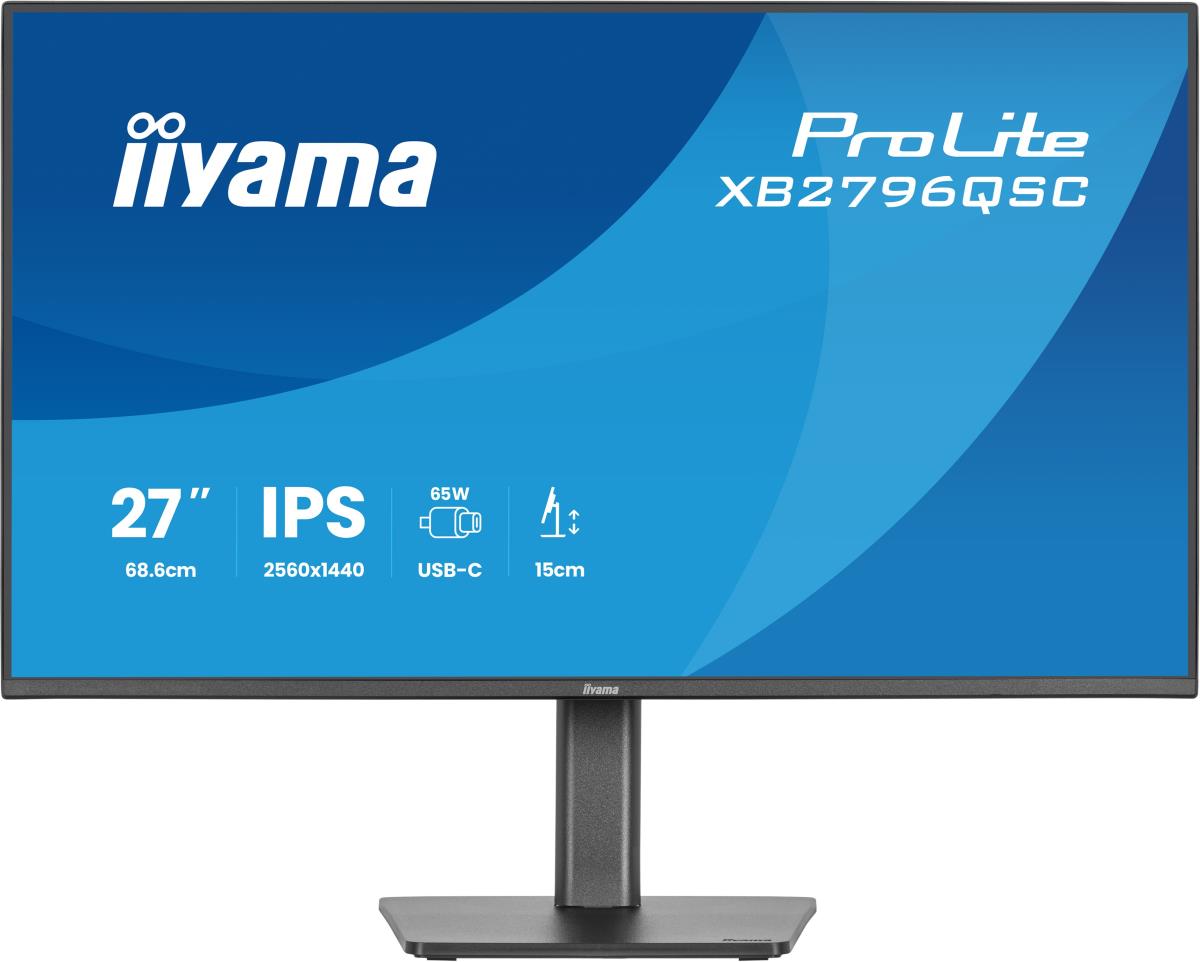

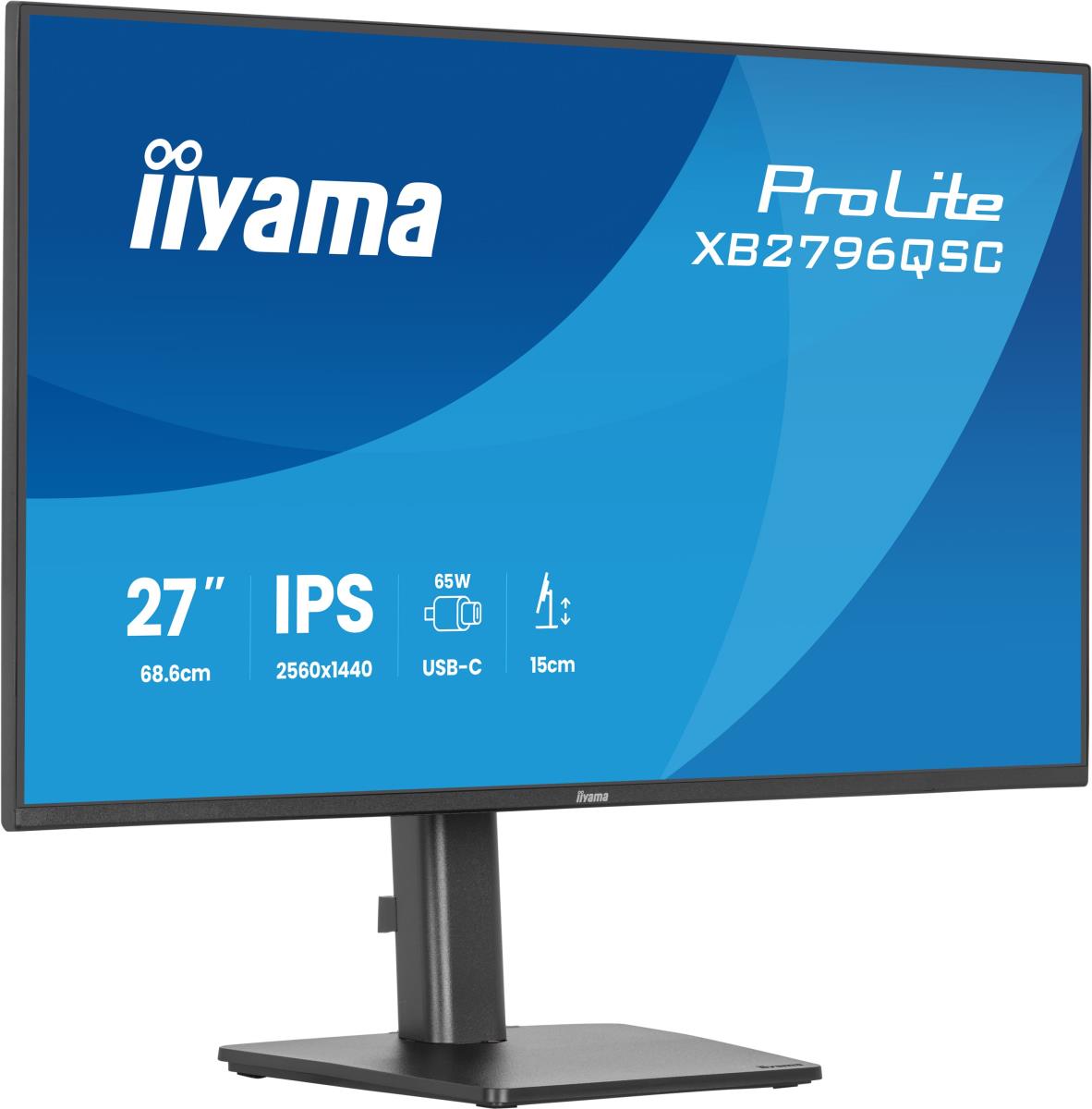

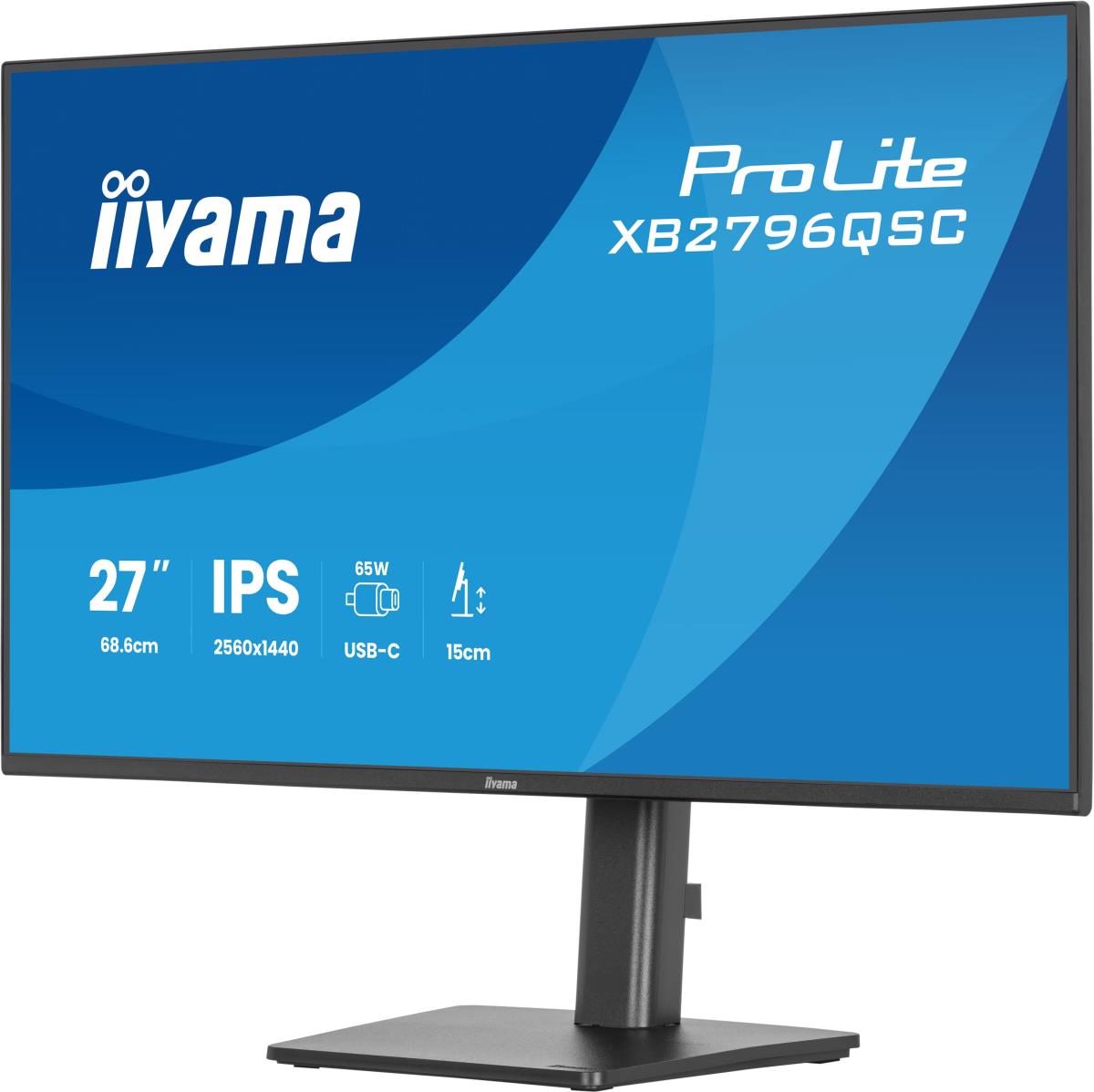

Spacious, efficient, and built for modern work, the 27” ProLite XB2796QSC-B1 helps professionals stay productive in hybrid and office environments. Its QHD resolution (2560x1440) offers 77% more screen space than Full HD, allowing you to view more data, compare documents side by side and multitask with ease. Slim bezels on all sides make it ideal for multi-monitor setups, while the ergonomic stand with height, tilt, swivel and pivot adjustments supports a healthy, comfortable posture throughout the day. The IPS panel delivers accurate colours and wide viewing angles, perfect for business use, video meetings and content previews. One USB-C cable handles both video signal and up to 65W of power to your laptop, reducing cable clutter and simplifying setup. Flicker-free technology and a blue light reducer help minimise eye strain during extended use. From data analysis to meetings, the XB2796QSC-B1 brings clarity, comfort and smart connectivity to your daily workflow.
Display
Display technology
LED
Touchscreen
No
Screen shape
Flat
Contrast ratio (dynamic)
80000000:1
Vertical scan range
48 - 75 Hz
Colour gamut standard
NTSC, sRGB
Display diagonal
68.6 cm (27")
Display resolution
2560 x 1440 pixels
HD type
Quad HD
Native aspect ratio
16:9
Panel type
IPS
Display brightness (typical)
350 cd/m²
Response time
4 ms
Response time measurement type
GTG (Gray to Gray)
Display surface
Matt
Contrast ratio (typical)
1000:1
Maximum refresh rate
75 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.7 million colours
Pixel pitch
0.233 x 0.233 mm
Horizontal scan range
30 - 120 kHz
Viewable size, horizontal
59.7 cm
Viewable size, vertical
33.6 cm
Display diagonal (metric)
68.5 cm
DDC/CI
Yes
sRGB coverage (typical)
96%
NTSC coverage (typical)
72%
Design
Market positioning
Business
Frameless design
Yes
Product colour
Black

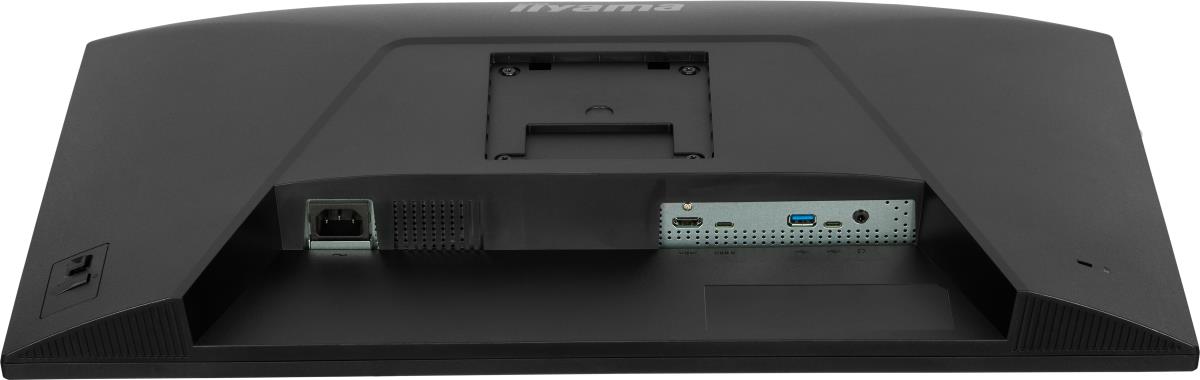

Ports & interfaces
USB upstream port type
USB Type-C
Number of upstream ports
1
Number of downstream ports
2
Number of USB Type-C upstream ports quantity
1
USB Type-A downstream ports quantity
1
USB Type-C downstream ports quantity
1
USB Type-C DisplayPort Alternate Mode
Yes
HDMI
Yes
HDMI version
1.4
Headphone outputs
1
Headphone connectivity
3.5 mm
Built-in USB hub
Yes
USB hub version
3.2 Gen 1 (3.1 Gen 1)
USB Power Delivery (USB PD)
Yes
USB Power Delivery up to
65 W
HDMI ports quantity
1
Headphone out
Yes
HDCP
Yes
Performance
Flicker-free technology
Yes
Low Blue Light technology
Yes
Ergonomics
Pivot angle
-90 - 90°
Tilt angle range
-5 - 23°
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Czech, German, Dutch, English, Spanish, Italian, Polish, Japanese, Russian, Ukrainian, French
Number of OSD languages
11

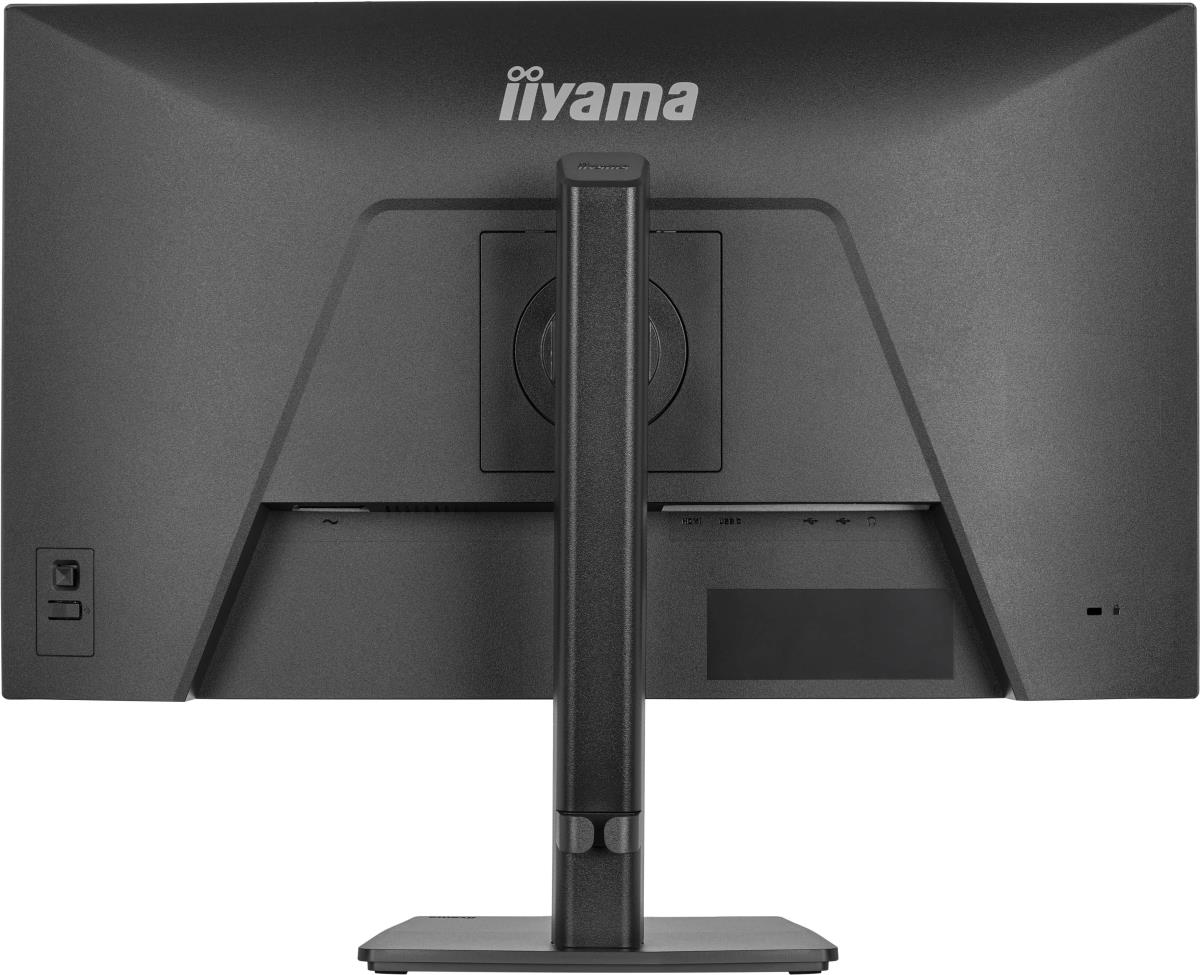

VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Cable management
Yes
Cable lock slot
Yes
Cable lock slot type
Kensington

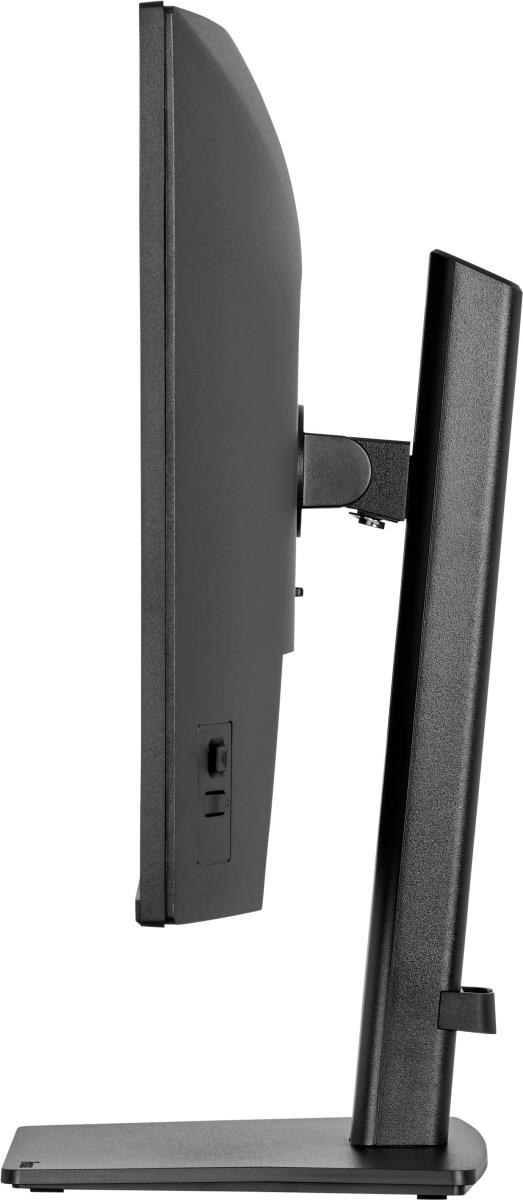

Height adjustment
Yes
Adjustable height (max)
15 cm

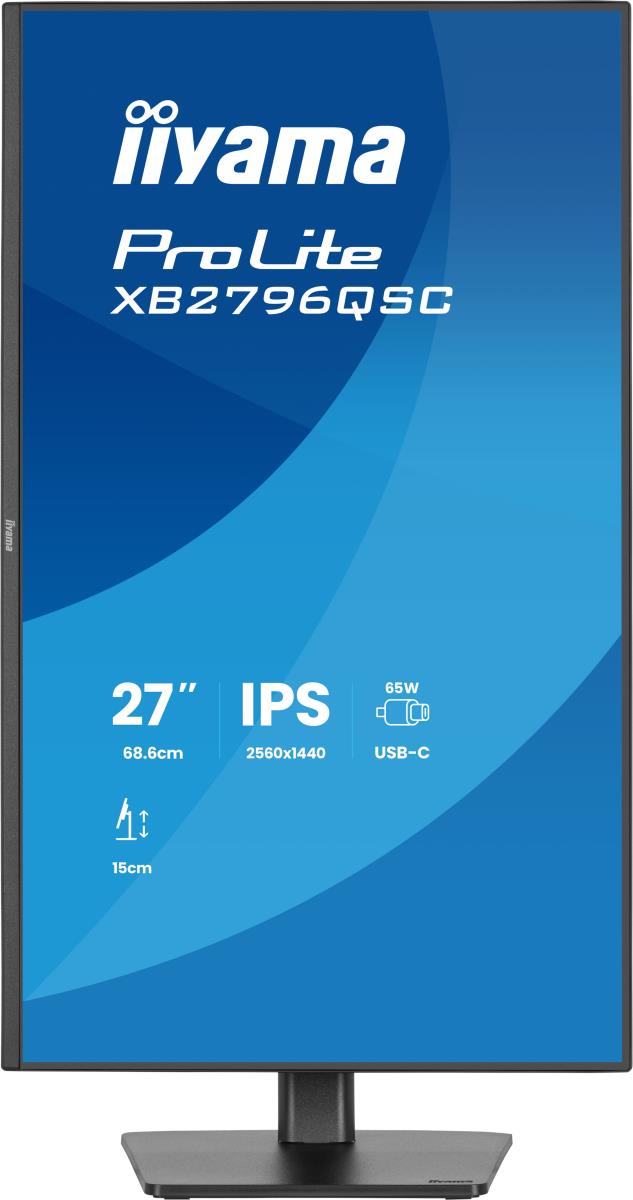

Pivot
Yes
Swivelling
Yes
Swivel angle range
-60 - 60°

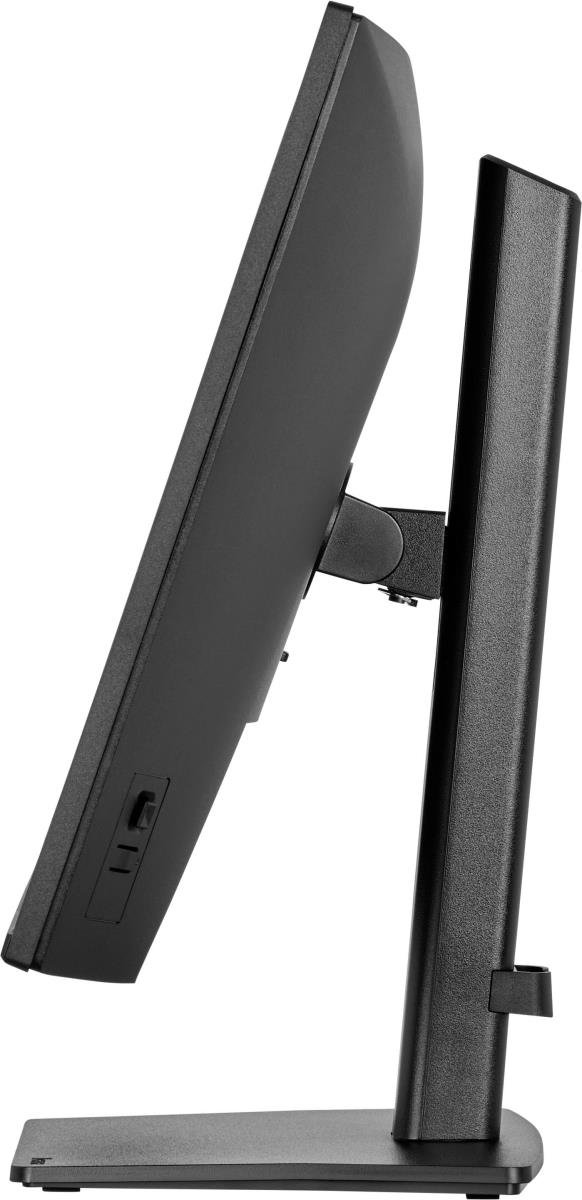

Tilt adjustment
Yes
Multimedia
Number of speakers
2
RMS rated power
4 W
Built-in speaker(s)
Yes
Power
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
20 kWh
Energy efficiency scale
A to G
Energy efficiency class (SDR)
E
Power consumption (typical)
20 W
Power consumption (standby)
0.5 W
Power consumption (off)
0.3 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power supply type
Internal
Operational conditions
Operating temperature (T-T)
5 - 35 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
10 - 80%
Storage relative humidity (H-H)
10 - 90%
Packaging data
Package type
Box
Package width
690 mm
Package depth
690 mm
Package height
465 mm
Package weight
7.6 kg
USB cable length
1 m
Packaging content

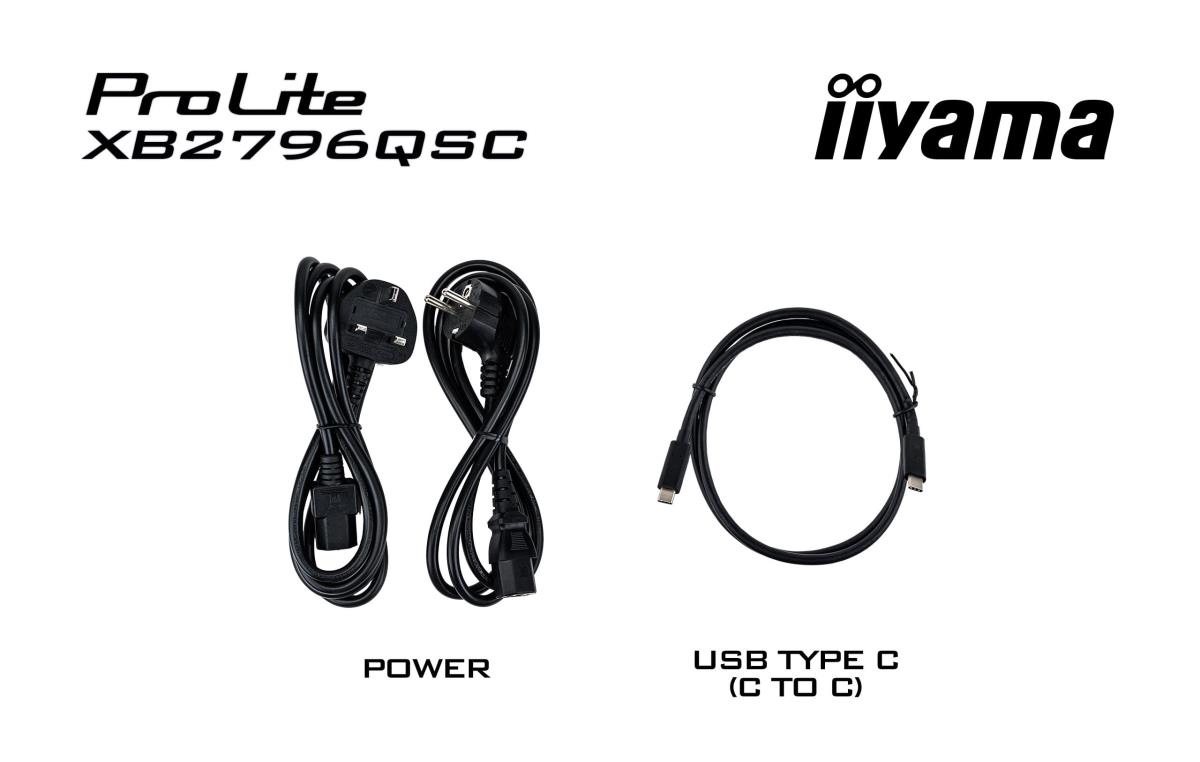

Cables included
AC, USB Type-C
Quick start guide
Yes
Power cable length
1.8 m
Other features
Compliance certificates
EAC, TÜV mark, UKCA, PSE, VCCI, REACH, RoHS, WEEE, CE
User controls
picture adjust (brightness, contrast, Eco, ACR, OD, X-Res technology, black tuner), colour settings (6-axis, i-Style colour, blue light reducer, gamma, RGB range, colour temperature), OSD (OSD H. position, OSD V. position, OSD time, OSD background, OSD rotate, display information), language, miscellaneous (sharpness, video mode adjust, opening logo, power LED, USB-C speed, USB charge, DDC/Ci control), Input select, audio settings (volume, mute audio), recall (recall all)
Packaging content
quick start guide, safety guide
Weight
6 kg
Width
613.5 mm
Depth
224.5 mm
Control panel
Joystick: Menu (Centre), Up/ Signal Select, Down/ Brightness/ OD/ Eco/ i-Style Colour, Left/ Volume Down, Right/ Volume Up, Power
Weight & dimensions
Width (with stand)
613.5 mm
Depth (with stand)
224.5 mm
Height (with stand)
550.5 mm
Weight (with stand)
6 kg
Height (without stand)
404.5 mm
Sustainability
Sustainability certificates
ErP
