Introduction

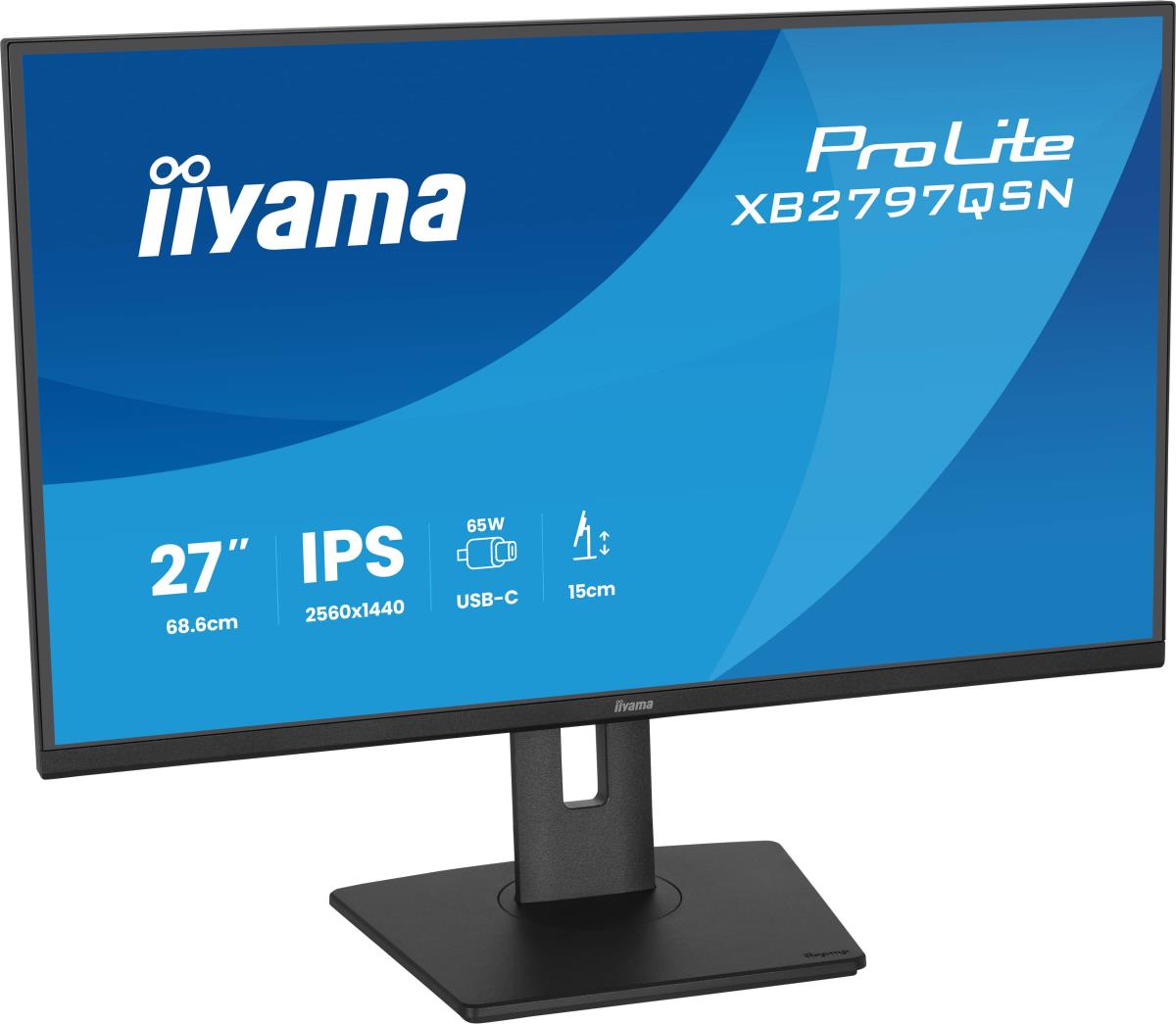

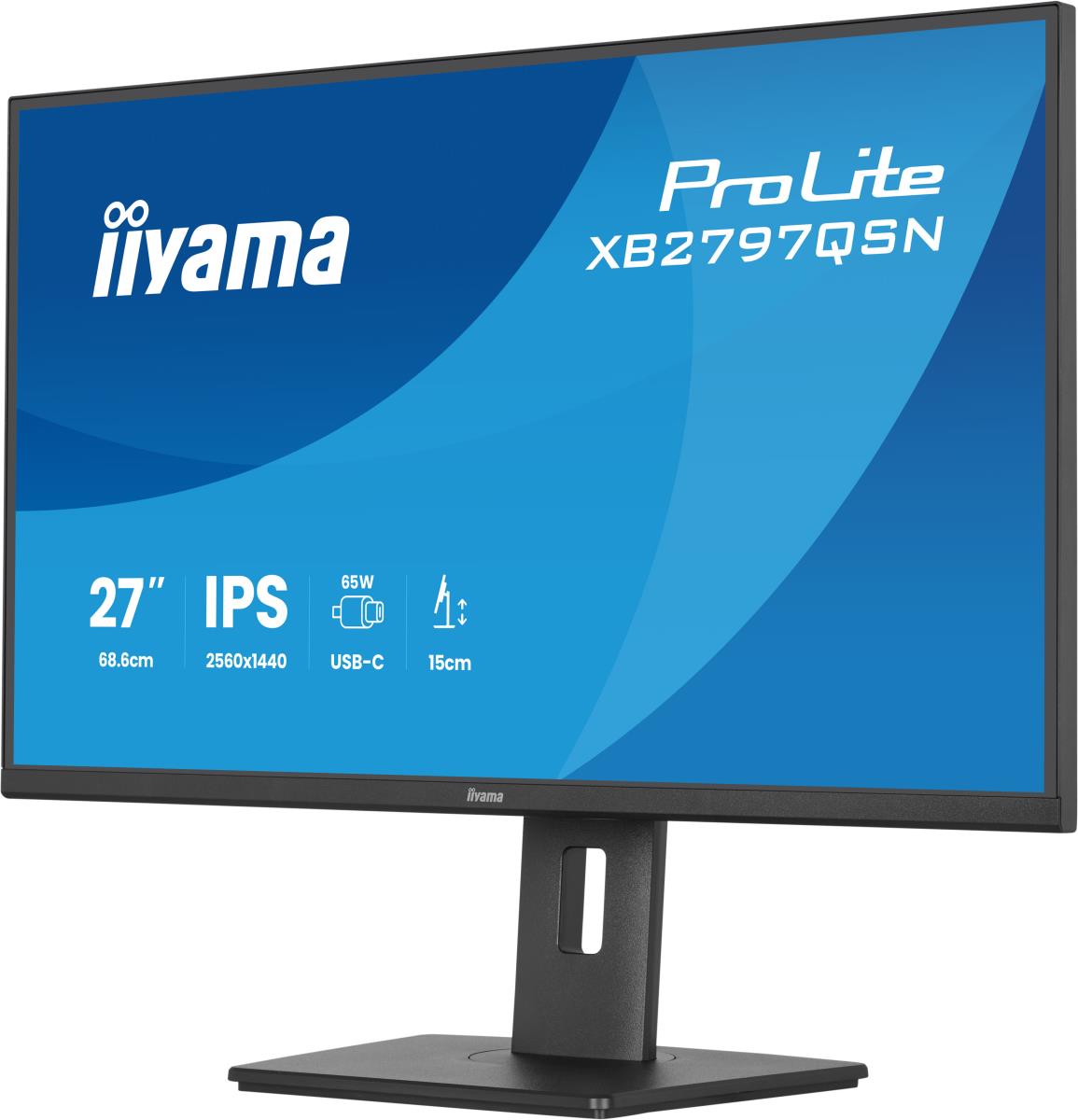

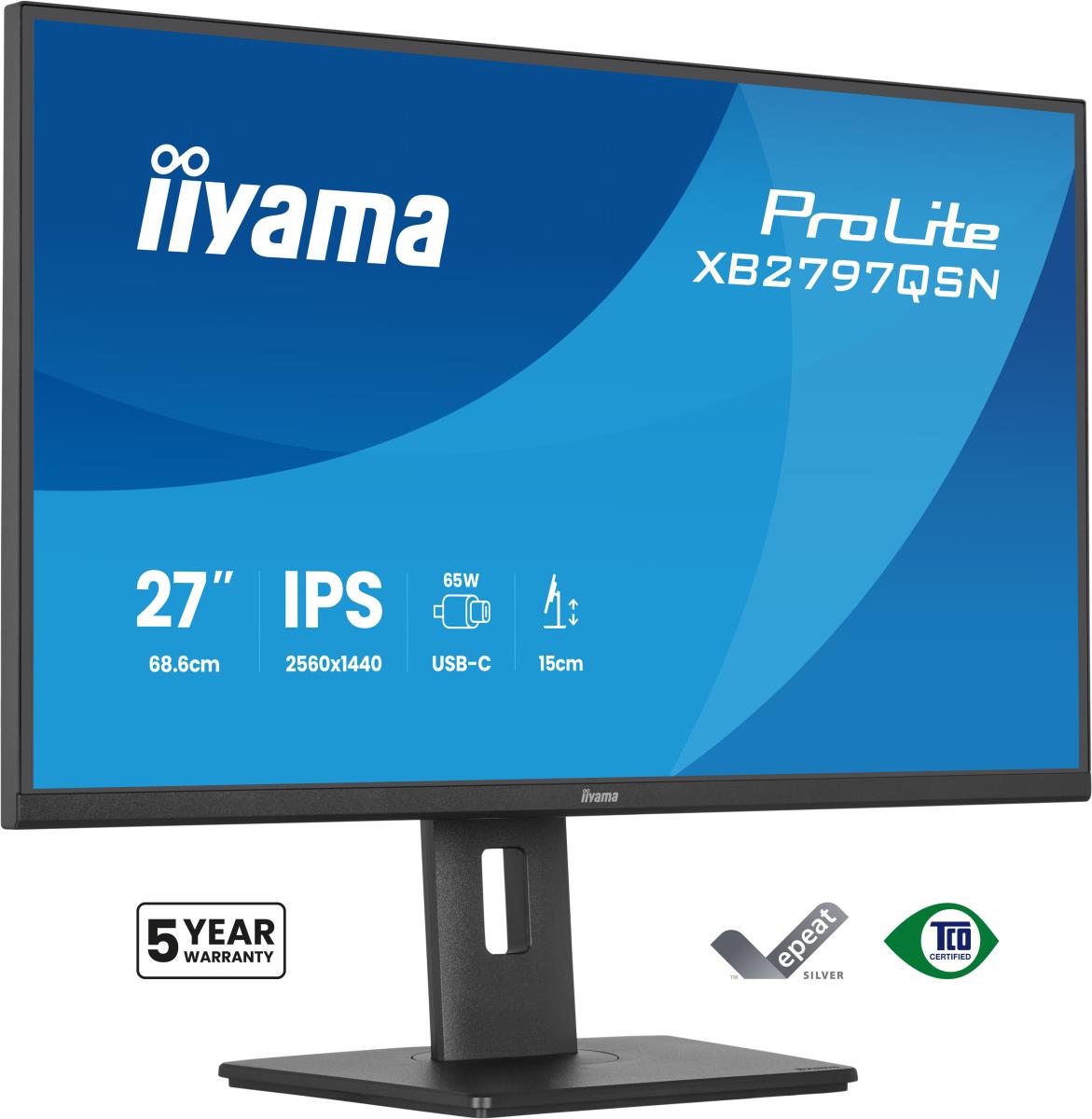

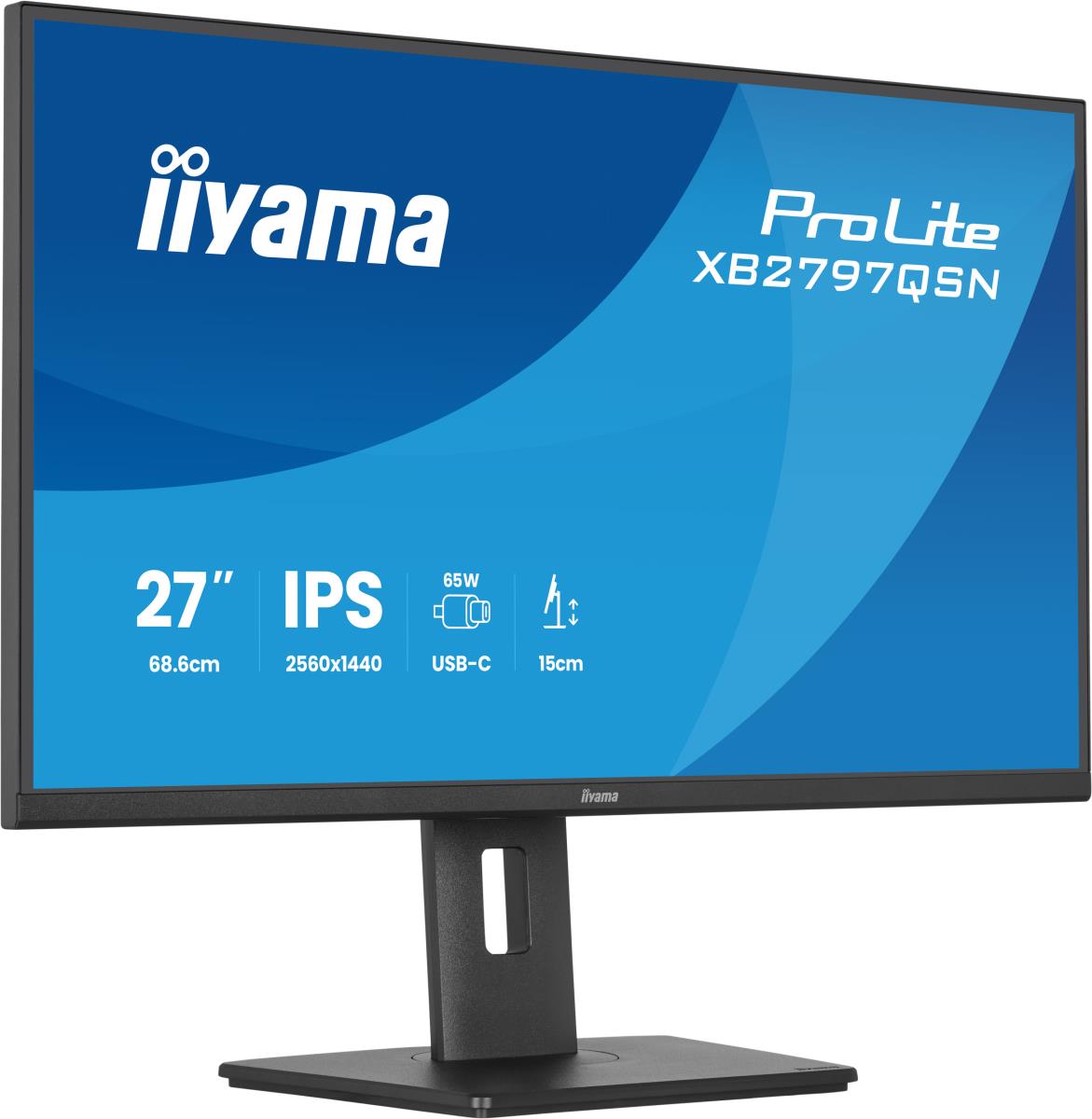

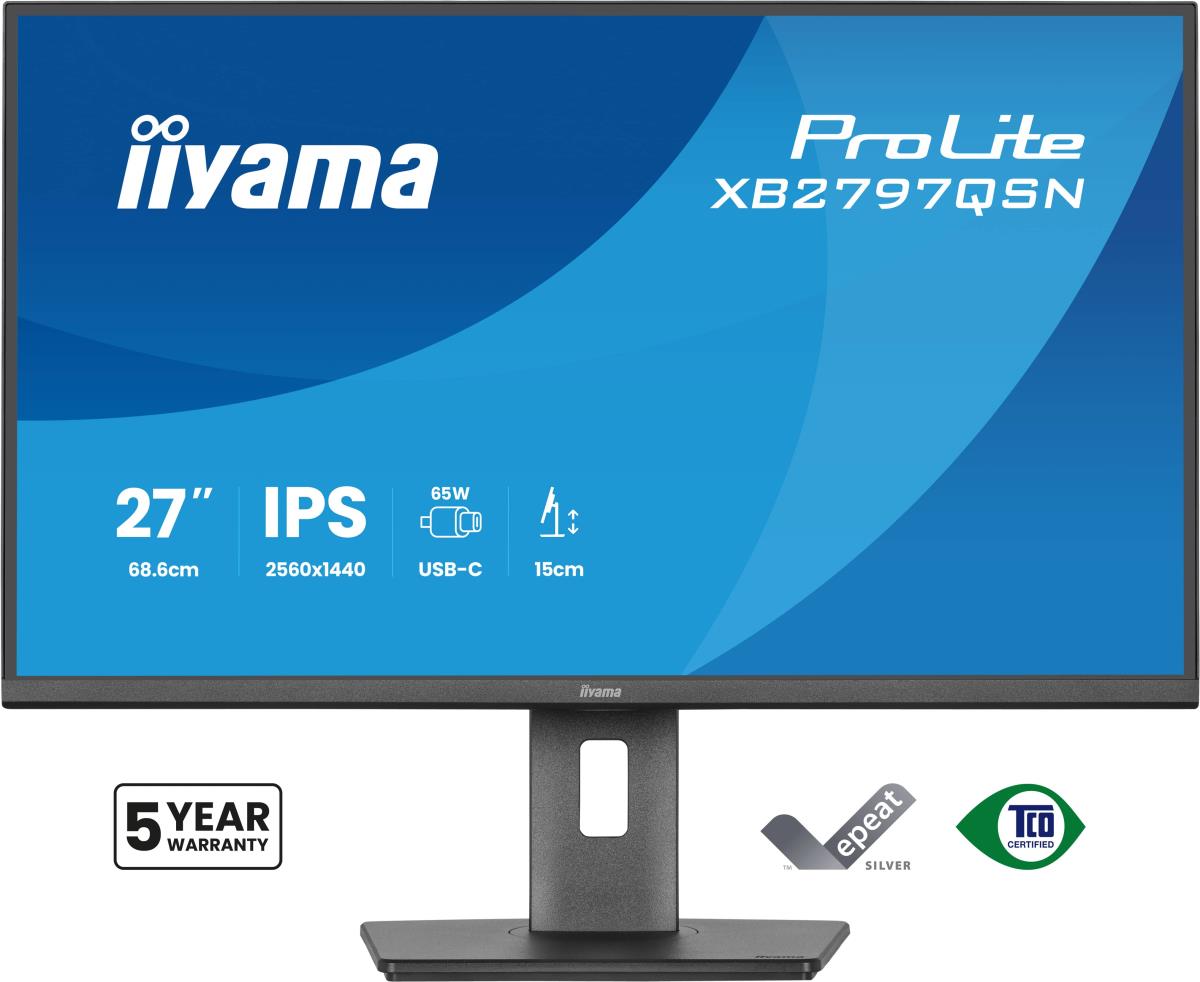

Designed for modern professionals who value efficiency and a clutter-free workspace, the ProLite XB2797QSN brings advanced connectivity and high-quality visuals together in a single, versatile 27” display. The integrated USB-C dock with 65W Power Delivery allows you to transmit video, audio and data while simultaneously powering your laptop through just one cable. This simplifies your desk setup, reduces cable clutter and makes hot-desking effortless. The built-in RJ45 (LAN) port provides a stable wired network connection directly through the monitor, eliminating the need for extra adapters and ensuring reliable performance throughout the working day. The 27” QHD IPS panel (2560×1440) delivers sharp detail and accurate colour reproduction with wide viewing angles, making it ideal for spreadsheets, creative projects and multitasking. A DisplayPort output enables easy daisy-chaining for a dual-monitor configuration, helping you expand your workspace and increase productivity without complication. A 15cm height-adjustable stand with tilt, swivel and pivot functions, including portrait mode, allows you to tailor the screen position to your exact ergonomic needs. TÜV Rheinland Eye Comfort certification confirms reduced blue light emissions and flicker-free performance, supporting comfortable viewing and sustained concentration during long working hours.
Display
Contrast ratio (dynamic)
80000000:1
DDC/CI
Yes
Display diagonal
68.6 cm (27")
Display resolution
2560 x 1440 pixels
HD type
Quad HD
Native aspect ratio
16:9
Display technology
LCD
Panel type
IPS
Touchscreen
No
Display brightness (typical)
350 cd/m²
Response time (MPRT)
1 ms
Display surface
Matt
Screen shape
Flat
Contrast ratio (typical)
1000:1
Maximum refresh rate
75 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.7 million colours
Pixel pitch
0.233 x 0.233 mm
Horizontal scan range
30 - 112 kHz
Viewable size, horizontal
59.7 cm
Viewable size, vertical
33.6 cm
Display diagonal (metric)
68.5 cm
sRGB coverage (typical)
100%
NTSC coverage (typical)
72%

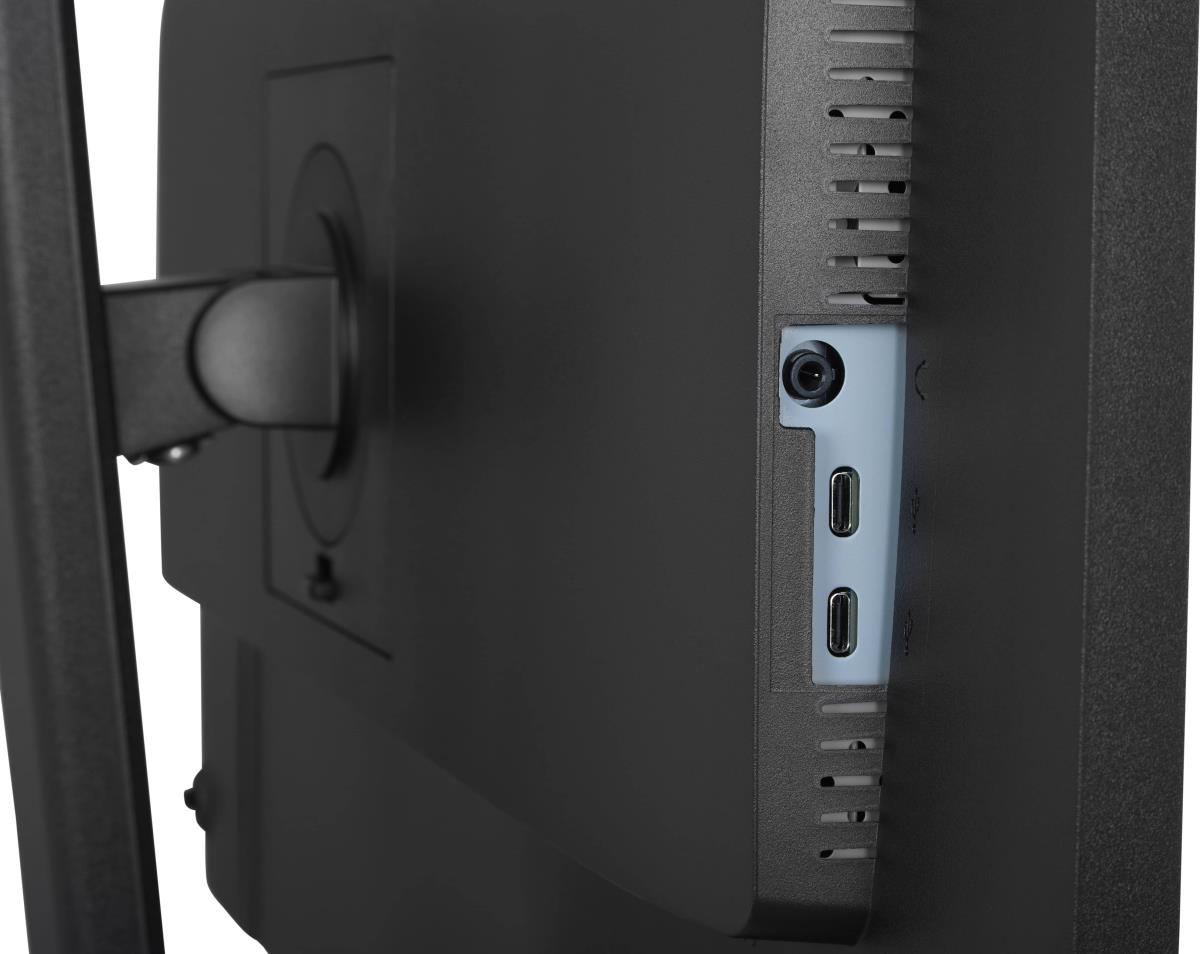

Ports & interfaces
USB Type-C DisplayPort Alternate Mode
Yes
HDMI version
1.4
DisplayPort version
1.2
Built-in USB hub
Yes
USB hub version
3.2 Gen 1 (3.1 Gen 1)
USB upstream port type
USB Type-C
Number of downstream ports
4
Number of USB Type-C upstream ports quantity
1
USB Power Delivery (USB PD)
Yes
USB Power Delivery up to
65 W
HDMI
Yes
HDMI ports quantity
1
DisplayPorts quantity
1
DisplayPort out quantity
1
Headphone out
Yes
HDCP
Yes
Performance
AMD FreeSync
Yes
Flicker-free technology
Yes
Multimedia
Number of speakers
2
RMS rated power
4 W
Built-in speaker(s)
Yes
Built-in camera
No
Design
Market positioning
Office
Product colour
Black
Network

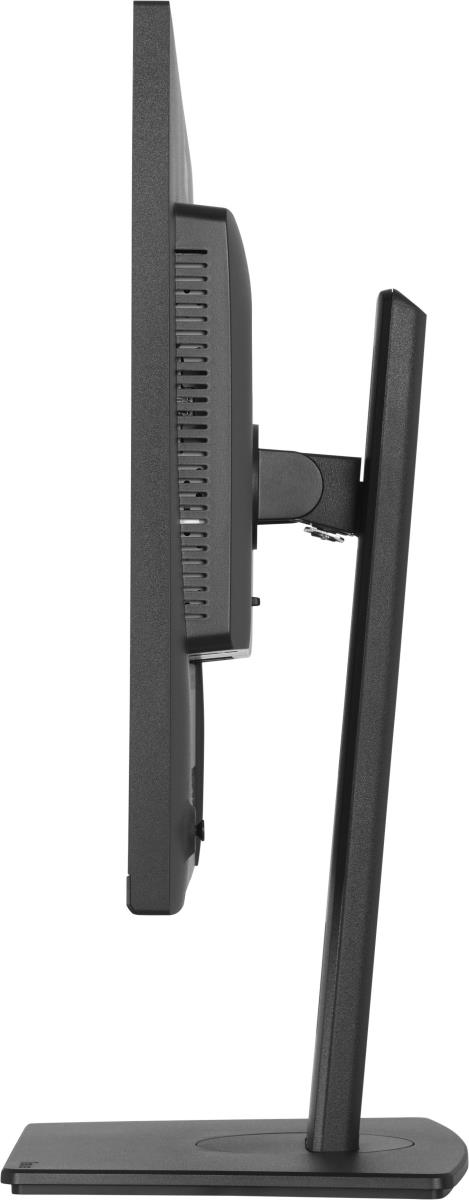

Ergonomics
VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Cable management
Yes
Cable lock slot
Yes
Cable lock slot type
Kensington

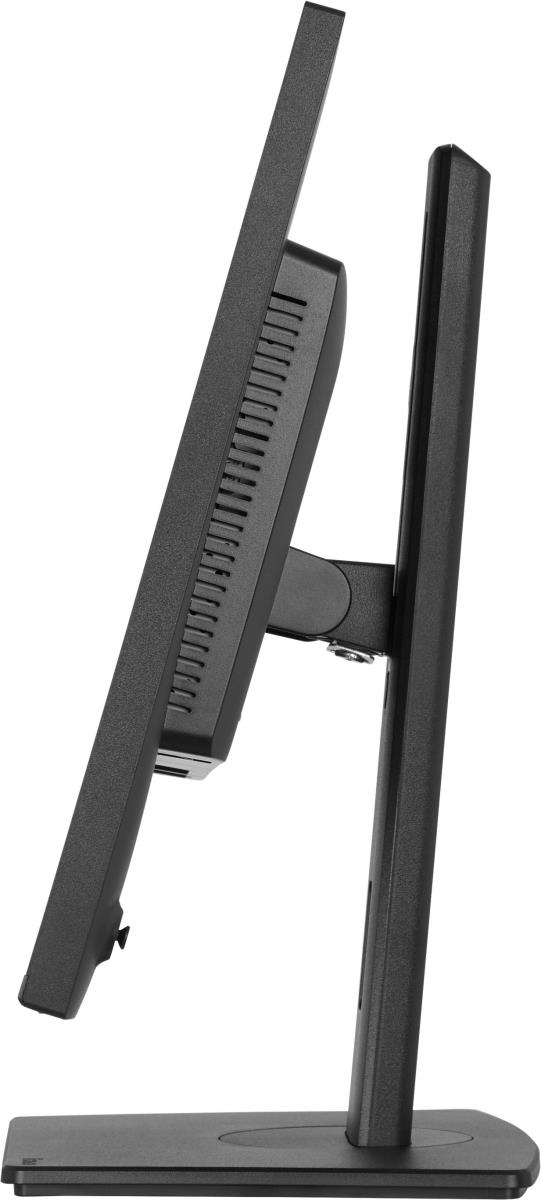

Height adjustment
Yes
Adjustable height (max)
15 cm

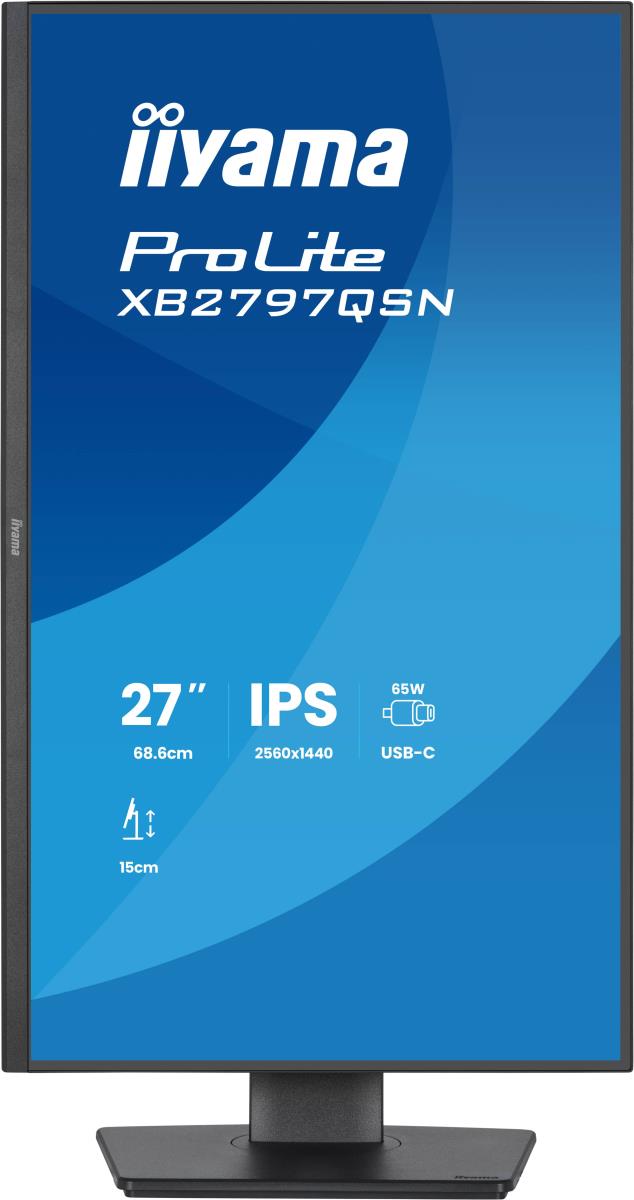

Pivot
Yes
Swivelling
Yes
Swivel angle range
-60 - 60°
Tilt adjustment
Yes
On Screen Display (OSD) languages
Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Russian, Ukrainian
Power
Energy efficiency class (SDR)
E
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
21.4 kWh
Power consumption (typical)
21 W
Power consumption (standby)
0.5 W
Power consumption (off)
0.3 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power supply type
Internal
Technical details
Native refresh rate
60 Hz
Weight & dimensions
Width (with stand)
613 mm
Depth (with stand)
209.5 mm
Height (with stand)
547.5 mm
Weight (with stand)
5.8 kg
Height (without stand)
403.5 mm
Packaging data
Package width
691 mm
Package depth
142 mm
Package height
447 mm
Package weight
8 kg
USB cable length
1 m
Packaging content
Cables included
AC, HDMI, USB Type-C
HDMI cable length
1.5 m
Power cable length
1.5 m
Sustainability
Sustainability certificates
ErP, TCO
Other features
User controls
picture adjust (brightness, contrast, ECO, ACR, OD, MBR, Adaptive Sync), colour settings (i-Style colour, RGB range, colour temp., user preset), OSD (OSD H. position, OSD V. position, OSD rotate, OSD time, OSD background, DDC/CI control, display information), language, extra 1 (sharpness, video mode adjust, opening logo, power LED, USB charge, USB-C speed, MST DP-out), extra 2 (shortcut key, Mac address, FW version), input select, audio settings (volume, mute), reset (reset all?)
Packaging content
quick start guide, safety guide
Weight
5.8 kg
Width
613 mm
Depth
209.5 mm
Control panel
Joystick: Power/Menu (Centre), Up/Signal Select, Down, Left/Shortcut, Right/Volume
Compliance certificates
CE, EAC, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE
Manufacturer warranty
5 years (for details and eligible countries please check the Warranty section of our website)
Ethernet LAN (RJ-45) ports
1
