Introduction

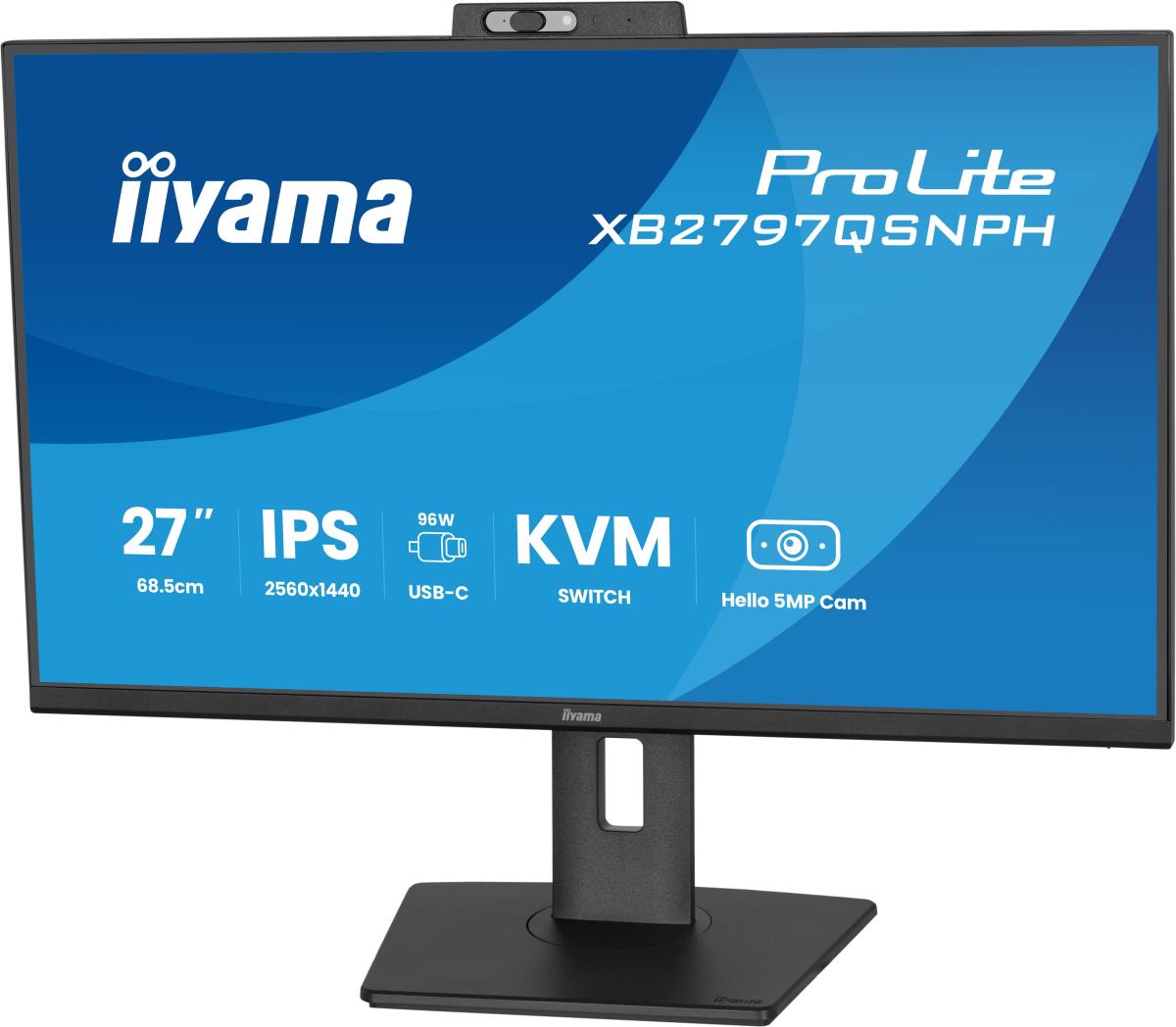

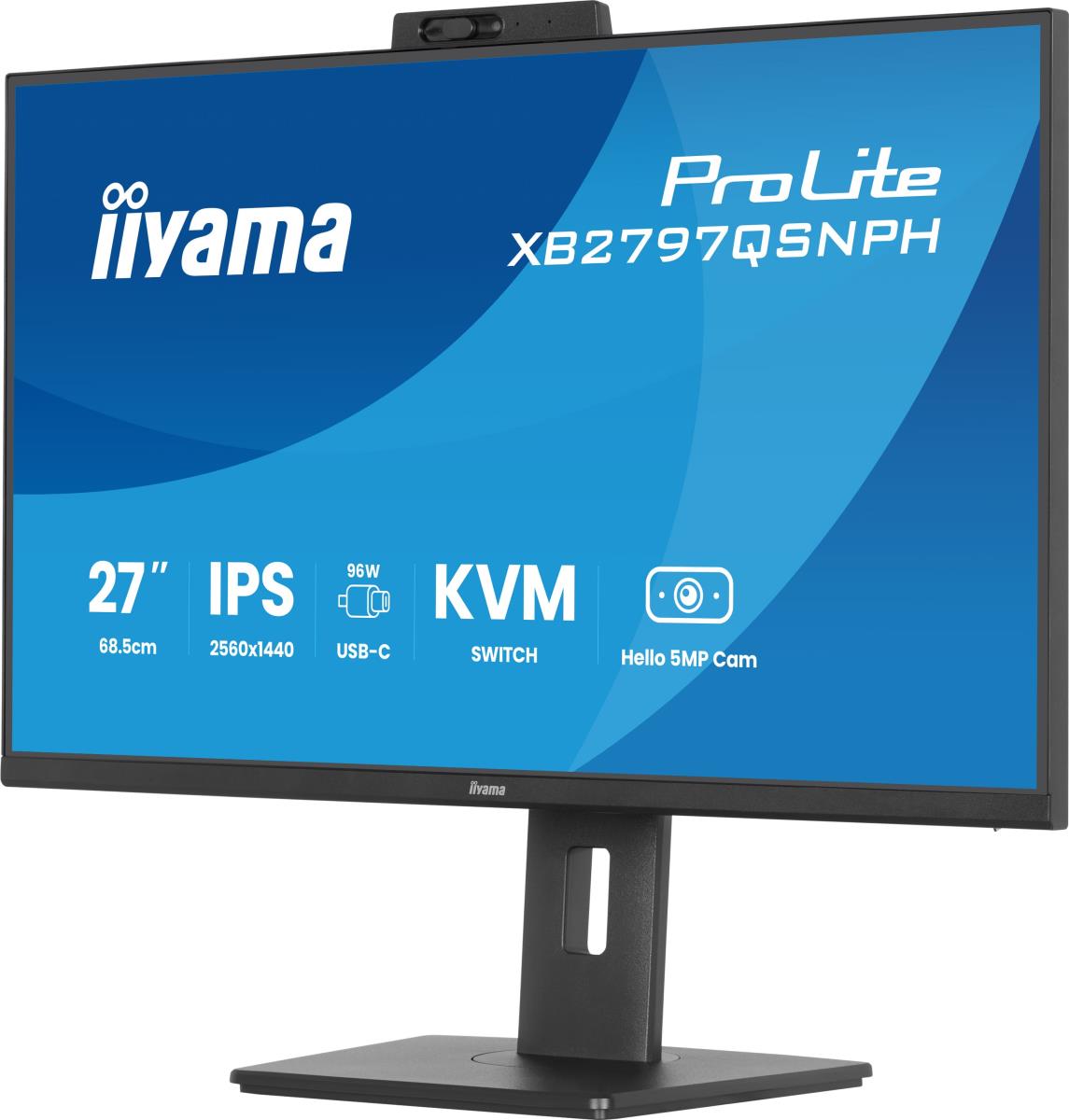

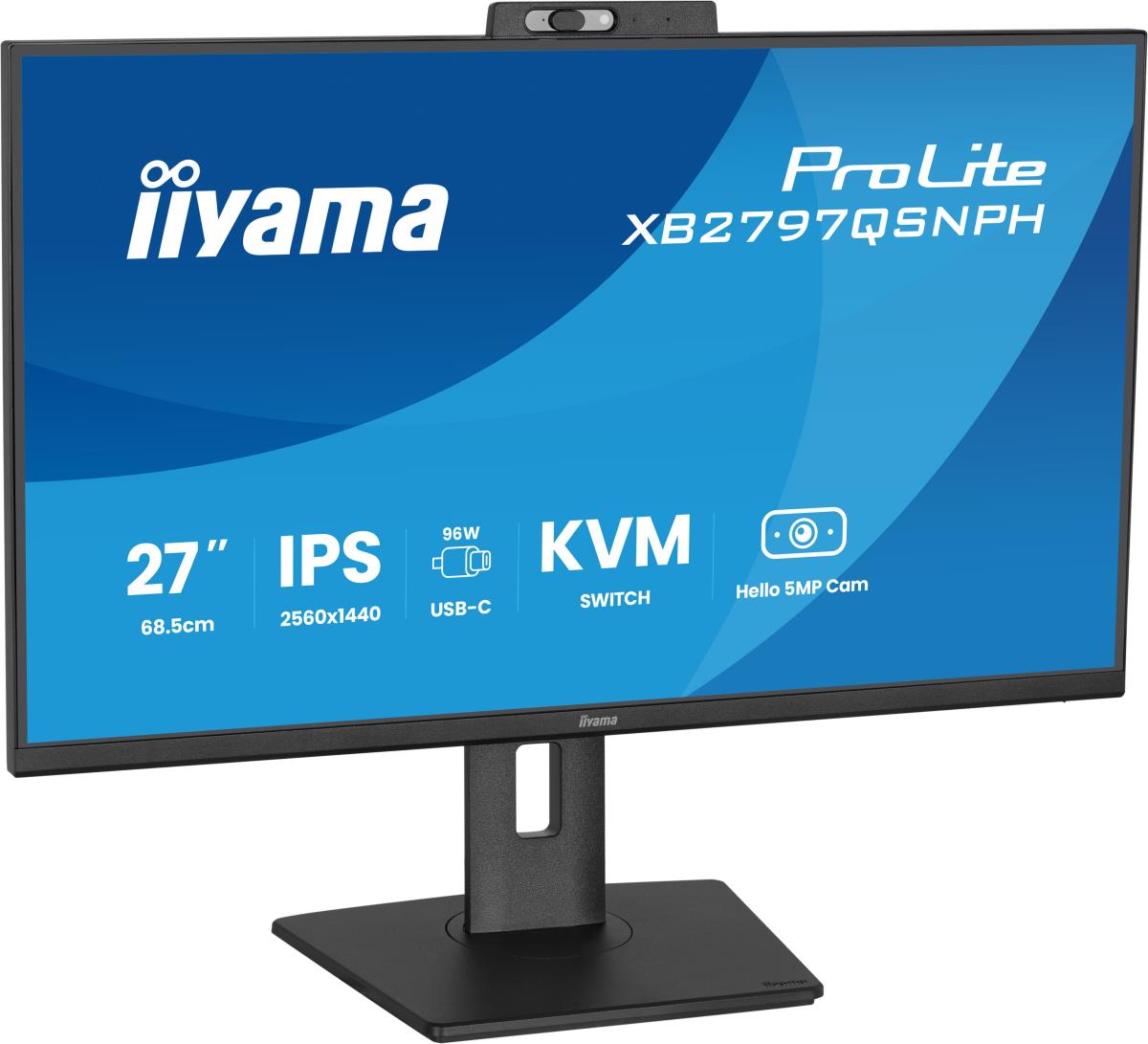

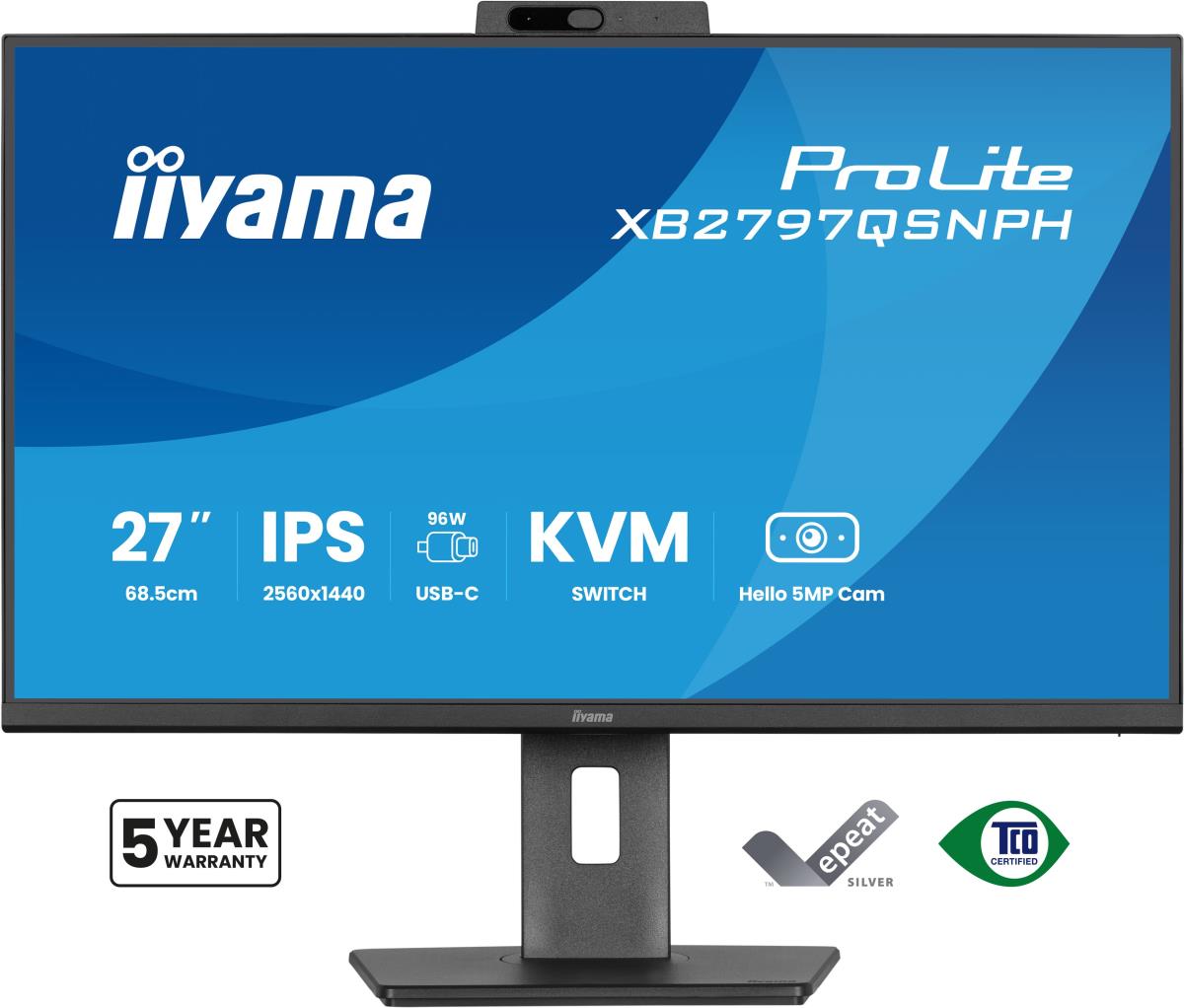

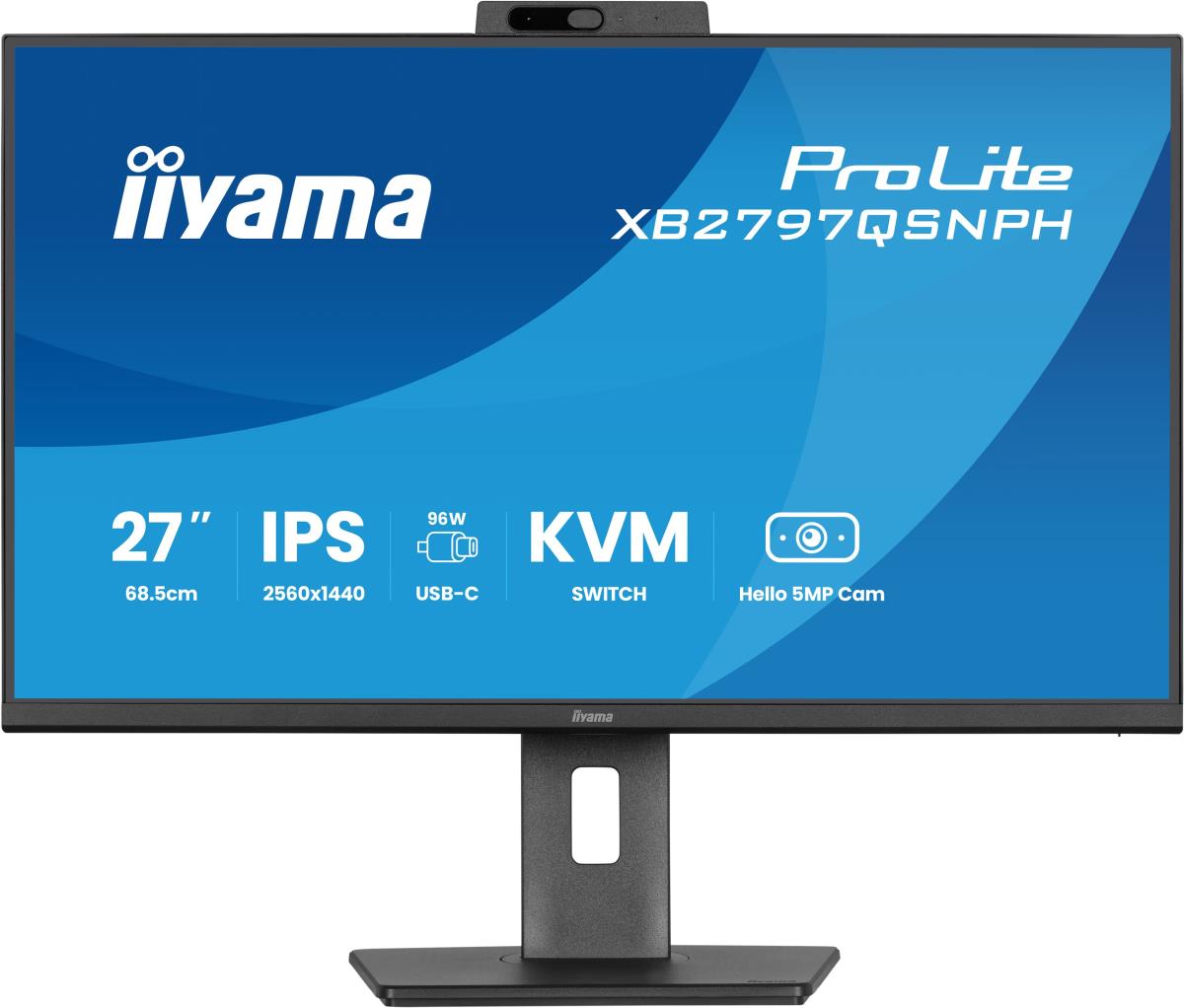

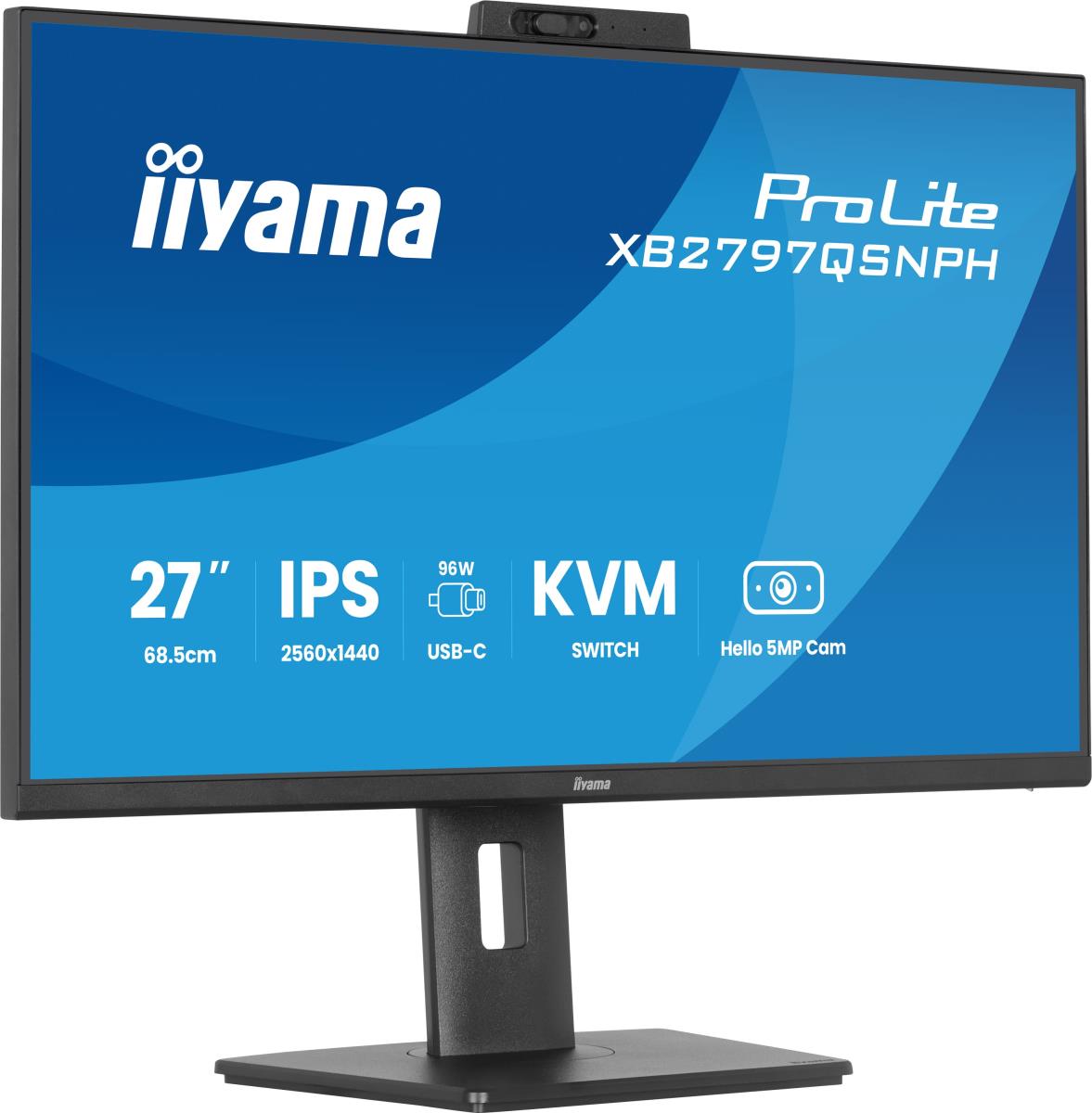

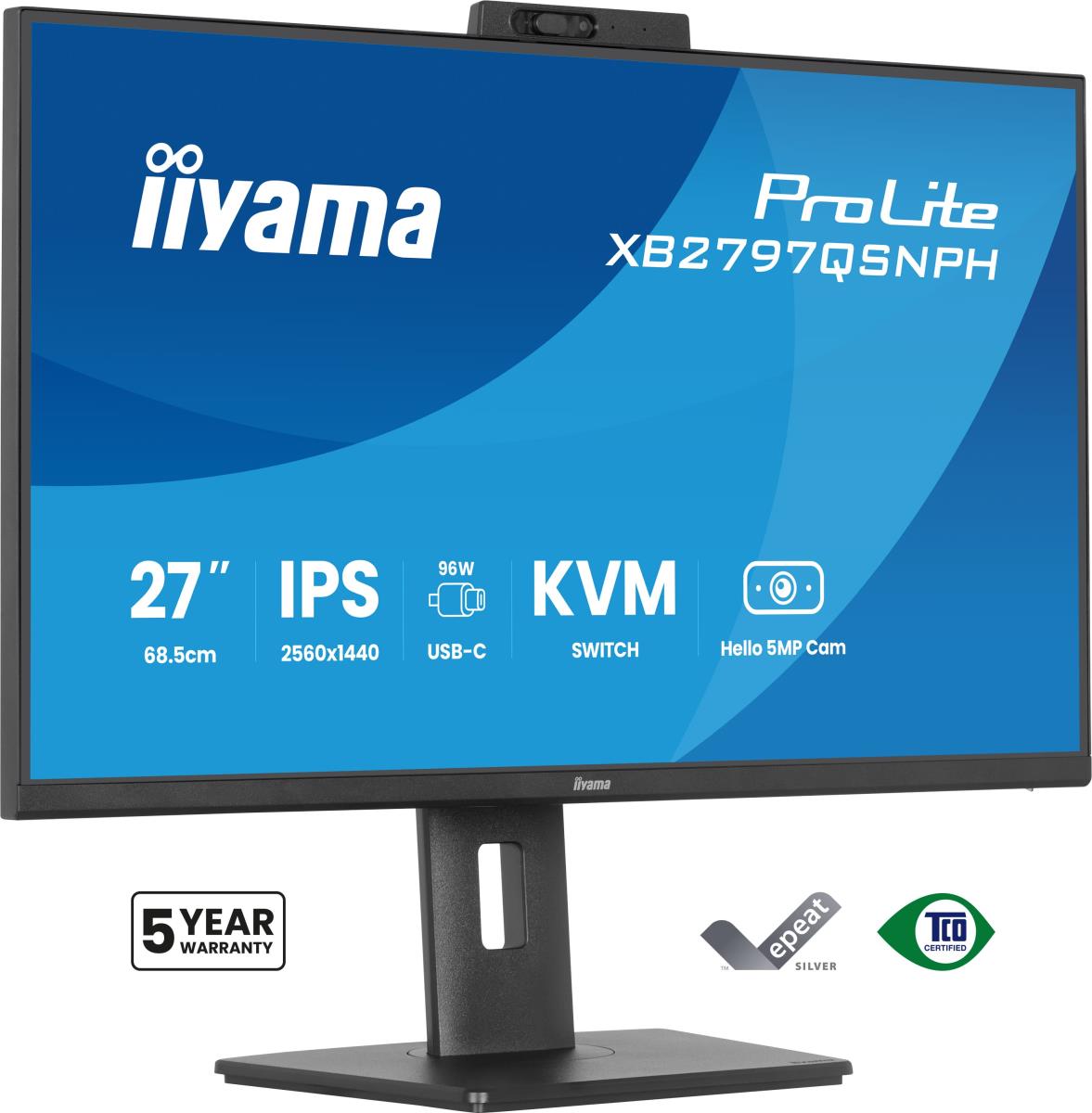

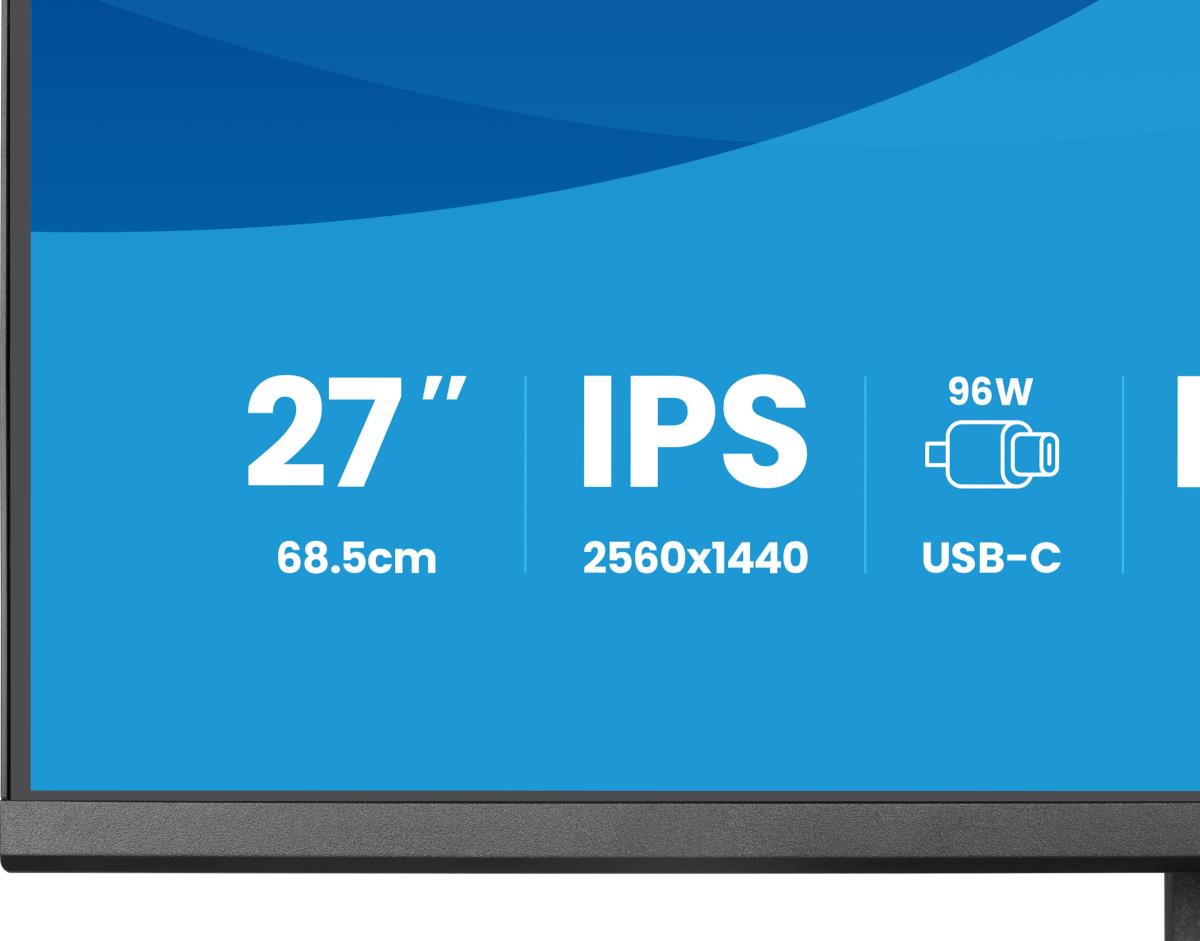

27’’ IPS QHD monitor with a built-in 5MP Windows Hello camera, microphone, USB-C Dock, LAN, KVM-Switch and 15cm height adjustable stand

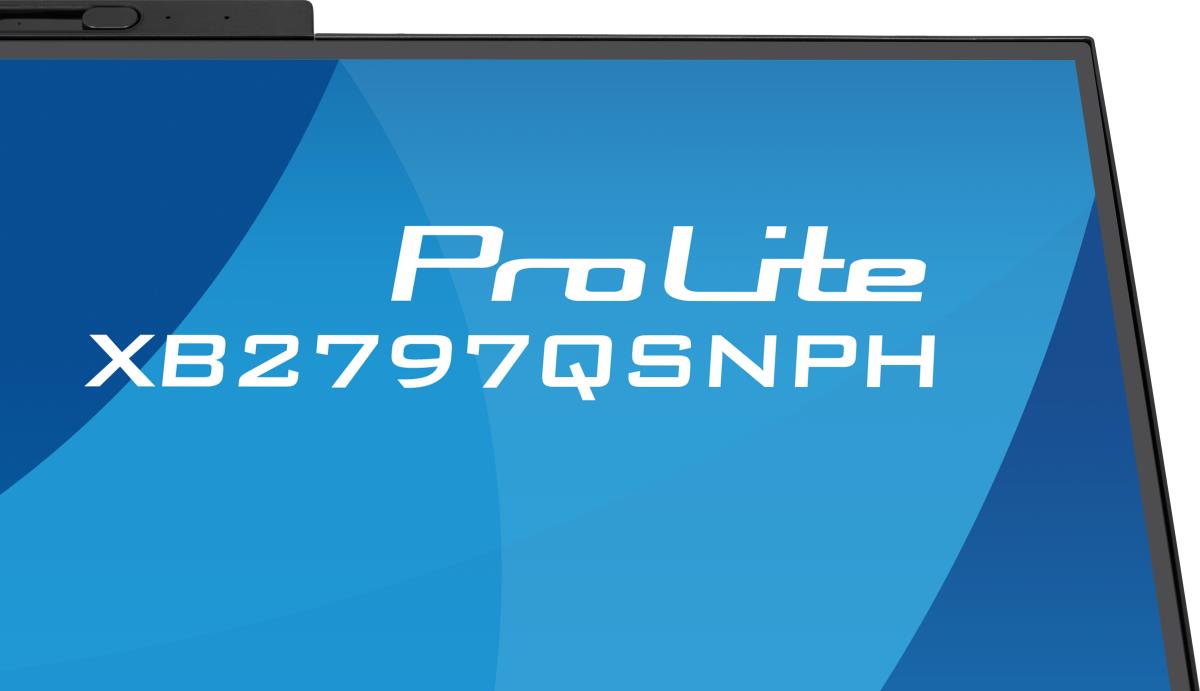

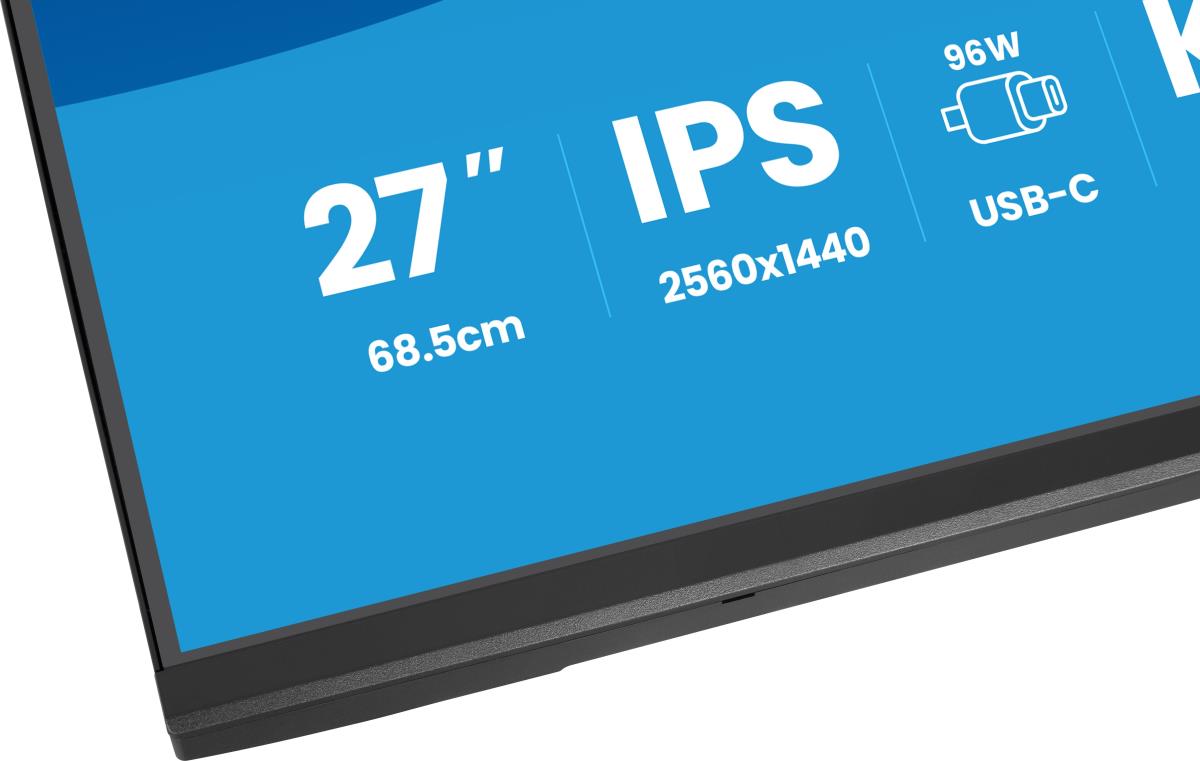

The ProLite XB2797QSNPH is a 27” QHD monitor built for professionals who want a tidier workspace, smoother multitasking and greater comfort throughout the day. The IPS panel delivers sharp detail, accurate colour and wide viewing angles, making it ideal for spreadsheets, creative work and detailed documents. A DisplayPort output also enables a quick dual-monitor setup for greater screen space and higher productivity.
The integrated USB-C dock with 96W power delivery carries video, audio, data and power through a single cable, helping reduce desk clutter and making laptop connection fast and simple. An RJ45 port provides a stable wired network connection without extra adapters, while the built-in KVM switch allows control of two computers with one keyboard and mouse for a more seamless workflow.

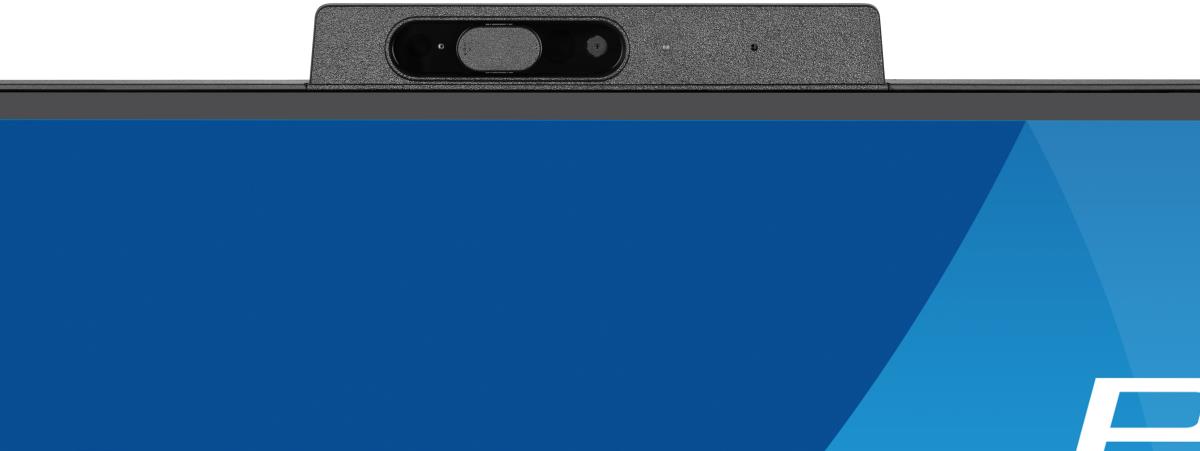

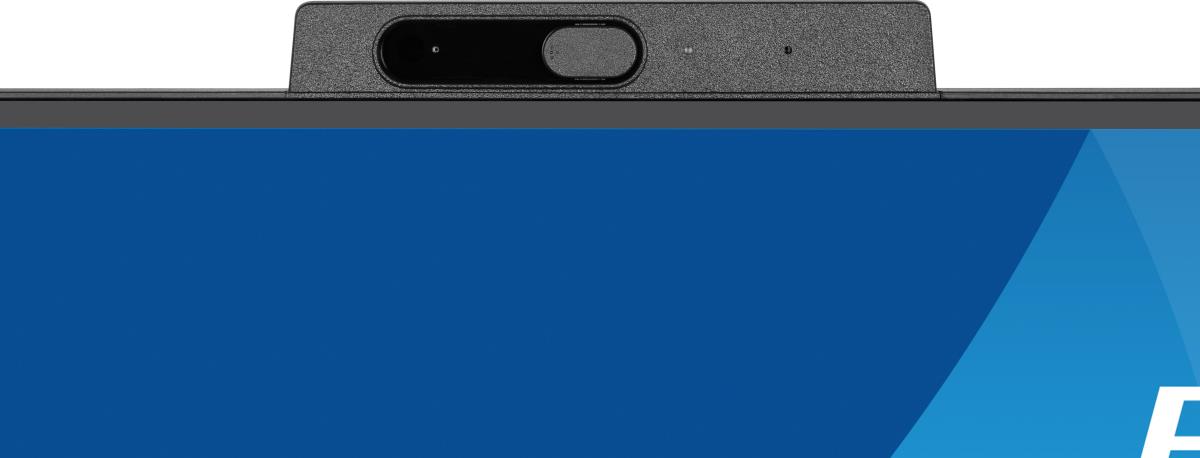

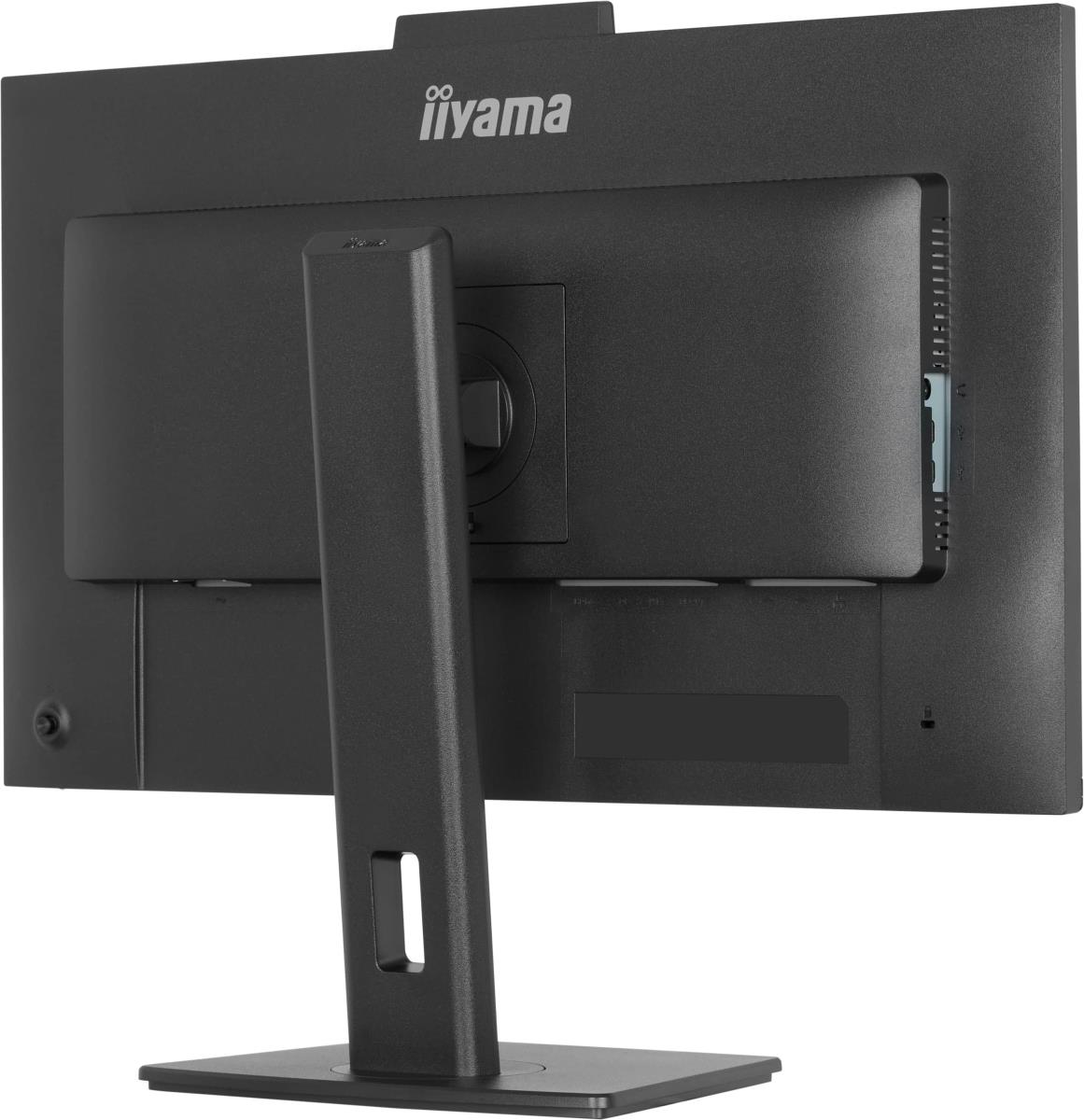

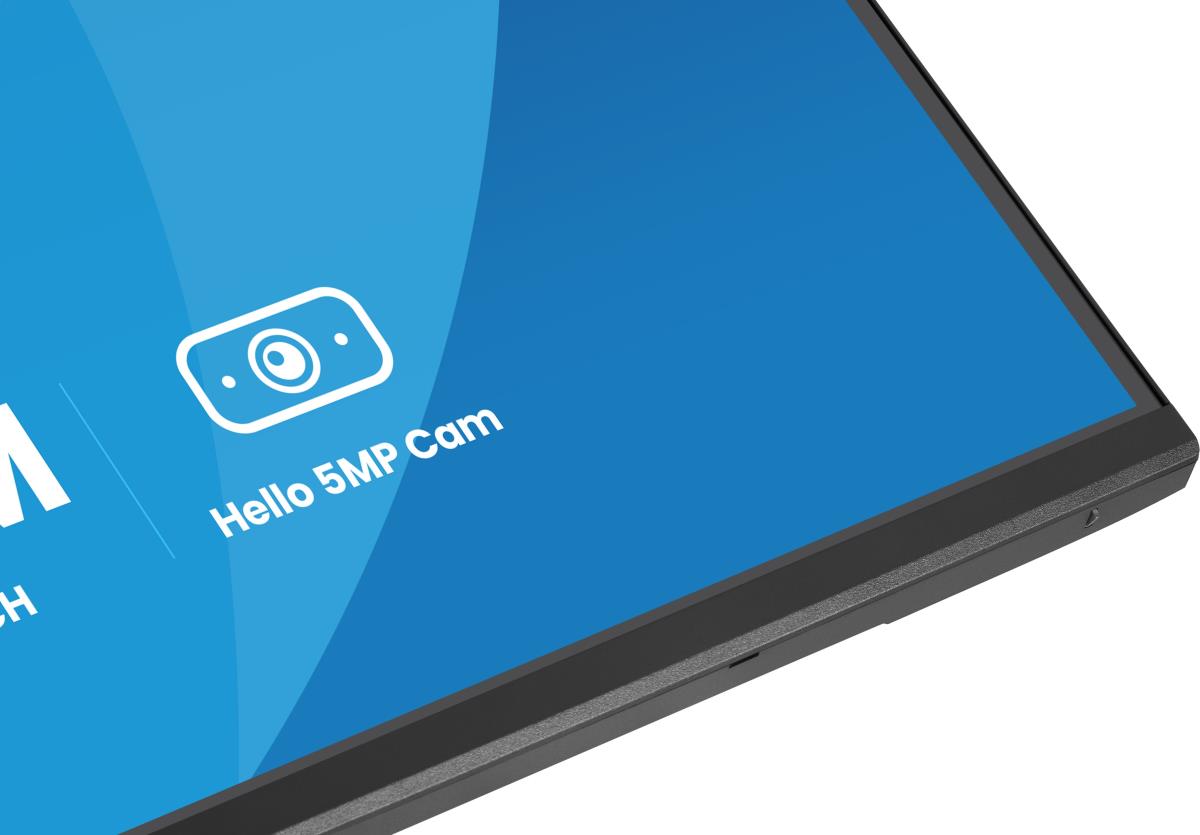

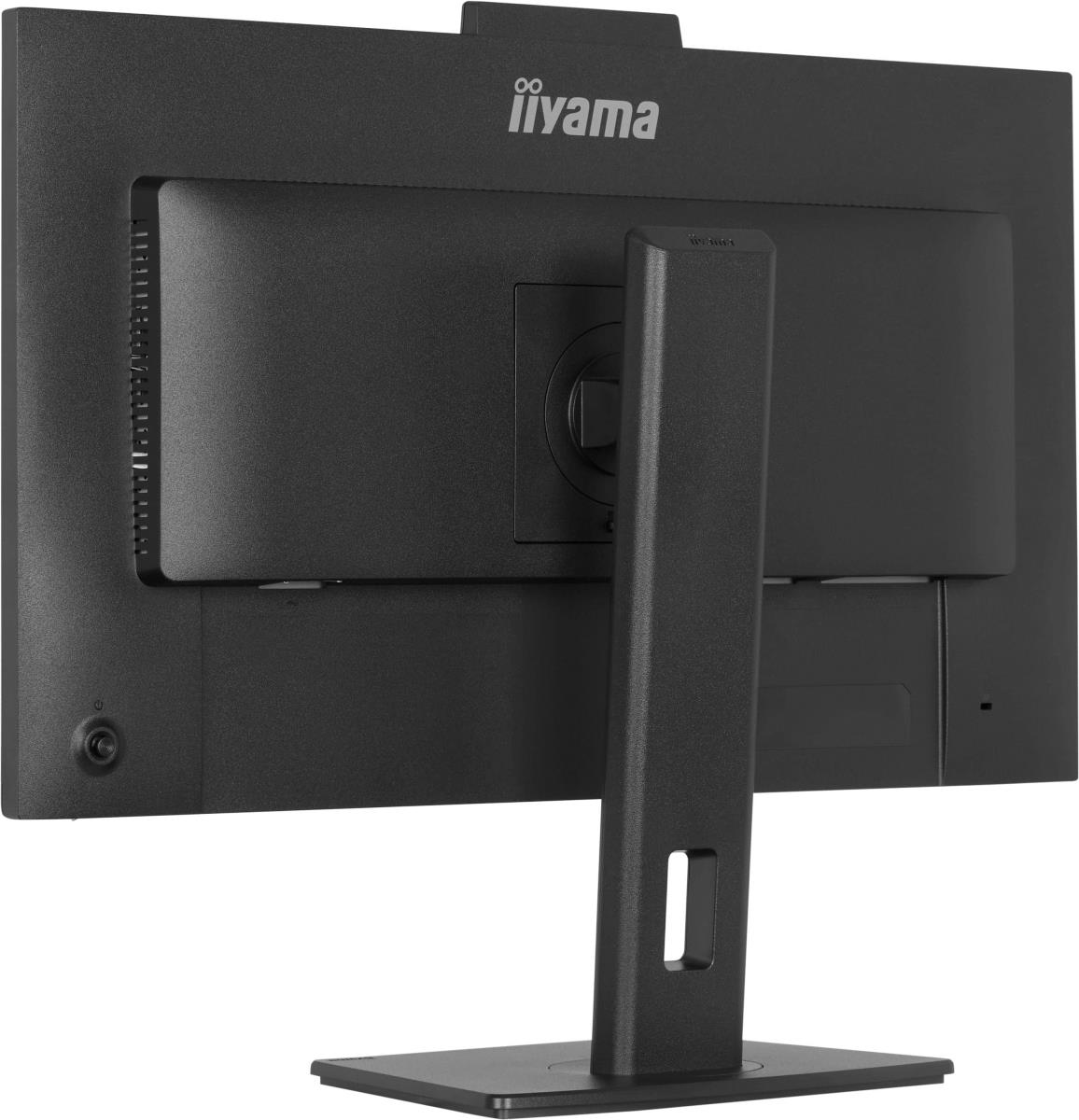

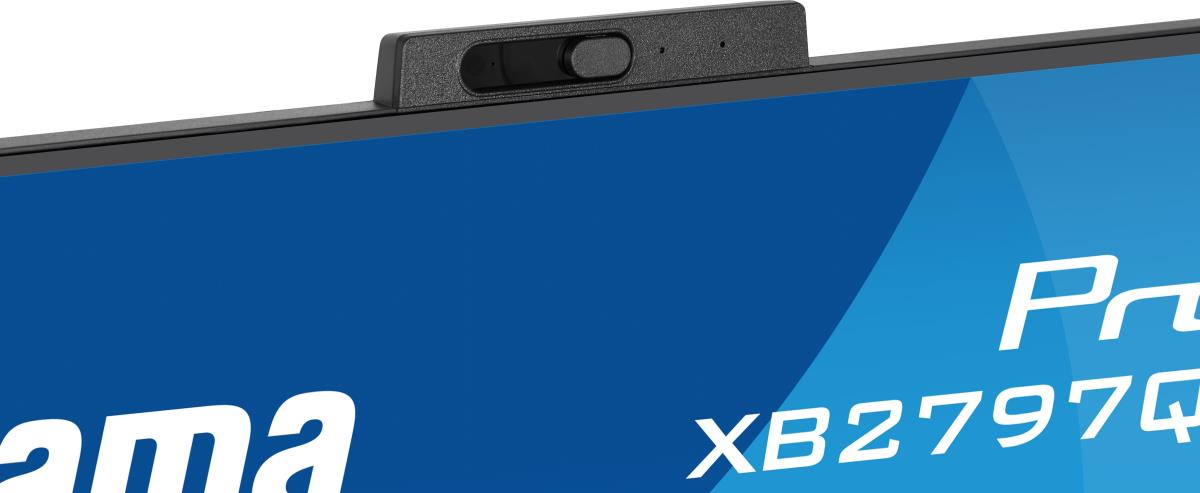

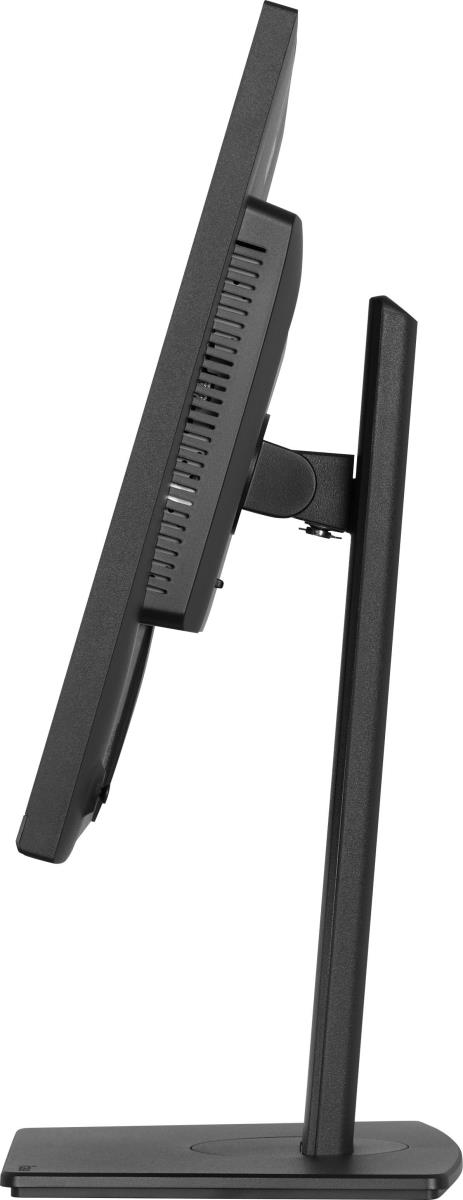

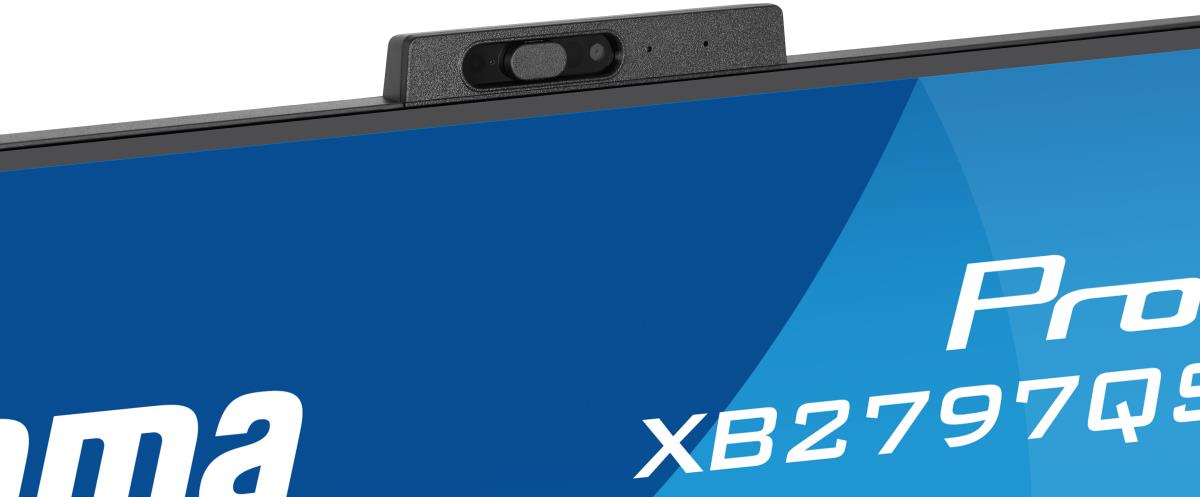

For modern collaboration, the monitor features a built-in 5MP autofocus webcam with Windows Hello for secure sign-in and professional-looking video calls. An ergonomic stand with 15cm height adjustment, tilt, swivel and pivot helps achieve a comfortable viewing position, while TÜV Rheinland Eye Comfort certification supports reduced visual fatigue during long working days.
Display
Display diagonal
68.6 cm (27")
Display resolution
2560 x 1440 pixels
HD type
Quad HD
Native aspect ratio
16:9
Display technology
LED
Panel type
IPS
LED backlight
Yes
Touchscreen
No
Display brightness (typical)
350 cd/m²
Response time (MPRT)
1 ms
Display surface
Matt
Screen shape
Flat
Contrast ratio (typical)
1000:1
Contrast ratio (dynamic)
80000000:1
Maximum refresh rate
75 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.7 million colours
Pixel pitch
0.233 x 0.233 mm
Horizontal scan range
31 - 112 kHz
Viewable size, horizontal
59.7 cm
Viewable size, vertical
33.6 cm
Display diagonal (metric)
68.5 cm
sRGB coverage (typical)
99%
NTSC coverage (typical)
72%
Performance
NVIDIA G-SYNC
Yes
AMD FreeSync
Yes
Flicker-free technology
Yes
Low Blue Light technology
Yes
Multimedia
Number of speakers
2
RMS rated power
4 W
Built-in speaker(s)
Yes
Megapixel (approx.)
5 MP
Built-in microphone
Yes
Built-in camera
Yes
Design
Market positioning
Office
Product colour
Black

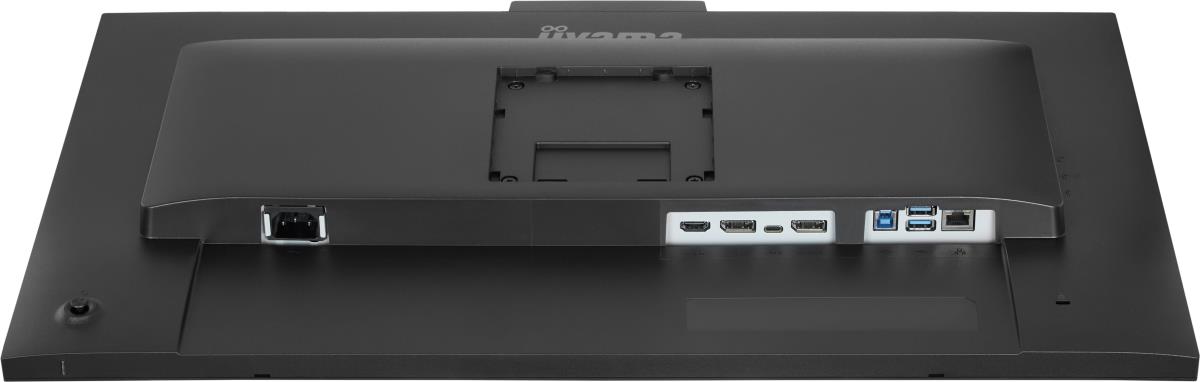

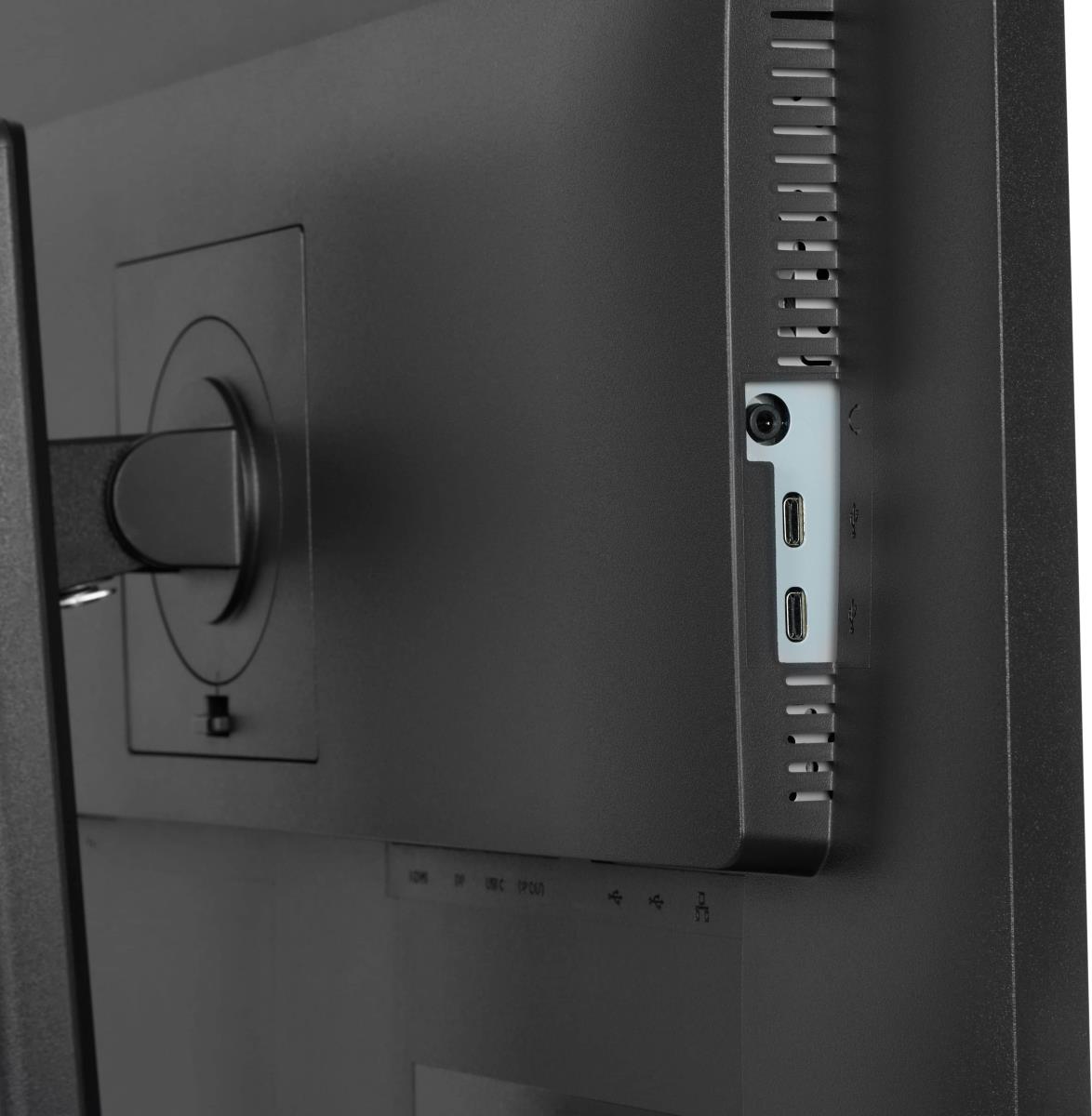

Ports & interfaces
Built-in USB hub
Yes
USB hub version
3.2 Gen 1 (3.1 Gen 1)
USB upstream port type
USB Type-C
Number of downstream ports
4
Number of USB Type-C upstream ports quantity
1
USB Power Delivery (USB PD)
Yes
USB Power Delivery up to
96 W
HDMI
Yes
HDMI ports quantity
1
HDMI version
1.4
DisplayPorts quantity
1
DisplayPort out quantity
1
DisplayPort version
1.2
Headphone out
Yes
Built-in KVM switch
Yes
HDCP
Yes
Network
Ergonomics

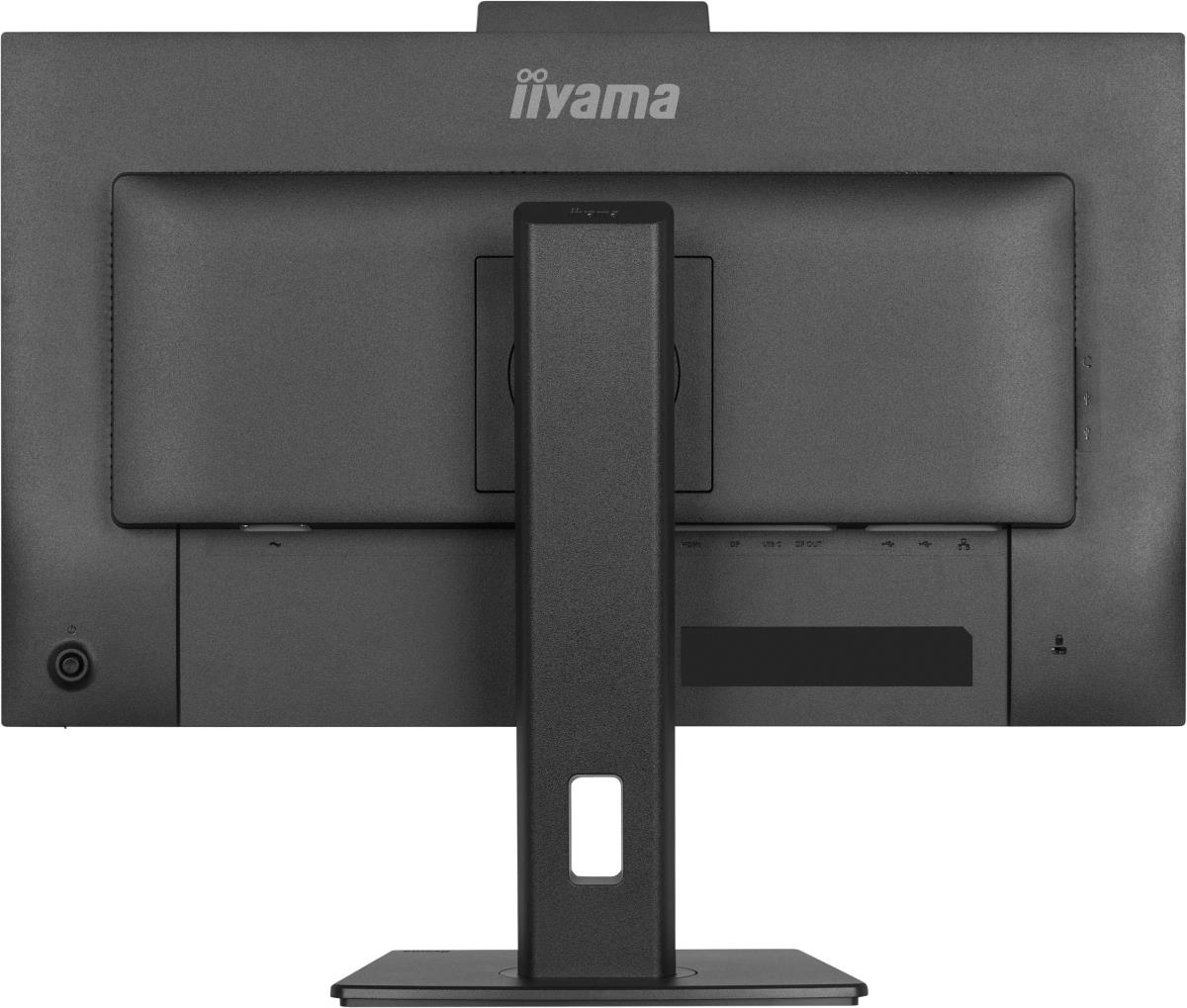

VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Cable management
Yes
Cable lock slot
Yes
Cable lock slot type
Kensington

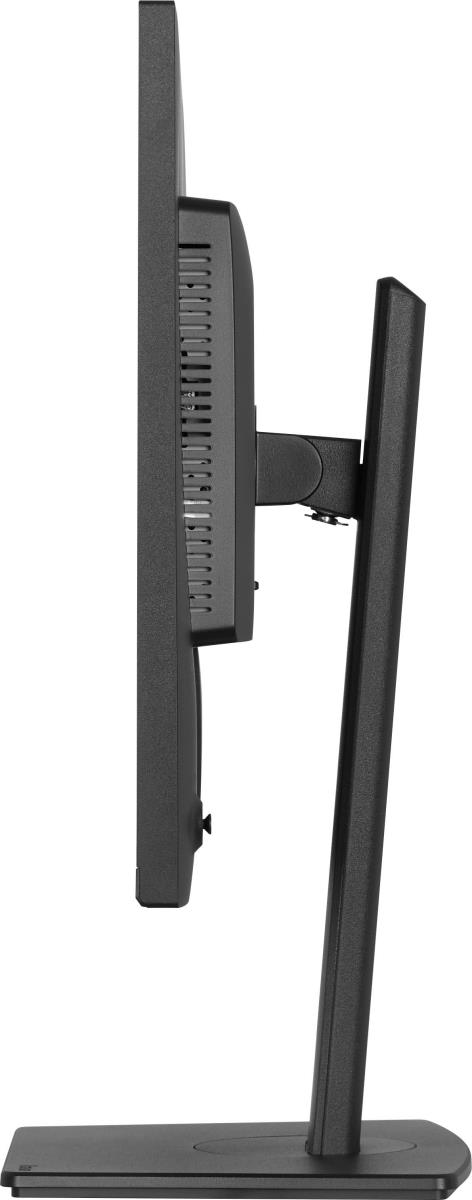

Height adjustment
Yes
Adjustable height (max)
15 cm

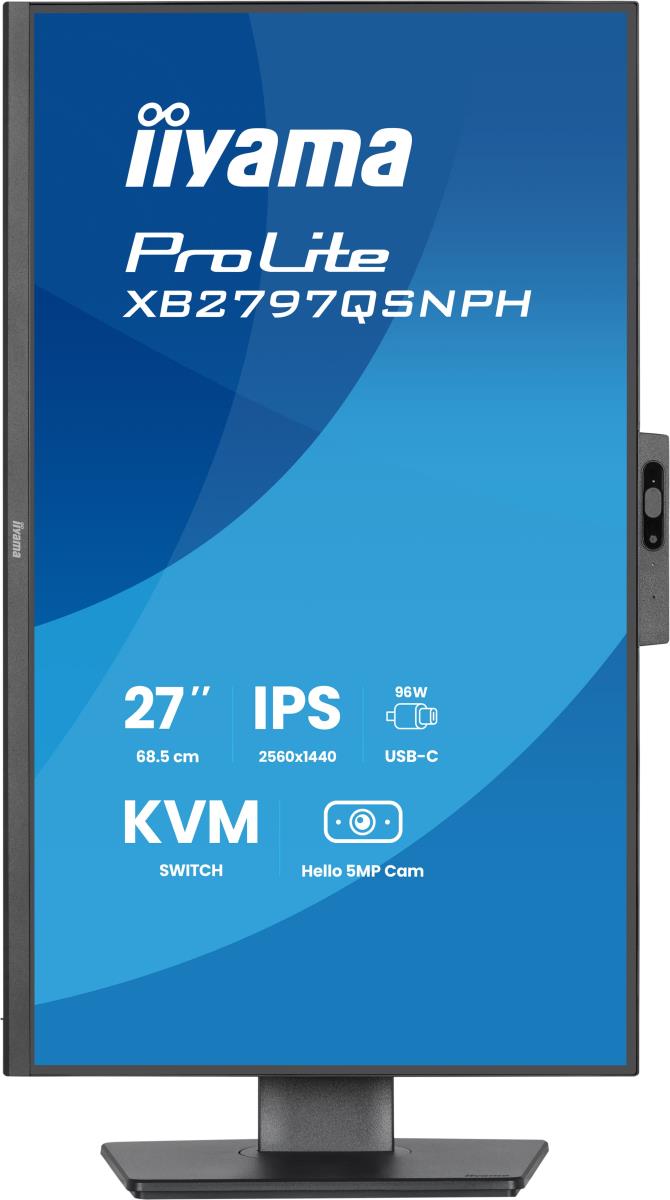

Pivot
Yes
Swivelling
Yes
Swivel angle range
-60 - 60°

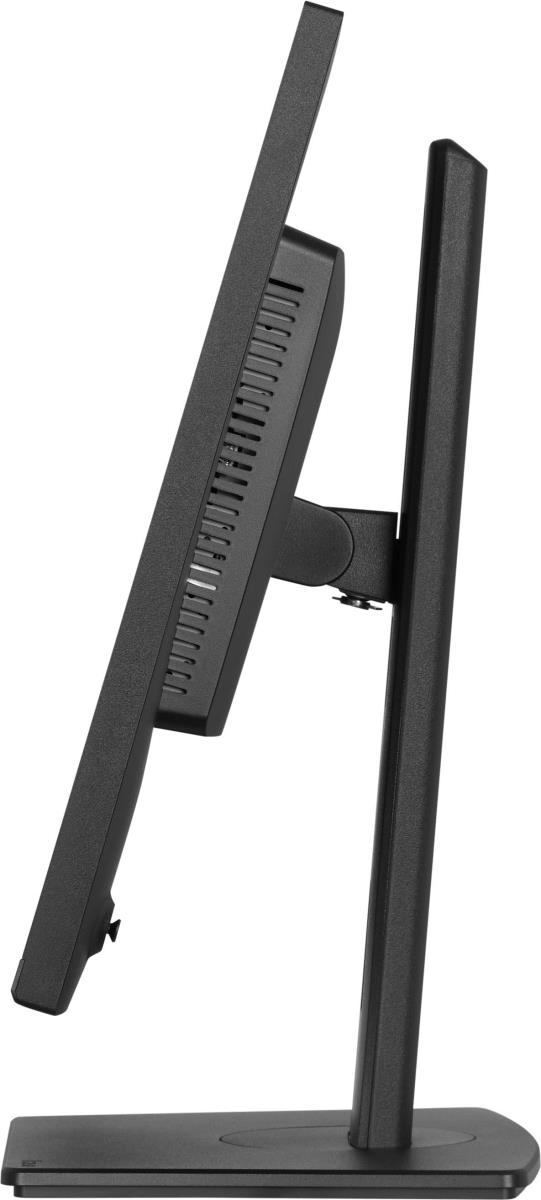

Tilt adjustment
Yes
On Screen Display (OSD) languages
Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Russian, Ukrainian
Power
Energy efficiency class (SDR)
E
Energy efficiency class (HDR)
Not available
Power consumption (typical)
21 W
Power consumption (standby)
21 W
Power consumption (off)
0.3 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power supply type
Internal
Weight & dimensions
Width (with stand)
613 mm
Depth (with stand)
209.5 mm
Height (with stand)
565.5 mm
Weight (with stand)
6 kg
Height (without stand)
415.5 mm
Packaging data
Package width
691 mm
Package depth
142 mm
Package height
447 mm
Package weight
8.2 kg
USB cable length
1.5 m
Packaging content

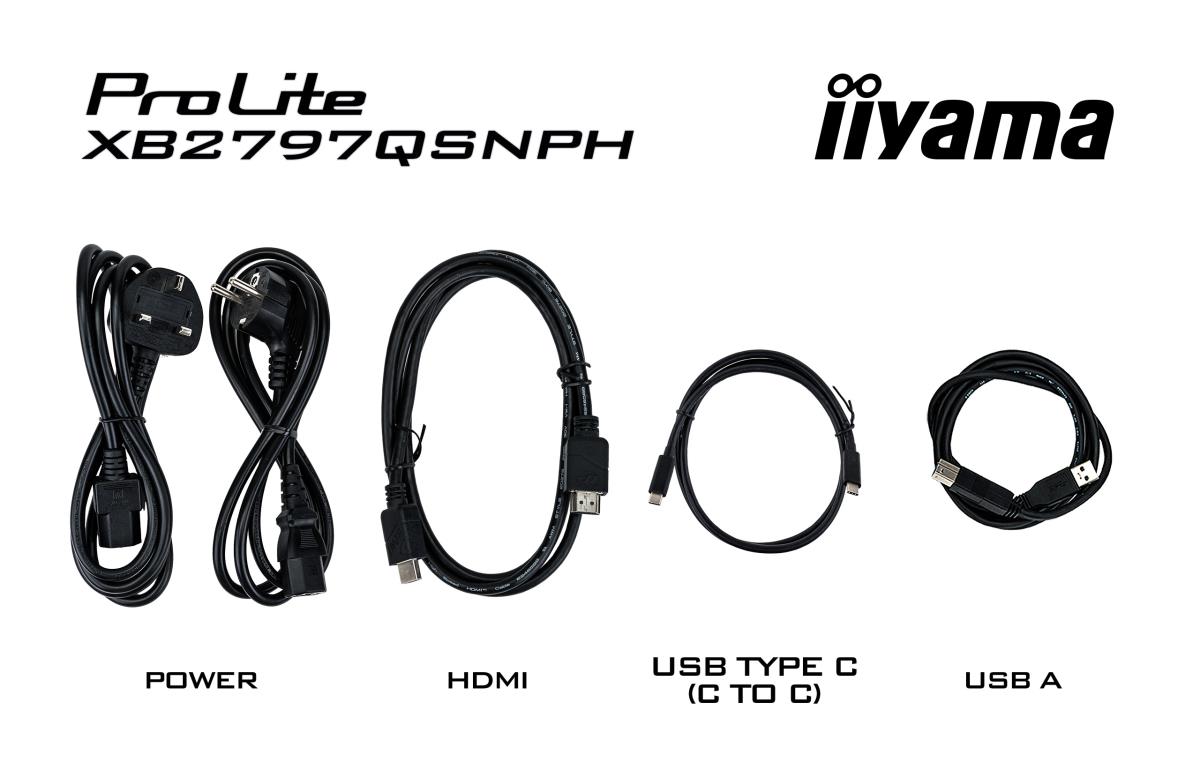

Cables included
AC, USB, HDMI, USB Type-C
HDMI cable length
1.5 m
Power cable length
1.5 m
Sustainability
Sustainability certificates
ErP, TCO
Other features
User controls
picture adjust (brightness, contrast, ECO, ACR, OD, MBR, Adaptive Sync), colour settings (i-Style colour, RGB range, colour temp., user preset), OSD (OSD H. position, OSD V. position, OSD rotate, OSD time, OSD background, DDC/CI control, display information), language, extra 1 (sharpness, video mode adjust, opening logo, power LED, USB charge, USB-C speed, MST DP-out), Extra 2 (shortcut key, Mac address, FW version), KVM (HDMI, DisplayPort, USB-C), input select, audio settings (volume, mute), reset (reset all?)
Packaging content
quick start guide, safety guide
Weight
6 kg
Width
613 mm
Depth
209.5 mm
Control panel
Joystick: Power/Menu (Centre), Up/Signal Select, Down, Left/Shortcut, Right/Volume
Compliance certificates
CE, EAC, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE
Manufacturer warranty
5 years (for details and eligible countries please check the Warranty section of our website)
Ethernet LAN (RJ-45) ports
1
