Introduction

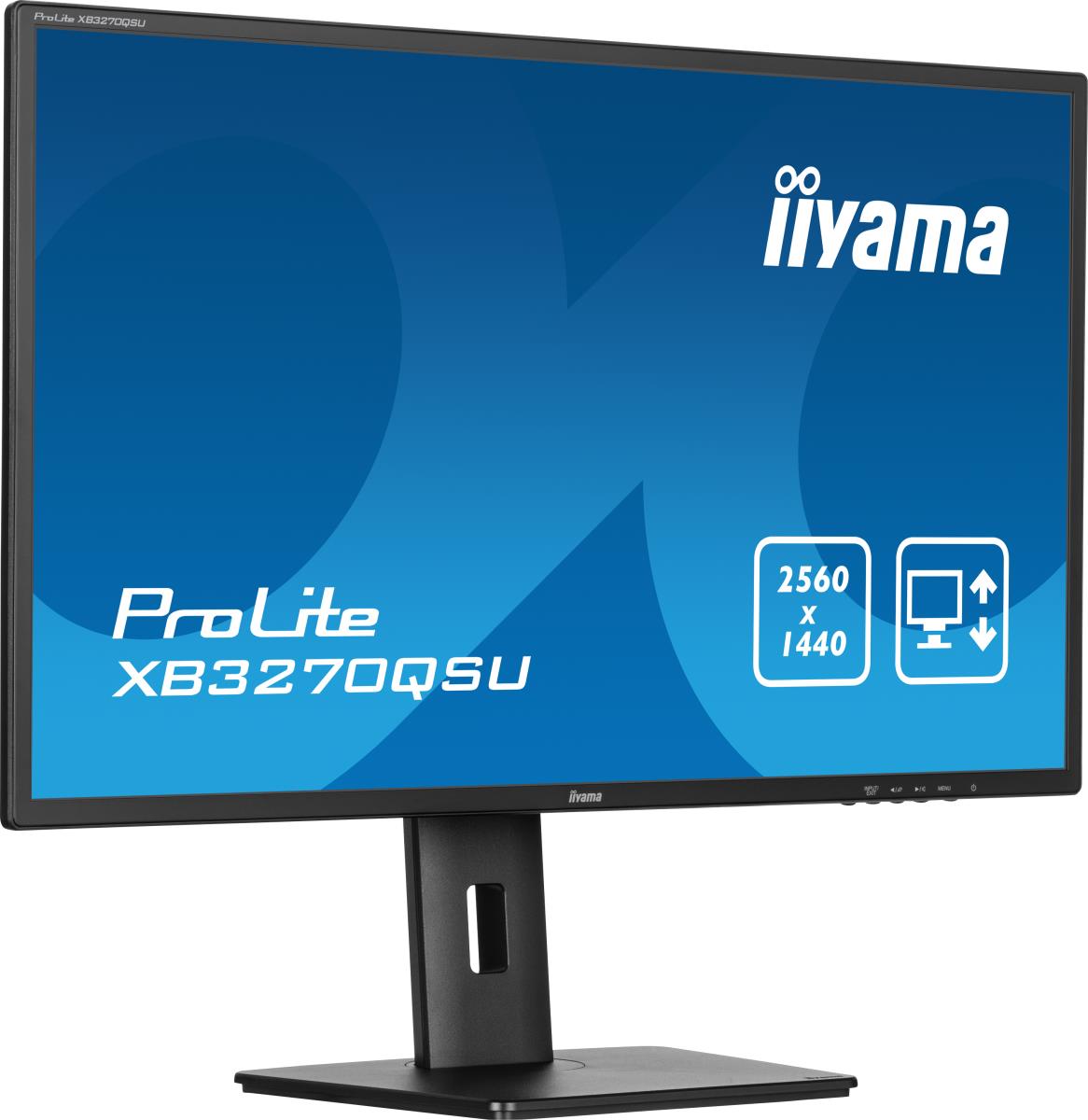

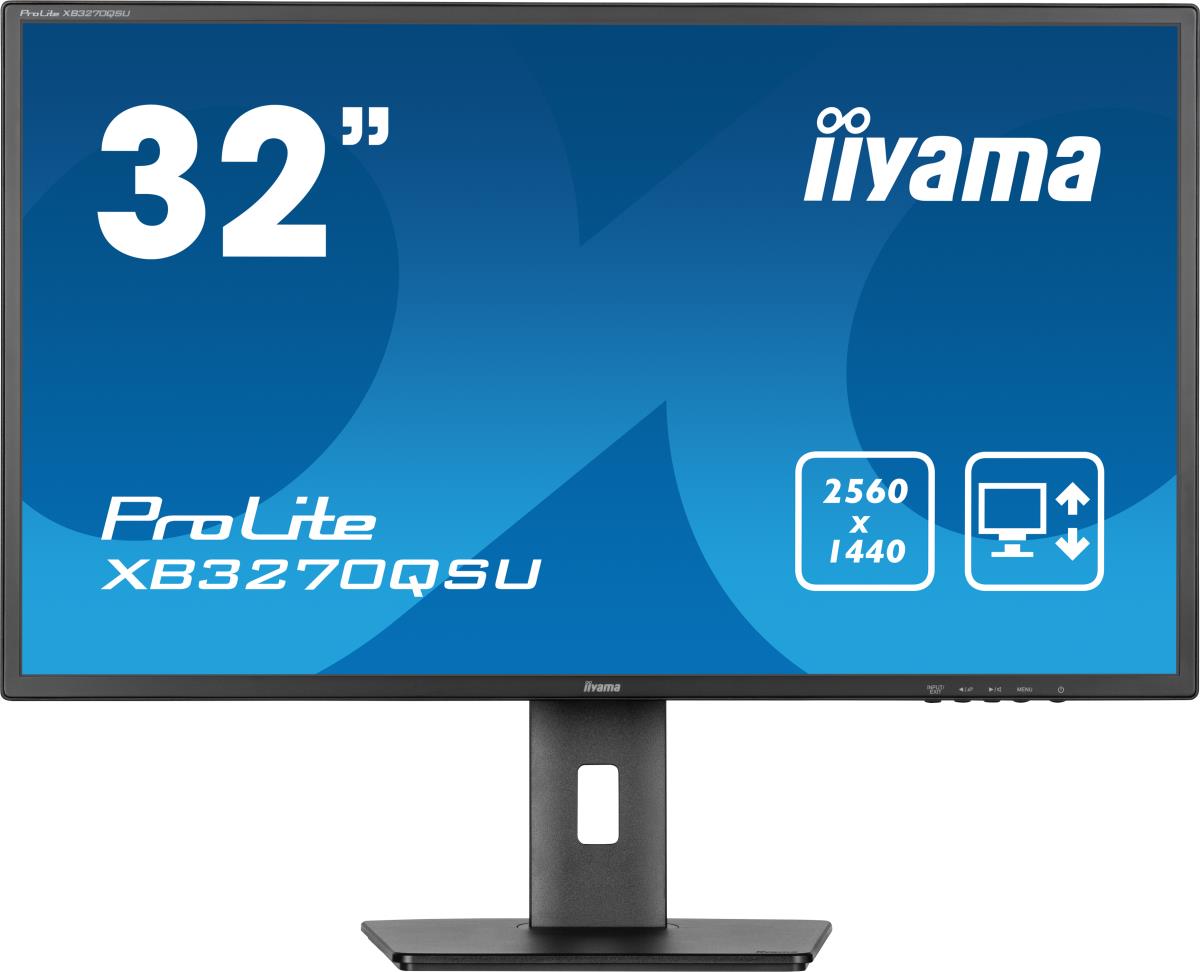

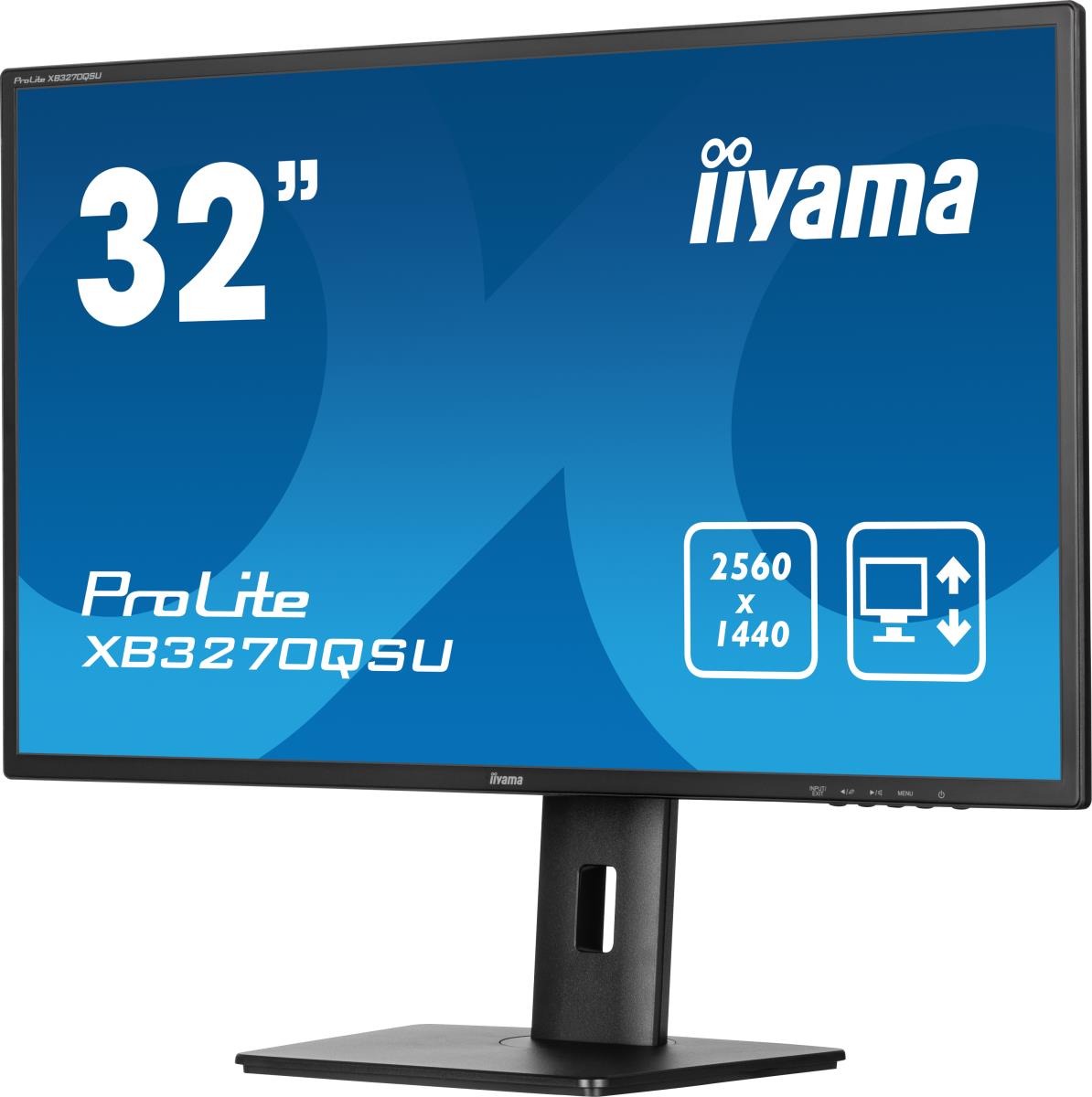

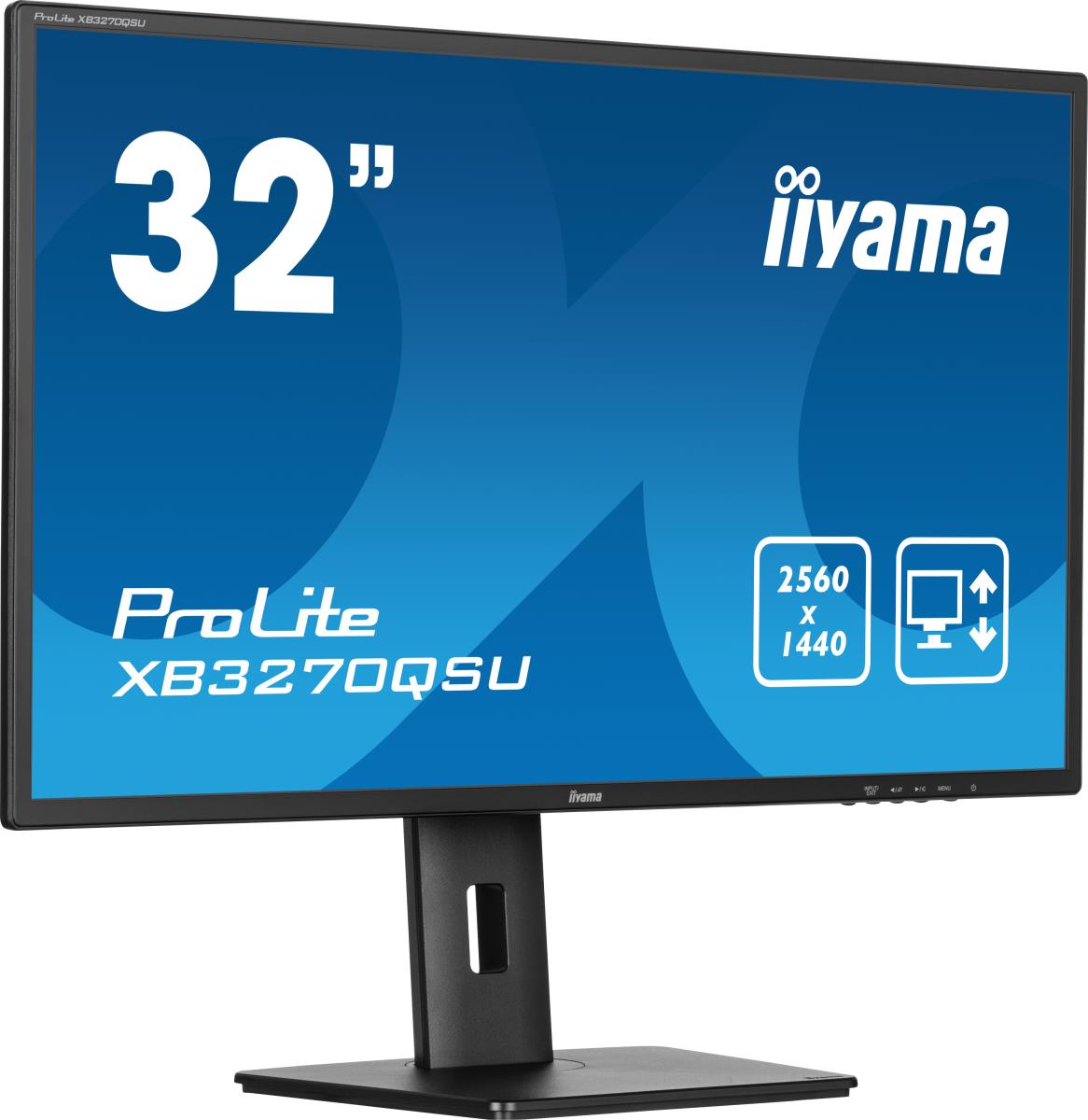

A height adjustable 32” IPS Panel Technology monitor featuring WQHD resolution
The ProLite XB3270QSU-B1 is a 31.5’’ screen featuring an IPS panel and WQHD (2560x1440) resolution, delivering both excellent colour performance with wide viewing angles and noticeably sharper images, which is ideal for productivity solutions, demanding office and financial applications. The 150mm height-adjustable stand ensures you can adjust the screen position to your preferences, and the flicker-free panel with blue light reducer function reduces eye fatigue.
IPS TECHNOLOGY
IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
Display
Response time measurement type
GTG (Gray to Gray)
Display surface
Matt
Colour depth
8 bit
sRGB coverage (typical)
100%
NTSC coverage (typical)
72%
Contrast ratio (dynamic)
80000000:1
Display diagonal
81.3 cm (32")
Display resolution
2560 x 1440 pixels
HD type
Wide Quad HD
Native aspect ratio
16:9
Display technology
LED
Panel type
IPS
Touchscreen
No
Display brightness (typical)
250 cd/m²
Response time
3 ms
Screen shape
Flat
Aspect ratio
16:9
Contrast ratio (typical)
1200:1
Maximum refresh rate
100 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.07 billion colours
Pixel pitch
0.272 x 0.272 mm
Horizontal scan range
30 - 90 kHz
Viewable size, horizontal
69.8 cm
Viewable size, vertical
39.3 cm
Display diagonal (metric)
80 cm
Performance
Low Blue Light technology
Yes
NVIDIA G-SYNC
No
AMD FreeSync
No
VESA Adaptive Sync support
Yes
Flicker-free technology
Yes
Ergonomics
Cable lock slot
Yes
Cable lock slot type
Kensington

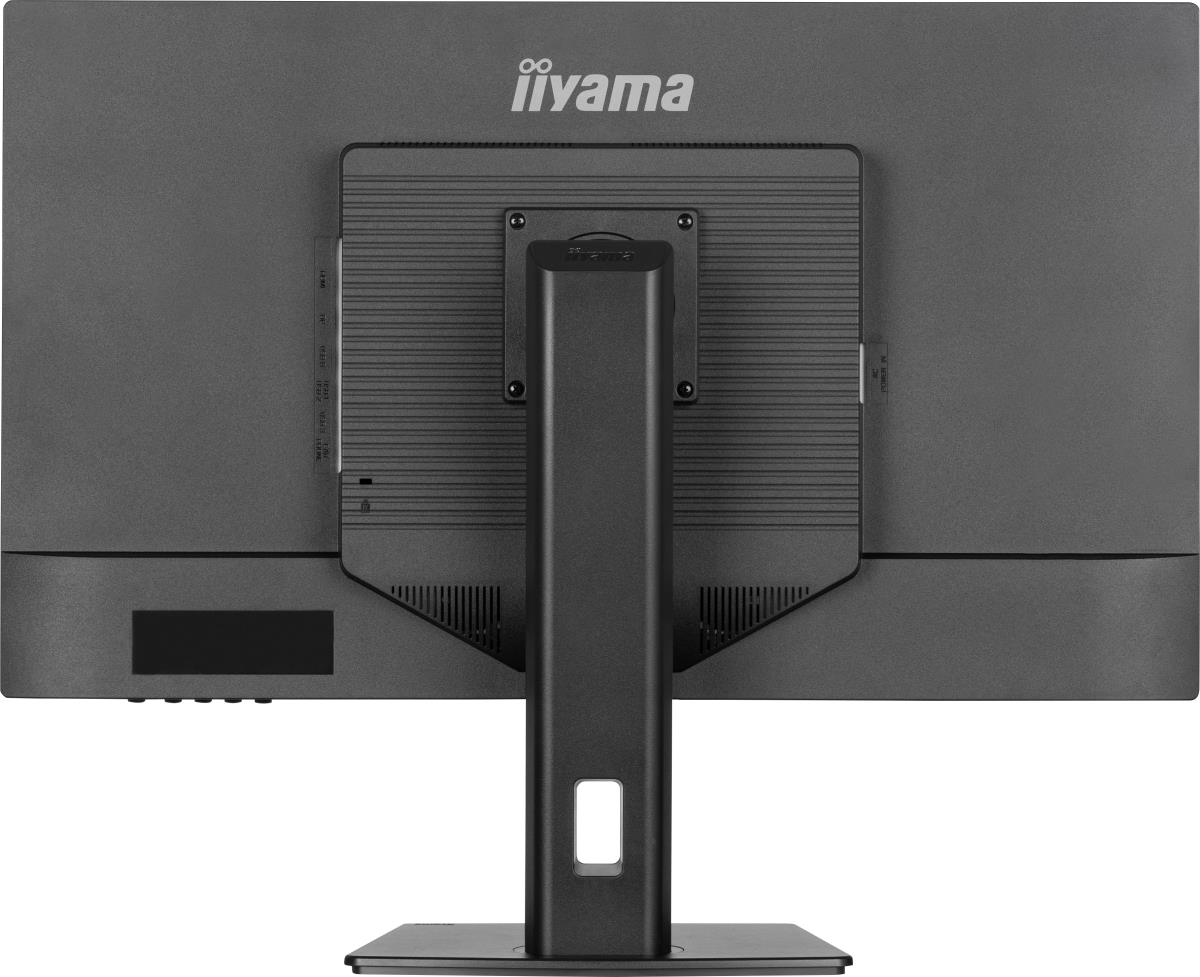

VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Cable management
Yes
Height adjustment
Yes
Height adjustment
15 cm
Swivelling
Yes
Swivel angle range
45 - 45°

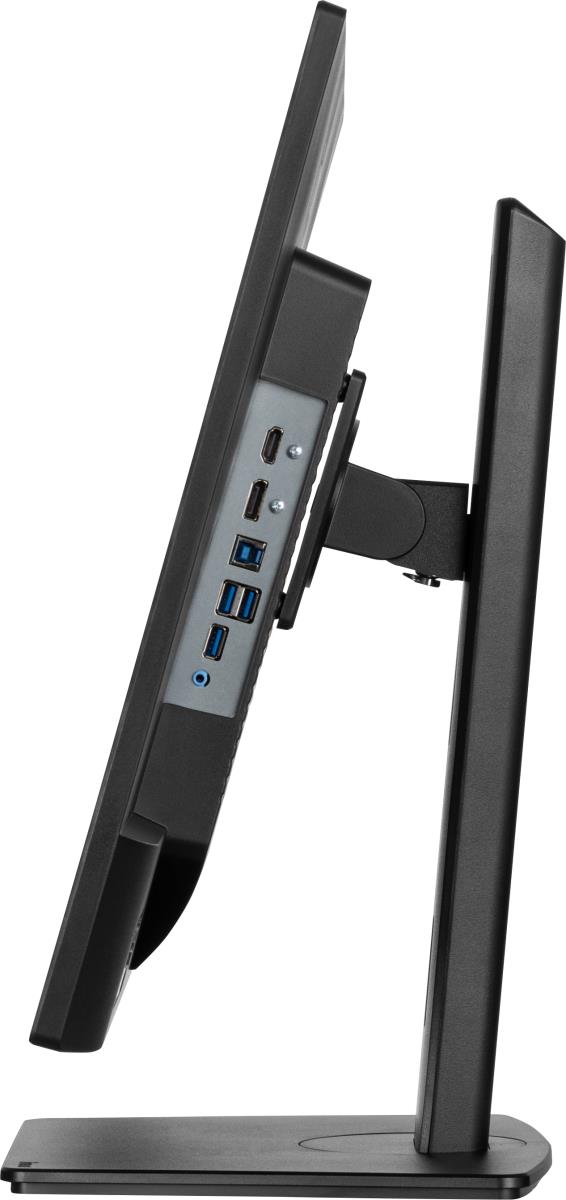

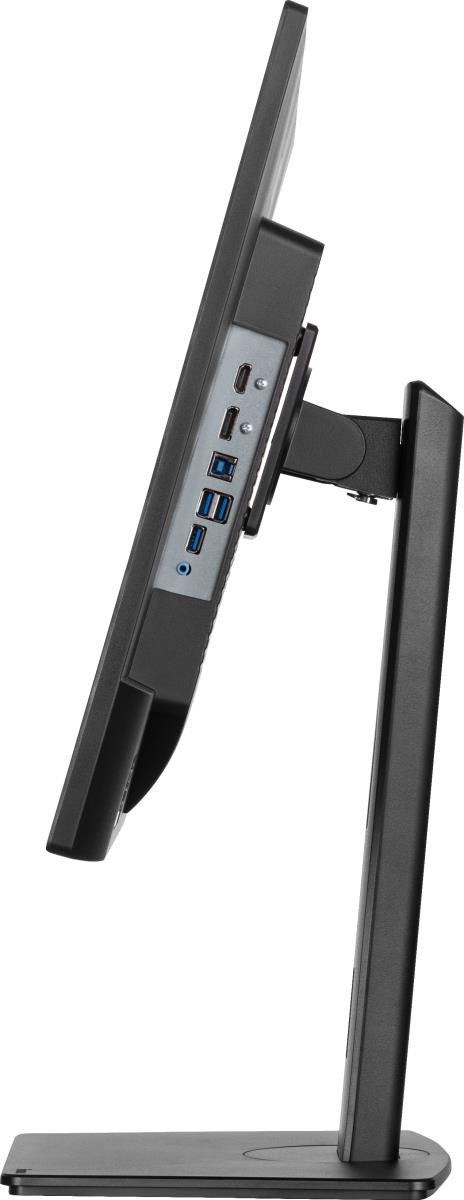

Tilt adjustment
Yes
Tilt angle range
5 - 20°
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Czech, German, English, French, Italian, Japanese, Polish, Russian
Power
Power supply type
Internal
Energy consumption (HDR) per 1000 hours
0 kWh
Energy efficiency class (SDR)
E
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
27 kWh
Power consumption (typical)
35 W
Power consumption (standby)
0.3 W
Power consumption (off)
0.5 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Energy efficiency scale
A to G
European Product Registry for Energy Labelling (EPREL) code
1869779
Weight & dimensions
Height (without stand)
440 mm
Width (with stand)
726 mm
Depth (with stand)
239.5 mm
Height (with stand)
580 mm
Weight (with stand)
8.6 kg
Technical details
Native refresh rate
60 Hz
Multimedia
Number of speakers
2
RMS rated power
4 W
Built-in speaker(s)
Yes
Built-in camera
No
Design
Market positioning
Business
Product colour
Black

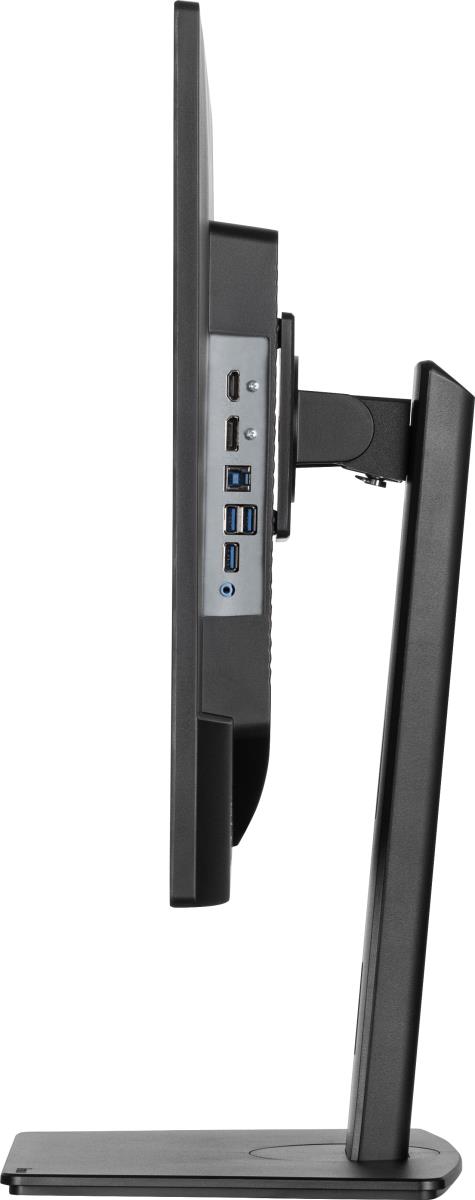

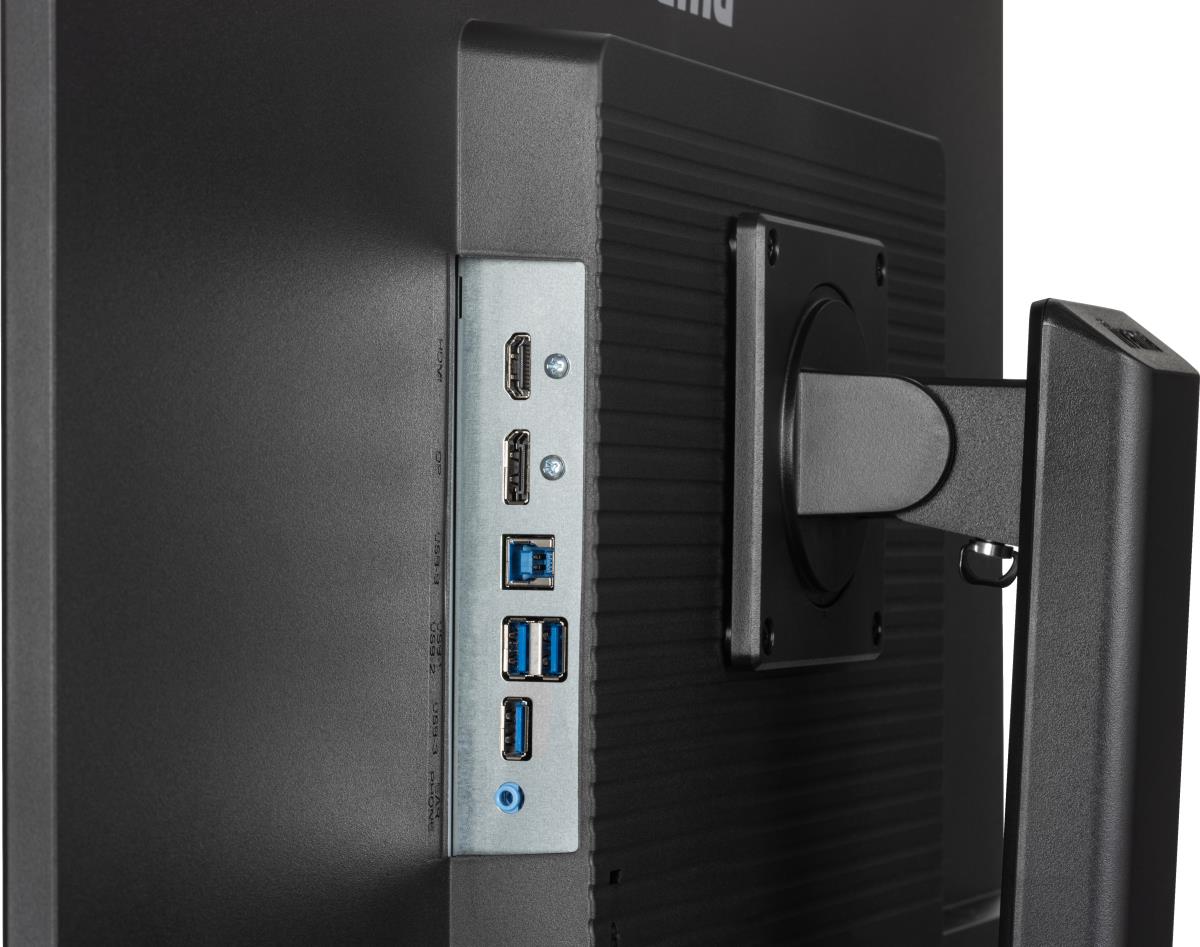

Ports & interfaces
Built-in USB hub
Yes
USB hub version
3.2 Gen 1 (3.1 Gen 1)
Number of upstream ports
3
HDMI
Yes
HDMI ports quantity
2
HDMI version
2.0
DisplayPorts quantity
1
DisplayPort version
1.4
Headphone out
Yes
Headphone connectivity
3.5 mm
HDCP
Yes
Number of downstream ports
3
Packaging data
Package width
810 mm
Package depth
176 mm
Package height
512 mm
Package weight
10.8 kg
Packaging content

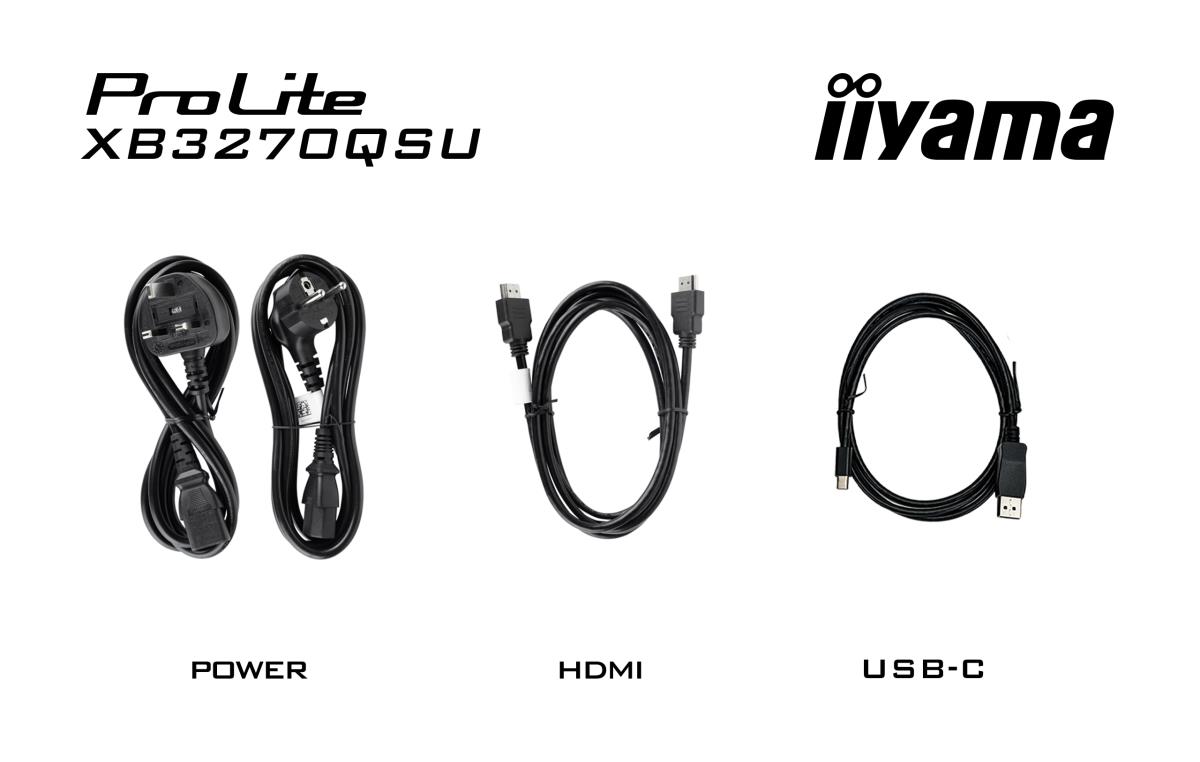

Cables included
HDMI, Power, USB
Quick start guide
Yes
Sustainability
Sustainability certificates
ErP
Other features
Packaging content
quick start guide, safety guide
User controls
picture adjust (brightness, contrast, i-Style colour, ACR, Eco, OD, X-Res technology), colour settings ( gamma, RGB range, colour temp.), image settings (video mode adjust, blue light reducer, sharp and soft), OSD (H. position, V. position, time, background, language), extra (reset, DDC/CI, LED, opening logo, Adpative Sync, display information), input select (source), audio settings (volume, mute)
Weight
8.6 kg
Width
726 mm
Depth
239.5 mm
Control panel
Power, Menu, Up / Right / Volume, Down / Left / Eco, Input/ Exit
Compliance certificates
CE, EAC, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE
Certification
CE, TÜV-Bauart, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA
Information
| Part Number: | XB3270QSU-B1 |
