Product Details
Introduction
The ProLite XB3294UHSCP-B1 is a 32 inch 4K monitor designed to give you more space, sharper detail, and smoother workflows. Its VA panel with Ultra HD resolution and a 3000:1 contrast ratio delivers crisp, vibrant visuals. A brightness of 350cd/m², 2ms response time, and Adaptive Sync ensure everything stays smooth and clear, whether you're creating content or working with data. USB-C (95W Power Delivery), HDMI, DisplayPort, and a built-in KVM switch make it easy to manage multiple devices while powering your laptop. PiP (Picture-in-Picture) and PbP (Picture-by-Picture) modes let you view content from two sources at the same time for more efficient multitasking. The three side borderless design helps you stay focused and supports seamless multi-monitor setups. The height adjustable stand, built-in speakers, and headphone jack provide comfort and convenience throughout your day. Certified with TCO, TÜV-GS and EPEAT Silver, it’s a smart, sustainable choice for any modern workspace.
Display
Display diagonal
80 cm (31.5")
Display resolution
3840 x 2160 pixels
HD type
4K Ultra HD
Native aspect ratio
16:9
Panel type
VA
Touchscreen
No
Display brightness (typical)
400 cd/m²
Response time
2 ms
Response time measurement type
GTG (Gray to Gray)
Screen shape
Flat
Contrast ratio (typical)
3000:1
Contrast ratio (dynamic)
80000000:1
Maximum refresh rate
75 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.07 billion colours
Pixel pitch
0.182 x 0.182 mm
Horizontal scan range
30 - 160 kHz
Viewable size, horizontal
70.9 cm
Viewable size, vertical
40.6 cm
Display diagonal (metric)
80 cm
High Dynamic Range (HDR) supported
Yes
High Dynamic Range (HDR) technology
High Dynamic Range 10 (HDR10)
DDC/CI
Yes
Colour depth
8 bit
Colour gamut standard
NTSC, sRGB
sRGB coverage (typical)
99%
NTSC coverage (typical)
93%
Performance
AMD FreeSync
Yes
VESA Adaptive Sync support
Yes
Flicker-free technology
Yes
Low Blue Light technology
Yes
Multimedia
Number of speakers
2
RMS rated power
10 W
Built-in speaker(s)
Yes
Built-in camera
No
Design
Market positioning
Graphics design
Product colour
Black
Weight & dimensions
Width (without stand)
714 mm
Depth (without stand)
56 mm
Width (with stand)
713.9 mm
Depth (with stand)
245.5 mm
Height (with stand)
598.5 mm
Weight (with stand)
8.5 kg
Height (without stand)
448.5 mm

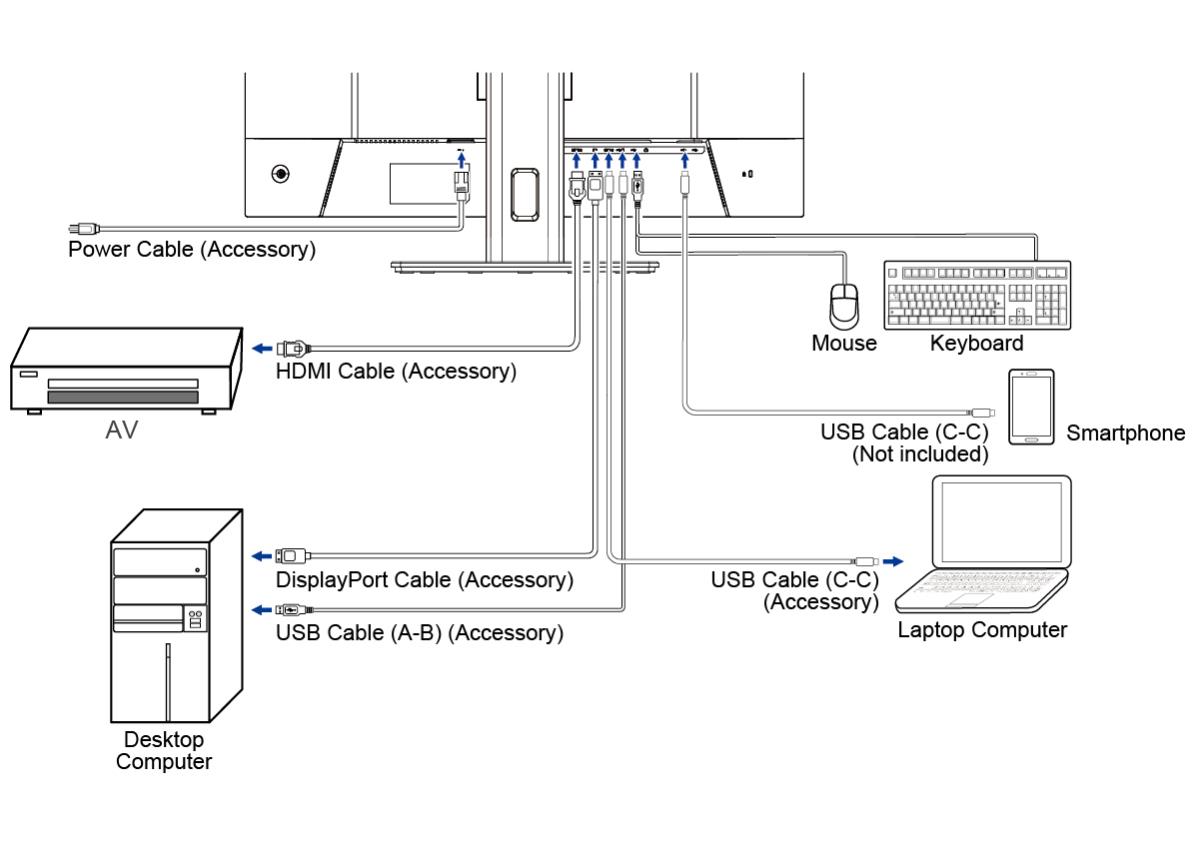

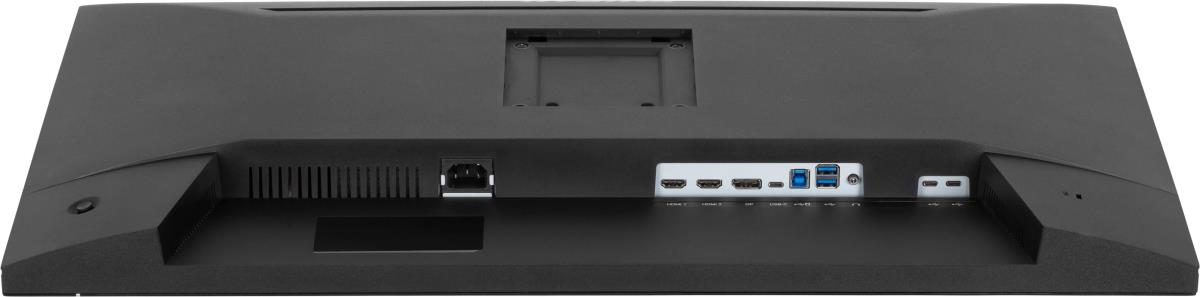

Ports & interfaces
Built-in USB hub
Yes
USB hub version
3.2 Gen 1 (3.1 Gen 1)
USB upstream port type
USB Type-B, USB Type-C
Number of upstream ports
1
Number of downstream ports
4
Number of USB Type-B upstream ports quantity
1
Number of USB Type-C upstream ports quantity
1
USB Type-A downstream ports quantity
2
USB Type-C downstream ports quantity
2
USB Type-C DisplayPort Alternate Mode
Yes
USB Power Delivery (USB PD)
Yes
USB Power Delivery up to
95 W
HDMI
Yes
HDMI ports quantity
2
HDMI version
2.1
DisplayPorts quantity
1
DisplayPort version
1.2
Headphone out
Yes
Built-in KVM switch
Yes
HDCP
Yes
Ergonomics
VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Cable management
Yes
Cable lock slot
Yes
Cable lock slot type
Kensington
Height adjustment
Yes
Adjustable height (max)
15 cm
Pivot
Yes
Pivot angle
-90 - 90°
Swivelling
Yes
Swivel angle range
-45 - 45°
Tilt adjustment
Yes
Tilt angle range
-5 - 23°
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Multi
Number of OSD languages
11
Technical details
Native refresh rate
60 Hz
Power
Energy efficiency class (SDR)
G
Energy efficiency class (HDR)
G
Energy consumption (SDR) per 1000 hours
33 kWh
Energy consumption (HDR) per 1000 hours
59 kWh
Power consumption (typical)
55 W
Power consumption (standby)
0.5 W
Power consumption (off)
0.3 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power supply type
Internal
Energy efficiency scale
A to G
Operational conditions
Operating temperature (T-T)
5 - 35 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
10 - 80%
Storage relative humidity (H-H)
10 - 90%
Packaging data
Package width
790 mm
Package depth
790 mm
Package height
510 mm
Package weight
11.8 kg
USB cable length
1.5 m

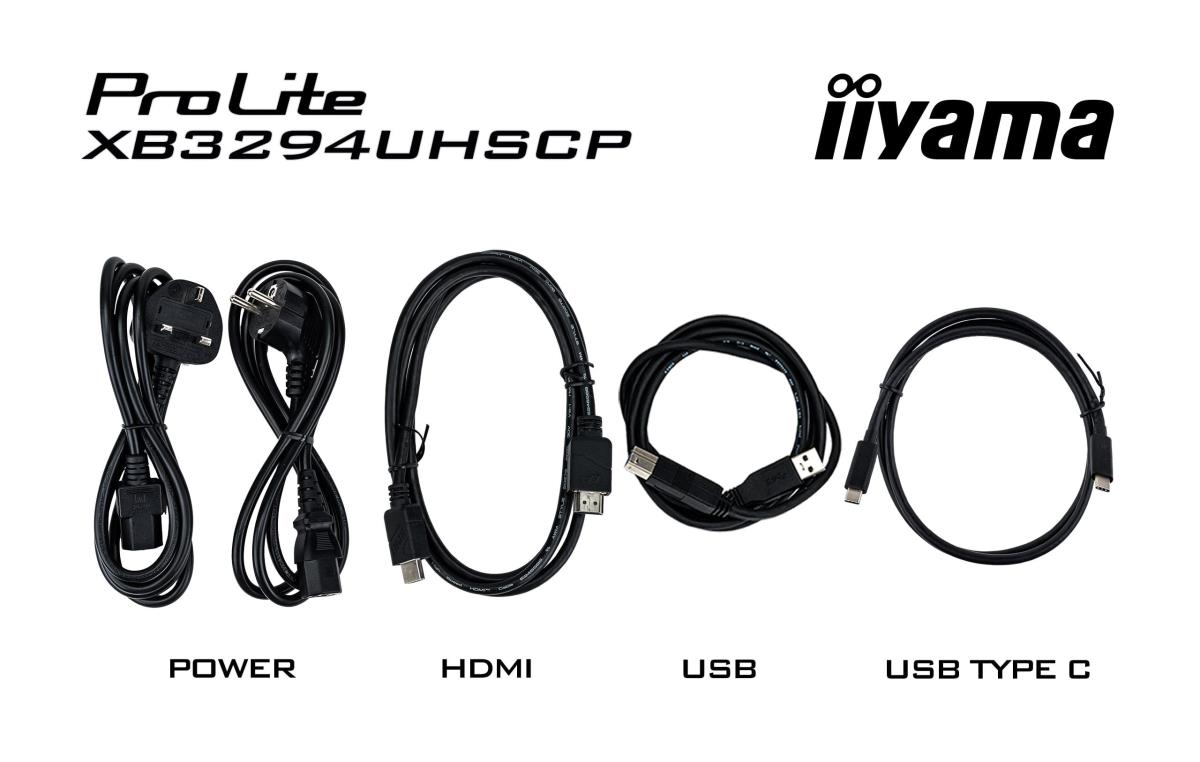

Packaging content
Cables included
AC, DisplayPort, HDMI, USB, USB Type-C
Quick start guide
Yes
DisplayPort cable length
1.85 m
Power cable length
1.85 m
Sustainability
Sustainability certificates
ErP, TCO
Other features
Certification
TCO Certified, CE, TÜV-GS, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA
Packaging content
quick start guide, safety guide
User controls
picture adjust (brightness, contrast, Eco, ACR, OD, HDR, AdaptiveSync, X-Res technology, black tuner), colour settings (6-axis, i-Style colour, blue light reducer, gamma, RGB range, colour temp.), PiP/PiB ( PiP/PiB, sub source, PiP position, PiP size, swap), OSD (position H, position V, OSD time, background, DDC/CI control, display information), language, miscellaneous (sharpness, video mode adjust, opening logo, power LED, USB charge, USB-C speed), KVM, input select, audio settings (volume, mute, audio input), recall (recall all)
Weight
8.5 kg
Width
713.9 mm
Depth
245.5 mm
Control panel
Joystick: Center: Power/ Menu, Up/ Input Select, Down, Left: i-Style Colour/ ECO/ Blue Light Reducer, Right/ Volume
Compliance certificates
CE, EAC, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE
Information
| Part Number: | XB3294UHSCP-B1 |
