Introduction

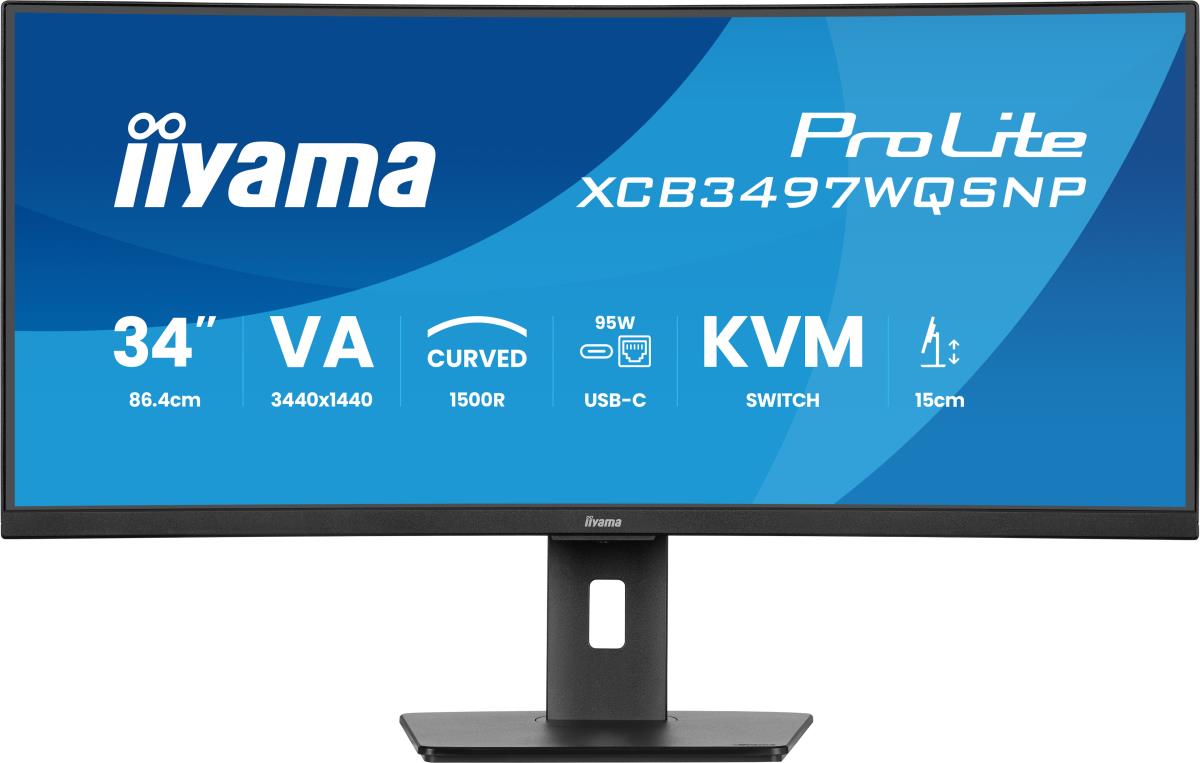

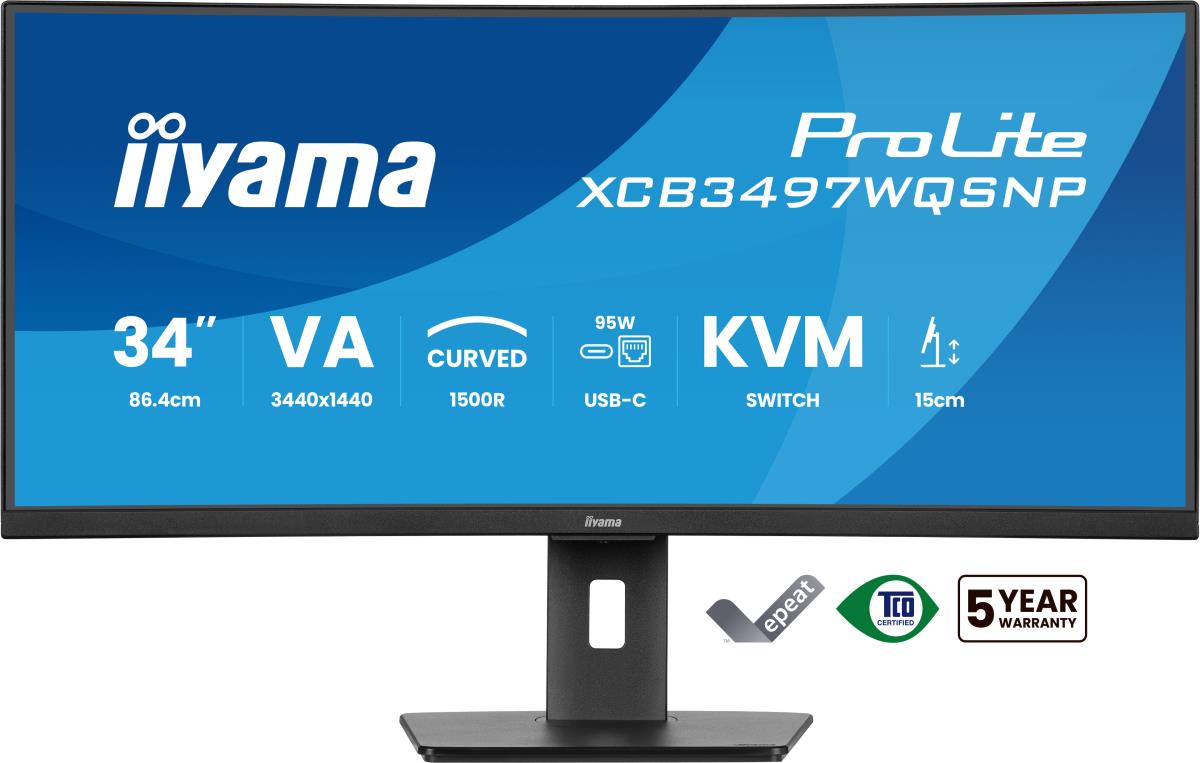

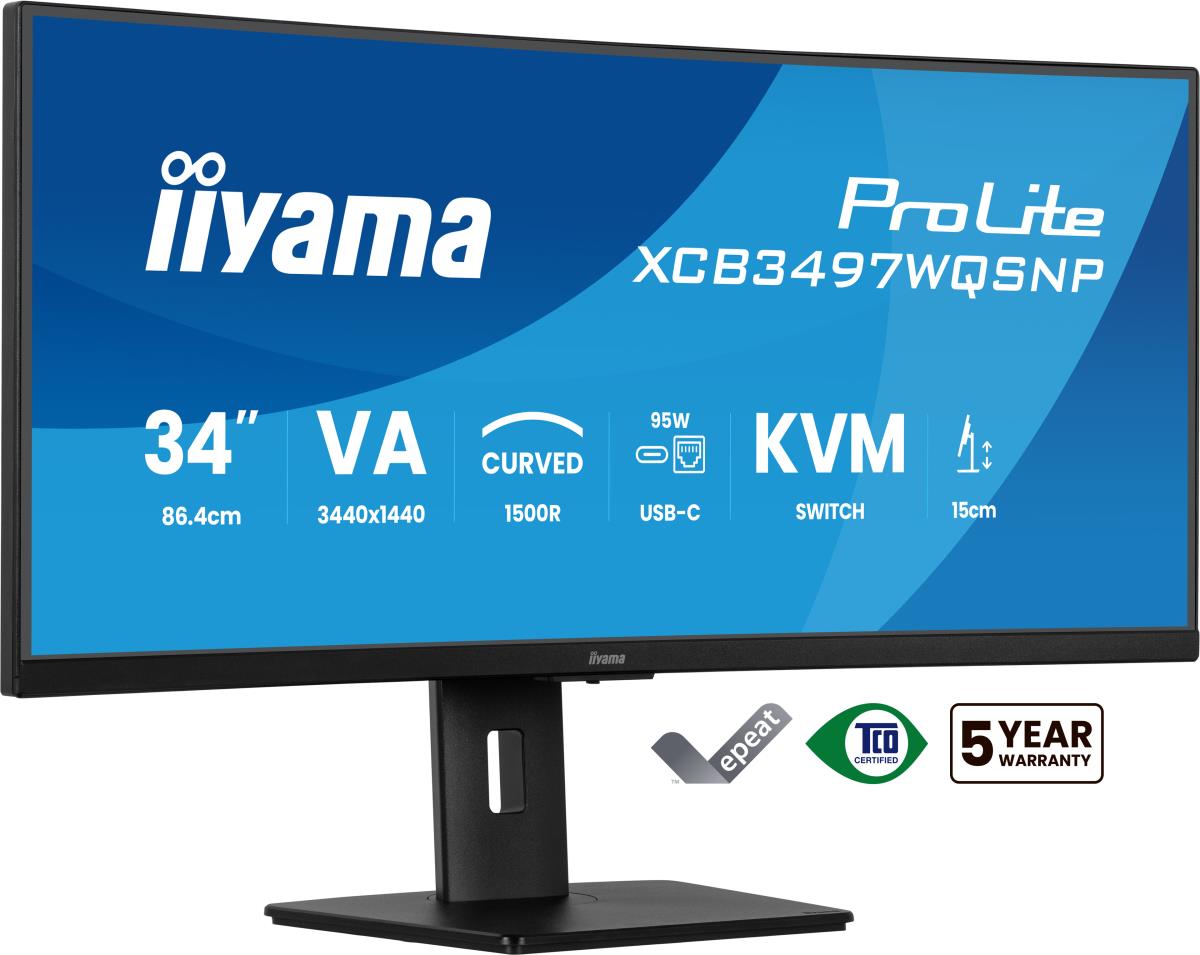

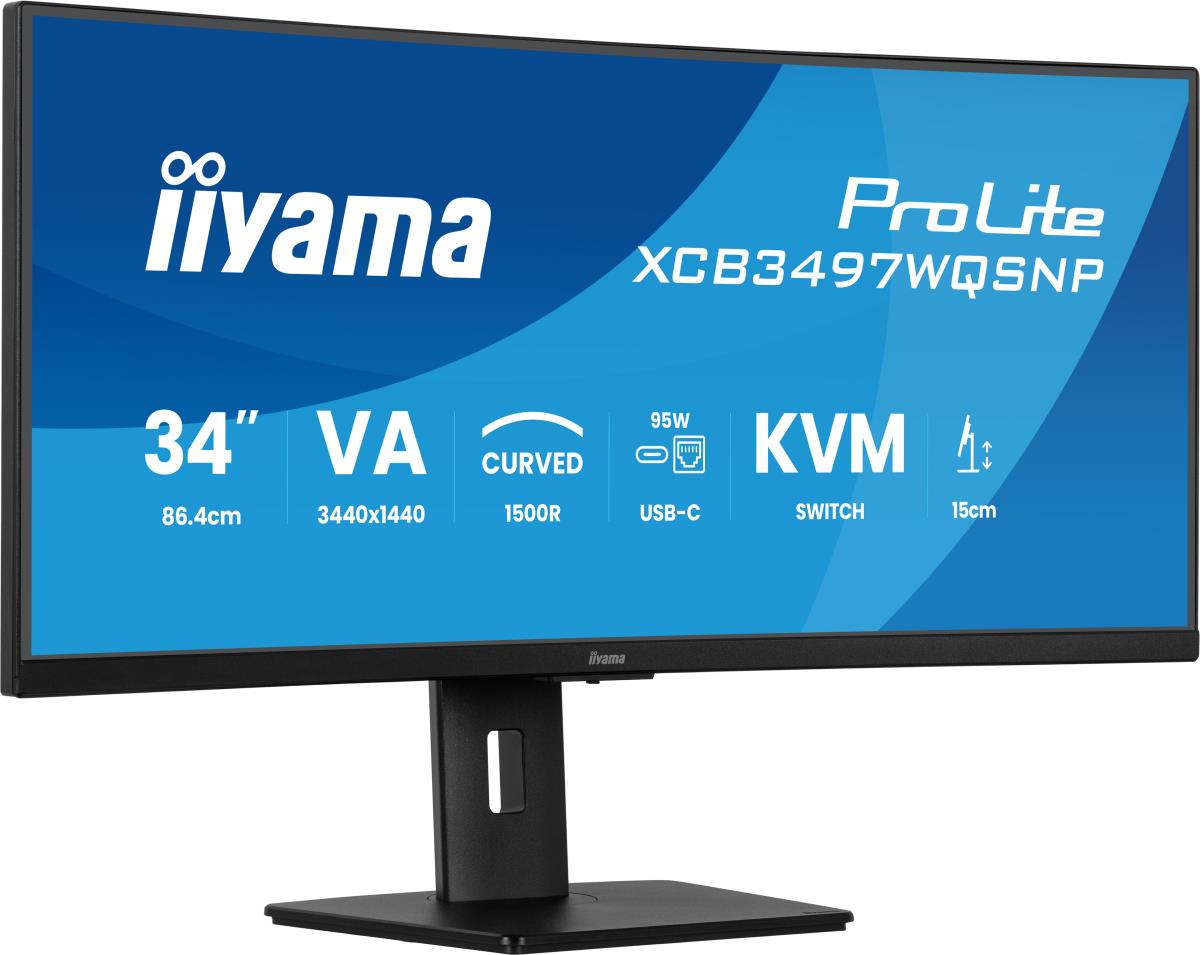

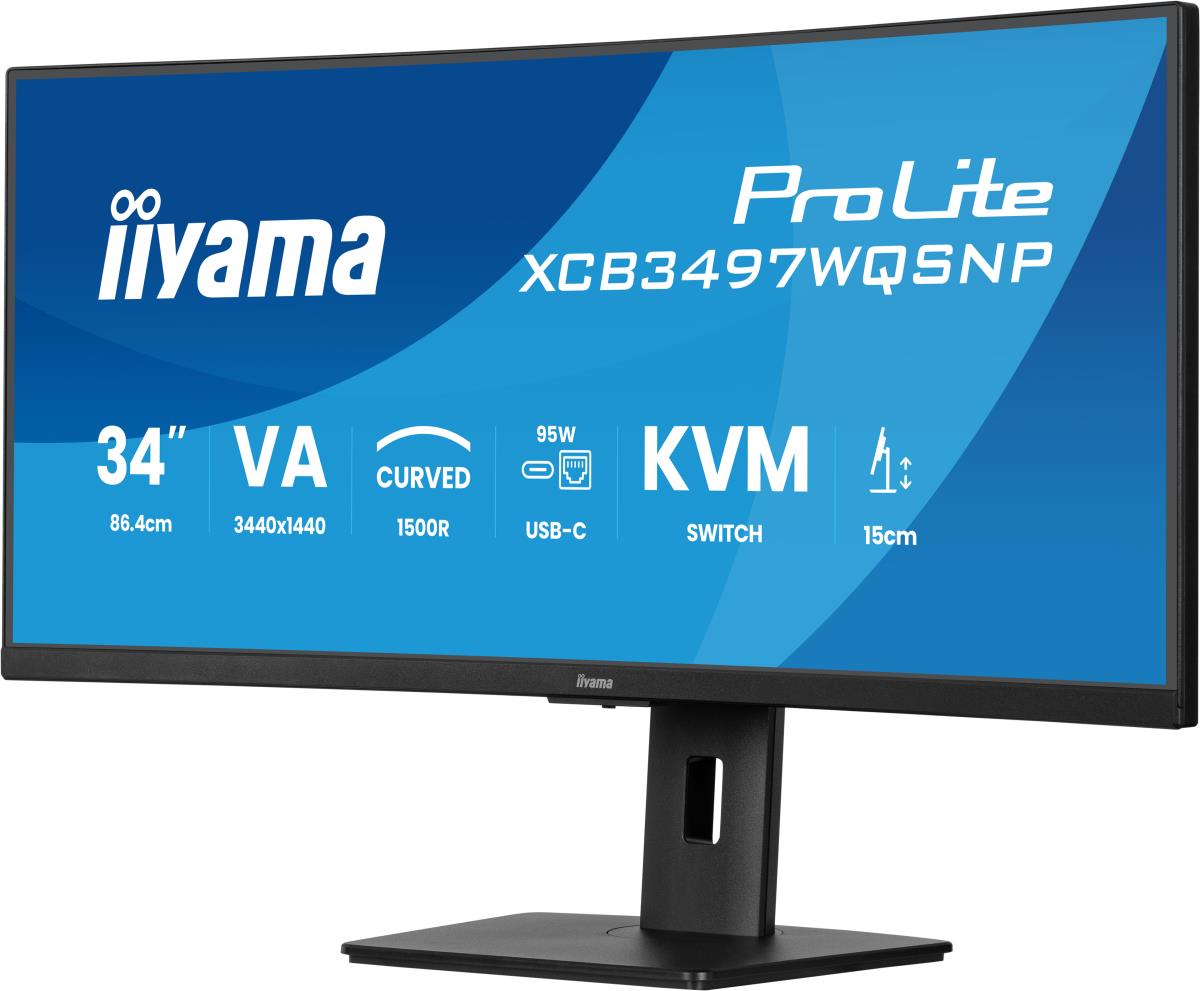

34’’ UWQHD curved monitor with USB-C dock, LAN, KVM switch and 15cm height adjustable stand
The XCB3497WQSNP is a 34-inch curved monitor that incorporates a KVM switch and a USB-C dock to simplify your workspace. The KVM switch enhances multitasking by allowing you to control multiple computers from a single monitor, keyboard, and mouse. The USB-C dock reduces cable clutter and simplifies connectivity even further, allowing a single cable to carry video, data, and power to charge your notebook. Additionally, when the monitor is connected to a LAN network, your notebook automatically gains network access. The VA panel technology delivers high contrast and deep black levels and wide viewing angles for consistent image quality regardless of your position for a richer and more vivid viewing experience.
For optimal comfort, the 15cm height-adjustable stand allows you to customize the screen position, while the Flicker-Free panel and Blue Light reduction function help minimize eye strain.
Performance
AMD FreeSync
Yes
AMD FreeSync type
FreeSync Premium
VESA Adaptive Sync support
Yes
Flicker-free technology
Yes
Low Blue Light technology
Yes
Display
Display diagonal
86.4 cm (34")
Display resolution
3440 x 1440 pixels
HD type
UltraWide Quad HD
Native aspect ratio
21:9
Display technology
LED
Panel type
VA
Touchscreen
No
Display brightness (typical)
350 cd/m²
Response time (MPRT)
0.4 ms
Display surface
Matt

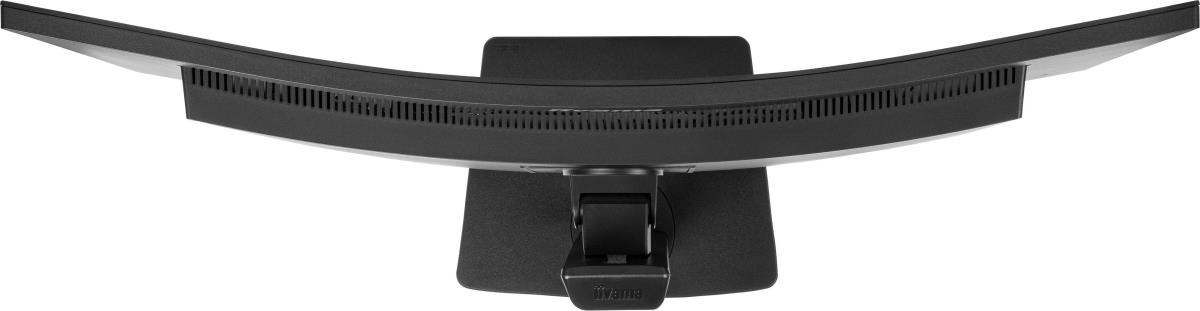

Screen shape
Curved
Screen curvature rating
1500R
Contrast ratio (typical)
3000:1
Contrast ratio (dynamic)
80000000:1
Maximum refresh rate
120 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.7 million colours
Pixel pitch
0.232 x 0.232 mm
Horizontal scan range
30 - 180 kHz
Viewable size, horizontal
33.4 cm
Viewable size, vertical
79.7 cm
Display diagonal (metric)
86.7 cm
Colour gamut standard
NTSC, sRGB
sRGB coverage (typical)
99%
NTSC coverage (typical)
93%

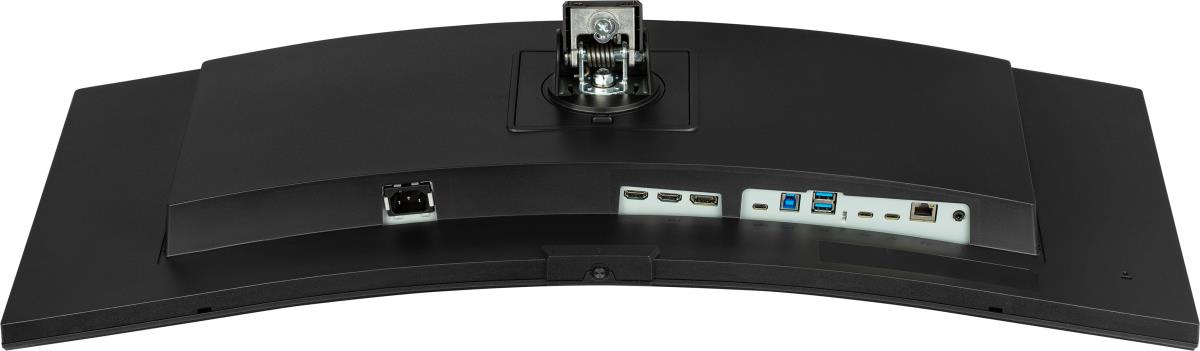

Ports & interfaces
USB upstream port type
USB Type-C
Built-in KVM switch
Yes
Number of USB Type-C upstream ports quantity
1
USB Type-A downstream ports quantity
2
USB Type-C DisplayPort Alternate Mode
Yes
Built-in USB hub
Yes
USB hub version
3.2 Gen 1 (3.1 Gen 1)
USB Power Delivery (USB PD)
Yes
USB Power Delivery up to
95 W
HDMI
Yes
HDMI ports quantity
2
HDMI version
1.4/2.0
DisplayPorts quantity
1
DisplayPort out version
1.4
Headphone out
Yes
HDCP
Yes
Number of downstream ports
4
Multimedia
Number of speakers
2
RMS rated power
10 W
Built-in speaker(s)
Yes
Design
Network

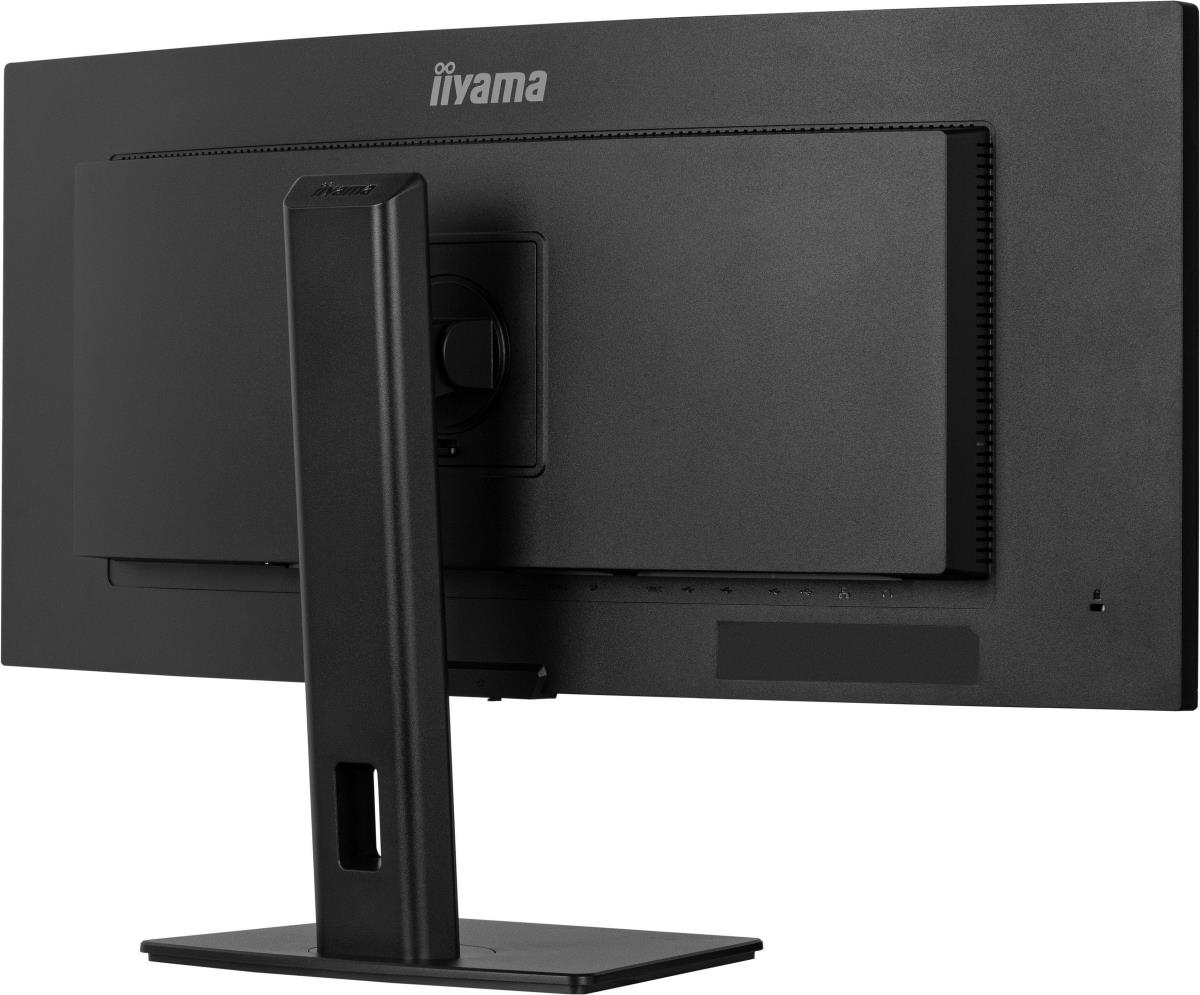

Ergonomics
VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Wall mountable
Yes
Cable management
Yes
Cable lock slot
Yes
Cable lock slot type
Kensington

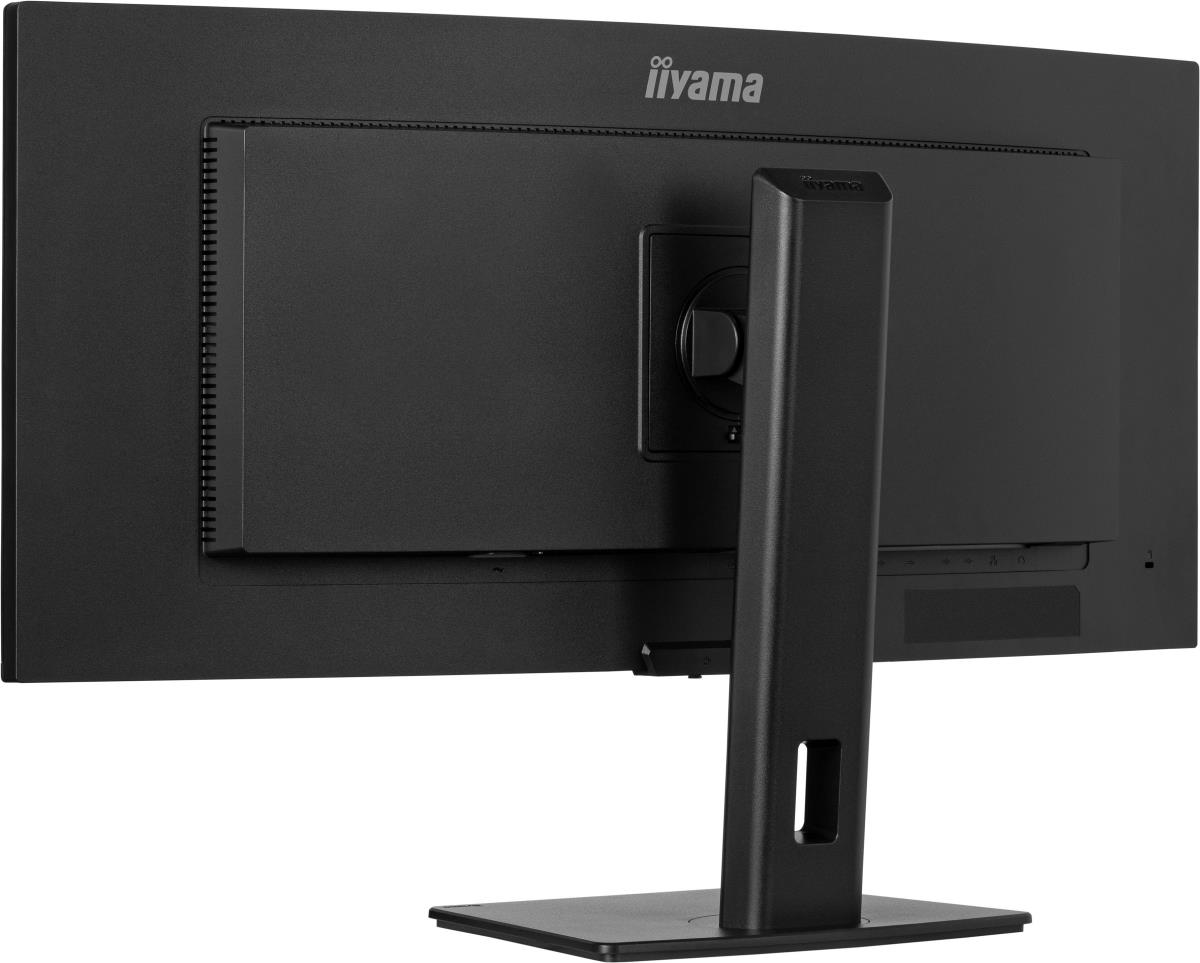

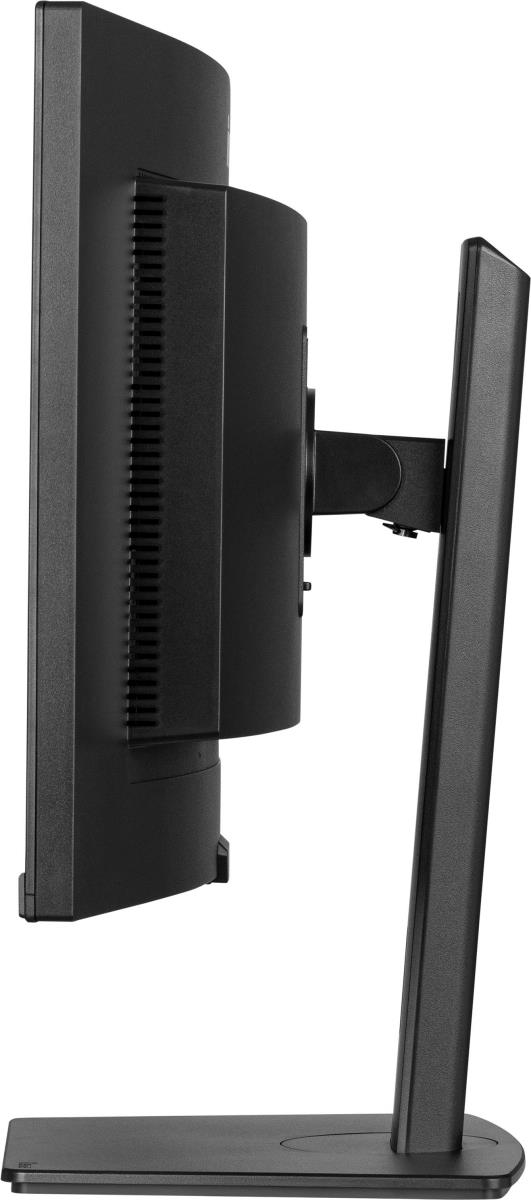

Height adjustment
Yes
Adjustable height (max)
15 cm
Swivelling
Yes
Swivel angle range
45 - 90°

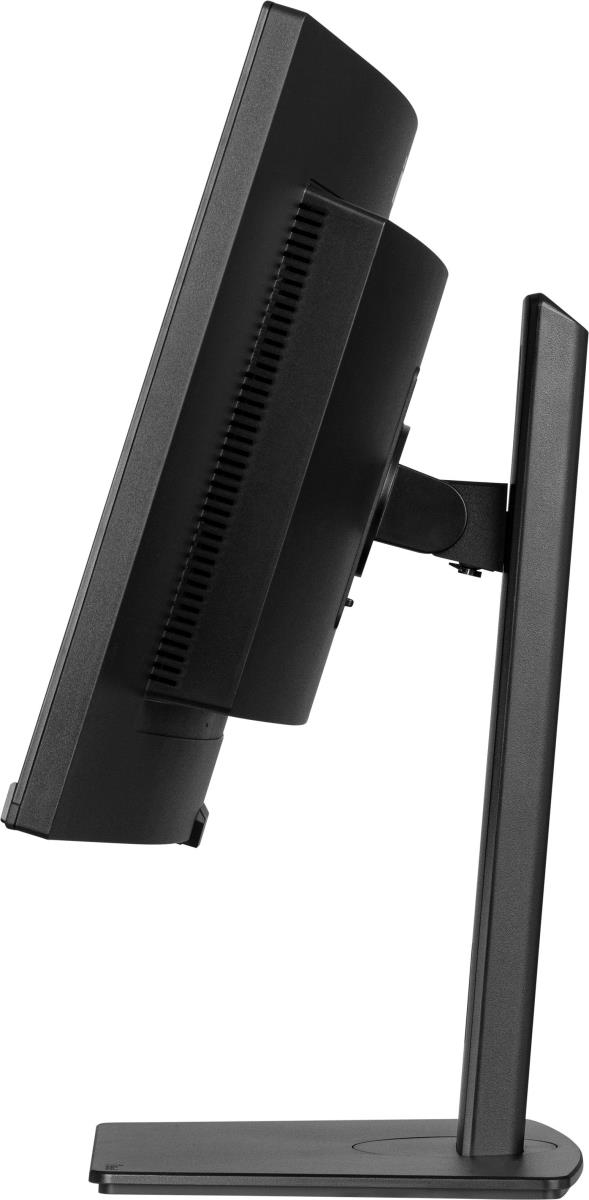

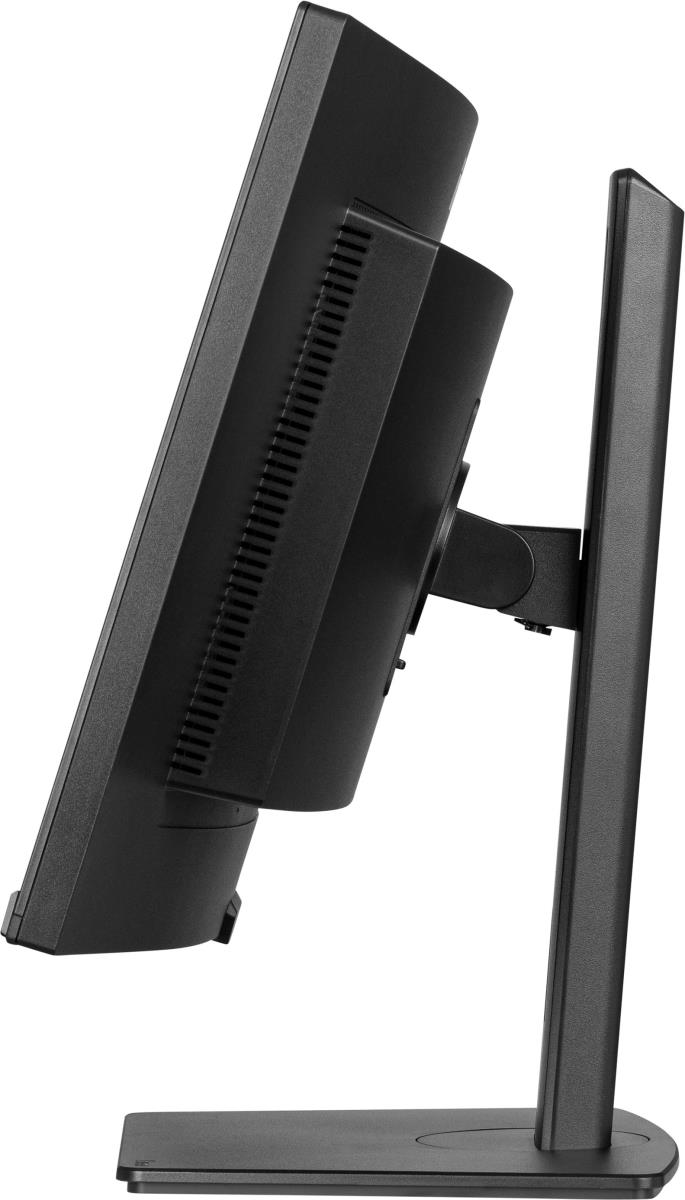

Tilt adjustment
Yes
Tilt angle range
5 - 23°
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Czech, German, Dutch, English, French, Italian, Japanese, Polish, Russian
Power
Energy efficiency class (SDR)
F
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
32 kWh
Power consumption (typical)
55 W
Power consumption (standby)
0.5 W
Power consumption (off)
0.3 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power supply type
Internal
Energy efficiency scale
A to G
Weight & dimensions
Width (with stand)
807 mm
Depth (with stand)
245.5 mm
Height (with stand)
576 mm
Weight (with stand)
9.7 kg
Width (without stand)
807 mm
Depth (without stand)
245.6 mm
Height (without stand)
500 mm
Weight (without stand)
426 g
Packaging data
Package width
807 mm
Package depth
198 mm
Package height
500 mm
Package weight
14.1 kg
Package type
Box
Technical details
Native refresh rate
60 Hz

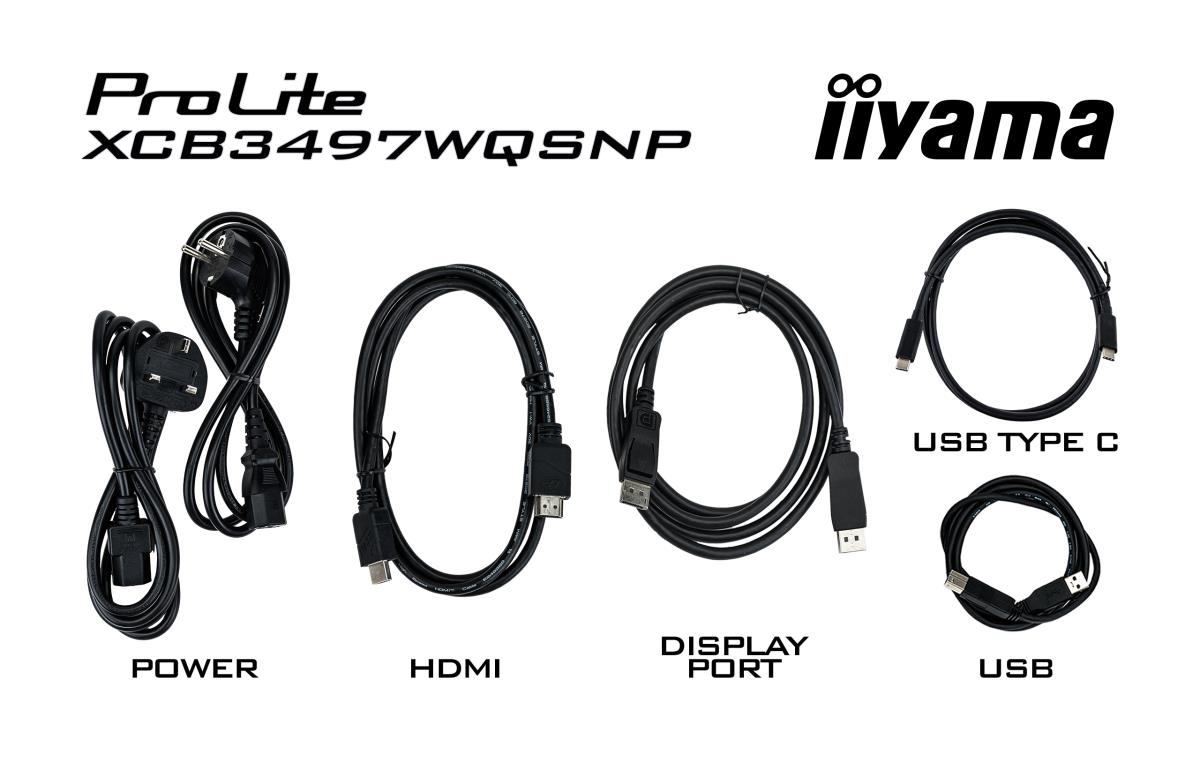

Packaging content
Cables included
AC, USB, HDMI, DisplayPort, USB Type-C
Sustainability
Sustainability certificates
ErP, TCO
Other features
Packaging content
quick start guide, safety guide
User controls
picture adjust (brightness, contrast, Eco, ACR, OD, AdaptiveSync, motion blur reduction, X-Res technology, black tuner), colour settings (6-axis, i-Style colour, blue light reducer, gamma, RGB range, colour temp.,), OSD (OSD H. position, OSD V. position, OSD time, OSD background, DDC/CI control, display information), language, miscellaneous (sharpness, video mode adjust, opening logo, power LED, Mac address, USB charge, USB C speed), KVM (HDMI1, HDMI2, DisplayPort, USB C), input select, audio settings (volume, mute audio), recall
Weight
9.7 kg
Width
807 mm
Depth
245.5 mm
Control panel
Joystick: Power/Menu (Centre), Forward/Signal Select, Backward, Left/i-Style colour/ECO/BlueLight Reducer, Right/Volume
Compliance certificates
CE, EAC, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE
Ethernet LAN (RJ-45) ports
1
