Product Details
Introduction

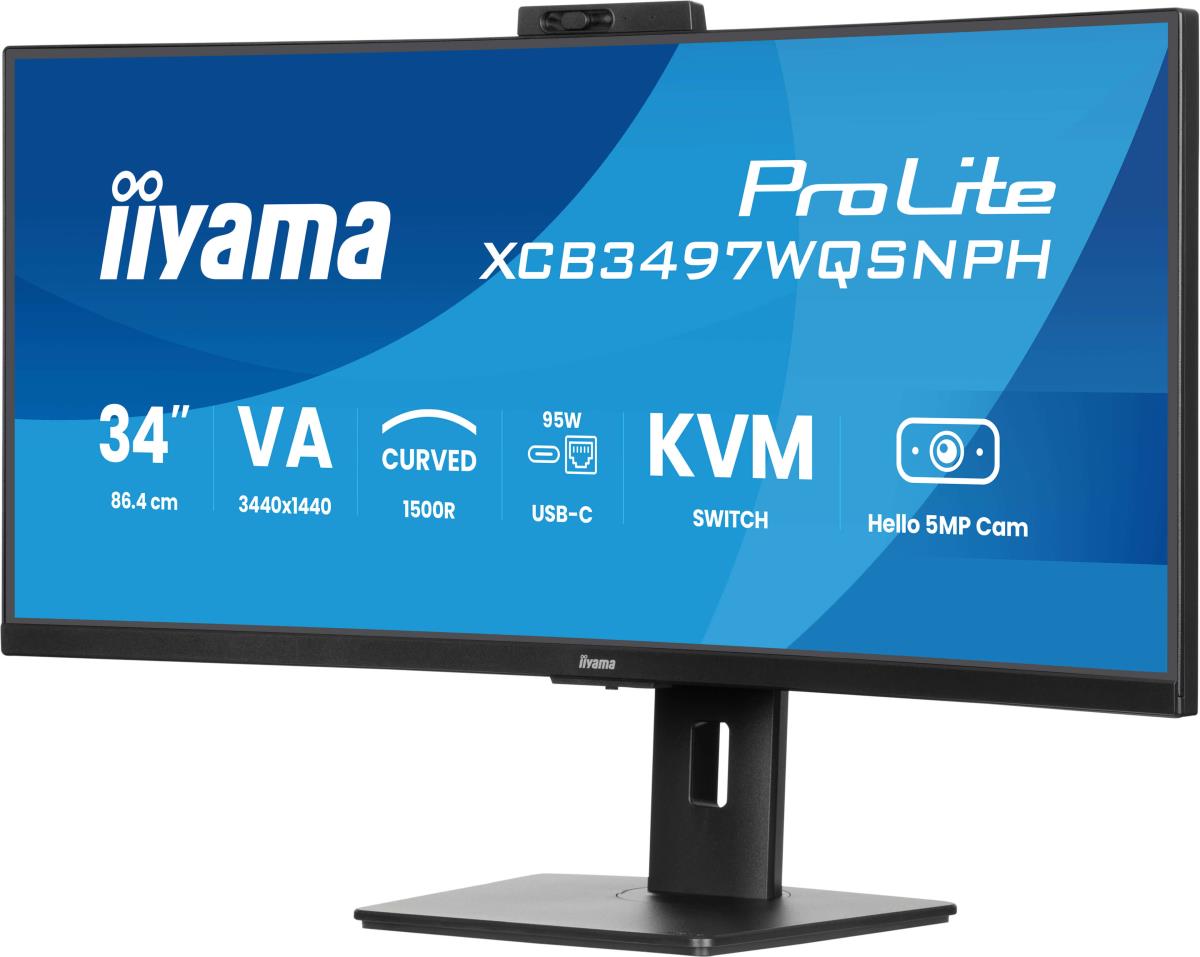

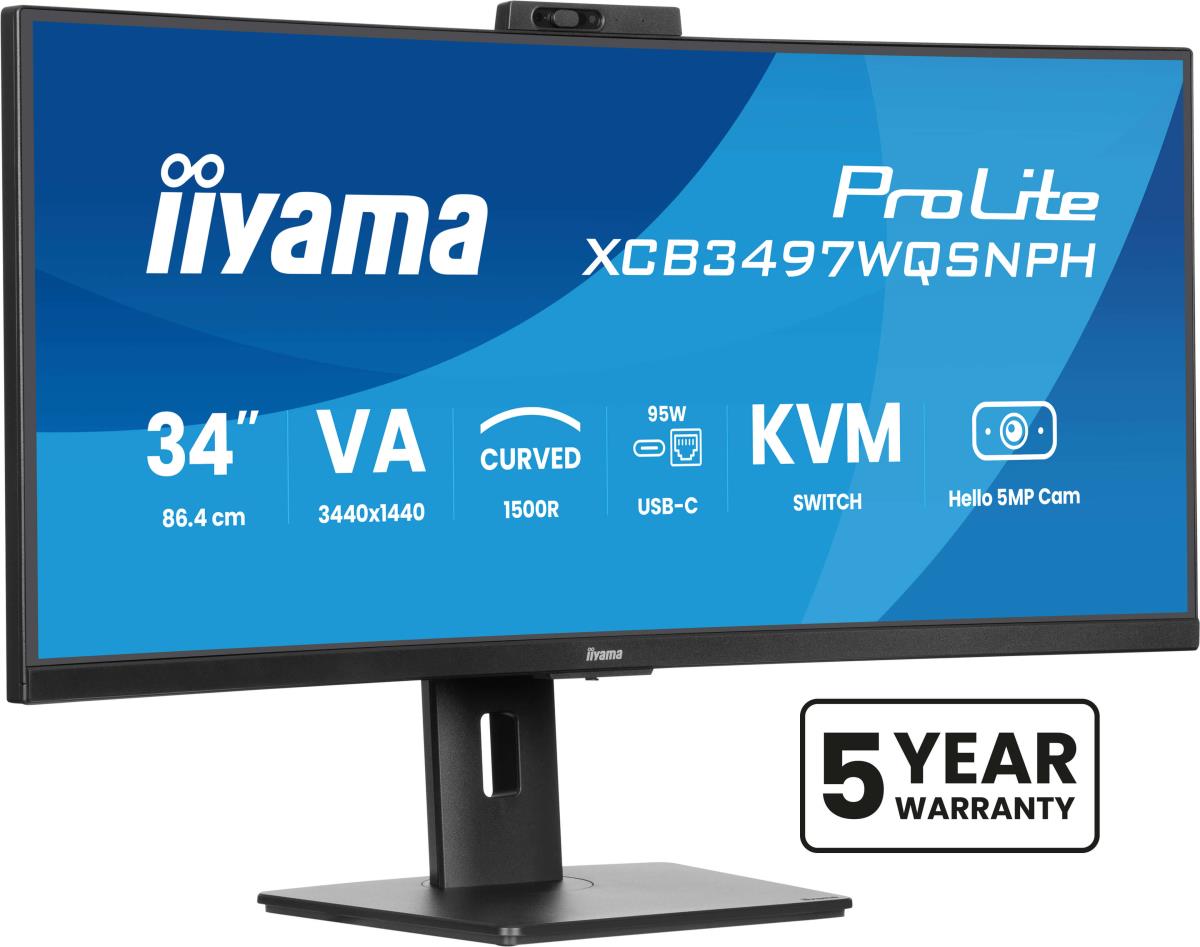

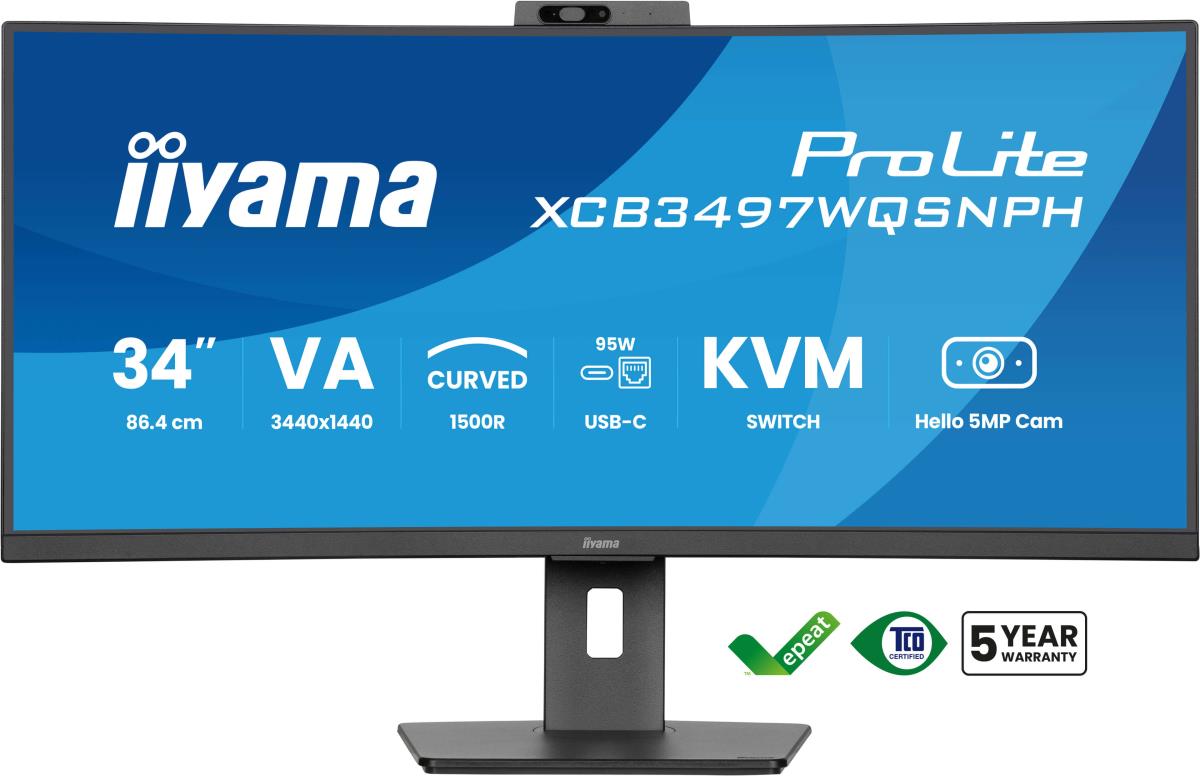

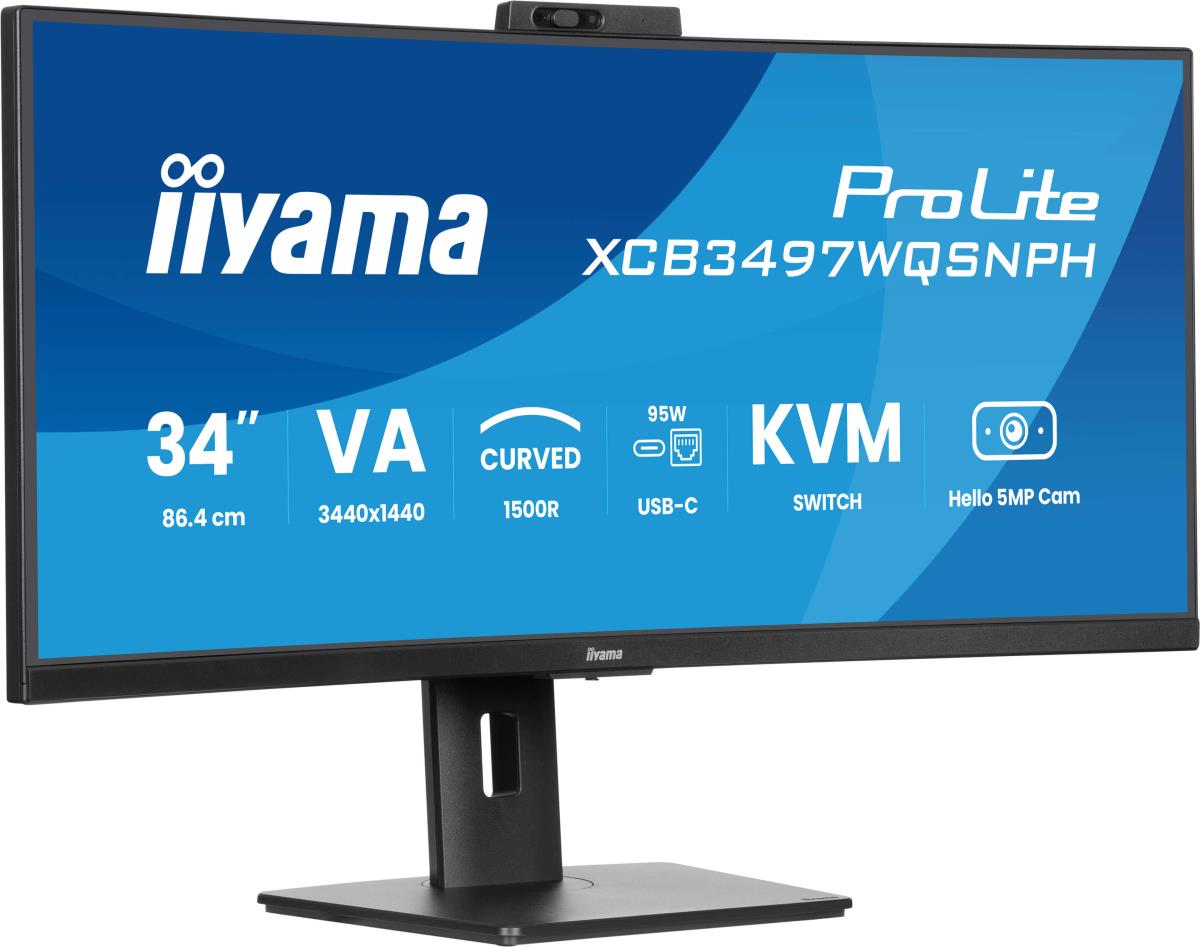

34’’ VA UWQHD curved monitor with a built-in Windows Hello camera and microphone, USB-C Dock, LAN, KVM-Switch and 15cm height adjustable stand

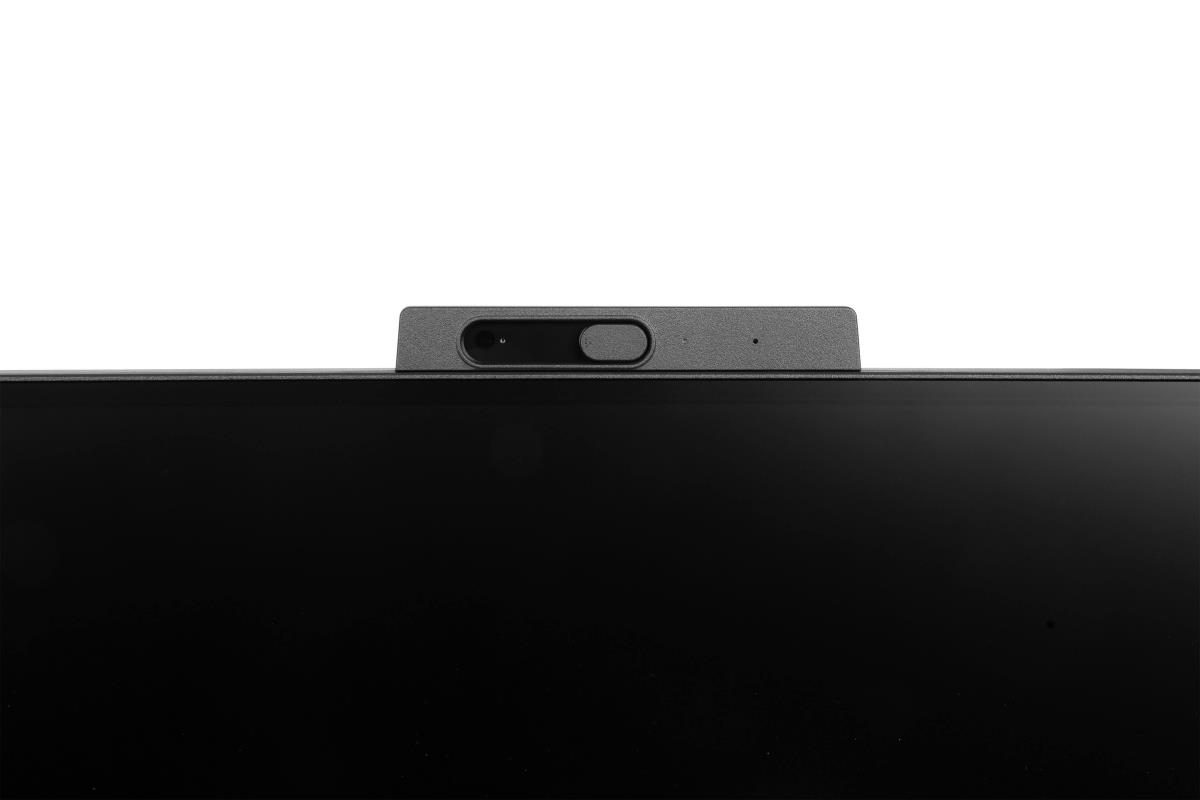

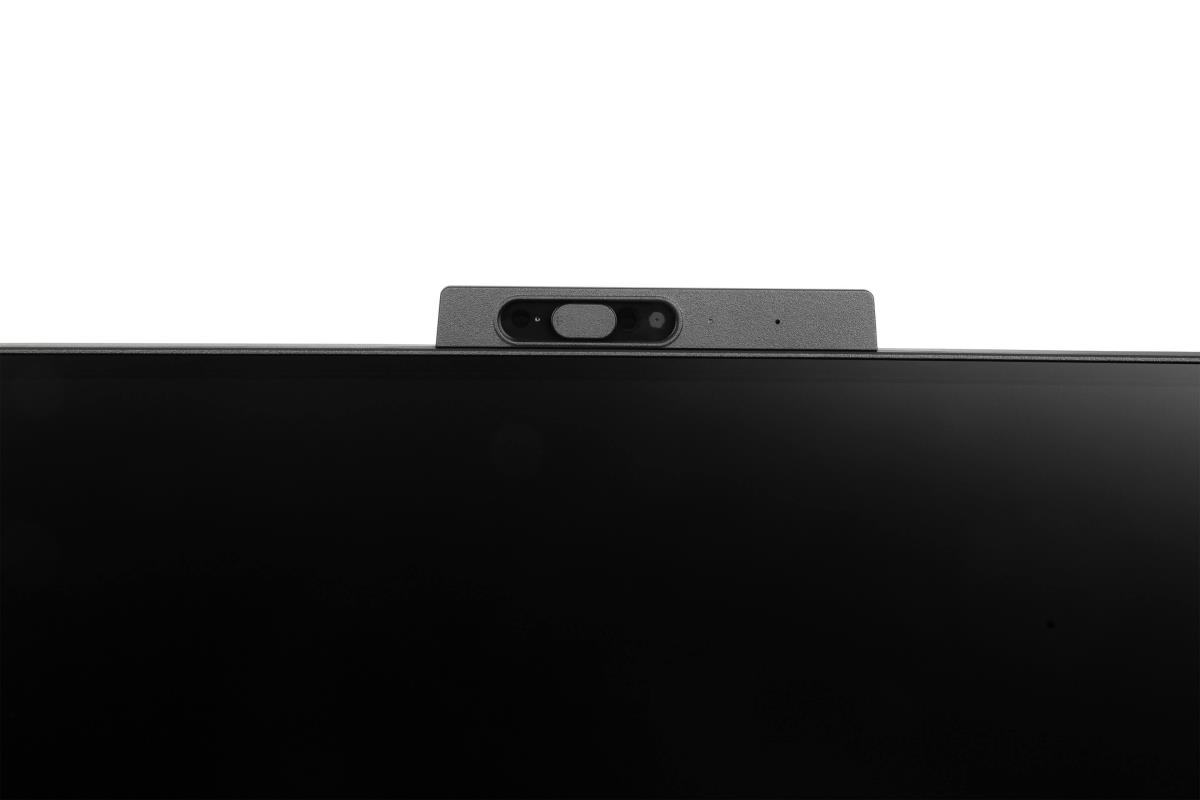

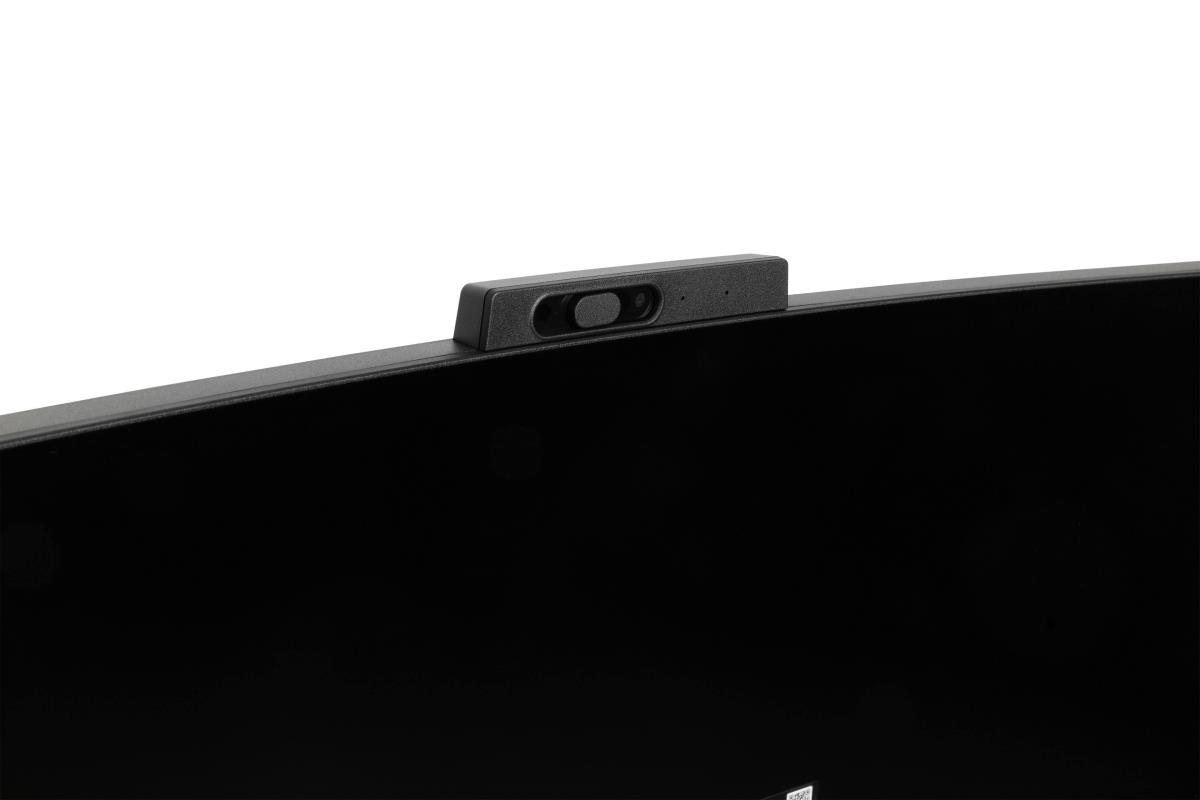

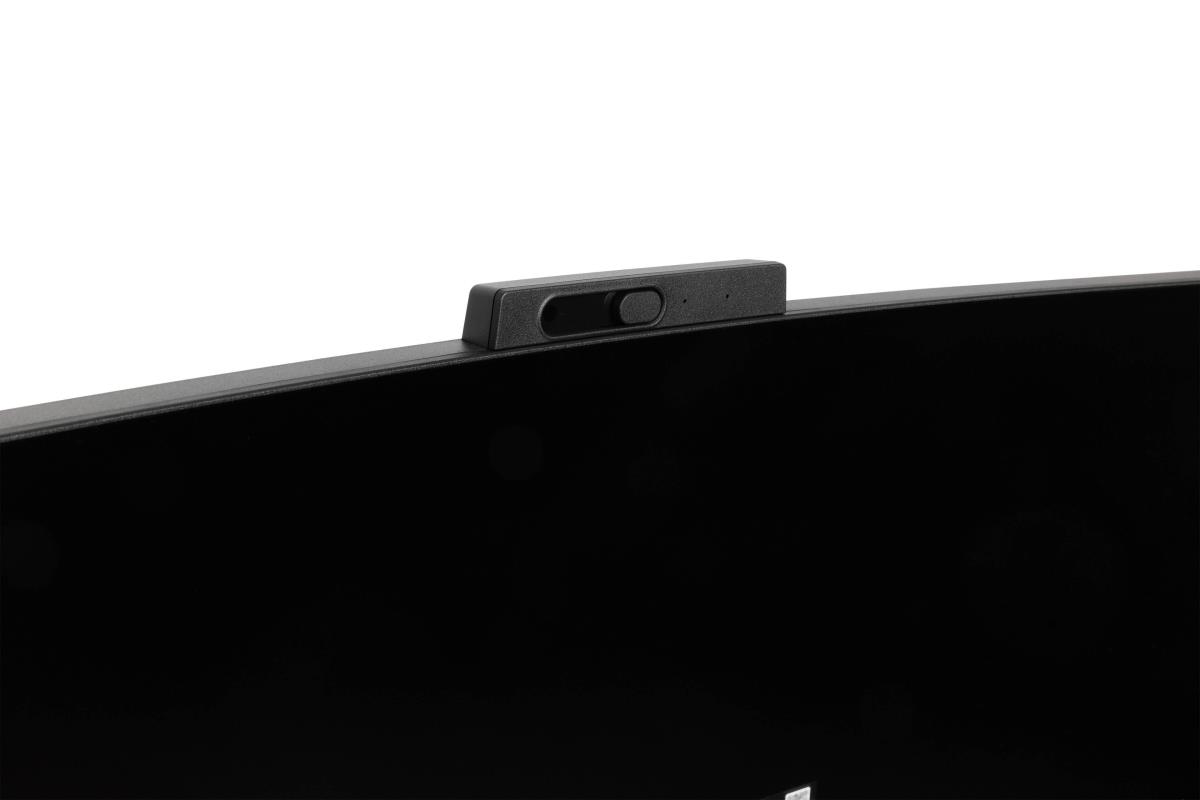

Meet the XCB3497WQSNPH — a 34" curved all-in-one monitor designed for effortless efficiency. With a built-in KVM switch and USB-C dock, you can seamlessly control multiple devices and connect your laptop with a single cable. The vibrant VA panel delivers stunning colors, deep contrast, and wide viewing angles for an immersive experience. Plus, smart features like a 5MP autofocus webcam with Windows Hello, a height-adjustable ergonomic stand, and eye-care technologies keep you comfortable and productive all day.
Display
Display surface
Matt
Pixel pitch
0.232 x 0.232 mm
Colour depth
8 bit
sRGB coverage (typical)
99%
NTSC coverage (typical)
72%
Display resolution
3440 x 1440 pixels
Native aspect ratio
21:9
Panel type
VA
Response time
0.4 ms
Screen shape
Curved
Screen curvature rating
1500R
Contrast ratio (typical)
3000:1
Maximum refresh rate
120 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.7 million colours
Horizontal scan range
30 - 180 kHz
Viewable size, horizontal
79.7 cm
Viewable size, vertical
33.4 cm
Display diagonal (metric)
86.7 cm
Contrast ratio (dynamic)
80000000:1
Display diagonal
86.4 cm (34")
HD type
UltraWide Quad HD
Display technology
LED
Touchscreen
No
Display brightness (typical)
350 cd/m²
Response time (MPRT)
0.4 ms
Multimedia
RMS rated power
10 W
Built-in microphone
Yes
Number of speakers
2
Built-in speaker(s)
Yes
Megapixel (approx.)
5 MP
Built-in camera
Yes

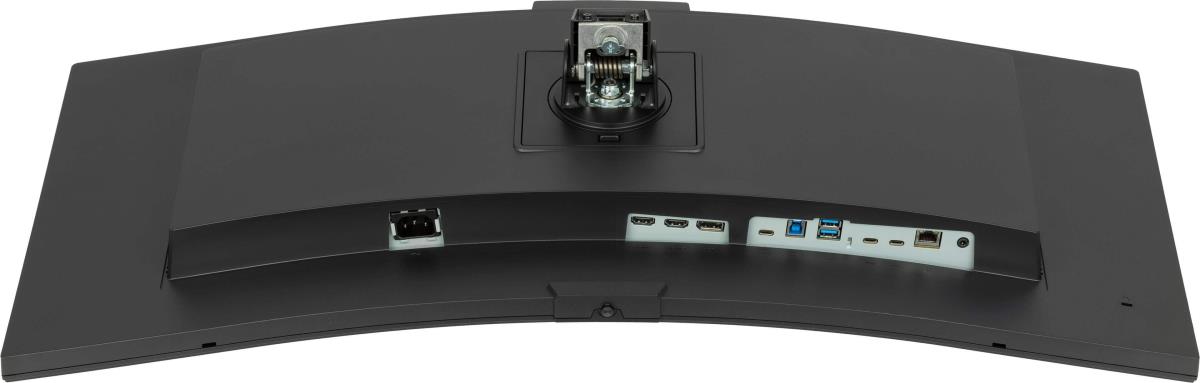

Ports & interfaces
Number of USB Type-C upstream ports quantity
1
USB Power Delivery (USB PD)
Yes
Built-in USB hub
Yes
USB hub version
3.2 Gen 1 (3.1 Gen 1)
USB upstream port type
USB Type-C
Number of upstream ports
4
USB Type-A downstream ports quantity
2
USB Type-C downstream ports quantity
2
USB Power Delivery up to
95 W
HDMI
Yes
HDMI ports quantity
2
DisplayPorts quantity
1
Headphone out
Yes
Built-in KVM switch
Yes
HDCP
Yes
Number of downstream ports
4
Power
Power supply type
Internal
Power consumption (typical)
55 W
Power consumption (standby)
0.5 W
Power consumption (off)
0.3 W
AC input voltage
100 - 240 V
AC input frequency
50 Hz
Energy efficiency class (SDR)
F
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
32 kWh
Energy efficiency scale
A to G
Packaging data
Package width
940 mm
Package depth
940 mm
Package height
500 mm
Package weight
14.2 kg
Package type
Box
Performance
AMD FreeSync
Yes
AMD FreeSync type
FreeSync Premium
Flicker-free technology
Yes
Low Blue Light technology
Yes
Design
Market positioning
Business
Product colour
Black
Network
Ethernet LAN
Yes

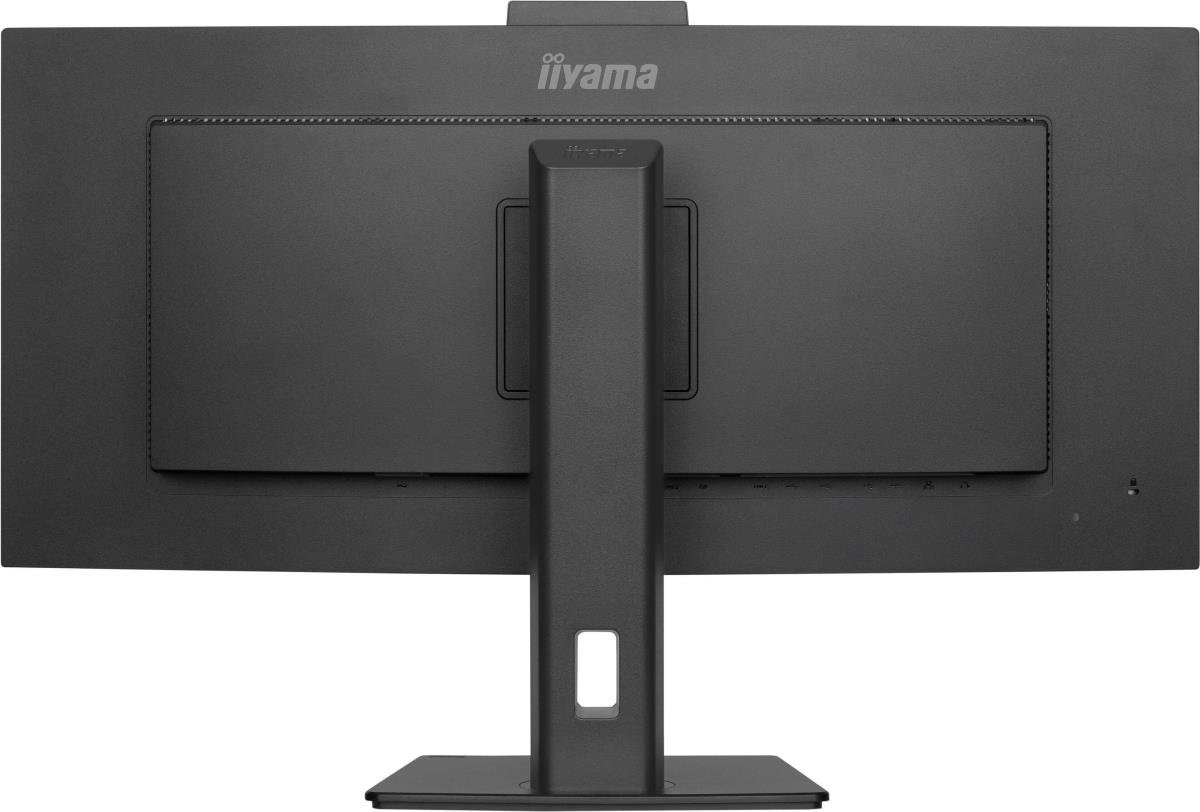

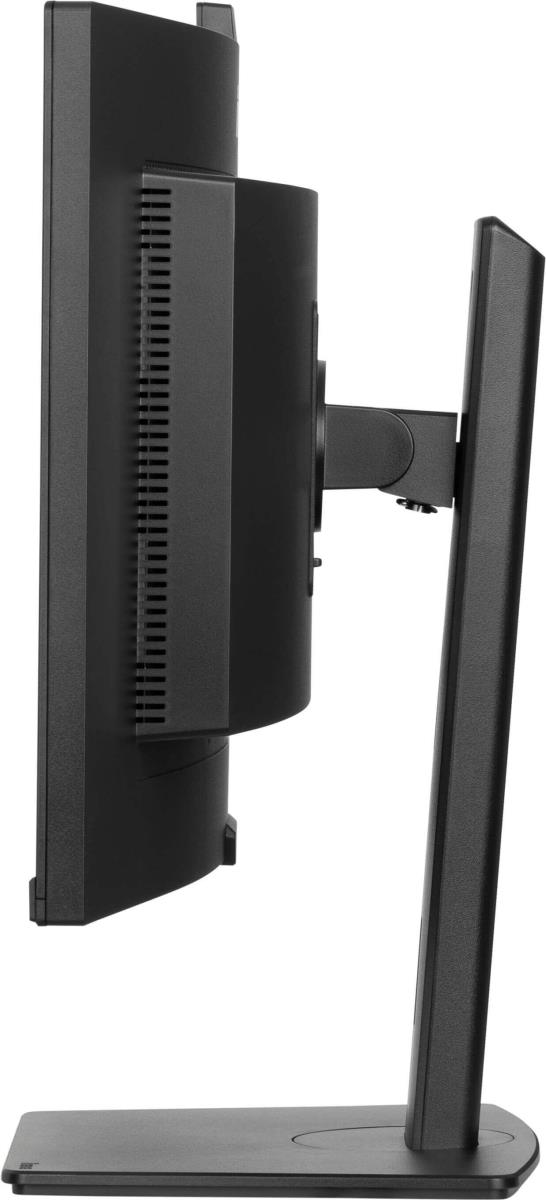

Ergonomics
VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Wall mountable
Yes
Cable management
Yes
Cable lock slot
Yes
Cable lock slot type
Kensington

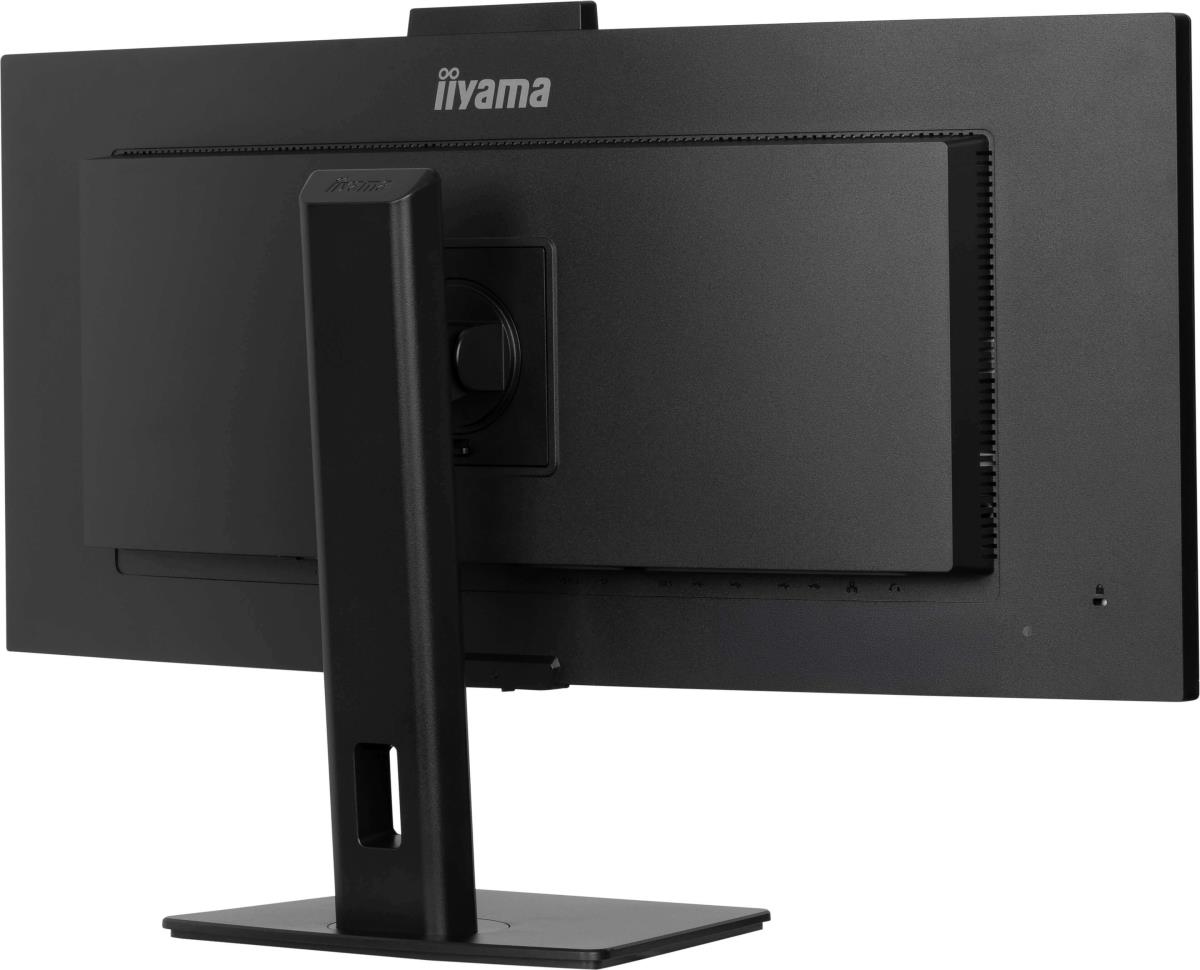

Height adjustment
Yes
Adjustable height (max)
15 cm
Swivelling
Yes
Swivel angle range
-45 - 45°
Tilt adjustment
Yes
Tilt angle range
23 - 5°
On Screen Display (OSD) languages
Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Russian
Number of OSD languages
10
Weight & dimensions
Width (with stand)
807 mm
Depth (with stand)
239.5 mm
Height (with stand)
592.5 mm
Weight (with stand)
9.7 kg
Width (without stand)
807 mm
Depth (without stand)
239.5 mm
Height (without stand)
443 mm
Technical details
Native refresh rate
60 Hz
Packaging content
Stand included
Yes

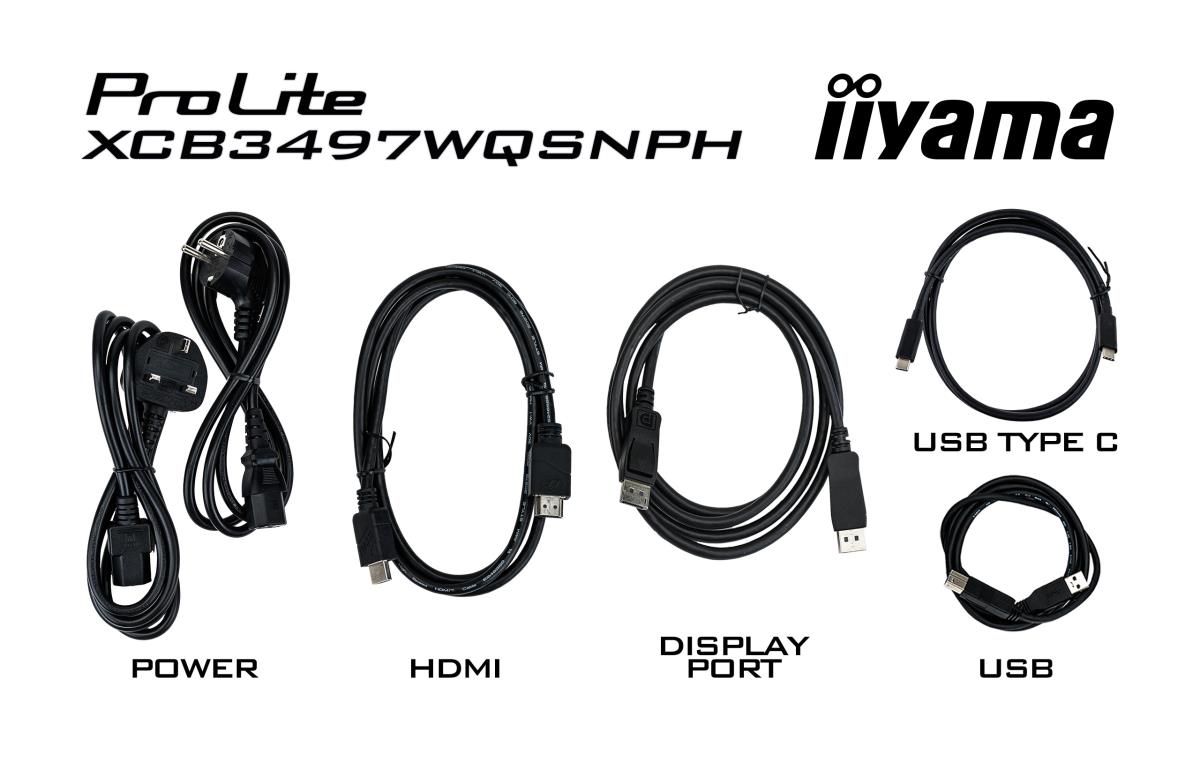

Cables included
DisplayPort, HDMI, Power, USB, USB Type-C
Quick start guide
Yes
Other features
Certification
TCO Certified, CE, TÜV-GS, EAC, PSE, RoHS support, ErP, WEEE, VCCI, REACH, UKCA
User controls
picture adjust (brightness, contrast, Eco, ACR, OD, AdaptiveSync, motion blur reduction, X-Res technology, black tuner), colour settings (6-axis, i-Style colour, blue light reducer, gamma, RGB range, colour temp.,), OSD (OSD H. position, OSD V. position, OSD time, OSD background, DDC/CI control, display information), language, miscellaneous (sharpness, video mode adjust, opening logo, power LED, Mac address, USB charge, USB C speed), KVM (HDMI1, HDMI2, DisplayPort, USB C), input select, audio settings (volume, mute audio), webcam, recall
Packaging content
quick start guide, safety guide
Weight
9.7 kg
Width
807 mm
Depth
239.5 mm
Control panel
Joystick: Power/ Menu (Centre), Forward/ Signal Select, Backward, Left/ i-Style colour/ ECO/ BlueLight Reducer, Right/ Volume
Compliance certificates
CE, EAC, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE
Ethernet LAN (RJ-45) ports
1
Sustainability
Sustainability certificates
ErP, TCO
Information
| Part Number: | XCB3497WQSNPH-B1 |
