Introduction

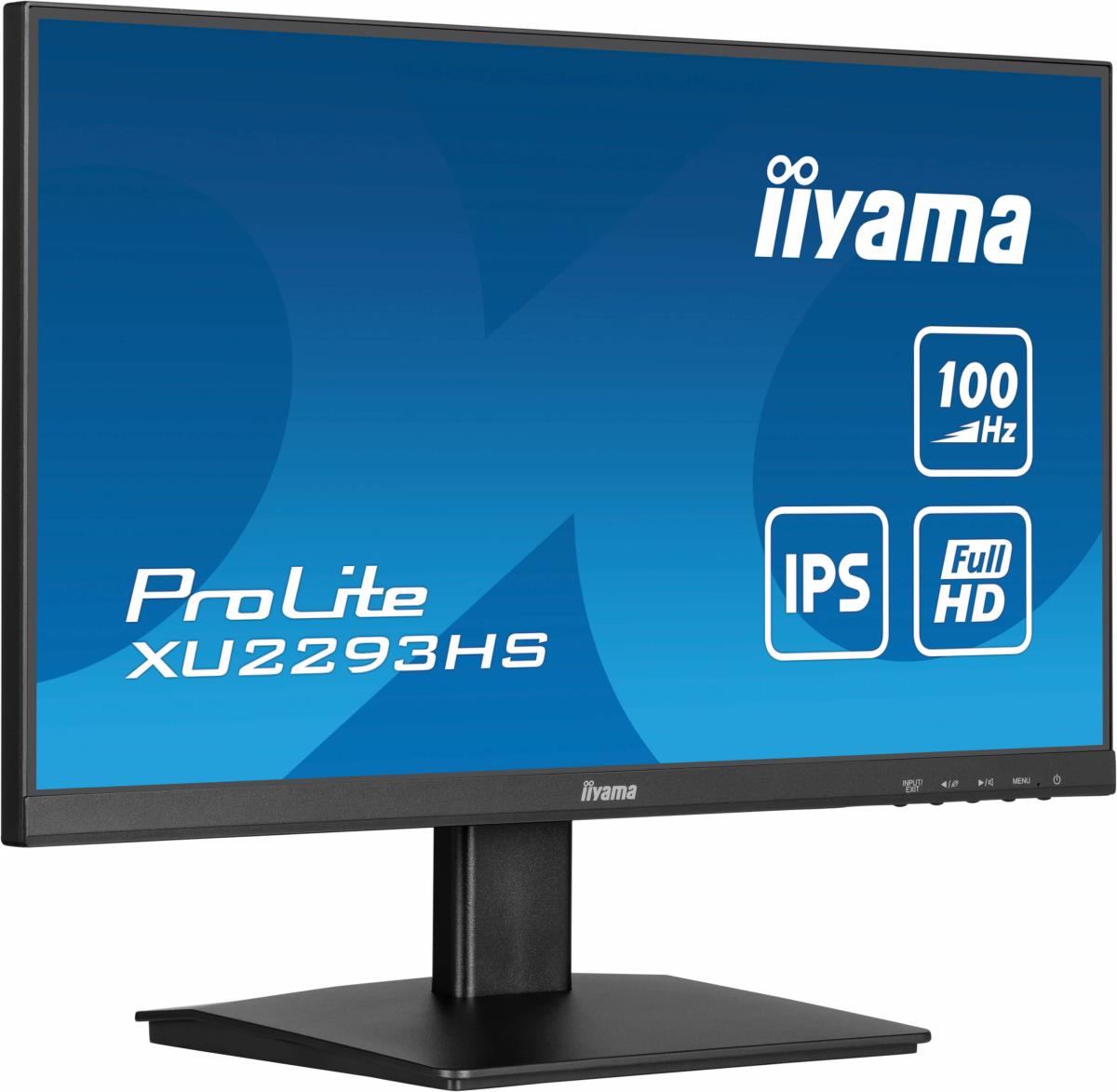

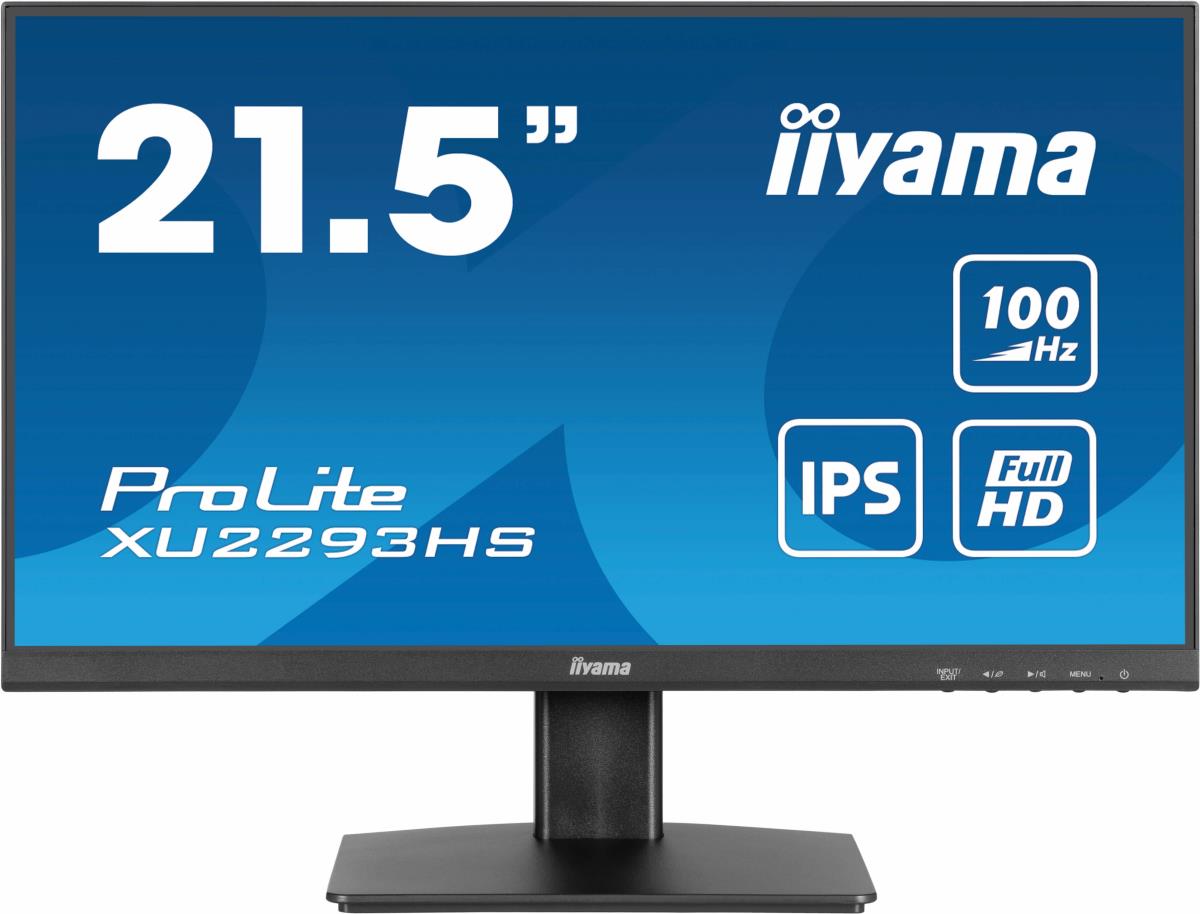

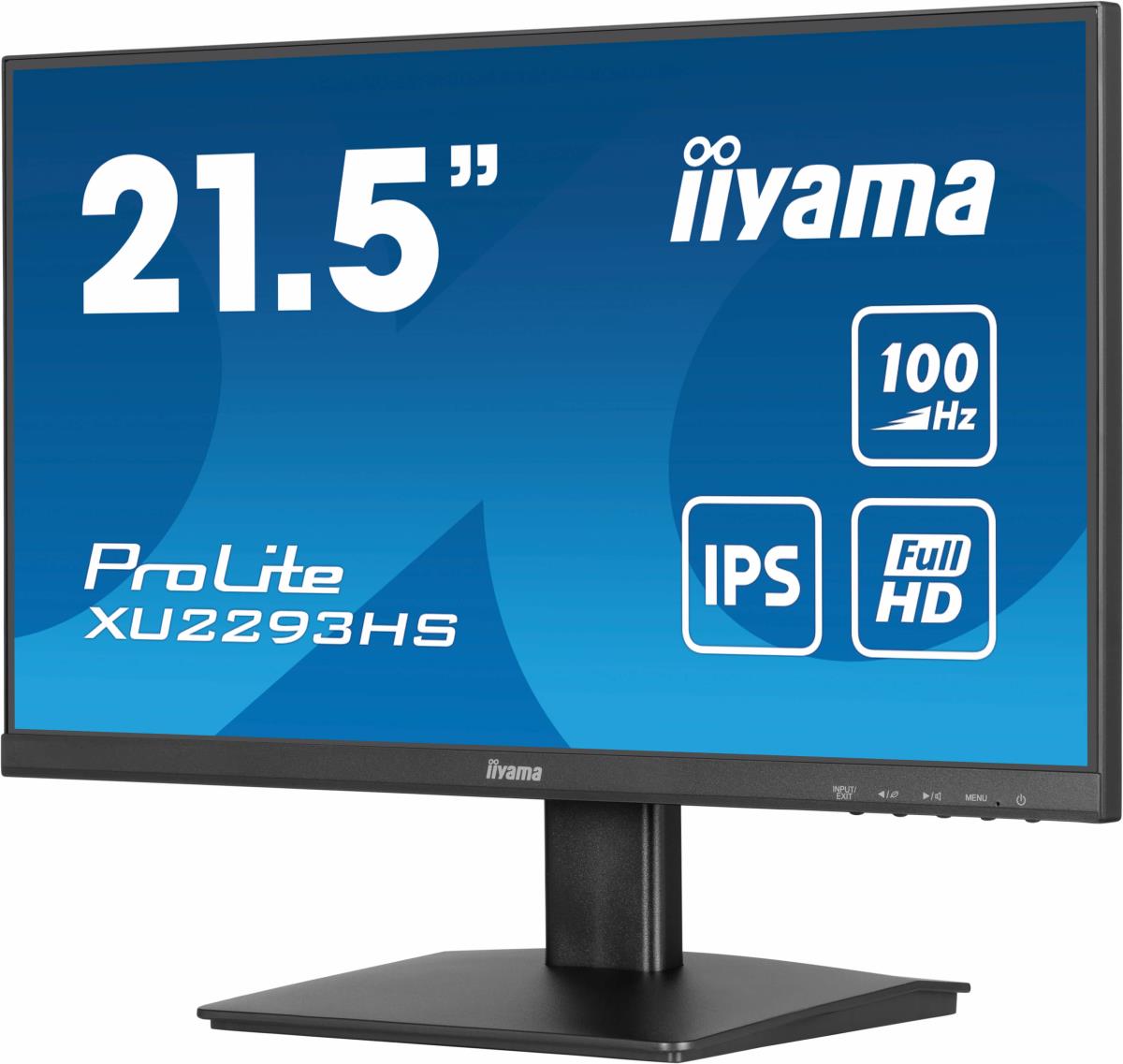

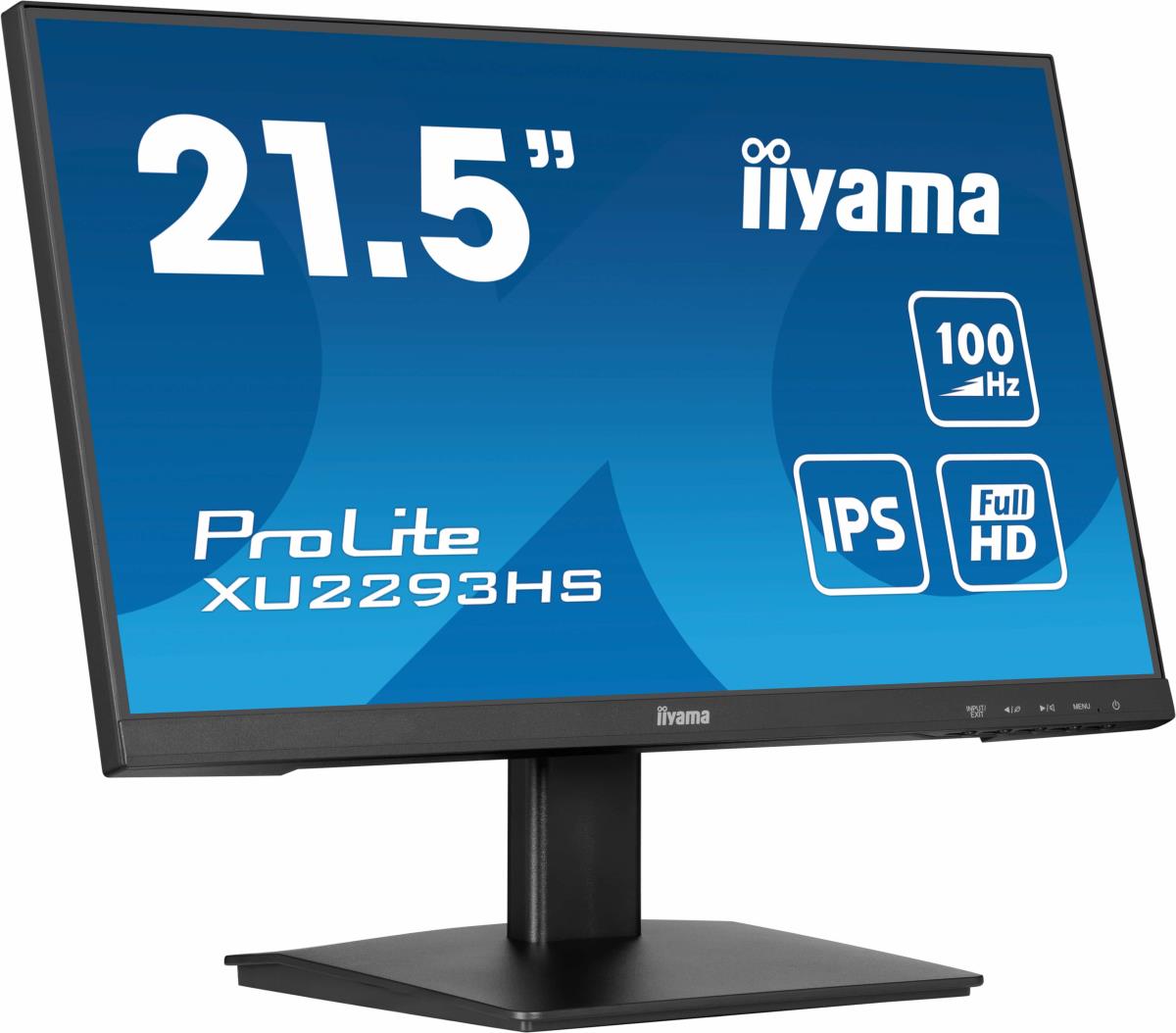

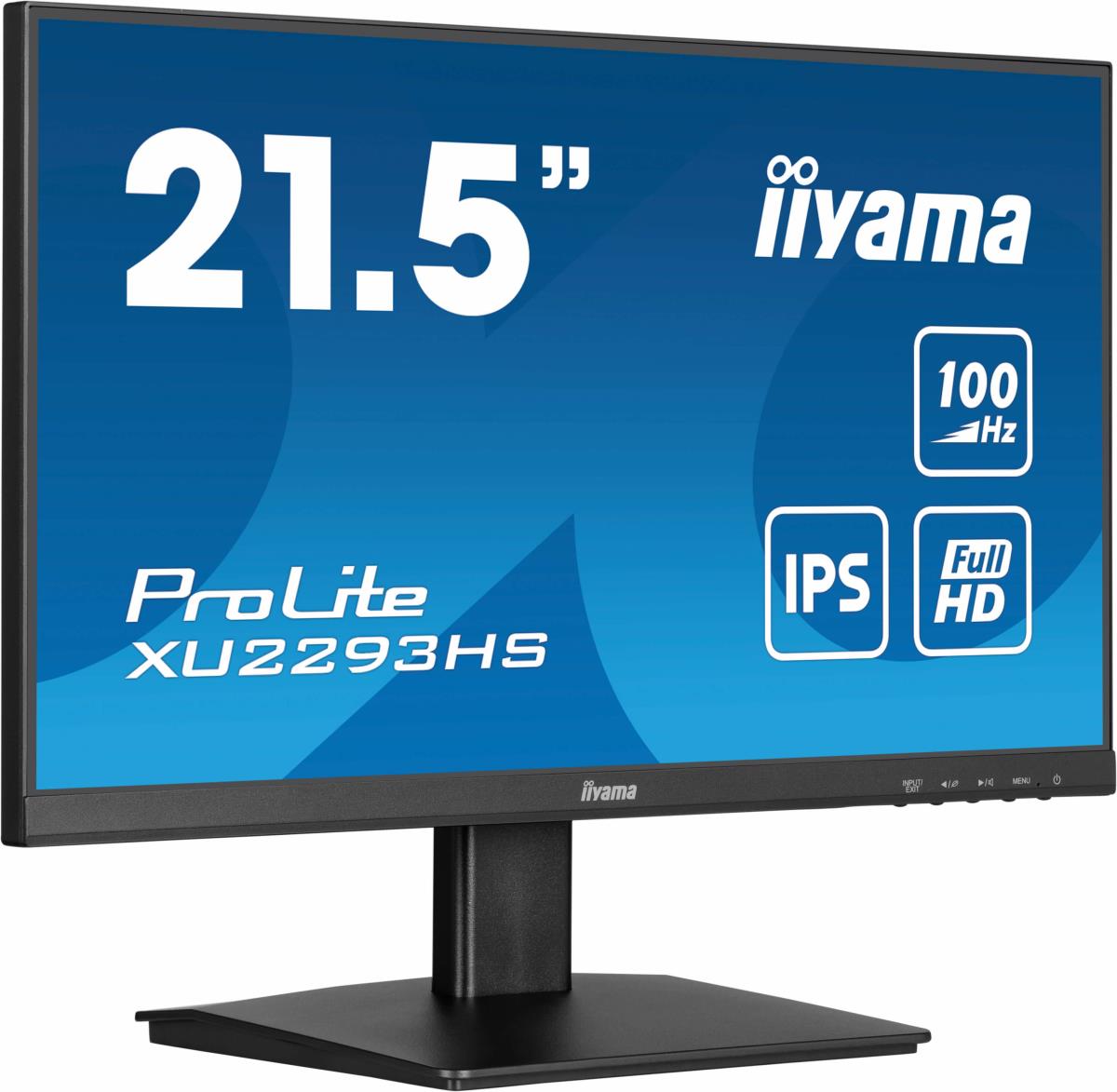

The stylish edge-to-edge design of the ProLite XU2293HS with IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles. High contrast and brightness values mean the monitor will provide excellent performance for photographic and web design. Equipped with speakers, headphone socket, HDMI and DisplayPort connections and a blue light reducer function to reduce eye fatigue, this 21.5’’ ProLite display is a great choice for both multi-monitor configuration and office applications.
IPS TECHNOLOGY
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
Display
Display brightness (typical)
300 cd/m²
Response time (MPRT)
1 ms
sRGB coverage (typical)
96%
NTSC coverage (typical)
72%
Display diagonal
54.6 cm (21.5")
Display resolution
1920 x 1080 pixels
HD type
Full HD
Native aspect ratio
16:9
Display technology
LED
Panel type
IPS
Touchscreen
No
Display brightness (peak)
300 cd/m²
Response time
1 ms
Display surface
Matt
Screen shape
Flat
Contrast ratio (typical)
1000:1
Contrast ratio (dynamic)
80000000:1
Maximum refresh rate
100 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.7 million colours
Pixel pitch
0.249 x 0.249 mm
Horizontal scan range
30 - 110 kHz
Viewable size, horizontal
26 cm
Viewable size, vertical
47.8 cm
Display diagonal (metric)
54.5 cm
DDC/CI
Yes
Performance
AMD FreeSync
Yes
VESA Adaptive Sync support
Yes
Flicker-free technology
Yes
Low Blue Light technology
Yes
Power
Energy efficiency class (HDR)
Not available
Energy efficiency class (SDR)
D
Energy consumption (SDR) per 1000 hours
12 kWh
Power consumption (typical)
17 W
Power consumption (standby)
0.5 W
Power consumption (off)
0.3 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power supply type
External
Energy efficiency scale
A to G
European Product Registry for Energy Labelling (EPREL) code
1744603
Multimedia
Number of speakers
2
RMS rated power
4 W
Built-in speaker(s)
Yes
Built-in camera
No
Design
Market positioning
Gaming
Product colour
Black
Feet colour
Black

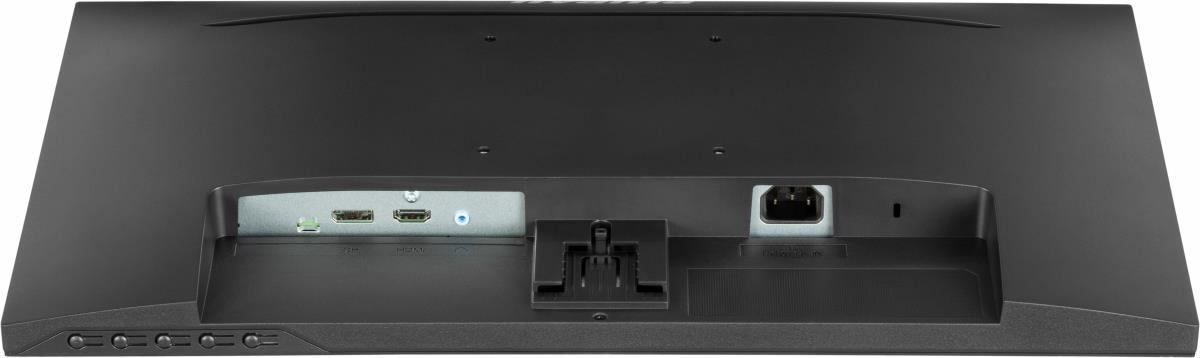

Ports & interfaces
HDMI
Yes
HDMI ports quantity
1
HDMI version
1.4
DisplayPorts quantity
1
DisplayPort version
1.2
Headphone out
Yes
Headphone outputs
1
HDCP
Yes
Ergonomics

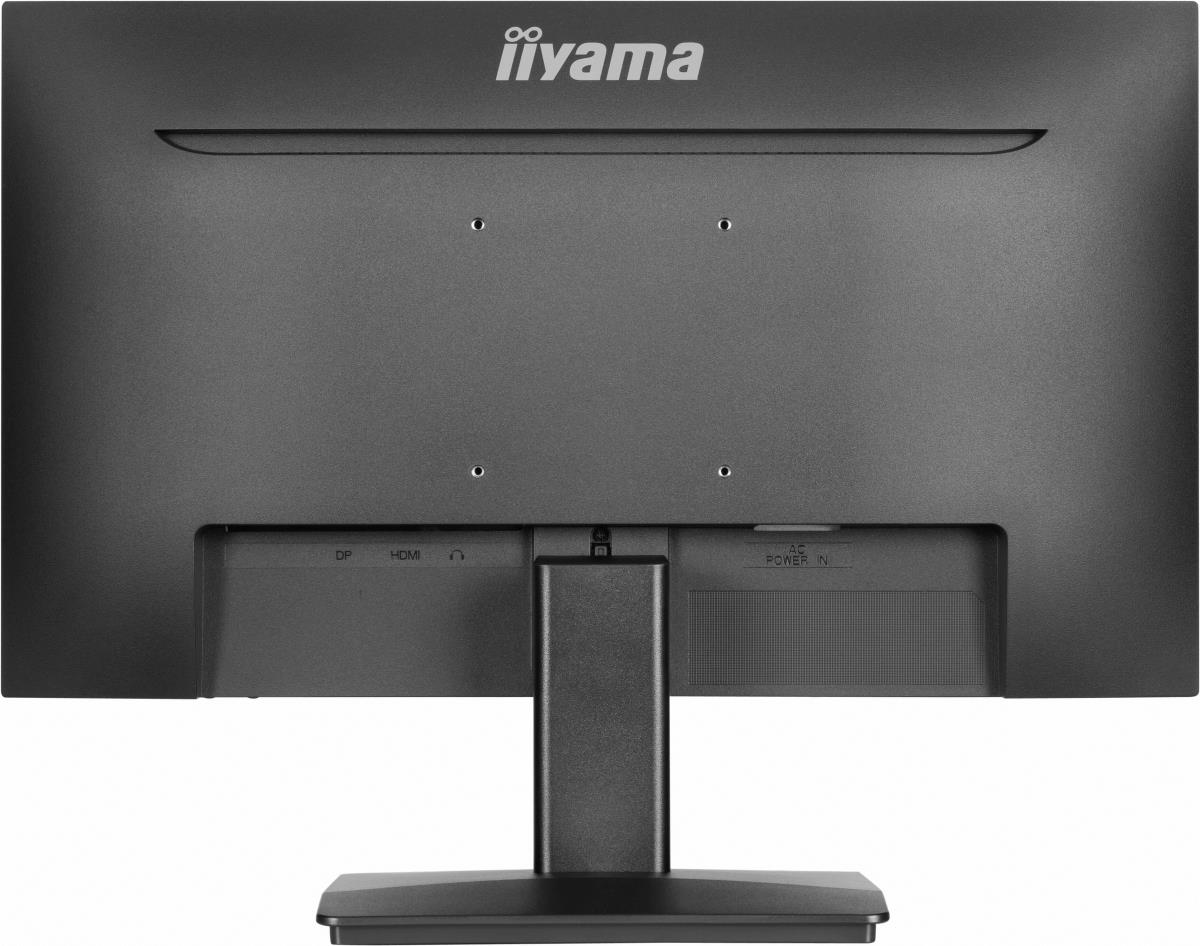

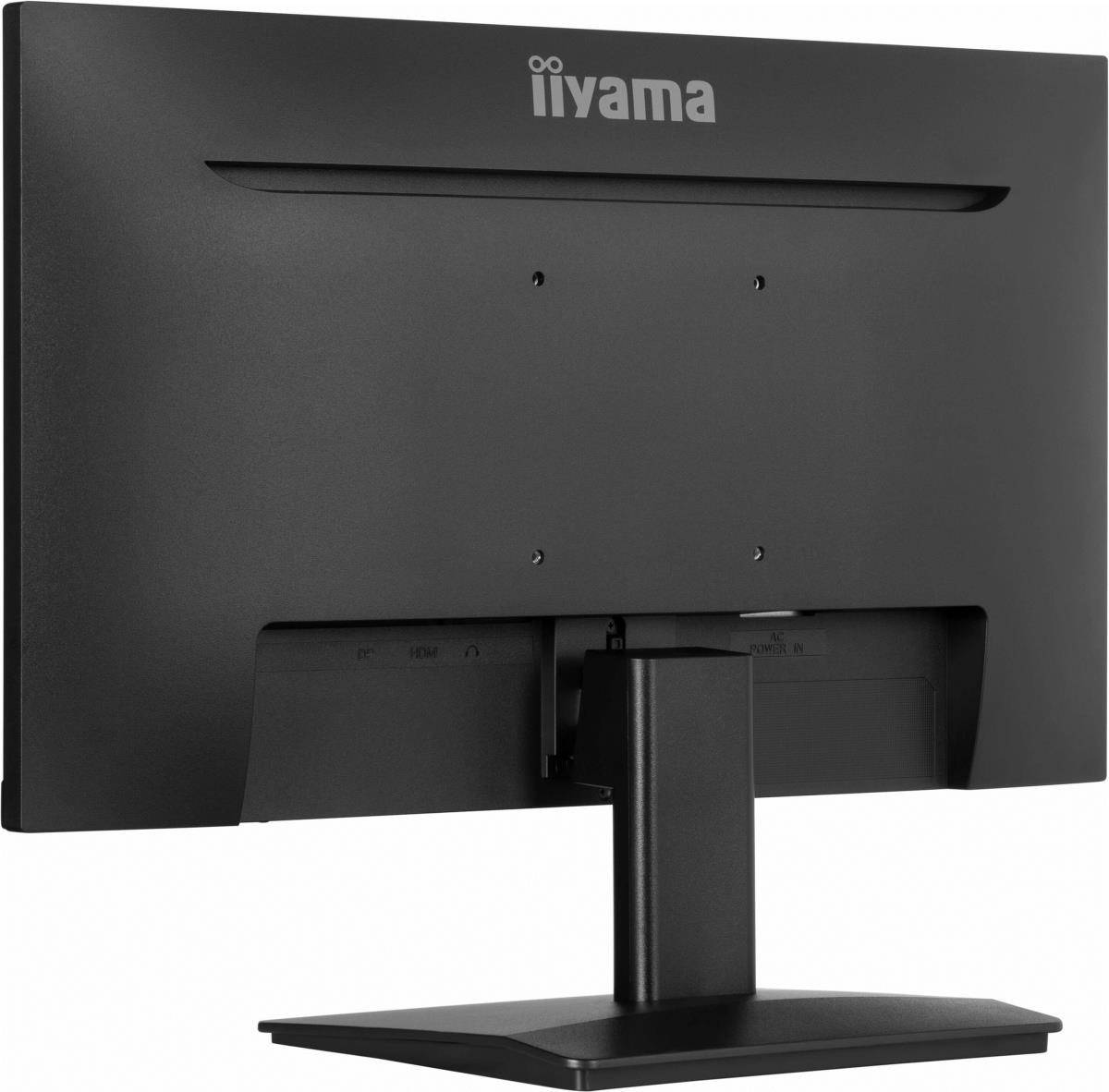

VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Cable management
Yes
Cable lock slot
Yes
Cable lock slot type
Kensington
Tilt adjustment
Yes
Tilt angle range
-4 - 22°
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Portuguese, Russian, Turkish
Weight & dimensions
Width (with stand)
492 mm
Depth (with stand)
178 mm
Height (with stand)
380 mm
Weight (with stand)
2.6 kg
Packaging data
Package width
564 mm
Package depth
122 mm
Package height
380 mm
Package weight
3.6 kg
Package type
Box
Packaging content
Stand included
Yes

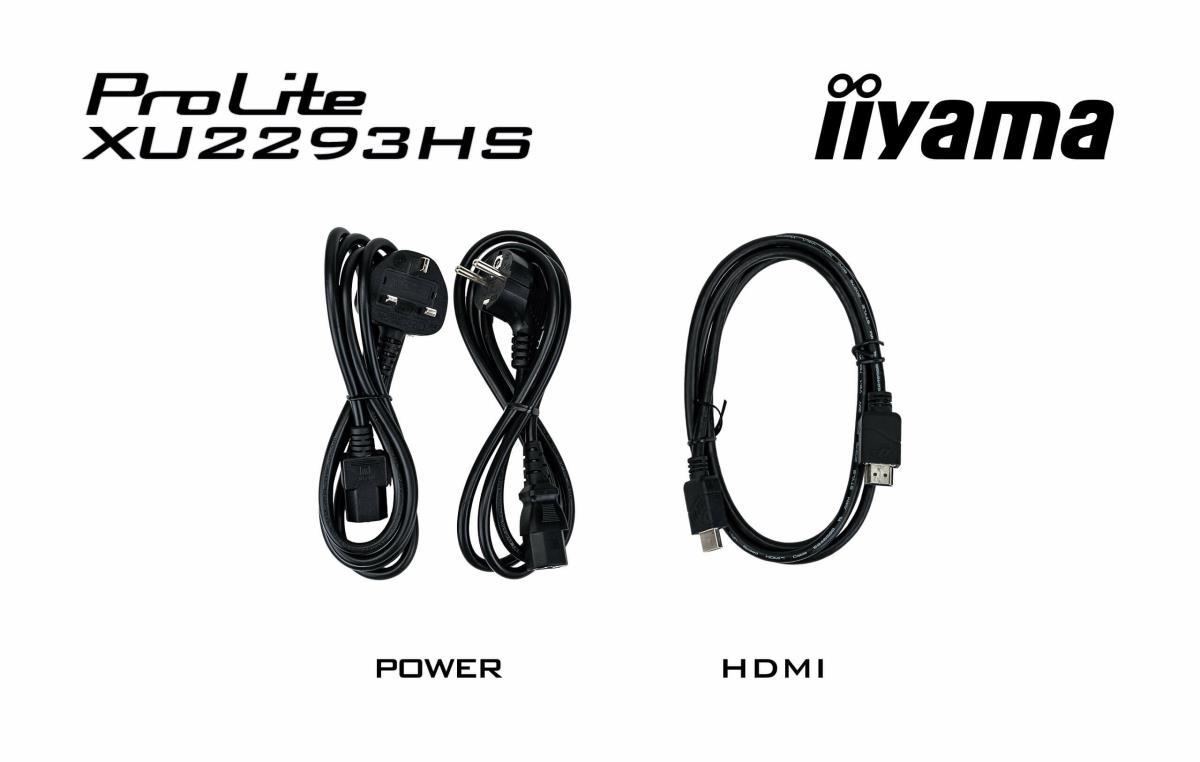

Cables included
HDMI, Power
Power adapter included
Yes
Quick start guide
Yes
Manual
Yes
Sustainability
Sustainability compliance
Yes
Sustainability certificates
ErP
Other features
Packaging content
quick start guide, safety guide
User controls
picture adjust (brightness, contrast, i-Style colour, ACR, Eco, OD, X-Res technology), colour settings (gamma, RGB range, colour temp.), image settings (video mode adjust, blue light reducer, sharp and soft, AdaptiveSync), OSD (OSD H. position, OSD V. position, OSD time, OSD background, language, display information), extra (reset, DDC /CI, signal select, LED, opening logo)
Weight
2.6 kg
Height
359 mm
Width
492 mm
Depth
178 mm
Control panel
Power, Menu, Up / Right / Volume, Down / Left / Eco, Signal/ Exit
Compliance certificates
CE, EAC, REACH, RoHS, UKCA, WEEE, cUL
Information
| Part Number: | XU2293HS-B6 |
