Introduction

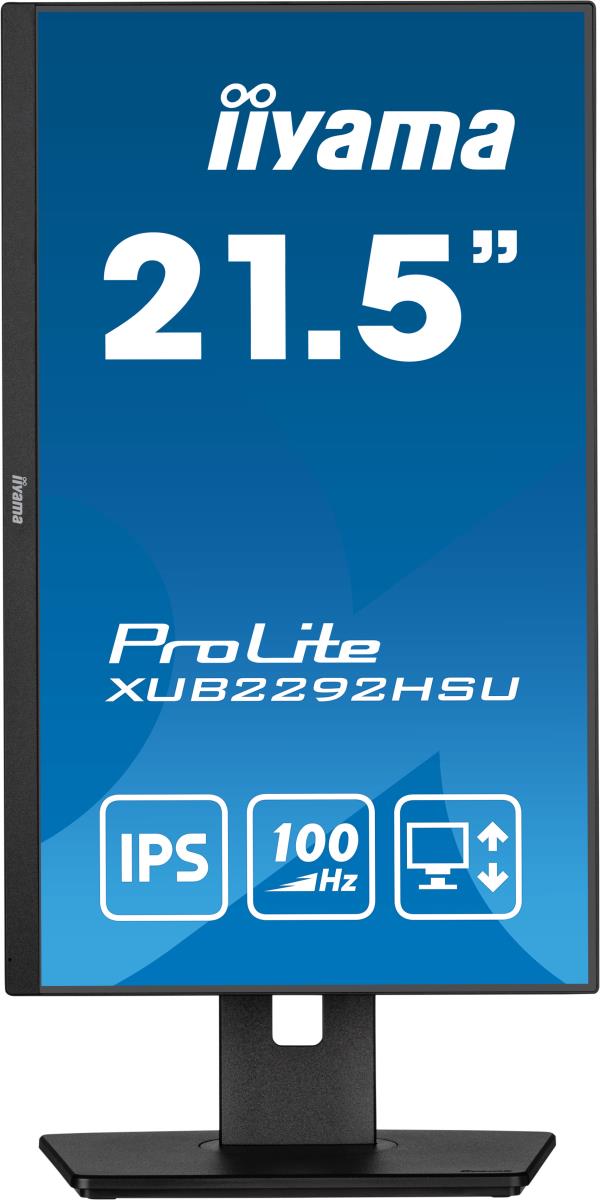

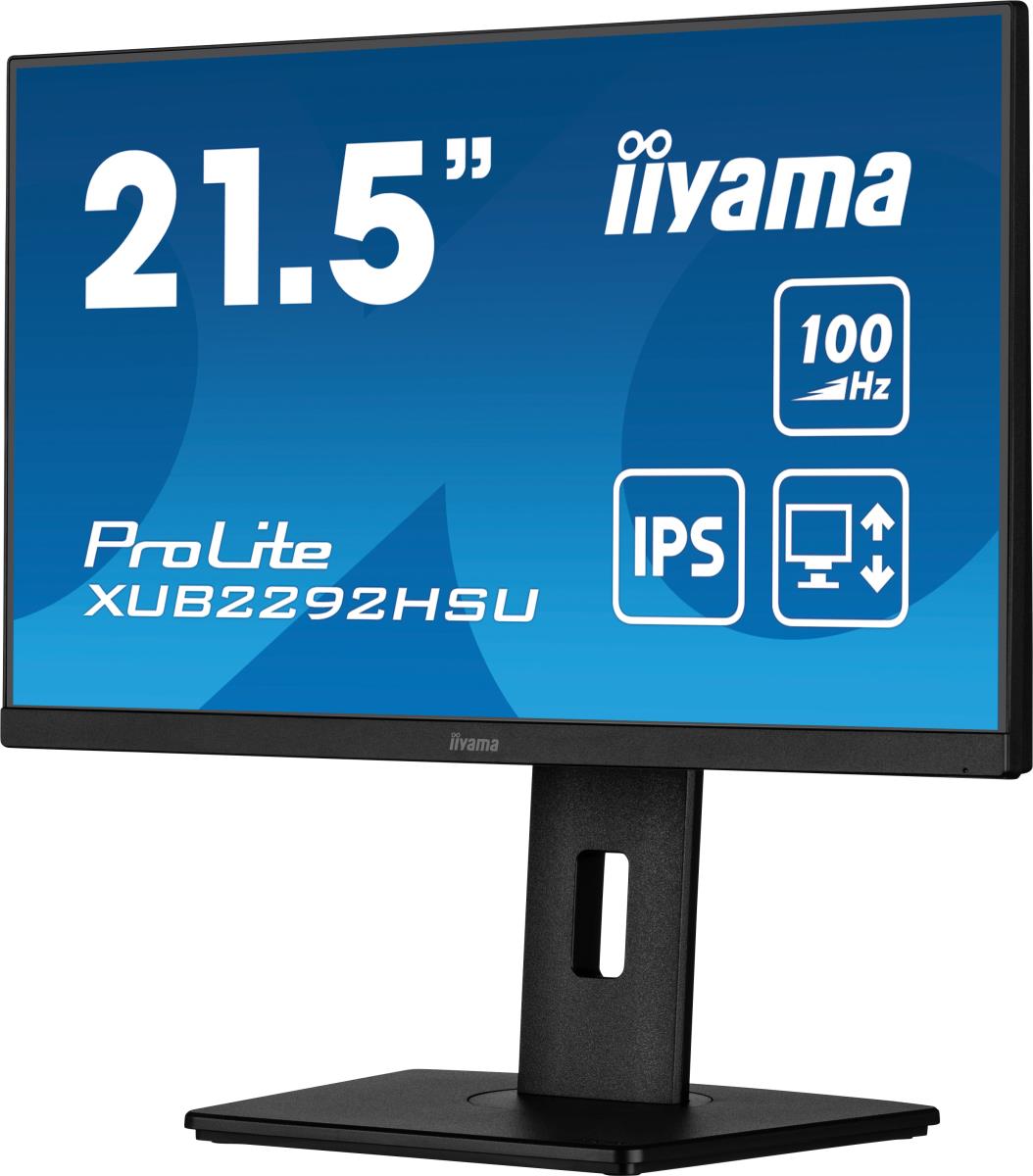

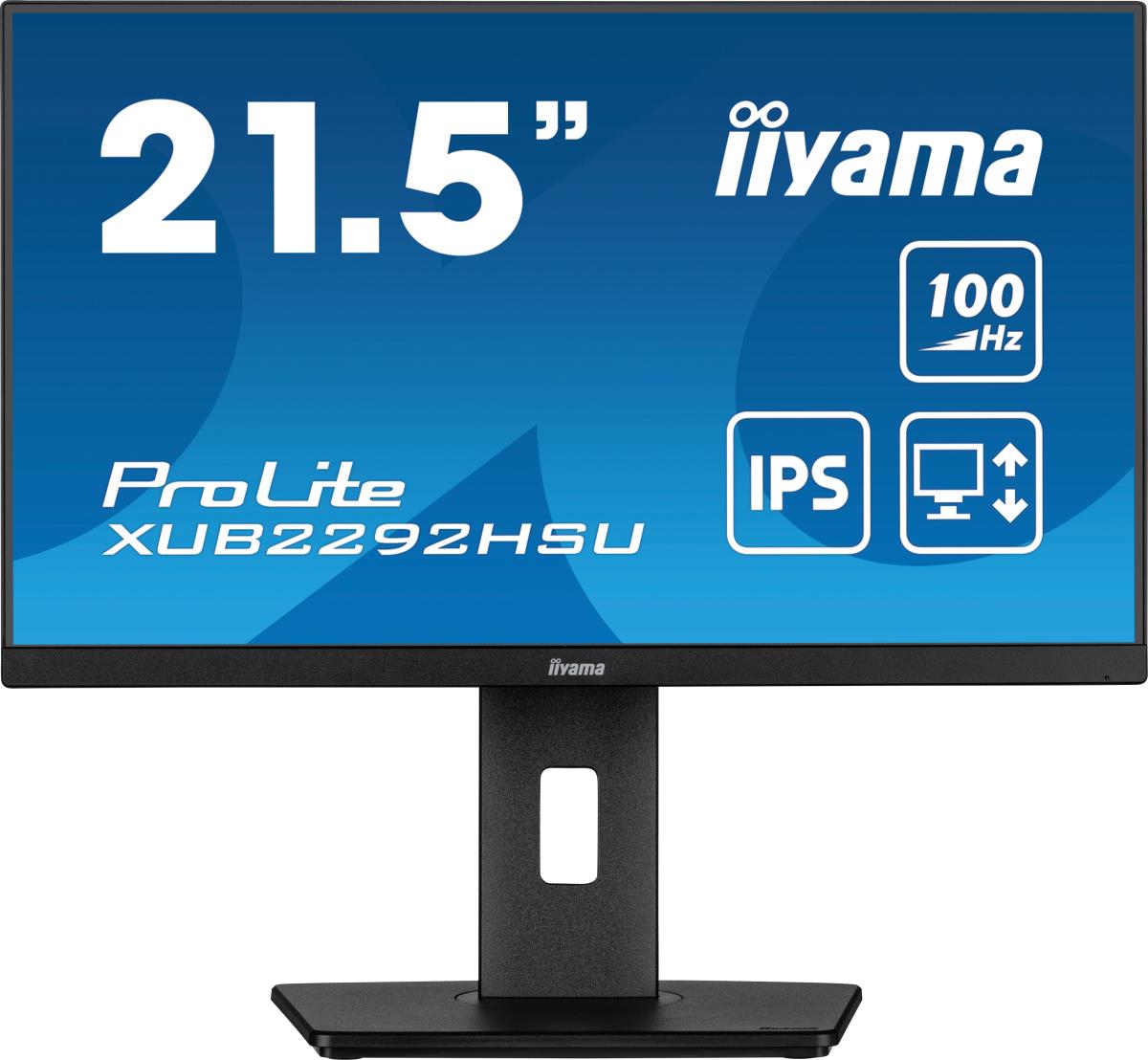

21.5” IPS technology panel with height adjustable stand and 100Hz refresh rate
Stylish edge-to-edge design makes the ProLite XUB2292HSU perfect for multi-monitor set-ups. The IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles. The 100Hz refresh rate together with FreeSync function provides an instant, tangible improvement in image smoothness. High contrast and brightness values mean the monitor will provide excellent performance for photographic and web design. Equipped with speakers, USB 3.2 hub, headphone socket, HDMI and DisplayPort connections, a blue light reducer function to reduce eye fatigue and an ergonomic 150mm height adjustable stand for optimal user comfort, make this monitor a great choice for both multi-monitor configuration and office applications.
Display
Response time (MPRT)
0.4 ms
Horizontal scan range
30 - 115 kHz
DDC/CI
Yes
Display diagonal
55.9 cm (22")
Display resolution
1920 x 1080 pixels
HD type
Full HD
Native aspect ratio
16:9
Display technology
LED
Panel type
IPS
Touchscreen
No
Display brightness (typical)
250 cd/m²
Response time
0.4 ms
Display surface
Matt
Screen shape
Flat
Contrast ratio (typical)
1000:1
Contrast ratio (dynamic)
80000000:1
Maximum refresh rate
100 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.7 million colours
Pixel pitch
0.248 x 0.248 mm
Viewable size, horizontal
26.8 cm
Viewable size, vertical
47.6 cm
Display diagonal (metric)
55 cm
sRGB coverage (typical)
99%
NTSC coverage (typical)
72%
Weight & dimensions
Height (without stand)
336.5 mm
Width (with stand)
489.5 mm
Depth (with stand)
109.5 mm
Height (with stand)
486.5 mm
Weight (with stand)
4.5 kg
Performance
AMD FreeSync
Yes
AMD FreeSync type
FreeSync
Flicker-free technology
Yes
Low Blue Light technology
Yes
Multimedia
Built-in speaker(s)
Yes
Built-in camera
No
Number of speakers
2
RMS rated power
2 W
Design
Market positioning
Office
Product colour
Black

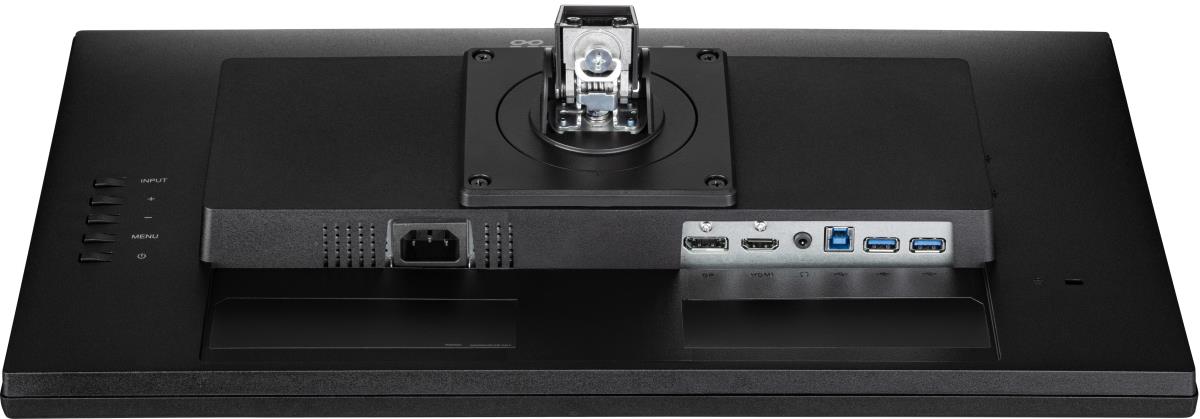

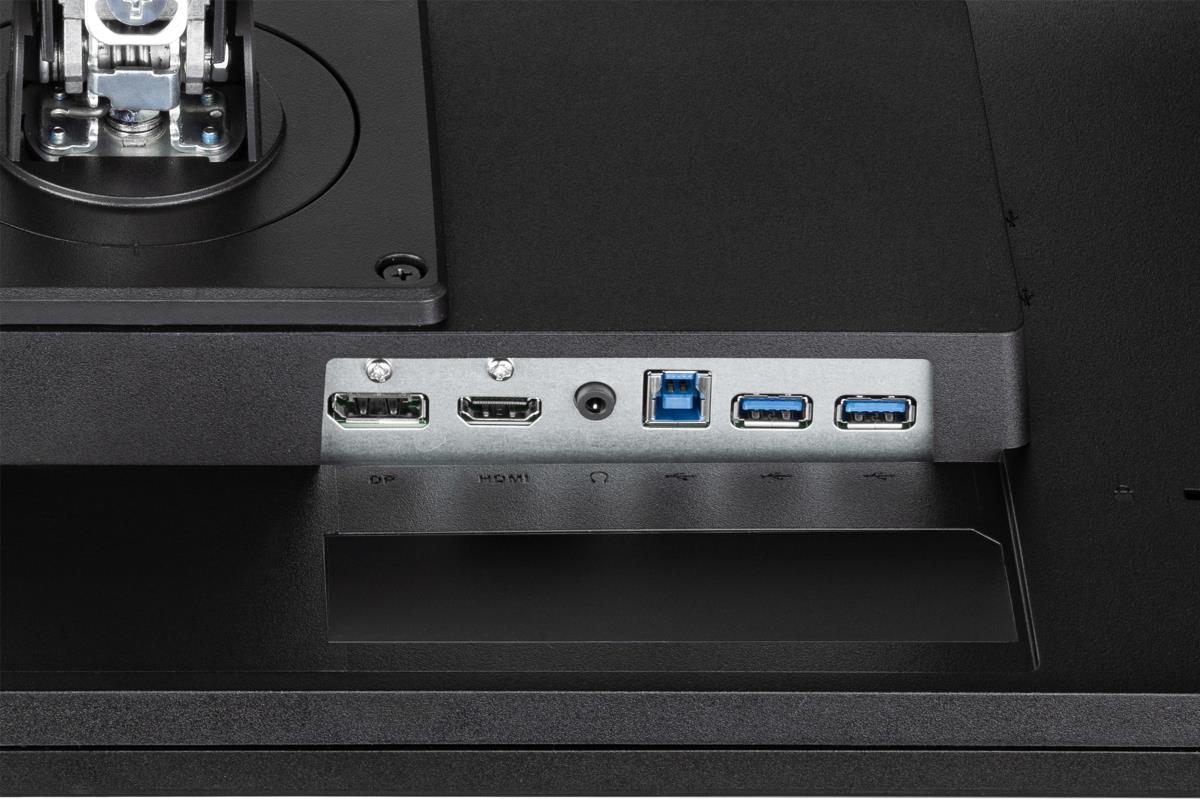

Ports & interfaces
Built-in USB hub
Yes
USB hub version
3.2 Gen 1 (3.1 Gen 1)
HDMI
Yes
HDMI ports quantity
1
DisplayPorts quantity
1
Headphone out
Yes
HDCP
Yes
Number of downstream ports
4
Ergonomics
VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Wall mountable
Yes
Cable management
Yes
Cable lock slot
Yes
Cable lock slot type
Kensington

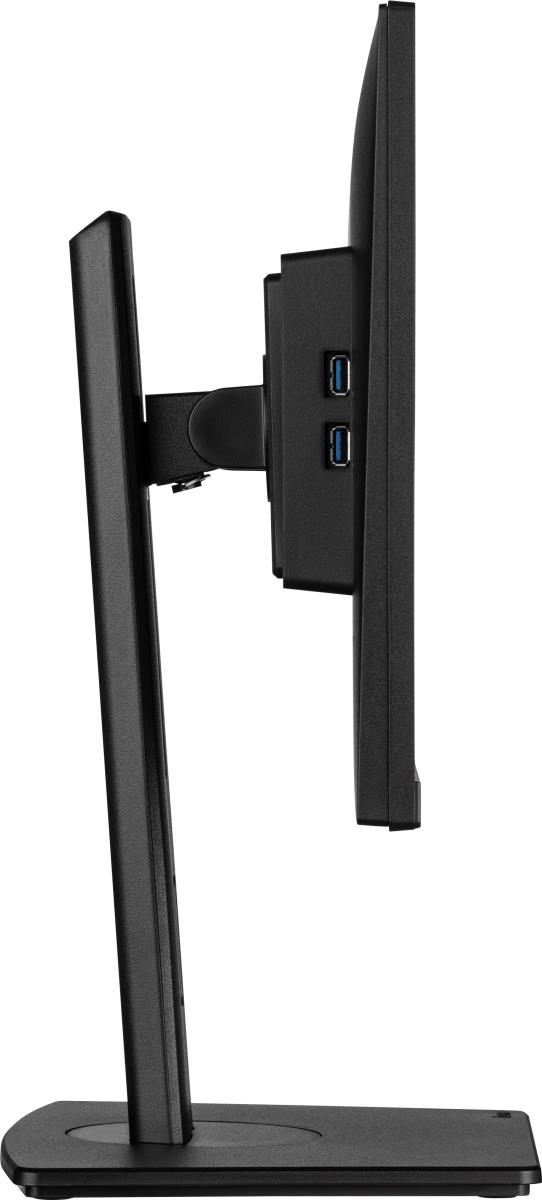

Height adjustment
Yes
Height adjustment
15 cm
Pivot
Yes
Pivot angle
0 - 90°
Swivelling
Yes
Swivel angle range
90 - 45°

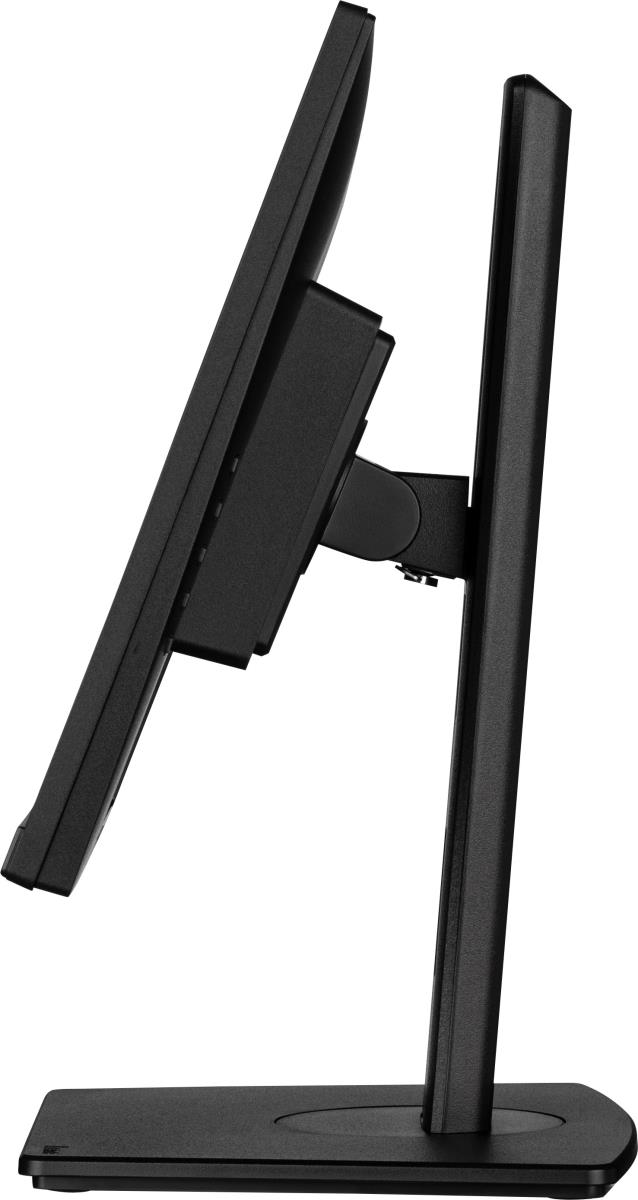

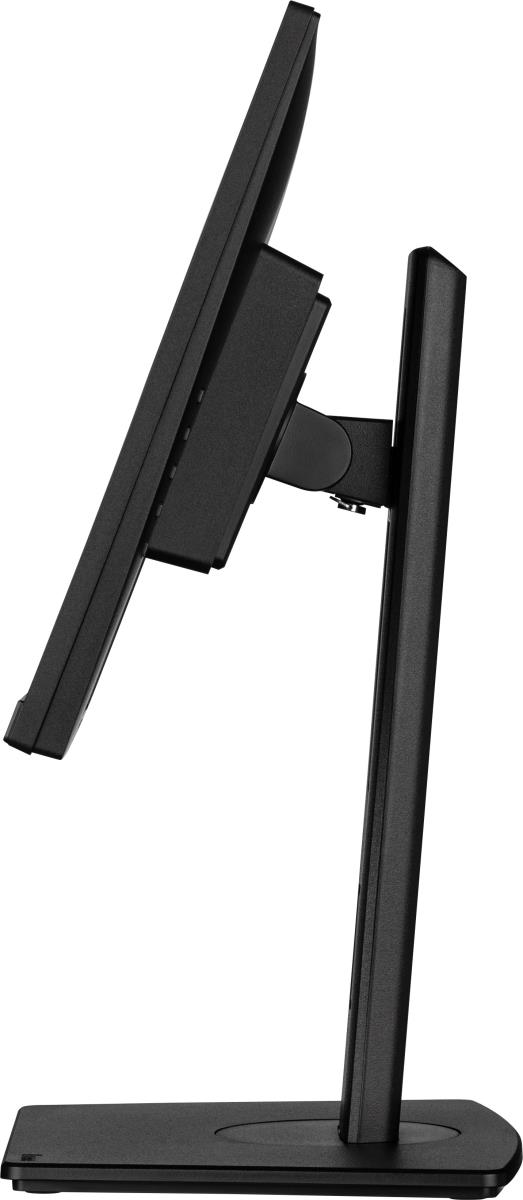

Tilt angle range
25 - 5°
On Screen Display (OSD)
Yes
Tilt adjustment
Yes
On Screen Display (OSD) languages
Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian
Power
Energy efficiency class (SDR)
E
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
14 kWh
Power consumption (typical)
14 W
Power consumption (standby)
0.5 W
Power consumption (off)
0.3 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power supply type
Internal
Packaging data
Package width
560 mm
Package depth
159 mm
Package height
380 mm
Package weight
5.9 kg
Packaging content

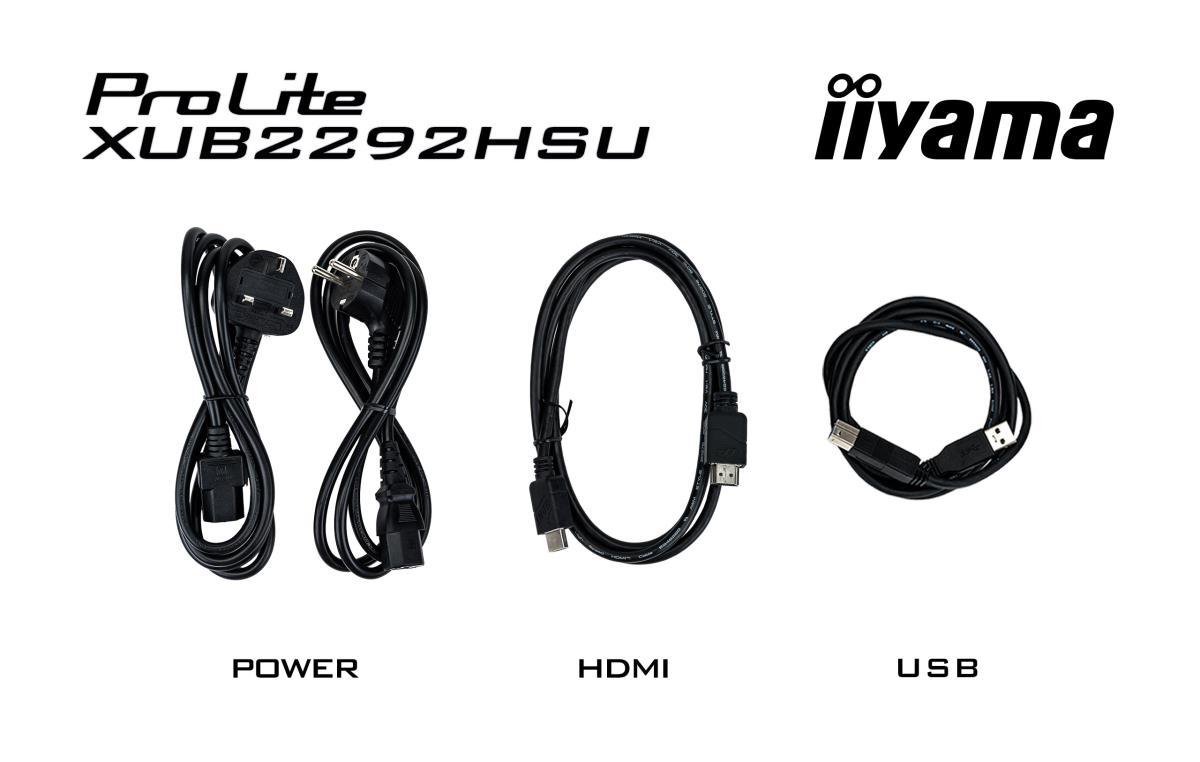

Cables included
AC, USB, HDMI
Sustainability
Sustainability certificates
ErP, TCO
European Product Registry for Energy Labelling (EPREL) code
1772302
Other features
User controls
picture adjust (contrast, brightness, i-Style colour, ACR, Eco, OD, X-Res technology), image settings (blue light reducer, sharp&soft, video mode adjust), colour settings (gamma, 6-axis, colour temp.), audio settings (volume, mute), OSD settings (OSD H. position, OSD V. position, OSD time, OSD rotate, language), extra1 (MBR, AdaptiveSync, USB BC), extra2 (reset, DDC/CI, signal select, HDMI range, opening logo, LED, information)
Packaging content
quick start guide, safety guide
Weight
4.5 kg
Width
489.5 mm
Depth
109.5 mm

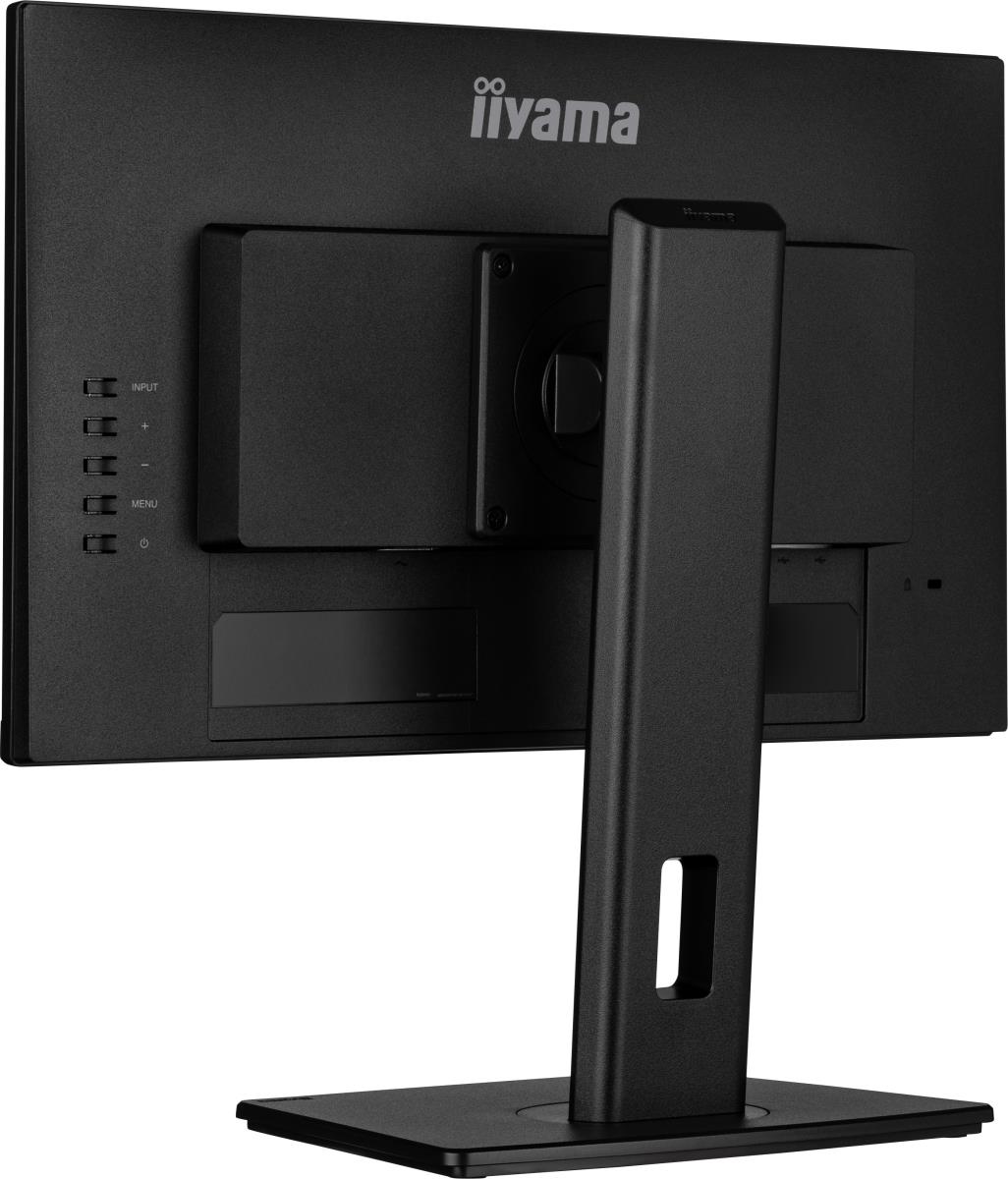

Control panel
Signal Select / Exit, + / Volume, - / Eco +, Menu , Power
Compliance certificates
CE, EAC, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE
