Product Details
Introduction

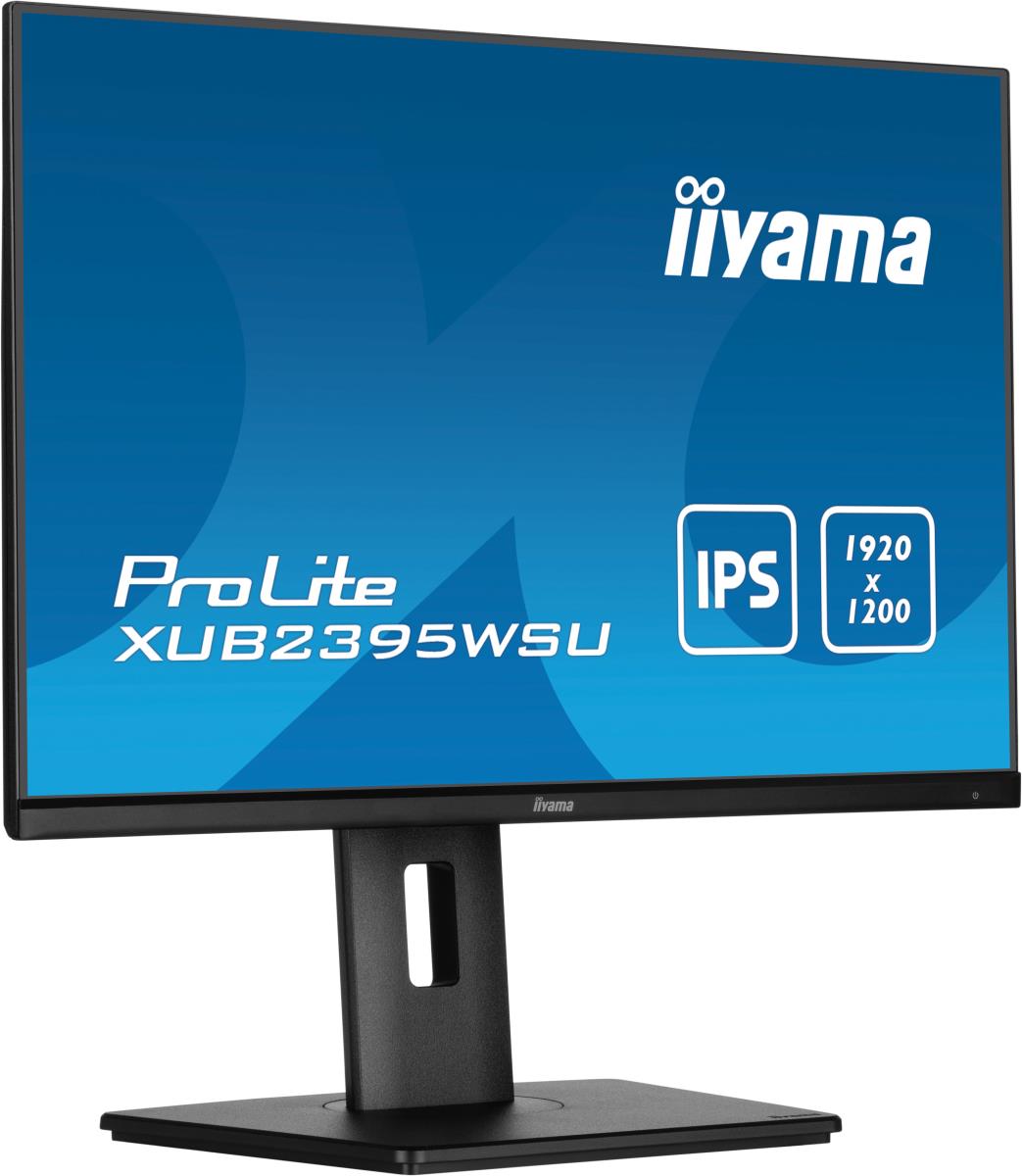

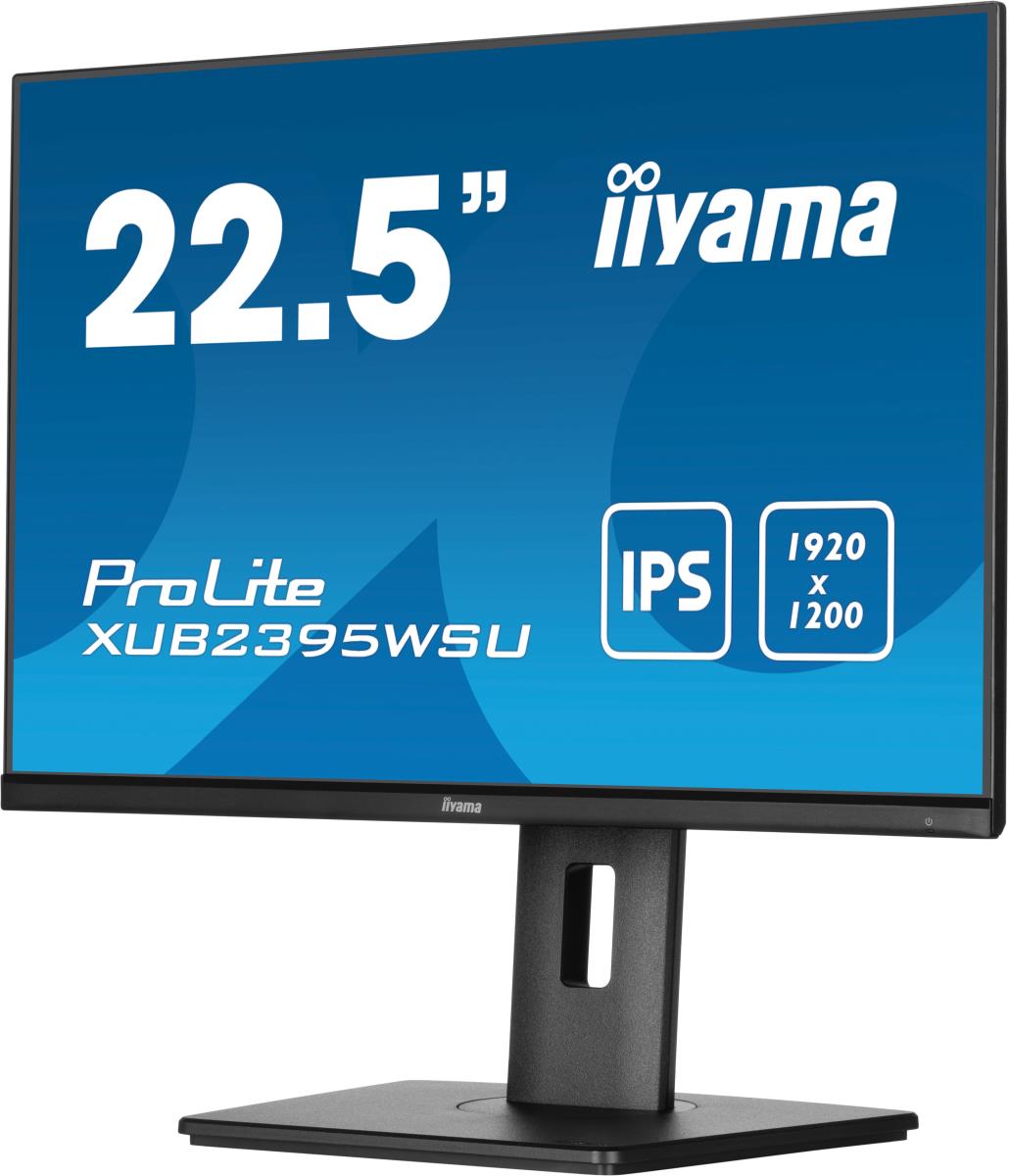

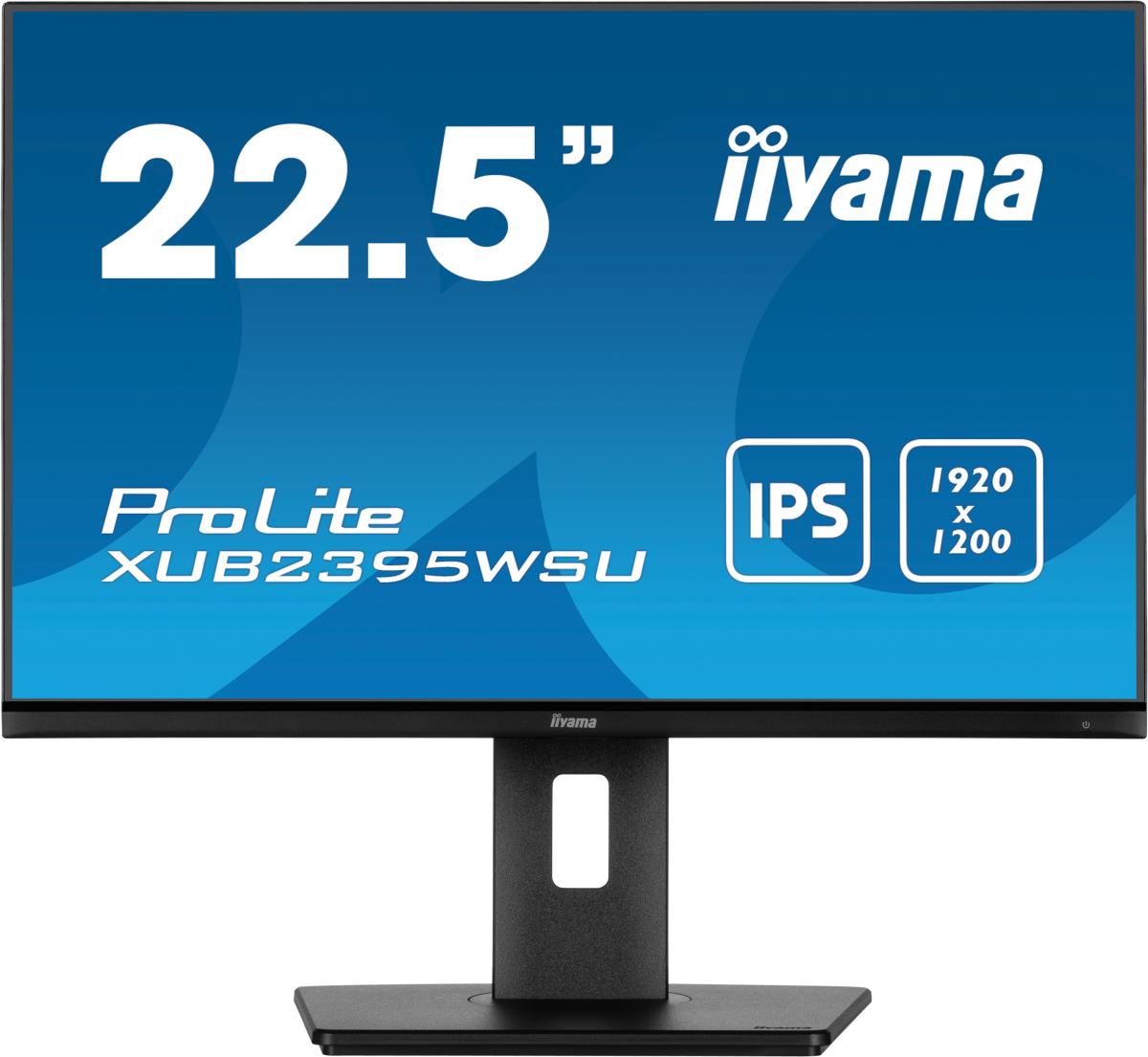

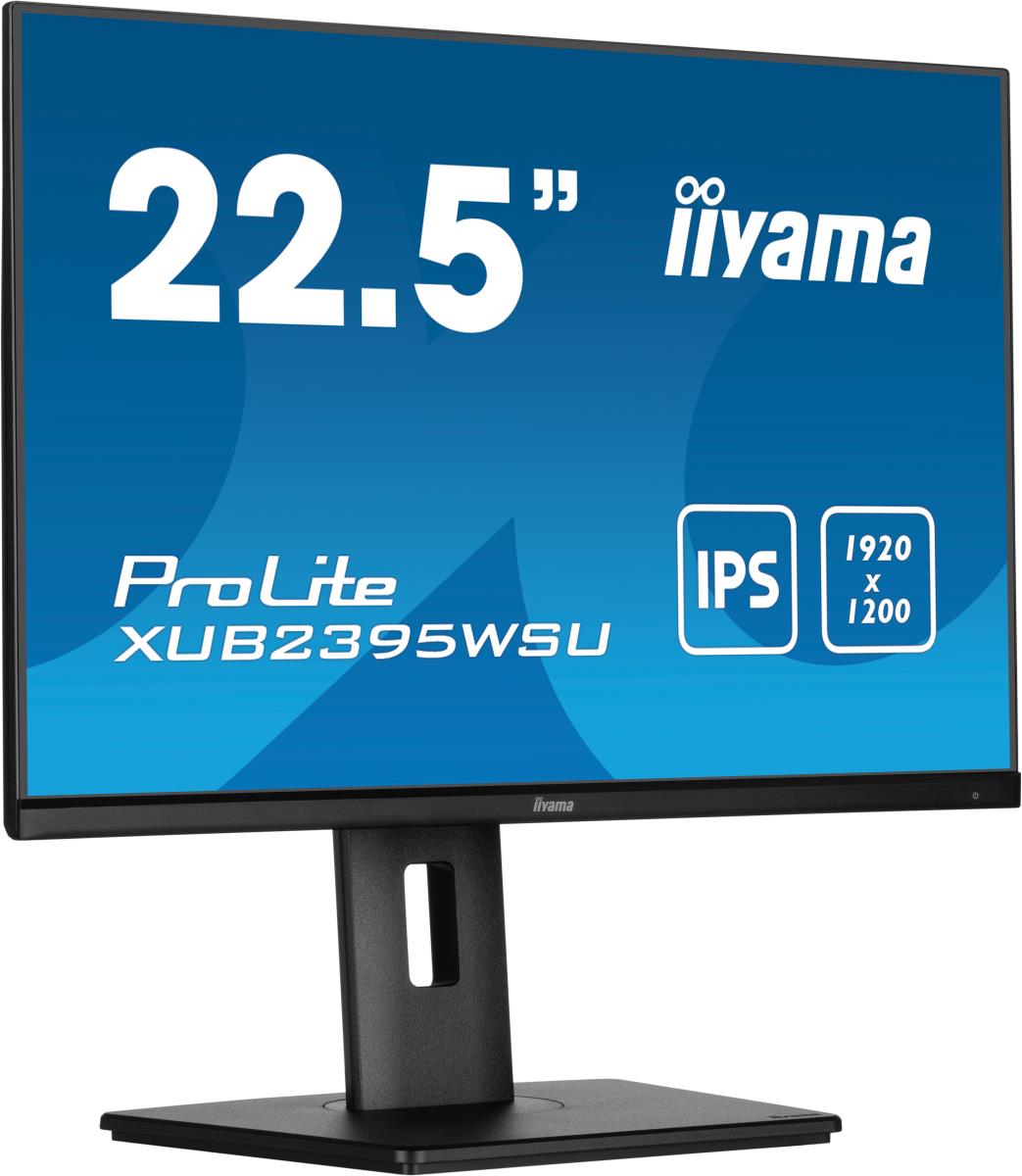

22.5” 1920 x 1200 monitor featuring IPS panel technology and a height adjustable stand
The demanding data and application-heavy world needs a display that creates a more productive work place. With 1920 x 1200 resolution, the XUB2395WSU offers 11% more height with the same width as a Full HD display, which works much better for spreadsheets, word documents and browsing the Internet. The height adjustable stand with PIVOT function allows you to easily adjust the monitor position to your preferences and the IPS panel technology assures accurate and consistent colour reproduction with wide viewing angles.
Display
Response time measurement type
GTG (Gray to Gray)
DDC/CI
Yes
Display diagonal
57.1 cm (22.5")
Display resolution
1920 x 1200 pixels
HD type
WUXGA
Native aspect ratio
16:10
Display technology
LCD
Panel type
IPS
Touchscreen
No
Display brightness (typical)
250 cd/m²
Response time
4 ms
Display surface
Matt
Screen shape
Flat
Contrast ratio (typical)
1000:1
Contrast ratio (dynamic)
5000000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.7 million colours
Pixel pitch
0.254 x 0.248 mm
Horizontal scan range
48 - 75 kHz
Viewable size, horizontal
29.7 cm
Viewable size, vertical
48.8 cm
Display diagonal (metric)
57 cm
sRGB coverage (typical)
99%
NTSC coverage (typical)
72%
Multimedia
Number of speakers
2
RMS rated power
4 W
Built-in speaker(s)
Yes
Built-in camera
No

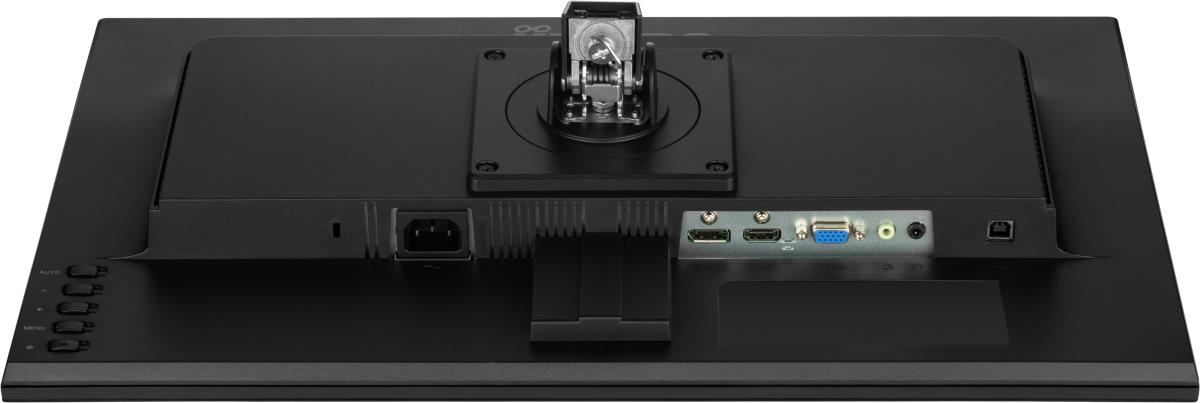

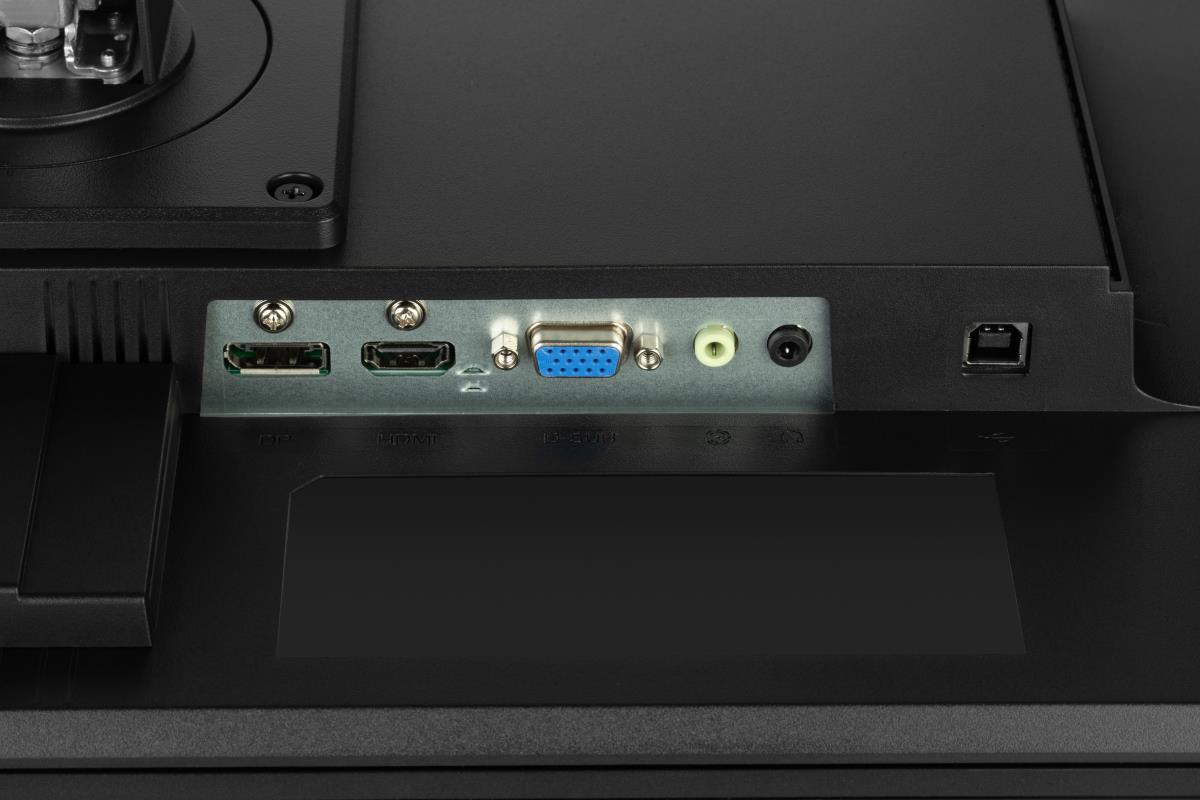

Ports & interfaces

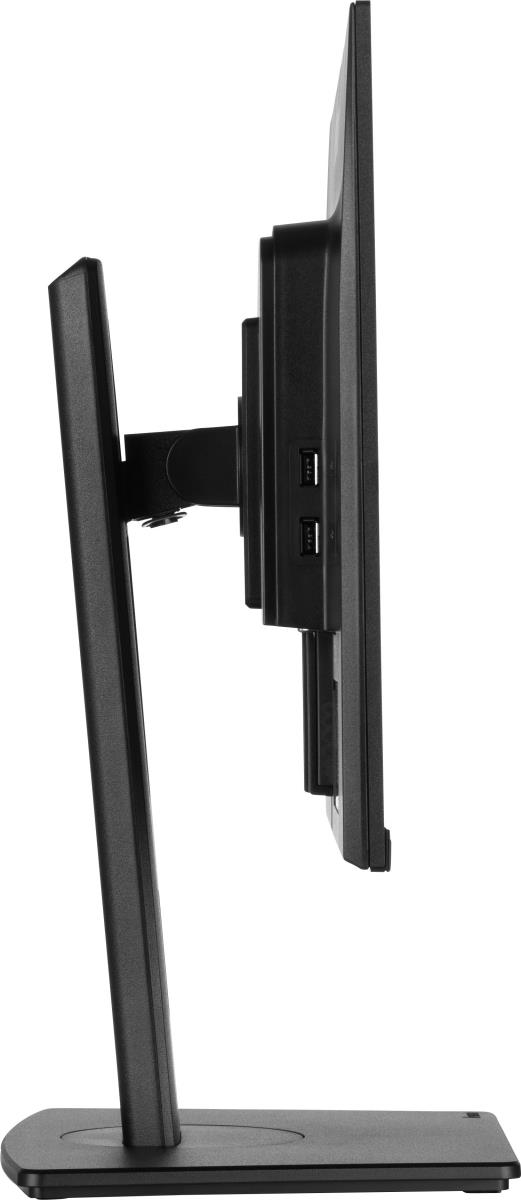

Number of downstream ports
2
Built-in USB hub
Yes
USB hub version
2.0
VGA (D-Sub) ports quantity
1
HDMI
Yes
HDMI ports quantity
1
DisplayPorts quantity
1
Headphone out
Yes
HDCP
Yes

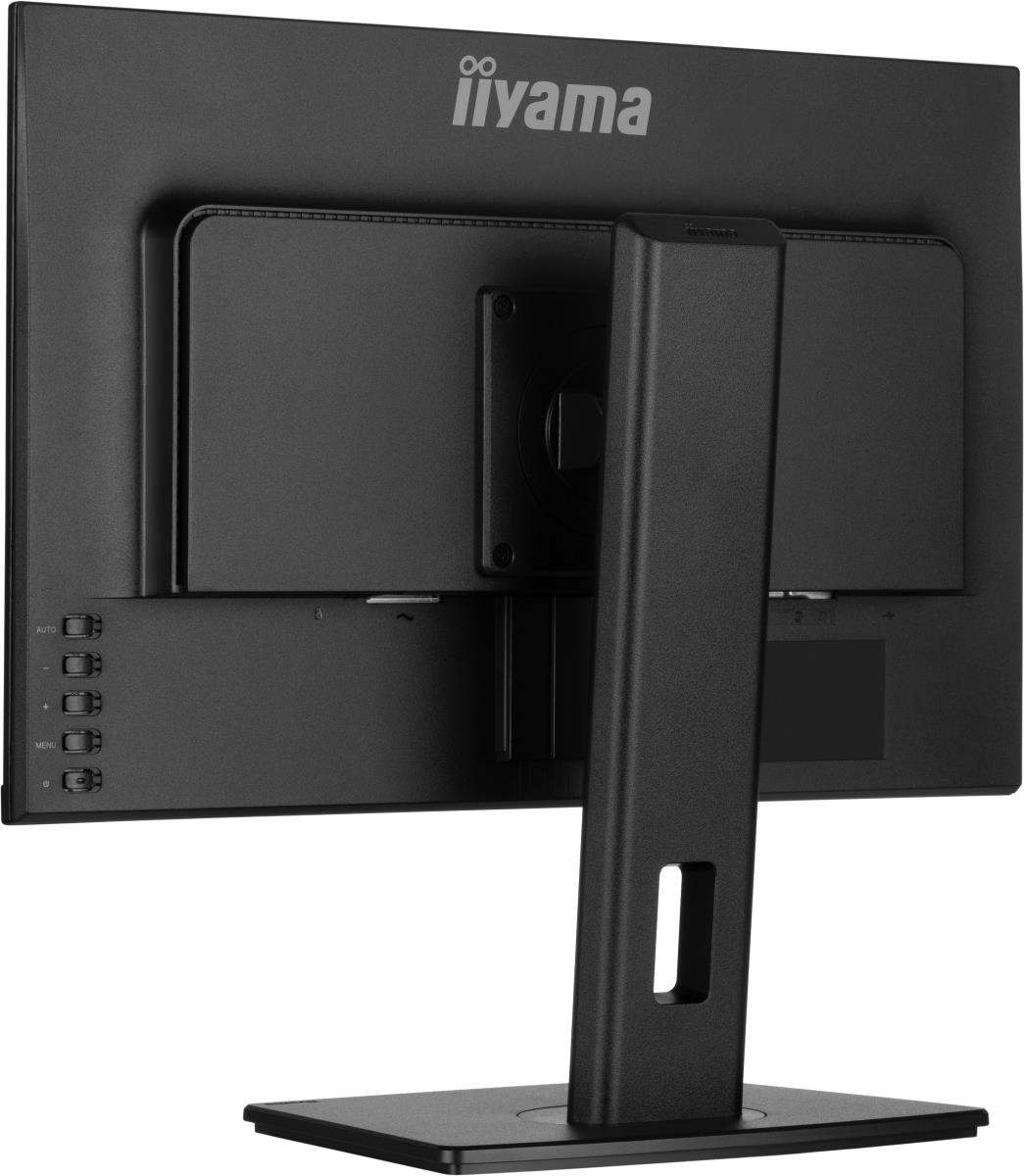

Ergonomics
On Screen Display (OSD) languages
German, English, French, Japanese, Dutch, Polish, Russian
VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Wall mountable
Yes
Cable management
Yes
Cable lock slot
Yes
Cable lock slot type
Kensington
Height adjustment
Yes
Height adjustment
15 cm

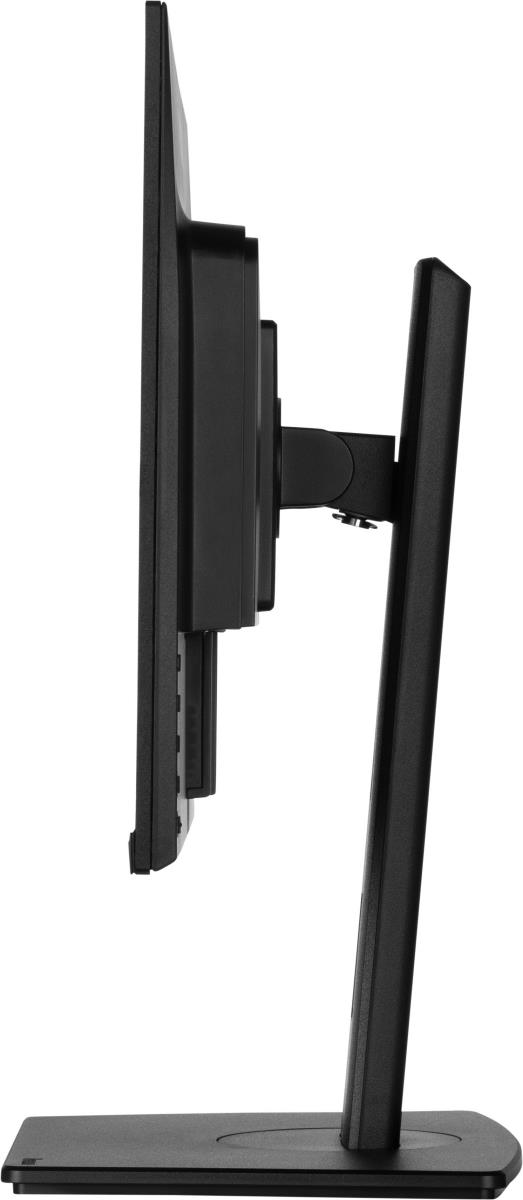

Pivot
Yes
Pivot angle
90 - 90°
Swivelling
Yes
Swivel angle range
45 - 90°

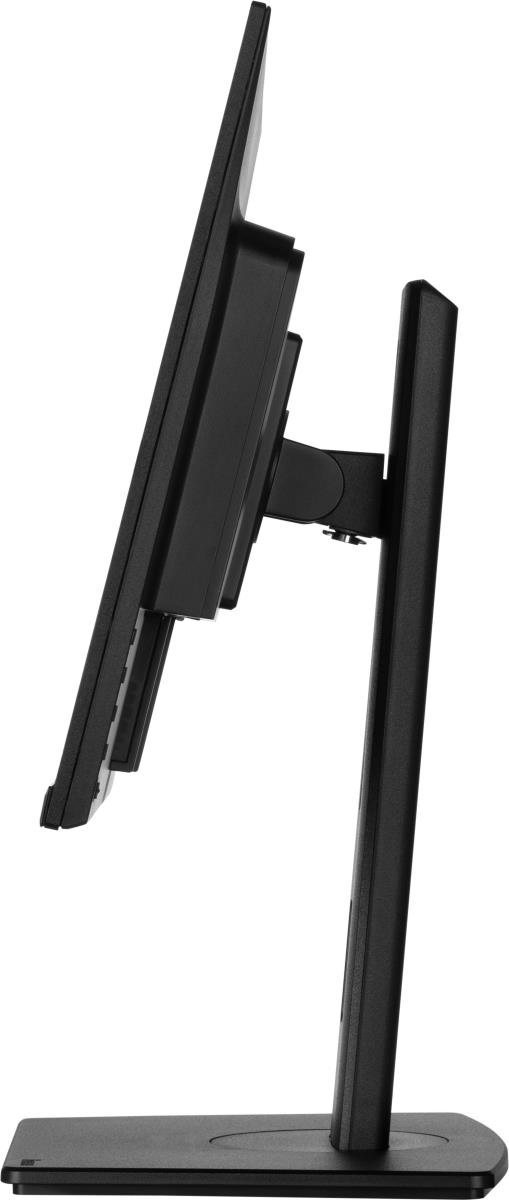

Tilt adjustment
Yes
Tilt angle range
23 - 5°
On Screen Display (OSD)
Yes
Sustainability
Sustainability certificates
ErP, TCO
Other features
User controls
luminance (contrast, brightness, i-Style colour, ACR, Eco), image settings (pixel clock, phase, H. position, V. position, aspect ratio), colour settings (gamma, 6-axis, colour temp.), OSD (H. position, V. position, OSD timeout, language), extra (reset, DDC/CI, signal select, OD, audio source, opening logo, FreeSync, information)
Packaging content
quick start guide, safety guide
Weight
4.5 kg
Width
499 mm
Depth
209.5 mm
Control panel
Auto / Signal Select, -/ECO, +/Volume, Menu, Power
Compliance certificates
CE, EAC, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE
Performance
AMD FreeSync
Yes
AMD FreeSync type
FreeSync
Flicker-free technology
Yes
Low Blue Light technology
Yes
Design
Market positioning
Business
Product colour
Black
Power
Energy efficiency class (SDR)
E
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
17 kWh
Power consumption (typical)
24 W
Power consumption (standby)
0.5 W
Power consumption (off)
0.3 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power supply type
Internal
Energy efficiency scale
A to G
European Product Registry for Energy Labelling (EPREL) code
1336247
Weight & dimensions
Width (with stand)
499 mm
Depth (with stand)
209.5 mm
Height (with stand)
503.5 mm
Weight (with stand)
4.5 kg
Width (without stand)
499 mm
Depth (without stand)
209.5 mm
Height (without stand)
353 mm
Packaging data
Package weight
6 kg
Package type
Box
Packaging content
Cables included
AC, DisplayPort, USB
Quick start guide
Yes
Information
| Part Number: | XUB2395WSU-B5 |
