Product Details
Introduction

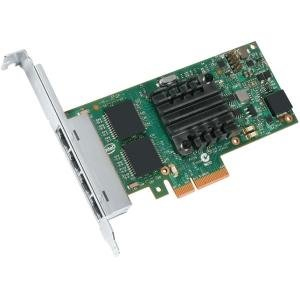

Based on the new Intel® Ethernet Controller I350 series, the Intel® Ethernet Server Adapter I350 represents the next step in the GbE networking evolution for the enterprise and data center. It introduces new levels of performance through industry-leading enhancements for both virtualized and Internet small computer system interface (iSCSI) unified networking environments. This new family of adapters also includes new power management technologies such as Energy-Efficient Ethernet (EEE) and direct memory access coalescing (DMAC).
Other features
Embedded options available
No
Cable type
Cat 5 up to 100m
Market segment
Server
Intel Virtual Machine Device Queues (VMDq)
Y
PCI-SIG* SR-IOV Capable
Y
On-chip QoS and Traffic Management
Y
Intel Flexible Port Partitioning
Y
Storage-over-ethernet
Y
Speed & slot width
5.0 GT/s, x4 Lane
Low halogen options available
N
Intelligent Offloads
Y
iWARP/RDMA
N
Intel Ethernet Power Management
Y
Intel Virtualization Technology for Connectivity (VT-c)
Y
Interface type
PCIe v2.1 (5.0 GT/s)
Storage Over Ethernet
iSCSI, NFS
Launch date
Q3'14
Network interface card cable medium
Copper
Network interface card type
Server
Product brief URL
http://www.intel.com/content/www/us/en/ethernet-controllers/ethernet-i350-server-adapter-brief.html?wapkw=i350
Product type
Network Interface Card
Status
Launched
Thermal Design Power (TDP)
5 W
Last change
63903513
Processor family
Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE)
Ethernet adapter ARK ID
84805
Harmonized System (HS) code
8517620090
Export Control Classification Number (ECCN)
5A991
Commodity Classification Automated Tracking System (CCATS)
NA
Controller type
Intel I350
Cabling type
Cat 5 up to 100m
Bracket height
Low-Profile (LP) / Full-Height (FH)
Product family
Intel Gigabit server adapter
Product series
Intel® I350
Product codename
Powerville
Ports & interfaces
Connectivity technology
Wired
Host interface
PCI Express
Interface
Ethernet
Ethernet LAN (RJ-45) ports
4
PCI version
2.1
PCI Card form factor
Full-height (low-profile)
Network
Maximum data transfer rate
1000 Mbit/s
Networking standards
IEEE 802.1as,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Ethernet LAN
Y
Ethernet LAN data rates
10,100,1000 Mbit/s
Cabling technology
10/100/1000BaseT(X)
Full duplex
Y
Supported network protocols
TCP, UDP, IP
Maximum operating distance
100 m
LAN controller
Intel® I350
Design
Component for
Server
Internal
Y
Chipset
Intel® I350
Power
Power consumption (typical)
5 W
System requirements
Compatible operating systems
https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html
Operational conditions
Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
35 - 90%
Weight & dimensions
Width
68.9 mm
Depth
135.4 mm
Information
| Part Number: | I350T4V2BLK |
